Sayfa 8-90 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10672 - EXR LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶

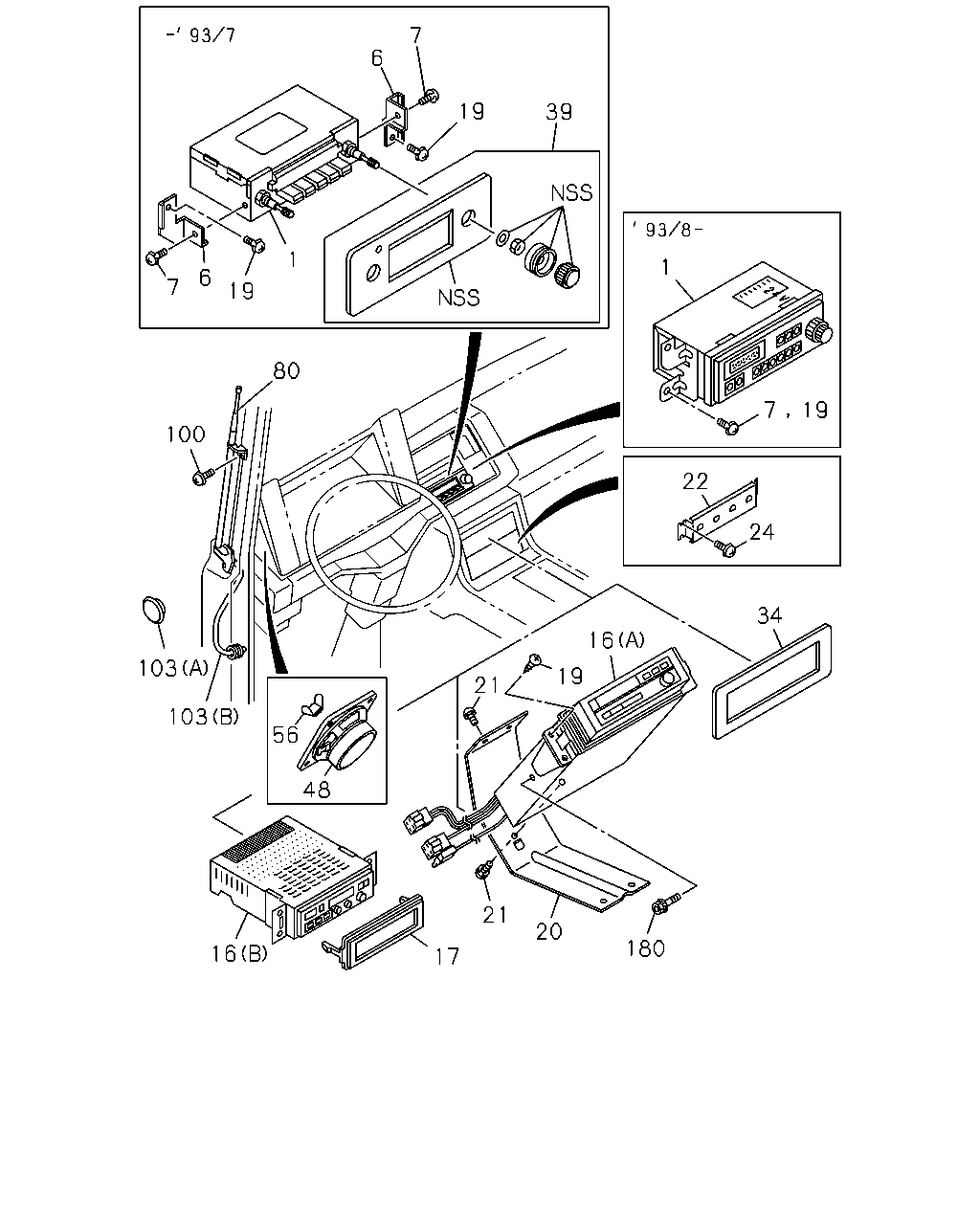

8-90 — RADIO AND TV (#3682) — 37 parça

7 6 19 39 1 1 6 7 19 80 7 19 100 22 24 34 16 103 19 21 103 56 48 16 21 20 180 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	RADIO RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) TUNER BAND LATIN AMERICA<TCG>	1-84112-060-0	01	1	9311-
1	RADIO RADIO CLARION<SK2>,RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1)	1-84112-036-0	01	1	9307-9307
1	RADIO RADIO CLARION<SK2>,RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1)	1-84112-059-0	01	1	9308-9310
1	RADIO RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) EXC. TUNER BAND LATIN AMERICA<TCG>	1-84112-059-0	01	1	9311-
1	RADIO RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1)	1-84112-025-0	01	1	9002-9212
1	RADIO RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1)	1-84112-036-0	01	1	9301-9306
6	BRACKET; RADIO TO PANEL RADIO CLARION<SK2>,RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1)	1-84116-056-0	01	1	9002-9307
6	BRACKET; RADIO TO PANEL RADIO CLARION<SK2>,RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1)	1-84116-057-0	01	1	9002-9307
7	SCREW; RADIO RADIO CLARION<SK2>,RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) M5X8 W/LK WASHER	9-03910-508-0	02	1	9002-
16	CASSETTE STEREO RADIO AM & TAPE PLAYER(UM1) (A)	1-84120-024-0	01	1	9002-9212
16	CASSETTE STEREO RADIO AM & TAPE PLAYER(UM1) (B)	1-84120-051-0	01	1	9301-9307
16	CASSETTE STEREO RADIO AM & TAPE PLAYER(UM1) (B)	1-84120-057-0	01	1	9308-
17	ATTACH KIT; CASSETTE RADIO AM & TAPE PLAYER(UM1)	1-84125-016-0	01	1	9301-
19	SCREW; DECK RADIO CLARION<SK2>,RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) M6X16 W/LK&PL WASHER	1-09981-141-0	02	1	9002-
20	BRACKET; STEREO RADIO AM & TAPE PLAYER(UM1)	1-84126-025-0	01	1	9002-9212
20	BRACKET; STEREO RADIO AM & TAPE PLAYER(UM1)	1-84126-025-0	01	1	9307-9308
20	BRACKET; STEREO RADIO AM & TAPE PLAYER(UM1)	1-84126-033-0	01	1	9309-
20	BRACKET; STEREO RADIO AM & TAPE PLAYER(UM1)	1-84126-033-0	01	1	9301-9306
21	SCREW; STEREO RADIO AM & TAPE PLAYER(UM1) M5X12 TAPPING W/PL WASHER	0-74300-512-0	04	1	9002-
21	SCREW; STEREO RADIO AM & TAPE PLAYER(UM1) M5X10 W/LK WASHER	9-03910-510-0	04	1	9002-
22	PANEL; RADIO	1-65670-887-1	01	1	9002-9505
22	PANEL; RADIO EXC. RADIO AM & TAPE PLAYER(UM1)	1-65670-887-1	01	1	9506-
24	SCREW; BLIND PANEL M5X14 W/PL WASHER	5-09981-050-0	04	1	9002-9505
24	SCREW; BLIND PANEL EXC. RADIO AM & TAPE PLAYER(UM1) M5X14 W/PL WASHER	5-09981-050-0	04	1	9506-
34	COVER; RADIO HOLE EXC. RADIO CLARION<SK2>,RADIO FUJITUU(SQ2),RADIO AM& TAPE PLAYER(UM1)	1-84125-007-2	01	1	9002-
39	ESCUTCHEON RADIO CLARION<SK2>,RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1)	1-84119-033-1	01	1	9002-9212
39	ESCUTCHEON RADIO CLARION<SK2>,RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1)	1-84119-034-1	01	1	9301-9307
48	SPEAKER; AUDIO RADIO AM & TAPE PLAYER(UM1)	1-84114-033-0	02	1	9002-
48	SPEAKER; AUDIO RADIO CLARION<SK2>,RADIO FUJITUU(SQ2)	1-84114-033-0	01	1	9002-
56	NUT; SPEAKER,RADIO OR STEREO RADIO AM & TAPE PLAYER(UM1)	1-09984-118-0	04	1	9002-
56	NUT; SPEAKER,RADIO OR STEREO RADIO CLARION<SK2>,RADIO FUJITUU(SQ2)	1-09984-118-0	02	1	9002-
80	ANTENNA RADIO CLARION<SK2>,RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1)	1-84115-052-1	01	1	9002-
100	SCREW; ANTENNA HOLE,FRT EXC. RADIO CLARION<SK2>,RADIO FUJITUU(SQ2),RADIO AM& TAPE PLAYER(UM1)	9-07067-412-0	03	1	9002-9004
100	SCREW; ANTENNA HOLE,FRT EXC. RADIO CLARION<SK2>,RADIO FUJITUU(SQ2),RADIO AM& TAPE PLAYER(UM1)	1-09983-094-0	03	1	9005-
103	GROMMET; ANTENNA HOLE,FRT RADIO CLARION<SK2>,RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) (B) ID=10 OD=42 T=5	1-09983-111-0	01	1	9002-
103	GROMMET; ANTENNA HOLE,FRT EXC. RADIO CLARION<SK2>,RADIO FUJITUU(SQ2),RADIO AM& TAPE PLAYER(UM1) (A)	9-09756-038-0	01	1	9002-
180	BOLT; STEREO TO BRKT RADIO AM & TAPE PLAYER(UM1) M5X8 W/LK WASHER	9-03910-508-0	01	1	9002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
