◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11424 - FVR(MIDDLE EAST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER ▶
1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#36819) — 47 parça

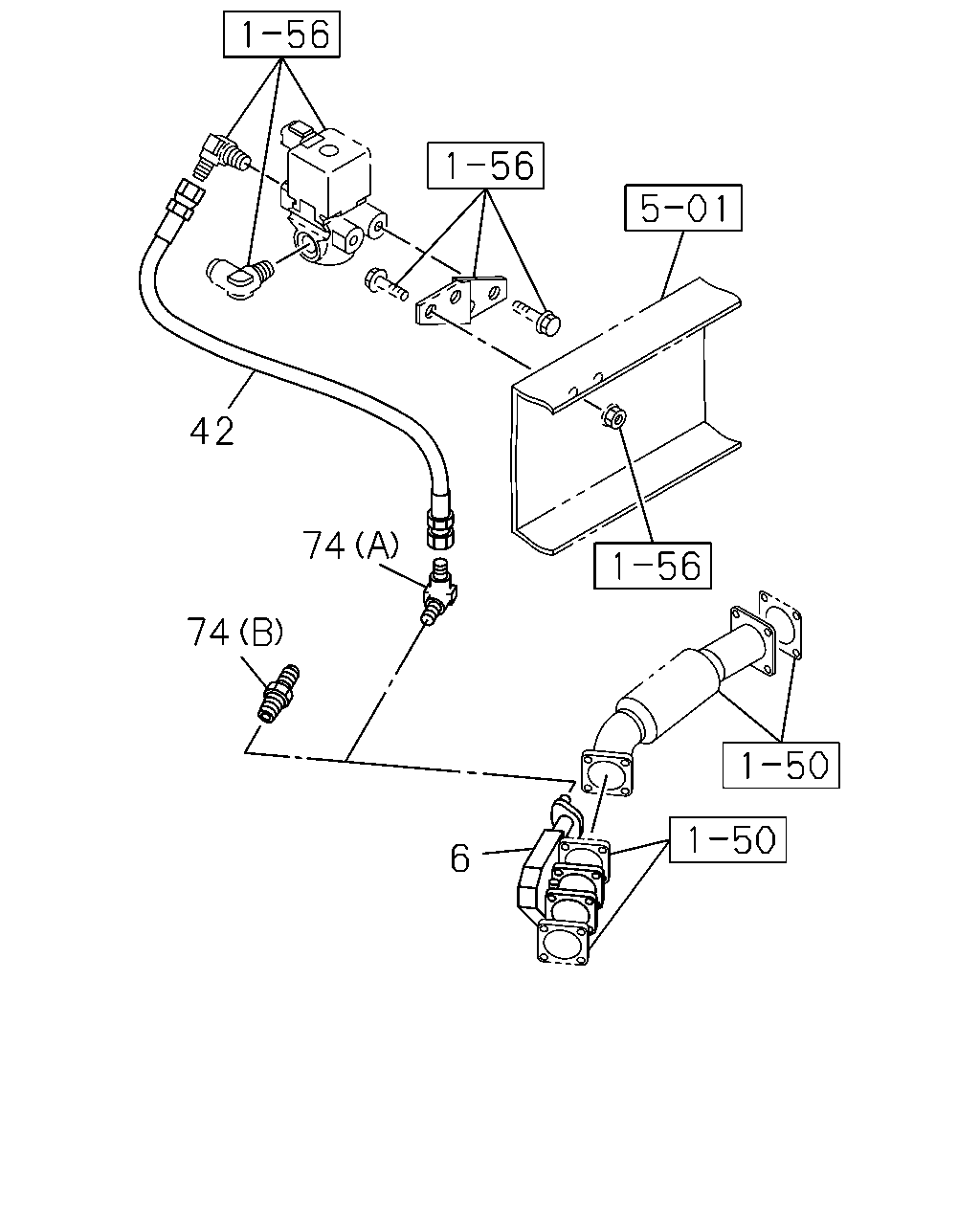

çizim 111650
42 74 74 6
BalonParca AdiParca NoAdetTipApplied Date
6 VALVE; EXH BRAKE 8-98054-173-6 01 1 0809-1302
6 VALVE; EXH BRAKE 8-98233-801-0 01 1 1303-
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=460 		1-09363-648-0 01 1 0809-0811
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=460 		1-09363-648-0 01 1 0812-0903
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=480 		1-09363-659-0 01 1 0904-0906
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=480 		1-09363-659-0 01 1 0907-1011
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> L=480 		1-09363-659-0 01 1 1012-
42 HOSE; FLEX,EXH BRK
FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=410 		1-09363-895-0 01 1 0812-0903
42 HOSE; FLEX,EXH BRK
FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=370 		1-09363-771-0 01 1 0904-1011
42 HOSE; FLEX,EXH BRK
FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> L=370 		1-09363-771-0 01 1 1012-
42 HOSE; FLEX,EXH BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=540 		1-09363-612-1 01 1 0809-
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> L=360 		1-09363-637-0 01 1 1012-
42 HOSE; FLEX,EXH BRK
FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> L=310 		1-09363-713-0 01 1 1012-
74 CONNECTOR; EXH BRK VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-0905
74 CONNECTOR; EXH BRK VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-0905
74 CONNECTOR; EXH BRK VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0906-1011
74 CONNECTOR; EXH BRK VLV
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-
74 CONNECTOR; EXH BRK VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-
74 CONNECTOR; EXH BRK VLV
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-
74 CONNECTOR; EXH BRK VLV
FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1012-
çizim 111652
82 83 42 80 71 81 74 6
BalonParca AdiParca NoAdetTipApplied Date
6 VALVE; EXH BRAKE 8-98054-173-6 01 1 0809-1302
6 VALVE; EXH BRAKE 8-98233-801-0 01 1 1303-
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=460 		1-09363-648-0 01 1 0809-0811
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=460 		1-09363-648-0 01 1 0812-0903
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=480 		1-09363-659-0 01 1 0904-0906
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=480 		1-09363-659-0 01 1 0907-1011
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> L=480 		1-09363-659-0 01 1 1012-
42 HOSE; FLEX,EXH BRK
FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=410 		1-09363-895-0 01 1 0812-0903
42 HOSE; FLEX,EXH BRK
FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=370 		1-09363-771-0 01 1 0904-1011
42 HOSE; FLEX,EXH BRK
FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> L=370 		1-09363-771-0 01 1 1012-
42 HOSE; FLEX,EXH BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=540 		1-09363-612-1 01 1 0809-
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> L=360 		1-09363-637-0 01 1 1012-
42 HOSE; FLEX,EXH BRK
FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> L=310 		1-09363-713-0 01 1 1012-
71 BOLT; CLIP
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X25 FLANGE 		0-28650-825-0 01 1 0810-
74 CONNECTOR; EXH BRK VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-0905
74 CONNECTOR; EXH BRK VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-0905
74 CONNECTOR; EXH BRK VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0906-1011
74 CONNECTOR; EXH BRK VLV
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-
74 CONNECTOR; EXH BRK VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-
74 CONNECTOR; EXH BRK VLV
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-
74 CONNECTOR; EXH BRK VLV
FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1012-
80 BRACKET; FLEX HOSE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		8-98078-153-0 01 1 0809-0812
80 BRACKET; FLEX HOSE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		8-98140-791-0 01 1 0901-
81 BOLT; HOSE BRKT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10X25 FLANGE 		0-28051-025-0 01 1 0809-0809
81 BOLT; HOSE BRKT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10X35 FLANGE 		0-28051-035-0 01 1 0810-
82 NUT; HOSE BRKT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10 FLANGE 		0-91180-210-0 01 1 0809-
83 CLIP; FLEX HOSE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=13 		1-09701-030-1 01 1 0810-
