1-50 — EXHAUST PIPE AND SILENCER (#36818) — 160 parça

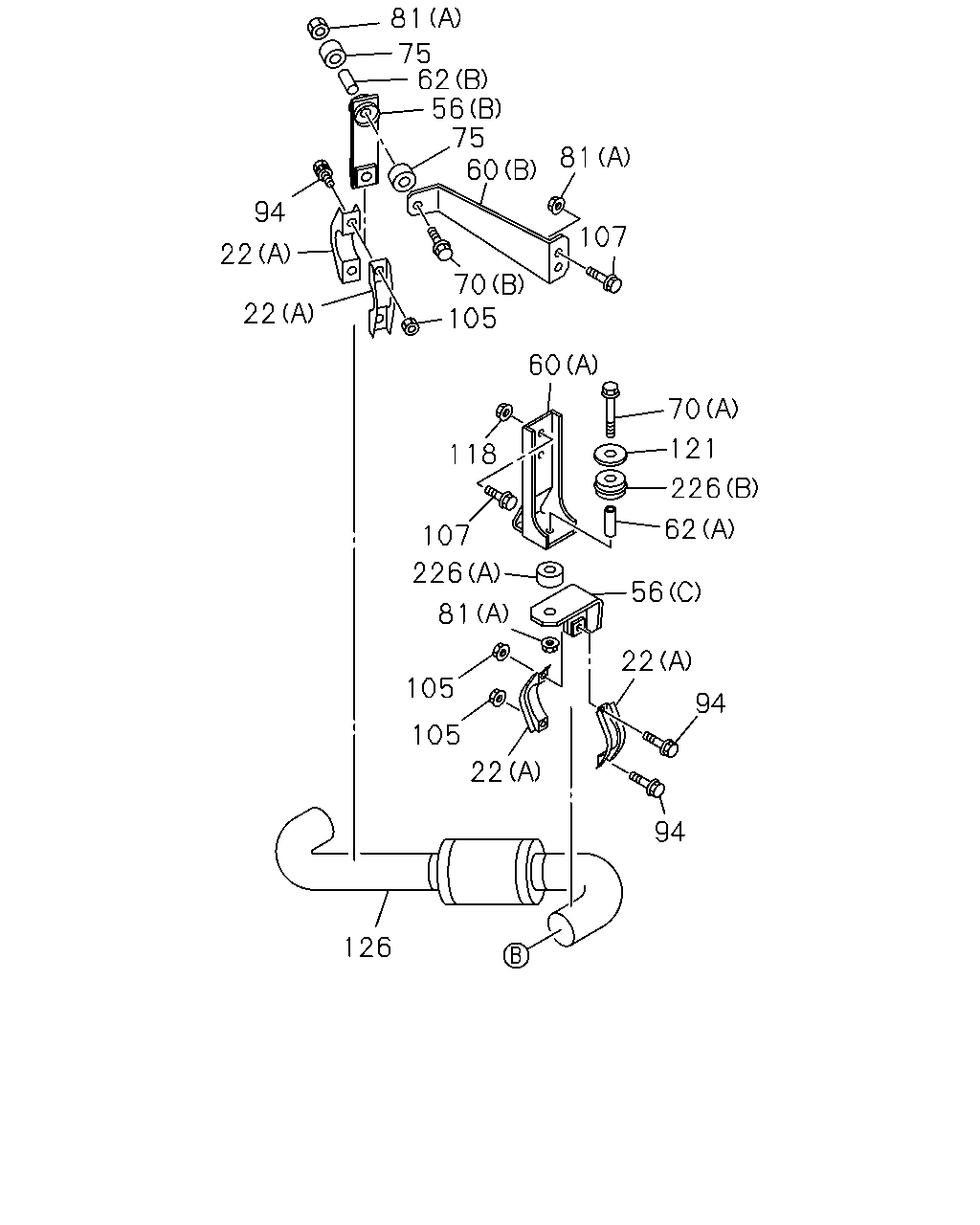

81 81 60 75 56 62 75 107 70 60 105 94 22 22 70 118 121 107 226 226 62 56 22 81 105 105 22 94 94 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE TURBO - CONVENTIONAL<Q5T> (B)	8-97615-334-0	01	1	1305-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0809-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0809-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-528-1	01	1	0809-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	0809-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98070-639-0	01	1	0809-1309
56	BRACKET; CLAMP,EXH PIPE (C)	8-98245-536-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (B)	8-98108-507-0	01	1	0809-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1309
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1309
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0809-0906
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0809-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0809-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0809-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	0809-
81	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE	0-91180-110-0	02	1	1305-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0809-0810
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0809-0810
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0809-0810
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0811-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0811-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0811-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0809-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0809-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0809-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0809-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0809-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0809-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0809-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	0809-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	0809-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	0809-
126	PIPE; EXH,RR	8-98069-920-0	01	1	0809-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0809-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0809-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0809-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0809-

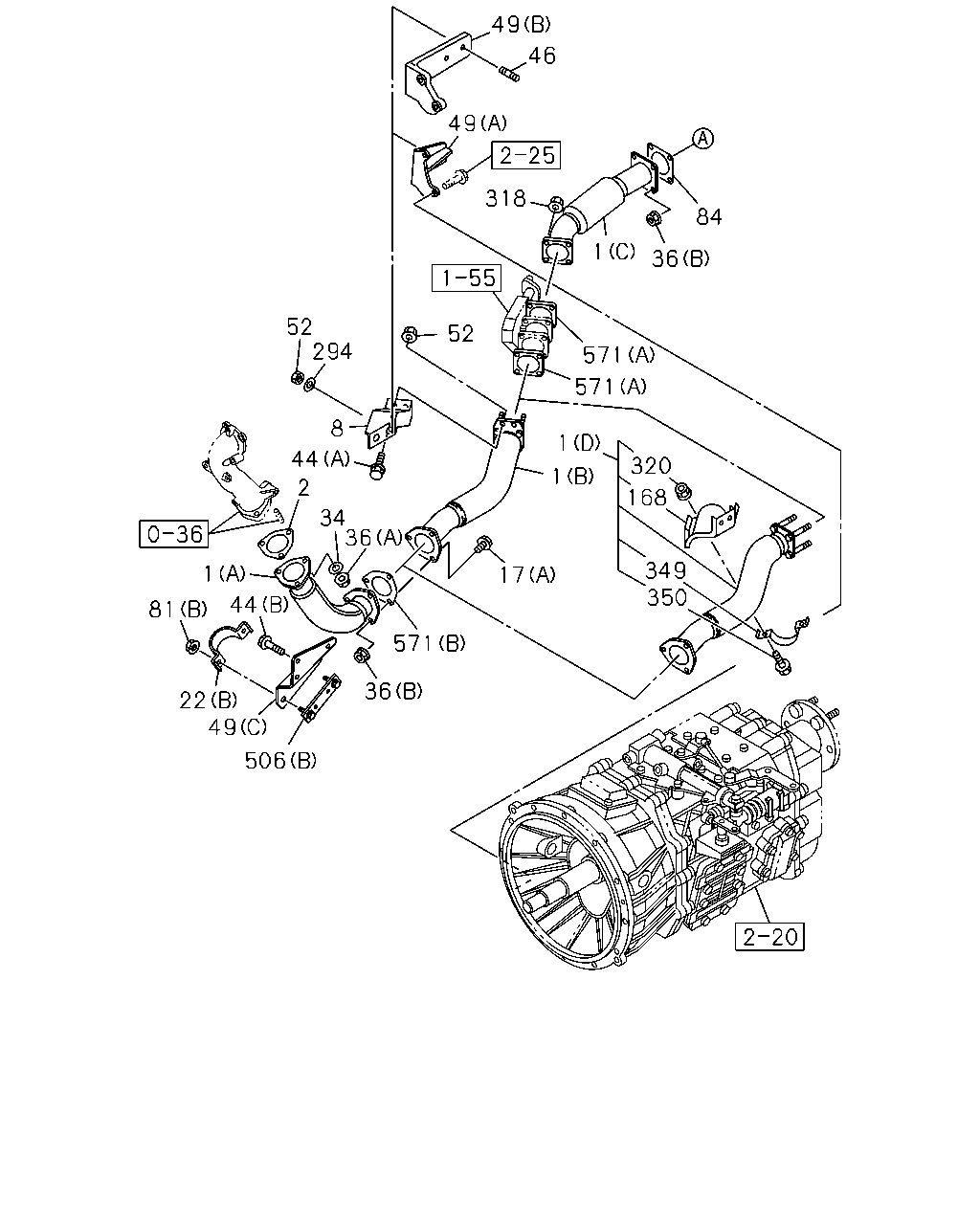

49 46 49 318 84 36 1 52 571 571 52 294 44 2 34 36 1 81 44 22 49 506 36 571 17 1 1 320 168 349 350 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH MZX6P M/T(RSW) (D)	8-98051-487-0	01	1	0809-0809
1	PIPE; EXH MLD6W M/T(Y2C) (D)	8-98119-515-0	01	1	0809-0809
1	PIPE; EXH MZX6P M/T(RSW),MLD6W M/T(Y2C) (D)	8-98119-515-0	01	1	0809-0906
1	PIPE; EXH MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (D)	8-98119-515-0	01	1	0907-1209
1	PIPE; EXH MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (D)	8-98230-001-0	01	1	1210-1309
1	PIPE; EXH MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (D)	8-98245-502-0	01	1	1310-1406
1	PIPE; EXH MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (D)	8-98234-516-1	01	1	1407-
1	PIPE; EXH MZX6P M/T(RSW),MLD6W M/T(Y2C) (C)	8-98096-668-1	01	1	0809-0906
1	PIPE; EXH MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (C)	8-98096-668-2	01	1	0907-
1	PIPE; EXH FULLER FSO5206B OD M/T(Y4V) (B)	8-98060-615-0	01	1	0809-1309
1	PIPE; EXH FULLER FSO5206B OD M/T(Y4V) (B)	8-98245-500-0	01	1	1310-
1	PIPE; EXH FULLER FSO5206B OD M/T(Y4V) (C)	8-98090-386-0	01	1	0809-
1	PIPE; EXH (A)	8-98073-006-3	01	1	0809-1011
1	PIPE; EXH TURBO - CONVENTIONAL<Q5T> (A)	8-98073-006-3	01	1	1012-
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98090-385-0	01	1	1012-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). ID=81	8-98043-481-0	01	1	0809-
8	BRACKET; EXH PIPE FULLER FSO5206B OD M/T(Y4V)	8-98069-914-0	01	1	0809-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	0809-
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	0809-1011
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	1012-
22	CLAMP; EXH PIPE TURBO - CONVENTIONAL<Q5T> (B)	8-97615-334-0	01	1	1305-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0809-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0809-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0809-
36	NUT; EXH PIPE (C) M10 FLANGE	0-91180-210-0	02	1	0809-
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0809-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	0809-
44	BOLT; BRKT TURBO - CONVENTIONAL<Q5T> (B) M10X20 FLANGE	0-28751-020-0	03	1	1305-
44	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (A) M10X30 FLANGE	0-28651-030-0	02	1	0809-0907
44	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (A) M10X35 FLANGE	0-28651-035-0	02	1	0908-
46	BOLT; BRKT,EXH PIPE MLD6W M/T(Y2C) M10X25 L=40	0-44011-025-0	02	1	0809-0809
46	BOLT; BRKT,EXH PIPE MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) M10X25 L=40	0-44011-025-0	02	1	0809-0906
46	BOLT; BRKT,EXH PIPE M10X25 L=40	0-44011-025-0	02	1	0907-
49	BRACKET; EXH PIPE TO TRANS TURBO - CONVENTIONAL<Q5T> (C)	8-97629-970-0	01	1	1305-
49	BRACKET; EXH PIPE TO TRANS MZX6P M/T(RSW) (A)	8-98084-127-0	01	1	0809-0809
49	BRACKET; EXH PIPE TO TRANS MZX6P M/T(RSW) (B)	8-98120-493-0	01	1	0809-0906
49	BRACKET; EXH PIPE TO TRANS MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98120-493-0	01	1	0907-
49	BRACKET; EXH PIPE TO TRANS FULLER FSO5206B OD M/T(Y4V) (A)	8-98069-908-0	01	1	0809-0809
49	BRACKET; EXH PIPE TO TRANS FULLER FSO5206B OD M/T(Y4V) (B)	8-98123-995-0	01	1	0809-
49	BRACKET; EXH PIPE TO TRANS MLD6W M/T(Y2C) (B)	8-98113-012-0	01	1	0809-
52	NUT; BRKT FULLER FSO5206B OD M/T(Y4V) M10 FLANGE	0-91180-210-0	02	1	0809-
81	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE	0-91180-110-0	02	1	1305-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0809-0810
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0809-0810
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0809-0810
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0811-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0811-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0811-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0809-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0809-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0809-
84	GASKET; EXH PIPE	8-98096-305-0	01	1	0809-
168	BRACKET; EXH PIPE,FRT MZX6P M/T(RSW),MLD6W M/T(Y2C)	8-98071-144-0	01	1	0809-0906
168	BRACKET; EXH PIPE,FRT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C)	8-98071-144-0	01	1	0907-1209
168	BRACKET; EXH PIPE,FRT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C)	8-98221-369-1	01	1	1210-
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE ID=10.5	8-98073-091-0	02	1	0809-
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	0809-
320	NUT; CLAMP,EXH PIPE MZX6P M/T(RSW),MLD6W M/T(Y2C) M10 FLANGE	0-91180-210-0	02	1	0809-0906
320	NUT; CLAMP,EXH PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M10 FLANGE	0-91180-210-0	02	1	0907-
349	CLAMP; EXH PIPE MZX6P M/T(RSW)	8-98058-351-0	01	1	0809-0809
349	CLAMP; EXH PIPE MLD6W M/T(Y2C)	8-98115-162-0	01	1	0809-0809
349	CLAMP; EXH PIPE MZX6P M/T(RSW),MLD6W M/T(Y2C)	8-98115-162-0	01	1	0809-0906
349	CLAMP; EXH PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C)	8-98115-162-0	01	1	0907-
350	BOLT; CLAMP,EXH PIPE MZX6P M/T(RSW),MLD6W M/T(Y2C) M10X30 FLANGE	0-28651-030-0	02	1	0809-0906
350	BOLT; CLAMP,EXH PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M10X30 FLANGE	0-28651-030-0	02	1	0907-
506	BRACKET; STUD TURBO - CONVENTIONAL<Q5T> (B)	8-97615-333-1	01	1	1305-
506	BRACKET; STUD (A) M12X35	1-22131-963-0	02	1	0809-
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	0809-
571	GASKET (B) ID=81	8-98043-481-0	01	1	0809-

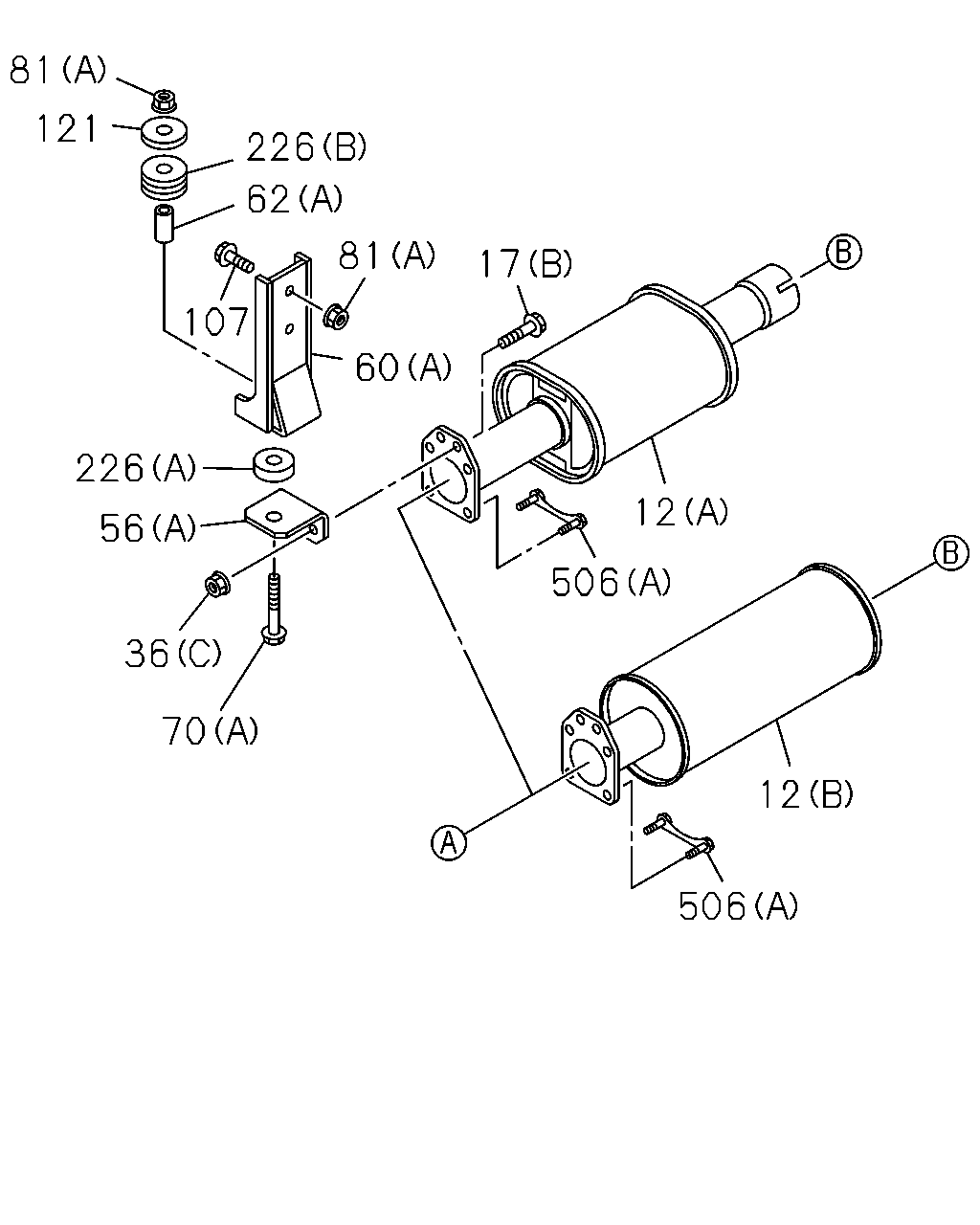

81 121 226 62 107 226 81 60 17 56 36 70 12 506 12 506

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH (A)	8-98101-274-0	01	1	0809-1011
12	SILENCER ASM; EXH EURO2 SPECIFICATION<NT2> (A)	8-98101-274-1	01	1	1012-
12	SILENCER ASM; EXH EURO3 SPECIFICATION<NT3> (B)	8-98090-389-2	01	1	1012-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	0809-
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	0809-1011
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	1012-
36	NUT; EXH PIPE (C) M10 FLANGE	0-91180-210-0	02	1	0809-
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0809-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	0809-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-528-1	01	1	0809-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	0809-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98070-639-0	01	1	0809-1309
56	BRACKET; CLAMP,EXH PIPE (C)	8-98245-536-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (B)	8-98108-507-0	01	1	0809-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1309
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1309
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0809-0906
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0809-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0809-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0809-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-
81	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE	0-91180-110-0	02	1	1305-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0809-0810
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0809-0810
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0809-0810
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0811-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0811-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0811-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0809-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0809-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0809-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	0809-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	0809-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0809-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0809-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0809-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0809-
506	BRACKET; STUD TURBO - CONVENTIONAL<Q5T> (B)	8-97615-333-1	01	1	1305-
506	BRACKET; STUD (A) M12X35	1-22131-963-0	02	1	0809-
