1-41 — FUEL PIPING; CHASSIS (#36816) — 100 parça
çizim 111633
67 41 41 634 41 55 83 41 47 304 303 80 97 174 41 67 634 41 304 97 623
BalonParca AdiParca NoAdetTipApplied Date
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 01 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1012-
47 PIPE; FUEL,RETURN
L=539 		8-98117-709-0 01 1 0809-
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0809-
67 HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20> (D) L=900 		8-98128-211-0 01 1 0809-0910
67 HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20> (D) L=900 		8-98157-879-0 01 1 0911-
67 HOSE; FUEL,DELIVERY
(C) L=300 		8-98128-210-0 01 1 0809-0910
67 HOSE; FUEL,DELIVERY
(C) L=300 		8-98157-878-0 01 1 0911-
67 HOSE; FUEL,DELIVERY
(A) L=110 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
67 HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 0809-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 02 1 0809-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 02 1 0809-
97 BRACKET; CLIP
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) 		8-98117-696-0 01 1 0809-0809
97 BRACKET; CLIP
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) 		8-98117-696-0 01 1 0810-0812
97 BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V) (C) 		8-98126-612-0 01 1 0809-0809
97 BRACKET; CLIP
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) 		8-98126-612-0 01 1 0810-0812
97 BRACKET; CLIP
(C) 		8-98126-612-0 01 1 0901-1011
97 BRACKET; CLIP
(C) 		8-98126-612-0 01 1 1012-
97 BRACKET; CLIP
(B) 		8-98053-654-0 01 1 0809-
174 PIPE; FUEL,FEED,FRT
L=548 		8-98117-708-0 01 1 0809-
303 BOLT; BRKT
MZX6P M/T(RSW),MLD6W M/T(Y2C) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE 		0-28650-835-0 02 1 0809-0809
303 BOLT; BRKT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE 		0-28650-835-0 02 1 0810-0812
303 BOLT; BRKT
MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE 		0-28650-830-0 02 1 0809-0809
303 BOLT; BRKT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE 		0-28650-830-0 02 1 0810-0812
303 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0809-1009
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1010-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0809-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010-
623 PLATE; STUD BOLT
FULLER FSO5206B OD M/T(Y4V) 		8-98126-633-0 01 1 0809-0809
623 PLATE; STUD BOLT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-98126-633-0 01 1 0810-0812
623 PLATE; STUD BOLT 8-98126-633-0 01 1 0901-
634 HOSE; RUBBER RETURN
L=1050 		8-98128-212-0 01 1 0809-
çizim 111643
41 228 279 39 304 41 39 303 345 418 345 304
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL 8-97358-699-0 02 1 0809-0903
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 0904-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 01 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1012-
228 BOLT; BRKT,SEDIMENTER
M8X25 FLANGE 		0-28050-825-0 02 1 0809-
228 BOLT; BRKT,SEDIMENTER
M10X50 FLANGE 		0-28051-050-0 02 1 0809-
228 BOLT; BRKT,SEDIMENTER
M8X20 FLANGE 		0-28650-820-0 02 1 0809-
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 0809-
303 BOLT; BRKT
MZX6P M/T(RSW),MLD6W M/T(Y2C) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE 		0-28650-835-0 02 1 0809-0809
303 BOLT; BRKT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE 		0-28650-835-0 02 1 0810-0812
303 BOLT; BRKT
MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE 		0-28650-830-0 02 1 0809-0809
303 BOLT; BRKT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE 		0-28650-830-0 02 1 0810-0812
303 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0809-1009
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1010-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0809-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010-
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 0809-
418 BRACKET; PRE FUEL FILTER 8-98128-254-0 01 1 0809-

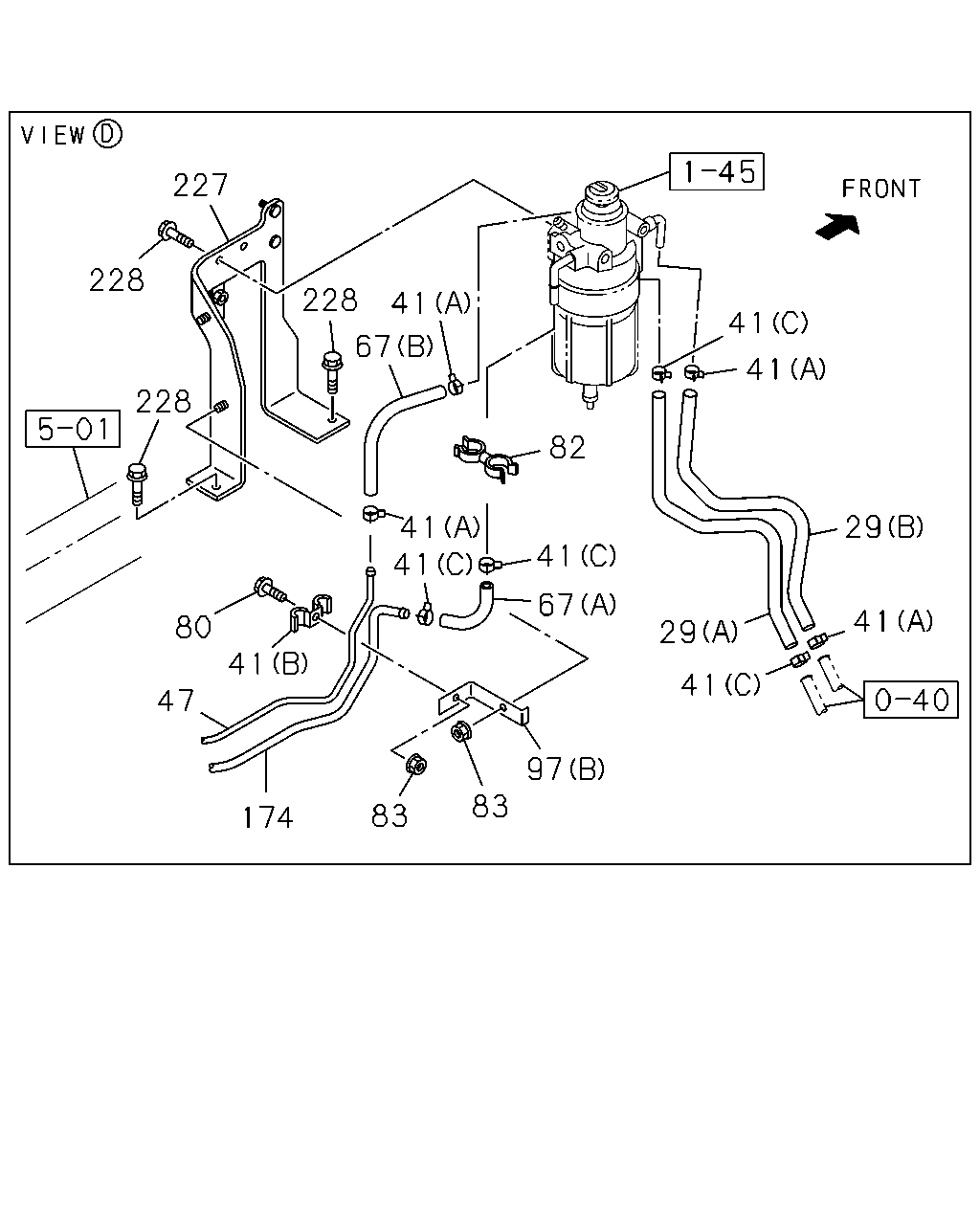

çizim 111646
227 228 228 80 47 41 174 83 83 97 41 41 228 67 41 41 82 41 67 29 41 41 29 41
BalonParca AdiParca NoAdetTipApplied Date
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 0809-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 01 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1012-
47 PIPE; FUEL,RETURN
L=539 		8-98117-709-0 01 1 0809-
67 HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20> (D) L=900 		8-98128-211-0 01 1 0809-0910
67 HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20> (D) L=900 		8-98157-879-0 01 1 0911-
67 HOSE; FUEL,DELIVERY
(C) L=300 		8-98128-210-0 01 1 0809-0910
67 HOSE; FUEL,DELIVERY
(C) L=300 		8-98157-878-0 01 1 0911-
67 HOSE; FUEL,DELIVERY
(A) L=110 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
67 HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 0809-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 02 1 0809-
82 CLIP; FUEL HOSE
ID=13 & 16.5 		8-94169-028-0 01 1 0809-1011
82 CLIP; FUEL HOSE
EURO2 SPECIFICATION<NT2> ID=13 & 16.5 		8-94169-028-0 01 1 1012-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 02 1 0809-
97 BRACKET; CLIP
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) 		8-98117-696-0 01 1 0809-0809
97 BRACKET; CLIP
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) 		8-98117-696-0 01 1 0810-0812
97 BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V) (C) 		8-98126-612-0 01 1 0809-0809
97 BRACKET; CLIP
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) 		8-98126-612-0 01 1 0810-0812
97 BRACKET; CLIP
(C) 		8-98126-612-0 01 1 0901-1011
97 BRACKET; CLIP
(C) 		8-98126-612-0 01 1 1012-
97 BRACKET; CLIP
(B) 		8-98053-654-0 01 1 0809-
174 PIPE; FUEL,FEED,FRT
L=548 		8-98117-708-0 01 1 0809-
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 0809-
228 BOLT; BRKT,SEDIMENTER
M8X25 FLANGE 		0-28050-825-0 02 1 0809-
228 BOLT; BRKT,SEDIMENTER
M10X50 FLANGE 		0-28051-050-0 02 1 0809-
228 BOLT; BRKT,SEDIMENTER
M8X20 FLANGE 		0-28650-820-0 02 1 0809-

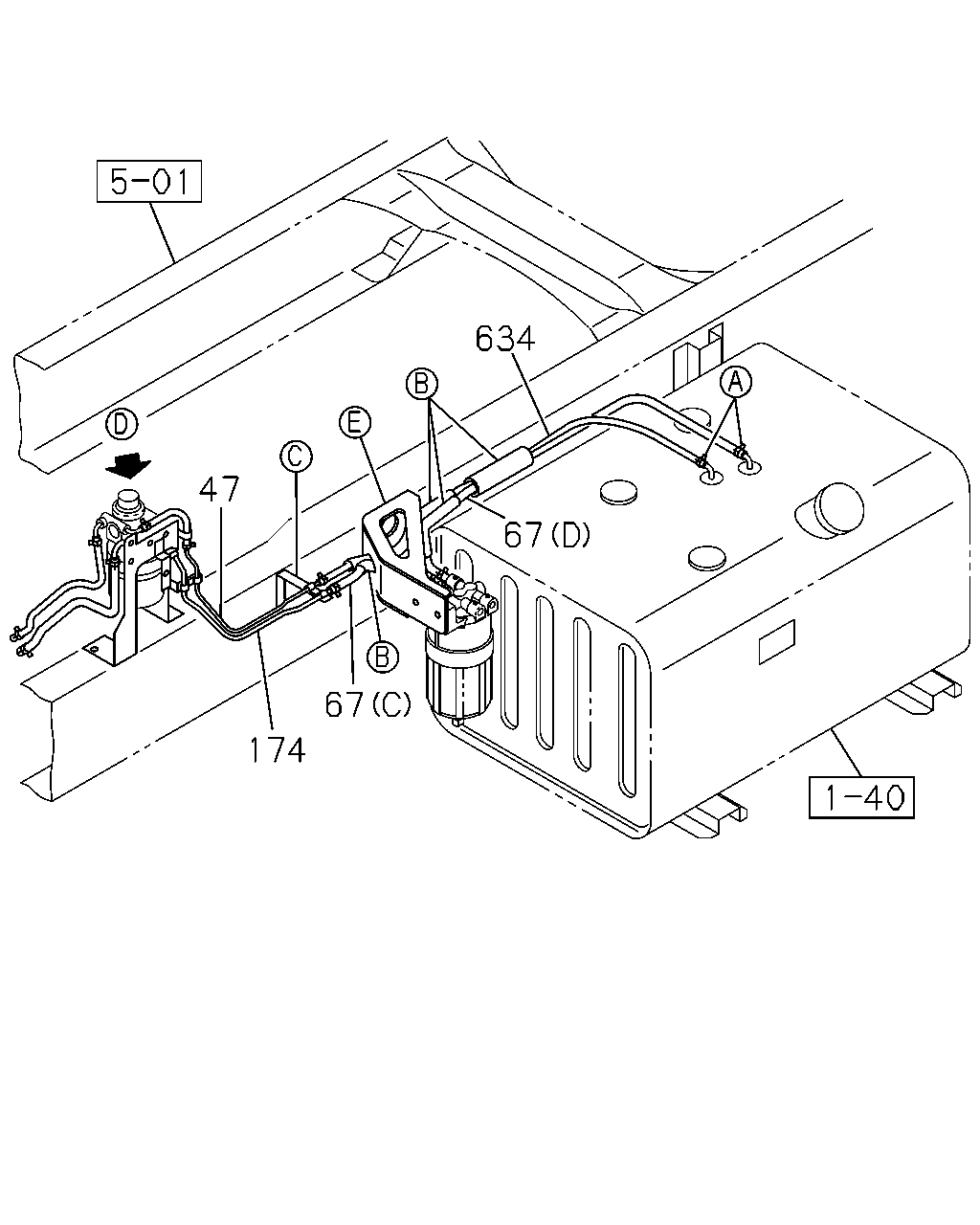

çizim 111648
47 634 67 67 174
BalonParca AdiParca NoAdetTipApplied Date
47 PIPE; FUEL,RETURN
L=539 		8-98117-709-0 01 1 0809-
67 HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20> (D) L=900 		8-98128-211-0 01 1 0809-0910
67 HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20> (D) L=900 		8-98157-879-0 01 1 0911-
67 HOSE; FUEL,DELIVERY
(C) L=300 		8-98128-210-0 01 1 0809-0910
67 HOSE; FUEL,DELIVERY
(C) L=300 		8-98157-878-0 01 1 0911-
67 HOSE; FUEL,DELIVERY
(A) L=110 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
67 HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 0809-
174 PIPE; FUEL,FEED,FRT
L=548 		8-98117-708-0 01 1 0809-
634 HOSE; RUBBER RETURN
L=1050 		8-98128-212-0 01 1 0809-
