Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#36814) — 318 parça

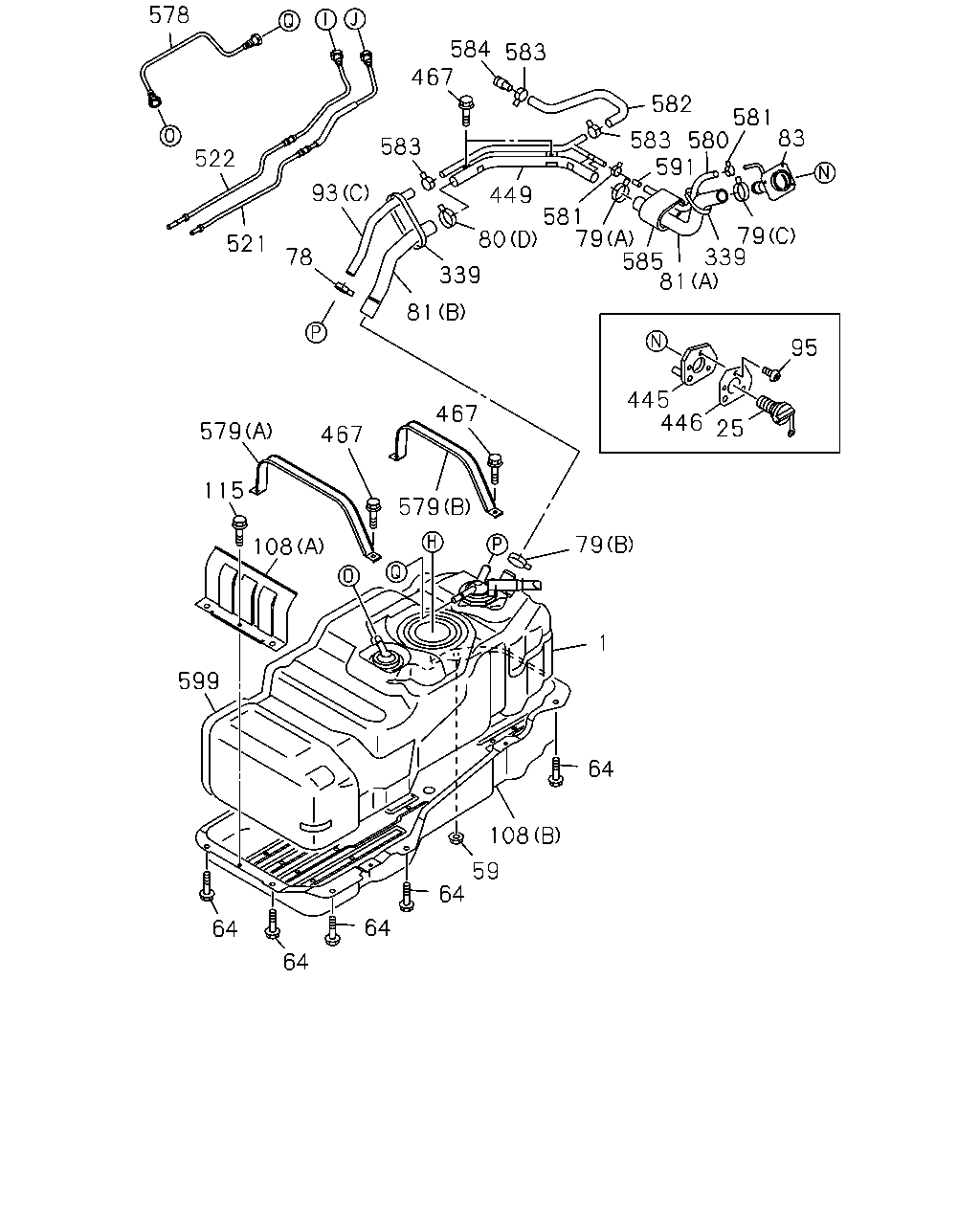

584 578 582 467 581 591 581 580 83 583 93 449 79 79 339 585 81 80 339 81 95 467 579 467 445 446 25 115 579 79 108 1 599 64 108 59 64 64 64 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL	8-97138-069-3	01	1	9707-9904
1	TANK; FUEL	8-97224-823-0	01	1	9905-0007
1	TANK; FUEL	8-97226-442-3	01	1	0008-0112
1	TANK; FUEL	8-97329-930-0	01	1	0201-0201
1	TANK; FUEL	8-97329-932-1	01	1	0202-
25	CAP; FILLER,FUEL TANK	8-97118-748-2	01	1	9707-0104
25	CAP; FILLER,FUEL TANK	8-97308-614-1	01	1	0105-0302
25	CAP; FILLER,FUEL TANK	8-97362-812-1	01	1	0303-
59	NUT; FUEL TANK M10 FLANGE	8-97142-595-0	01	1	9707-
64	BOLT; FUEL TANK M10X30 FLANGE	8-97174-300-1	03	1	9707-0007
64	BOLT; FUEL TANK M10X30 FLANGE	8-97174-300-1	05	1	0008-
79	CLAMP; FILLER HOSE (A)	8-97237-144-0	01	1	0008-0106
79	CLAMP; FILLER HOSE (B)	8-97237-145-0	01	1	0008-0203
79	CLAMP; FILLER HOSE (B) ID=32-48	1-09707-133-0	01	1	0204-
79	CLAMP; FILLER HOSE (C) ID=31.2	8-97237-146-0	01	1	0008-0106
79	CLAMP; FILLER HOSE (A),(C) ID=31.2	8-97237-146-0	02	1	0107-0206
79	CLAMP; FILLER HOSE (A),(C) ID=26-41.5	1-09707-132-0	02	1	0207-
80	CLIP; FILLER HOSE (A),(C)	8-97139-975-0	03	1	9707-9805
80	CLIP; FILLER HOSE (A)	8-97139-975-0	02	1	9806-0007
80	CLIP; FILLER HOSE (D) ID=31.2	8-97237-146-0	01	1	0008-
80	CLIP; FILLER HOSE (B)	8-97170-389-0	01	1	9707-9805
80	CLIP; FILLER HOSE (B),(C)	8-97170-389-0	01	1	9806-0007
80	CLIP; FILLER HOSE (B),(C)	8-97170-389-0	01	1	9806-0007
81	HOSE; FUEL FILLER (A)	8-97178-849-1	01	1	9707-0007
81	HOSE; FUEL FILLER (A)	8-97220-412-1	01	1	0008-
81	HOSE; FUEL FILLER (B)	8-97178-852-0	01	1	9707-0007
81	HOSE; FUEL FILLER (B)	8-97220-410-0	01	1	0008-
83	NECK; FUEL FILLER	8-97124-848-0	01	1	9707-0007
83	NECK; FUEL FILLER	8-97220-404-2	01	1	0008-
93	HOSE; BREATHER,FUEL TANK (A)	8-97248-190-0	01	1	0008-0201
93	HOSE; BREATHER,FUEL TANK (C)	8-97224-014-0	01	1	0202-
93	HOSE; BREATHER,FUEL TANK (B)	8-97248-209-0	01	1	0008-0201
95	SCREW; FILLER NECK	8-97148-893-0	03	1	9707-
108	PROTECTOR; FUEL TANK (C)	8-97138-342-3	01	1	9707-9904
108	PROTECTOR; FUEL TANK (C)	8-97224-824-0	01	1	9905-0007
108	PROTECTOR; FUEL TANK (A)	8-97223-754-1	01	1	0008-0206
108	PROTECTOR; FUEL TANK (A)	8-97318-700-3	01	1	0207-
108	PROTECTOR; FUEL TANK (B)	8-97226-445-4	01	1	0008-
115	BOLT; BRKT M6X20 FLANGE	0-28680-620-0	06	1	9707-0007
115	BOLT; BRKT M6X20 FLANGE	0-28680-620-0	01	1	0008-
339	CLIP; BAND,FUEL HOSE L=330	5-09709-118-0	01	1	9707-0004
339	CLIP; BAND,FUEL HOSE L=330	5-09709-118-0	01	1	9707-0004
339	CLIP; BAND,FUEL HOSE L=330	5-09709-118-0	01	1	0005-0007
339	CLIP; BAND,FUEL HOSE L=300	1-09707-001-1	01	1	0005-0007
339	CLIP; BAND,FUEL HOSE L=350	8-94152-256-1	01	1	0008-
339	CLIP; BAND,FUEL HOSE L=350	8-94152-256-1	01	1	0008-
445	RUBBER; RECEIVER	8-97106-851-0	01	1	9707-
446	PLATE; FIXING	8-94340-181-0	01	1	9707-
449	PIPE; FILLER NECK	8-97220-406-2	01	1	0008-
467	BOLT M8X20 FLANGE	0-28480-820-0	02	1	9707-
467	BOLT M8X20 FLANGE	0-28480-820-0	04	1	0008-
578	TUBE; FUEL,EVAPO	8-97220-322-0	01	1	0008-0201
578	TUBE; FUEL,EVAPO	8-97318-931-1	01	1	0202-
579	BAND; FUEL TANK TO PROTECTOR (A)	8-97220-325-2	01	1	0008-
579	BAND; FUEL TANK TO PROTECTOR (B)	8-97220-326-2	01	1	0008-
580	HOSE; FUEL,RECIRCULATION	8-97220-413-0	01	1	0008-
581	CLIP; FUEL HOSE,RECIRCULATION ID=16	8-97173-222-0	02	1	0008-
582	HOSE; FUEL,VENTILATION	8-97220-414-0	01	1	0008-0106
582	HOSE; FUEL,VENTILATION	8-97300-069-0	01	1	0107-
583	CLIP; FUEL HOSE,VENTILATION ID=21	8-94242-034-0	03	1	0008-0208
583	CLIP; FUEL HOSE,VENTILATION ID=21	8-94242-034-0	01	1	0209-
584	CONNECTOR; VENTILATION	8-97223-671-0	01	1	0008-
585	PROTECTOR; FILLER HOSE	8-97223-670-0	01	1	0008-
591	ORIFICE; RECIRCULATION	8-97248-176-0	01	1	0008-
599	SHIELD; HEAT	8-97253-313-1	01	1	0008-0301
599	SHIELD; HEAT	8-97364-116-0	01	1	0302-

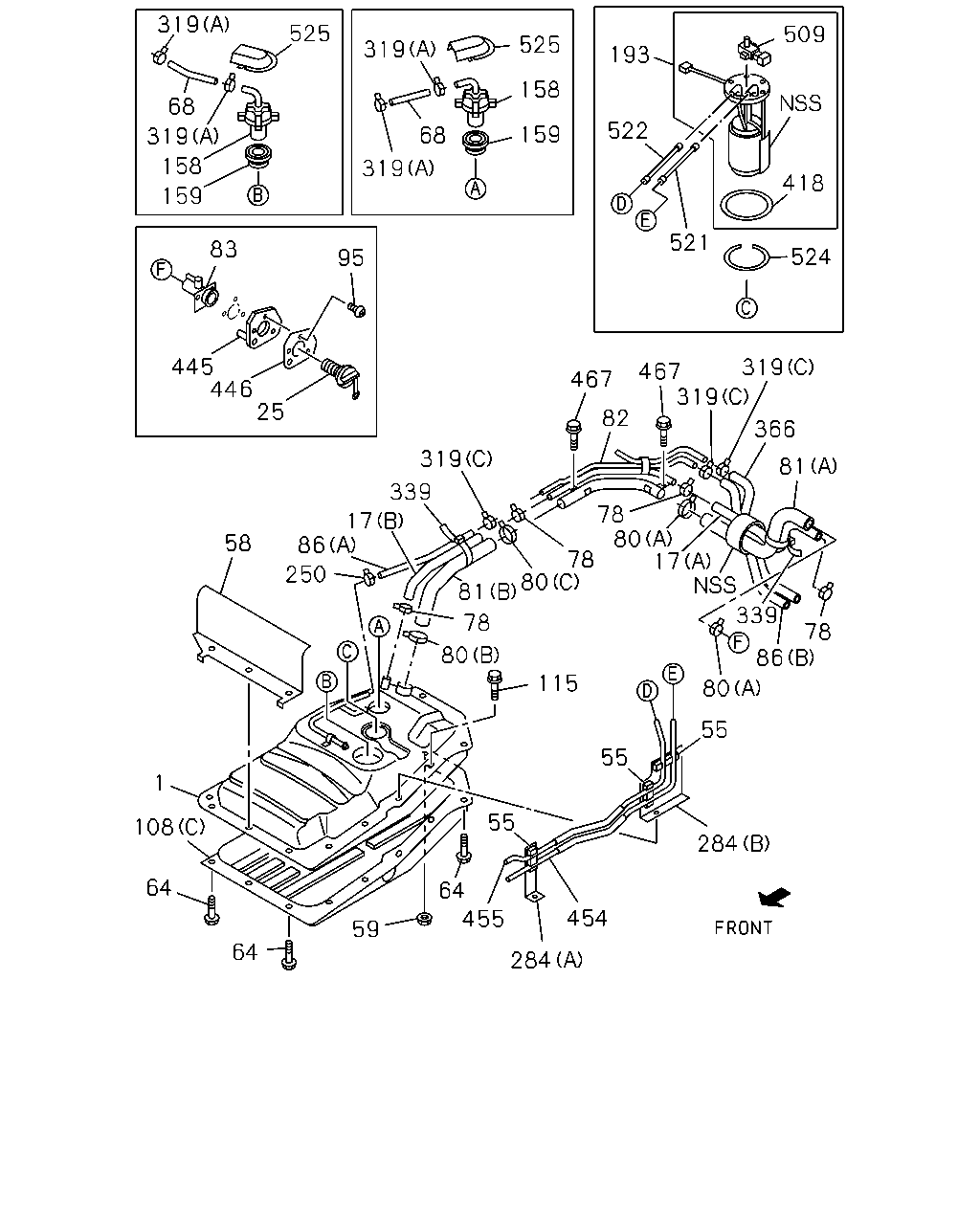

319 525 509 525 319 193 158 68 522 159 68 319 158 319 418 159 521 83 524 95 445 446 25 319 467 319 467 82 366 319 81 339 78 80 17 339 17 58 86 78 80 81 250 78 78 86 80 115 80 55 55 1 108 55 284 64 64 454 455 59 64 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL	8-97138-069-3	01	1	9707-9904
1	TANK; FUEL	8-97224-823-0	01	1	9905-0007
1	TANK; FUEL	8-97226-442-3	01	1	0008-0112
1	TANK; FUEL	8-97329-930-0	01	1	0201-0201
1	TANK; FUEL	8-97329-932-1	01	1	0202-
17	HOSE; BREATHER (A)	8-97178-857-0	01	1	9707-0007
17	HOSE; BREATHER (B)	8-97178-859-0	01	1	9707-0007
25	CAP; FILLER,FUEL TANK	8-97118-748-2	01	1	9707-0104
25	CAP; FILLER,FUEL TANK	8-97308-614-1	01	1	0105-0302
25	CAP; FILLER,FUEL TANK	8-97362-812-1	01	1	0303-
55	CLIP; FUEL PIPE	8-97140-132-0	03	1	9707-0007
58	PROTECTOR; HEAT,FUEL TANK	8-97170-360-0	01	1	9707-9904
58	PROTECTOR; HEAT,FUEL TANK	8-97225-074-0	01	1	9905-0007
59	NUT; FUEL TANK M10 FLANGE	8-97142-595-0	01	1	9707-
64	BOLT; FUEL TANK M10X30 FLANGE	8-97174-300-1	03	1	9707-0007
64	BOLT; FUEL TANK M10X30 FLANGE	8-97174-300-1	05	1	0008-
68	HOSE; RUBBER,FUEL TANK TO EVAP PIPE L=80 SERVICED BY L=3000	8-94128-826-0	02	1	9707-0007
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	02	1	9707-0007
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	02	1	9707-0007
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	03	1	0008-0201
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	01	1	0202-0208
80	CLIP; FILLER HOSE (A),(C)	8-97139-975-0	03	1	9707-9805
80	CLIP; FILLER HOSE (A)	8-97139-975-0	02	1	9806-0007
80	CLIP; FILLER HOSE (D) ID=31.2	8-97237-146-0	01	1	0008-
80	CLIP; FILLER HOSE (B)	8-97170-389-0	01	1	9707-9805
80	CLIP; FILLER HOSE (B),(C)	8-97170-389-0	01	1	9806-0007
80	CLIP; FILLER HOSE (B),(C)	8-97170-389-0	01	1	9806-0007
81	HOSE; FUEL FILLER (A)	8-97178-849-1	01	1	9707-0007
81	HOSE; FUEL FILLER (A)	8-97220-412-1	01	1	0008-
81	HOSE; FUEL FILLER (B)	8-97178-852-0	01	1	9707-0007
81	HOSE; FUEL FILLER (B)	8-97220-410-0	01	1	0008-
82	FILLER; FUEL	8-97135-884-3	01	1	9707-0007
83	NECK; FUEL FILLER	8-97124-848-0	01	1	9707-0007
83	NECK; FUEL FILLER	8-97220-404-2	01	1	0008-
86	HOSE; EVAP (A) L=520 SERVICED BY L=3000	0-04750-300-0	01	1	9707-0007
86	HOSE; EVAP (B)	8-97170-473-0	01	1	9707-0007
95	SCREW; FILLER NECK	8-97148-893-0	03	1	9707-
108	PROTECTOR; FUEL TANK (C)	8-97138-342-3	01	1	9707-9904
108	PROTECTOR; FUEL TANK (C)	8-97224-824-0	01	1	9905-0007
108	PROTECTOR; FUEL TANK (A)	8-97223-754-1	01	1	0008-0206
108	PROTECTOR; FUEL TANK (A)	8-97318-700-3	01	1	0207-
108	PROTECTOR; FUEL TANK (B)	8-97226-445-4	01	1	0008-
115	BOLT; BRKT M6X20 FLANGE	0-28680-620-0	06	1	9707-0007
115	BOLT; BRKT M6X20 FLANGE	0-28680-620-0	01	1	0008-
158	VALVE; ROLL OVER & FLOAT	8-97160-598-0	02	1	9707-0007
159	SEAL; ROLL OVER & FLOAT VALVE	8-94246-338-2	02	1	9707-0007
193	PUMP; FUEL	8-25166-689-0	01	1	9707-9803
193	PUMP; FUEL	8-25318-879-0	01	1	9804-9804
193	PUMP; FUEL	8-25319-098-0	01	1	9805-0002
193	PUMP; FUEL	8-25331-807-0	01	1	0003-0007
193	PUMP; FUEL	8-25326-590-0	01	1	0008-0106
193	PUMP; FUEL	8-25341-208-0	01	1	0107-
250	CLIP; BAND,EVAP HOSE ID=11	8-94238-570-0	01	1	9707-0007
284	BRACKET; CLIP,FUEL PIPE (A)	8-97138-355-0	01	1	9707-0007
284	BRACKET; CLIP,FUEL PIPE (B)	8-97138-356-3	01	1	9707-0007
319	CLIP; RUBBER HOSE (A) ID=8.5	8-94166-071-0	04	1	9707-0007
319	CLIP; RUBBER HOSE (C) ID=11	8-94238-570-0	03	1	9707-0007
319	CLIP; RUBBER HOSE (B) ID=11.5	8-97138-011-0	01	1	9707-0206
319	CLIP; RUBBER HOSE M/T MUA 5 SPEED 5C(RSN) (B) ID=11.5	8-97138-011-0	01	1	0207-0307
339	CLIP; BAND,FUEL HOSE L=330	5-09709-118-0	01	1	9707-0004
339	CLIP; BAND,FUEL HOSE L=330	5-09709-118-0	01	1	9707-0004
339	CLIP; BAND,FUEL HOSE L=330	5-09709-118-0	01	1	0005-0007
339	CLIP; BAND,FUEL HOSE L=300	1-09707-001-1	01	1	0005-0007
339	CLIP; BAND,FUEL HOSE L=350	8-94152-256-1	01	1	0008-
339	CLIP; BAND,FUEL HOSE L=350	8-94152-256-1	01	1	0008-
366	HOSE; EVAP	8-97170-472-0	01	1	9707-0007
418	GASKET; FUEL PUMP	8-25027-014-0	01	1	9804-0007
418	GASKET; FUEL PUMP	8-25028-682-0	01	1	0008-0106
445	RUBBER; RECEIVER	8-97106-851-0	01	1	9707-
446	PLATE; FIXING	8-94340-181-0	01	1	9707-
454	PIPE; FUEL,DELIVERY	8-97138-370-3	01	1	9707-0007
455	PIPE; FUEL,RETURN	8-97138-371-3	01	1	9707-0007
467	BOLT M8X20 FLANGE	0-28480-820-0	02	1	9707-
467	BOLT M8X20 FLANGE	0-28480-820-0	04	1	0008-
509	SENSOR; VAPOR	8-16238-399-0	01	1	9707-
509	SENSOR; VAPOR	8-16238-399-0	01	1	0207-
521	TUBE; FUEL,DELIVERY	8-97145-052-0	01	1	9707-0007
521	TUBE; FUEL,DELIVERY	8-97220-320-3	01	1	0008-0307
522	TUBE; FUEL,RETURN	8-97145-053-0	01	1	9707-0007
522	TUBE; FUEL,RETURN	8-97220-321-2	01	1	0008-0307
524	RING; RETAINER	8-22552-577-0	01	1	9707-0007
525	PROTECTOR	8-97148-971-0	02	1	9707-0007

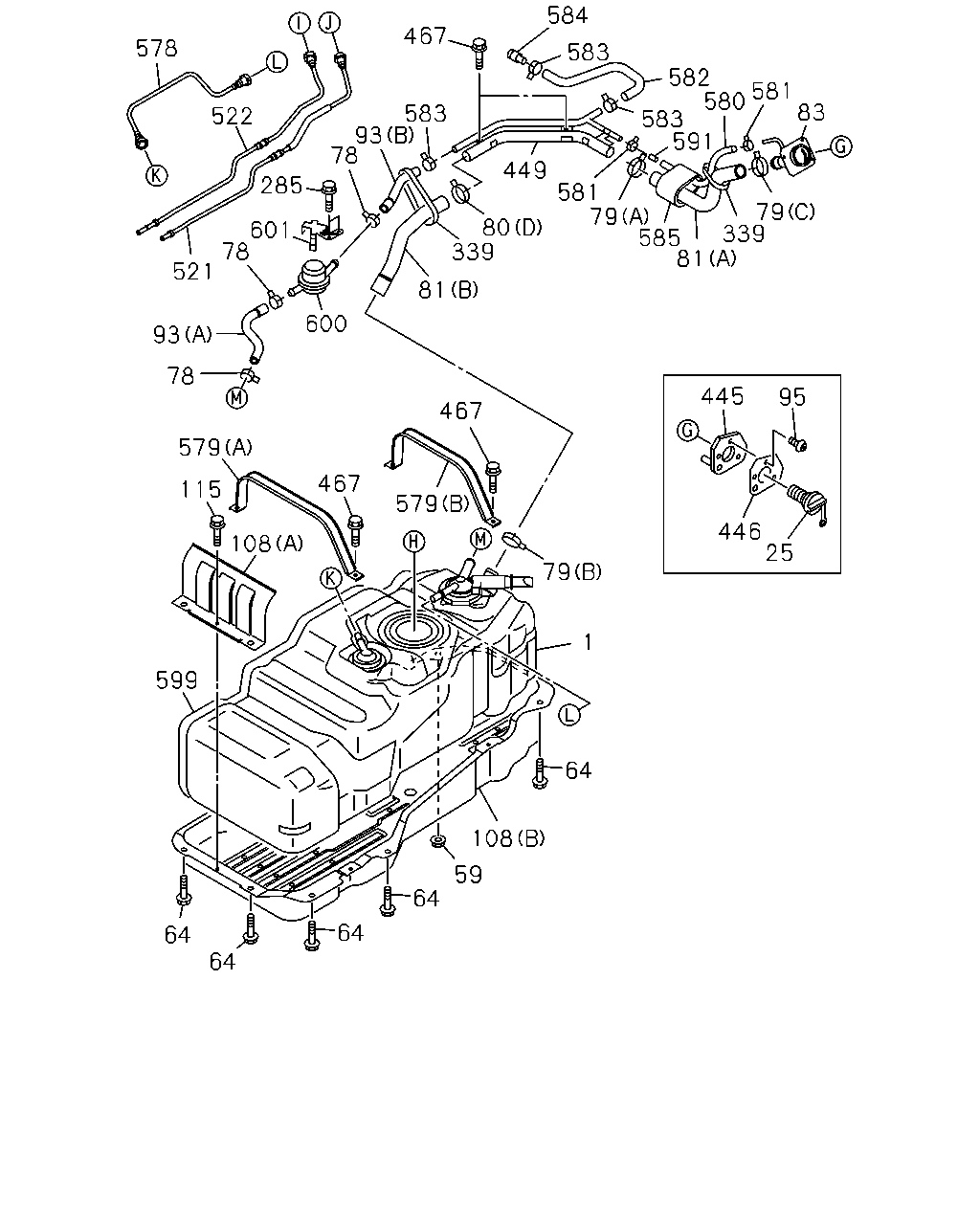

584 467 578 583 582 581 580 83 583 93 78 522 583 591 449 285 581 79 79 585 339 81 80 339 601 78 521 81 600 93 78 445 95 467 579 467 115 579 446 25 108 79 1 599 64 108 59 64 64 64 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL	8-97138-069-3	01	1	9707-9904
1	TANK; FUEL	8-97224-823-0	01	1	9905-0007
1	TANK; FUEL	8-97226-442-3	01	1	0008-0112
1	TANK; FUEL	8-97329-930-0	01	1	0201-0201
1	TANK; FUEL	8-97329-932-1	01	1	0202-
25	CAP; FILLER,FUEL TANK	8-97118-748-2	01	1	9707-0104
25	CAP; FILLER,FUEL TANK	8-97308-614-1	01	1	0105-0302
25	CAP; FILLER,FUEL TANK	8-97362-812-1	01	1	0303-
59	NUT; FUEL TANK M10 FLANGE	8-97142-595-0	01	1	9707-
64	BOLT; FUEL TANK M10X30 FLANGE	8-97174-300-1	03	1	9707-0007
64	BOLT; FUEL TANK M10X30 FLANGE	8-97174-300-1	05	1	0008-
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	02	1	9707-0007
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	02	1	9707-0007
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	03	1	0008-0201
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	01	1	0202-0208
79	CLAMP; FILLER HOSE (A)	8-97237-144-0	01	1	0008-0106
79	CLAMP; FILLER HOSE (B)	8-97237-145-0	01	1	0008-0203
79	CLAMP; FILLER HOSE (B) ID=32-48	1-09707-133-0	01	1	0204-
79	CLAMP; FILLER HOSE (C) ID=31.2	8-97237-146-0	01	1	0008-0106
79	CLAMP; FILLER HOSE (A),(C) ID=31.2	8-97237-146-0	02	1	0107-0206
79	CLAMP; FILLER HOSE (A),(C) ID=26-41.5	1-09707-132-0	02	1	0207-
80	CLIP; FILLER HOSE (A),(C)	8-97139-975-0	03	1	9707-9805
80	CLIP; FILLER HOSE (A)	8-97139-975-0	02	1	9806-0007
80	CLIP; FILLER HOSE (D) ID=31.2	8-97237-146-0	01	1	0008-
80	CLIP; FILLER HOSE (B)	8-97170-389-0	01	1	9707-9805
80	CLIP; FILLER HOSE (B),(C)	8-97170-389-0	01	1	9806-0007
80	CLIP; FILLER HOSE (B),(C)	8-97170-389-0	01	1	9806-0007
81	HOSE; FUEL FILLER (A)	8-97178-849-1	01	1	9707-0007
81	HOSE; FUEL FILLER (A)	8-97220-412-1	01	1	0008-
81	HOSE; FUEL FILLER (B)	8-97178-852-0	01	1	9707-0007
81	HOSE; FUEL FILLER (B)	8-97220-410-0	01	1	0008-
83	NECK; FUEL FILLER	8-97124-848-0	01	1	9707-0007
83	NECK; FUEL FILLER	8-97220-404-2	01	1	0008-
93	HOSE; BREATHER,FUEL TANK (A)	8-97248-190-0	01	1	0008-0201
93	HOSE; BREATHER,FUEL TANK (C)	8-97224-014-0	01	1	0202-
93	HOSE; BREATHER,FUEL TANK (B)	8-97248-209-0	01	1	0008-0201
95	SCREW; FILLER NECK	8-97148-893-0	03	1	9707-
108	PROTECTOR; FUEL TANK (C)	8-97138-342-3	01	1	9707-9904
108	PROTECTOR; FUEL TANK (C)	8-97224-824-0	01	1	9905-0007
108	PROTECTOR; FUEL TANK (A)	8-97223-754-1	01	1	0008-0206
108	PROTECTOR; FUEL TANK (A)	8-97318-700-3	01	1	0207-
108	PROTECTOR; FUEL TANK (B)	8-97226-445-4	01	1	0008-
115	BOLT; BRKT M6X20 FLANGE	0-28680-620-0	06	1	9707-0007
115	BOLT; BRKT M6X20 FLANGE	0-28680-620-0	01	1	0008-
285	BOLT; BRKT M6X16 FLANGE	0-28480-616-0	02	1	0008-0206
339	CLIP; BAND,FUEL HOSE L=330	5-09709-118-0	01	1	9707-0004
339	CLIP; BAND,FUEL HOSE L=330	5-09709-118-0	01	1	9707-0004
339	CLIP; BAND,FUEL HOSE L=330	5-09709-118-0	01	1	0005-0007
339	CLIP; BAND,FUEL HOSE L=300	1-09707-001-1	01	1	0005-0007
339	CLIP; BAND,FUEL HOSE L=350	8-94152-256-1	01	1	0008-
339	CLIP; BAND,FUEL HOSE L=350	8-94152-256-1	01	1	0008-
445	RUBBER; RECEIVER	8-97106-851-0	01	1	9707-
446	PLATE; FIXING	8-94340-181-0	01	1	9707-
449	PIPE; FILLER NECK	8-97220-406-2	01	1	0008-
467	BOLT M8X20 FLANGE	0-28480-820-0	02	1	9707-
467	BOLT M8X20 FLANGE	0-28480-820-0	04	1	0008-
521	TUBE; FUEL,DELIVERY	8-97145-052-0	01	1	9707-0007
521	TUBE; FUEL,DELIVERY	8-97220-320-3	01	1	0008-0307
522	TUBE; FUEL,RETURN	8-97145-053-0	01	1	9707-0007
522	TUBE; FUEL,RETURN	8-97220-321-2	01	1	0008-0307
578	TUBE; FUEL,EVAPO	8-97220-322-0	01	1	0008-0201
578	TUBE; FUEL,EVAPO	8-97318-931-1	01	1	0202-
579	BAND; FUEL TANK TO PROTECTOR (A)	8-97220-325-2	01	1	0008-
579	BAND; FUEL TANK TO PROTECTOR (B)	8-97220-326-2	01	1	0008-
580	HOSE; FUEL,RECIRCULATION	8-97220-413-0	01	1	0008-
581	CLIP; FUEL HOSE,RECIRCULATION ID=16	8-97173-222-0	02	1	0008-
582	HOSE; FUEL,VENTILATION	8-97220-414-0	01	1	0008-0106
582	HOSE; FUEL,VENTILATION	8-97300-069-0	01	1	0107-
583	CLIP; FUEL HOSE,VENTILATION ID=21	8-94242-034-0	03	1	0008-0208
583	CLIP; FUEL HOSE,VENTILATION ID=21	8-94242-034-0	01	1	0209-
584	CONNECTOR; VENTILATION	8-97223-671-0	01	1	0008-
585	PROTECTOR; FILLER HOSE	8-97223-670-0	01	1	0008-
591	ORIFICE; RECIRCULATION	8-97248-176-0	01	1	0008-
599	SHIELD; HEAT	8-97253-313-1	01	1	0008-0301
599	SHIELD; HEAT	8-97364-116-0	01	1	0302-
600	SEPARATOR; LIQUID & VAPOR,FUEL TANK	8-97248-175-0	01	1	0008-0201
601	BRACKET; SEPARATOR,FUEL TANK	8-97248-186-0	01	1	0008-0201

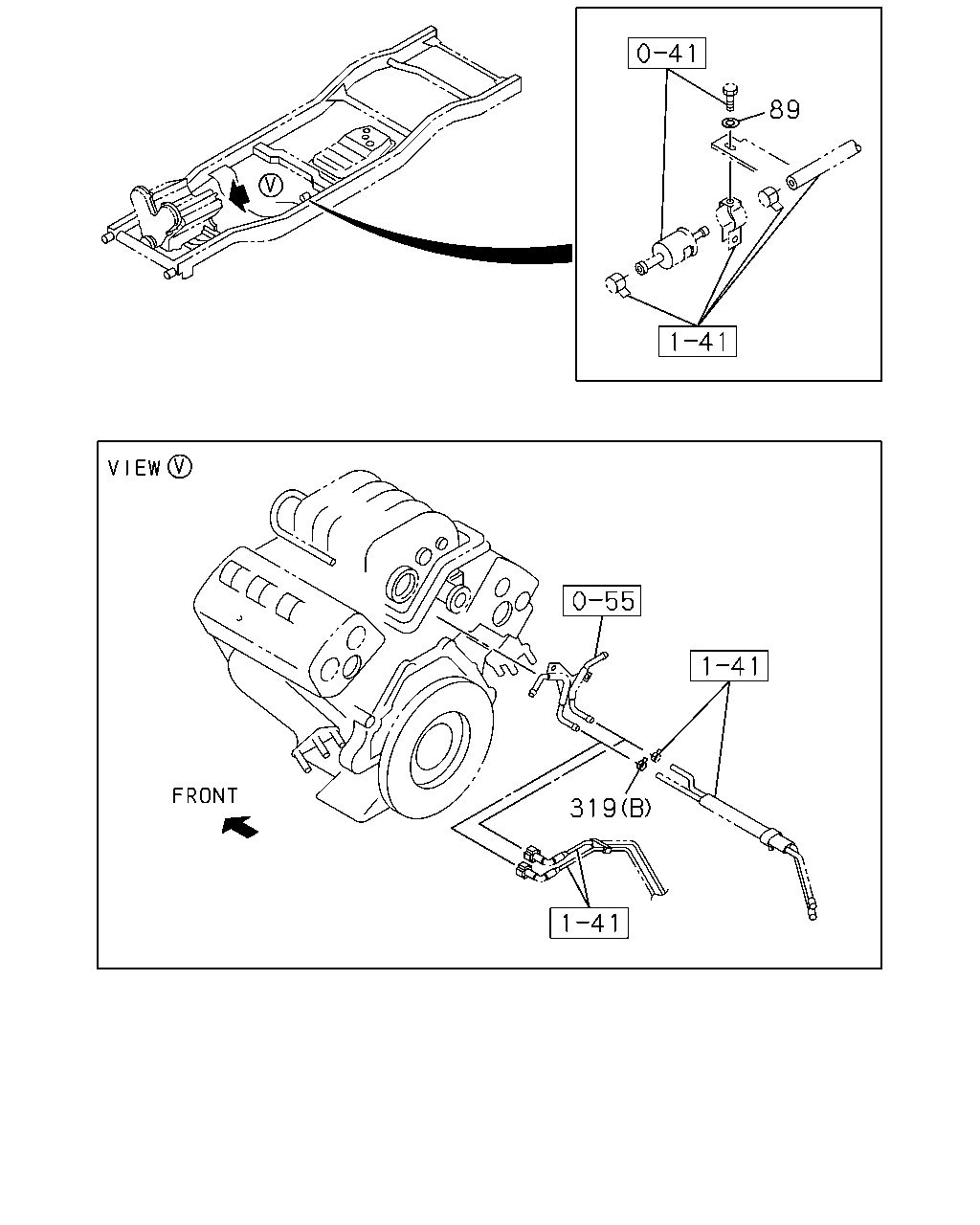

89 319

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
89	WASHER; PL,FILLER NECK ID=6.4 OD=22	9-09164-806-0	01	1	9707-
319	CLIP; RUBBER HOSE (A) ID=8.5	8-94166-071-0	04	1	9707-0007
319	CLIP; RUBBER HOSE (C) ID=11	8-94238-570-0	03	1	9707-0007
319	CLIP; RUBBER HOSE (B) ID=11.5	8-97138-011-0	01	1	9707-0206
319	CLIP; RUBBER HOSE M/T MUA 5 SPEED 5C(RSN) (B) ID=11.5	8-97138-011-0	01	1	0207-0307

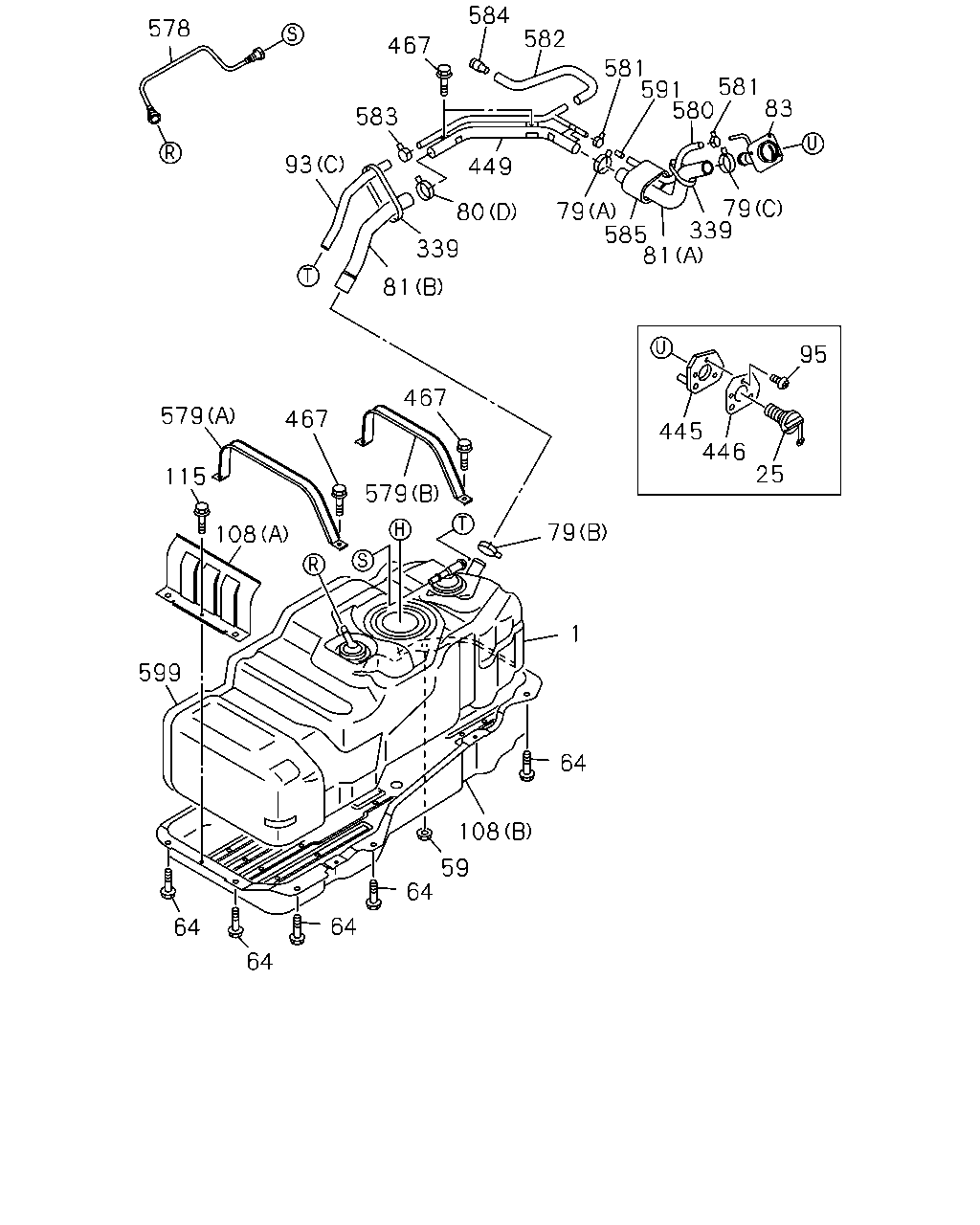

578 584 467 583 582 581 583 83 591 583 522 93 449 581 80 79 79 585 339 81 521 78 339 81 95 445 446 467 25 579 467 115 579 79 108 1 599 64 108 59 64 64 64 64 580

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL	8-97138-069-3	01	1	9707-9904
1	TANK; FUEL	8-97224-823-0	01	1	9905-0007
1	TANK; FUEL	8-97226-442-3	01	1	0008-0112
1	TANK; FUEL	8-97329-930-0	01	1	0201-0201
1	TANK; FUEL	8-97329-932-1	01	1	0202-
25	CAP; FILLER,FUEL TANK	8-97118-748-2	01	1	9707-0104
25	CAP; FILLER,FUEL TANK	8-97308-614-1	01	1	0105-0302
25	CAP; FILLER,FUEL TANK	8-97362-812-1	01	1	0303-
59	NUT; FUEL TANK M10 FLANGE	8-97142-595-0	01	1	9707-
64	BOLT; FUEL TANK M10X30 FLANGE	8-97174-300-1	03	1	9707-0007
64	BOLT; FUEL TANK M10X30 FLANGE	8-97174-300-1	05	1	0008-
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	02	1	9707-0007
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	02	1	9707-0007
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	03	1	0008-0201
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	01	1	0202-0208
79	CLAMP; FILLER HOSE (A)	8-97237-144-0	01	1	0008-0106
79	CLAMP; FILLER HOSE (B)	8-97237-145-0	01	1	0008-0203
79	CLAMP; FILLER HOSE (B) ID=32-48	1-09707-133-0	01	1	0204-
79	CLAMP; FILLER HOSE (C) ID=31.2	8-97237-146-0	01	1	0008-0106
79	CLAMP; FILLER HOSE (A),(C) ID=31.2	8-97237-146-0	02	1	0107-0206
79	CLAMP; FILLER HOSE (A),(C) ID=26-41.5	1-09707-132-0	02	1	0207-
80	CLIP; FILLER HOSE (A),(C)	8-97139-975-0	03	1	9707-9805
80	CLIP; FILLER HOSE (A)	8-97139-975-0	02	1	9806-0007
80	CLIP; FILLER HOSE (D) ID=31.2	8-97237-146-0	01	1	0008-
80	CLIP; FILLER HOSE (B)	8-97170-389-0	01	1	9707-9805
80	CLIP; FILLER HOSE (B),(C)	8-97170-389-0	01	1	9806-0007
80	CLIP; FILLER HOSE (B),(C)	8-97170-389-0	01	1	9806-0007
81	HOSE; FUEL FILLER (A)	8-97178-849-1	01	1	9707-0007
81	HOSE; FUEL FILLER (A)	8-97220-412-1	01	1	0008-
81	HOSE; FUEL FILLER (B)	8-97178-852-0	01	1	9707-0007
81	HOSE; FUEL FILLER (B)	8-97220-410-0	01	1	0008-
83	NECK; FUEL FILLER	8-97124-848-0	01	1	9707-0007
83	NECK; FUEL FILLER	8-97220-404-2	01	1	0008-
93	HOSE; BREATHER,FUEL TANK (A)	8-97248-190-0	01	1	0008-0201
93	HOSE; BREATHER,FUEL TANK (C)	8-97224-014-0	01	1	0202-
93	HOSE; BREATHER,FUEL TANK (B)	8-97248-209-0	01	1	0008-0201
95	SCREW; FILLER NECK	8-97148-893-0	03	1	9707-
108	PROTECTOR; FUEL TANK (C)	8-97138-342-3	01	1	9707-9904
108	PROTECTOR; FUEL TANK (C)	8-97224-824-0	01	1	9905-0007
108	PROTECTOR; FUEL TANK (A)	8-97223-754-1	01	1	0008-0206
108	PROTECTOR; FUEL TANK (A)	8-97318-700-3	01	1	0207-
108	PROTECTOR; FUEL TANK (B)	8-97226-445-4	01	1	0008-
115	BOLT; BRKT M6X20 FLANGE	0-28680-620-0	06	1	9707-0007
115	BOLT; BRKT M6X20 FLANGE	0-28680-620-0	01	1	0008-
339	CLIP; BAND,FUEL HOSE L=330	5-09709-118-0	01	1	9707-0004
339	CLIP; BAND,FUEL HOSE L=330	5-09709-118-0	01	1	9707-0004
339	CLIP; BAND,FUEL HOSE L=330	5-09709-118-0	01	1	0005-0007
339	CLIP; BAND,FUEL HOSE L=300	1-09707-001-1	01	1	0005-0007
339	CLIP; BAND,FUEL HOSE L=350	8-94152-256-1	01	1	0008-
339	CLIP; BAND,FUEL HOSE L=350	8-94152-256-1	01	1	0008-
445	RUBBER; RECEIVER	8-97106-851-0	01	1	9707-
446	PLATE; FIXING	8-94340-181-0	01	1	9707-
449	PIPE; FILLER NECK	8-97220-406-2	01	1	0008-
467	BOLT M8X20 FLANGE	0-28480-820-0	02	1	9707-
467	BOLT M8X20 FLANGE	0-28480-820-0	04	1	0008-
521	TUBE; FUEL,DELIVERY	8-97145-052-0	01	1	9707-0007
521	TUBE; FUEL,DELIVERY	8-97220-320-3	01	1	0008-0307
522	TUBE; FUEL,RETURN	8-97145-053-0	01	1	9707-0007
522	TUBE; FUEL,RETURN	8-97220-321-2	01	1	0008-0307
578	TUBE; FUEL,EVAPO	8-97220-322-0	01	1	0008-0201
578	TUBE; FUEL,EVAPO	8-97318-931-1	01	1	0202-
579	BAND; FUEL TANK TO PROTECTOR (A)	8-97220-325-2	01	1	0008-
579	BAND; FUEL TANK TO PROTECTOR (B)	8-97220-326-2	01	1	0008-
580	HOSE; FUEL,RECIRCULATION	8-97220-413-0	01	1	0008-
581	CLIP; FUEL HOSE,RECIRCULATION ID=16	8-97173-222-0	02	1	0008-
582	HOSE; FUEL,VENTILATION	8-97220-414-0	01	1	0008-0106
582	HOSE; FUEL,VENTILATION	8-97300-069-0	01	1	0107-
583	CLIP; FUEL HOSE,VENTILATION ID=21	8-94242-034-0	03	1	0008-0208
583	CLIP; FUEL HOSE,VENTILATION ID=21	8-94242-034-0	01	1	0209-
584	CONNECTOR; VENTILATION	8-97223-671-0	01	1	0008-
585	PROTECTOR; FILLER HOSE	8-97223-670-0	01	1	0008-
591	ORIFICE; RECIRCULATION	8-97248-176-0	01	1	0008-
599	SHIELD; HEAT	8-97253-313-1	01	1	0008-0301
599	SHIELD; HEAT	8-97364-116-0	01	1	0302-

519 519 523 523 509 509 193 193 418 621

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
193	PUMP; FUEL	8-25166-689-0	01	1	9707-9803
193	PUMP; FUEL	8-25318-879-0	01	1	9804-9804
193	PUMP; FUEL	8-25319-098-0	01	1	9805-0002
193	PUMP; FUEL	8-25331-807-0	01	1	0003-0007
193	PUMP; FUEL	8-25326-590-0	01	1	0008-0106
193	PUMP; FUEL	8-25341-208-0	01	1	0107-
418	GASKET; FUEL PUMP	8-25027-014-0	01	1	9804-0007
418	GASKET; FUEL PUMP	8-25028-682-0	01	1	0008-0106
509	SENSOR; VAPOR	8-16238-399-0	01	1	9707-
509	SENSOR; VAPOR	8-16238-399-0	01	1	0207-
519	RETAINER; FUEL PUMP	8-21010-287-0	01	1	0008-
523	SEAL; FUEL SENSOR	8-97254-673-0	01	1	0008-0112
523	SEAL; FUEL SENSOR	8-97329-935-0	01	1	0201-
621	RESISTOR ASM; FUEL PUMP	8-25343-695-0	01	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
