1-11 — RADIATOR HOSE AND SUB TANK (#36811) — 15 parça

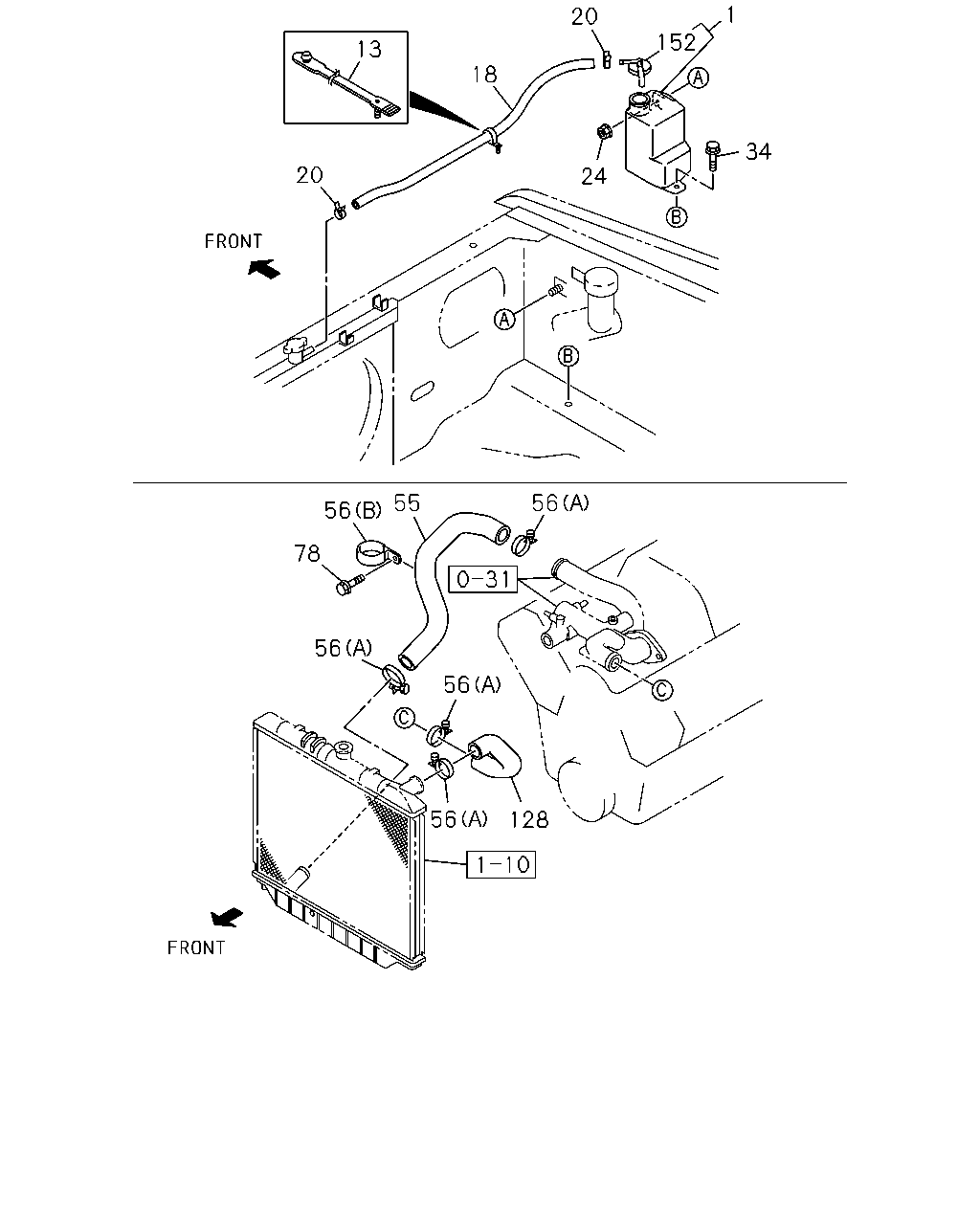

çizim 72433
1 20 152 13 18 34 20 24 55 56 56 78 56 56 56 128
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; SURGE,RAD 8-97124-865-1 01 1 9707-
13 CLIP; HOSE,SURGE TANK
L=103 		8-94239-339-0 01 1 9707-
18 HOSE; RAD TO SURGE TANK
L=560 SERVICED BY L=2100 		8-97080-588-0 01 1 9707-
20 CLIP; HOSE,RAD
ID=12 		8-94238-610-0 02 1 9707-0103
24 NUT
M6 FLANGE 		8-94279-514-0 01 1 9707-
34 BOLT; RESERVE TANK
M6X20 		8-94412-422-0 01 1 9707-
55 HOSE; WATER,RAD OUTLET 8-97125-165-0 01 1 9707-9808
55 HOSE; WATER,RAD OUTLET 8-97143-737-1 01 1 9809-
56 CLIP; WATER HOSE,RAD
(B) ID=46 		8-94362-266-0 01 1 9707-
56 CLIP; WATER HOSE,RAD
(A) 		8-97135-906-2 02 1 9707-0307
56 CLIP; WATER HOSE,RAD
(A) 		8-97135-906-2 02 1 9707-0307
56 CLIP; WATER HOSE,RAD
(A) 		8-97135-906-2 04 1 0308-
78 BOLT; CLIP,HOSE
M8X20 FLANGE 		0-28680-820-0 01 1 9707-
128 HOSE; WATER,RAD INL 8-97125-164-0 01 1 9707-
152 CAP ASM; SURGE TANK 8-97178-230-0 01 1 9707-
