Isuzu WW
▶
TRUCKS
▶
EXR
▶
10672 - EXR LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶

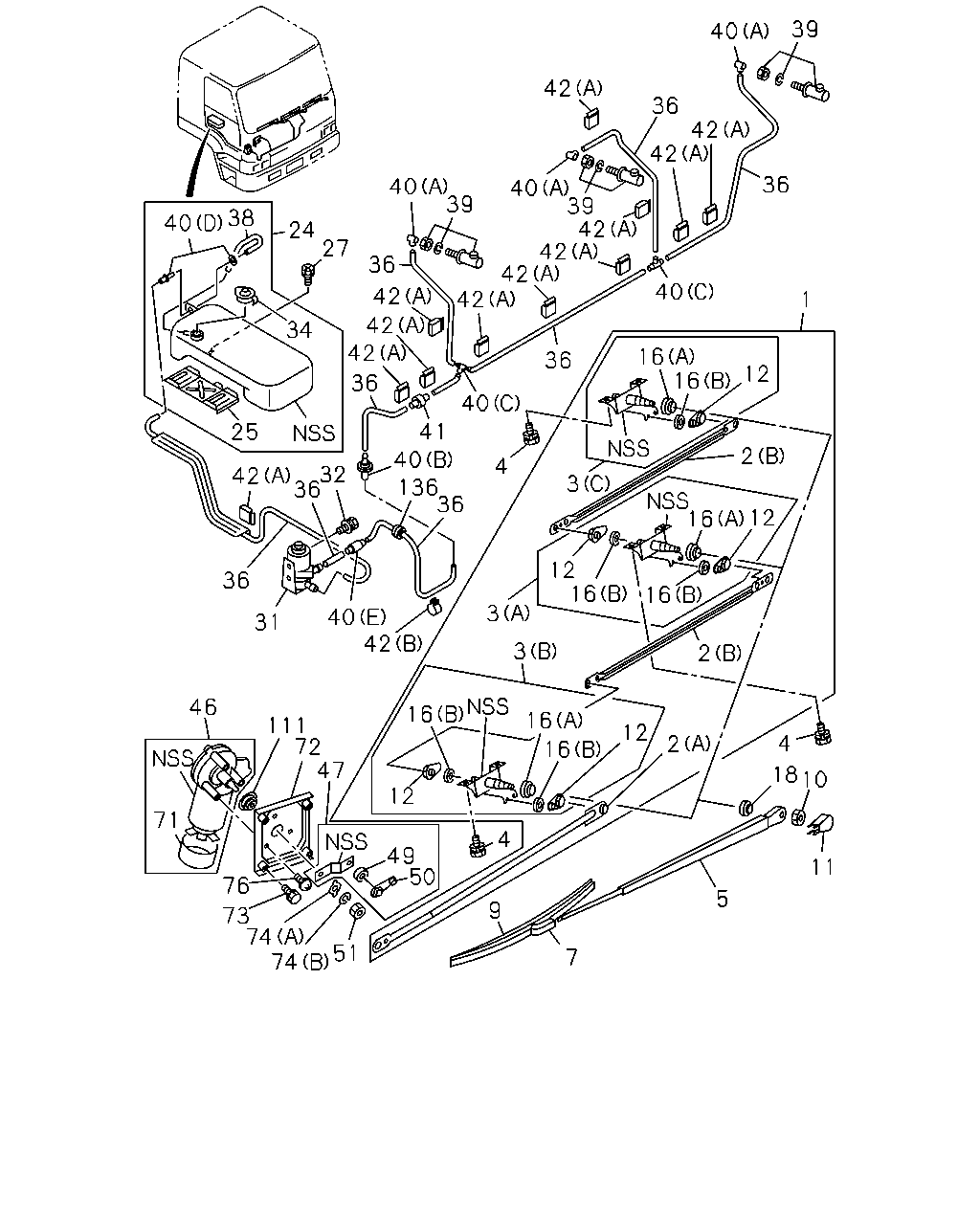

8-80 — WINDSHIELD WIPER AND WASHER
(#3681) — 51 parça
39
40
42
36
42
42
36
40
39
40
39
42
42
42
42
38
40
24
27
36
40
42
1
42
42
34
16
16
36
12
36
40
25
41
2
40
136
36
4
32
36
42
3
16
12
16
36
16
3
40
42
31
3
2
16
46
16
111
72
47
12
2
4
16
18
10
12
71
4
49
50
11
76
5
9
73
74
51
74
7
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINK ASM; FRT WIPER
1-83312-050-2
01
1
9002-
2
LINK; FRT WIPER
(B)
1-83312-041-0
02
1
9002-
2
LINK; FRT WIPER
(A)
1-83312-074-0
01
1
9002-
3
PIVOT ASM; FRT WIPER
(C)
1-83313-066-0
01
1
9002-
3
PIVOT ASM; FRT WIPER
(A)
1-83313-067-0
01
1
9002-
3
PIVOT ASM; FRT WIPER
(B)
1-83313-068-0
01
1
9002-
4
BOLT; WIPER LINK TO BODY
M6X20
1-09980-279-0
06
1
9002-
5
ARM; WIPER
1-83314-058-0
03
1
9002-
7
BLADE; WIPER
1-83315-009-0
03
1
9002-
9
RUBBER; FRT WIPER BLADE
1-83355-001-0
03
1
9002-
10
NUT; WIPER ARM TO WIPER PIVOT
M10
9-09111-410-0
03
1
9002-
11
COVER; WIPER ARM
1-83319-004-1
03
1
9002-
12
RETAINER; BALL JOINT,FRT WIPER LINK
5-83318-029-0
05
1
9002-
16
SEAL; BALL JOINT
(A)
1-83318-022-0
03
1
9002-
16
SEAL; BALL JOINT
(B)
8-94235-628-0
05
1
9002-
18
GROMMET; WIPER PIVOT HOLE
1-09983-060-1
03
1
9002-
24
TANK ASM; WASHER
1-83332-018-5
01
1
9002-
25
BRACKET; WASHER TANK
1-83338-002-0
01
1
9002-
27
BOLT; WASHER TANK
M6X20 W/PL WASHER
5-09981-023-0
02
1
9002-9104
27
BOLT; WASHER TANK
M6X14 W/LK&PL WASHER
9-03920-614-0
02
1
9105-
31
PUMP ASM; WINDSHIELD WASHER
1-83331-006-1
01
1
9002-
32
BOLT; WASHER PUMP
M6X16 W/LK&PL WASHER
9-01960-616-0
02
1
9002-9204
32
BOLT; WASHER PUMP
M6X16 W/LK&PL WASHER
0-50140-616-0
02
1
9205-9307
32
BOLT; WASHER PUMP
M6X20
1-09980-279-0
02
1
9308-
34
CAP; WASHER TANK
1-83362-012-0
01
1
9002-
36
HOSE; WASHER
L=10000
9-09914-906-0
AR
1
9002-
38
HOSE; JOINT,TANK
L=10000
9-09914-906-0
01
1
9002-
39
NOZZLE; WINDSHIELD WASHER
1-83334-021-0
03
1
9002-
40
JOINT; WASHER HOSE
(A)
1-83339-004-0
01
1
9002-
40
JOINT; WASHER HOSE
(A)
1-83339-004-0
03
1
9002-
40
JOINT; WASHER HOSE
(E)
1-83339-005-0
01
1
9002-
40
JOINT; WASHER HOSE
(D)
1-83339-006-0
01
1
9002-
40
JOINT; WASHER HOSE
(B)
1-83363-002-0
01
1
9002-
40
JOINT; WASHER HOSE
(C)
5-83363-003-0
02
1
9002-
41
VALVE; CHECK,WASHER TANK
1-83338-007-1
01
1
9002-
42
CLIP; WASHER HOSE
(A)
1-09987-055-0
14
1
9002-9003
42
CLIP; WASHER HOSE
(A) 1 SET=5 PIECE
1-09987-214-0
14
1
9004-
42
CLIP; WASHER HOSE
(B)
1-09987-121-0
01
1
9002-
46
MOTOR ASM; FRT WINDSHIELD WIPER
1-83311-037-1
01
1
9002-
47
ARM; CRANK,WIPER MOTOR
1-83314-086-1
01
1
9002-
49
SEAL; BALL JOINT,CRANK ARM,FRT WIPER
8-94235-628-0
01
1
9002-
50
RETAINER; BALL JOINT,CRANK ARM,FRT WIP
5-83318-029-0
01
1
9002-
51
NUT; WIPER MOTOR LINK
M8
9-09111-408-0
01
1
9002-
71
COVER; WIPER MOTOR
1-83318-021-0
01
1
9002-
72
BRACKET; WIPER MOTOR
1-83318-024-0
01
1
9002-
73
BOLT
1-09980-410-0
04
1
9002-
74
WASHER; ARM TO MOTOR
(A)
1-83319-005-1
01
1
9002-
74
WASHER; ARM TO MOTOR
(B)
9-09150-508-0
01
1
9002-
76
SCREW; BRKT TO WIPER MOTOR
8-94232-910-0
03
1
9002-
111
SEAL; FRT WIPER MOTOR TO BRKT
1-83318-020-0
01
1
9111-
136
GROMMET; HOSE,WASHER TANK
1-83339-007-0
01
1
9002-
