Isuzu WW
▶
SUV
▶
UES
▶
50754 - UES(4DOOR)-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶

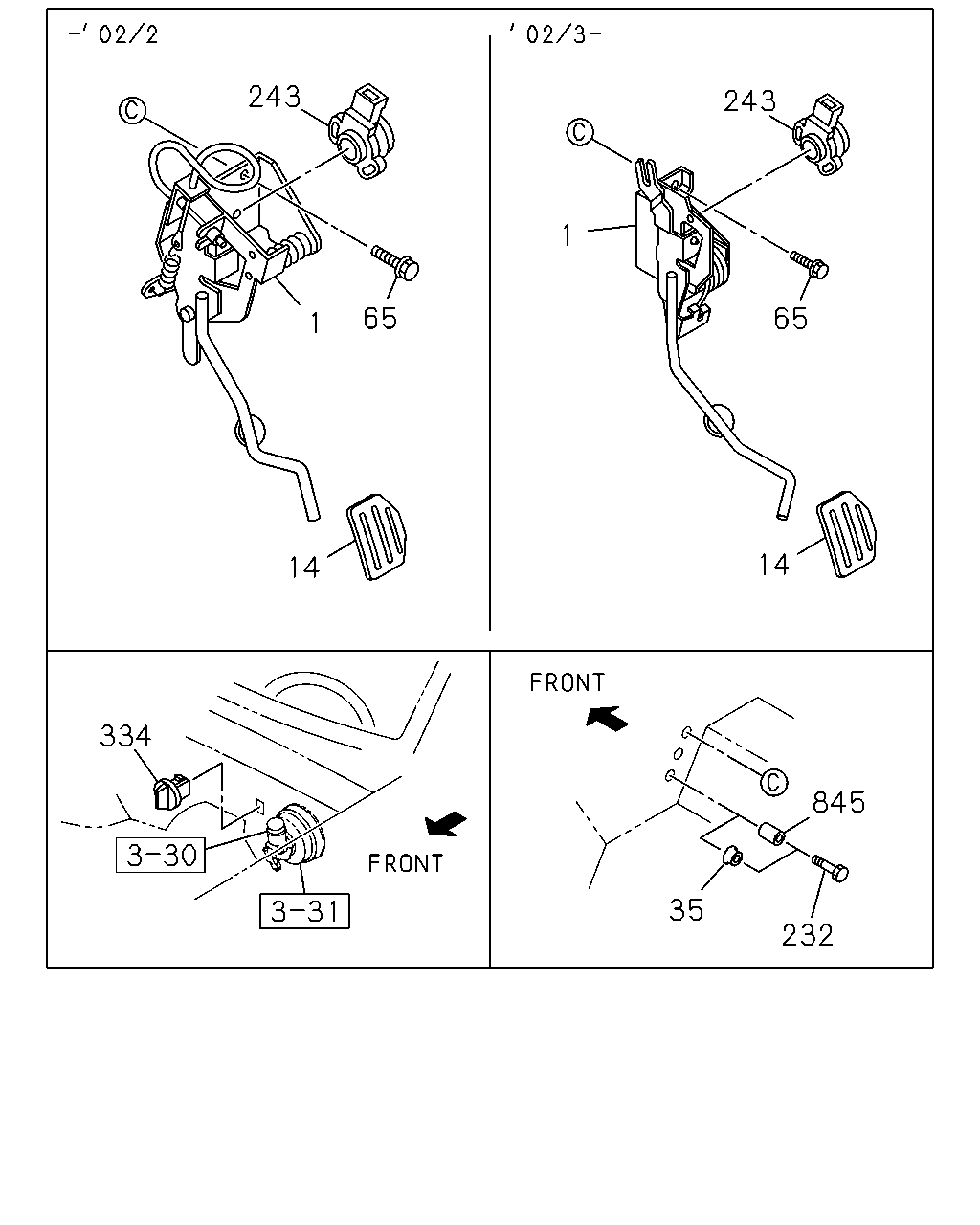

1-01 — ACCELERATOR PEDAL AND CONTROL
(#36808) — 29 parça
◀
[101A] '99/9- (12 parça)
[101A] -'99/8 (17 parça)
▶
243
243
1
65
65
1
14
14
334
845
35
232
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER; PEDAL SIDE
8-97220-540-0
01
1
9909-0009
1
LEVER; PEDAL SIDE
8-97302-328-0
01
1
0010-0202
1
LEVER; PEDAL SIDE
8-97333-413-0
01
1
0203-0307
1
LEVER; PEDAL SIDE
8-97354-991-0
01
1
0308-
14
PAD; PEDAL,ACCEL
8-94473-376-1
01
1
9707-
35
STOPPER; ACCEL PEDAL
8-97354-946-0
01
1
0308-
65
BOLT
M6X16 FLANGE
0-28480-616-0
02
1
9707-
232
BOLT; STOPPER,ACCEL PEDAL
M8X25 FLANGE
0-28480-825-0
01
1
9707-0307
232
BOLT; STOPPER,ACCEL PEDAL
M8X20 FLANGE
0-28480-820-0
01
1
0308-
243
SENSOR; ACCEL
8-97193-713-0
01
1
9909-
334
PLUG; ACCEL CABLE
8-94147-164-1
01
1
9909-
845
PIECE; DISTANCE,PEDAL
8-97135-732-0
01
1
9707-0307
54
289
553
234
65
10
14
845
232
175
444
54
392
314

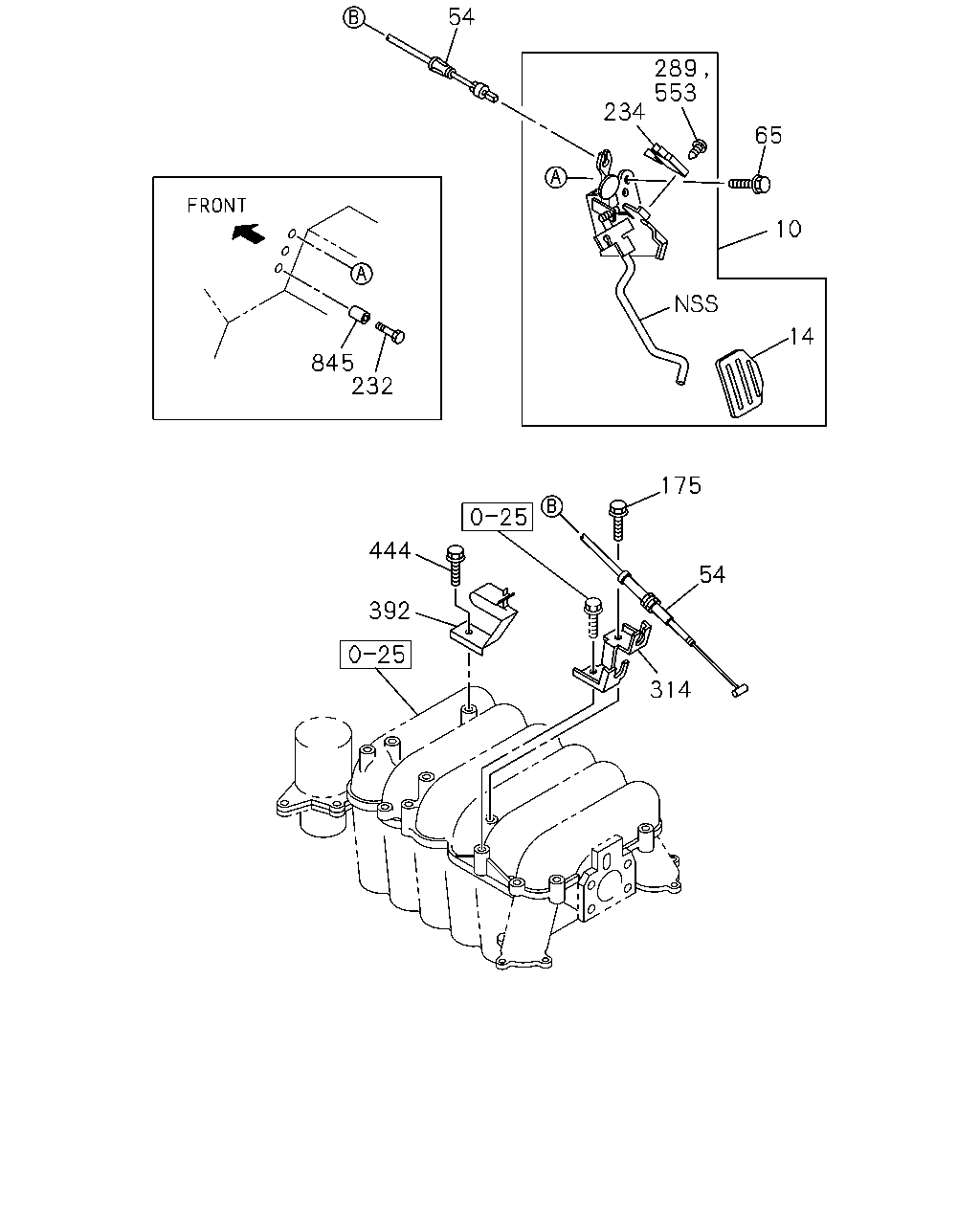

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
PEDAL ASM; ACCEL
A/T THM(RMQ)
8-97146-350-1
01
1
9707-9808
10
PEDAL ASM; ACCEL
A/T THM(RMQ)
8-97181-389-0
01
1
9809-9908
10
PEDAL ASM; ACCEL
M/T MUA 5 SPEED(RMN)
8-97146-349-1
01
1
9707-9807
10
PEDAL ASM; ACCEL
M/T MUA 5 SPEED(RMN)
8-97181-388-0
01
1
9808-9908
14
PAD; PEDAL,ACCEL
8-94473-376-1
01
1
9707-
54
CABLE; ENG CONT
8-97135-815-2
01
1
9707-9908
65
BOLT
M6X16 FLANGE
0-28480-616-0
02
1
9707-
175
BOLT; BRKT,ACCEL CABLE
M6X12 FLANGE
0-28080-612-0
01
1
9707-9908
232
BOLT; STOPPER,ACCEL PEDAL
M8X25 FLANGE
0-28480-825-0
01
1
9707-0307
232
BOLT; STOPPER,ACCEL PEDAL
M8X20 FLANGE
0-28480-820-0
01
1
0308-
234
SWITCH; ACCEL
A/T THM(RMQ)
8-97147-332-0
01
1
9707-9908
289
SCREW; MICRO SWITCH
A/T THM(RMQ) M3X16 TAPPING
0-71280-316-0
02
1
9707-9808
314
BRACKET; ACCEL CABLE
8-97136-145-3
01
1
9707-9908
392
CLIP; ACCEL CONT CABLE
8-97171-957-1
01
1
9707-9908
444
BOLT; CABLE CLIP
M6X10 FLANGE
0-28080-610-0
01
1
9707-9908
553
SCREW; TAP,PEDAL TO SW
A/T THM(RMQ) M3X16 TAPPING
0-71280-316-0
02
1
9809-9908
845
PIECE; DISTANCE,PEDAL
8-97135-732-0
01
1
9707-0307
