◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#36805) — 40 parça

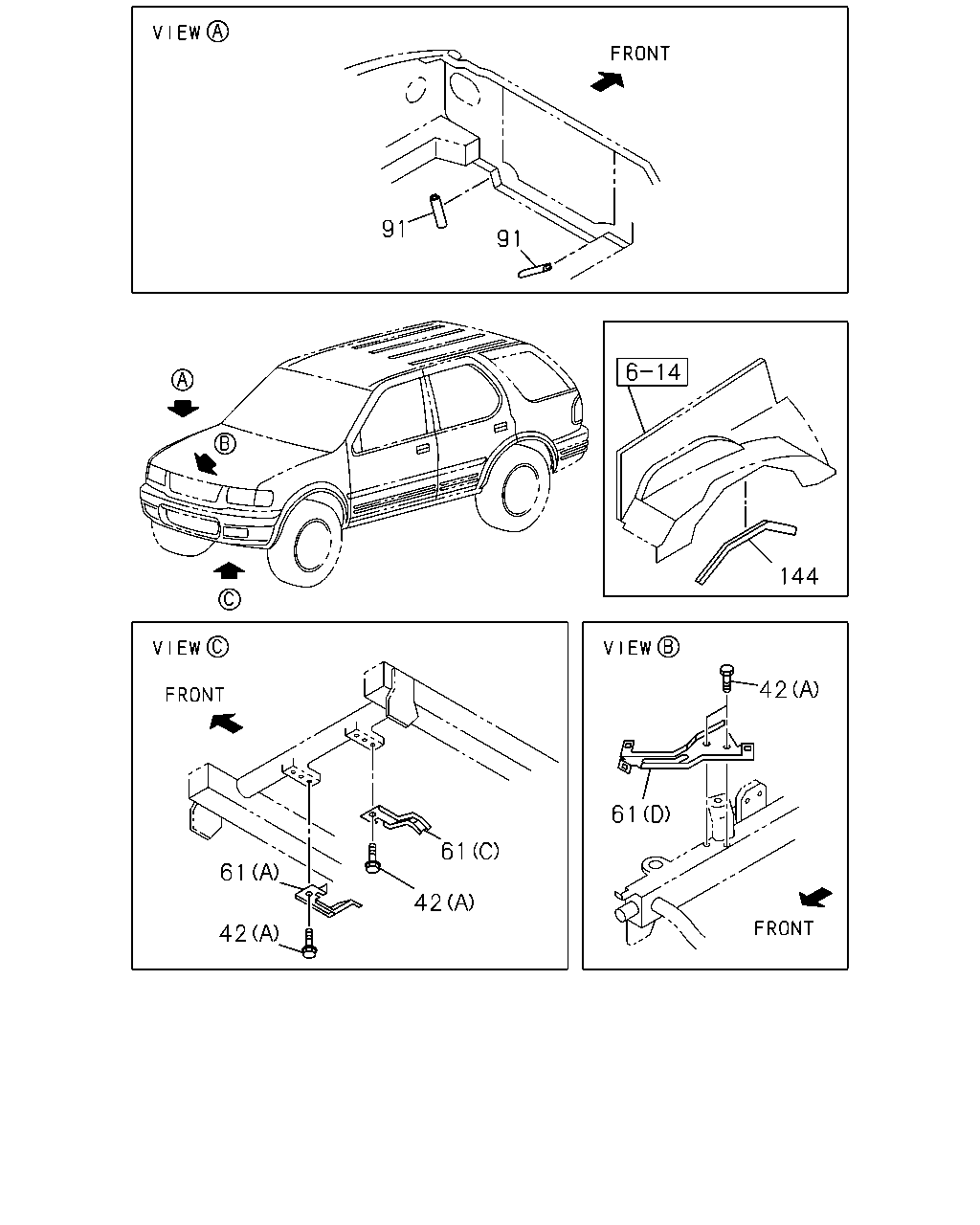

çizim 19204
91 91 144 42 61 61 61 42 42
BalonParca AdiParca NoAdetTipApplied Date
42 BOLT; BRKT,BATTERY CABLE
(A) M6X16 FLANGE 		0-28480-616-0 02 1 9707-0307
42 BOLT; BRKT,BATTERY CABLE
(A) M6X16 FLANGE 		0-28480-616-0 03 1 0308-
42 BOLT; BRKT,BATTERY CABLE
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9707-
42 BOLT; BRKT,BATTERY CABLE
(A) M6X16 FLANGE 		0-28480-616-0 01 1 9909-0307
61 BRACKET; BATTERY CABLE
(A) 		8-97135-911-0 01 1 9707-
61 BRACKET; BATTERY CABLE
(B) 		8-97142-602-2 01 1 9707-9908
61 BRACKET; BATTERY CABLE
(B) 		8-97177-582-0 01 1 9909-
61 BRACKET; BATTERY CABLE
(C) 		8-97165-492-0 01 1 9707-9908
61 BRACKET; BATTERY CABLE
(D) 		8-97213-235-0 01 1 9909-
91 PROTECTOR; HARNESS
L=80 SERVICED BY L=240 		1-71998-400-0 02 1 9707-9901
144 PROTECTOR; EDGE
L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0003-

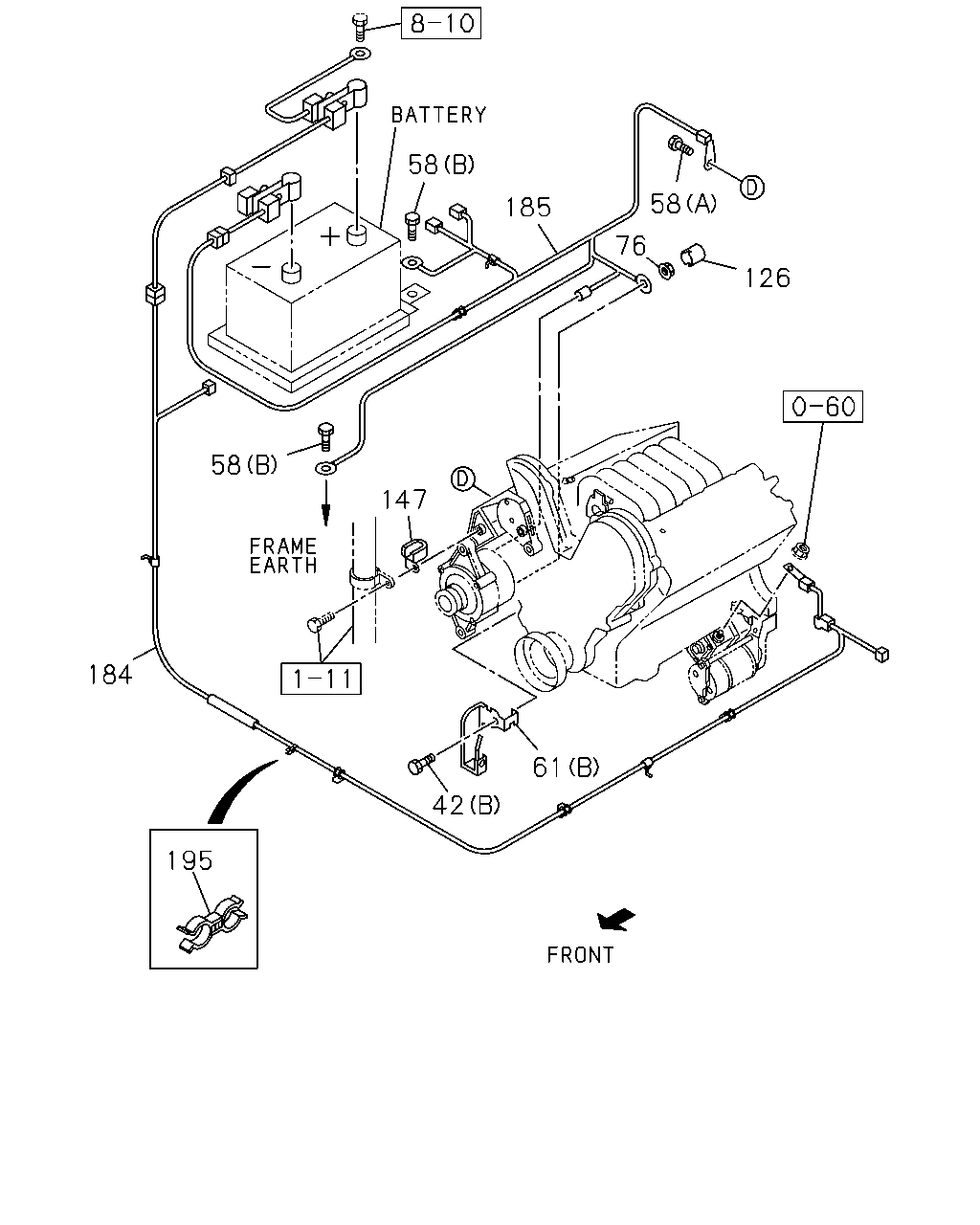

çizim 67321
58 58 185 76 126 58 147 184 61 42 195
BalonParca AdiParca NoAdetTipApplied Date
42 BOLT; BRKT,BATTERY CABLE
(A) M6X16 FLANGE 		0-28480-616-0 02 1 9707-0307
42 BOLT; BRKT,BATTERY CABLE
(A) M6X16 FLANGE 		0-28480-616-0 03 1 0308-
42 BOLT; BRKT,BATTERY CABLE
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9707-
42 BOLT; BRKT,BATTERY CABLE
(A) M6X16 FLANGE 		0-28480-616-0 01 1 9909-0307
58 BOLT; CABLE,BATTERY
(A) M8X12 FLANGE 		0-28080-812-0 01 1 9707-0009
58 BOLT; CABLE,BATTERY
(A) M8X25 FLANGE 		0-28690-825-0 01 1 0010-
58 BOLT; CABLE,BATTERY
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 9707-9908
58 BOLT; CABLE,BATTERY
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9909-
61 BRACKET; BATTERY CABLE
(A) 		8-97135-911-0 01 1 9707-
61 BRACKET; BATTERY CABLE
(B) 		8-97142-602-2 01 1 9707-9908
61 BRACKET; BATTERY CABLE
(B) 		8-97177-582-0 01 1 9909-
61 BRACKET; BATTERY CABLE
(C) 		8-97165-492-0 01 1 9707-9908
61 BRACKET; BATTERY CABLE
(D) 		8-97213-235-0 01 1 9909-
76 NUT; BATTERY CABLE
M6 W/LK WASHER 		8-94424-179-0 01 1 9707-
126 CAP; TERMINAL,AC GEN 8-97087-081-1 01 1 9707-
147 CLIP; HARNESS 5-09709-095-0 01 1 9808-9908
184 HARNESS; CABLE,BATTERY (+) 8-97125-354-4 01 1 9707-9908
184 HARNESS; CABLE,BATTERY (+) 8-97220-222-2 01 1 9909-0007
184 HARNESS; CABLE,BATTERY (+) 8-97260-043-4 01 1 0008-
185 HARNESS; CABLE,BATTERY (-) 8-97125-355-6 01 1 9707-9806
185 HARNESS; CABLE,BATTERY (-) 8-97211-283-0 01 1 9807-9807
185 HARNESS; CABLE,BATTERY (-) 8-97211-284-0 01 1 9808-9809
185 HARNESS; CABLE,BATTERY (-) 8-97217-775-0 01 1 9810-9908
185 HARNESS; CABLE,BATTERY (-) 8-97220-224-1 01 1 9909-0008
185 HARNESS; CABLE,BATTERY (-) 8-97289-196-0 01 1 0009-0302
185 HARNESS; CABLE,BATTERY (-) 8-97367-074-0 01 1 0303-
195 CLIP; ATF HOSE
A/T THM(RMQ) 		8-97174-271-0 01 1 9909-0206
195 CLIP; ATF HOSE
A/T AISIN(RMD) 		8-97174-271-0 01 1 0207-0307
195 CLIP; ATF HOSE 8-97174-271-0 01 1 0308-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
