◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10626 - FTR-RHD ▶ 3 - Brakes, Brake System ▶ 3-45 - LOAD SENSING PROPORTIONING VALVE ▶
3-45 — LOAD SENSING PROPORTIONING VALVE (#368) — 54 parça

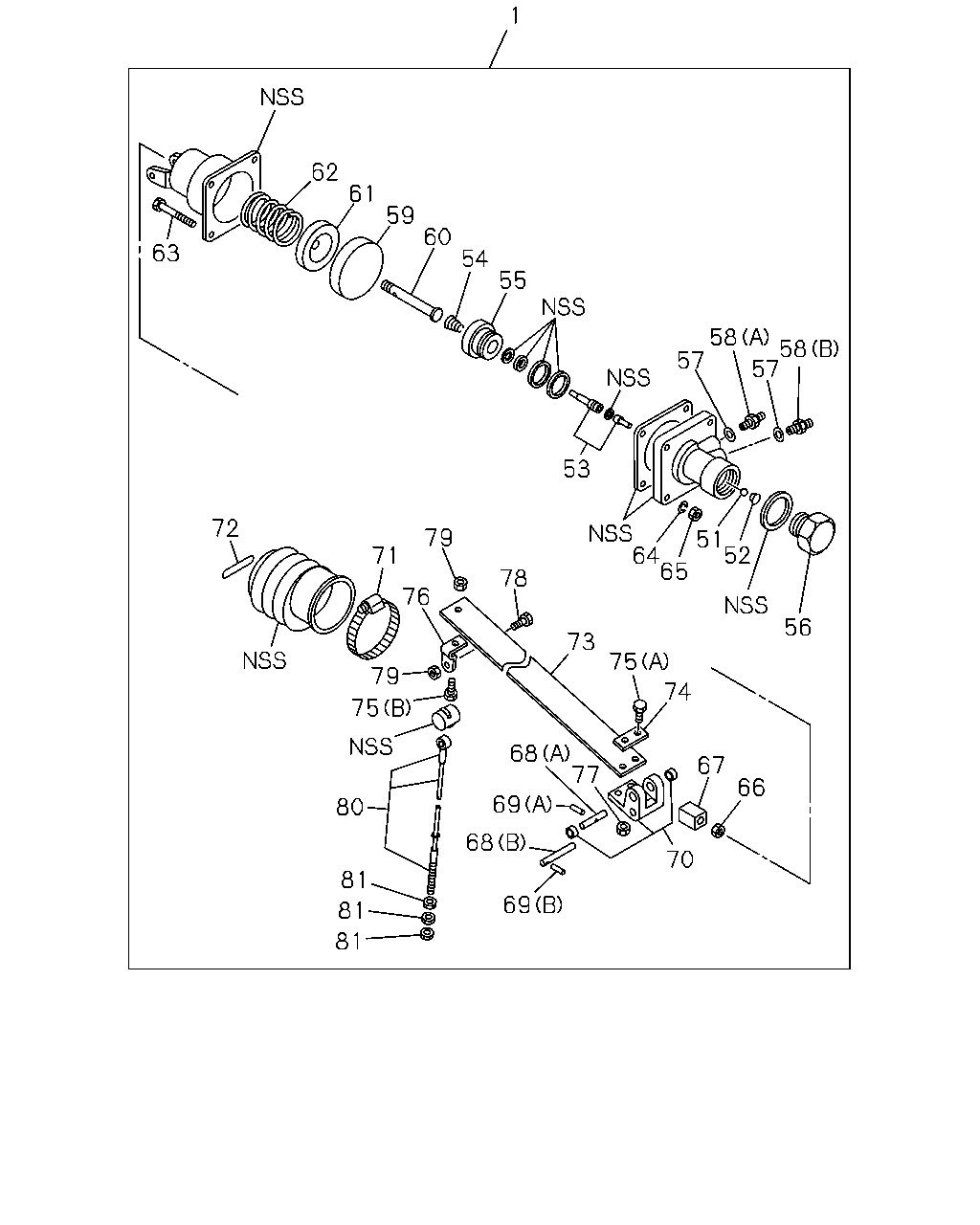

çizim 28204
1 62 61 59 60 63 54 55 58 57 58 57 53 51 52 72 64 65 79 71 78 76 56 73 75 79 74 75 68 77 67 66 69 80 68 70 81 69 81 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47710-010-0 01 1 9202- ● ●
51 BALL; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-010-0 01 1 9202- ● ●
52 SPRING; BALL
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47714-001-0 01 1 9202- ● ●
53 PLUNGER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-012-0 01 1 9202- ● ●
54 SPRING; RET,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47714-002-0 01 1 9202- ● ●
55 RETAINER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-015-0 01 1 9202- ● ●
56 PLUG; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-011-0 01 1 9202- ● ●
57 GASKET; CONNECTOR
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-039-0 02 1 9202- ● ●
58 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47719-035-0 01 1 9202- ● ●
58 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47719-040-0 01 1 9202- ● ●
59 SPACER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-019-0 01 1 9202- ● ●
60 ROD; ACTUATOR
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-020-0 01 1 9202- ● ●
61 RETAINER; SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-021-0 01 1 9202- ● ●
62 SPRING; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47714-003-0 01 1 9202- ● ●
63 BOLT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-31829-015-0 04 1 9202- ● ●
64 WASHER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) ID=8.2 		9-09150-508-0 04 1 9202- ● ●
65 NUT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		9-83315-085-0 04 1 9202- ● ●
66 NUT; LEAF SPR,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47819-021-0 03 1 9202- ● ●
67 CLEVIS; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-023-0 01 1 9202- ● ●
68 PIN; LEVER
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47719-024-0 01 1 9202- ● ●
68 PIN; LEVER
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47719-026-0 01 1 9202- ● ●
69 PIN; SPR
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47719-025-0 01 1 9202- ● ●
69 PIN; SPR
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47719-027-0 01 1 9202- ● ●
70 LEVER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47711-001-0 01 1 9202- ● ●
71 CLAMP; BOOT
LOAD SENSING PROPORTIONING VALVE(JR7) 		9-44519-012-0 01 1 9202- ● ●
72 CLIP; BOOT
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-029-0 01 1 9202- ● ●
73 SPRING; LEAF,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47714-004-0 01 1 9202- ● ●
74 PLATE; LEAF SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-030-0 01 1 9202- ● ●
75 BOLT; LEAF SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47719-031-0 02 1 9202- ● ●
75 BOLT; LEAF SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		9-88510-122-0 01 1 9202- ● ●
76 BRACKET; WIRE
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-032-0 01 1 9202- ● ●
77 NUT; CLEVIS
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47819-021-0 01 1 9202- ● ●
78 BOLT; WIRE BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-033-0 01 1 9202- ● ●
79 NUT; WIRE BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47819-021-0 01 1 9202- ● ●
80 WIRE; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-034-0 01 1 9202- ● ●
81 NUT; WIRE
LOAD SENSING PROPORTIONING VALVE(JR7) 		9-83315-085-0 03 1 9202- ● ●
çizim 92778
50 78 69 80 69
BalonParca AdiParca NoAdetTipApplied Date A B
50 REPAIR KIT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-87830-354-0 01 1 9202- ● ●
69 PIN; SPR
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47719-025-0 01 1 9202- ● ●
69 PIN; SPR
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47719-027-0 01 1 9202- ● ●
78 BOLT; WIRE BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-033-0 01 1 9202- ● ●
80 WIRE; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-034-0 01 1 9202- ● ●

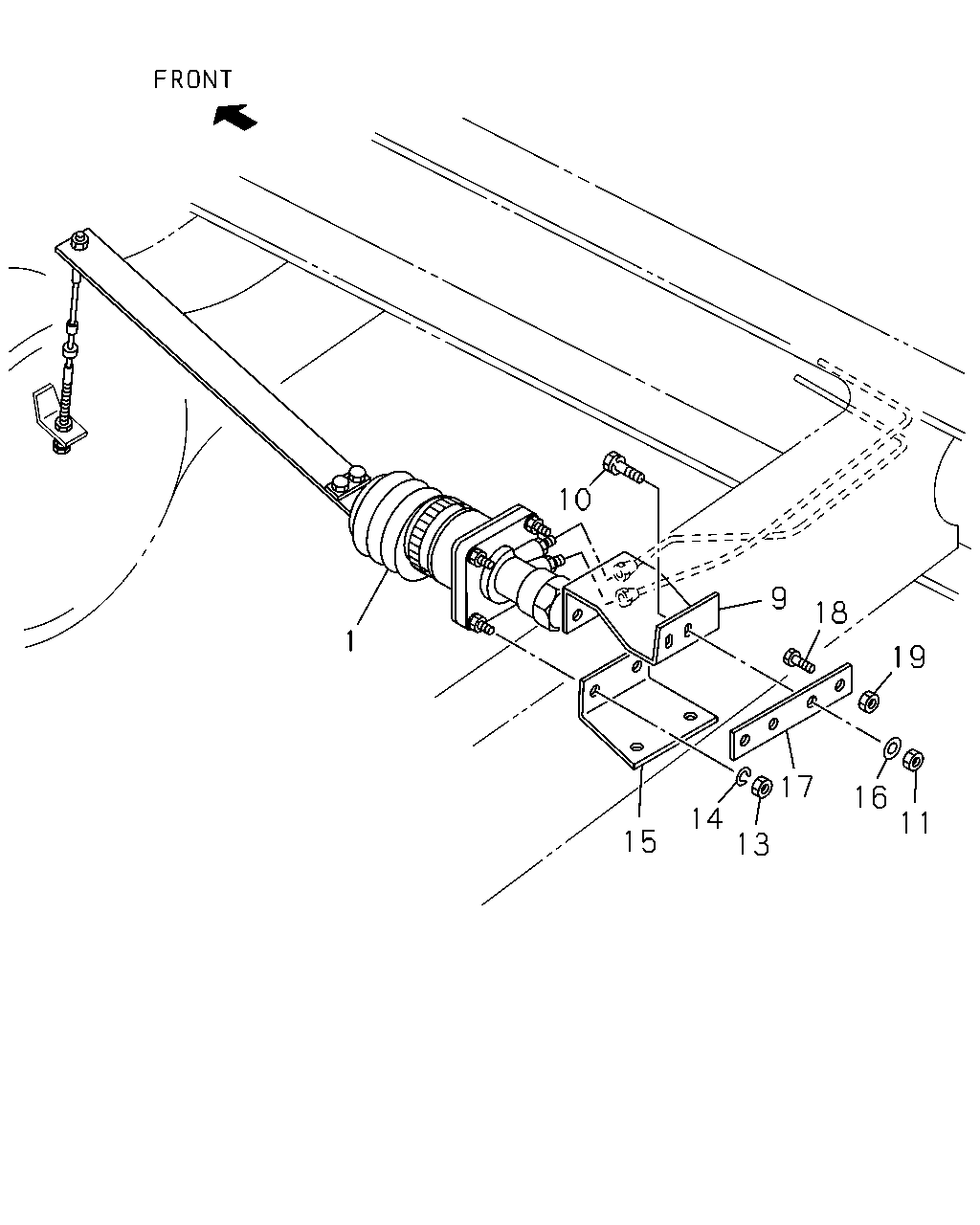

çizim 95379
10 9 18 1 19 17 16 14 11 15 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47710-010-0 01 1 9202- ● ●
9 BRACKET; UPR,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47475-469-0 01 1 9202- ● ●
10 BOLT; BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8X25 FLANGE 		0-28010-825-0 04 1 9202-9204 ● ●
10 BOLT; BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8X25 FLANGE 		0-28080-825-0 04 1 9205- ● ●
11 NUT; BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8 		9-09110-408-0 04 1 9202- ● ●
13 NUT; LSPV TO BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8 		9-09110-408-0 04 1 9202- ● ●
14 WASHER; LK,LSPV TO BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) ID=8.2 		9-09150-508-0 04 1 9202- ● ●
15 BRACKET; LWR,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47465-585-1 01 1 9202- ● ●
16 WASHER; PL,BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) ID=8.4 OD=22 		9-09160-708-0 04 1 9202- ● ●
17 STAY; BRKT,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-037-0 01 1 9202- ● ●
18 BOLT; BRKT STAY
LOAD SENSING PROPORTIONING VALVE(JR7) M8X25 FLANGE 		0-28010-825-0 02 1 9202-9204 ● ●
18 BOLT; BRKT STAY
LOAD SENSING PROPORTIONING VALVE(JR7) M8X25 FLANGE 		0-28080-825-0 02 1 9205- ● ●
19 NUT; BRKT STAY
LOAD SENSING PROPORTIONING VALVE(JR7) M8 		9-09110-408-0 02 1 9202- ● ●
