Isuzu WW
▶
TRUCKS
▶
FSS
▶
10716 - FSS/FTS-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶

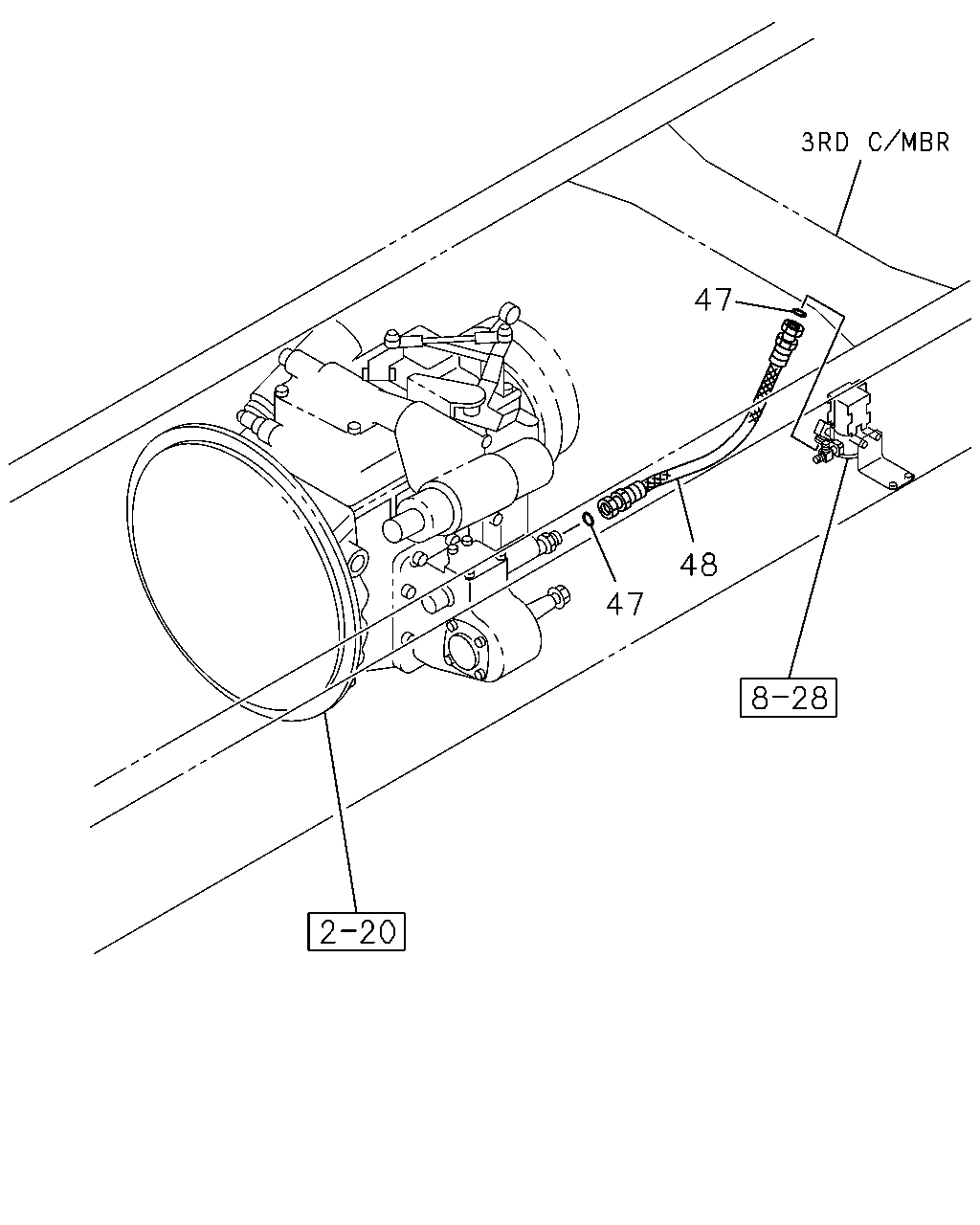

2-85 — POWER TAKE OFF CONTROL
(#36788) — 10 parça
Tümü
A - MLD6D M/T
B - MBJ5J M/T
C - MLD6Q M/T
◀
[285A] NO.2 (6 parça)
[285A] NO.1 (4 parça)
▶
47
48
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
47
GASKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ID=11 OD=18
9-09572-510-0
02
1
9604-9803
●
●
48
HOSE; FLEX,PTO
FTS STD CAB(FT**M*) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=270
1-09363-687-0
01
1
0104-
●
●
48
HOSE; FLEX,PTO
FTS STD CAB MIDDLE CHASSIS(FT**MF) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=270
1-09363-687-0
01
1
0104-
●
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=320
0-07150-320-0
01
1
9604-9803
●
●
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=320
1-09363-625-0
01
1
9804-0103
●
●
48
HOSE; FLEX,PTO
FSS STD CAB(FS**M*) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=320
1-09363-625-0
01
1
0104-
●
●
3
3
1
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4>
1-79996-092-0
01
1
9609-
●
3
BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
9609-
●
55
GROMMET; CABLE
1-09983-068-0
01
1
9604-0405
●
●
55
GROMMET; CABLE
1-09983-068-0
01
1
0406-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
