2-76 — AUTOMATIC TRANSFER CONTROL VALVE (#36786) — 14 parça

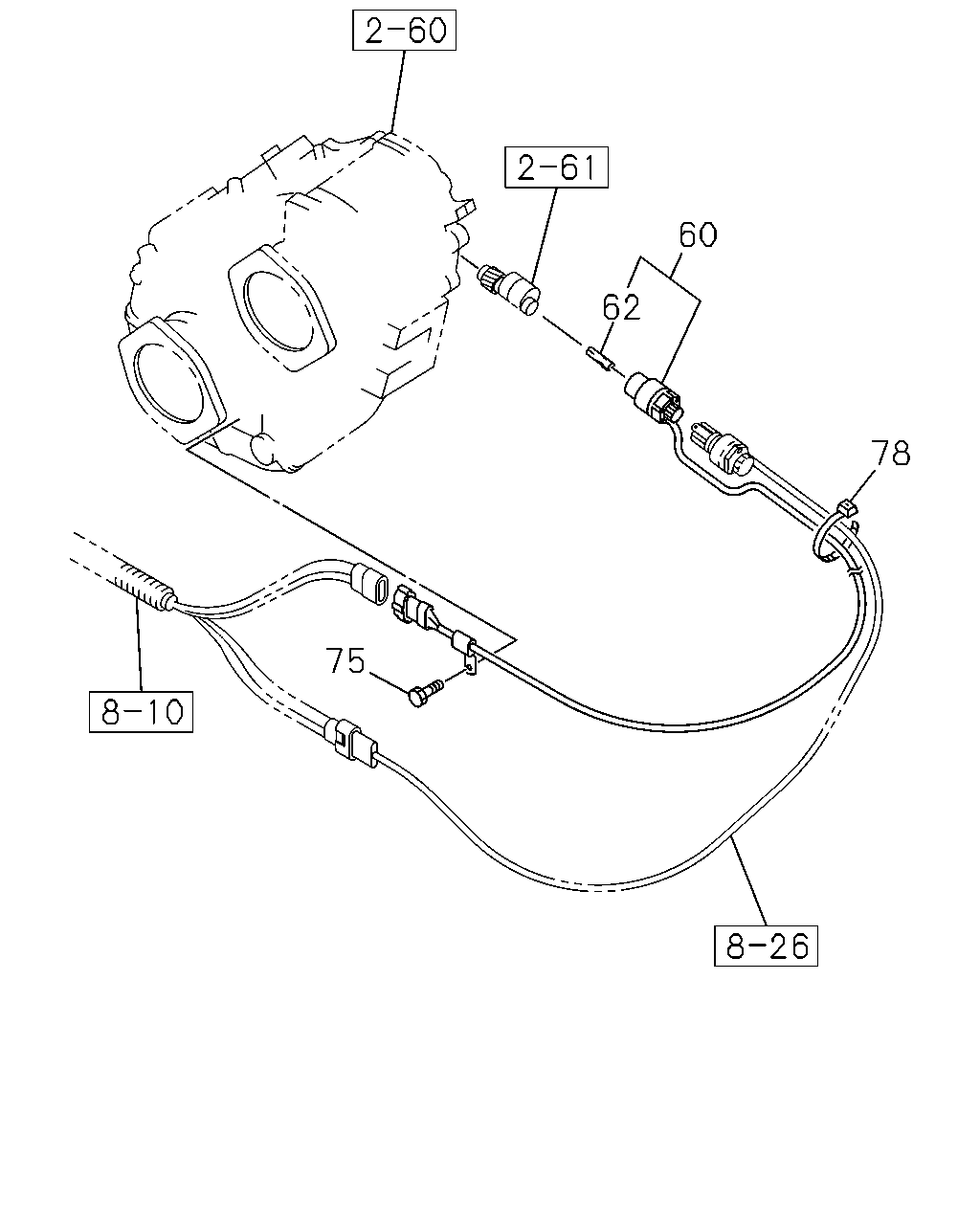

çizim 152726

60 62 78 75

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	60	SENSOR; SPD,TRANSFER	1-83127-254-3	01	1	9604-0004	●	●
	60	SENSOR; SPD,TRANSFER	1-80240-001-1	01	1	0005-0202	●	●
	60	SENSOR; SPD,TRANSFER 25 PULSE ALUMINUM	8-97328-058-1	01	1	0203-0405	●	●
	60	SENSOR; SPD,TRANSFER 25 PULSE ALUMINUM	8-97328-058-1	01	1	0406-	●	●	●
	62	KEY; SPD SENSOR ROTOR,TRANSFER	1-83129-125-0	01	1	9604-0004	●	●
	75	BOLT; SPD SENSOR M8X18 FLANGE	0-28080-818-0	01	1	9604-0004	●	●
	78	CLIP; SPD SENSOR L=140	5-09707-031-1	01	1	9604-0004	●	●

çizim 152731

60 81

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	60	SENSOR; SPD,TRANSFER	1-83127-254-3	01	1	9604-0004	●	●
	60	SENSOR; SPD,TRANSFER	1-80240-001-1	01	1	0005-0202	●	●
	60	SENSOR; SPD,TRANSFER 25 PULSE ALUMINUM	8-97328-058-1	01	1	0203-0405	●	●
	60	SENSOR; SPD,TRANSFER 25 PULSE ALUMINUM	8-97328-058-1	01	1	0406-	●	●	●
	81	PROTECTOR; SENSOR	8-97168-308-0	01	1	0005-0405	●	●
	81	PROTECTOR; SENSOR	8-97168-308-0	01	1	0406-0808	●	●	●
	81	PROTECTOR; SENSOR	8-98119-901-0	01	1	0809-	●	●
