2-75 — TRANSFER CONTROL (#36785) — 684 parça

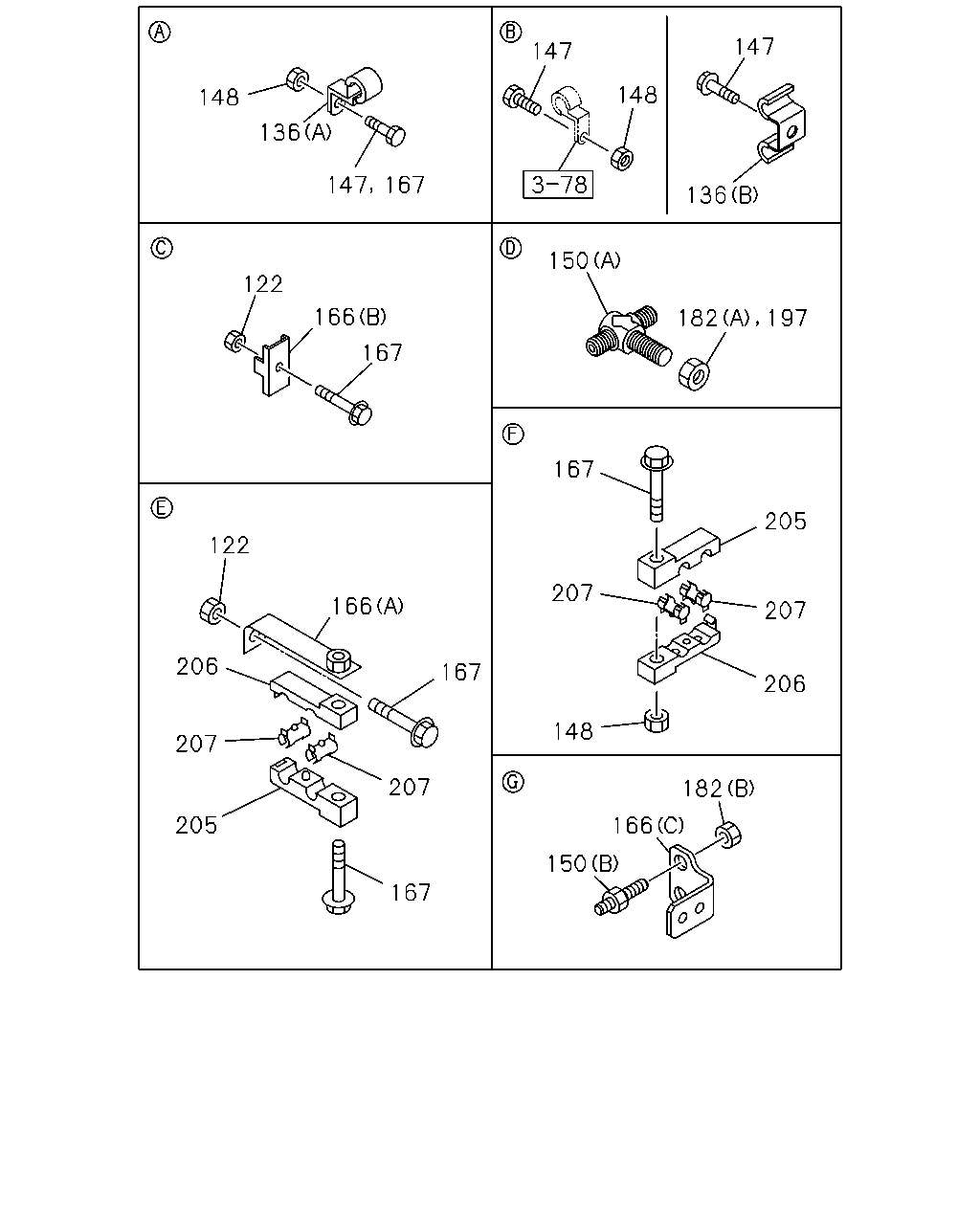

çizim 152720
147 147 148 148 136 147 167 136 150 122 166 182 197 167 167 205 122 207 166 207 206 167 206 148 207 207 182 205 166 150 167
BalonParca AdiParca NoAdetTipApplied Date A B C D E
122 NUT; BRKT
M8 		9-09110-408-0 01 1 9604-9606 ● ● ● ● ●
122 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ● ● ● ● ●
122 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0005-0405 ● ● ●
122 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0406-0602 ● ●
122 NUT; BRKT
EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91150-108-0 01 1 0406-0602 ●
122 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
122 NUT; BRKT
EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
136 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 9604-9609 ● ● ● ● ●
136 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 9604-9609 ●
136 CLIP; AIR PIPE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=6 H=20 L=20 		1-09700-603-0 02 1 9604-9609 ●
136 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 9610-0004 ● ● ● ● ●
136 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 9610-0004 ●
136 CLIP; AIR PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) ID=6 H=20 L=20 		1-09700-603-0 02 1 9610-0004 ●
136 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0005- ● ● ●
136 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0005- ●
136 CLIP; AIR PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0005- ●
136 CLIP; AIR PIPE
AUSTRALIA EQUIPMENT(RR3) (B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9804-0004 ●
136 CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9804-0004 ●
136 CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0005-0405 ● ●
136 CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0406- ●
136 CLIP; AIR PIPE
EXC. TRANSFER TF56<BFK> (B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0406- ●
147 BOLT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 01 1 9604-9606 ● ●
147 BOLT; CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9604-9606 ●
147 BOLT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 01 1 9607-0004 ● ●
147 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9607-0004 ●
147 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0005-0405 ● ● ●
147 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0406-0512 ● ●
147 BOLT; CLIP
EXC. TRANSFER TF56<BFK> M8X25 FLANGE 		0-28680-825-0 01 1 0406-0512 ●
147 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
147 BOLT; CLIP
EXC. TRANSFER TF56<BFK> M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
147 BOLT; CLIP
M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606 ●
147 BOLT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606 ●
147 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9803 ●
147 BOLT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9803 ●
147 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 9804-0004 ●
147 BOLT; CLIP
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9804-0004 ●
147 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0405 ● ●
147 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ●
147 BOLT; CLIP
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ●
147 BOLT; CLIP
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ●
147 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
147 BOLT; CLIP
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
147 BOLT; CLIP
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
148 NUT; CLIP
M8 		9-09110-408-0 02 1 9604-9606 ● ● ● ● ●
148 NUT; CLIP
M8 		9-09110-408-0 02 1 9604-9606 ● ● ●
148 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 02 1 9604-9606 ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ●
148 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0405 ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0405 ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0406-0602 ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0406-0602 ● ●
148 NUT; CLIP
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91150-108-0 02 1 0406-0602 ●
148 NUT; CLIP
EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91150-108-0 02 1 0406-0602 ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
148 NUT; CLIP
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
148 NUT; CLIP
EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
148 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 01 1 9604-9606 ● ●
148 NUT; CLIP
M8 		9-09110-408-0 01 1 9604-9606 ●
148 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0005-0405 ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0406-0602 ● ●
148 NUT; CLIP
EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91150-108-0 01 1 0406-0602 ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
148 NUT; CLIP
EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
148 NUT; CLIP
M8 		9-09110-408-0 03 1 9604-9606 ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9607-9803 ● ● ●
148 NUT; CLIP
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 03 1 9804-0004 ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9804-0004 ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0005-0403 ●
148 NUT; CLIP
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) M8 FLANGE 		0-91150-108-0 03 1 0005-0403 ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0404-0405 ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0406-0602 ●
148 NUT; CLIP
EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91150-108-0 03 1 0406-0602 ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
148 NUT; CLIP
EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91180-108-0 03 1 0603- ●
150 UNION; AIR PIPE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) M12 2WAY 		1-09654-234-2 01 1 9604-9609 ●
150 UNION; AIR PIPE
(A) M12 2WAY 		1-09654-234-2 01 1 9604-9609 ● ● ●
150 UNION; AIR PIPE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) M12 2WAY 		1-09654-234-2 01 1 9610-0004 ●
150 UNION; AIR PIPE
(A) M12 2WAY 		1-09654-234-2 01 1 9610-0004 ● ● ●
150 UNION; AIR PIPE
(A) M12 2WAY 		1-09654-234-2 01 1 9610-0004 ●
150 UNION; AIR PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) M12 2WAY 		1-09654-234-2 01 1 9610-0004 ●
150 UNION; AIR PIPE
(A) M12 2WAY 		1-09654-234-2 01 1 0005-0405 ● ● ●
150 UNION; AIR PIPE
(A) M12 2WAY 		1-09654-234-2 01 1 0005-0405 ●
150 UNION; AIR PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M12 2WAY 		1-09654-234-2 01 1 0005-0405 ●
150 UNION; AIR PIPE
(A) M12 2WAY 		1-09654-234-2 01 1 0406- ● ●
150 UNION; AIR PIPE
(A) M12 2WAY 		1-09654-234-2 01 1 0406- ●
150 UNION; AIR PIPE
EXC. TRANSFER TF56<BFK> (A) M12 2WAY 		1-09654-234-2 01 1 0406- ●
150 UNION; AIR PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M12 2WAY 		1-09654-234-2 01 1 0406- ●
150 UNION; AIR PIPE
NEW ZEALAND EQUIPMENT(PK5) (B) M12 L=66.5 		9-09223-306-1 01 1 9610-0405 ●
150 UNION; AIR PIPE
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> (B) M12 L=66.5 		9-09223-306-1 01 1 0406-0607 ●
150 UNION; AIR PIPE
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> (B) M12 L=66.5 		0-92113-306-0 01 1 0608- ●
166 BRACKET; CLIP,AIR PIPE
(A) 		1-23335-352-0 01 1 9604-0004 ● ●
166 BRACKET; CLIP,AIR PIPE
(A) 		1-23335-352-0 01 1 0005- ●
166 BRACKET; CLIP,AIR PIPE
(B) 		1-47475-427-1 01 1 9604-0004 ● ● ●
166 BRACKET; CLIP,AIR PIPE
(B) 		1-47475-427-1 01 1 0005-0405 ● ●
166 BRACKET; CLIP,AIR PIPE
(B) 		1-47475-427-1 01 1 0406- ●
166 BRACKET; CLIP,AIR PIPE
EXC. TRANSFER TF56<BFK> (B) 		1-47475-427-1 01 1 0406- ●
166 BRACKET; CLIP,AIR PIPE
NEW ZEALAND EQUIPMENT(PK5) (C) 		1-47477-657-0 01 1 9610-0405 ●
166 BRACKET; CLIP,AIR PIPE
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> (C) 		1-47477-657-0 01 1 0406- ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28080-825-0 01 1 9604-9606 ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 9607-0004 ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0005-0512 ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 03 1 9604-0004 ● ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 03 1 0005-0512 ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28050-850-0 03 1 0601- ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606 ● ● ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ● ● ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0403 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0403 ●
167 BOLT; CLIP,AIR PIPE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0403 ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0404-0405 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0404-0405 ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ●
167 BOLT; CLIP,AIR PIPE
EXC. TRANSFER TF56<BFK> M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
167 BOLT; CLIP,AIR PIPE
EXC. TRANSFER TF56<BFK> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28080-840-0 01 1 9604-9606 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28680-840-0 01 1 9607-0004 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28680-840-0 01 1 0005-0405 ● ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28680-840-0 01 1 0406-0512 ●
167 BOLT; CLIP,AIR PIPE
EXC. TRANSFER TF56<BFK> M8X40 FLANGE 		0-28680-840-0 01 1 0406-0512 ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28650-840-0 01 1 0601- ●
167 BOLT; CLIP,AIR PIPE
EXC. TRANSFER TF56<BFK> M8X40 FLANGE 		0-28650-840-0 01 1 0601- ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 01 1 9604-0004 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 01 1 0005-0403 ●
167 BOLT; CLIP,AIR PIPE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) M8X50 FLANGE 		0-28080-850-0 01 1 0005-0403 ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 01 1 0404-0405 ● ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 01 1 0406-0512 ●
167 BOLT; CLIP,AIR PIPE
EXC. TRANSFER TF56<BFK> M8X50 FLANGE 		0-28080-850-0 01 1 0406-0512 ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28050-850-0 01 1 0601- ●
167 BOLT; CLIP,AIR PIPE
EXC. TRANSFER TF56<BFK> M8X50 FLANGE 		0-28050-850-0 01 1 0601- ●
182 NUT
EXC. AUSTRALIA EQUIPMENT(RR3) (A) M12 		9-99110-412-0 01 1 9604-9606 ● ●
182 NUT
(A) M12 		9-99110-412-0 01 1 9604-9606 ●
182 NUT
EXC. AUSTRALIA EQUIPMENT(RR3) (A) M12 FLANGE 		0-91150-112-0 01 1 9607-9608 ● ●
182 NUT
(A) M12 FLANGE 		0-91150-112-0 01 1 9607-9608 ●
182 NUT
EXC. AUSTRALIA EQUIPMENT(RR3) (A) M12 FLANGE 		0-91150-212-0 01 1 9609-9609 ● ●
182 NUT
(A) M12 FLANGE 		0-91150-212-0 01 1 9609-9609 ●
182 NUT
EXC. AUSTRALIA EQUIPMENT(RR3) (A) M12 FLANGE 		0-91150-212-0 01 1 9610-0004 ●
182 NUT
(A) M12 FLANGE 		0-91150-212-0 01 1 9610-0004 ●
182 NUT
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) M12 FLANGE 		0-91150-212-0 01 1 9610-0004 ●
182 NUT
(A) M12 FLANGE 		0-91150-212-0 01 1 0005-0602 ● ●
182 NUT
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M12 FLANGE 		0-91150-212-0 01 1 0005-0602 ●
182 NUT
(A) M12 FLANGE 		0-91180-212-0 01 1 0603- ● ●
182 NUT
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M12 FLANGE 		0-91180-212-0 01 1 0603- ●
182 NUT
NEW ZEALAND EQUIPMENT(PK5) (B) M12 		9-09840-280-0 01 1 9610-0405 ●
182 NUT
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> (B) M12 		9-09840-280-0 01 1 0406- ●
197 NUT; UNION
AUSTRALIA EQUIPMENT(RR3) M12 		9-99111-412-0 01 1 9604-0004 ●
197 NUT; UNION
M12 		9-99111-412-0 01 1 9604-0004 ●
197 NUT; UNION
M12 		9-99111-412-0 01 1 0005-0405 ● ●
197 NUT; UNION
M12 		9-99111-412-0 01 1 0406-0512 ●
197 NUT; UNION
EXC. TRANSFER TF56<BFK> M12 		9-99111-412-0 01 1 0406-0512 ●
197 NUT; UNION
M12 		0-91111-512-0 01 1 0601- ●
197 NUT; UNION
EXC. TRANSFER TF56<BFK> M12 		0-91111-512-0 01 1 0601- ●
205 CLIP; UPR
ID=10 & 10 		1-09709-241-0 04 1 0005- ●
205 CLIP; UPR
ID=10 & 10 		1-09709-241-0 02 1 9604-0004 ● ●
205 CLIP; UPR
ID=10 & 10 		1-09709-241-0 02 1 0005-0403 ●
205 CLIP; UPR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) ID=10 & 10 		1-09709-241-0 02 1 0005-0403 ●
205 CLIP; UPR
ID=10 & 10 		1-09709-241-0 02 1 0404-0405 ● ●
205 CLIP; UPR
ID=10 & 10 		1-09709-241-0 02 1 0406- ●
205 CLIP; UPR
EXC. TRANSFER TF56<BFK> ID=10 & 10 		1-09709-241-0 02 1 0406- ●
205 CLIP; UPR
ID=10 & 10 		1-09709-241-0 01 1 9604-0004 ● ● ●
206 CLIP; LWR
ID=10 & 10 		1-09709-243-0 04 1 0005- ●
206 CLIP; LWR
ID=10 & 10 		1-09709-243-0 02 1 9604-0004 ● ●
206 CLIP; LWR
ID=10 & 10 		1-09709-243-0 02 1 0005-0403 ●
206 CLIP; LWR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) ID=10 & 10 		1-09709-243-0 02 1 0005-0403 ●
206 CLIP; LWR
ID=10 & 10 		1-09709-243-0 02 1 0404-0405 ● ●
206 CLIP; LWR
ID=10 & 10 		1-09709-243-0 02 1 0406- ●
206 CLIP; LWR
EXC. TRANSFER TF56<BFK> ID=10 & 10 		1-09709-243-0 02 1 0406- ●
206 CLIP; LWR
ID=10 & 10 		1-09709-243-0 01 1 9604-0004 ● ● ●
207 COLLAR
ID=6 		1-47459-010-0 04 1 0005- ●
207 COLLAR
ID=8 		1-47459-011-0 04 1 0005- ●
207 COLLAR
ID=6 		1-47459-010-0 02 1 9604-0004 ● ●
207 COLLAR
ID=6 		1-47459-010-0 02 1 0005-0403 ●
207 COLLAR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) ID=6 		1-47459-010-0 02 1 0005-0403 ●
207 COLLAR
ID=6 		1-47459-010-0 02 1 0404-0405 ● ●
207 COLLAR
ID=6 		1-47459-010-0 02 1 0406- ●
207 COLLAR
EXC. TRANSFER TF56<BFK> ID=6 		1-47459-010-0 02 1 0406- ●
207 COLLAR
ID=8 		1-47459-011-0 02 1 9604-0004 ● ●
207 COLLAR
ID=8 		1-47459-011-0 02 1 0005-0403 ●
207 COLLAR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) ID=8 		1-47459-011-0 02 1 0005-0403 ●
207 COLLAR
ID=8 		1-47459-011-0 02 1 0404-0405 ● ●
207 COLLAR
ID=8 		1-47459-011-0 02 1 0406- ●
207 COLLAR
EXC. TRANSFER TF56<BFK> ID=8 		1-47459-011-0 02 1 0406- ●
207 COLLAR
ID=6 		1-47459-010-0 01 1 9604-0004 ● ● ●
207 COLLAR
ID=8 		1-47459-011-0 01 1 9604-0004 ● ● ●

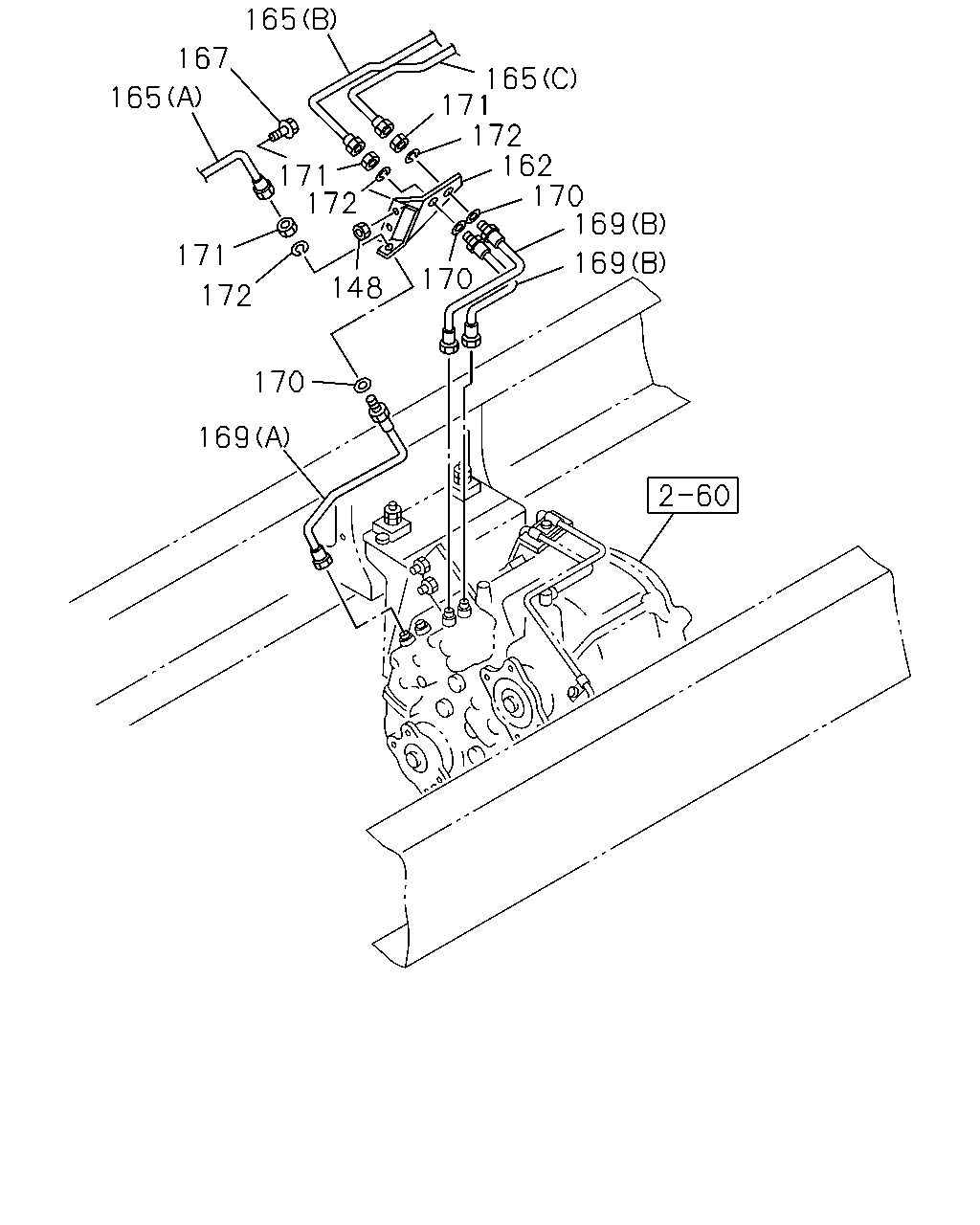

çizim 152729
165 167 165 171 172 162 170 169 165 171 172 171 169 170 148 172 170 169
BalonParca AdiParca NoAdetTipApplied Date A B C D E
148 NUT; CLIP
M8 		9-09110-408-0 02 1 9604-9606 ● ● ● ● ●
148 NUT; CLIP
M8 		9-09110-408-0 02 1 9604-9606 ● ● ●
148 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 02 1 9604-9606 ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ●
148 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0405 ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0405 ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0406-0602 ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0406-0602 ● ●
148 NUT; CLIP
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91150-108-0 02 1 0406-0602 ●
148 NUT; CLIP
EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91150-108-0 02 1 0406-0602 ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
148 NUT; CLIP
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
148 NUT; CLIP
EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
148 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 01 1 9604-9606 ● ●
148 NUT; CLIP
M8 		9-09110-408-0 01 1 9604-9606 ●
148 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0005-0405 ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0406-0602 ● ●
148 NUT; CLIP
EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91150-108-0 01 1 0406-0602 ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
148 NUT; CLIP
EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
148 NUT; CLIP
M8 		9-09110-408-0 03 1 9604-9606 ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9607-9803 ● ● ●
148 NUT; CLIP
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 03 1 9804-0004 ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9804-0004 ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0005-0403 ●
148 NUT; CLIP
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) M8 FLANGE 		0-91150-108-0 03 1 0005-0403 ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0404-0405 ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0406-0602 ●
148 NUT; CLIP
EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91150-108-0 03 1 0406-0602 ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
148 NUT; CLIP
EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91180-108-0 03 1 0603- ●
162 BRACKET; FLEX HOSE,TRANSFER 1-47476-553-1 01 1 9604-0004 ● ● ● ● ●
162 BRACKET; FLEX HOSE,TRANSFER 1-47476-553-1 01 1 0005-0405 ● ● ●
162 BRACKET; FLEX HOSE,TRANSFER 1-47476-553-1 01 1 0406- ● ●
162 BRACKET; FLEX HOSE,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-47476-553-1 01 1 0406- ●
162 BRACKET; FLEX HOSE,TRANSFER
TRANSMISSION OIL COOLER<C2C> 		1-47476-553-1 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) L=869 		1-49113-916-2 01 1 9604-9803 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49119-379-0 01 1 9804-0004 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49119-379-0 01 1 0005- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=843 		1-49113-917-3 01 1 9604-0004 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=843 		1-49113-917-3 01 1 0005- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) (A) L=1607 SERVICED BY L=1620 		1-47426-356-0 01 1 9604-0003 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) (A) L=1594 SERVICED BY L=1620 		1-47428-820-0 01 1 0004-0004 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1659 SERVICED BY L=1820 		1-47428-822-0 01 1 9604-9708 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1725 SERVICED BY L=1820 		1-47426-358-0 01 1 9709-0004 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1725 SERVICED BY L=1820 		1-47426-358-0 01 1 0005- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 9604-0004 ● ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0404-0405 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. TRANSFER TF56<BFK> (A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49115-609-0 01 1 9604-0004 ● ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49115-609-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-49115-609-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49115-609-0 01 1 0404-0405 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49115-609-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. TRANSFER TF56<BFK> (B) 		1-49115-609-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) 		1-49115-610-0 01 1 9604-0004 ● ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) 		1-49115-610-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (C) 		1-49115-610-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) 		1-49115-610-0 01 1 0404-0405 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) 		1-49115-610-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. TRANSFER TF56<BFK> (C) 		1-49115-610-0 01 1 0406- ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28080-825-0 01 1 9604-9606 ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 9607-0004 ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0005-0512 ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 03 1 9604-0004 ● ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 03 1 0005-0512 ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28050-850-0 03 1 0601- ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606 ● ● ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ● ● ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0403 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0403 ●
167 BOLT; CLIP,AIR PIPE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0403 ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0404-0405 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0404-0405 ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ●
167 BOLT; CLIP,AIR PIPE
EXC. TRANSFER TF56<BFK> M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
167 BOLT; CLIP,AIR PIPE
EXC. TRANSFER TF56<BFK> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28080-840-0 01 1 9604-9606 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28680-840-0 01 1 9607-0004 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28680-840-0 01 1 0005-0405 ● ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28680-840-0 01 1 0406-0512 ●
167 BOLT; CLIP,AIR PIPE
EXC. TRANSFER TF56<BFK> M8X40 FLANGE 		0-28680-840-0 01 1 0406-0512 ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28650-840-0 01 1 0601- ●
167 BOLT; CLIP,AIR PIPE
EXC. TRANSFER TF56<BFK> M8X40 FLANGE 		0-28650-840-0 01 1 0601- ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 01 1 9604-0004 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 01 1 0005-0403 ●
167 BOLT; CLIP,AIR PIPE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) M8X50 FLANGE 		0-28080-850-0 01 1 0005-0403 ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 01 1 0404-0405 ● ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 01 1 0406-0512 ●
167 BOLT; CLIP,AIR PIPE
EXC. TRANSFER TF56<BFK> M8X50 FLANGE 		0-28080-850-0 01 1 0406-0512 ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28050-850-0 01 1 0601- ●
167 BOLT; CLIP,AIR PIPE
EXC. TRANSFER TF56<BFK> M8X50 FLANGE 		0-28050-850-0 01 1 0601- ●
169 HOSE; FLEX,TRANSFER CONT
TRANSFER TF56<BFK> (C) L=460 		1-09363-648-0 02 1 0406- ●
169 HOSE; FLEX,TRANSFER CONT
TRANSFER TF56<BFK> (D) L=370 		1-09363-771-0 01 1 0406- ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=260 		0-07120-260-0 01 1 9604-0004 ● ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=260 		0-07120-260-0 01 1 0005-0204 ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=300 		1-09363-608-0 02 1 0205- ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=300 		0-07120-300-0 02 1 9604-0004 ● ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=300 		0-07120-300-0 02 1 0005-0204 ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=260 		1-09363-609-0 01 1 0205- ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=300 		0-07120-300-0 01 1 9604-0004 ● ● ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=300 		0-07120-300-0 01 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=300 		1-09363-608-0 01 1 0205-0405 ● ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=300 		1-09363-608-0 01 1 0406- ●
169 HOSE; FLEX,TRANSFER CONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) L=300 		1-09363-608-0 01 1 0406- ●
169 HOSE; FLEX,TRANSFER CONT
TRANSMISSION OIL COOLER<C2C> (A) L=300 		1-09363-608-0 01 1 0406- ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=340 		0-07120-340-0 02 1 9604-0004 ● ● ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=340 		0-07120-340-0 02 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=340 		1-09363-622-0 02 1 0205-0405 ● ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=340 		1-09363-622-0 02 1 0406- ●
169 HOSE; FLEX,TRANSFER CONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (B) L=340 		1-09363-622-0 02 1 0406- ●
169 HOSE; FLEX,TRANSFER CONT
TRANSMISSION OIL COOLER<C2C> (B) L=340 		1-09363-622-0 02 1 0406- ●
170 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 03 1 9604-0004 ● ● ● ● ●
170 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 03 1 0005-0204 ● ● ●
171 NUT; FLEX HOSE
M12 		9-09840-280-0 03 1 9604-0004 ● ● ● ● ●
171 NUT; FLEX HOSE
M12 		9-09840-280-0 03 1 0005-0405 ● ● ●
171 NUT; FLEX HOSE
M12 		9-09840-280-0 03 1 0406- ● ●
171 NUT; FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M12 		9-09840-280-0 03 1 0406- ●
171 NUT; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M12 		9-09840-280-0 03 1 0406- ●
172 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 03 1 9604-0004 ● ● ● ● ●
172 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 03 1 0005-0405 ● ● ●
172 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 03 1 0406-0603 ● ●
172 WASHER; LK,FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> ID=12.2 		9-09150-512-0 03 1 0406-0603 ●
172 WASHER; LK,FLEX HOSE
TRANSMISSION OIL COOLER<C2C> ID=12.2 		9-09150-512-0 03 1 0406-0603 ●
172 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 03 1 0604- ● ● ●

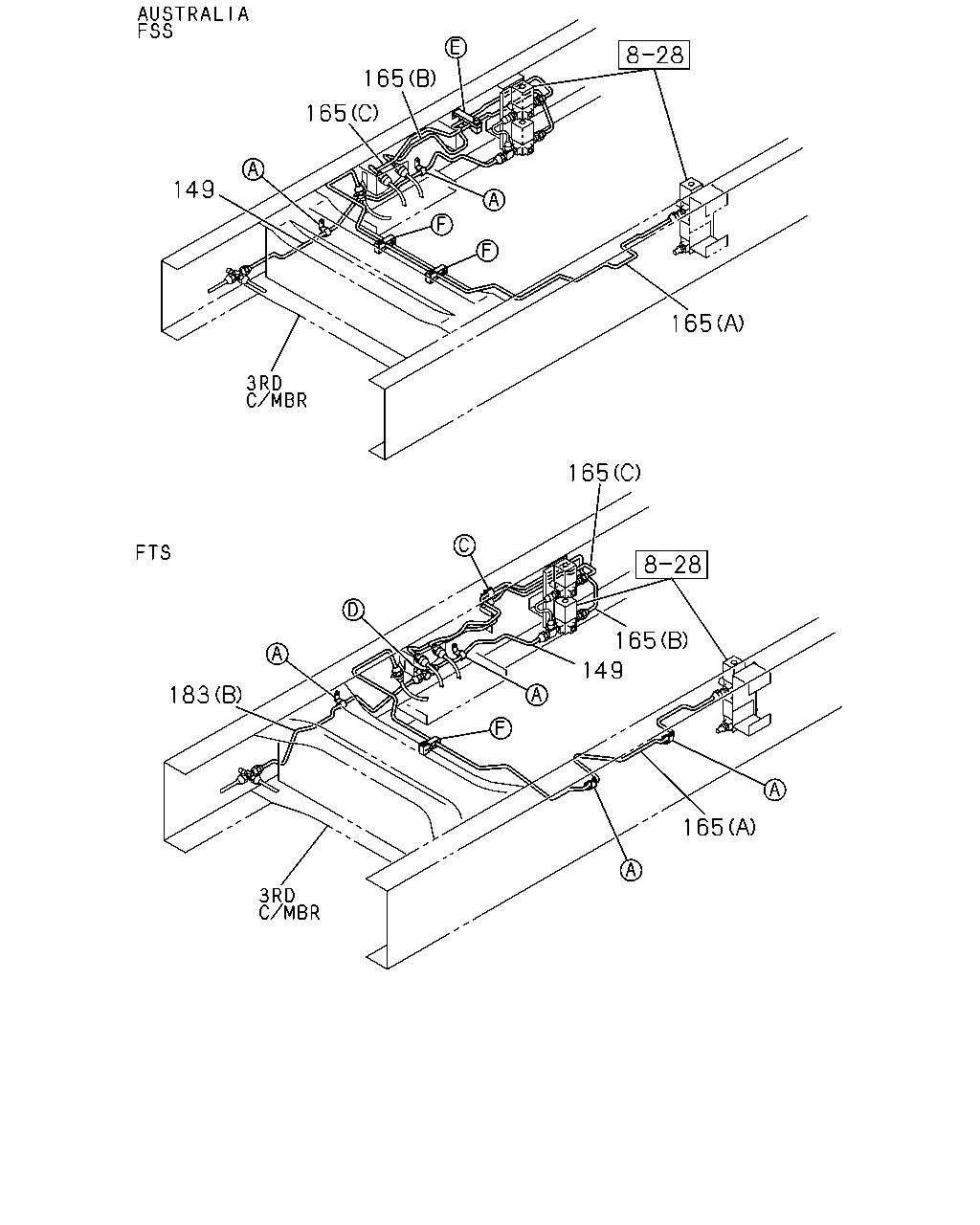

çizim 152735
165 165 149 165 165 165 149 183 165
BalonParca AdiParca NoAdetTipApplied Date A B C D E
149 PIPE; AIR,MAG VLV TO UNION
TRANSFER TF56<BFK> L=443 		1-49124-431-0 01 1 0406- ●
149 PIPE; AIR,MAG VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) 		1-49116-375-0 01 1 9604-0004 ● ●
149 PIPE; AIR,MAG VLV TO UNION
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-49113-915-0 01 1 9604-0004 ● ●
149 PIPE; AIR,MAG VLV TO UNION 1-49113-915-0 01 1 0005- ●
149 PIPE; AIR,MAG VLV TO UNION
L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 9604-9605 ●
149 PIPE; AIR,MAG VLV TO UNION
EXC. AUSTRALIA EQUIPMENT(RR3) L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 9604-9605 ●
149 PIPE; AIR,MAG VLV TO UNION
L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 9606-0004 ●
149 PIPE; AIR,MAG VLV TO UNION
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 9606-0004 ●
149 PIPE; AIR,MAG VLV TO UNION
L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0405 ●
149 PIPE; AIR,MAG VLV TO UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0405 ●
149 PIPE; AIR,MAG VLV TO UNION
L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 0406- ●
149 PIPE; AIR,MAG VLV TO UNION
EXC. TRANSFER TF56<BFK>,NEW ZEALAND EQUIPMENT(PK5) L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 0406- ●
149 PIPE; AIR,MAG VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) 		1-49116-484-0 01 1 9604-9605 ●
149 PIPE; AIR,MAG VLV TO UNION 1-49116-484-0 01 1 9604-9605 ●
149 PIPE; AIR,MAG VLV TO UNION
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-49116-484-0 01 1 9606-0004 ●
149 PIPE; AIR,MAG VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) 		1-49116-484-0 01 1 9606-0004 ●
149 PIPE; AIR,MAG VLV TO UNION
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) NEW ZEALAND EQUIPMENT(PK5) 		1-49116-484-0 01 1 0005-0403 ●
149 PIPE; AIR,MAG VLV TO UNION
NEW ZEALAND EQUIPMENT(PK5) 		1-49116-484-0 01 1 0404-0405 ●
149 PIPE; AIR,MAG VLV TO UNION
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> 		1-49116-484-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) L=869 		1-49113-916-2 01 1 9604-9803 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49119-379-0 01 1 9804-0004 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49119-379-0 01 1 0005- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=843 		1-49113-917-3 01 1 9604-0004 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=843 		1-49113-917-3 01 1 0005- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) (A) L=1607 SERVICED BY L=1620 		1-47426-356-0 01 1 9604-0003 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) (A) L=1594 SERVICED BY L=1620 		1-47428-820-0 01 1 0004-0004 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1659 SERVICED BY L=1820 		1-47428-822-0 01 1 9604-9708 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1725 SERVICED BY L=1820 		1-47426-358-0 01 1 9709-0004 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1725 SERVICED BY L=1820 		1-47426-358-0 01 1 0005- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 9604-0004 ● ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0404-0405 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. TRANSFER TF56<BFK> (A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49115-609-0 01 1 9604-0004 ● ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49115-609-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-49115-609-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49115-609-0 01 1 0404-0405 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49115-609-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. TRANSFER TF56<BFK> (B) 		1-49115-609-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) 		1-49115-610-0 01 1 9604-0004 ● ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) 		1-49115-610-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (C) 		1-49115-610-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) 		1-49115-610-0 01 1 0404-0405 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) 		1-49115-610-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. TRANSFER TF56<BFK> (C) 		1-49115-610-0 01 1 0406- ●
183 PIPE; AIR,UNION TO UNION
EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		1-49116-737-0 01 1 9604-0004 ●
183 PIPE; AIR,UNION TO UNION
(C) 		1-49116-737-0 01 1 0005- ●
183 PIPE; AIR,UNION TO UNION
(A) 		1-49116-712-0 01 1 9604-9810 ●
183 PIPE; AIR,UNION TO UNION
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-49116-712-0 01 1 9604-9810 ●
183 PIPE; AIR,UNION TO UNION
(A) 		1-49116-712-0 01 1 9811-0004 ●
183 PIPE; AIR,UNION TO UNION
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-49116-712-0 01 1 9811-0004 ●
183 PIPE; AIR,UNION TO UNION
(A) 		1-49116-712-0 01 1 0005- ●
183 PIPE; AIR,UNION TO UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-49116-712-0 01 1 0005- ●
183 PIPE; AIR,UNION TO UNION
AUSTRALIA EQUIPMENT(RR3) (B) 		1-49116-483-0 01 1 9604-9605 ●
183 PIPE; AIR,UNION TO UNION
(B) 		1-49116-483-0 01 1 9604-9605 ●
183 PIPE; AIR,UNION TO UNION
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) 		1-49116-483-0 01 1 9606-0004 ●
183 PIPE; AIR,UNION TO UNION
AUSTRALIA EQUIPMENT(RR3) (B) 		1-49116-483-0 01 1 9606-0004 ●
183 PIPE; AIR,UNION TO UNION
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) NEW ZEALAND EQUIPMENT(PK5) (B) 		1-49116-483-0 01 1 0005-0403 ●
183 PIPE; AIR,UNION TO UNION
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-49116-483-0 01 1 0404-0405 ●
183 PIPE; AIR,UNION TO UNION
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> (B) 		1-49116-483-0 01 1 0406- ●
183 PIPE; AIR,UNION TO UNION
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-49116-475-0 01 1 9606-0405 ●
183 PIPE; AIR,UNION TO UNION
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> (A) 		1-49116-475-0 01 1 0406- ●

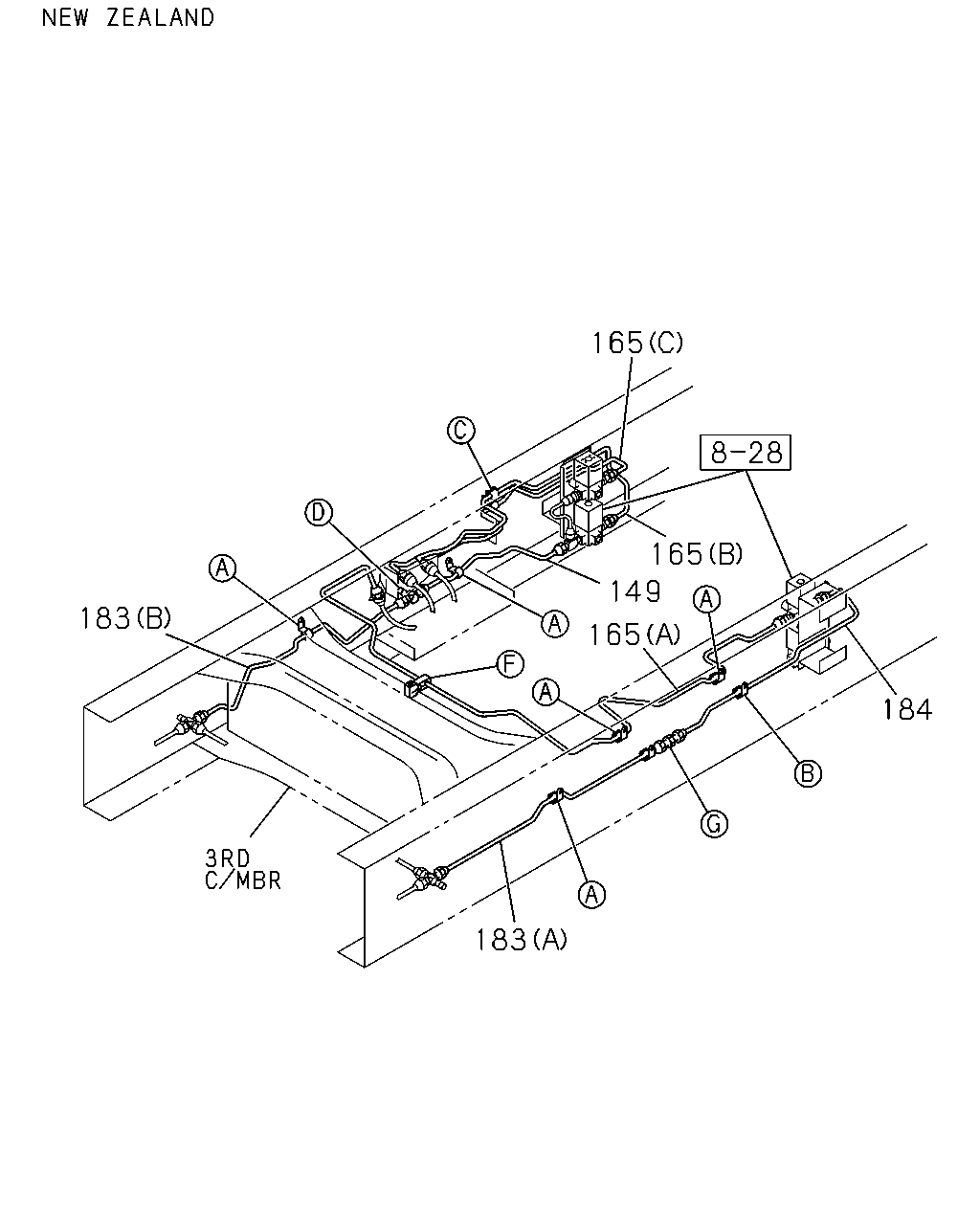

çizim 152738
165 165 149 183 165 184 183
BalonParca AdiParca NoAdetTipApplied Date A B C D E
149 PIPE; AIR,MAG VLV TO UNION
TRANSFER TF56<BFK> L=443 		1-49124-431-0 01 1 0406- ●
149 PIPE; AIR,MAG VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) 		1-49116-375-0 01 1 9604-0004 ● ●
149 PIPE; AIR,MAG VLV TO UNION
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-49113-915-0 01 1 9604-0004 ● ●
149 PIPE; AIR,MAG VLV TO UNION 1-49113-915-0 01 1 0005- ●
149 PIPE; AIR,MAG VLV TO UNION
L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 9604-9605 ●
149 PIPE; AIR,MAG VLV TO UNION
EXC. AUSTRALIA EQUIPMENT(RR3) L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 9604-9605 ●
149 PIPE; AIR,MAG VLV TO UNION
L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 9606-0004 ●
149 PIPE; AIR,MAG VLV TO UNION
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 9606-0004 ●
149 PIPE; AIR,MAG VLV TO UNION
L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0405 ●
149 PIPE; AIR,MAG VLV TO UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0405 ●
149 PIPE; AIR,MAG VLV TO UNION
L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 0406- ●
149 PIPE; AIR,MAG VLV TO UNION
EXC. TRANSFER TF56<BFK>,NEW ZEALAND EQUIPMENT(PK5) L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 0406- ●
149 PIPE; AIR,MAG VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) 		1-49116-484-0 01 1 9604-9605 ●
149 PIPE; AIR,MAG VLV TO UNION 1-49116-484-0 01 1 9604-9605 ●
149 PIPE; AIR,MAG VLV TO UNION
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-49116-484-0 01 1 9606-0004 ●
149 PIPE; AIR,MAG VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) 		1-49116-484-0 01 1 9606-0004 ●
149 PIPE; AIR,MAG VLV TO UNION
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) NEW ZEALAND EQUIPMENT(PK5) 		1-49116-484-0 01 1 0005-0403 ●
149 PIPE; AIR,MAG VLV TO UNION
NEW ZEALAND EQUIPMENT(PK5) 		1-49116-484-0 01 1 0404-0405 ●
149 PIPE; AIR,MAG VLV TO UNION
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> 		1-49116-484-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) L=869 		1-49113-916-2 01 1 9604-9803 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49119-379-0 01 1 9804-0004 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49119-379-0 01 1 0005- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=843 		1-49113-917-3 01 1 9604-0004 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=843 		1-49113-917-3 01 1 0005- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) (A) L=1607 SERVICED BY L=1620 		1-47426-356-0 01 1 9604-0003 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) (A) L=1594 SERVICED BY L=1620 		1-47428-820-0 01 1 0004-0004 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1659 SERVICED BY L=1820 		1-47428-822-0 01 1 9604-9708 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1725 SERVICED BY L=1820 		1-47426-358-0 01 1 9709-0004 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1725 SERVICED BY L=1820 		1-47426-358-0 01 1 0005- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 9604-0004 ● ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0404-0405 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. TRANSFER TF56<BFK> (A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49115-609-0 01 1 9604-0004 ● ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49115-609-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-49115-609-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49115-609-0 01 1 0404-0405 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49115-609-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. TRANSFER TF56<BFK> (B) 		1-49115-609-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) 		1-49115-610-0 01 1 9604-0004 ● ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) 		1-49115-610-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (C) 		1-49115-610-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) 		1-49115-610-0 01 1 0404-0405 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) 		1-49115-610-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. TRANSFER TF56<BFK> (C) 		1-49115-610-0 01 1 0406- ●
183 PIPE; AIR,UNION TO UNION
EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		1-49116-737-0 01 1 9604-0004 ●
183 PIPE; AIR,UNION TO UNION
(C) 		1-49116-737-0 01 1 0005- ●
183 PIPE; AIR,UNION TO UNION
(A) 		1-49116-712-0 01 1 9604-9810 ●
183 PIPE; AIR,UNION TO UNION
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-49116-712-0 01 1 9604-9810 ●
183 PIPE; AIR,UNION TO UNION
(A) 		1-49116-712-0 01 1 9811-0004 ●
183 PIPE; AIR,UNION TO UNION
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-49116-712-0 01 1 9811-0004 ●
183 PIPE; AIR,UNION TO UNION
(A) 		1-49116-712-0 01 1 0005- ●
183 PIPE; AIR,UNION TO UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-49116-712-0 01 1 0005- ●
183 PIPE; AIR,UNION TO UNION
AUSTRALIA EQUIPMENT(RR3) (B) 		1-49116-483-0 01 1 9604-9605 ●
183 PIPE; AIR,UNION TO UNION
(B) 		1-49116-483-0 01 1 9604-9605 ●
183 PIPE; AIR,UNION TO UNION
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) 		1-49116-483-0 01 1 9606-0004 ●
183 PIPE; AIR,UNION TO UNION
AUSTRALIA EQUIPMENT(RR3) (B) 		1-49116-483-0 01 1 9606-0004 ●
183 PIPE; AIR,UNION TO UNION
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) NEW ZEALAND EQUIPMENT(PK5) (B) 		1-49116-483-0 01 1 0005-0403 ●
183 PIPE; AIR,UNION TO UNION
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-49116-483-0 01 1 0404-0405 ●
183 PIPE; AIR,UNION TO UNION
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> (B) 		1-49116-483-0 01 1 0406- ●
183 PIPE; AIR,UNION TO UNION
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-49116-475-0 01 1 9606-0405 ●
183 PIPE; AIR,UNION TO UNION
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> (A) 		1-49116-475-0 01 1 0406- ●
184 PIPE; AIR,UNION TO MAG VALVE
TRANSFER TF56<BFK> L=1452 SERVICED BY L=1500 		1-47428-819-0 01 1 0406- ●
184 PIPE; AIR,UNION TO MAG VALVE
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-49116-583-0 01 1 9604-9708 ●
184 PIPE; AIR,UNION TO MAG VALVE
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-49118-718-0 01 1 9709-0004 ●
184 PIPE; AIR,UNION TO MAG VALVE 1-49118-718-0 01 1 0005- ●
184 PIPE; AIR,UNION TO MAG VALVE 1-49116-713-0 01 1 9604-9810 ●
184 PIPE; AIR,UNION TO MAG VALVE 1-49116-713-0 01 1 9811-0004 ●
184 PIPE; AIR,UNION TO MAG VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-49116-713-0 01 1 9811-0004 ●
184 PIPE; AIR,UNION TO MAG VALVE 1-49116-713-0 01 1 0005- ●
184 PIPE; AIR,UNION TO MAG VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-49116-713-0 01 1 0005- ●
184 PIPE; AIR,UNION TO MAG VALVE
NEW ZEALAND EQUIPMENT(PK5) 		1-49116-724-0 01 1 9604-0405 ●
184 PIPE; AIR,UNION TO MAG VALVE
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> 		1-49116-724-0 01 1 0406- ●

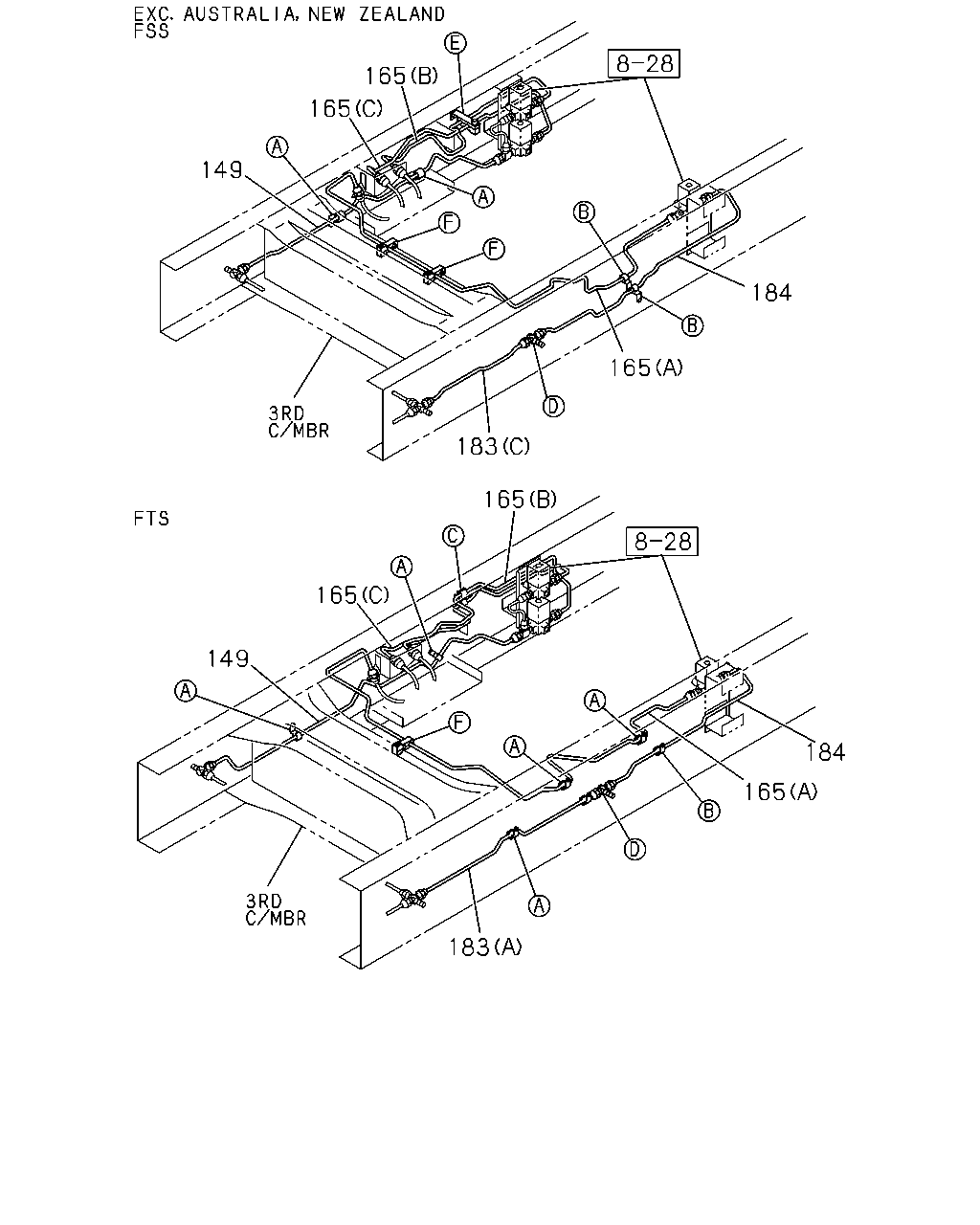

çizim 152741
165 165 149 184 165 183 165 165 149 184 165 183
BalonParca AdiParca NoAdetTipApplied Date A B C D E
149 PIPE; AIR,MAG VLV TO UNION
TRANSFER TF56<BFK> L=443 		1-49124-431-0 01 1 0406- ●
149 PIPE; AIR,MAG VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) 		1-49116-375-0 01 1 9604-0004 ● ●
149 PIPE; AIR,MAG VLV TO UNION
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-49113-915-0 01 1 9604-0004 ● ●
149 PIPE; AIR,MAG VLV TO UNION 1-49113-915-0 01 1 0005- ●
149 PIPE; AIR,MAG VLV TO UNION
L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 9604-9605 ●
149 PIPE; AIR,MAG VLV TO UNION
EXC. AUSTRALIA EQUIPMENT(RR3) L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 9604-9605 ●
149 PIPE; AIR,MAG VLV TO UNION
L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 9606-0004 ●
149 PIPE; AIR,MAG VLV TO UNION
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 9606-0004 ●
149 PIPE; AIR,MAG VLV TO UNION
L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0405 ●
149 PIPE; AIR,MAG VLV TO UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0405 ●
149 PIPE; AIR,MAG VLV TO UNION
L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 0406- ●
149 PIPE; AIR,MAG VLV TO UNION
EXC. TRANSFER TF56<BFK>,NEW ZEALAND EQUIPMENT(PK5) L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 0406- ●
149 PIPE; AIR,MAG VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) 		1-49116-484-0 01 1 9604-9605 ●
149 PIPE; AIR,MAG VLV TO UNION 1-49116-484-0 01 1 9604-9605 ●
149 PIPE; AIR,MAG VLV TO UNION
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-49116-484-0 01 1 9606-0004 ●
149 PIPE; AIR,MAG VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) 		1-49116-484-0 01 1 9606-0004 ●
149 PIPE; AIR,MAG VLV TO UNION
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) NEW ZEALAND EQUIPMENT(PK5) 		1-49116-484-0 01 1 0005-0403 ●
149 PIPE; AIR,MAG VLV TO UNION
NEW ZEALAND EQUIPMENT(PK5) 		1-49116-484-0 01 1 0404-0405 ●
149 PIPE; AIR,MAG VLV TO UNION
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> 		1-49116-484-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) L=869 		1-49113-916-2 01 1 9604-9803 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49119-379-0 01 1 9804-0004 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49119-379-0 01 1 0005- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=843 		1-49113-917-3 01 1 9604-0004 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=843 		1-49113-917-3 01 1 0005- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) (A) L=1607 SERVICED BY L=1620 		1-47426-356-0 01 1 9604-0003 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) (A) L=1594 SERVICED BY L=1620 		1-47428-820-0 01 1 0004-0004 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1659 SERVICED BY L=1820 		1-47428-822-0 01 1 9604-9708 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1725 SERVICED BY L=1820 		1-47426-358-0 01 1 9709-0004 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1725 SERVICED BY L=1820 		1-47426-358-0 01 1 0005- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 9604-0004 ● ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0404-0405 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. TRANSFER TF56<BFK> (A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49115-609-0 01 1 9604-0004 ● ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49115-609-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-49115-609-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49115-609-0 01 1 0404-0405 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49115-609-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. TRANSFER TF56<BFK> (B) 		1-49115-609-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) 		1-49115-610-0 01 1 9604-0004 ● ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) 		1-49115-610-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (C) 		1-49115-610-0 01 1 0005-0403 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) 		1-49115-610-0 01 1 0404-0405 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) 		1-49115-610-0 01 1 0406- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. TRANSFER TF56<BFK> (C) 		1-49115-610-0 01 1 0406- ●
183 PIPE; AIR,UNION TO UNION
EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		1-49116-737-0 01 1 9604-0004 ●
183 PIPE; AIR,UNION TO UNION
(C) 		1-49116-737-0 01 1 0005- ●
183 PIPE; AIR,UNION TO UNION
(A) 		1-49116-712-0 01 1 9604-9810 ●
183 PIPE; AIR,UNION TO UNION
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-49116-712-0 01 1 9604-9810 ●
183 PIPE; AIR,UNION TO UNION
(A) 		1-49116-712-0 01 1 9811-0004 ●
183 PIPE; AIR,UNION TO UNION
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-49116-712-0 01 1 9811-0004 ●
183 PIPE; AIR,UNION TO UNION
(A) 		1-49116-712-0 01 1 0005- ●
183 PIPE; AIR,UNION TO UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-49116-712-0 01 1 0005- ●
183 PIPE; AIR,UNION TO UNION
AUSTRALIA EQUIPMENT(RR3) (B) 		1-49116-483-0 01 1 9604-9605 ●
183 PIPE; AIR,UNION TO UNION
(B) 		1-49116-483-0 01 1 9604-9605 ●
183 PIPE; AIR,UNION TO UNION
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) 		1-49116-483-0 01 1 9606-0004 ●
183 PIPE; AIR,UNION TO UNION
AUSTRALIA EQUIPMENT(RR3) (B) 		1-49116-483-0 01 1 9606-0004 ●
183 PIPE; AIR,UNION TO UNION
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) NEW ZEALAND EQUIPMENT(PK5) (B) 		1-49116-483-0 01 1 0005-0403 ●
183 PIPE; AIR,UNION TO UNION
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-49116-483-0 01 1 0404-0405 ●
183 PIPE; AIR,UNION TO UNION
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> (B) 		1-49116-483-0 01 1 0406- ●
183 PIPE; AIR,UNION TO UNION
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-49116-475-0 01 1 9606-0405 ●
183 PIPE; AIR,UNION TO UNION
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> (A) 		1-49116-475-0 01 1 0406- ●
184 PIPE; AIR,UNION TO MAG VALVE
TRANSFER TF56<BFK> L=1452 SERVICED BY L=1500 		1-47428-819-0 01 1 0406- ●
184 PIPE; AIR,UNION TO MAG VALVE
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-49116-583-0 01 1 9604-9708 ●
184 PIPE; AIR,UNION TO MAG VALVE
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-49118-718-0 01 1 9709-0004 ●
184 PIPE; AIR,UNION TO MAG VALVE 1-49118-718-0 01 1 0005- ●
184 PIPE; AIR,UNION TO MAG VALVE 1-49116-713-0 01 1 9604-9810 ●
184 PIPE; AIR,UNION TO MAG VALVE 1-49116-713-0 01 1 9811-0004 ●
184 PIPE; AIR,UNION TO MAG VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-49116-713-0 01 1 9811-0004 ●
184 PIPE; AIR,UNION TO MAG VALVE 1-49116-713-0 01 1 0005- ●
184 PIPE; AIR,UNION TO MAG VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-49116-713-0 01 1 0005- ●
184 PIPE; AIR,UNION TO MAG VALVE
NEW ZEALAND EQUIPMENT(PK5) 		1-49116-724-0 01 1 9604-0405 ●
184 PIPE; AIR,UNION TO MAG VALVE
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> 		1-49116-724-0 01 1 0406- ●
çizim 152749
169 169 184 169 149 136 167 148
BalonParca AdiParca NoAdetTipApplied Date A B C D E
136 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 9604-9609 ● ● ● ● ●
136 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 9604-9609 ●
136 CLIP; AIR PIPE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=6 H=20 L=20 		1-09700-603-0 02 1 9604-9609 ●
136 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 9610-0004 ● ● ● ● ●
136 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 9610-0004 ●
136 CLIP; AIR PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) ID=6 H=20 L=20 		1-09700-603-0 02 1 9610-0004 ●
136 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0005- ● ● ●
136 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0005- ●
136 CLIP; AIR PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0005- ●
136 CLIP; AIR PIPE
AUSTRALIA EQUIPMENT(RR3) (B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9804-0004 ●
136 CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9804-0004 ●
136 CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0005-0405 ● ●
136 CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0406- ●
136 CLIP; AIR PIPE
EXC. TRANSFER TF56<BFK> (B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0406- ●
148 NUT; CLIP
M8 		9-09110-408-0 02 1 9604-9606 ● ● ● ● ●
148 NUT; CLIP
M8 		9-09110-408-0 02 1 9604-9606 ● ● ●
148 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 02 1 9604-9606 ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ●
148 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0405 ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0405 ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0406-0602 ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0406-0602 ● ●
148 NUT; CLIP
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91150-108-0 02 1 0406-0602 ●
148 NUT; CLIP
EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91150-108-0 02 1 0406-0602 ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
148 NUT; CLIP
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
148 NUT; CLIP
EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
148 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 01 1 9604-9606 ● ●
148 NUT; CLIP
M8 		9-09110-408-0 01 1 9604-9606 ●
148 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0005-0405 ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0406-0602 ● ●
148 NUT; CLIP
EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91150-108-0 01 1 0406-0602 ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
148 NUT; CLIP
EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
148 NUT; CLIP
M8 		9-09110-408-0 03 1 9604-9606 ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9607-9803 ● ● ●
148 NUT; CLIP
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 03 1 9804-0004 ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9804-0004 ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0005-0403 ●
148 NUT; CLIP
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) M8 FLANGE 		0-91150-108-0 03 1 0005-0403 ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0404-0405 ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0406-0602 ●
148 NUT; CLIP
EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91150-108-0 03 1 0406-0602 ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
148 NUT; CLIP
EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91180-108-0 03 1 0603- ●
149 PIPE; AIR,MAG VLV TO UNION
TRANSFER TF56<BFK> L=443 		1-49124-431-0 01 1 0406- ●
149 PIPE; AIR,MAG VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) 		1-49116-375-0 01 1 9604-0004 ● ●
149 PIPE; AIR,MAG VLV TO UNION
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-49113-915-0 01 1 9604-0004 ● ●
149 PIPE; AIR,MAG VLV TO UNION 1-49113-915-0 01 1 0005- ●
149 PIPE; AIR,MAG VLV TO UNION
L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 9604-9605 ●
149 PIPE; AIR,MAG VLV TO UNION
EXC. AUSTRALIA EQUIPMENT(RR3) L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 9604-9605 ●
149 PIPE; AIR,MAG VLV TO UNION
L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 9606-0004 ●
149 PIPE; AIR,MAG VLV TO UNION
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 9606-0004 ●
149 PIPE; AIR,MAG VLV TO UNION
L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0405 ●
149 PIPE; AIR,MAG VLV TO UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0405 ●
149 PIPE; AIR,MAG VLV TO UNION
L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 0406- ●
149 PIPE; AIR,MAG VLV TO UNION
EXC. TRANSFER TF56<BFK>,NEW ZEALAND EQUIPMENT(PK5) L=1125 SERVICED BY L=1200 		1-47426-352-0 01 1 0406- ●
149 PIPE; AIR,MAG VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) 		1-49116-484-0 01 1 9604-9605 ●
149 PIPE; AIR,MAG VLV TO UNION 1-49116-484-0 01 1 9604-9605 ●
149 PIPE; AIR,MAG VLV TO UNION
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-49116-484-0 01 1 9606-0004 ●
149 PIPE; AIR,MAG VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) 		1-49116-484-0 01 1 9606-0004 ●
149 PIPE; AIR,MAG VLV TO UNION
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) NEW ZEALAND EQUIPMENT(PK5) 		1-49116-484-0 01 1 0005-0403 ●
149 PIPE; AIR,MAG VLV TO UNION
NEW ZEALAND EQUIPMENT(PK5) 		1-49116-484-0 01 1 0404-0405 ●
149 PIPE; AIR,MAG VLV TO UNION
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> 		1-49116-484-0 01 1 0406- ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28080-825-0 01 1 9604-9606 ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 9607-0004 ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0005-0512 ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 03 1 9604-0004 ● ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 03 1 0005-0512 ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28050-850-0 03 1 0601- ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606 ● ● ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ● ● ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0403 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0403 ●
167 BOLT; CLIP,AIR PIPE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0403 ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0404-0405 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0404-0405 ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ●
167 BOLT; CLIP,AIR PIPE
EXC. TRANSFER TF56<BFK> M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
167 BOLT; CLIP,AIR PIPE
EXC. TRANSFER TF56<BFK> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28080-840-0 01 1 9604-9606 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28680-840-0 01 1 9607-0004 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28680-840-0 01 1 0005-0405 ● ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28680-840-0 01 1 0406-0512 ●
167 BOLT; CLIP,AIR PIPE
EXC. TRANSFER TF56<BFK> M8X40 FLANGE 		0-28680-840-0 01 1 0406-0512 ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28650-840-0 01 1 0601- ●
167 BOLT; CLIP,AIR PIPE
EXC. TRANSFER TF56<BFK> M8X40 FLANGE 		0-28650-840-0 01 1 0601- ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 01 1 9604-0004 ● ● ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 01 1 0005-0403 ●
167 BOLT; CLIP,AIR PIPE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) M8X50 FLANGE 		0-28080-850-0 01 1 0005-0403 ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 01 1 0404-0405 ● ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 01 1 0406-0512 ●
167 BOLT; CLIP,AIR PIPE
EXC. TRANSFER TF56<BFK> M8X50 FLANGE 		0-28080-850-0 01 1 0406-0512 ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28050-850-0 01 1 0601- ●
167 BOLT; CLIP,AIR PIPE
EXC. TRANSFER TF56<BFK> M8X50 FLANGE 		0-28050-850-0 01 1 0601- ●
169 HOSE; FLEX,TRANSFER CONT
TRANSFER TF56<BFK> (C) L=460 		1-09363-648-0 02 1 0406- ●
169 HOSE; FLEX,TRANSFER CONT
TRANSFER TF56<BFK> (D) L=370 		1-09363-771-0 01 1 0406- ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=260 		0-07120-260-0 01 1 9604-0004 ● ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=260 		0-07120-260-0 01 1 0005-0204 ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=300 		1-09363-608-0 02 1 0205- ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=300 		0-07120-300-0 02 1 9604-0004 ● ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=300 		0-07120-300-0 02 1 0005-0204 ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=260 		1-09363-609-0 01 1 0205- ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=300 		0-07120-300-0 01 1 9604-0004 ● ● ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=300 		0-07120-300-0 01 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=300 		1-09363-608-0 01 1 0205-0405 ● ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=300 		1-09363-608-0 01 1 0406- ●
169 HOSE; FLEX,TRANSFER CONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) L=300 		1-09363-608-0 01 1 0406- ●
169 HOSE; FLEX,TRANSFER CONT
TRANSMISSION OIL COOLER<C2C> (A) L=300 		1-09363-608-0 01 1 0406- ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=340 		0-07120-340-0 02 1 9604-0004 ● ● ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=340 		0-07120-340-0 02 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=340 		1-09363-622-0 02 1 0205-0405 ● ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=340 		1-09363-622-0 02 1 0406- ●
169 HOSE; FLEX,TRANSFER CONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (B) L=340 		1-09363-622-0 02 1 0406- ●
169 HOSE; FLEX,TRANSFER CONT
TRANSMISSION OIL COOLER<C2C> (B) L=340 		1-09363-622-0 02 1 0406- ●
184 PIPE; AIR,UNION TO MAG VALVE
TRANSFER TF56<BFK> L=1452 SERVICED BY L=1500 		1-47428-819-0 01 1 0406- ●
184 PIPE; AIR,UNION TO MAG VALVE
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-49116-583-0 01 1 9604-9708 ●
184 PIPE; AIR,UNION TO MAG VALVE
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-49118-718-0 01 1 9709-0004 ●
184 PIPE; AIR,UNION TO MAG VALVE 1-49118-718-0 01 1 0005- ●
184 PIPE; AIR,UNION TO MAG VALVE 1-49116-713-0 01 1 9604-9810 ●
184 PIPE; AIR,UNION TO MAG VALVE 1-49116-713-0 01 1 9811-0004 ●
184 PIPE; AIR,UNION TO MAG VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-49116-713-0 01 1 9811-0004 ●
184 PIPE; AIR,UNION TO MAG VALVE 1-49116-713-0 01 1 0005- ●
184 PIPE; AIR,UNION TO MAG VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-49116-713-0 01 1 0005- ●
184 PIPE; AIR,UNION TO MAG VALVE
NEW ZEALAND EQUIPMENT(PK5) 		1-49116-724-0 01 1 9604-0405 ●
184 PIPE; AIR,UNION TO MAG VALVE
NEW ZEALAND EQUIPMENT(PK5) EXC. TRANSFER TF56<BFK> 		1-49116-724-0 01 1 0406- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
