2-66 — MANUAL TRANSFER GEAR; OUTPUT (#36784) — 362 parça

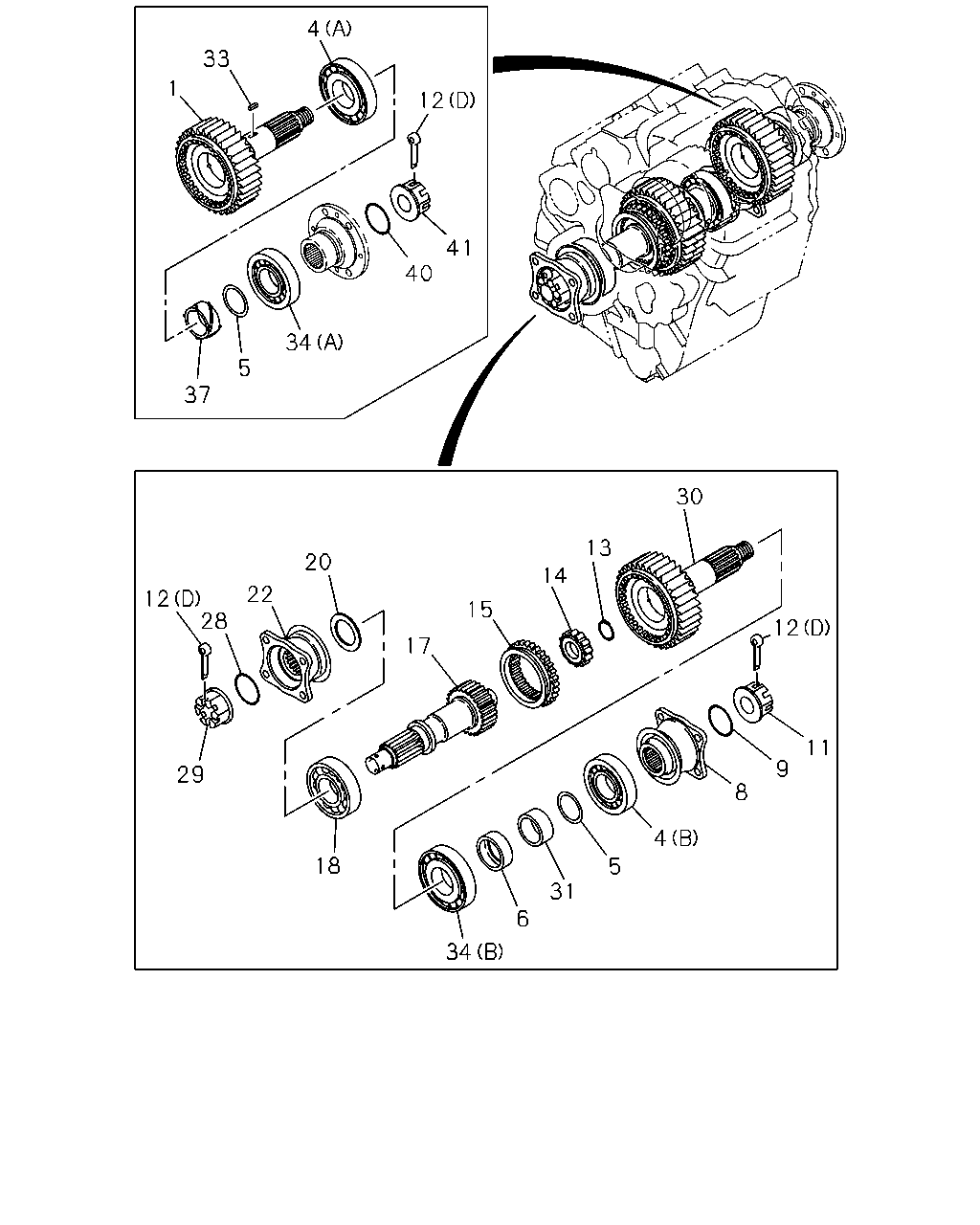

çizim 152744
4 33 1 12 41 40 34 5 37 30 13 20 14 22 12 28 15 12 17 11 9 29 8 4 18 5 31 6 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; GEAR,OUTPUT,RR 1-36351-041-0 01 1 9604-0004 ● ● ● ● ●
1 SHAFT; GEAR,OUTPUT,RR 1-36351-041-0 01 1 0005-0405 ● ● ●
1 SHAFT; GEAR,OUTPUT,RR 1-36351-041-0 01 1 0406- ● ●
1 SHAFT; GEAR,OUTPUT,RR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36351-041-0 01 1 0406- ●
1 SHAFT; GEAR,OUTPUT,RR
TRANSMISSION OIL COOLER<C2C> 		1-36351-041-0 01 1 0406- ●
4 BEARING; ROLLER,OUTPUT
(A) NSK 		1-09812-009-0 01 1 9604-0004 ● ● ● ● ●
4 BEARING; ROLLER,OUTPUT
(A) NSK 		1-09812-009-0 01 1 0005-0405 ● ● ●
4 BEARING; ROLLER,OUTPUT
(A) NSK 		1-09812-009-0 01 1 0406- ● ●
4 BEARING; ROLLER,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) NSK 		1-09812-009-0 01 1 0406- ●
4 BEARING; ROLLER,OUTPUT
TRANSMISSION OIL COOLER<C2C> (A) NSK 		1-09812-009-0 01 1 0406- ●
4 BEARING; ROLLER,OUTPUT
(B) NACHI 		1-09812-029-0 01 1 9604-0004 ● ● ● ● ●
4 BEARING; ROLLER,OUTPUT
(B) NACHI 		1-09812-029-0 01 1 0005-0405 ● ● ●
4 BEARING; ROLLER,OUTPUT
(B) NACHI 		1-09812-029-0 01 1 0406- ● ●
4 BEARING; ROLLER,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (B) NACHI 		1-09812-029-0 01 1 0406- ●
4 BEARING; ROLLER,OUTPUT
TRANSMISSION OIL COOLER<C2C> (B) NACHI 		1-09812-029-0 01 1 0406- ●
4 BEARING; ROLLER,OUTPUT
(A) NACHI 		1-09812-030-0 01 1 9604-0004 ● ● ● ● ●
4 BEARING; ROLLER,OUTPUT
(A) NACHI 		1-09812-030-0 01 1 0005-0405 ● ● ●
4 BEARING; ROLLER,OUTPUT
(A) NACHI 		1-09812-030-0 01 1 0406- ● ●
4 BEARING; ROLLER,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) NACHI 		1-09812-030-0 01 1 0406- ●
4 BEARING; ROLLER,OUTPUT
TRANSMISSION OIL COOLER<C2C> (A) NACHI 		1-09812-030-0 01 1 0406- ●
4 BEARING; ROLLER,OUTPUT
(B) NSK 		9-00030-309-0 01 1 9604-0004 ● ● ● ● ●
4 BEARING; ROLLER,OUTPUT
(B) NSK 		9-00030-309-0 01 1 0005-0405 ● ● ●
4 BEARING; ROLLER,OUTPUT
(B) NSK 		9-00030-309-0 01 1 0406- ● ●
4 BEARING; ROLLER,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (B) NSK 		9-00030-309-0 01 1 0406- ●
4 BEARING; ROLLER,OUTPUT
TRANSMISSION OIL COOLER<C2C> (B) NSK 		9-00030-309-0 01 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
T=3.20 		1-41229-090-0 AR 1 9604-0004 ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.20 		1-41229-090-0 AR 1 0005-0405 ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.20 		1-41229-090-0 AR 1 0406- ● ●
5 SHIM; RR OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=3.20 		1-41229-090-0 AR 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=3.20 		1-41229-090-0 AR 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
T=3.21 		1-41229-091-0 AR 1 9604-0004 ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.21 		1-41229-091-0 AR 1 0005-0405 ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.21 		1-41229-091-0 AR 1 0406- ● ●
5 SHIM; RR OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=3.21 		1-41229-091-0 AR 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=3.21 		1-41229-091-0 AR 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
T=3.22 		1-41229-092-0 AR 1 9604-0004 ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.22 		1-41229-092-0 AR 1 0005-0405 ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.22 		1-41229-092-0 AR 1 0406- ● ●
5 SHIM; RR OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=3.22 		1-41229-092-0 AR 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=3.22 		1-41229-092-0 AR 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
T=3.23 		1-41229-093-0 AR 1 9604-0004 ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.23 		1-41229-093-0 AR 1 0005-0405 ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.23 		1-41229-093-0 AR 1 0406- ● ●
5 SHIM; RR OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=3.23 		1-41229-093-0 AR 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=3.23 		1-41229-093-0 AR 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
T=3.24 		1-41229-094-0 AR 1 9604-0004 ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.24 		1-41229-094-0 AR 1 0005-0405 ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.24 		1-41229-094-0 AR 1 0406- ● ●
5 SHIM; RR OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=3.24 		1-41229-094-0 AR 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=3.24 		1-41229-094-0 AR 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
T=3.25 		1-41229-095-0 AR 1 9604-0004 ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.25 		1-41229-095-0 AR 1 0005-0405 ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.25 		1-41229-095-0 AR 1 0406- ● ●
5 SHIM; RR OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=3.25 		1-41229-095-0 AR 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=3.25 		1-41229-095-0 AR 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
T=3.26 		1-41229-096-0 AR 1 9604-0004 ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.26 		1-41229-096-0 AR 1 0005-0405 ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.26 		1-41229-096-0 AR 1 0406- ● ●
5 SHIM; RR OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=3.26 		1-41229-096-0 AR 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=3.26 		1-41229-096-0 AR 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
T=3.27 		1-41229-097-0 AR 1 9604-0004 ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.27 		1-41229-097-0 AR 1 0005-0405 ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.27 		1-41229-097-0 AR 1 0406- ● ●
5 SHIM; RR OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=3.27 		1-41229-097-0 AR 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=3.27 		1-41229-097-0 AR 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
T=3.28 		1-41229-098-0 AR 1 9604-0004 ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.28 		1-41229-098-0 AR 1 0005-0405 ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.28 		1-41229-098-0 AR 1 0406- ● ●
5 SHIM; RR OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=3.28 		1-41229-098-0 AR 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=3.28 		1-41229-098-0 AR 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
T=3.29 		1-41229-099-0 AR 1 9604-0004 ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.29 		1-41229-099-0 AR 1 0005-0405 ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.29 		1-41229-099-0 AR 1 0406- ● ●
5 SHIM; RR OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=3.29 		1-41229-099-0 AR 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=3.29 		1-41229-099-0 AR 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
T=3.30 		1-41229-100-0 AR 1 9604-0004 ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.30 		1-41229-100-0 AR 1 0005-0405 ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.30 		1-41229-100-0 AR 1 0406- ● ●
5 SHIM; RR OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=3.30 		1-41229-100-0 AR 1 0406- ●
5 SHIM; RR OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=3.30 		1-41229-100-0 AR 1 0406- ●
6 COLLAR; DIST,OUTPUT
T=19.5 		1-36355-022-0 01 1 9604-0004 ● ● ● ● ●
6 COLLAR; DIST,OUTPUT
T=19.5 		1-36355-022-0 01 1 0005-0405 ● ● ●
6 COLLAR; DIST,OUTPUT
T=19.5 		1-36355-022-0 01 1 0406- ● ●
6 COLLAR; DIST,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=19.5 		1-36355-022-0 01 1 0406- ●
6 COLLAR; DIST,OUTPUT
TRANSMISSION OIL COOLER<C2C> T=19.5 		1-36355-022-0 01 1 0406- ●
6 COLLAR; DIST,OUTPUT
T=19.7 		1-36355-023-0 01 1 9604-0004 ● ● ● ● ●
6 COLLAR; DIST,OUTPUT
T=19.7 		1-36355-023-0 01 1 0005-0405 ● ● ●
6 COLLAR; DIST,OUTPUT
T=19.7 		1-36355-023-0 01 1 0406- ● ●
6 COLLAR; DIST,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=19.7 		1-36355-023-0 01 1 0406- ●
6 COLLAR; DIST,OUTPUT
TRANSMISSION OIL COOLER<C2C> T=19.7 		1-36355-023-0 01 1 0406- ●
6 COLLAR; DIST,OUTPUT
T=19.9 		1-36355-024-0 01 1 9604-0004 ● ● ● ● ●
6 COLLAR; DIST,OUTPUT
T=19.9 		1-36355-024-0 01 1 0005-0405 ● ● ●
6 COLLAR; DIST,OUTPUT
T=19.9 		1-36355-024-0 01 1 0406- ● ●
6 COLLAR; DIST,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=19.9 		1-36355-024-0 01 1 0406- ●
6 COLLAR; DIST,OUTPUT
TRANSMISSION OIL COOLER<C2C> T=19.9 		1-36355-024-0 01 1 0406- ●
6 COLLAR; DIST,OUTPUT
T=20.1 		1-36355-025-0 01 1 9604-0004 ● ● ● ● ●
6 COLLAR; DIST,OUTPUT
T=20.1 		1-36355-025-0 01 1 0005-0405 ● ● ●
6 COLLAR; DIST,OUTPUT
T=20.1 		1-36355-025-0 01 1 0406- ● ●
6 COLLAR; DIST,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=20.1 		1-36355-025-0 01 1 0406- ●
6 COLLAR; DIST,OUTPUT
TRANSMISSION OIL COOLER<C2C> T=20.1 		1-36355-025-0 01 1 0406- ●
6 COLLAR; DIST,OUTPUT
T=20.3 		1-36355-026-0 01 1 9604-0004 ● ● ● ● ●
6 COLLAR; DIST,OUTPUT
T=20.3 		1-36355-026-0 01 1 0005-0405 ● ● ●
6 COLLAR; DIST,OUTPUT
T=20.3 		1-36355-026-0 01 1 0406- ● ●
6 COLLAR; DIST,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=20.3 		1-36355-026-0 01 1 0406- ●
6 COLLAR; DIST,OUTPUT
TRANSMISSION OIL COOLER<C2C> T=20.3 		1-36355-026-0 01 1 0406- ●
6 COLLAR; DIST,OUTPUT
T=20.5 		1-36355-027-0 01 1 9604-0004 ● ● ● ● ●
6 COLLAR; DIST,OUTPUT
T=20.5 		1-36355-027-0 01 1 0005-0405 ● ● ●
6 COLLAR; DIST,OUTPUT
T=20.5 		1-36355-027-0 01 1 0406- ● ●
6 COLLAR; DIST,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=20.5 		1-36355-027-0 01 1 0406- ●
6 COLLAR; DIST,OUTPUT
TRANSMISSION OIL COOLER<C2C> T=20.5 		1-36355-027-0 01 1 0406- ●
6 COLLAR; DIST,OUTPUT
T=20.7 		1-36355-028-0 01 1 9604-0004 ● ● ● ● ●
6 COLLAR; DIST,OUTPUT
T=20.7 		1-36355-028-0 01 1 0005-0405 ● ● ●
6 COLLAR; DIST,OUTPUT
T=20.7 		1-36355-028-0 01 1 0406- ● ●
6 COLLAR; DIST,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=20.7 		1-36355-028-0 01 1 0406- ●
6 COLLAR; DIST,OUTPUT
TRANSMISSION OIL COOLER<C2C> T=20.7 		1-36355-028-0 01 1 0406- ●
6 COLLAR; DIST,OUTPUT
T=20.9 		1-36355-029-0 01 1 9604-0004 ● ● ● ● ●
6 COLLAR; DIST,OUTPUT
T=20.9 		1-36355-029-0 01 1 0005-0405 ● ● ●
6 COLLAR; DIST,OUTPUT
T=20.9 		1-36355-029-0 01 1 0406- ● ●
6 COLLAR; DIST,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=20.9 		1-36355-029-0 01 1 0406- ●
6 COLLAR; DIST,OUTPUT
TRANSMISSION OIL COOLER<C2C> T=20.9 		1-36355-029-0 01 1 0406- ●
6 COLLAR; DIST,OUTPUT
T=21.1 		1-36355-030-0 01 1 9604-0004 ● ● ● ● ●
6 COLLAR; DIST,OUTPUT
T=21.1 		1-36355-030-0 01 1 0005-0405 ● ● ●
6 COLLAR; DIST,OUTPUT
T=21.1 		1-36355-030-0 01 1 0406- ● ●
6 COLLAR; DIST,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=21.1 		1-36355-030-0 01 1 0406- ●
6 COLLAR; DIST,OUTPUT
TRANSMISSION OIL COOLER<C2C> T=21.1 		1-36355-030-0 01 1 0406- ●
8 FLANGE; OUTPUT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-37243-306-0 01 1 0406- ●
8 FLANGE; OUTPUT
W/COVER:DUST 		1-37240-079-1 01 1 9604-0004 ● ● ● ● ●
8 FLANGE; OUTPUT
W/COVER:DUST 		1-37240-079-1 01 1 0005-0405 ● ● ●
8 FLANGE; OUTPUT
W/COVER:DUST 		1-37240-079-1 01 1 0406- ● ●
8 FLANGE; OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> W/COVER:DUST 		1-37240-079-1 01 1 0406- ●
8 FLANGE; OUTPUT
TRANSMISSION OIL COOLER<C2C> W/COVER:DUST 		1-37240-079-1 01 1 0406- ●
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09623-385-0 01 1 0406- ●
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5 		1-09623-379-0 01 1 9604-0004 ● ● ● ● ●
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5 		1-09623-379-0 01 1 0005-0405 ● ● ●
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-379-0 01 1 0406- ● ●
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> ID=35.7 T=5 		1-09623-379-0 01 1 0406- ●
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION OIL COOLER<C2C> ID=35.7 T=5 		1-09623-379-0 01 1 0406- ●
11 NUT; FLANGE,TRANSFER,OUTPUT,RR
M30 		1-09440-018-0 01 1 9604-0004 ● ● ● ● ●
11 NUT; FLANGE,TRANSFER,OUTPUT,RR
M30 		1-09440-018-0 01 1 0005-0405 ● ● ●
11 NUT; FLANGE,TRANSFER,OUTPUT,RR
M30 		1-09440-018-0 01 1 0406- ● ●
11 NUT; FLANGE,TRANSFER,OUTPUT,RR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M30 		1-09440-018-0 01 1 0406- ●
11 NUT; FLANGE,TRANSFER,OUTPUT,RR
TRANSMISSION OIL COOLER<C2C> M30 		1-09440-018-0 01 1 0406- ●
12 PIN
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) L=25 OD=5 		8-94135-771-0 04 1 0406- ●
12 PIN
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		9-08116-050-0 01 1 0406- ●
12 PIN
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) 		9-08116-060-0 01 1 0406- ●
12 PIN
(D) 		9-08116-045-0 03 1 9604-0004 ● ● ● ● ●
12 PIN
(D) 		9-08116-045-0 03 1 0005-0405 ● ● ●
12 PIN
(D) 		9-08116-045-0 03 1 0406- ● ●
12 PIN
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (D) 		9-08116-045-0 03 1 0406- ●
12 PIN
TRANSMISSION OIL COOLER<C2C> (D) 		9-08116-045-0 03 1 0406- ●
13 RING; SNAP,OUTPUT,FRT 1-09588-157-0 01 1 9604-0004 ● ● ● ● ●
13 RING; SNAP,OUTPUT,FRT 1-09588-157-0 01 1 0005-0405 ● ● ●
13 RING; SNAP,OUTPUT,FRT 1-09588-157-0 01 1 0406- ● ●
13 RING; SNAP,OUTPUT,FRT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09588-157-0 01 1 0406- ●
13 RING; SNAP,OUTPUT,FRT
TRANSMISSION OIL COOLER<C2C> 		1-09588-157-0 01 1 0406- ●
14 BEARING; ROLLER,OUTPUT,FRT
NSK 		1-09810-087-0 01 1 9604-0004 ● ● ● ● ●
14 BEARING; ROLLER,OUTPUT,FRT
NSK 		1-09810-087-0 01 1 0005-0405 ● ● ●
14 BEARING; ROLLER,OUTPUT,FRT
NSK 		1-09810-087-0 01 1 0406- ● ●
14 BEARING; ROLLER,OUTPUT,FRT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> NSK 		1-09810-087-0 01 1 0406- ●
14 BEARING; ROLLER,OUTPUT,FRT
TRANSMISSION OIL COOLER<C2C> NSK 		1-09810-087-0 01 1 0406- ●
15 SLEEVE; NEUTRAL & FRT 1-36262-021-0 01 1 9604-0004 ● ● ● ● ●
15 SLEEVE; NEUTRAL & FRT 1-36262-021-0 01 1 0005-0405 ● ● ●
15 SLEEVE; NEUTRAL & FRT 1-36262-021-0 01 1 0406- ● ●
15 SLEEVE; NEUTRAL & FRT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36262-021-0 01 1 0406- ●
15 SLEEVE; NEUTRAL & FRT
TRANSMISSION OIL COOLER<C2C> 		1-36262-021-0 01 1 0406- ●
17 SHAFT; OUTPUT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36351-044-0 01 1 0406- ●
17 SHAFT; OUTPUT 1-36311-016-0 01 1 9604-0004 ● ● ● ● ●
17 SHAFT; OUTPUT 1-36311-016-0 01 1 0005-0405 ● ● ●
17 SHAFT; OUTPUT 1-36311-016-0 01 1 0406- ● ●
17 SHAFT; OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36311-016-0 01 1 0406- ●
17 SHAFT; OUTPUT
TRANSMISSION OIL COOLER<C2C> 		1-36311-016-0 01 1 0406- ●
18 BEARING; BALL,OUTPUT,FRT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> NSK 		1-09800-249-0 01 1 0406- ●
18 BEARING; BALL,OUTPUT,FRT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> NTN 		1-09800-250-0 01 1 0406- ●
18 BEARING; BALL,OUTPUT,FRT
NSK 		9-00090-047-0 01 1 9604-0004 ● ● ● ● ●
18 BEARING; BALL,OUTPUT,FRT
NSK 		9-00090-047-0 01 1 0005-0405 ● ● ●
18 BEARING; BALL,OUTPUT,FRT
NSK 		9-00090-047-0 01 1 0406- ● ●
18 BEARING; BALL,OUTPUT,FRT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> NSK 		9-00090-047-0 01 1 0406- ●
18 BEARING; BALL,OUTPUT,FRT
TRANSMISSION OIL COOLER<C2C> NSK 		9-00090-047-0 01 1 0406- ●
18 BEARING; BALL,OUTPUT,FRT
NACHI 		9-00090-225-0 01 1 9604-0004 ● ● ● ● ●
18 BEARING; BALL,OUTPUT,FRT
NACHI 		9-00090-225-0 01 1 0005-0405 ● ● ●
18 BEARING; BALL,OUTPUT,FRT
NACHI 		9-00090-225-0 01 1 0406- ● ●
18 BEARING; BALL,OUTPUT,FRT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> NACHI 		9-00090-225-0 01 1 0406- ●
18 BEARING; BALL,OUTPUT,FRT
TRANSMISSION OIL COOLER<C2C> NACHI 		9-00090-225-0 01 1 0406- ●
20 COLLAR; DIST,OUTPUT SHAFT,FRT 9-36215-006-1 01 1 9604-0004 ● ● ● ● ●
20 COLLAR; DIST,OUTPUT SHAFT,FRT 9-36215-006-1 01 1 0005-0405 ● ● ●
20 COLLAR; DIST,OUTPUT SHAFT,FRT 9-36215-006-1 01 1 0406- ● ●
20 COLLAR; DIST,OUTPUT SHAFT,FRT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-36215-006-1 01 1 0406- ●
20 COLLAR; DIST,OUTPUT SHAFT,FRT
TRANSMISSION OIL COOLER<C2C> 		9-36215-006-1 01 1 0406- ●
22 FLANGE; OUTPUT,FRT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-37245-186-0 01 1 0406- ●
22 FLANGE; OUTPUT,FRT 1-37240-091-0 01 1 9604-0004 ● ● ● ● ●
22 FLANGE; OUTPUT,FRT 1-37240-091-0 01 1 0005-0405 ● ● ●
22 FLANGE; OUTPUT,FRT 1-37240-091-0 01 1 0406- ● ●
22 FLANGE; OUTPUT,FRT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-37240-091-0 01 1 0406- ●
22 FLANGE; OUTPUT,FRT
TRANSMISSION OIL COOLER<C2C> 		1-37240-091-0 01 1 0406- ●
28 GASKET; SHAFT
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> ID=42 		9-09921-116-0 01 1 0406- ●
28 GASKET; SHAFT
ALSO INCLUDED IN REPAIR KIT(T/F). ID=35.7 T=5 		1-09623-379-0 01 1 9604-0004 ● ● ● ● ●
28 GASKET; SHAFT
ALSO INCLUDED IN REPAIR KIT(T/F). ID=35.7 T=5 		1-09623-379-0 01 1 0005-0405 ● ● ●
28 GASKET; SHAFT
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-379-0 01 1 0406- ● ●
28 GASKET; SHAFT
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> ID=35.7 T=5 		1-09623-379-0 01 1 0406- ●
28 GASKET; SHAFT
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> ID=35.7 T=5 		1-09623-379-0 01 1 0406- ●
29 NUT; FLANGE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09440-017-0 01 1 0406- ●
29 NUT; FLANGE
M30 		1-09440-018-0 01 1 9604-0004 ● ● ● ● ●
29 NUT; FLANGE
M30 		1-09440-018-0 01 1 0005-0405 ● ● ●
29 NUT; FLANGE
M30 		1-09440-018-0 01 1 0406- ● ●
29 NUT; FLANGE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M30 		1-09440-018-0 01 1 0406- ●
29 NUT; FLANGE
TRANSMISSION OIL COOLER<C2C> M30 		1-09440-018-0 01 1 0406- ●
30 SHAFT; GEAR,OUTPUT,RR 1-36351-041-0 01 1 9604-0004 ● ● ● ● ●
30 SHAFT; GEAR,OUTPUT,RR 1-36351-041-0 01 1 0005-0405 ● ● ●
30 SHAFT; GEAR,OUTPUT,RR 1-36351-041-0 01 1 0406- ● ●
30 SHAFT; GEAR,OUTPUT,RR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36351-041-0 01 1 0406- ●
30 SHAFT; GEAR,OUTPUT,RR
TRANSMISSION OIL COOLER<C2C> 		1-36351-041-0 01 1 0406- ●
31 COLLAR; DIST,BRG,OUTPUT
T=25 		1-36355-049-0 01 1 9604-0004 ● ● ● ● ●
31 COLLAR; DIST,BRG,OUTPUT
T=25 		1-36355-049-0 01 1 0005-0405 ● ● ●
31 COLLAR; DIST,BRG,OUTPUT
T=25 		1-36355-049-0 01 1 0406- ● ●
31 COLLAR; DIST,BRG,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=25 		1-36355-049-0 01 1 0406- ●
31 COLLAR; DIST,BRG,OUTPUT
TRANSMISSION OIL COOLER<C2C> T=25 		1-36355-049-0 01 1 0406- ●
33 KEY; FEATHER,SPD DRIVE GEAR 9-08055-519-0 01 1 9604-0004 ● ● ● ● ●
33 KEY; FEATHER,SPD DRIVE GEAR 9-08055-519-0 01 1 0005-0405 ● ● ●
33 KEY; FEATHER,SPD DRIVE GEAR 9-08055-519-0 01 1 0406- ● ●
33 KEY; FEATHER,SPD DRIVE GEAR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-08055-519-0 01 1 0406- ●
33 KEY; FEATHER,SPD DRIVE GEAR
TRANSMISSION OIL COOLER<C2C> 		9-08055-519-0 01 1 0406- ●
34 BEARING; ROLLER,OUTPUT
(A) NSK 		1-09812-009-0 01 1 9604-0004 ● ● ● ● ●
34 BEARING; ROLLER,OUTPUT
(A) NSK 		1-09812-009-0 01 1 0005-0405 ● ● ●
34 BEARING; ROLLER,OUTPUT
(A) NSK 		1-09812-009-0 01 1 0406- ● ●
34 BEARING; ROLLER,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) NSK 		1-09812-009-0 01 1 0406- ●
34 BEARING; ROLLER,OUTPUT
TRANSMISSION OIL COOLER<C2C> (A) NSK 		1-09812-009-0 01 1 0406- ●
34 BEARING; ROLLER,OUTPUT
(B) NACHI 		1-09812-029-0 01 1 9604-0004 ● ● ● ● ●
34 BEARING; ROLLER,OUTPUT
(B) NACHI 		1-09812-029-0 01 1 0005-0405 ● ● ●
34 BEARING; ROLLER,OUTPUT
(B) NACHI 		1-09812-029-0 01 1 0406- ● ●
34 BEARING; ROLLER,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (B) NACHI 		1-09812-029-0 01 1 0406- ●
34 BEARING; ROLLER,OUTPUT
TRANSMISSION OIL COOLER<C2C> (B) NACHI 		1-09812-029-0 01 1 0406- ●
34 BEARING; ROLLER,OUTPUT
(A) NACHI 		1-09812-030-0 01 1 9604-0004 ● ● ● ● ●
34 BEARING; ROLLER,OUTPUT
(A) NACHI 		1-09812-030-0 01 1 0005-0405 ● ● ●
34 BEARING; ROLLER,OUTPUT
(A) NACHI 		1-09812-030-0 01 1 0406- ● ●
34 BEARING; ROLLER,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) NACHI 		1-09812-030-0 01 1 0406- ●
34 BEARING; ROLLER,OUTPUT
TRANSMISSION OIL COOLER<C2C> (A) NACHI 		1-09812-030-0 01 1 0406- ●
34 BEARING; ROLLER,OUTPUT
(B) NSK 		9-00030-309-0 01 1 9604-0004 ● ● ● ● ●
34 BEARING; ROLLER,OUTPUT
(B) NSK 		9-00030-309-0 01 1 0005-0405 ● ● ●
34 BEARING; ROLLER,OUTPUT
(B) NSK 		9-00030-309-0 01 1 0406- ● ●
34 BEARING; ROLLER,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (B) NSK 		9-00030-309-0 01 1 0406- ●
34 BEARING; ROLLER,OUTPUT
TRANSMISSION OIL COOLER<C2C> (B) NSK 		9-00030-309-0 01 1 0406- ●
37 GEAR; DRIVE,SPD,TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> Z=18 		1-33371-052-0 01 1 0406- ●
37 GEAR; DRIVE,SPD,TRANSFER
Z=4 		1-33371-007-2 01 1 9604-0004 ● ● ● ● ●
37 GEAR; DRIVE,SPD,TRANSFER
Z=4 		1-33371-007-2 01 1 0005-0405 ● ● ●
37 GEAR; DRIVE,SPD,TRANSFER
Z=4 		1-33371-007-2 01 1 0406- ● ●
37 GEAR; DRIVE,SPD,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> Z=4 		1-33371-007-2 01 1 0406- ●
37 GEAR; DRIVE,SPD,TRANSFER
TRANSMISSION OIL COOLER<C2C> Z=4 		1-33371-007-2 01 1 0406- ●
40 GASKET; FLANGE
ALSO INCLUDED IN REPAIR KIT(T/F). ID=35.7 T=5 		1-09623-379-0 01 1 9604-0004 ● ● ● ● ●
40 GASKET; FLANGE
ALSO INCLUDED IN REPAIR KIT(T/F). ID=35.7 T=5 		1-09623-379-0 01 1 0005-0405 ● ● ●
40 GASKET; FLANGE
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-379-0 01 1 0406- ● ●
40 GASKET; FLANGE
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> ID=35.7 T=5 		1-09623-379-0 01 1 0406- ●
40 GASKET; FLANGE
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> ID=35.7 T=5 		1-09623-379-0 01 1 0406- ●
41 NUT; FLANGE LK,OUTPUT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09440-090-0 01 1 0406- ●
41 NUT; FLANGE LK,OUTPUT
M30 		1-09440-018-0 01 1 9604-0004 ● ● ● ● ●
41 NUT; FLANGE LK,OUTPUT
M30 		1-09440-018-0 01 1 0005-0405 ● ● ●
41 NUT; FLANGE LK,OUTPUT
M30 		1-09440-018-0 01 1 0406- ● ●
41 NUT; FLANGE LK,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M30 		1-09440-018-0 01 1 0406- ●
41 NUT; FLANGE LK,OUTPUT
TRANSMISSION OIL COOLER<C2C> M30 		1-09440-018-0 01 1 0406- ●

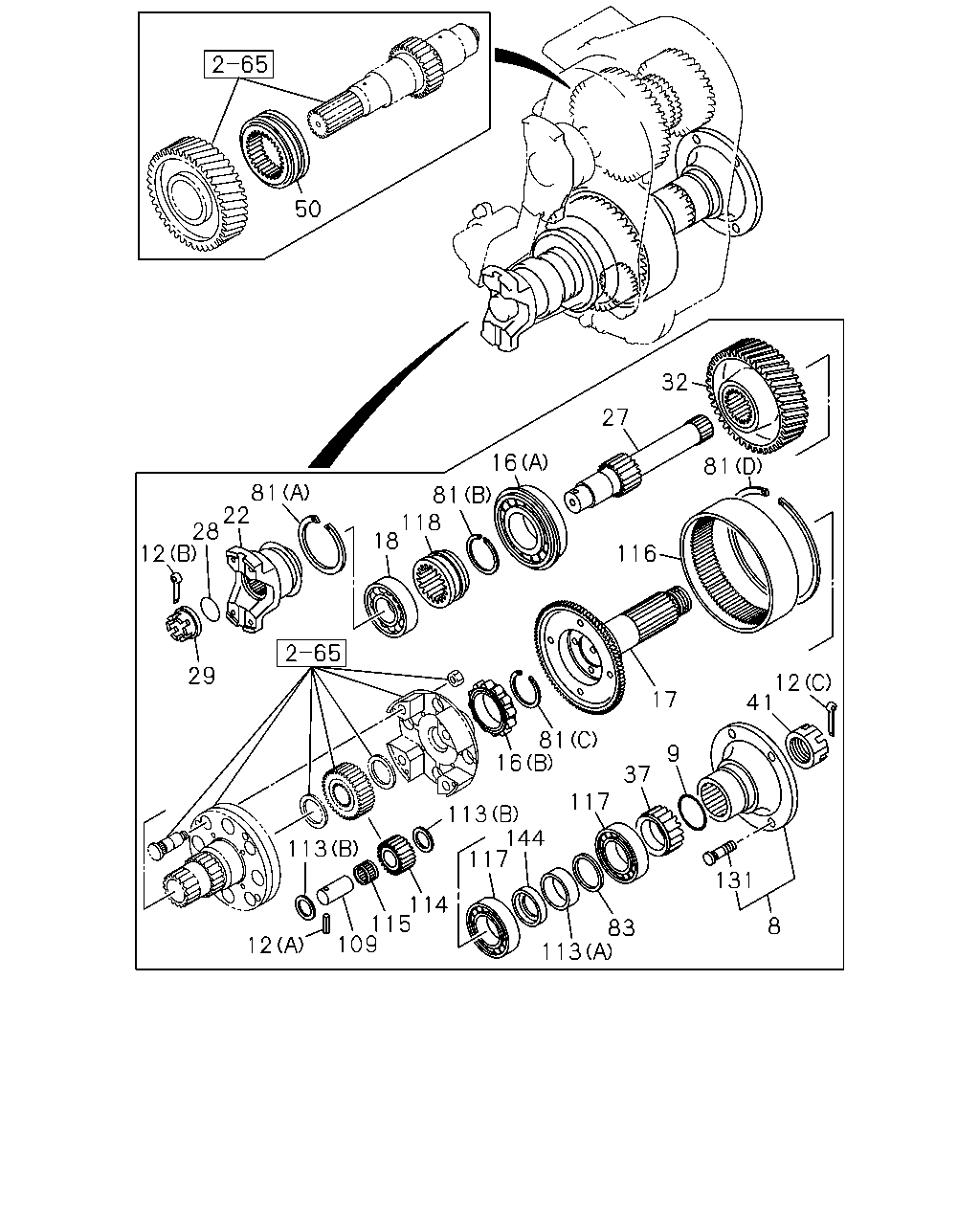

çizim 152752
50 32 27 16 81 81 22 28 12 81 118 18 116 29 12 41 17 81 16 9 37 117 113 144 117 113 131 114 115 109 8 83 12 113
BalonParca AdiParca NoAdetTipApplied Date A B C D E
8 FLANGE; OUTPUT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-37243-306-0 01 1 0406- ●
8 FLANGE; OUTPUT
W/COVER:DUST 		1-37240-079-1 01 1 9604-0004 ● ● ● ● ●
8 FLANGE; OUTPUT
W/COVER:DUST 		1-37240-079-1 01 1 0005-0405 ● ● ●
8 FLANGE; OUTPUT
W/COVER:DUST 		1-37240-079-1 01 1 0406- ● ●
8 FLANGE; OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> W/COVER:DUST 		1-37240-079-1 01 1 0406- ●
8 FLANGE; OUTPUT
TRANSMISSION OIL COOLER<C2C> W/COVER:DUST 		1-37240-079-1 01 1 0406- ●
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09623-385-0 01 1 0406- ●
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5 		1-09623-379-0 01 1 9604-0004 ● ● ● ● ●
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5 		1-09623-379-0 01 1 0005-0405 ● ● ●
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-379-0 01 1 0406- ● ●
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> ID=35.7 T=5 		1-09623-379-0 01 1 0406- ●
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION OIL COOLER<C2C> ID=35.7 T=5 		1-09623-379-0 01 1 0406- ●
12 PIN
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) L=25 OD=5 		8-94135-771-0 04 1 0406- ●
12 PIN
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		9-08116-050-0 01 1 0406- ●
12 PIN
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) 		9-08116-060-0 01 1 0406- ●
12 PIN
(D) 		9-08116-045-0 03 1 9604-0004 ● ● ● ● ●
12 PIN
(D) 		9-08116-045-0 03 1 0005-0405 ● ● ●
12 PIN
(D) 		9-08116-045-0 03 1 0406- ● ●
12 PIN
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (D) 		9-08116-045-0 03 1 0406- ●
12 PIN
TRANSMISSION OIL COOLER<C2C> (D) 		9-08116-045-0 03 1 0406- ●
16 BEARING; OUTPUT GEAR
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) NTN 		1-09810-164-0 01 1 0406- ●
16 BEARING; OUTPUT GEAR
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) NSK 		1-09810-185-0 01 1 0406- ●
16 BEARING; OUTPUT GEAR
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) NTN 		1-09810-200-0 01 1 0406- ●
16 BEARING; OUTPUT GEAR
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) JTEKT 		1-09810-226-0 01 1 0406- ●
17 SHAFT; OUTPUT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36351-044-0 01 1 0406- ●
17 SHAFT; OUTPUT 1-36311-016-0 01 1 9604-0004 ● ● ● ● ●
17 SHAFT; OUTPUT 1-36311-016-0 01 1 0005-0405 ● ● ●
17 SHAFT; OUTPUT 1-36311-016-0 01 1 0406- ● ●
17 SHAFT; OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36311-016-0 01 1 0406- ●
17 SHAFT; OUTPUT
TRANSMISSION OIL COOLER<C2C> 		1-36311-016-0 01 1 0406- ●
18 BEARING; BALL,OUTPUT,FRT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> NSK 		1-09800-249-0 01 1 0406- ●
18 BEARING; BALL,OUTPUT,FRT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> NTN 		1-09800-250-0 01 1 0406- ●
18 BEARING; BALL,OUTPUT,FRT
NSK 		9-00090-047-0 01 1 9604-0004 ● ● ● ● ●
18 BEARING; BALL,OUTPUT,FRT
NSK 		9-00090-047-0 01 1 0005-0405 ● ● ●
18 BEARING; BALL,OUTPUT,FRT
NSK 		9-00090-047-0 01 1 0406- ● ●
18 BEARING; BALL,OUTPUT,FRT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> NSK 		9-00090-047-0 01 1 0406- ●
18 BEARING; BALL,OUTPUT,FRT
TRANSMISSION OIL COOLER<C2C> NSK 		9-00090-047-0 01 1 0406- ●
18 BEARING; BALL,OUTPUT,FRT
NACHI 		9-00090-225-0 01 1 9604-0004 ● ● ● ● ●
18 BEARING; BALL,OUTPUT,FRT
NACHI 		9-00090-225-0 01 1 0005-0405 ● ● ●
18 BEARING; BALL,OUTPUT,FRT
NACHI 		9-00090-225-0 01 1 0406- ● ●
18 BEARING; BALL,OUTPUT,FRT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> NACHI 		9-00090-225-0 01 1 0406- ●
18 BEARING; BALL,OUTPUT,FRT
TRANSMISSION OIL COOLER<C2C> NACHI 		9-00090-225-0 01 1 0406- ●
22 FLANGE; OUTPUT,FRT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-37245-186-0 01 1 0406- ●
22 FLANGE; OUTPUT,FRT 1-37240-091-0 01 1 9604-0004 ● ● ● ● ●
22 FLANGE; OUTPUT,FRT 1-37240-091-0 01 1 0005-0405 ● ● ●
22 FLANGE; OUTPUT,FRT 1-37240-091-0 01 1 0406- ● ●
22 FLANGE; OUTPUT,FRT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-37240-091-0 01 1 0406- ●
22 FLANGE; OUTPUT,FRT
TRANSMISSION OIL COOLER<C2C> 		1-37240-091-0 01 1 0406- ●
27 GEAR; OUTPUT,FRT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36311-017-0 01 1 0406- ●
28 GASKET; SHAFT
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> ID=42 		9-09921-116-0 01 1 0406- ●
28 GASKET; SHAFT
ALSO INCLUDED IN REPAIR KIT(T/F). ID=35.7 T=5 		1-09623-379-0 01 1 9604-0004 ● ● ● ● ●
28 GASKET; SHAFT
ALSO INCLUDED IN REPAIR KIT(T/F). ID=35.7 T=5 		1-09623-379-0 01 1 0005-0405 ● ● ●
28 GASKET; SHAFT
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-379-0 01 1 0406- ● ●
28 GASKET; SHAFT
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> ID=35.7 T=5 		1-09623-379-0 01 1 0406- ●
28 GASKET; SHAFT
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> ID=35.7 T=5 		1-09623-379-0 01 1 0406- ●
29 NUT; FLANGE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09440-017-0 01 1 0406- ●
29 NUT; FLANGE
M30 		1-09440-018-0 01 1 9604-0004 ● ● ● ● ●
29 NUT; FLANGE
M30 		1-09440-018-0 01 1 0005-0405 ● ● ●
29 NUT; FLANGE
M30 		1-09440-018-0 01 1 0406- ● ●
29 NUT; FLANGE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M30 		1-09440-018-0 01 1 0406- ●
29 NUT; FLANGE
TRANSMISSION OIL COOLER<C2C> M30 		1-09440-018-0 01 1 0406- ●
32 GEAR; OUTPUT,TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> Z=41 		1-36371-011-0 01 1 0406- ●
37 GEAR; DRIVE,SPD,TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> Z=18 		1-33371-052-0 01 1 0406- ●
37 GEAR; DRIVE,SPD,TRANSFER
Z=4 		1-33371-007-2 01 1 9604-0004 ● ● ● ● ●
37 GEAR; DRIVE,SPD,TRANSFER
Z=4 		1-33371-007-2 01 1 0005-0405 ● ● ●
37 GEAR; DRIVE,SPD,TRANSFER
Z=4 		1-33371-007-2 01 1 0406- ● ●
37 GEAR; DRIVE,SPD,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> Z=4 		1-33371-007-2 01 1 0406- ●
37 GEAR; DRIVE,SPD,TRANSFER
TRANSMISSION OIL COOLER<C2C> Z=4 		1-33371-007-2 01 1 0406- ●
41 NUT; FLANGE LK,OUTPUT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09440-090-0 01 1 0406- ●
41 NUT; FLANGE LK,OUTPUT
M30 		1-09440-018-0 01 1 9604-0004 ● ● ● ● ●
41 NUT; FLANGE LK,OUTPUT
M30 		1-09440-018-0 01 1 0005-0405 ● ● ●
41 NUT; FLANGE LK,OUTPUT
M30 		1-09440-018-0 01 1 0406- ● ●
41 NUT; FLANGE LK,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M30 		1-09440-018-0 01 1 0406- ●
41 NUT; FLANGE LK,OUTPUT
TRANSMISSION OIL COOLER<C2C> M30 		1-09440-018-0 01 1 0406- ●
50 SLEEVE; HIGH & LOW,TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> Z=28 		1-36262-010-1 01 1 0406- ●
81 RING; SNAP
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-09587-023-0 01 1 0406- ●
81 RING; SNAP
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) ID=66 T=2.53 WHITE 		1-09588-131-0 AR 1 0406- ●
81 RING; SNAP
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) ID=66 T=2.56 YELLOW 		1-09588-132-0 AR 1 0406- ●
81 RING; SNAP
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) ID=66 T=2.60 BLUE 		1-09588-133-0 AR 1 0406- ●
81 RING; SNAP
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) ID=66 T=2.64 GREEN 		1-09588-134-0 AR 1 0406- ●
81 RING; SNAP
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) ID=60.8 		9-09180-065-0 01 1 0406- ●
81 RING; SNAP
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (D) 		9-09950-200-0 01 1 0406- ●
83 SHIM; OUTPUT SHAFT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> T=3.25 		1-33235-086-0 AR 1 0406- ●
83 SHIM; OUTPUT SHAFT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> T=3.30 		1-33235-087-0 AR 1 0406- ●
83 SHIM; OUTPUT SHAFT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> T=3.40 		1-33235-088-0 AR 1 0406- ●
83 SHIM; OUTPUT SHAFT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> T=3.50 		1-33235-089-0 AR 1 0406- ●
83 SHIM; OUTPUT SHAFT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> T=3.55 		1-33235-090-0 AR 1 0406- ●
83 SHIM; OUTPUT SHAFT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> T=3.60 		1-33235-091-0 AR 1 0406- ●
83 SHIM; OUTPUT SHAFT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> T=3.65 		1-33235-092-0 AR 1 0406- ●
83 SHIM; OUTPUT SHAFT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> T=3.70 		1-33235-093-0 AR 1 0406- ●
83 SHIM; OUTPUT SHAFT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> T=3.90 		1-33235-094-0 AR 1 0406- ●
83 SHIM; OUTPUT SHAFT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> T=4.00 		1-33235-097-0 AR 1 0406- ●
109 SHAFT; PLANETARY
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36383-003-0 04 1 0406- ●
113 PIECE; DISTANCE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-36355-065-0 01 1 0406- ●
113 PIECE; DISTANCE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-36389-002-0 08 1 0406- ●
114 GEAR; PLANETARY
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> Z=23 		1-36381-001-0 04 1 0406- ●
115 BEARING; NEEDLE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> NTN 		1-09811-364-0 04 1 0406- ●
115 BEARING; NEEDLE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> NSK 		1-09811-369-0 04 1 0406- ●
116 GEAR; RING
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> Z=84 		1-36381-004-0 01 1 0406- ●
117 BEARING; TAPER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> NSK 		1-09812-199-0 02 1 0406- ●
117 BEARING; TAPER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> NTN 		1-09812-200-0 02 1 0406- ●
118 SLEEVE; DIFF LOCK
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> Z=18 		1-36262-023-0 01 1 0406- ●
131 BOLT; FLANGE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M16X51 W/MARK 		1-46219-086-0 04 1 0406- ●
144 CATCHER; OIL
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36359-035-0 01 1 0406- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
