2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#36783) — 181 parça

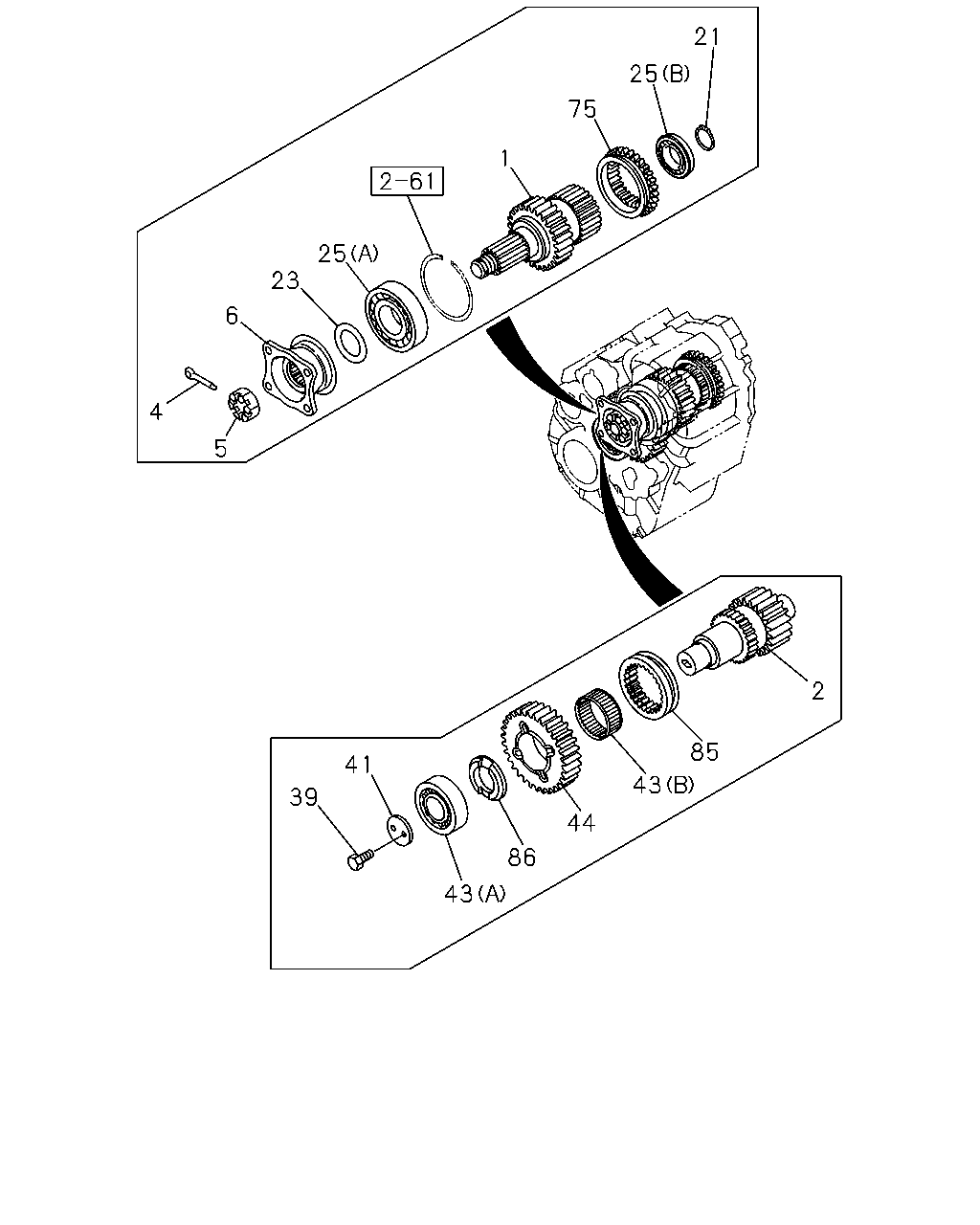

çizim 152723
21 25 75 1 25 23 6 4 5 2 85 41 43 39 44 86 43
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; GEAR,INPUT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36211-030-0 01 1 0406- ●
1 SHAFT; GEAR,INPUT 1-36211-025-0 01 1 9604-0004 ● ● ● ● ●
1 SHAFT; GEAR,INPUT 1-36211-025-0 01 1 0005-0405 ● ● ●
1 SHAFT; GEAR,INPUT 1-36211-025-0 01 1 0406- ● ●
1 SHAFT; GEAR,INPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36211-025-0 01 1 0406- ●
1 SHAFT; GEAR,INPUT
TRANSMISSION OIL COOLER<C2C> 		1-36211-025-0 01 1 0406- ●
2 SHAFT; GEAR,IDLE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36251-027-0 01 1 0406- ●
2 SHAFT; GEAR,IDLE
TRANSMISSION OIL COOLER<C2C> 		1-36251-023-0 01 1 9604-0004 ● ● ● ●
2 SHAFT; GEAR,IDLE
TRANSMISSION OIL COOLER<C2C> 		1-36251-023-0 01 1 0005-0405 ●
2 SHAFT; GEAR,IDLE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> 		1-36251-023-0 01 1 0406- ●
2 SHAFT; GEAR,IDLE
EXC. TRANSMISSION OIL COOLER<C2C> 		1-36251-022-0 01 1 9604-0004 ● ● ● ●
2 SHAFT; GEAR,IDLE 1-36251-022-0 01 1 9604-0004 ●
2 SHAFT; GEAR,IDLE 1-36251-022-0 01 1 0005-0405 ● ●
2 SHAFT; GEAR,IDLE
EXC. TRANSMISSION OIL COOLER<C2C> 		1-36251-022-0 01 1 0005-0405 ●
2 SHAFT; GEAR,IDLE 1-36251-022-0 01 1 0406- ● ●
2 SHAFT; GEAR,IDLE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36251-022-0 01 1 0406- ●
4 PIN; SPLIT 9-08116-045-0 01 1 9604-0004 ● ● ● ● ●
4 PIN; SPLIT 9-08116-045-0 01 1 0005-0405 ● ● ●
4 PIN; SPLIT 9-08116-045-0 01 1 0406- ● ●
4 PIN; SPLIT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-08116-045-0 01 1 0406- ●
4 PIN; SPLIT
TRANSMISSION OIL COOLER<C2C> 		9-08116-045-0 01 1 0406- ●
5 NUT; YOKE,TRANSFER,INPUT
M30 		1-09440-018-0 01 1 9604-0004 ● ● ● ● ●
5 NUT; YOKE,TRANSFER,INPUT
M30 		1-09440-018-0 01 1 0005-0405 ● ● ●
5 NUT; YOKE,TRANSFER,INPUT
M30 		1-09440-018-0 01 1 0406- ● ●
5 NUT; YOKE,TRANSFER,INPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M30 		1-09440-018-0 01 1 0406- ●
5 NUT; YOKE,TRANSFER,INPUT
TRANSMISSION OIL COOLER<C2C> M30 		1-09440-018-0 01 1 0406- ●
6 FLANGE; INPUT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-37243-134-0 01 1 0406- ●
6 FLANGE; INPUT
W/COVER:DUST 		1-37240-079-1 01 1 9604-0004 ● ● ● ● ●
6 FLANGE; INPUT
W/COVER:DUST 		1-37240-079-1 01 1 0005-0405 ● ● ●
6 FLANGE; INPUT
W/COVER:DUST 		1-37240-079-1 01 1 0406- ● ●
6 FLANGE; INPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> W/COVER:DUST 		1-37240-079-1 01 1 0406- ●
6 FLANGE; INPUT
TRANSMISSION OIL COOLER<C2C> W/COVER:DUST 		1-37240-079-1 01 1 0406- ●
21 RING; SNAP,PILOT BRG 1-09588-157-0 01 1 9604-0004 ● ● ● ● ●
21 RING; SNAP,PILOT BRG 1-09588-157-0 01 1 0005-0405 ● ● ●
21 RING; SNAP,PILOT BRG 1-09588-157-0 01 1 0406- ● ●
21 RING; SNAP,PILOT BRG
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09588-157-0 01 1 0406- ●
21 RING; SNAP,PILOT BRG
TRANSMISSION OIL COOLER<C2C> 		1-09588-157-0 01 1 0406- ●
23 COLLAR; DIST,INPUT SHAFT 9-36215-006-1 01 1 9604-0004 ● ● ● ● ●
23 COLLAR; DIST,INPUT SHAFT 9-36215-006-1 01 1 0005-0405 ● ● ●
23 COLLAR; DIST,INPUT SHAFT 9-36215-006-1 01 1 0406- ● ●
23 COLLAR; DIST,INPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-36215-006-1 01 1 0406- ●
23 COLLAR; DIST,INPUT SHAFT
TRANSMISSION OIL COOLER<C2C> 		9-36215-006-1 01 1 0406- ●
25 BEARING; BALL,INPUT SHAFT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) NSK 		1-09812-199-0 01 1 0406- ●
25 BEARING; BALL,INPUT SHAFT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) NTN 		1-09812-200-0 01 1 0406- ●
25 BEARING; BALL,INPUT SHAFT
(A) NSK 		1-09800-055-0 01 1 9604-0004 ● ● ● ● ●
25 BEARING; BALL,INPUT SHAFT
(A) NSK 		1-09800-055-0 01 1 0005-0405 ● ● ●
25 BEARING; BALL,INPUT SHAFT
(A) NSK 		1-09800-055-0 01 1 0406- ● ●
25 BEARING; BALL,INPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) NSK 		1-09800-055-0 01 1 0406- ●
25 BEARING; BALL,INPUT SHAFT
TRANSMISSION OIL COOLER<C2C> (A) NSK 		1-09800-055-0 01 1 0406- ●
25 BEARING; BALL,INPUT SHAFT
(A) NTN 		1-09800-064-0 01 1 9604-0004 ● ● ● ● ●
25 BEARING; BALL,INPUT SHAFT
(A) NTN 		1-09800-064-0 01 1 0005-0405 ● ● ●
25 BEARING; BALL,INPUT SHAFT
(A) NTN 		1-09800-064-0 01 1 0406- ● ●
25 BEARING; BALL,INPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) NTN 		1-09800-064-0 01 1 0406- ●
25 BEARING; BALL,INPUT SHAFT
TRANSMISSION OIL COOLER<C2C> (A) NTN 		1-09800-064-0 01 1 0406- ●
25 BEARING; BALL,INPUT SHAFT
(B) NSK 		1-09810-087-0 01 1 9604-0004 ● ● ● ● ●
25 BEARING; BALL,INPUT SHAFT
(B) NSK 		1-09810-087-0 01 1 0005-0405 ● ● ●
25 BEARING; BALL,INPUT SHAFT
(B) NSK 		1-09810-087-0 01 1 0406- ● ●
25 BEARING; BALL,INPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (B) NSK 		1-09810-087-0 01 1 0406- ●
25 BEARING; BALL,INPUT SHAFT
TRANSMISSION OIL COOLER<C2C> (B) NSK 		1-09810-087-0 01 1 0406- ●
39 BOLT; LK PLATE
EXC. TRANSMISSION OIL COOLER<C2C> M8X20 		1-09050-005-1 02 1 9604-0004 ● ● ● ●
39 BOLT; LK PLATE
M8X20 		1-09050-005-1 02 1 9604-0004 ●
39 BOLT; LK PLATE
M8X20 		1-09050-005-1 02 1 0005-0405 ● ● ●
39 BOLT; LK PLATE
M8X20 		1-09050-005-1 02 1 0406- ● ●
39 BOLT; LK PLATE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M8X20 		1-09050-005-1 02 1 0406- ●
39 BOLT; LK PLATE
TRANSMISSION OIL COOLER<C2C> M8X20 		1-09050-005-1 02 1 0406- ●
41 PLATE; LK,IDLE SHAFT
EXC. TRANSMISSION OIL COOLER<C2C> 		1-33313-002-0 01 1 9604-0004 ● ● ● ●
41 PLATE; LK,IDLE SHAFT 1-33313-002-0 01 1 9604-0004 ●
41 PLATE; LK,IDLE SHAFT 1-33313-002-0 01 1 0005-0405 ● ● ●
41 PLATE; LK,IDLE SHAFT 1-33313-002-0 01 1 0406- ● ●
41 PLATE; LK,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-33313-002-0 01 1 0406- ●
41 PLATE; LK,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> 		1-33313-002-0 01 1 0406- ●
43 BEARING; ROLLER,IDLE SHAFT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) NSK 		1-09810-198-0 02 1 0406- ●
43 BEARING; ROLLER,IDLE SHAFT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) NTN 		1-09810-199-0 02 1 0406- ●
43 BEARING; ROLLER,IDLE SHAFT
(A) NSK 		1-09812-038-0 02 1 9604-0004 ● ● ● ● ●
43 BEARING; ROLLER,IDLE SHAFT
(A) NSK 		1-09812-038-0 02 1 0005-0405 ● ● ●
43 BEARING; ROLLER,IDLE SHAFT
(A) NSK 		1-09812-038-0 02 1 0406- ● ●
43 BEARING; ROLLER,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) NSK 		1-09812-038-0 02 1 0406- ●
43 BEARING; ROLLER,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> (A) NSK 		1-09812-038-0 02 1 0406- ●
43 BEARING; ROLLER,IDLE SHAFT
(A) NACHI 		1-09812-039-0 02 1 9604-0004 ● ● ● ● ●
43 BEARING; ROLLER,IDLE SHAFT
(A) NACHI 		1-09812-039-0 02 1 0005-0405 ● ● ●
43 BEARING; ROLLER,IDLE SHAFT
(A) NACHI 		1-09812-039-0 02 1 0406- ● ●
43 BEARING; ROLLER,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) NACHI 		1-09812-039-0 02 1 0406- ●
43 BEARING; ROLLER,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> (A) NACHI 		1-09812-039-0 02 1 0406- ●
43 BEARING; ROLLER,IDLE SHAFT
(B) JTEKT 		9-00096-240-1 02 1 9604-0004 ● ● ● ● ●
43 BEARING; ROLLER,IDLE SHAFT
(B) JTEKT 		9-00096-240-1 02 1 0005-0405 ● ● ●
43 BEARING; ROLLER,IDLE SHAFT
(B) JTEKT 		9-00096-240-1 02 1 0406- ● ●
43 BEARING; ROLLER,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (B) JTEKT 		9-00096-240-1 02 1 0406- ●
43 BEARING; ROLLER,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> (B) JTEKT 		9-00096-240-1 02 1 0406- ●
44 GEAR; IDLE,LOW RANGE 1-36271-045-0 01 1 9604-0004 ● ● ● ● ●
44 GEAR; IDLE,LOW RANGE 1-36271-045-0 01 1 0005-0405 ● ● ●
44 GEAR; IDLE,LOW RANGE 1-36271-045-0 01 1 0406- ● ●
44 GEAR; IDLE,LOW RANGE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36271-045-0 01 1 0406- ●
44 GEAR; IDLE,LOW RANGE
TRANSMISSION OIL COOLER<C2C> 		1-36271-045-0 01 1 0406- ●
75 SLEEVE; HIGH,INPUT 1-36262-021-0 01 1 9604-0004 ● ● ● ● ●
75 SLEEVE; HIGH,INPUT 1-36262-021-0 01 1 0005-0405 ● ● ●
75 SLEEVE; HIGH,INPUT 1-36262-021-0 01 1 0406- ● ●
75 SLEEVE; HIGH,INPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36262-021-0 01 1 0406- ●
75 SLEEVE; HIGH,INPUT
TRANSMISSION OIL COOLER<C2C> 		1-36262-021-0 01 1 0406- ●
85 SLEEVE; LOW,IDLE 1-36262-020-0 01 1 9604-0004 ● ● ● ● ●
85 SLEEVE; LOW,IDLE 1-36262-020-0 01 1 0005-0405 ● ● ●
85 SLEEVE; LOW,IDLE 1-36262-020-0 01 1 0406- ● ●
85 SLEEVE; LOW,IDLE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36262-020-0 01 1 0406- ●
85 SLEEVE; LOW,IDLE
TRANSMISSION OIL COOLER<C2C> 		1-36262-020-0 01 1 0406- ●
86 WASHER; THRUST,IDLE 1-36255-006-0 01 1 9604-0004 ● ● ● ● ●
86 WASHER; THRUST,IDLE 1-36255-006-0 01 1 0005-0405 ● ● ●
86 WASHER; THRUST,IDLE 1-36255-006-0 01 1 0406- ● ●
86 WASHER; THRUST,IDLE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36255-006-0 01 1 0406- ●
86 WASHER; THRUST,IDLE
TRANSMISSION OIL COOLER<C2C> 		1-36255-006-0 01 1 0406- ●
çizim 152743
110 110 25 9 6 8 17 42 110 110 22 111 10 1 16 112 43 2 43
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; GEAR,INPUT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36211-030-0 01 1 0406- ●
1 SHAFT; GEAR,INPUT 1-36211-025-0 01 1 9604-0004 ● ● ● ● ●
1 SHAFT; GEAR,INPUT 1-36211-025-0 01 1 0005-0405 ● ● ●
1 SHAFT; GEAR,INPUT 1-36211-025-0 01 1 0406- ● ●
1 SHAFT; GEAR,INPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36211-025-0 01 1 0406- ●
1 SHAFT; GEAR,INPUT
TRANSMISSION OIL COOLER<C2C> 		1-36211-025-0 01 1 0406- ●
2 SHAFT; GEAR,IDLE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36251-027-0 01 1 0406- ●
2 SHAFT; GEAR,IDLE
TRANSMISSION OIL COOLER<C2C> 		1-36251-023-0 01 1 9604-0004 ● ● ● ●
2 SHAFT; GEAR,IDLE
TRANSMISSION OIL COOLER<C2C> 		1-36251-023-0 01 1 0005-0405 ●
2 SHAFT; GEAR,IDLE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> 		1-36251-023-0 01 1 0406- ●
2 SHAFT; GEAR,IDLE
EXC. TRANSMISSION OIL COOLER<C2C> 		1-36251-022-0 01 1 9604-0004 ● ● ● ●
2 SHAFT; GEAR,IDLE 1-36251-022-0 01 1 9604-0004 ●
2 SHAFT; GEAR,IDLE 1-36251-022-0 01 1 0005-0405 ● ●
2 SHAFT; GEAR,IDLE
EXC. TRANSMISSION OIL COOLER<C2C> 		1-36251-022-0 01 1 0005-0405 ●
2 SHAFT; GEAR,IDLE 1-36251-022-0 01 1 0406- ● ●
2 SHAFT; GEAR,IDLE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36251-022-0 01 1 0406- ●
6 FLANGE; INPUT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-37243-134-0 01 1 0406- ●
6 FLANGE; INPUT
W/COVER:DUST 		1-37240-079-1 01 1 9604-0004 ● ● ● ● ●
6 FLANGE; INPUT
W/COVER:DUST 		1-37240-079-1 01 1 0005-0405 ● ● ●
6 FLANGE; INPUT
W/COVER:DUST 		1-37240-079-1 01 1 0406- ● ●
6 FLANGE; INPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> W/COVER:DUST 		1-37240-079-1 01 1 0406- ●
6 FLANGE; INPUT
TRANSMISSION OIL COOLER<C2C> W/COVER:DUST 		1-37240-079-1 01 1 0406- ●
8 BEARING; ROLLER,INPUT SHAFT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> NSK 		1-09812-199-0 01 1 0406- ●
8 BEARING; ROLLER,INPUT SHAFT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> NTN 		1-09812-200-0 01 1 0406- ●
9 WASHER; THRUST,FRT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36255-010-0 01 1 0406- ●
10 GEAR; INPUT,LOW
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> Z=30 		1-36231-029-0 01 1 0406- ●
16 GEAR; INPUT,HIGH
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> Z=41 		1-36231-028-0 01 1 0406- ●
17 WASHER; THRUST,RR
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36255-010-0 01 1 0406- ●
22 NIPPLE; GREASE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
22 NIPPLE; GREASE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
25 BEARING; BALL,INPUT SHAFT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) NSK 		1-09812-199-0 01 1 0406- ●
25 BEARING; BALL,INPUT SHAFT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) NTN 		1-09812-200-0 01 1 0406- ●
25 BEARING; BALL,INPUT SHAFT
(A) NSK 		1-09800-055-0 01 1 9604-0004 ● ● ● ● ●
25 BEARING; BALL,INPUT SHAFT
(A) NSK 		1-09800-055-0 01 1 0005-0405 ● ● ●
25 BEARING; BALL,INPUT SHAFT
(A) NSK 		1-09800-055-0 01 1 0406- ● ●
25 BEARING; BALL,INPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) NSK 		1-09800-055-0 01 1 0406- ●
25 BEARING; BALL,INPUT SHAFT
TRANSMISSION OIL COOLER<C2C> (A) NSK 		1-09800-055-0 01 1 0406- ●
25 BEARING; BALL,INPUT SHAFT
(A) NTN 		1-09800-064-0 01 1 9604-0004 ● ● ● ● ●
25 BEARING; BALL,INPUT SHAFT
(A) NTN 		1-09800-064-0 01 1 0005-0405 ● ● ●
25 BEARING; BALL,INPUT SHAFT
(A) NTN 		1-09800-064-0 01 1 0406- ● ●
25 BEARING; BALL,INPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) NTN 		1-09800-064-0 01 1 0406- ●
25 BEARING; BALL,INPUT SHAFT
TRANSMISSION OIL COOLER<C2C> (A) NTN 		1-09800-064-0 01 1 0406- ●
25 BEARING; BALL,INPUT SHAFT
(B) NSK 		1-09810-087-0 01 1 9604-0004 ● ● ● ● ●
25 BEARING; BALL,INPUT SHAFT
(B) NSK 		1-09810-087-0 01 1 0005-0405 ● ● ●
25 BEARING; BALL,INPUT SHAFT
(B) NSK 		1-09810-087-0 01 1 0406- ● ●
25 BEARING; BALL,INPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (B) NSK 		1-09810-087-0 01 1 0406- ●
25 BEARING; BALL,INPUT SHAFT
TRANSMISSION OIL COOLER<C2C> (B) NSK 		1-09810-087-0 01 1 0406- ●
42 SHIM; IDLE SHAFT BRG
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> T=0.10 		1-33156-018-0 AR 1 0406- ●
42 SHIM; IDLE SHAFT BRG
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> T=0.15 		1-33156-019-0 AR 1 0406- ●
42 SHIM; IDLE SHAFT BRG
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> T=0.20 		1-33156-020-0 AR 1 0406- ●
42 SHIM; IDLE SHAFT BRG
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> T=0.40 		1-33156-021-0 AR 1 0406- ●
42 SHIM; IDLE SHAFT BRG
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> T=0.65 		1-33156-022-0 AR 1 0406- ●
42 SHIM; IDLE SHAFT BRG
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> T=0.80 		1-33156-023-0 AR 1 0406- ●
43 BEARING; ROLLER,IDLE SHAFT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) NSK 		1-09810-198-0 02 1 0406- ●
43 BEARING; ROLLER,IDLE SHAFT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) NTN 		1-09810-199-0 02 1 0406- ●
43 BEARING; ROLLER,IDLE SHAFT
(A) NSK 		1-09812-038-0 02 1 9604-0004 ● ● ● ● ●
43 BEARING; ROLLER,IDLE SHAFT
(A) NSK 		1-09812-038-0 02 1 0005-0405 ● ● ●
43 BEARING; ROLLER,IDLE SHAFT
(A) NSK 		1-09812-038-0 02 1 0406- ● ●
43 BEARING; ROLLER,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) NSK 		1-09812-038-0 02 1 0406- ●
43 BEARING; ROLLER,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> (A) NSK 		1-09812-038-0 02 1 0406- ●
43 BEARING; ROLLER,IDLE SHAFT
(A) NACHI 		1-09812-039-0 02 1 9604-0004 ● ● ● ● ●
43 BEARING; ROLLER,IDLE SHAFT
(A) NACHI 		1-09812-039-0 02 1 0005-0405 ● ● ●
43 BEARING; ROLLER,IDLE SHAFT
(A) NACHI 		1-09812-039-0 02 1 0406- ● ●
43 BEARING; ROLLER,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) NACHI 		1-09812-039-0 02 1 0406- ●
43 BEARING; ROLLER,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> (A) NACHI 		1-09812-039-0 02 1 0406- ●
43 BEARING; ROLLER,IDLE SHAFT
(B) JTEKT 		9-00096-240-1 02 1 9604-0004 ● ● ● ● ●
43 BEARING; ROLLER,IDLE SHAFT
(B) JTEKT 		9-00096-240-1 02 1 0005-0405 ● ● ●
43 BEARING; ROLLER,IDLE SHAFT
(B) JTEKT 		9-00096-240-1 02 1 0406- ● ●
43 BEARING; ROLLER,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (B) JTEKT 		9-00096-240-1 02 1 0406- ●
43 BEARING; ROLLER,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> (B) JTEKT 		9-00096-240-1 02 1 0406- ●
110 BEARING; NEEDLE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09811-432-0 04 1 0406- ●
111 PLUG
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09600-047-0 01 1 0406- ●
112 CARRIER ASM
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36350-007-0 01 1 0406- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
