2-61 — TRANSFER CASE AND GEAR SHIFTER (#36782) — 1083 parça

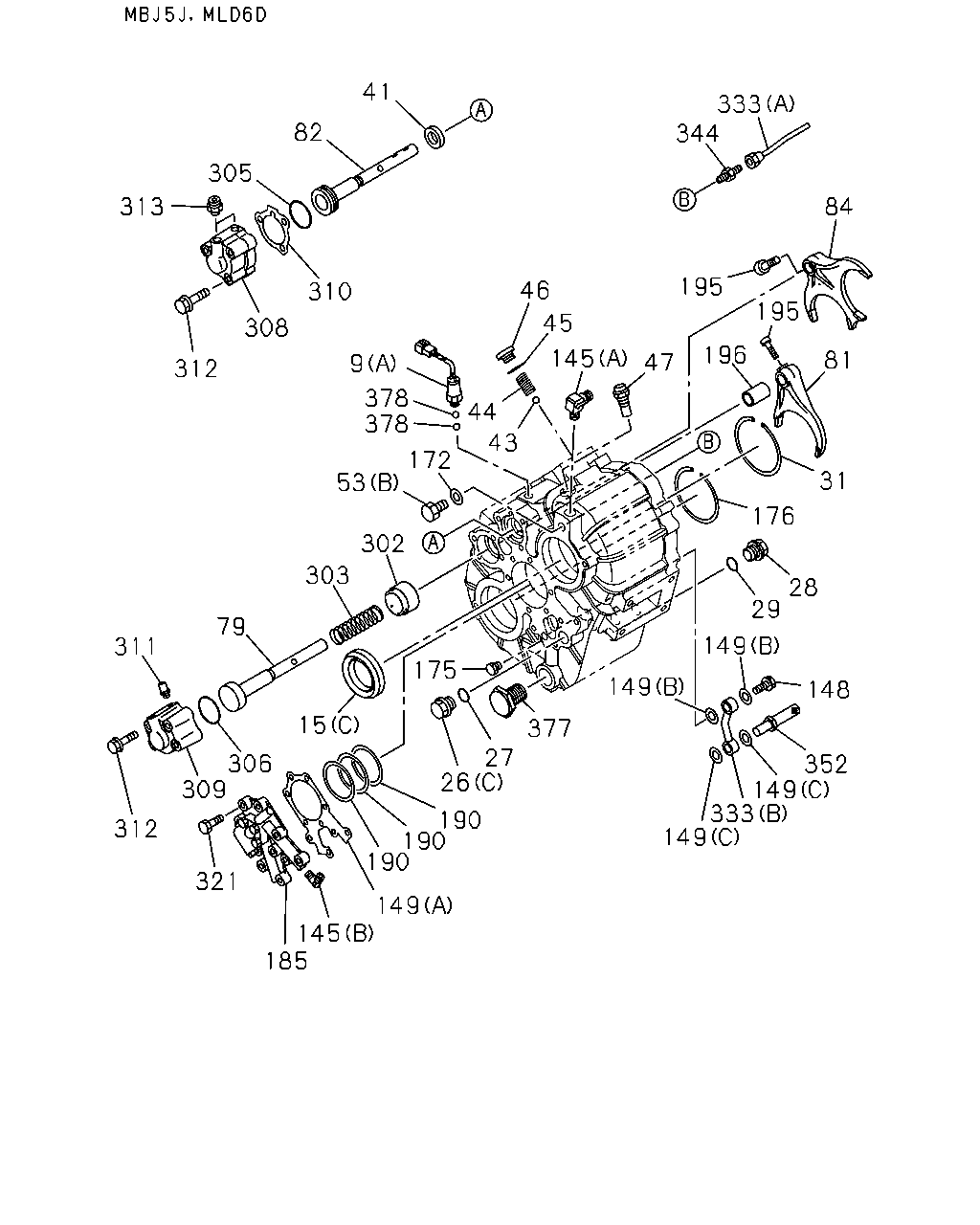

çizim 152715
41 333 344 82 305 313 84 195 46 310 195 45 308 196 145 81 47 312 378 378 44 43 172 31 53 176 302 303 28 29 79 149 311 175 149 148 15 377 27 26 306 309 352 149 333 149 190 190 190 312 321 149 145 185
BalonParca AdiParca NoAdetTipApplied Date A B C D E
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-09625-549-0 01 1 0406- ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-09625-552-0 01 1 0406- ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). (C) 		1-09625-202-1 02 1 9604-0004 ● ● ● ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). (C) 		1-09625-202-1 02 1 0005-0405 ● ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-202-1 02 1 0406- ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (C) 		1-09625-202-1 02 1 0406- ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> (C) 		1-09625-202-1 02 1 0406- ●
26 PLUG; FILLER,TRANSFER CASE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) M24X17 FLANGE 		1-09604-023-0 01 1 0406- ●
26 PLUG; FILLER,TRANSFER CASE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) PT1/8 		1-09605-050-0 02 1 0406- ●
26 PLUG; FILLER,TRANSFER CASE
(C) M24X17 FLANGE 		1-09604-022-0 01 1 9604-9904 ● ● ● ● ●
26 PLUG; FILLER,TRANSFER CASE
(C) M24X17 FLANGE 		1-09604-064-1 01 1 9905-0004 ● ● ● ● ●
26 PLUG; FILLER,TRANSFER CASE
(C) M24X17 FLANGE 		1-09604-064-1 01 1 0005-0201 ● ● ●
26 PLUG; FILLER,TRANSFER CASE
(C) M24X17 FLANGE 		1-09604-022-0 01 1 0202-0405 ● ● ●
26 PLUG; FILLER,TRANSFER CASE
(C) M24X17 FLANGE 		1-09604-022-0 01 1 0406- ● ●
26 PLUG; FILLER,TRANSFER CASE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (C) M24X17 FLANGE 		1-09604-022-0 01 1 0406- ●
26 PLUG; FILLER,TRANSFER CASE
TRANSMISSION OIL COOLER<C2C> (C) M24X17 FLANGE 		1-09604-022-0 01 1 0406- ●
27 GASKET; FILLER PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 9604-0004 ● ● ● ● ●
27 GASKET; FILLER PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 0005- ● ● ●
28 PLUG; DRAIN,TRANSFER CASE
M24X17 FLANGE 		1-09604-023-0 01 1 9604-0004 ● ● ● ● ●
28 PLUG; DRAIN,TRANSFER CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0005- ● ● ●
29 GASKET; DRAIN PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 9604-0004 ● ● ● ● ●
29 GASKET; DRAIN PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 0005- ● ● ●
31 RING; SNAP,INPUT 9-09950-184-0 01 1 9604-0004 ● ● ● ● ●
31 RING; SNAP,INPUT 9-09950-184-0 01 1 0005-0405 ● ● ●
31 RING; SNAP,INPUT 9-09950-184-0 01 1 0406- ● ●
31 RING; SNAP,INPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-09950-184-0 01 1 0406- ●
31 RING; SNAP,INPUT
TRANSMISSION OIL COOLER<C2C> 		9-09950-184-0 01 1 0406- ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09625-547-0 01 1 0406- ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-377-0 02 1 9604-0004 ● ● ● ● ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-377-0 02 1 0005-0405 ● ● ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-377-0 02 1 0406- ● ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09625-377-0 02 1 0406- ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> 		1-09625-377-0 02 1 0406- ●
43 BALL; LK,SHIFT ROD 9-00097-013-0 01 1 9604-0004 ● ● ● ● ●
43 BALL; LK,SHIFT ROD 9-00097-013-0 01 1 0005- ● ● ●
44 SPRING; COIL,LK 9-09940-323-0 01 1 9604-0004 ● ● ● ● ●
44 SPRING; COIL,LK 9-09940-323-0 01 1 0005- ● ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-09571-520-0 01 1 9604-0004 ● ● ● ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-09571-520-0 01 1 0005-0201 ● ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=20.5 OD=28.0 		9-09571-420-0 01 1 0202- ● ● ●
46 SEAT; SPR 9-09862-175-0 01 1 9604-0004 ● ● ● ● ●
46 SEAT; SPR 9-09862-175-0 01 1 0005-0405 ● ● ●
46 SEAT; SPR 9-09862-175-0 01 1 0406- ● ●
46 SEAT; SPR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-09862-175-0 01 1 0406- ●
46 SEAT; SPR
TRANSMISSION OIL COOLER<C2C> 		9-09862-175-0 01 1 0406- ●
47 BREATHER; TRANSFER CASE 9-36122-015-1 01 1 9604-0004 ● ● ● ● ●
47 BREATHER; TRANSFER CASE 9-36122-015-1 01 1 0005-0405 ● ● ●
47 BREATHER; TRANSFER CASE 9-36122-015-1 01 1 0406- ● ●
47 BREATHER; TRANSFER CASE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-36122-015-1 01 1 0406- ●
47 BREATHER; TRANSFER CASE
TRANSMISSION OIL COOLER<C2C> 		9-36122-015-1 01 1 0406- ●
53 PLUG; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) M16X12 		1-09604-009-0 01 1 0406- ●
53 PLUG; COVER
TRANSMISSION OIL COOLER<C2C> (A) 		9-09205-510-0 01 1 9604-0004 ● ● ● ●
53 PLUG; COVER
TRANSMISSION OIL COOLER<C2C> (A) 		9-09205-510-0 01 1 0005-0405 ●
53 PLUG; COVER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) 		9-09205-510-0 01 1 0406- ●
53 PLUG; COVER
TRANSMISSION OIL COOLER<C2C> (B) M16X12 		9-99202-316-0 02 1 9604-0004 ● ● ● ●
53 PLUG; COVER
TRANSMISSION OIL COOLER<C2C> (B) M16X12 		9-99202-316-0 02 1 0005-0405 ●
53 PLUG; COVER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (B) M16X12 		9-99202-316-0 02 1 0406-0606 ●
53 PLUG; COVER
TRANSMISSION OIL COOLER<C2C> (B) M16X12 		0-92002-416-0 02 1 0607- ●
79 ROD; SHIFT,NEUTRAL & FRT DRIVE 1-36564-027-0 01 1 9604-0004 ● ● ● ● ●
79 ROD; SHIFT,NEUTRAL & FRT DRIVE 1-36564-027-0 01 1 0005-0405 ● ● ●
79 ROD; SHIFT,NEUTRAL & FRT DRIVE 1-36564-027-0 01 1 0406- ● ●
79 ROD; SHIFT,NEUTRAL & FRT DRIVE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36564-027-0 01 1 0406- ●
79 ROD; SHIFT,NEUTRAL & FRT DRIVE
TRANSMISSION OIL COOLER<C2C> 		1-36564-027-0 01 1 0406- ●
81 FORK; SHIFT,NEUTRAL & FRT DRIVE 1-36561-020-0 01 1 9604-0004 ● ● ● ● ●
81 FORK; SHIFT,NEUTRAL & FRT DRIVE 1-36561-020-0 01 1 0005-0405 ● ● ●
81 FORK; SHIFT,NEUTRAL & FRT DRIVE 1-36561-020-0 01 1 0406- ● ●
81 FORK; SHIFT,NEUTRAL & FRT DRIVE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36561-020-0 01 1 0406- ●
81 FORK; SHIFT,NEUTRAL & FRT DRIVE
TRANSMISSION OIL COOLER<C2C> 		1-36561-020-0 01 1 0406- ●
82 ROD; SHIFT,LOW & HIGH 1-36564-026-0 01 1 9604-0004 ● ● ● ● ●
82 ROD; SHIFT,LOW & HIGH 1-36564-026-0 01 1 0005-0405 ● ● ●
82 ROD; SHIFT,LOW & HIGH 1-36564-026-0 01 1 0406- ● ●
82 ROD; SHIFT,LOW & HIGH
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36564-026-0 01 1 0406- ●
82 ROD; SHIFT,LOW & HIGH
TRANSMISSION OIL COOLER<C2C> 		1-36564-026-0 01 1 0406- ●
84 FORK; SHIFT,LOW & HIGH
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36561-011-2 01 1 0406- ●
84 FORK; SHIFT,LOW & HIGH 1-36561-019-1 01 1 9604-0004 ● ● ● ● ●
84 FORK; SHIFT,LOW & HIGH 1-36561-019-1 01 1 0005-0405 ● ● ●
84 FORK; SHIFT,LOW & HIGH 1-36561-019-1 01 1 0406- ● ●
84 FORK; SHIFT,LOW & HIGH
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36561-019-1 01 1 0406- ●
84 FORK; SHIFT,LOW & HIGH
TRANSMISSION OIL COOLER<C2C> 		1-36561-019-1 01 1 0406- ●
145 CONNECTOR; OIL PIPE,TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 0406- ●
145 CONNECTOR; OIL PIPE,TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-09650-325-1 01 1 9604-0004 ● ● ● ●
145 CONNECTOR; OIL PIPE,TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-09650-325-1 01 1 0005-0405 ●
145 CONNECTOR; OIL PIPE,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) 		1-09650-325-1 01 1 0406- ●
145 CONNECTOR; OIL PIPE,TRANSFER
TRANSMISSION OIL COOLER<C2C> (B) M16 & PT1/4 ELBOW 		1-09650-434-0 01 1 9604-0004 ● ● ● ●
145 CONNECTOR; OIL PIPE,TRANSFER
TRANSMISSION OIL COOLER<C2C> (B) M16 & PT1/4 ELBOW 		1-09650-434-0 01 1 0005-0405 ●
145 CONNECTOR; OIL PIPE,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (B) M16 & PT1/4 ELBOW 		1-09650-434-0 01 1 0406-0607 ●
145 CONNECTOR; OIL PIPE,TRANSFER
TRANSMISSION OIL COOLER<C2C> (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0608- ●
148 BOLT; EYE,OIL PIPE
TRANSMISSION OIL COOLER<C2C> M12X27 FLANGE 		1-09675-085-0 01 1 9604-0004 ● ● ● ●
148 BOLT; EYE,OIL PIPE
TRANSMISSION OIL COOLER<C2C> M12X27 FLANGE 		1-09675-085-0 01 1 0005-0405 ●
148 BOLT; EYE,OIL PIPE
TRANSMISSION OIL COOLER<C2C> M12X27 FLANGE 		1-09675-085-0 01 1 0406- ●
148 BOLT; EYE,OIL PIPE
TRANSFER TF56<BFK> M12X27 FLANGE 		1-09675-085-0 01 1 0406- ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> (A) 		1-36289-029-0 01 1 9604-0004 ● ● ● ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> (A) 		1-36289-029-0 01 1 0005-0405 ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) 		1-36289-029-0 01 1 0406- ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> (B) ID=12.2 		9-09572-012-0 02 1 9604-0004 ● ● ● ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> (B) ID=12.2 		9-09572-012-0 02 1 0005-0405 ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (B) ID=12.2 		9-09572-012-0 02 1 0406- ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> (C) 		9-09572-016-0 02 1 9604-0004 ● ● ● ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> (C) 		9-09572-016-0 02 1 0005-0405 ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (C) 		9-09572-016-0 02 1 0406- ●
172 GASKET; PLUG
TRANSMISSION OIL COOLER<C2C> ID=16.2 		9-09571-616-0 02 1 9604-0004 ● ● ● ●
172 GASKET; PLUG
TRANSMISSION OIL COOLER<C2C> ID=16.2 		9-09571-616-0 02 1 0005-0405 ●
172 GASKET; PLUG
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> ID=16.2 		9-09571-616-0 02 1 0406- ●
175 PLUG; LEVEL,TRANSFER CASE 9-09864-007-1 01 1 9604-0004 ● ● ● ● ●
175 PLUG; LEVEL,TRANSFER CASE 9-09864-007-1 01 1 0005-0405 ● ● ●
175 PLUG; LEVEL,TRANSFER CASE 9-09864-007-1 01 1 0406- ● ●
175 PLUG; LEVEL,TRANSFER CASE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-09864-007-1 01 1 0406- ●
175 PLUG; LEVEL,TRANSFER CASE
TRANSMISSION OIL COOLER<C2C> 		9-09864-007-1 01 1 0406- ●
176 RING; SNAP,FRT OUTPUT 9-09950-089-0 01 1 9604-0004 ● ● ● ● ●
176 RING; SNAP,FRT OUTPUT 9-09950-089-0 01 1 0005-0405 ● ● ●
176 RING; SNAP,FRT OUTPUT 9-09950-089-0 01 1 0406- ● ●
176 RING; SNAP,FRT OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-09950-089-0 01 1 0406- ●
176 RING; SNAP,FRT OUTPUT
TRANSMISSION OIL COOLER<C2C> 		9-09950-089-0 01 1 0406- ●
185 PUMP ASM; OIL,TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-34150-071-1 01 1 0406- ●
185 PUMP ASM; OIL,TRANSFER
TRANSMISSION OIL COOLER<C2C> 		1-13110-036-2 01 1 9604-0004 ● ● ● ●
185 PUMP ASM; OIL,TRANSFER
TRANSMISSION OIL COOLER<C2C> 		1-13110-036-2 01 1 0005-0405 ●
185 PUMP ASM; OIL,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> 		1-13110-036-2 01 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.10 		9-36153-020-0 AR 1 9604-0004 ● ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.10 		9-36153-020-0 AR 1 0005-0405 ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.10 		9-36153-020-0 AR 1 0406- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=0.10 		9-36153-020-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> T=0.10 		9-36153-020-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.12 		9-36153-021-0 AR 1 9604-0004 ● ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.12 		9-36153-021-0 AR 1 0005-0405 ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.12 		9-36153-021-0 AR 1 0406- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=0.12 		9-36153-021-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> T=0.12 		9-36153-021-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.14 		9-36153-022-0 AR 1 9604-0004 ● ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.14 		9-36153-022-0 AR 1 0005-0405 ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.14 		9-36153-022-0 AR 1 0406- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=0.14 		9-36153-022-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> T=0.14 		9-36153-022-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.16 		9-36153-023-0 AR 1 9604-0004 ● ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.16 		9-36153-023-0 AR 1 0005-0405 ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.16 		9-36153-023-0 AR 1 0406- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=0.16 		9-36153-023-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> T=0.16 		9-36153-023-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.18 		9-36153-024-0 AR 1 9604-0004 ● ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.18 		9-36153-024-0 AR 1 0005-0405 ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.18 		9-36153-024-0 AR 1 0406- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=0.18 		9-36153-024-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> T=0.18 		9-36153-024-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.20 		9-36153-025-0 AR 1 9604-0004 ● ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.20 		9-36153-025-0 AR 1 0005-0405 ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.20 		9-36153-025-0 AR 1 0406- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=0.20 		9-36153-025-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> T=0.20 		9-36153-025-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.50 		9-36153-026-0 AR 1 9604-0004 ● ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.50 		9-36153-026-0 AR 1 0005-0405 ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.50 		9-36153-026-0 AR 1 0406- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=0.50 		9-36153-026-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> T=0.50 		9-36153-026-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=1.00 		9-36153-027-0 AR 1 9604-0004 ● ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=1.00 		9-36153-027-0 AR 1 0005-0405 ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=1.00 		9-36153-027-0 AR 1 0406- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=1.00 		9-36153-027-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> T=1.00 		9-36153-027-0 AR 1 0406- ●
195 BOLT; SHIFT FORK
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M12X20 		1-09052-039-0 01 1 0406- ●
195 BOLT; SHIFT FORK
M12X20 		1-09052-039-0 02 1 9604-0004 ● ● ● ● ●
195 BOLT; SHIFT FORK
M12X20 		1-09052-039-0 02 1 0005-0405 ● ● ●
195 BOLT; SHIFT FORK
M12X20 		1-09052-039-0 02 1 0406- ● ●
195 BOLT; SHIFT FORK
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M12X20 		1-09052-039-0 02 1 0406- ●
195 BOLT; SHIFT FORK
TRANSMISSION OIL COOLER<C2C> M12X20 		1-09052-039-0 02 1 0406- ●
196 COLLAR; DIST,SHIFT ROD 1-36577-004-0 01 1 9604-0004 ● ● ● ● ●
196 COLLAR; DIST,SHIFT ROD 1-36577-004-0 01 1 0005-0405 ● ● ●
196 COLLAR; DIST,SHIFT ROD 1-36577-004-0 01 1 0406- ● ●
196 COLLAR; DIST,SHIFT ROD
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36577-004-0 01 1 0406- ●
196 COLLAR; DIST,SHIFT ROD
TRANSMISSION OIL COOLER<C2C> 		1-36577-004-0 01 1 0406- ●
302 SEAT; SPRING 1-36572-002-1 01 1 9604-0004 ● ● ● ● ●
302 SEAT; SPRING 1-36572-002-1 01 1 0005-0405 ● ● ●
302 SEAT; SPRING 1-36572-002-1 01 1 0406- ● ●
302 SEAT; SPRING
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36572-002-1 01 1 0406- ●
302 SEAT; SPRING
TRANSMISSION OIL COOLER<C2C> 		1-36572-002-1 01 1 0406- ●
303 SPRING; NEUTRAL-FRONT 1-09580-489-0 01 1 9604-0004 ● ● ● ● ●
303 SPRING; NEUTRAL-FRONT 1-09580-489-0 01 1 0005-0405 ● ● ●
303 SPRING; NEUTRAL-FRONT 1-09580-489-0 01 1 0406- ● ●
303 SPRING; NEUTRAL-FRONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09580-489-0 01 1 0406- ●
303 SPRING; NEUTRAL-FRONT
TRANSMISSION OIL COOLER<C2C> 		1-09580-489-0 01 1 0406- ●
305 GASKET; PISTON,LOW-HIGH
ALSO INCLUDED IN REPAIR KIT(T/F). ID=43.7 		9-09561-344-0 01 1 9604-0004 ● ● ● ● ●
305 GASKET; PISTON,LOW-HIGH
ALSO INCLUDED IN REPAIR KIT(T/F). ID=43.7 		9-09561-344-0 01 1 0005-0405 ● ● ●
305 GASKET; PISTON,LOW-HIGH
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-09561-344-0 01 1 0406- ● ●
305 GASKET; PISTON,LOW-HIGH
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> ID=43.7 		9-09561-344-0 01 1 0406- ●
305 GASKET; PISTON,LOW-HIGH
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> ID=43.7 		9-09561-344-0 01 1 0406- ●
306 GASKET; PISTON,NEUTRAL-FRONT
ID=43.7 		9-09561-344-0 01 1 9604-0004 ● ● ● ● ●
306 GASKET; PISTON,NEUTRAL-FRONT
ID=43.7 		9-09561-344-0 01 1 0005-0405 ● ● ●
306 GASKET; PISTON,NEUTRAL-FRONT
ID=43.7 		9-09561-344-0 01 1 0406- ● ●
306 GASKET; PISTON,NEUTRAL-FRONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> ID=43.7 		9-09561-344-0 01 1 0406- ●
306 GASKET; PISTON,NEUTRAL-FRONT
TRANSMISSION OIL COOLER<C2C> ID=43.7 		9-09561-344-0 01 1 0406- ●
308 CYLINDER; AIR SHIFT,LOW-HIGH 1-36569-010-0 01 1 9604-0004 ● ● ● ● ●
308 CYLINDER; AIR SHIFT,LOW-HIGH 1-36569-010-0 01 1 0005-0405 ● ● ●
308 CYLINDER; AIR SHIFT,LOW-HIGH 1-36569-010-0 01 1 0406- ● ●
308 CYLINDER; AIR SHIFT,LOW-HIGH
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36569-010-0 01 1 0406- ●
308 CYLINDER; AIR SHIFT,LOW-HIGH
TRANSMISSION OIL COOLER<C2C> 		1-36569-010-0 01 1 0406- ●
309 CYLINDER; AIR SHIFT,NEUTRAL-FRONT 1-36569-009-0 01 1 9604-0004 ● ● ● ● ●
309 CYLINDER; AIR SHIFT,NEUTRAL-FRONT 1-36569-009-0 01 1 0005-0405 ● ● ●
309 CYLINDER; AIR SHIFT,NEUTRAL-FRONT 1-36569-009-0 01 1 0406- ● ●
309 CYLINDER; AIR SHIFT,NEUTRAL-FRONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36569-009-0 01 1 0406- ●
309 CYLINDER; AIR SHIFT,NEUTRAL-FRONT
TRANSMISSION OIL COOLER<C2C> 		1-36569-009-0 01 1 0406- ●
310 GASKET; AIR CYL 1-36579-001-0 01 1 9604-0004 ● ● ● ● ●
310 GASKET; AIR CYL 1-36579-001-0 01 1 0005-0405 ● ● ●
310 GASKET; AIR CYL 1-36579-001-0 01 1 0406- ● ●
310 GASKET; AIR CYL
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36579-001-0 01 1 0406- ●
310 GASKET; AIR CYL
TRANSMISSION OIL COOLER<C2C> 		1-36579-001-0 01 1 0406- ●
311 BREATHER; AIR CYL 9-36122-013-0 01 1 9604-0004 ● ● ● ● ●
311 BREATHER; AIR CYL 9-36122-013-0 01 1 0005-0405 ● ● ●
311 BREATHER; AIR CYL 9-36122-013-0 01 1 0406- ● ●
311 BREATHER; AIR CYL
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-36122-013-0 01 1 0406- ●
311 BREATHER; AIR CYL
TRANSMISSION OIL COOLER<C2C> 		9-36122-013-0 01 1 0406- ●
312 BOLT; AIR CYL
M10X65 FLANGE 		8-94344-540-1 07 1 9604-0004 ● ● ● ● ●
312 BOLT; AIR CYL
M10X65 FLANGE 		8-94344-540-1 07 1 0005-0405 ● ● ●
312 BOLT; AIR CYL
M10X65 FLANGE 		8-94344-540-1 07 1 0406- ● ●
312 BOLT; AIR CYL
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M10X65 FLANGE 		8-94344-540-1 07 1 0406- ●
312 BOLT; AIR CYL
TRANSMISSION OIL COOLER<C2C> M10X65 FLANGE 		8-94344-540-1 07 1 0406- ●
313 CONNECTOR; AIR CYL
M20 & PT1/4 		9-09902-386-0 03 1 9604-0004 ● ● ● ● ●
313 CONNECTOR; AIR CYL
M20 & PT1/4 		9-09902-386-0 03 1 0005-0204 ● ● ●
313 CONNECTOR; AIR CYL
M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 0205-0405 ● ● ●
313 CONNECTOR; AIR CYL
M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 0406- ● ●
313 CONNECTOR; AIR CYL
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 0406- ●
313 CONNECTOR; AIR CYL
TRANSMISSION OIL COOLER<C2C> M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 0406- ●
321 BOLT; PUMP HSG
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M8X50 		0-10805-850-0 04 1 0406-0512 ●
321 BOLT; PUMP HSG
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M8X50 		0-10855-850-0 04 1 0601- ●
321 BOLT; PUMP HSG
TRANSMISSION OIL COOLER<C2C> M10X35 FLANGE 		0-28181-035-0 08 1 9604-0004 ● ● ● ●
321 BOLT; PUMP HSG
TRANSMISSION OIL COOLER<C2C> M10X35 FLANGE 		0-28181-035-0 08 1 0005-0405 ●
321 BOLT; PUMP HSG
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> M10X35 FLANGE 		0-28181-035-0 08 1 0406-0512 ●
321 BOLT; PUMP HSG
TRANSMISSION OIL COOLER<C2C> M10X35 FLANGE 		0-28151-035-0 08 1 0601- ●
321 BOLT; PUMP HSG
TRANSMISSION OIL COOLER<C2C> M10X50 FLANGE 		0-28181-050-0 02 1 9604-0004 ● ● ● ●
321 BOLT; PUMP HSG
TRANSMISSION OIL COOLER<C2C> M10X50 FLANGE 		0-28181-050-0 02 1 0005-0405 ●
321 BOLT; PUMP HSG
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> M10X50 FLANGE 		0-28181-050-0 02 1 0406-0512 ●
321 BOLT; PUMP HSG
TRANSMISSION OIL COOLER<C2C> M10X50 FLANGE 		0-28151-050-0 02 1 0601- ●
333 PIPE; OIL,TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) 		1-36161-029-0 01 1 0406- ●
333 PIPE; OIL,TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-36161-030-0 01 1 9604-0004 ● ● ● ●
333 PIPE; OIL,TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-36161-030-0 01 1 0005-0405 ●
333 PIPE; OIL,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) 		1-36161-030-0 01 1 0406- ●
333 PIPE; OIL,TRANSFER
TRANSMISSION OIL COOLER<C2C> (B) 		1-36161-033-0 01 1 9604-0004 ● ● ● ●
333 PIPE; OIL,TRANSFER
TRANSMISSION OIL COOLER<C2C> (B) 		1-36161-033-0 01 1 0005-0405 ●
333 PIPE; OIL,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (B) 		1-36161-033-0 01 1 0406- ●
344 CONNECTOR
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> L=45 		8-94338-874-0 01 1 0406- ●
344 CONNECTOR
TRANSMISSION OIL COOLER<C2C> 		9-09221-808-1 01 1 9604-0004 ● ● ● ●
344 CONNECTOR
TRANSMISSION OIL COOLER<C2C> 		9-09221-808-1 01 1 0005-0405 ●
344 CONNECTOR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> 		9-09221-808-1 01 1 0406-0607 ●
344 CONNECTOR
TRANSMISSION OIL COOLER<C2C> 		0-92111-808-0 01 1 0608- ●
352 FILTER; OIL
TRANSMISSION OIL COOLER<C2C> 		1-36289-001-0 01 1 9604-0004 ● ● ● ●
352 FILTER; OIL
TRANSMISSION OIL COOLER<C2C> 		1-36289-001-0 01 1 0005-0405 ●
352 FILTER; OIL
TRANSMISSION OIL COOLER<C2C> 		1-36289-001-0 01 1 0406- ●
352 FILTER; OIL
TRANSFER TF56<BFK> 		1-36289-001-0 01 1 0406- ●
377 ADAPTER; OIL PIPE
TRANSMISSION OIL COOLER<C2C> 		1-09669-131-0 01 1 9604-0004 ● ● ● ●
377 ADAPTER; OIL PIPE
TRANSMISSION OIL COOLER<C2C> 		1-09669-131-0 01 1 0005-0405 ●
377 ADAPTER; OIL PIPE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> 		1-09669-131-0 01 1 0406- ●
378 BALL; CONT SWITCH
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		9-00097-013-0 01 1 0406- ●
378 BALL; CONT SWITCH 9-00097-013-0 02 1 9604-0004 ● ● ● ● ●
378 BALL; CONT SWITCH 9-00097-013-0 02 1 0005-0405 ● ● ●
378 BALL; CONT SWITCH 9-00097-013-0 02 1 0406- ● ●
378 BALL; CONT SWITCH
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-00097-013-0 02 1 0406- ●
378 BALL; CONT SWITCH
TRANSMISSION OIL COOLER<C2C> 		9-00097-013-0 02 1 0406- ●

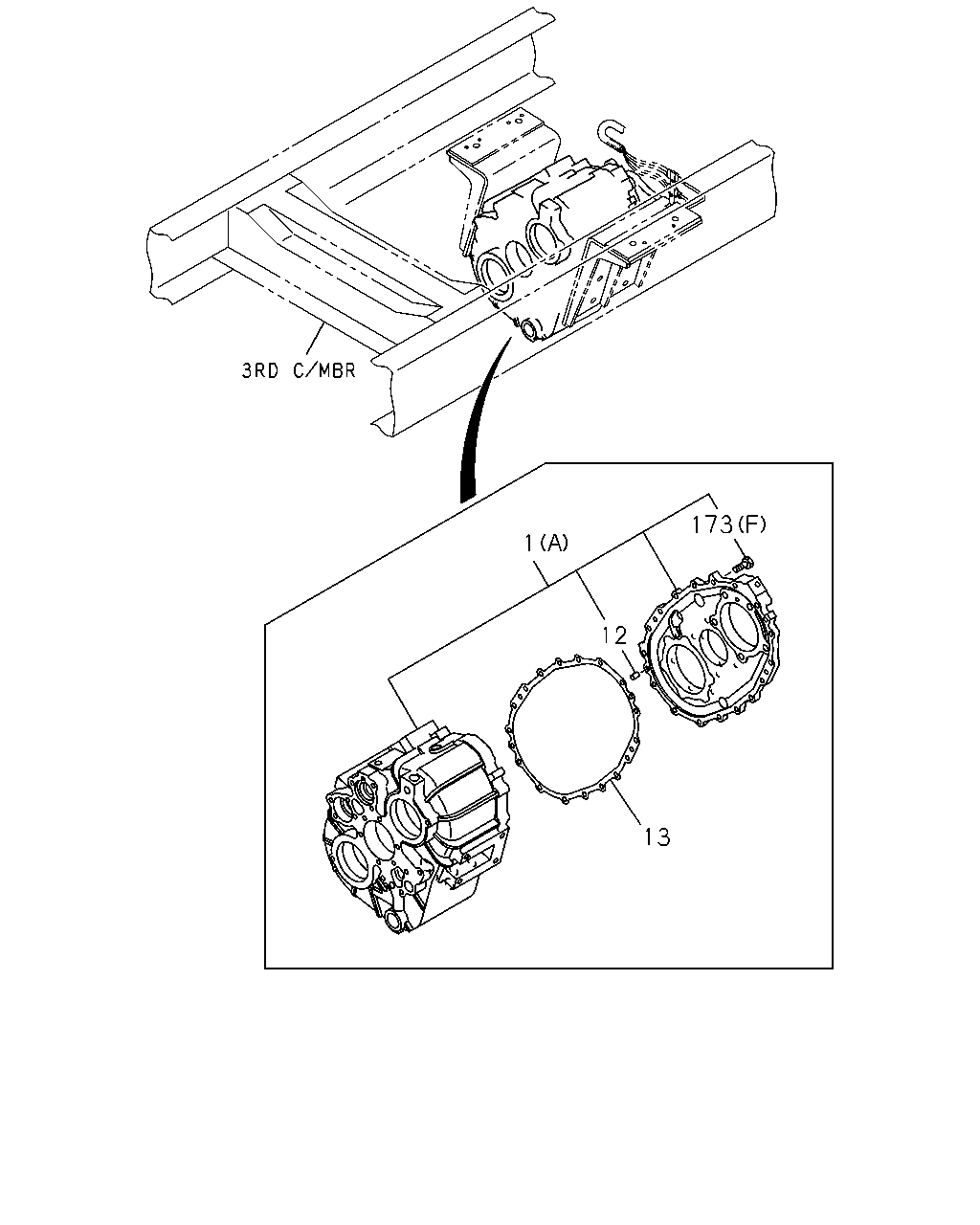

çizim 152722
173 1 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CASE; TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-36110-047-0 01 1 0406- ●
1 CASE; TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-36110-038-0 01 1 9604-0004 ● ● ● ●
1 CASE; TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-36110-038-0 01 1 0005-0205 ●
1 CASE; TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-36110-048-0 01 1 0206-0405 ●
1 CASE; TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) 		1-36110-048-0 01 1 0406- ●
1 CASE; TRANSFER
EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-36110-039-0 01 1 9604-0004 ● ● ● ●
1 CASE; TRANSFER
(A) 		1-36110-039-0 01 1 9604-0004 ●
1 CASE; TRANSFER
(A) 		1-36110-039-0 01 1 0005-0205 ● ●
1 CASE; TRANSFER
EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-36110-039-0 01 1 0005-0205 ●
1 CASE; TRANSFER
(A) 		1-36110-049-0 01 1 0206-0405 ● ●
1 CASE; TRANSFER
EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-36110-049-0 01 1 0206-0405 ●
1 CASE; TRANSFER
(A) 		1-36110-049-0 01 1 0406- ● ●
1 CASE; TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-36110-049-0 01 1 0406- ●
12 PIN; STRAIGHT,TRANSFER CASE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> OD=12 L=20 		9-08161-220-0 02 1 0406- ●
12 PIN; STRAIGHT,TRANSFER CASE 9-08161-016-0 02 1 9604-0004 ● ● ● ● ●
12 PIN; STRAIGHT,TRANSFER CASE 9-08161-016-0 02 1 0005-0405 ● ● ●
12 PIN; STRAIGHT,TRANSFER CASE 9-08161-016-0 02 1 0406- ● ●
12 PIN; STRAIGHT,TRANSFER CASE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-08161-016-0 02 1 0406- ●
12 PIN; STRAIGHT,TRANSFER CASE
TRANSMISSION OIL COOLER<C2C> 		9-08161-016-0 02 1 0406- ●
13 GASKET; COVER TO TRANSFER CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36132-003-0 01 1 9604-0004 ● ● ● ● ●
13 GASKET; COVER TO TRANSFER CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36132-003-0 01 1 0005-0405 ● ● ●
13 GASKET; COVER TO TRANSFER CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36132-003-0 01 1 0406- ● ●
13 GASKET; COVER TO TRANSFER CASE
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36132-003-0 01 1 0406- ●
13 GASKET; COVER TO TRANSFER CASE
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> 		1-36132-003-0 01 1 0406- ●
173 BOLT; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) M8X25 FLANGE 		0-28080-825-0 12 1 0406-0512 ●
173 BOLT; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) M8X25 FLANGE 		0-28050-825-0 12 1 0601- ●
173 BOLT; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) M10X45 FLANGE 		0-28181-045-0 03 1 0406-0512 ●
173 BOLT; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) M10X45 FLANGE 		0-28151-045-0 03 1 0601- ●
173 BOLT; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) M12X100 FLANGE 		0-28181-200-0 02 1 0406-0512 ●
173 BOLT; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) M12X100 FLANGE 		0-28151-200-0 02 1 0601- ●
173 BOLT; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (D) M12X30 FLANGE 		0-28181-230-0 15 1 0406-0512 ●
173 BOLT; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (D) M12X30 FLANGE 		0-28151-230-0 15 1 0601- ●
173 BOLT; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (E) M10X20 W/LK WASHER 		0-50051-020-0 02 1 0406-0512 ●
173 BOLT; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (E) M10X20 W/LK WASHER 		0-50551-020-0 02 1 0601- ●
173 BOLT; COVER
(F) M10X30 W/LK WASHER 		0-50051-030-0 04 1 9604-0004 ● ● ● ● ●
173 BOLT; COVER
(F) M10X30 W/LK WASHER 		0-50051-030-0 04 1 0005-0405 ● ● ●
173 BOLT; COVER
(F) M10X30 W/LK WASHER 		0-50051-030-0 04 1 0406-0906 ● ●
173 BOLT; COVER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (F) M10X30 W/LK WASHER 		0-50051-030-0 04 1 0406-0906 ●
173 BOLT; COVER
TRANSMISSION OIL COOLER<C2C> (F) M10X30 W/LK WASHER 		0-50051-030-0 04 1 0406-0906 ●
173 BOLT; COVER
(F) M10X30 W/LK WASHER 		0-50551-030-0 04 1 0907- ● ● ●

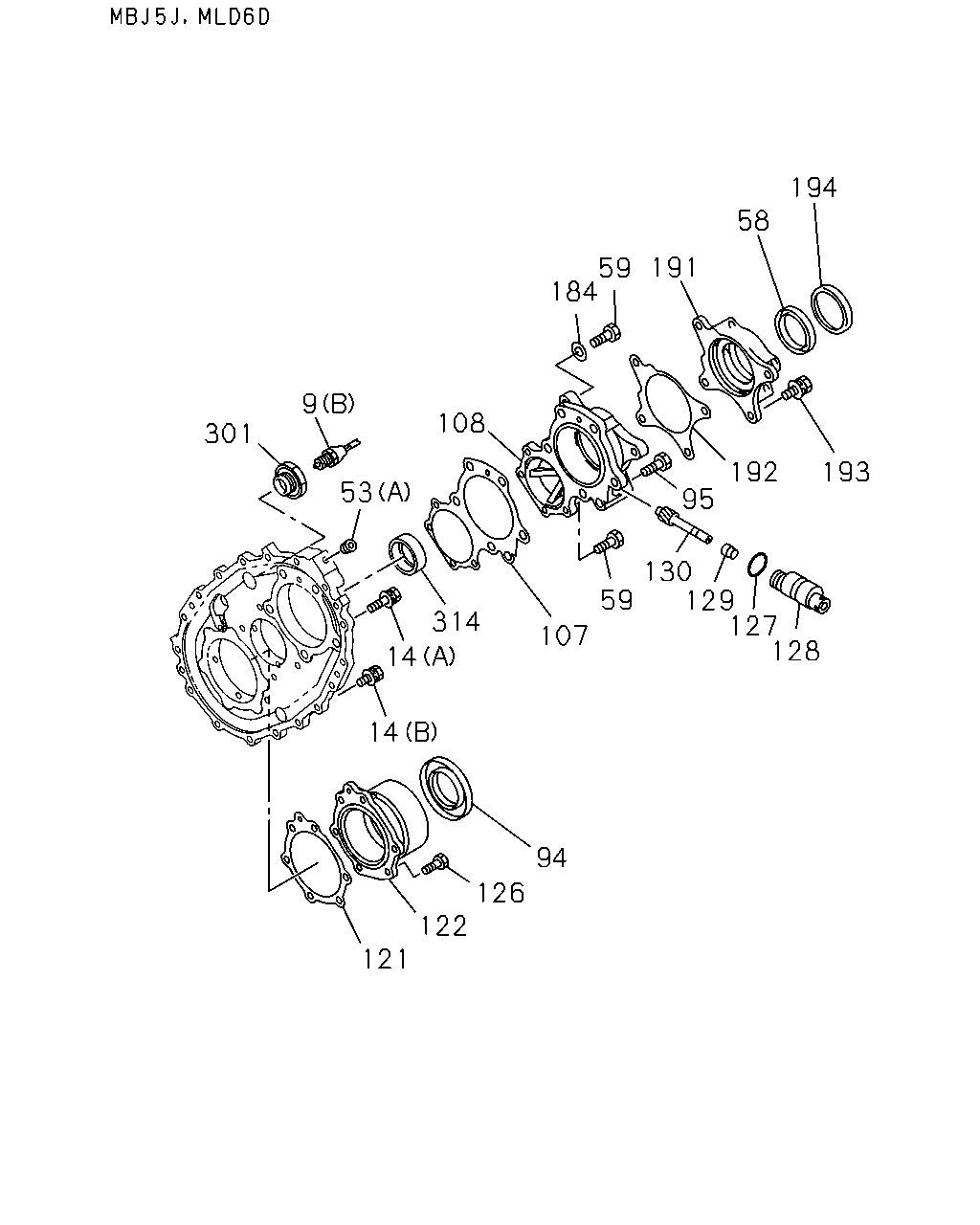

çizim 152728
194 58 191 59 184 9 108 301 192 193 53 95 130 129 127 128 59 314 107 14 14 94 126 122 121
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 9604-0004 ● ● ● ● ●
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 0005- ● ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 02 1 9604-0004 ● ● ● ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 02 1 0005-0405 ● ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 02 1 0406- ● ●
9 SWITCH; TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-82440-082-0 02 1 0406- ●
9 SWITCH; TRANSFER
TRANSMISSION OIL COOLER<C2C> (B) 		1-82440-082-0 02 1 0406- ●
14 BOLT; COVER TO TRANSFER CASE
(A) M10X30 W/LK WASHER 		0-50051-030-0 11 1 9604-0004 ● ● ● ● ●
14 BOLT; COVER TO TRANSFER CASE
(A) M10X30 W/LK WASHER 		0-50051-030-0 11 1 0005-0405 ● ● ●
14 BOLT; COVER TO TRANSFER CASE
(A) M10X30 W/LK WASHER 		0-50051-030-0 11 1 0406-0906 ● ●
14 BOLT; COVER TO TRANSFER CASE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) M10X30 W/LK WASHER 		0-50051-030-0 11 1 0406-0906 ●
14 BOLT; COVER TO TRANSFER CASE
TRANSMISSION OIL COOLER<C2C> (A) M10X30 W/LK WASHER 		0-50051-030-0 11 1 0406-0906 ●
14 BOLT; COVER TO TRANSFER CASE
(A) M10X30 W/LK WASHER 		0-50551-030-0 11 1 0907- ● ● ●
14 BOLT; COVER TO TRANSFER CASE
(B) M10X45 W/LK WASHER 		0-50051-045-0 02 1 9604-0004 ● ● ● ● ●
14 BOLT; COVER TO TRANSFER CASE
(B) M10X45 W/LK WASHER 		0-50051-045-0 02 1 0005-0405 ● ● ●
14 BOLT; COVER TO TRANSFER CASE
(B) M10X45 W/LK WASHER 		0-50051-045-0 02 1 0406-0906 ● ●
14 BOLT; COVER TO TRANSFER CASE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (B) M10X45 W/LK WASHER 		0-50051-045-0 02 1 0406-0906 ●
14 BOLT; COVER TO TRANSFER CASE
TRANSMISSION OIL COOLER<C2C> (B) M10X45 W/LK WASHER 		0-50051-045-0 02 1 0406-0906 ●
14 BOLT; COVER TO TRANSFER CASE
(B) M10X45 W/LK WASHER 		0-50551-045-0 02 1 0907- ● ● ●
53 PLUG; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) M16X12 		1-09604-009-0 01 1 0406- ●
53 PLUG; COVER
TRANSMISSION OIL COOLER<C2C> (A) 		9-09205-510-0 01 1 9604-0004 ● ● ● ●
53 PLUG; COVER
TRANSMISSION OIL COOLER<C2C> (A) 		9-09205-510-0 01 1 0005-0405 ●
53 PLUG; COVER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) 		9-09205-510-0 01 1 0406- ●
53 PLUG; COVER
TRANSMISSION OIL COOLER<C2C> (B) M16X12 		9-99202-316-0 02 1 9604-0004 ● ● ● ●
53 PLUG; COVER
TRANSMISSION OIL COOLER<C2C> (B) M16X12 		9-99202-316-0 02 1 0005-0405 ●
53 PLUG; COVER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (B) M16X12 		9-99202-316-0 02 1 0406-0606 ●
53 PLUG; COVER
TRANSMISSION OIL COOLER<C2C> (B) M16X12 		0-92002-416-0 02 1 0607- ●
58 SEAL; OIL,RR UPR
NOK 		1-09625-173-0 01 1 9604-0004 ● ● ● ● ●
58 SEAL; OIL,RR UPR
NOK 		1-09625-173-0 01 1 0005-0405 ● ● ●
58 SEAL; OIL,RR UPR
NOK 		1-09625-173-0 01 1 0406- ● ●
58 SEAL; OIL,RR UPR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> NOK 		1-09625-173-0 01 1 0406- ●
58 SEAL; OIL,RR UPR
TRANSMISSION OIL COOLER<C2C> NOK 		1-09625-173-0 01 1 0406- ●
59 BOLT; UPR COVER
M14X65 		0-16806-465-0 01 1 9604-0004 ● ● ● ● ●
59 BOLT; UPR COVER
M14X65 		0-16806-465-0 01 1 0005-0405 ● ● ●
59 BOLT; UPR COVER
M14X65 		0-16806-465-0 01 1 0406- ● ●
59 BOLT; UPR COVER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M14X65 		0-16806-465-0 01 1 0406- ●
59 BOLT; UPR COVER
TRANSMISSION OIL COOLER<C2C> M14X65 		0-16806-465-0 01 1 0406- ●
59 BOLT; UPR COVER
M14X40 		0-23801-440-0 04 1 9604-0004 ● ● ● ● ●
59 BOLT; UPR COVER
M14X40 		0-23801-440-0 04 1 0005-0405 ● ● ●
59 BOLT; UPR COVER
M14X40 		0-23801-440-0 04 1 0406-0512 ● ●
59 BOLT; UPR COVER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M14X40 		0-23801-440-0 04 1 0406-0512 ●
59 BOLT; UPR COVER
TRANSMISSION OIL COOLER<C2C> M14X40 		0-23801-440-0 04 1 0406-0512 ●
59 BOLT; UPR COVER
M14X40 		0-23851-440-0 04 1 0601- ● ● ●
59 BOLT; UPR COVER
M10X30 W/LK WASHER 		0-50051-030-0 04 1 9604-0004 ● ● ● ● ●
59 BOLT; UPR COVER
M10X30 W/LK WASHER 		0-50051-030-0 04 1 0005-0405 ● ● ●
59 BOLT; UPR COVER
M10X30 W/LK WASHER 		0-50051-030-0 04 1 0406-0906 ● ●
59 BOLT; UPR COVER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M10X30 W/LK WASHER 		0-50051-030-0 04 1 0406-0906 ●
59 BOLT; UPR COVER
TRANSMISSION OIL COOLER<C2C> M10X30 W/LK WASHER 		0-50051-030-0 04 1 0406-0906 ●
59 BOLT; UPR COVER
M10X30 W/LK WASHER 		0-50551-030-0 04 1 0907- ● ● ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09625-553-0 01 1 0406- ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-484-0 01 1 9604-0004 ● ● ● ● ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-484-1 01 1 0005-0405 ● ● ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-484-1 01 1 0406- ● ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> NOK 		1-09625-484-1 01 1 0406- ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> NOK 		1-09625-484-1 01 1 0406- ●
95 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9604-0004 ● ● ● ● ●
95 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 0005-0405 ● ● ●
95 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 0406-0805 ● ●
95 SCREW; BUSHING,DRIVEN GEAR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M6X12.5 FLANGE 		1-09044-063-0 01 1 0406-0805 ●
95 SCREW; BUSHING,DRIVEN GEAR
TRANSMISSION OIL COOLER<C2C> M6X12.5 FLANGE 		1-09044-063-0 01 1 0406-0805 ●
95 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 0806- ● ● ●
107 GASKET; COVER TO CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36123-009-0 01 1 9604-0004 ● ● ● ● ●
107 GASKET; COVER TO CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36123-009-0 01 1 0005-0405 ● ● ●
107 GASKET; COVER TO CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36123-009-0 01 1 0406- ● ●
107 GASKET; COVER TO CASE
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-36123-009-0 01 1 0406- ●
107 GASKET; COVER TO CASE
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> 		9-36123-009-0 01 1 0406- ●
108 COVER; UPR,TRANSFER 1-36121-006-2 01 1 9604-0004 ● ● ● ● ●
108 COVER; UPR,TRANSFER 1-36121-006-2 01 1 0005-0405 ● ● ●
108 COVER; UPR,TRANSFER 1-36121-006-2 01 1 0406- ● ●
108 COVER; UPR,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36121-006-2 01 1 0406- ●
108 COVER; UPR,TRANSFER
TRANSMISSION OIL COOLER<C2C> 		1-36121-006-2 01 1 0406- ●
121 GASKET; RR COVER,LWR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-006-0 01 1 9604-0004 ● ● ● ● ●
121 GASKET; RR COVER,LWR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-006-0 01 1 0005-0405 ● ● ●
121 GASKET; RR COVER,LWR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-006-0 01 1 0406- ● ●
121 GASKET; RR COVER,LWR
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36156-006-0 01 1 0406- ●
121 GASKET; RR COVER,LWR
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> 		1-36156-006-0 01 1 0406- ●
122 COVER; RR,OUTPUT 1-36121-005-0 01 1 9604-0004 ● ● ● ● ●
122 COVER; RR,OUTPUT 1-36121-005-0 01 1 0005-0405 ● ● ●
122 COVER; RR,OUTPUT 1-36121-005-0 01 1 0406- ● ●
122 COVER; RR,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36121-005-0 01 1 0406- ●
122 COVER; RR,OUTPUT
TRANSMISSION OIL COOLER<C2C> 		1-36121-005-0 01 1 0406- ●
126 BOLT; RR COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28080-825-0 12 1 0406-0512 ●
126 BOLT; RR COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28050-825-0 12 1 0601- ●
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50051-025-0 06 1 9604-0004 ● ● ● ● ●
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50051-025-0 06 1 0005-0405 ● ● ●
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50051-025-0 06 1 0406-0906 ● ●
126 BOLT; RR COVER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M10X25 W/LK WASHER 		0-50051-025-0 06 1 0406-0906 ●
126 BOLT; RR COVER
TRANSMISSION OIL COOLER<C2C> M10X25 W/LK WASHER 		0-50051-025-0 06 1 0406-0906 ●
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50551-025-0 06 1 0907- ● ● ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09623-246-0 01 1 0406- ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-370-0 01 1 9604-0004 ● ● ● ● ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-370-0 01 1 0005-0405 ● ● ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-370-0 01 1 0406- ● ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09623-370-0 01 1 0406- ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> 		1-09623-370-0 01 1 0406- ●
128 BUSHING; DRIVEN GEAR 1-33373-039-1 01 1 9604-0004 ● ● ● ● ●
128 BUSHING; DRIVEN GEAR 1-33373-039-1 01 1 0005-0405 ● ● ●
128 BUSHING; DRIVEN GEAR 1-33373-039-1 01 1 0406- ● ●
128 BUSHING; DRIVEN GEAR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-33373-039-1 01 1 0406- ●
128 BUSHING; DRIVEN GEAR
TRANSMISSION OIL COOLER<C2C> 		1-33373-039-1 01 1 0406- ●
129 SEAL; OIL,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-510-0 01 1 9604-0004 ● ● ● ● ●
129 SEAL; OIL,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-510-0 01 1 0005- ● ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> Z=15 		1-33372-147-4 01 1 0406- ●
130 GEAR; DRIVEN,SPD,TRANSFER
Z=12 		1-33372-074-5 01 1 9604-0004 ● ● ● ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
Z=12 		1-33372-074-5 01 1 0005-0405 ● ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
Z=12 		1-33372-074-5 01 1 0406- ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> Z=12 		1-33372-074-5 01 1 0406- ●
130 GEAR; DRIVEN,SPD,TRANSFER
TRANSMISSION OIL COOLER<C2C> Z=12 		1-33372-074-5 01 1 0406- ●
184 WASHER; LK,UPR COVER
ID=14.2 		9-09150-514-0 05 1 9604-0004 ● ● ● ● ●
184 WASHER; LK,UPR COVER
ID=14.2 		9-09150-514-0 05 1 0005-0405 ● ● ●
184 WASHER; LK,UPR COVER
ID=14.2 		9-09150-514-0 05 1 0406-0603 ● ●
184 WASHER; LK,UPR COVER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> ID=14.2 		9-09150-514-0 05 1 0406-0603 ●
184 WASHER; LK,UPR COVER
TRANSMISSION OIL COOLER<C2C> ID=14.2 		9-09150-514-0 05 1 0406-0603 ●
184 WASHER; LK,UPR COVER
ID=14.2 		0-91510-514-0 05 1 0604- ● ● ●
191 RETAINER; OIL SEAL,RR UPR 1-36155-007-0 01 1 9604-0004 ● ● ● ● ●
191 RETAINER; OIL SEAL,RR UPR 1-36155-007-0 01 1 0005-0405 ● ● ●
191 RETAINER; OIL SEAL,RR UPR 1-36155-007-0 01 1 0406- ● ●
191 RETAINER; OIL SEAL,RR UPR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36155-007-0 01 1 0406- ●
191 RETAINER; OIL SEAL,RR UPR
TRANSMISSION OIL COOLER<C2C> 		1-36155-007-0 01 1 0406- ●
192 GASKET; RET,RR UPR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-005-0 01 1 9604-0004 ● ● ● ● ●
192 GASKET; RET,RR UPR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-005-0 01 1 0005-0405 ● ● ●
192 GASKET; RET,RR UPR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-005-0 01 1 0406- ● ●
192 GASKET; RET,RR UPR
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36156-005-0 01 1 0406- ●
192 GASKET; RET,RR UPR
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> 		1-36156-005-0 01 1 0406- ●
193 BOLT; RET
M12X28 		0-50051-228-0 04 1 9604-0004 ● ● ● ● ●
193 BOLT; RET
M12X28 		0-50051-228-0 04 1 0005-0405 ● ● ●
193 BOLT; RET
M12X28 		0-50051-228-0 04 1 0406- ● ●
193 BOLT; RET
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M12X28 		0-50051-228-0 04 1 0406- ●
193 BOLT; RET
TRANSMISSION OIL COOLER<C2C> M12X28 		0-50051-228-0 04 1 0406- ●
194 COVER; OIL SEAL,RR UPR 1-33139-001-1 01 1 9604-0004 ● ● ● ● ●
194 COVER; OIL SEAL,RR UPR 1-33139-001-1 01 1 0005-0405 ● ● ●
194 COVER; OIL SEAL,RR UPR 1-33139-001-1 01 1 0406- ● ●
194 COVER; OIL SEAL,RR UPR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-33139-001-1 01 1 0406- ●
194 COVER; OIL SEAL,RR UPR
TRANSMISSION OIL COOLER<C2C> 		1-33139-001-1 01 1 0406- ●
301 ADAPTER; SWITCH,TRANSFER 1-09669-101-0 01 1 9604-0004 ● ● ● ● ●
301 ADAPTER; SWITCH,TRANSFER 1-09669-101-0 01 1 0005-0205 ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.5 		1-36355-022-0 01 1 9604-0004 ● ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.5 		1-36355-022-0 01 1 0005-0405 ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.5 		1-36355-022-0 01 1 0406- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=19.5 		1-36355-022-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=19.5 		1-36355-022-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.7 		1-36355-023-0 01 1 9604-0004 ● ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.7 		1-36355-023-0 01 1 0005-0405 ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.7 		1-36355-023-0 01 1 0406- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=19.7 		1-36355-023-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=19.7 		1-36355-023-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.9 		1-36355-024-0 01 1 9604-0004 ● ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.9 		1-36355-024-0 01 1 0005-0405 ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.9 		1-36355-024-0 01 1 0406- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=19.9 		1-36355-024-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=19.9 		1-36355-024-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.1 		1-36355-025-0 01 1 9604-0004 ● ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.1 		1-36355-025-0 01 1 0005-0405 ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.1 		1-36355-025-0 01 1 0406- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=20.1 		1-36355-025-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=20.1 		1-36355-025-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.3 		1-36355-026-0 01 1 9604-0004 ● ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.3 		1-36355-026-0 01 1 0005-0405 ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.3 		1-36355-026-0 01 1 0406- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=20.3 		1-36355-026-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=20.3 		1-36355-026-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.5 		1-36355-027-0 01 1 9604-0004 ● ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.5 		1-36355-027-0 01 1 0005-0405 ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.5 		1-36355-027-0 01 1 0406- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=20.5 		1-36355-027-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=20.5 		1-36355-027-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.7 		1-36355-028-0 01 1 9604-0004 ● ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.7 		1-36355-028-0 01 1 0005-0405 ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.7 		1-36355-028-0 01 1 0406- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=20.7 		1-36355-028-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=20.7 		1-36355-028-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.9 		1-36355-029-0 01 1 9604-0004 ● ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.9 		1-36355-029-0 01 1 0005-0405 ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.9 		1-36355-029-0 01 1 0406- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=20.9 		1-36355-029-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=20.9 		1-36355-029-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=21.1 		1-36355-030-0 01 1 9604-0004 ● ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=21.1 		1-36355-030-0 01 1 0005-0405 ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=21.1 		1-36355-030-0 01 1 0406- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=21.1 		1-36355-030-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=21.1 		1-36355-030-0 01 1 0406- ●

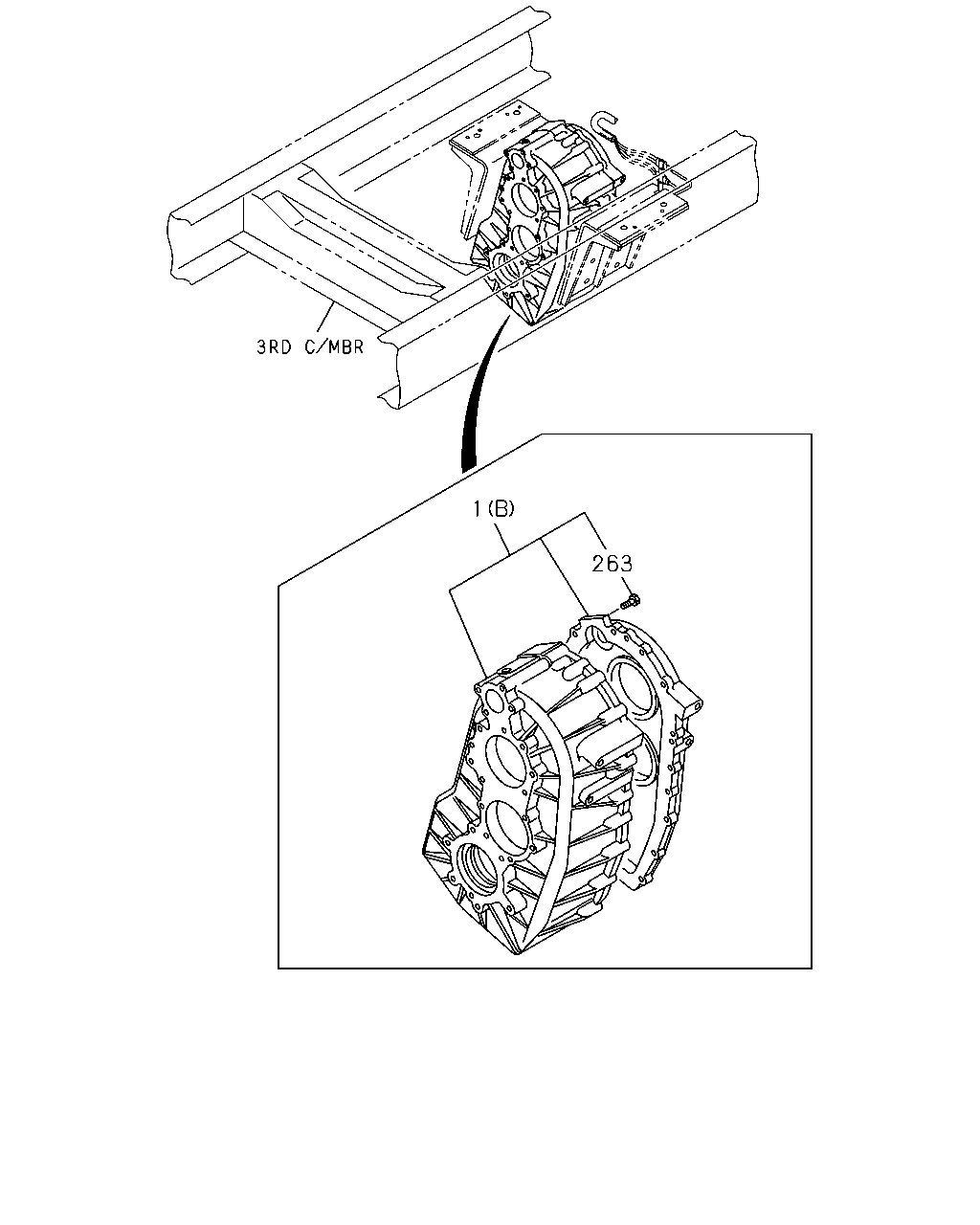

çizim 152732
1 263
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CASE; TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-36110-047-0 01 1 0406- ●
1 CASE; TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-36110-038-0 01 1 9604-0004 ● ● ● ●
1 CASE; TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-36110-038-0 01 1 0005-0205 ●
1 CASE; TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-36110-048-0 01 1 0206-0405 ●
1 CASE; TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) 		1-36110-048-0 01 1 0406- ●
1 CASE; TRANSFER
EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-36110-039-0 01 1 9604-0004 ● ● ● ●
1 CASE; TRANSFER
(A) 		1-36110-039-0 01 1 9604-0004 ●
1 CASE; TRANSFER
(A) 		1-36110-039-0 01 1 0005-0205 ● ●
1 CASE; TRANSFER
EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-36110-039-0 01 1 0005-0205 ●
1 CASE; TRANSFER
(A) 		1-36110-049-0 01 1 0206-0405 ● ●
1 CASE; TRANSFER
EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-36110-049-0 01 1 0206-0405 ●
1 CASE; TRANSFER
(A) 		1-36110-049-0 01 1 0406- ● ●
1 CASE; TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-36110-049-0 01 1 0406- ●
263 BOLT; TRANSFER CASE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M10X30 FLANGE 		0-28181-030-0 21 1 0406-0512 ●
263 BOLT; TRANSFER CASE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M10X30 FLANGE 		0-28151-030-0 21 1 0601- ●

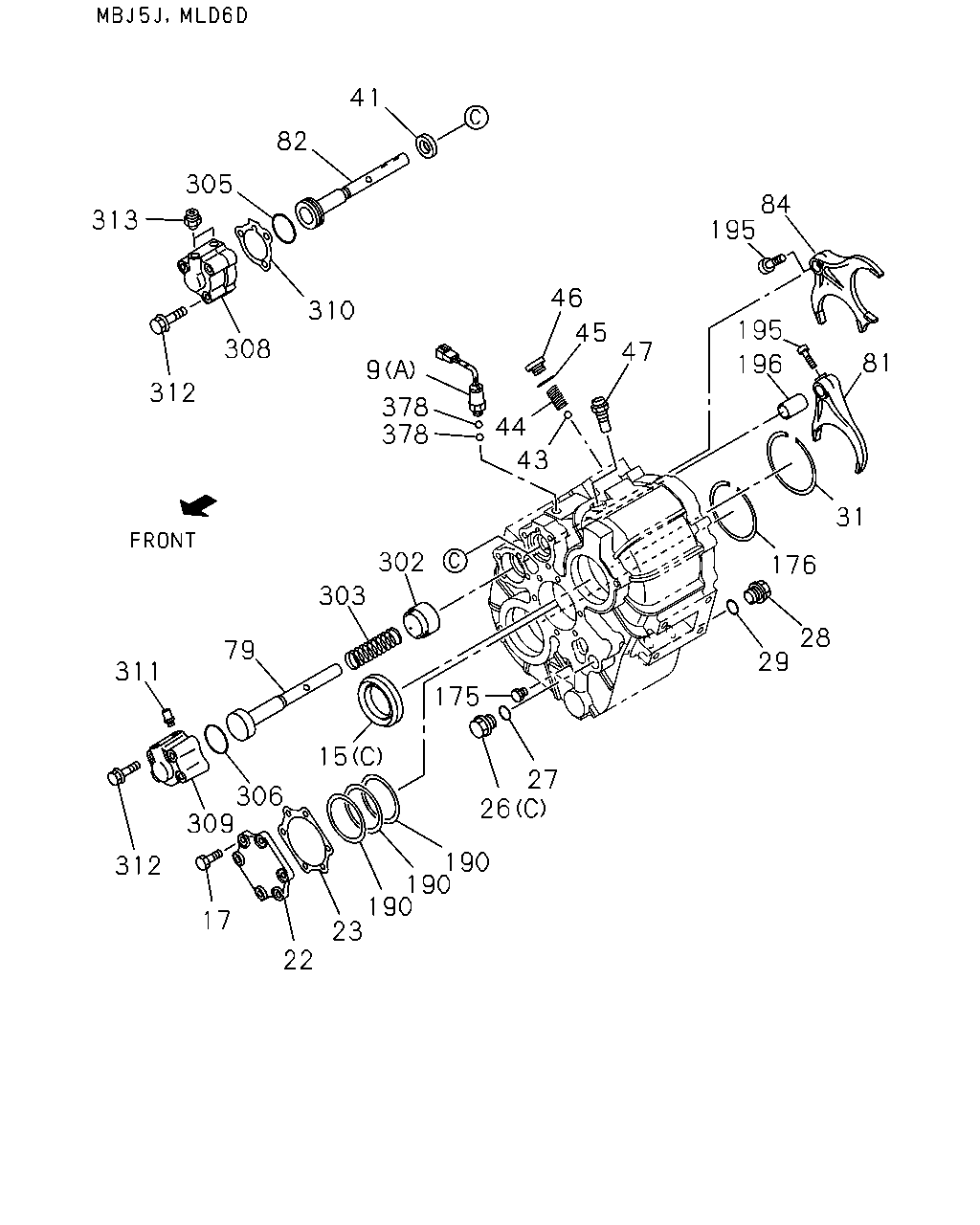

çizim 152733
41 82 305 84 195 313 46 310 195 45 308 47 81 196 9 312 378 378 44 43 31 302 176 303 28 29 79 311 175 15 27 26 306 309 190 190 190 23 312 17 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 9604-0004 ● ● ● ● ●
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 0005- ● ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 02 1 9604-0004 ● ● ● ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 02 1 0005-0405 ● ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 02 1 0406- ● ●
9 SWITCH; TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-82440-082-0 02 1 0406- ●
9 SWITCH; TRANSFER
TRANSMISSION OIL COOLER<C2C> (B) 		1-82440-082-0 02 1 0406- ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-09625-549-0 01 1 0406- ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-09625-552-0 01 1 0406- ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). (C) 		1-09625-202-1 02 1 9604-0004 ● ● ● ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). (C) 		1-09625-202-1 02 1 0005-0405 ● ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-202-1 02 1 0406- ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (C) 		1-09625-202-1 02 1 0406- ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> (C) 		1-09625-202-1 02 1 0406- ●
17 BOLT; BRG COVER
EXC. TRANSMISSION OIL COOLER<C2C> M10X28 		0-50051-028-0 06 1 9604-0004 ● ● ● ●
17 BOLT; BRG COVER
M10X28 		0-50051-028-0 06 1 9604-0004 ●
17 BOLT; BRG COVER
M10X28 		0-50051-028-0 06 1 0005-0405 ● ●
17 BOLT; BRG COVER
EXC. TRANSMISSION OIL COOLER<C2C> M10X28 		0-50051-028-0 06 1 0005-0405 ●
17 BOLT; BRG COVER
M10X28 		0-50051-028-0 06 1 0406-0906 ● ●
17 BOLT; BRG COVER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M10X28 		0-50051-028-0 06 1 0406-0906 ●
17 BOLT; BRG COVER
M10X28 		0-50551-028-0 06 1 0907- ● ●
17 BOLT; BRG COVER
EXC. TRANSMISSION OIL COOLER<C2C> M10X28 		0-50551-028-0 06 1 0907- ●
22 COVER; BRG,IDLE SHAFT
EXC. TRANSMISSION OIL COOLER<C2C> 		1-36151-006-1 01 1 9604-0004 ● ● ● ●
22 COVER; BRG,IDLE SHAFT 1-36151-006-1 01 1 9604-0004 ●
22 COVER; BRG,IDLE SHAFT 1-36151-006-1 01 1 0005-0405 ● ●
22 COVER; BRG,IDLE SHAFT
EXC. TRANSMISSION OIL COOLER<C2C> 		1-36151-006-1 01 1 0005-0405 ●
22 COVER; BRG,IDLE SHAFT 1-36151-006-1 01 1 0406- ● ●
22 COVER; BRG,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36151-006-1 01 1 0406- ●
23 GASKET; BRG COVER
ALSO INCLUDED IN REPAIR KIT(T/F). EXC. TRANSMISSION OIL COOLER<C2C>. 		9-36152-003-0 01 1 9604-0004 ● ● ● ●
23 GASKET; BRG COVER
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36152-003-0 01 1 9604-0004 ●
23 GASKET; BRG COVER
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36152-003-0 01 1 0005-0405 ● ●
23 GASKET; BRG COVER
ALSO INCLUDED IN REPAIR KIT(T/F). EXC. TRANSMISSION OIL COOLER<C2C> 		9-36152-003-0 01 1 0005-0405 ●
23 GASKET; BRG COVER
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36152-003-0 01 1 0406- ● ●
23 GASKET; BRG COVER
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-36152-003-0 01 1 0406- ●
26 PLUG; FILLER,TRANSFER CASE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) M24X17 FLANGE 		1-09604-023-0 01 1 0406- ●
26 PLUG; FILLER,TRANSFER CASE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) PT1/8 		1-09605-050-0 02 1 0406- ●
26 PLUG; FILLER,TRANSFER CASE
(C) M24X17 FLANGE 		1-09604-022-0 01 1 9604-9904 ● ● ● ● ●
26 PLUG; FILLER,TRANSFER CASE
(C) M24X17 FLANGE 		1-09604-064-1 01 1 9905-0004 ● ● ● ● ●
26 PLUG; FILLER,TRANSFER CASE
(C) M24X17 FLANGE 		1-09604-064-1 01 1 0005-0201 ● ● ●
26 PLUG; FILLER,TRANSFER CASE
(C) M24X17 FLANGE 		1-09604-022-0 01 1 0202-0405 ● ● ●
26 PLUG; FILLER,TRANSFER CASE
(C) M24X17 FLANGE 		1-09604-022-0 01 1 0406- ● ●
26 PLUG; FILLER,TRANSFER CASE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (C) M24X17 FLANGE 		1-09604-022-0 01 1 0406- ●
26 PLUG; FILLER,TRANSFER CASE
TRANSMISSION OIL COOLER<C2C> (C) M24X17 FLANGE 		1-09604-022-0 01 1 0406- ●
27 GASKET; FILLER PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 9604-0004 ● ● ● ● ●
27 GASKET; FILLER PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 0005- ● ● ●
28 PLUG; DRAIN,TRANSFER CASE
M24X17 FLANGE 		1-09604-023-0 01 1 9604-0004 ● ● ● ● ●
28 PLUG; DRAIN,TRANSFER CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0005- ● ● ●
29 GASKET; DRAIN PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 9604-0004 ● ● ● ● ●
29 GASKET; DRAIN PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 0005- ● ● ●
31 RING; SNAP,INPUT 9-09950-184-0 01 1 9604-0004 ● ● ● ● ●
31 RING; SNAP,INPUT 9-09950-184-0 01 1 0005-0405 ● ● ●
31 RING; SNAP,INPUT 9-09950-184-0 01 1 0406- ● ●
31 RING; SNAP,INPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-09950-184-0 01 1 0406- ●
31 RING; SNAP,INPUT
TRANSMISSION OIL COOLER<C2C> 		9-09950-184-0 01 1 0406- ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09625-547-0 01 1 0406- ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-377-0 02 1 9604-0004 ● ● ● ● ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-377-0 02 1 0005-0405 ● ● ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-377-0 02 1 0406- ● ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09625-377-0 02 1 0406- ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> 		1-09625-377-0 02 1 0406- ●
43 BALL; LK,SHIFT ROD 9-00097-013-0 01 1 9604-0004 ● ● ● ● ●
43 BALL; LK,SHIFT ROD 9-00097-013-0 01 1 0005- ● ● ●
44 SPRING; COIL,LK 9-09940-323-0 01 1 9604-0004 ● ● ● ● ●
44 SPRING; COIL,LK 9-09940-323-0 01 1 0005- ● ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-09571-520-0 01 1 9604-0004 ● ● ● ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-09571-520-0 01 1 0005-0201 ● ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=20.5 OD=28.0 		9-09571-420-0 01 1 0202- ● ● ●
46 SEAT; SPR 9-09862-175-0 01 1 9604-0004 ● ● ● ● ●
46 SEAT; SPR 9-09862-175-0 01 1 0005-0405 ● ● ●
46 SEAT; SPR 9-09862-175-0 01 1 0406- ● ●
46 SEAT; SPR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-09862-175-0 01 1 0406- ●
46 SEAT; SPR
TRANSMISSION OIL COOLER<C2C> 		9-09862-175-0 01 1 0406- ●
47 BREATHER; TRANSFER CASE 9-36122-015-1 01 1 9604-0004 ● ● ● ● ●
47 BREATHER; TRANSFER CASE 9-36122-015-1 01 1 0005-0405 ● ● ●
47 BREATHER; TRANSFER CASE 9-36122-015-1 01 1 0406- ● ●
47 BREATHER; TRANSFER CASE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-36122-015-1 01 1 0406- ●
47 BREATHER; TRANSFER CASE
TRANSMISSION OIL COOLER<C2C> 		9-36122-015-1 01 1 0406- ●
79 ROD; SHIFT,NEUTRAL & FRT DRIVE 1-36564-027-0 01 1 9604-0004 ● ● ● ● ●
79 ROD; SHIFT,NEUTRAL & FRT DRIVE 1-36564-027-0 01 1 0005-0405 ● ● ●
79 ROD; SHIFT,NEUTRAL & FRT DRIVE 1-36564-027-0 01 1 0406- ● ●
79 ROD; SHIFT,NEUTRAL & FRT DRIVE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36564-027-0 01 1 0406- ●
79 ROD; SHIFT,NEUTRAL & FRT DRIVE
TRANSMISSION OIL COOLER<C2C> 		1-36564-027-0 01 1 0406- ●
81 FORK; SHIFT,NEUTRAL & FRT DRIVE 1-36561-020-0 01 1 9604-0004 ● ● ● ● ●
81 FORK; SHIFT,NEUTRAL & FRT DRIVE 1-36561-020-0 01 1 0005-0405 ● ● ●
81 FORK; SHIFT,NEUTRAL & FRT DRIVE 1-36561-020-0 01 1 0406- ● ●
81 FORK; SHIFT,NEUTRAL & FRT DRIVE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36561-020-0 01 1 0406- ●
81 FORK; SHIFT,NEUTRAL & FRT DRIVE
TRANSMISSION OIL COOLER<C2C> 		1-36561-020-0 01 1 0406- ●
82 ROD; SHIFT,LOW & HIGH 1-36564-026-0 01 1 9604-0004 ● ● ● ● ●
82 ROD; SHIFT,LOW & HIGH 1-36564-026-0 01 1 0005-0405 ● ● ●
82 ROD; SHIFT,LOW & HIGH 1-36564-026-0 01 1 0406- ● ●
82 ROD; SHIFT,LOW & HIGH
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36564-026-0 01 1 0406- ●
82 ROD; SHIFT,LOW & HIGH
TRANSMISSION OIL COOLER<C2C> 		1-36564-026-0 01 1 0406- ●
84 FORK; SHIFT,LOW & HIGH
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36561-011-2 01 1 0406- ●
84 FORK; SHIFT,LOW & HIGH 1-36561-019-1 01 1 9604-0004 ● ● ● ● ●
84 FORK; SHIFT,LOW & HIGH 1-36561-019-1 01 1 0005-0405 ● ● ●
84 FORK; SHIFT,LOW & HIGH 1-36561-019-1 01 1 0406- ● ●
84 FORK; SHIFT,LOW & HIGH
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36561-019-1 01 1 0406- ●
84 FORK; SHIFT,LOW & HIGH
TRANSMISSION OIL COOLER<C2C> 		1-36561-019-1 01 1 0406- ●
175 PLUG; LEVEL,TRANSFER CASE 9-09864-007-1 01 1 9604-0004 ● ● ● ● ●
175 PLUG; LEVEL,TRANSFER CASE 9-09864-007-1 01 1 0005-0405 ● ● ●
175 PLUG; LEVEL,TRANSFER CASE 9-09864-007-1 01 1 0406- ● ●
175 PLUG; LEVEL,TRANSFER CASE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-09864-007-1 01 1 0406- ●
175 PLUG; LEVEL,TRANSFER CASE
TRANSMISSION OIL COOLER<C2C> 		9-09864-007-1 01 1 0406- ●
176 RING; SNAP,FRT OUTPUT 9-09950-089-0 01 1 9604-0004 ● ● ● ● ●
176 RING; SNAP,FRT OUTPUT 9-09950-089-0 01 1 0005-0405 ● ● ●
176 RING; SNAP,FRT OUTPUT 9-09950-089-0 01 1 0406- ● ●
176 RING; SNAP,FRT OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-09950-089-0 01 1 0406- ●
176 RING; SNAP,FRT OUTPUT
TRANSMISSION OIL COOLER<C2C> 		9-09950-089-0 01 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.10 		9-36153-020-0 AR 1 9604-0004 ● ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.10 		9-36153-020-0 AR 1 0005-0405 ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.10 		9-36153-020-0 AR 1 0406- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=0.10 		9-36153-020-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> T=0.10 		9-36153-020-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.12 		9-36153-021-0 AR 1 9604-0004 ● ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.12 		9-36153-021-0 AR 1 0005-0405 ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.12 		9-36153-021-0 AR 1 0406- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=0.12 		9-36153-021-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> T=0.12 		9-36153-021-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.14 		9-36153-022-0 AR 1 9604-0004 ● ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.14 		9-36153-022-0 AR 1 0005-0405 ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.14 		9-36153-022-0 AR 1 0406- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=0.14 		9-36153-022-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> T=0.14 		9-36153-022-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.16 		9-36153-023-0 AR 1 9604-0004 ● ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.16 		9-36153-023-0 AR 1 0005-0405 ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.16 		9-36153-023-0 AR 1 0406- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=0.16 		9-36153-023-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> T=0.16 		9-36153-023-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.18 		9-36153-024-0 AR 1 9604-0004 ● ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.18 		9-36153-024-0 AR 1 0005-0405 ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.18 		9-36153-024-0 AR 1 0406- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=0.18 		9-36153-024-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> T=0.18 		9-36153-024-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.20 		9-36153-025-0 AR 1 9604-0004 ● ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.20 		9-36153-025-0 AR 1 0005-0405 ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.20 		9-36153-025-0 AR 1 0406- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=0.20 		9-36153-025-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> T=0.20 		9-36153-025-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.50 		9-36153-026-0 AR 1 9604-0004 ● ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.50 		9-36153-026-0 AR 1 0005-0405 ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.50 		9-36153-026-0 AR 1 0406- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=0.50 		9-36153-026-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> T=0.50 		9-36153-026-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=1.00 		9-36153-027-0 AR 1 9604-0004 ● ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=1.00 		9-36153-027-0 AR 1 0005-0405 ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=1.00 		9-36153-027-0 AR 1 0406- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=1.00 		9-36153-027-0 AR 1 0406- ●
190 SHIM; BRG ADJ,IDLE SHAFT
TRANSMISSION OIL COOLER<C2C> T=1.00 		9-36153-027-0 AR 1 0406- ●
195 BOLT; SHIFT FORK
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M12X20 		1-09052-039-0 01 1 0406- ●
195 BOLT; SHIFT FORK
M12X20 		1-09052-039-0 02 1 9604-0004 ● ● ● ● ●
195 BOLT; SHIFT FORK
M12X20 		1-09052-039-0 02 1 0005-0405 ● ● ●
195 BOLT; SHIFT FORK
M12X20 		1-09052-039-0 02 1 0406- ● ●
195 BOLT; SHIFT FORK
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M12X20 		1-09052-039-0 02 1 0406- ●
195 BOLT; SHIFT FORK
TRANSMISSION OIL COOLER<C2C> M12X20 		1-09052-039-0 02 1 0406- ●
196 COLLAR; DIST,SHIFT ROD 1-36577-004-0 01 1 9604-0004 ● ● ● ● ●
196 COLLAR; DIST,SHIFT ROD 1-36577-004-0 01 1 0005-0405 ● ● ●
196 COLLAR; DIST,SHIFT ROD 1-36577-004-0 01 1 0406- ● ●
196 COLLAR; DIST,SHIFT ROD
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36577-004-0 01 1 0406- ●
196 COLLAR; DIST,SHIFT ROD
TRANSMISSION OIL COOLER<C2C> 		1-36577-004-0 01 1 0406- ●
302 SEAT; SPRING 1-36572-002-1 01 1 9604-0004 ● ● ● ● ●
302 SEAT; SPRING 1-36572-002-1 01 1 0005-0405 ● ● ●
302 SEAT; SPRING 1-36572-002-1 01 1 0406- ● ●
302 SEAT; SPRING
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36572-002-1 01 1 0406- ●
302 SEAT; SPRING
TRANSMISSION OIL COOLER<C2C> 		1-36572-002-1 01 1 0406- ●
303 SPRING; NEUTRAL-FRONT 1-09580-489-0 01 1 9604-0004 ● ● ● ● ●
303 SPRING; NEUTRAL-FRONT 1-09580-489-0 01 1 0005-0405 ● ● ●
303 SPRING; NEUTRAL-FRONT 1-09580-489-0 01 1 0406- ● ●
303 SPRING; NEUTRAL-FRONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09580-489-0 01 1 0406- ●
303 SPRING; NEUTRAL-FRONT
TRANSMISSION OIL COOLER<C2C> 		1-09580-489-0 01 1 0406- ●
305 GASKET; PISTON,LOW-HIGH
ALSO INCLUDED IN REPAIR KIT(T/F). ID=43.7 		9-09561-344-0 01 1 9604-0004 ● ● ● ● ●
305 GASKET; PISTON,LOW-HIGH
ALSO INCLUDED IN REPAIR KIT(T/F). ID=43.7 		9-09561-344-0 01 1 0005-0405 ● ● ●
305 GASKET; PISTON,LOW-HIGH
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-09561-344-0 01 1 0406- ● ●
305 GASKET; PISTON,LOW-HIGH
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> ID=43.7 		9-09561-344-0 01 1 0406- ●
305 GASKET; PISTON,LOW-HIGH
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> ID=43.7 		9-09561-344-0 01 1 0406- ●
306 GASKET; PISTON,NEUTRAL-FRONT
ID=43.7 		9-09561-344-0 01 1 9604-0004 ● ● ● ● ●
306 GASKET; PISTON,NEUTRAL-FRONT
ID=43.7 		9-09561-344-0 01 1 0005-0405 ● ● ●
306 GASKET; PISTON,NEUTRAL-FRONT
ID=43.7 		9-09561-344-0 01 1 0406- ● ●
306 GASKET; PISTON,NEUTRAL-FRONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> ID=43.7 		9-09561-344-0 01 1 0406- ●
306 GASKET; PISTON,NEUTRAL-FRONT
TRANSMISSION OIL COOLER<C2C> ID=43.7 		9-09561-344-0 01 1 0406- ●
308 CYLINDER; AIR SHIFT,LOW-HIGH 1-36569-010-0 01 1 9604-0004 ● ● ● ● ●
308 CYLINDER; AIR SHIFT,LOW-HIGH 1-36569-010-0 01 1 0005-0405 ● ● ●
308 CYLINDER; AIR SHIFT,LOW-HIGH 1-36569-010-0 01 1 0406- ● ●
308 CYLINDER; AIR SHIFT,LOW-HIGH
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36569-010-0 01 1 0406- ●
308 CYLINDER; AIR SHIFT,LOW-HIGH
TRANSMISSION OIL COOLER<C2C> 		1-36569-010-0 01 1 0406- ●
309 CYLINDER; AIR SHIFT,NEUTRAL-FRONT 1-36569-009-0 01 1 9604-0004 ● ● ● ● ●
309 CYLINDER; AIR SHIFT,NEUTRAL-FRONT 1-36569-009-0 01 1 0005-0405 ● ● ●
309 CYLINDER; AIR SHIFT,NEUTRAL-FRONT 1-36569-009-0 01 1 0406- ● ●
309 CYLINDER; AIR SHIFT,NEUTRAL-FRONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36569-009-0 01 1 0406- ●
309 CYLINDER; AIR SHIFT,NEUTRAL-FRONT
TRANSMISSION OIL COOLER<C2C> 		1-36569-009-0 01 1 0406- ●
310 GASKET; AIR CYL 1-36579-001-0 01 1 9604-0004 ● ● ● ● ●
310 GASKET; AIR CYL 1-36579-001-0 01 1 0005-0405 ● ● ●
310 GASKET; AIR CYL 1-36579-001-0 01 1 0406- ● ●
310 GASKET; AIR CYL
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36579-001-0 01 1 0406- ●
310 GASKET; AIR CYL
TRANSMISSION OIL COOLER<C2C> 		1-36579-001-0 01 1 0406- ●
311 BREATHER; AIR CYL 9-36122-013-0 01 1 9604-0004 ● ● ● ● ●
311 BREATHER; AIR CYL 9-36122-013-0 01 1 0005-0405 ● ● ●
311 BREATHER; AIR CYL 9-36122-013-0 01 1 0406- ● ●
311 BREATHER; AIR CYL
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-36122-013-0 01 1 0406- ●
311 BREATHER; AIR CYL
TRANSMISSION OIL COOLER<C2C> 		9-36122-013-0 01 1 0406- ●
312 BOLT; AIR CYL
M10X65 FLANGE 		8-94344-540-1 07 1 9604-0004 ● ● ● ● ●
312 BOLT; AIR CYL
M10X65 FLANGE 		8-94344-540-1 07 1 0005-0405 ● ● ●
312 BOLT; AIR CYL
M10X65 FLANGE 		8-94344-540-1 07 1 0406- ● ●
312 BOLT; AIR CYL
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M10X65 FLANGE 		8-94344-540-1 07 1 0406- ●
312 BOLT; AIR CYL
TRANSMISSION OIL COOLER<C2C> M10X65 FLANGE 		8-94344-540-1 07 1 0406- ●
313 CONNECTOR; AIR CYL
M20 & PT1/4 		9-09902-386-0 03 1 9604-0004 ● ● ● ● ●
313 CONNECTOR; AIR CYL
M20 & PT1/4 		9-09902-386-0 03 1 0005-0204 ● ● ●
313 CONNECTOR; AIR CYL
M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 0205-0405 ● ● ●
313 CONNECTOR; AIR CYL
M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 0406- ● ●
313 CONNECTOR; AIR CYL
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 0406- ●
313 CONNECTOR; AIR CYL
TRANSMISSION OIL COOLER<C2C> M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 0406- ●
378 BALL; CONT SWITCH
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		9-00097-013-0 01 1 0406- ●
378 BALL; CONT SWITCH 9-00097-013-0 02 1 9604-0004 ● ● ● ● ●
378 BALL; CONT SWITCH 9-00097-013-0 02 1 0005-0405 ● ● ●
378 BALL; CONT SWITCH 9-00097-013-0 02 1 0406- ● ●
378 BALL; CONT SWITCH
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-00097-013-0 02 1 0406- ●
378 BALL; CONT SWITCH
TRANSMISSION OIL COOLER<C2C> 		9-00097-013-0 02 1 0406- ●
çizim 152734
173 277 350 375 12 84 375 354 195 41 113 113 148 321 34 126 250 134 182 185 333 26 448 450 352 449 29 416 51 60 28 357 129 335 127 248 32 173 15 335 51 9 378 130 53 45 44 43 376 61 189 36 94 36 32 344 145 173 250 173 173 264 264 173 264 353 173 27 26 173 15 263 353
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 9604-0004 ● ● ● ● ●
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 0005- ● ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 02 1 9604-0004 ● ● ● ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 02 1 0005-0405 ● ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 02 1 0406- ● ●
9 SWITCH; TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-82440-082-0 02 1 0406- ●
9 SWITCH; TRANSFER
TRANSMISSION OIL COOLER<C2C> (B) 		1-82440-082-0 02 1 0406- ●
12 PIN; STRAIGHT,TRANSFER CASE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> OD=12 L=20 		9-08161-220-0 02 1 0406- ●
12 PIN; STRAIGHT,TRANSFER CASE 9-08161-016-0 02 1 9604-0004 ● ● ● ● ●
12 PIN; STRAIGHT,TRANSFER CASE 9-08161-016-0 02 1 0005-0405 ● ● ●
12 PIN; STRAIGHT,TRANSFER CASE 9-08161-016-0 02 1 0406- ● ●
12 PIN; STRAIGHT,TRANSFER CASE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-08161-016-0 02 1 0406- ●
12 PIN; STRAIGHT,TRANSFER CASE
TRANSMISSION OIL COOLER<C2C> 		9-08161-016-0 02 1 0406- ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-09625-549-0 01 1 0406- ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-09625-552-0 01 1 0406- ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). (C) 		1-09625-202-1 02 1 9604-0004 ● ● ● ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). (C) 		1-09625-202-1 02 1 0005-0405 ● ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-202-1 02 1 0406- ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (C) 		1-09625-202-1 02 1 0406- ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> (C) 		1-09625-202-1 02 1 0406- ●
26 PLUG; FILLER,TRANSFER CASE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) M24X17 FLANGE 		1-09604-023-0 01 1 0406- ●
26 PLUG; FILLER,TRANSFER CASE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) PT1/8 		1-09605-050-0 02 1 0406- ●
26 PLUG; FILLER,TRANSFER CASE
(C) M24X17 FLANGE 		1-09604-022-0 01 1 9604-9904 ● ● ● ● ●
26 PLUG; FILLER,TRANSFER CASE
(C) M24X17 FLANGE 		1-09604-064-1 01 1 9905-0004 ● ● ● ● ●
26 PLUG; FILLER,TRANSFER CASE
(C) M24X17 FLANGE 		1-09604-064-1 01 1 0005-0201 ● ● ●
26 PLUG; FILLER,TRANSFER CASE
(C) M24X17 FLANGE 		1-09604-022-0 01 1 0202-0405 ● ● ●
26 PLUG; FILLER,TRANSFER CASE
(C) M24X17 FLANGE 		1-09604-022-0 01 1 0406- ● ●
26 PLUG; FILLER,TRANSFER CASE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (C) M24X17 FLANGE 		1-09604-022-0 01 1 0406- ●
26 PLUG; FILLER,TRANSFER CASE
TRANSMISSION OIL COOLER<C2C> (C) M24X17 FLANGE 		1-09604-022-0 01 1 0406- ●
27 GASKET; FILLER PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 9604-0004 ● ● ● ● ●
27 GASKET; FILLER PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 0005- ● ● ●
28 PLUG; DRAIN,TRANSFER CASE
M24X17 FLANGE 		1-09604-023-0 01 1 9604-0004 ● ● ● ● ●
28 PLUG; DRAIN,TRANSFER CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0005- ● ● ●
29 GASKET; DRAIN PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 9604-0004 ● ● ● ● ●
29 GASKET; DRAIN PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 0005- ● ● ●
32 COVER; TRANSFER CASE,FRT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-36121-029-0 01 1 0406- ●
32 COVER; TRANSFER CASE,FRT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-36121-030-0 01 1 0406- ●
34 WASHER; LK,COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> ID=8.2 		9-09150-508-0 04 1 0406-0603 ●
34 WASHER; LK,COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> ID=8.2 		0-91510-508-0 04 1 0604- ●
36 BOLT; SHIFT UNIT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) M10X25 FLANGE 		0-28181-025-0 03 1 0406-0512 ●
36 BOLT; SHIFT UNIT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) M10X25 FLANGE 		0-28151-025-0 03 1 0601- ●
36 BOLT; SHIFT UNIT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) M10X60 FLANGE 		0-28181-060-0 01 1 0406-0512 ●
36 BOLT; SHIFT UNIT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) M10X60 FLANGE 		0-28151-060-0 01 1 0601- ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09625-547-0 01 1 0406- ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-377-0 02 1 9604-0004 ● ● ● ● ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-377-0 02 1 0005-0405 ● ● ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-377-0 02 1 0406- ● ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09625-377-0 02 1 0406- ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> 		1-09625-377-0 02 1 0406- ●
43 BALL; LK,SHIFT ROD 9-00097-013-0 01 1 9604-0004 ● ● ● ● ●
43 BALL; LK,SHIFT ROD 9-00097-013-0 01 1 0005- ● ● ●
44 SPRING; COIL,LK 9-09940-323-0 01 1 9604-0004 ● ● ● ● ●
44 SPRING; COIL,LK 9-09940-323-0 01 1 0005- ● ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-09571-520-0 01 1 9604-0004 ● ● ● ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-09571-520-0 01 1 0005-0201 ● ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=20.5 OD=28.0 		9-09571-420-0 01 1 0202- ● ● ●
51 PLUG; SHIFT ROD
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) 		9-09862-175-0 01 1 0406- ●
51 PLUG; SHIFT ROD
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) OD=24 L=31 		9-33545-011-1 01 1 0406- ●
53 PLUG; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) M16X12 		1-09604-009-0 01 1 0406- ●
53 PLUG; COVER
TRANSMISSION OIL COOLER<C2C> (A) 		9-09205-510-0 01 1 9604-0004 ● ● ● ●
53 PLUG; COVER
TRANSMISSION OIL COOLER<C2C> (A) 		9-09205-510-0 01 1 0005-0405 ●
53 PLUG; COVER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) 		9-09205-510-0 01 1 0406- ●
53 PLUG; COVER
TRANSMISSION OIL COOLER<C2C> (B) M16X12 		9-99202-316-0 02 1 9604-0004 ● ● ● ●
53 PLUG; COVER
TRANSMISSION OIL COOLER<C2C> (B) M16X12 		9-99202-316-0 02 1 0005-0405 ●
53 PLUG; COVER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (B) M16X12 		9-99202-316-0 02 1 0406-0606 ●
53 PLUG; COVER
TRANSMISSION OIL COOLER<C2C> (B) M16X12 		0-92002-416-0 02 1 0607- ●
60 SEAL; OIL,FRT COVER,UPR
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09625-548-0 01 1 0406- ●
61 GASKET; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> ID=16.2 OD=24 		9-09571-416-0 01 1 0406- ●
84 FORK; SHIFT,LOW & HIGH
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36561-011-2 01 1 0406- ●
84 FORK; SHIFT,LOW & HIGH 1-36561-019-1 01 1 9604-0004 ● ● ● ● ●
84 FORK; SHIFT,LOW & HIGH 1-36561-019-1 01 1 0005-0405 ● ● ●
84 FORK; SHIFT,LOW & HIGH 1-36561-019-1 01 1 0406- ● ●
84 FORK; SHIFT,LOW & HIGH
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36561-019-1 01 1 0406- ●
84 FORK; SHIFT,LOW & HIGH
TRANSMISSION OIL COOLER<C2C> 		1-36561-019-1 01 1 0406- ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09625-553-0 01 1 0406- ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-484-0 01 1 9604-0004 ● ● ● ● ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-484-1 01 1 0005-0405 ● ● ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-484-1 01 1 0406- ● ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> NOK 		1-09625-484-1 01 1 0406- ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> NOK 		1-09625-484-1 01 1 0406- ●
113 GASKET; OIL,TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> ID=12.2 		1-09630-084-0 02 1 0406-1312 ●
113 GASKET; OIL,TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> ID=12.2 		8-98251-344-0 02 1 1401- ●
126 BOLT; RR COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28080-825-0 12 1 0406-0512 ●
126 BOLT; RR COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28050-825-0 12 1 0601- ●
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50051-025-0 06 1 9604-0004 ● ● ● ● ●
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50051-025-0 06 1 0005-0405 ● ● ●
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50051-025-0 06 1 0406-0906 ● ●
126 BOLT; RR COVER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M10X25 W/LK WASHER 		0-50051-025-0 06 1 0406-0906 ●
126 BOLT; RR COVER
TRANSMISSION OIL COOLER<C2C> M10X25 W/LK WASHER 		0-50051-025-0 06 1 0406-0906 ●
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50551-025-0 06 1 0907- ● ● ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09623-246-0 01 1 0406- ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-370-0 01 1 9604-0004 ● ● ● ● ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-370-0 01 1 0005-0405 ● ● ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-370-0 01 1 0406- ● ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09623-370-0 01 1 0406- ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> 		1-09623-370-0 01 1 0406- ●
129 SEAL; OIL,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-510-0 01 1 9604-0004 ● ● ● ● ●
129 SEAL; OIL,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-510-0 01 1 0005- ● ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> Z=15 		1-33372-147-4 01 1 0406- ●
130 GEAR; DRIVEN,SPD,TRANSFER
Z=12 		1-33372-074-5 01 1 9604-0004 ● ● ● ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
Z=12 		1-33372-074-5 01 1 0005-0405 ● ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
Z=12 		1-33372-074-5 01 1 0406- ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> Z=12 		1-33372-074-5 01 1 0406- ●
130 GEAR; DRIVEN,SPD,TRANSFER
TRANSMISSION OIL COOLER<C2C> Z=12 		1-33372-074-5 01 1 0406- ●
134 WASHER; PL
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> ID=10.5 OD=22 		9-09164-610-0 01 1 0406-0605 ●
134 WASHER; PL
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> ID=10.5 OD=22 		0-91614-610-0 01 1 0606- ●
145 CONNECTOR; OIL PIPE,TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 0406- ●
145 CONNECTOR; OIL PIPE,TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-09650-325-1 01 1 9604-0004 ● ● ● ●
145 CONNECTOR; OIL PIPE,TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-09650-325-1 01 1 0005-0405 ●
145 CONNECTOR; OIL PIPE,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) 		1-09650-325-1 01 1 0406- ●
145 CONNECTOR; OIL PIPE,TRANSFER
TRANSMISSION OIL COOLER<C2C> (B) M16 & PT1/4 ELBOW 		1-09650-434-0 01 1 9604-0004 ● ● ● ●
145 CONNECTOR; OIL PIPE,TRANSFER
TRANSMISSION OIL COOLER<C2C> (B) M16 & PT1/4 ELBOW 		1-09650-434-0 01 1 0005-0405 ●
145 CONNECTOR; OIL PIPE,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (B) M16 & PT1/4 ELBOW 		1-09650-434-0 01 1 0406-0607 ●
145 CONNECTOR; OIL PIPE,TRANSFER
TRANSMISSION OIL COOLER<C2C> (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0608- ●
148 BOLT; EYE,OIL PIPE
TRANSMISSION OIL COOLER<C2C> M12X27 FLANGE 		1-09675-085-0 01 1 9604-0004 ● ● ● ●
148 BOLT; EYE,OIL PIPE
TRANSMISSION OIL COOLER<C2C> M12X27 FLANGE 		1-09675-085-0 01 1 0005-0405 ●
148 BOLT; EYE,OIL PIPE
TRANSMISSION OIL COOLER<C2C> M12X27 FLANGE 		1-09675-085-0 01 1 0406- ●
148 BOLT; EYE,OIL PIPE
TRANSFER TF56<BFK> M12X27 FLANGE 		1-09675-085-0 01 1 0406- ●
173 BOLT; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) M8X25 FLANGE 		0-28080-825-0 12 1 0406-0512 ●
173 BOLT; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) M8X25 FLANGE 		0-28050-825-0 12 1 0601- ●
173 BOLT; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) M10X45 FLANGE 		0-28181-045-0 03 1 0406-0512 ●
173 BOLT; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) M10X45 FLANGE 		0-28151-045-0 03 1 0601- ●
173 BOLT; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) M12X100 FLANGE 		0-28181-200-0 02 1 0406-0512 ●
173 BOLT; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) M12X100 FLANGE 		0-28151-200-0 02 1 0601- ●
173 BOLT; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (D) M12X30 FLANGE 		0-28181-230-0 15 1 0406-0512 ●
173 BOLT; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (D) M12X30 FLANGE 		0-28151-230-0 15 1 0601- ●
173 BOLT; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (E) M10X20 W/LK WASHER 		0-50051-020-0 02 1 0406-0512 ●
173 BOLT; COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (E) M10X20 W/LK WASHER 		0-50551-020-0 02 1 0601- ●
173 BOLT; COVER
(F) M10X30 W/LK WASHER 		0-50051-030-0 04 1 9604-0004 ● ● ● ● ●
173 BOLT; COVER
(F) M10X30 W/LK WASHER 		0-50051-030-0 04 1 0005-0405 ● ● ●
173 BOLT; COVER
(F) M10X30 W/LK WASHER 		0-50051-030-0 04 1 0406-0906 ● ●
173 BOLT; COVER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (F) M10X30 W/LK WASHER 		0-50051-030-0 04 1 0406-0906 ●
173 BOLT; COVER
TRANSMISSION OIL COOLER<C2C> (F) M10X30 W/LK WASHER 		0-50051-030-0 04 1 0406-0906 ●
173 BOLT; COVER
(F) M10X30 W/LK WASHER 		0-50551-030-0 04 1 0907- ● ● ●
182 BOLT; OIL PIPE,TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M10X20 W/LK WASHER 		0-50051-020-0 01 1 0406-0512 ●
182 BOLT; OIL PIPE,TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M10X20 W/LK WASHER 		0-50551-020-0 01 1 0601- ●
185 PUMP ASM; OIL,TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-34150-071-1 01 1 0406- ●
185 PUMP ASM; OIL,TRANSFER
TRANSMISSION OIL COOLER<C2C> 		1-13110-036-2 01 1 9604-0004 ● ● ● ●
185 PUMP ASM; OIL,TRANSFER
TRANSMISSION OIL COOLER<C2C> 		1-13110-036-2 01 1 0005-0405 ●
185 PUMP ASM; OIL,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> 		1-13110-036-2 01 1 0406- ●
189 COVER; DUST,OIL SEAL
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-33139-011-1 01 1 0406- ●
195 BOLT; SHIFT FORK
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M12X20 		1-09052-039-0 01 1 0406- ●
195 BOLT; SHIFT FORK
M12X20 		1-09052-039-0 02 1 9604-0004 ● ● ● ● ●
195 BOLT; SHIFT FORK
M12X20 		1-09052-039-0 02 1 0005-0405 ● ● ●
195 BOLT; SHIFT FORK
M12X20 		1-09052-039-0 02 1 0406- ● ●
195 BOLT; SHIFT FORK
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M12X20 		1-09052-039-0 02 1 0406- ●
195 BOLT; SHIFT FORK
TRANSMISSION OIL COOLER<C2C> M12X20 		1-09052-039-0 02 1 0406- ●
248 BOLT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M6X12.5 FLANGE 		1-09044-063-0 01 1 0406-0805 ●
248 BOLT
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M6X12.5 FLANGE 		8-98014-141-0 01 1 0806- ●
250 COVER; OIL PUMP,TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-36121-028-0 01 1 0406- ●
250 COVER; OIL PUMP,TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-36121-031-0 01 1 0406- ●
263 BOLT; TRANSFER CASE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M10X30 FLANGE 		0-28181-030-0 21 1 0406-0512 ●
263 BOLT; TRANSFER CASE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M10X30 FLANGE 		0-28151-030-0 21 1 0601- ●
264 SPACER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> L=28 		8-97108-653-0 03 1 0406- ●
277 COVER; SHIFT ROD,TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36135-004-0 01 1 0406- ●
321 BOLT; PUMP HSG
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M8X50 		0-10805-850-0 04 1 0406-0512 ●
321 BOLT; PUMP HSG
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M8X50 		0-10855-850-0 04 1 0601- ●
321 BOLT; PUMP HSG
TRANSMISSION OIL COOLER<C2C> M10X35 FLANGE 		0-28181-035-0 08 1 9604-0004 ● ● ● ●
321 BOLT; PUMP HSG
TRANSMISSION OIL COOLER<C2C> M10X35 FLANGE 		0-28181-035-0 08 1 0005-0405 ●
321 BOLT; PUMP HSG
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> M10X35 FLANGE 		0-28181-035-0 08 1 0406-0512 ●
321 BOLT; PUMP HSG
TRANSMISSION OIL COOLER<C2C> M10X35 FLANGE 		0-28151-035-0 08 1 0601- ●
321 BOLT; PUMP HSG
TRANSMISSION OIL COOLER<C2C> M10X50 FLANGE 		0-28181-050-0 02 1 9604-0004 ● ● ● ●
321 BOLT; PUMP HSG
TRANSMISSION OIL COOLER<C2C> M10X50 FLANGE 		0-28181-050-0 02 1 0005-0405 ●
321 BOLT; PUMP HSG
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> M10X50 FLANGE 		0-28181-050-0 02 1 0406-0512 ●
321 BOLT; PUMP HSG
TRANSMISSION OIL COOLER<C2C> M10X50 FLANGE 		0-28151-050-0 02 1 0601- ●
333 PIPE; OIL,TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) 		1-36161-029-0 01 1 0406- ●
333 PIPE; OIL,TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-36161-030-0 01 1 9604-0004 ● ● ● ●
333 PIPE; OIL,TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-36161-030-0 01 1 0005-0405 ●
333 PIPE; OIL,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) 		1-36161-030-0 01 1 0406- ●
333 PIPE; OIL,TRANSFER
TRANSMISSION OIL COOLER<C2C> (B) 		1-36161-033-0 01 1 9604-0004 ● ● ● ●
333 PIPE; OIL,TRANSFER
TRANSMISSION OIL COOLER<C2C> (B) 		1-36161-033-0 01 1 0005-0405 ●
333 PIPE; OIL,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (B) 		1-36161-033-0 01 1 0406- ●
335 BUSHING
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-33373-074-0 01 1 0406- ●
335 BUSHING
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-33373-076-0 01 1 0406- ●
344 CONNECTOR
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> L=45 		8-94338-874-0 01 1 0406- ●
344 CONNECTOR
TRANSMISSION OIL COOLER<C2C> 		9-09221-808-1 01 1 9604-0004 ● ● ● ●
344 CONNECTOR
TRANSMISSION OIL COOLER<C2C> 		9-09221-808-1 01 1 0005-0405 ●
344 CONNECTOR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> 		9-09221-808-1 01 1 0406-0607 ●
344 CONNECTOR
TRANSMISSION OIL COOLER<C2C> 		0-92111-808-0 01 1 0608- ●
350 RING; SNAP,RING GEAR
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> ID=43.7 		9-09561-344-0 01 1 0406- ●
352 FILTER; OIL
TRANSMISSION OIL COOLER<C2C> 		1-36289-001-0 01 1 9604-0004 ● ● ● ●
352 FILTER; OIL
TRANSMISSION OIL COOLER<C2C> 		1-36289-001-0 01 1 0005-0405 ●
352 FILTER; OIL
TRANSMISSION OIL COOLER<C2C> 		1-36289-001-0 01 1 0406- ●
352 FILTER; OIL
TRANSFER TF56<BFK> 		1-36289-001-0 01 1 0406- ●
353 BAFFLE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-36379-007-0 01 1 0406- ●
353 BAFFLE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-36379-008-0 01 1 0406- ●
354 ROD; AIR SHIFTER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36564-036-0 01 1 0406- ●
357 SENSOR; SPEED
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 25 PULSE 		1-80240-029-0 01 1 0406-1301 ●
357 SENSOR; SPEED
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 25 PULSE 		8-98234-167-0 01 1 1302- ●
375 NIPPLE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0406- ●
375 NIPPLE
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0406- ●
376 SHIFT UNIT; DIFF LOCK
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-48260-083-0 01 1 0406- ●
378 BALL; CONT SWITCH
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		9-00097-013-0 01 1 0406- ●
378 BALL; CONT SWITCH 9-00097-013-0 02 1 9604-0004 ● ● ● ● ●
378 BALL; CONT SWITCH 9-00097-013-0 02 1 0005-0405 ● ● ●
378 BALL; CONT SWITCH 9-00097-013-0 02 1 0406- ● ●
378 BALL; CONT SWITCH
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-00097-013-0 02 1 0406- ●
378 BALL; CONT SWITCH
TRANSMISSION OIL COOLER<C2C> 		9-00097-013-0 02 1 0406- ●
416 PROTECTOR; SENSOR
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		8-97168-308-0 01 1 0406-0808 ●
416 PROTECTOR; SENSOR
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		8-98119-901-0 01 1 0809- ●
448 HARNESS; SPEED SENSOR
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-82670-078-0 01 1 0406- ●
449 WIRE; LEAD SEAL
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-80249-010-0 01 1 0406- ●
450 SEAL; REED
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-15739-002-0 01 1 0406-0407 ●
450 SEAL; REED
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-15739-008-0 01 1 0408- ●
çizim 152740
194 58 191 59 184 9 108 301 192 193 95 130 129 127 128 59 314 107 14 14 94 126 122 121
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 9604-0004 ● ● ● ● ●
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 0005- ● ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 02 1 9604-0004 ● ● ● ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 02 1 0005-0405 ● ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 02 1 0406- ● ●
9 SWITCH; TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-82440-082-0 02 1 0406- ●
9 SWITCH; TRANSFER
TRANSMISSION OIL COOLER<C2C> (B) 		1-82440-082-0 02 1 0406- ●
14 BOLT; COVER TO TRANSFER CASE
(A) M10X30 W/LK WASHER 		0-50051-030-0 11 1 9604-0004 ● ● ● ● ●
14 BOLT; COVER TO TRANSFER CASE
(A) M10X30 W/LK WASHER 		0-50051-030-0 11 1 0005-0405 ● ● ●
14 BOLT; COVER TO TRANSFER CASE
(A) M10X30 W/LK WASHER 		0-50051-030-0 11 1 0406-0906 ● ●
14 BOLT; COVER TO TRANSFER CASE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) M10X30 W/LK WASHER 		0-50051-030-0 11 1 0406-0906 ●
14 BOLT; COVER TO TRANSFER CASE
TRANSMISSION OIL COOLER<C2C> (A) M10X30 W/LK WASHER 		0-50051-030-0 11 1 0406-0906 ●
14 BOLT; COVER TO TRANSFER CASE
(A) M10X30 W/LK WASHER 		0-50551-030-0 11 1 0907- ● ● ●
14 BOLT; COVER TO TRANSFER CASE
(B) M10X45 W/LK WASHER 		0-50051-045-0 02 1 9604-0004 ● ● ● ● ●
14 BOLT; COVER TO TRANSFER CASE
(B) M10X45 W/LK WASHER 		0-50051-045-0 02 1 0005-0405 ● ● ●
14 BOLT; COVER TO TRANSFER CASE
(B) M10X45 W/LK WASHER 		0-50051-045-0 02 1 0406-0906 ● ●
14 BOLT; COVER TO TRANSFER CASE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (B) M10X45 W/LK WASHER 		0-50051-045-0 02 1 0406-0906 ●
14 BOLT; COVER TO TRANSFER CASE
TRANSMISSION OIL COOLER<C2C> (B) M10X45 W/LK WASHER 		0-50051-045-0 02 1 0406-0906 ●
14 BOLT; COVER TO TRANSFER CASE
(B) M10X45 W/LK WASHER 		0-50551-045-0 02 1 0907- ● ● ●
58 SEAL; OIL,RR UPR
NOK 		1-09625-173-0 01 1 9604-0004 ● ● ● ● ●
58 SEAL; OIL,RR UPR
NOK 		1-09625-173-0 01 1 0005-0405 ● ● ●
58 SEAL; OIL,RR UPR
NOK 		1-09625-173-0 01 1 0406- ● ●
58 SEAL; OIL,RR UPR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> NOK 		1-09625-173-0 01 1 0406- ●
58 SEAL; OIL,RR UPR
TRANSMISSION OIL COOLER<C2C> NOK 		1-09625-173-0 01 1 0406- ●
59 BOLT; UPR COVER
M14X65 		0-16806-465-0 01 1 9604-0004 ● ● ● ● ●
59 BOLT; UPR COVER
M14X65 		0-16806-465-0 01 1 0005-0405 ● ● ●
59 BOLT; UPR COVER
M14X65 		0-16806-465-0 01 1 0406- ● ●
59 BOLT; UPR COVER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M14X65 		0-16806-465-0 01 1 0406- ●
59 BOLT; UPR COVER
TRANSMISSION OIL COOLER<C2C> M14X65 		0-16806-465-0 01 1 0406- ●
59 BOLT; UPR COVER
M14X40 		0-23801-440-0 04 1 9604-0004 ● ● ● ● ●
59 BOLT; UPR COVER
M14X40 		0-23801-440-0 04 1 0005-0405 ● ● ●
59 BOLT; UPR COVER
M14X40 		0-23801-440-0 04 1 0406-0512 ● ●
59 BOLT; UPR COVER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M14X40 		0-23801-440-0 04 1 0406-0512 ●
59 BOLT; UPR COVER
TRANSMISSION OIL COOLER<C2C> M14X40 		0-23801-440-0 04 1 0406-0512 ●
59 BOLT; UPR COVER
M14X40 		0-23851-440-0 04 1 0601- ● ● ●
59 BOLT; UPR COVER
M10X30 W/LK WASHER 		0-50051-030-0 04 1 9604-0004 ● ● ● ● ●
59 BOLT; UPR COVER
M10X30 W/LK WASHER 		0-50051-030-0 04 1 0005-0405 ● ● ●
59 BOLT; UPR COVER
M10X30 W/LK WASHER 		0-50051-030-0 04 1 0406-0906 ● ●
59 BOLT; UPR COVER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M10X30 W/LK WASHER 		0-50051-030-0 04 1 0406-0906 ●
59 BOLT; UPR COVER
TRANSMISSION OIL COOLER<C2C> M10X30 W/LK WASHER 		0-50051-030-0 04 1 0406-0906 ●
59 BOLT; UPR COVER
M10X30 W/LK WASHER 		0-50551-030-0 04 1 0907- ● ● ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09625-553-0 01 1 0406- ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-484-0 01 1 9604-0004 ● ● ● ● ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-484-1 01 1 0005-0405 ● ● ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-484-1 01 1 0406- ● ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> NOK 		1-09625-484-1 01 1 0406- ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> NOK 		1-09625-484-1 01 1 0406- ●
95 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9604-0004 ● ● ● ● ●
95 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 0005-0405 ● ● ●
95 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 0406-0805 ● ●
95 SCREW; BUSHING,DRIVEN GEAR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M6X12.5 FLANGE 		1-09044-063-0 01 1 0406-0805 ●
95 SCREW; BUSHING,DRIVEN GEAR
TRANSMISSION OIL COOLER<C2C> M6X12.5 FLANGE 		1-09044-063-0 01 1 0406-0805 ●
95 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 0806- ● ● ●
107 GASKET; COVER TO CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36123-009-0 01 1 9604-0004 ● ● ● ● ●
107 GASKET; COVER TO CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36123-009-0 01 1 0005-0405 ● ● ●
107 GASKET; COVER TO CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36123-009-0 01 1 0406- ● ●
107 GASKET; COVER TO CASE
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		9-36123-009-0 01 1 0406- ●
107 GASKET; COVER TO CASE
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> 		9-36123-009-0 01 1 0406- ●
108 COVER; UPR,TRANSFER 1-36121-006-2 01 1 9604-0004 ● ● ● ● ●
108 COVER; UPR,TRANSFER 1-36121-006-2 01 1 0005-0405 ● ● ●
108 COVER; UPR,TRANSFER 1-36121-006-2 01 1 0406- ● ●
108 COVER; UPR,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36121-006-2 01 1 0406- ●
108 COVER; UPR,TRANSFER
TRANSMISSION OIL COOLER<C2C> 		1-36121-006-2 01 1 0406- ●
121 GASKET; RR COVER,LWR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-006-0 01 1 9604-0004 ● ● ● ● ●
121 GASKET; RR COVER,LWR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-006-0 01 1 0005-0405 ● ● ●
121 GASKET; RR COVER,LWR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-006-0 01 1 0406- ● ●
121 GASKET; RR COVER,LWR
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36156-006-0 01 1 0406- ●
121 GASKET; RR COVER,LWR
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> 		1-36156-006-0 01 1 0406- ●
122 COVER; RR,OUTPUT 1-36121-005-0 01 1 9604-0004 ● ● ● ● ●
122 COVER; RR,OUTPUT 1-36121-005-0 01 1 0005-0405 ● ● ●
122 COVER; RR,OUTPUT 1-36121-005-0 01 1 0406- ● ●
122 COVER; RR,OUTPUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36121-005-0 01 1 0406- ●
122 COVER; RR,OUTPUT
TRANSMISSION OIL COOLER<C2C> 		1-36121-005-0 01 1 0406- ●
126 BOLT; RR COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28080-825-0 12 1 0406-0512 ●
126 BOLT; RR COVER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28050-825-0 12 1 0601- ●
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50051-025-0 06 1 9604-0004 ● ● ● ● ●
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50051-025-0 06 1 0005-0405 ● ● ●
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50051-025-0 06 1 0406-0906 ● ●
126 BOLT; RR COVER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M10X25 W/LK WASHER 		0-50051-025-0 06 1 0406-0906 ●
126 BOLT; RR COVER
TRANSMISSION OIL COOLER<C2C> M10X25 W/LK WASHER 		0-50051-025-0 06 1 0406-0906 ●
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50551-025-0 06 1 0907- ● ● ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09623-246-0 01 1 0406- ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-370-0 01 1 9604-0004 ● ● ● ● ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-370-0 01 1 0005-0405 ● ● ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-370-0 01 1 0406- ● ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-09623-370-0 01 1 0406- ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> 		1-09623-370-0 01 1 0406- ●
128 BUSHING; DRIVEN GEAR 1-33373-039-1 01 1 9604-0004 ● ● ● ● ●
128 BUSHING; DRIVEN GEAR 1-33373-039-1 01 1 0005-0405 ● ● ●
128 BUSHING; DRIVEN GEAR 1-33373-039-1 01 1 0406- ● ●
128 BUSHING; DRIVEN GEAR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-33373-039-1 01 1 0406- ●
128 BUSHING; DRIVEN GEAR
TRANSMISSION OIL COOLER<C2C> 		1-33373-039-1 01 1 0406- ●
129 SEAL; OIL,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-510-0 01 1 9604-0004 ● ● ● ● ●
129 SEAL; OIL,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-510-0 01 1 0005- ● ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> Z=15 		1-33372-147-4 01 1 0406- ●
130 GEAR; DRIVEN,SPD,TRANSFER
Z=12 		1-33372-074-5 01 1 9604-0004 ● ● ● ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
Z=12 		1-33372-074-5 01 1 0005-0405 ● ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
Z=12 		1-33372-074-5 01 1 0406- ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> Z=12 		1-33372-074-5 01 1 0406- ●
130 GEAR; DRIVEN,SPD,TRANSFER
TRANSMISSION OIL COOLER<C2C> Z=12 		1-33372-074-5 01 1 0406- ●
184 WASHER; LK,UPR COVER
ID=14.2 		9-09150-514-0 05 1 9604-0004 ● ● ● ● ●
184 WASHER; LK,UPR COVER
ID=14.2 		9-09150-514-0 05 1 0005-0405 ● ● ●
184 WASHER; LK,UPR COVER
ID=14.2 		9-09150-514-0 05 1 0406-0603 ● ●
184 WASHER; LK,UPR COVER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> ID=14.2 		9-09150-514-0 05 1 0406-0603 ●
184 WASHER; LK,UPR COVER
TRANSMISSION OIL COOLER<C2C> ID=14.2 		9-09150-514-0 05 1 0406-0603 ●
184 WASHER; LK,UPR COVER
ID=14.2 		0-91510-514-0 05 1 0604- ● ● ●
191 RETAINER; OIL SEAL,RR UPR 1-36155-007-0 01 1 9604-0004 ● ● ● ● ●
191 RETAINER; OIL SEAL,RR UPR 1-36155-007-0 01 1 0005-0405 ● ● ●
191 RETAINER; OIL SEAL,RR UPR 1-36155-007-0 01 1 0406- ● ●
191 RETAINER; OIL SEAL,RR UPR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36155-007-0 01 1 0406- ●
191 RETAINER; OIL SEAL,RR UPR
TRANSMISSION OIL COOLER<C2C> 		1-36155-007-0 01 1 0406- ●
192 GASKET; RET,RR UPR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-005-0 01 1 9604-0004 ● ● ● ● ●
192 GASKET; RET,RR UPR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-005-0 01 1 0005-0405 ● ● ●
192 GASKET; RET,RR UPR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-005-0 01 1 0406- ● ●
192 GASKET; RET,RR UPR
ALSO INCLUDED IN REPAIR KIT(T/F). MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36156-005-0 01 1 0406- ●
192 GASKET; RET,RR UPR
ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> 		1-36156-005-0 01 1 0406- ●
193 BOLT; RET
M12X28 		0-50051-228-0 04 1 9604-0004 ● ● ● ● ●
193 BOLT; RET
M12X28 		0-50051-228-0 04 1 0005-0405 ● ● ●
193 BOLT; RET
M12X28 		0-50051-228-0 04 1 0406- ● ●
193 BOLT; RET
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M12X28 		0-50051-228-0 04 1 0406- ●
193 BOLT; RET
TRANSMISSION OIL COOLER<C2C> M12X28 		0-50051-228-0 04 1 0406- ●
194 COVER; OIL SEAL,RR UPR 1-33139-001-1 01 1 9604-0004 ● ● ● ● ●
194 COVER; OIL SEAL,RR UPR 1-33139-001-1 01 1 0005-0405 ● ● ●
194 COVER; OIL SEAL,RR UPR 1-33139-001-1 01 1 0406- ● ●
194 COVER; OIL SEAL,RR UPR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-33139-001-1 01 1 0406- ●
194 COVER; OIL SEAL,RR UPR
TRANSMISSION OIL COOLER<C2C> 		1-33139-001-1 01 1 0406- ●
301 ADAPTER; SWITCH,TRANSFER 1-09669-101-0 01 1 9604-0004 ● ● ● ● ●
301 ADAPTER; SWITCH,TRANSFER 1-09669-101-0 01 1 0005-0205 ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.5 		1-36355-022-0 01 1 9604-0004 ● ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.5 		1-36355-022-0 01 1 0005-0405 ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.5 		1-36355-022-0 01 1 0406- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=19.5 		1-36355-022-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=19.5 		1-36355-022-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.7 		1-36355-023-0 01 1 9604-0004 ● ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.7 		1-36355-023-0 01 1 0005-0405 ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.7 		1-36355-023-0 01 1 0406- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=19.7 		1-36355-023-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=19.7 		1-36355-023-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.9 		1-36355-024-0 01 1 9604-0004 ● ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.9 		1-36355-024-0 01 1 0005-0405 ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.9 		1-36355-024-0 01 1 0406- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=19.9 		1-36355-024-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=19.9 		1-36355-024-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.1 		1-36355-025-0 01 1 9604-0004 ● ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.1 		1-36355-025-0 01 1 0005-0405 ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.1 		1-36355-025-0 01 1 0406- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=20.1 		1-36355-025-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=20.1 		1-36355-025-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.3 		1-36355-026-0 01 1 9604-0004 ● ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.3 		1-36355-026-0 01 1 0005-0405 ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.3 		1-36355-026-0 01 1 0406- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=20.3 		1-36355-026-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=20.3 		1-36355-026-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.5 		1-36355-027-0 01 1 9604-0004 ● ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.5 		1-36355-027-0 01 1 0005-0405 ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.5 		1-36355-027-0 01 1 0406- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=20.5 		1-36355-027-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=20.5 		1-36355-027-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.7 		1-36355-028-0 01 1 9604-0004 ● ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.7 		1-36355-028-0 01 1 0005-0405 ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.7 		1-36355-028-0 01 1 0406- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=20.7 		1-36355-028-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=20.7 		1-36355-028-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.9 		1-36355-029-0 01 1 9604-0004 ● ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.9 		1-36355-029-0 01 1 0005-0405 ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.9 		1-36355-029-0 01 1 0406- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=20.9 		1-36355-029-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=20.9 		1-36355-029-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=21.1 		1-36355-030-0 01 1 9604-0004 ● ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=21.1 		1-36355-030-0 01 1 0005-0405 ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=21.1 		1-36355-030-0 01 1 0406- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> T=21.1 		1-36355-030-0 01 1 0406- ●
314 PIECE; DISTANCE,OUTPUT SHAFT
TRANSMISSION OIL COOLER<C2C> T=21.1 		1-36355-030-0 01 1 0406- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
