2-60 — TRANSFER (#36781) — 473 parça

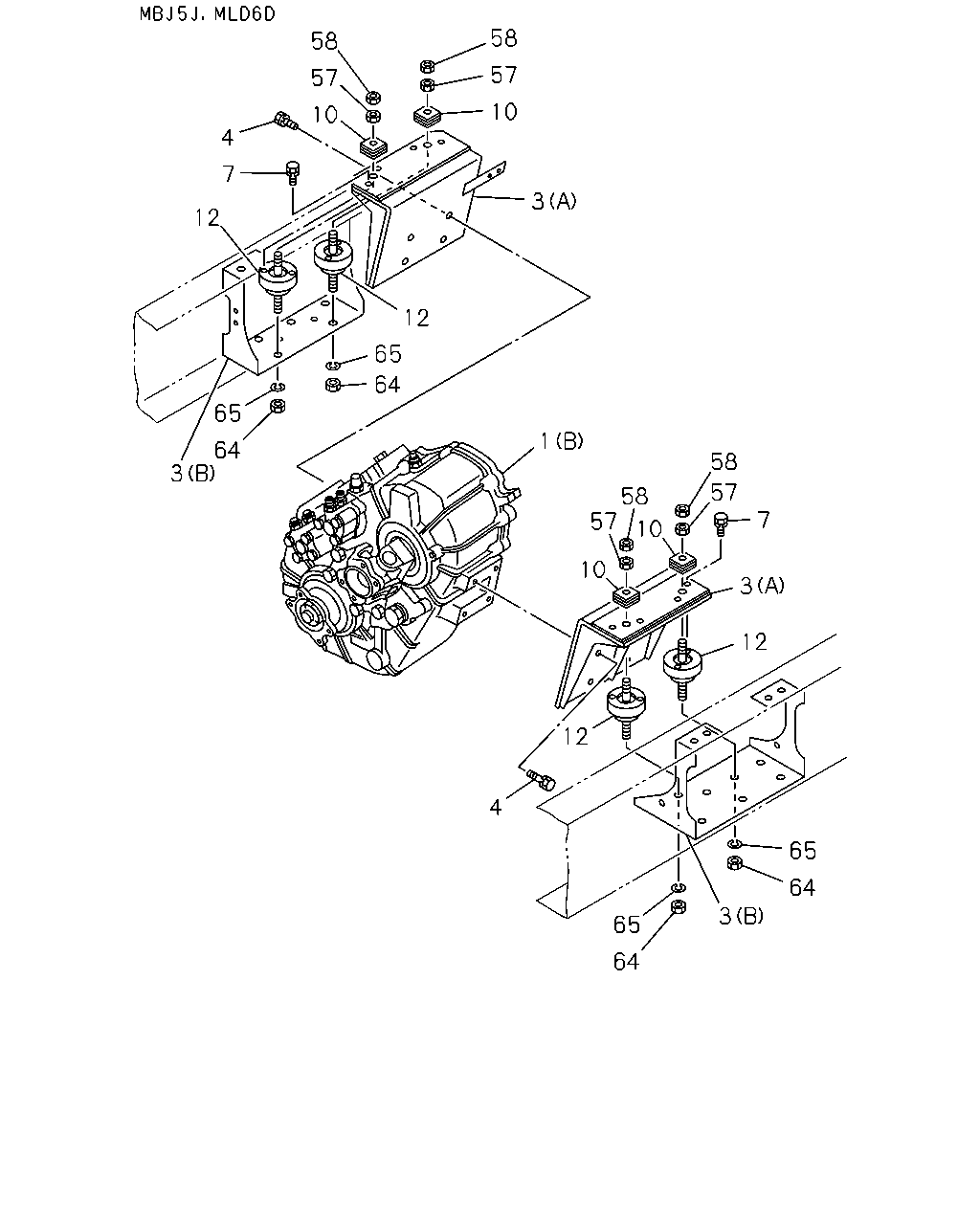

çizim 152702
58 58 57 57 10 10 4 7 3 12 12 65 64 65 1 64 3 58 57 58 57 10 7 10 3 12 12 4 65 64 3 65 64
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 TRANSFER ASM
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) 		1-36000-695-0 01 1 0406- ●
1 TRANSFER ASM
TRANSMISSION OIL COOLER<C2C> (A) 		1-36000-637-0 01 1 9604-0004 ● ● ● ●
1 TRANSFER ASM
TRANSMISSION OIL COOLER<C2C> (A) 		1-36000-637-0 01 1 0005-0405 ●
1 TRANSFER ASM
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) 		1-36000-637-0 01 1 0406- ●
1 TRANSFER ASM
PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-36000-614-0 01 1 9604-0004 ● ●
1 TRANSFER ASM
(B) 		1-36000-614-0 01 1 9604-0004 ●
1 TRANSFER ASM
(B) 		1-36000-614-0 01 1 0005-0405 ● ●
1 TRANSFER ASM
EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-36000-614-0 01 1 0005-0405 ●
1 TRANSFER ASM
(B) 		1-36000-614-0 01 1 0406- ● ●
1 TRANSFER ASM
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-36000-614-0 01 1 0406- ●
1 TRANSFER ASM
EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION OIL COOLER<C2C> (B) 		1-36000-638-0 01 1 9604-0004 ● ●
1 TRANSFER ASM
EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-36000-638-0 01 1 9604-0004 ● ●
3 BRACKET; TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) 		1-36183-184-1 01 1 0406- ●
3 BRACKET; TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) 		1-36183-185-2 01 1 0406- ●
3 BRACKET; TRANSFER
NEW ZEALAND EQUIPMENT(PK5) (D) 		1-53291-098-1 01 1 0406- ●
3 BRACKET; TRANSFER
NEW ZEALAND EQUIPMENT(PK5) (D) 		1-53291-099-1 01 1 0406- ●
3 BRACKET; TRANSFER
(B) 		1-53291-065-4 01 1 9604-0004 ● ●
3 BRACKET; TRANSFER
(B) 		1-53291-065-4 01 1 0005- ●
3 BRACKET; TRANSFER
(B) 		1-53291-064-6 01 1 9604-0004 ● ●
3 BRACKET; TRANSFER
(B) 		1-53291-064-6 01 1 0005- ●
3 BRACKET; TRANSFER
(A) 		1-36183-164-0 01 1 9604-0004 ● ●
3 BRACKET; TRANSFER
(A) 		1-36183-164-0 01 1 0005- ●
3 BRACKET; TRANSFER
(A) 		1-36183-163-0 01 1 9604-0004 ● ●
3 BRACKET; TRANSFER
(A) 		1-36183-163-0 01 1 0005- ●
3 BRACKET; TRANSFER
(B) 		1-53291-061-4 01 1 0005-0405 ● ●
3 BRACKET; TRANSFER
(B) 		1-53291-061-4 01 1 0406- ●
3 BRACKET; TRANSFER
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-53291-061-4 01 1 0406- ●
3 BRACKET; TRANSFER
(B) 		1-53291-060-3 01 1 0005-0405 ● ●
3 BRACKET; TRANSFER
(B) 		1-53291-060-3 01 1 0406- ●
3 BRACKET; TRANSFER
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-53291-060-3 01 1 0406- ●
3 BRACKET; TRANSFER
(A) 		1-36183-180-0 01 1 9604-0004 ● ● ●
3 BRACKET; TRANSFER
(A) 		1-36183-180-0 01 1 0005-0405 ● ●
3 BRACKET; TRANSFER
(A) 		1-36183-180-0 01 1 0406- ●
3 BRACKET; TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-180-0 01 1 0406- ●
3 BRACKET; TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-180-0 01 1 0406- ●
3 BRACKET; TRANSFER
(A) 		1-36183-114-6 01 1 9604-0004 ● ● ●
3 BRACKET; TRANSFER
(A) 		1-36183-114-6 01 1 0005-0405 ● ●
3 BRACKET; TRANSFER
(A) 		1-36183-114-6 01 1 0406- ●
3 BRACKET; TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-114-6 01 1 0406- ●
3 BRACKET; TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-114-6 01 1 0406- ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28081-230-0 08 1 9604-9606 ● ● ● ● ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28681-230-0 08 1 9607-0004 ● ● ● ● ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28681-230-0 08 1 0005-0405 ● ● ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28681-230-0 AR 1 0406-0512 ● ●
4 BOLT; BRKT TO TRANSFER
EXC. TRANSFER TF56<BFK> M12X30 FLANGE 		0-28681-230-0 AR 1 0406-0512 ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28651-230-0 AR 1 0601- ● ●
4 BOLT; BRKT TO TRANSFER
EXC. TRANSFER TF56<BFK> M12X30 FLANGE 		0-28651-230-0 AR 1 0601- ●
4 BOLT; BRKT TO TRANSFER
M12X30 W/LK WASHER 		0-50051-230-0 08 1 9804-0004 ● ● ● ● ●
4 BOLT; BRKT TO TRANSFER
M12X30 W/LK WASHER 		0-50051-230-0 08 1 0005-0706 ● ● ●
4 BOLT; BRKT TO TRANSFER
M12X25 FLANGE 		0-28151-225-0 08 1 0707- ● ● ●
7 BOLT; CUSHION RUBBER
TRANSFER TF56<BFK> 		1-09000-239-1 04 1 0406- ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28081-025-0 08 1 9604-9606 ● ● ● ● ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28681-025-0 08 1 9607-9701 ● ● ● ● ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28081-025-0 08 1 9702-0004 ● ● ● ● ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28081-025-0 08 1 0005-0405 ● ● ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28081-025-0 08 1 0406-0512 ● ●
7 BOLT; CUSHION RUBBER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE 		0-28081-025-0 08 1 0406-0512 ●
7 BOLT; CUSHION RUBBER
TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE 		0-28081-025-0 08 1 0406-0512 ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28051-025-0 08 1 0601- ● ● ●
10 RUBBER; CUSHION,UPR,TRANSFER 1-36189-027-0 04 1 9604-0004 ● ● ● ● ●
10 RUBBER; CUSHION,UPR,TRANSFER 1-36189-027-0 04 1 0005-0405 ● ● ●
10 RUBBER; CUSHION,UPR,TRANSFER 1-36189-027-0 04 1 0406- ● ●
10 RUBBER; CUSHION,UPR,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36189-027-0 04 1 0406- ●
10 RUBBER; CUSHION,UPR,TRANSFER
TRANSMISSION OIL COOLER<C2C> 		1-36189-027-0 04 1 0406- ●
12 RUBBER; CUSHION,LWR,TRANSFER
TRANSFER TF56<BFK> 		1-36189-040-1 08 1 0406- ●
12 RUBBER; CUSHION,LWR,TRANSFER 1-36189-026-2 04 1 9604-0004 ● ● ● ● ●
12 RUBBER; CUSHION,LWR,TRANSFER 1-36189-026-2 04 1 0005-0405 ● ● ●
12 RUBBER; CUSHION,LWR,TRANSFER 1-36189-026-2 04 1 0406- ● ●
12 RUBBER; CUSHION,LWR,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36189-026-2 04 1 0406- ●
12 RUBBER; CUSHION,LWR,TRANSFER
TRANSMISSION OIL COOLER<C2C> 		1-36189-026-2 04 1 0406- ●
57 NUT; CUSHION RUBBER,UPR
M12 		9-99110-512-0 04 1 9604-0004 ● ● ● ● ●
57 NUT; CUSHION RUBBER,UPR
M12 		9-99110-512-0 04 1 0005-0405 ● ● ●
57 NUT; CUSHION RUBBER,UPR
M12 		9-99110-512-0 04 1 0406-0512 ● ●
57 NUT; CUSHION RUBBER,UPR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M12 		9-99110-512-0 04 1 0406-0512 ●
57 NUT; CUSHION RUBBER,UPR
TRANSMISSION OIL COOLER<C2C> M12 		9-99110-512-0 04 1 0406-0512 ●
57 NUT; CUSHION RUBBER,UPR
M12 		0-91110-512-0 04 1 0601- ● ● ●
58 NUT; CUSHION RUBBER,LK UPR
M12 		9-99111-412-0 04 1 9604-9701 ● ● ● ● ●
64 NUT; CUSHION RUBBER,LWR
M14 		9-99110-414-0 04 1 9604-0004 ● ● ● ● ●
64 NUT; CUSHION RUBBER,LWR
M14 		9-99110-414-0 04 1 0005-0405 ● ● ●
64 NUT; CUSHION RUBBER,LWR
M14 		9-99110-414-0 04 1 0406-0512 ● ●
64 NUT; CUSHION RUBBER,LWR
EXC. TRANSFER TF56<BFK> M14 		9-99110-414-0 04 1 0406-0512 ●
64 NUT; CUSHION RUBBER,LWR
M14 		0-91110-514-0 04 1 0601- ● ●
64 NUT; CUSHION RUBBER,LWR
EXC. TRANSFER TF56<BFK> M14 		0-91110-514-0 04 1 0601- ●
64 NUT; CUSHION RUBBER,LWR
M12 		9-99111-412-0 04 1 9702-0004 ● ● ● ● ●
64 NUT; CUSHION RUBBER,LWR
M12 		9-99111-412-0 04 1 0005-0405 ● ● ●
64 NUT; CUSHION RUBBER,LWR
M12 		9-99111-412-0 04 1 0406-0512 ● ●
64 NUT; CUSHION RUBBER,LWR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M12 		9-99111-412-0 04 1 0406-0512 ●
64 NUT; CUSHION RUBBER,LWR
TRANSMISSION OIL COOLER<C2C> M12 		9-99111-412-0 04 1 0406-0512 ●
64 NUT; CUSHION RUBBER,LWR
M12 		0-91111-512-0 04 1 0601- ● ● ●
65 WASHER; LK,CUSHION RUBBER,LWR
ID=14.2 		9-09150-514-0 04 1 9604-0004 ● ● ● ● ●
65 WASHER; LK,CUSHION RUBBER,LWR
ID=14.2 		9-09150-514-0 04 1 0005-0405 ● ● ●
65 WASHER; LK,CUSHION RUBBER,LWR
ID=14.2 		9-09150-514-0 04 1 0406-0603 ● ●
65 WASHER; LK,CUSHION RUBBER,LWR
EXC. TRANSFER TF56<BFK> ID=14.2 		9-09150-514-0 04 1 0406-0603 ●
65 WASHER; LK,CUSHION RUBBER,LWR
ID=14.2 		0-91510-514-0 04 1 0604- ● ●
65 WASHER; LK,CUSHION RUBBER,LWR
EXC. TRANSFER TF56<BFK> ID=14.2 		0-91510-514-0 04 1 0604- ●

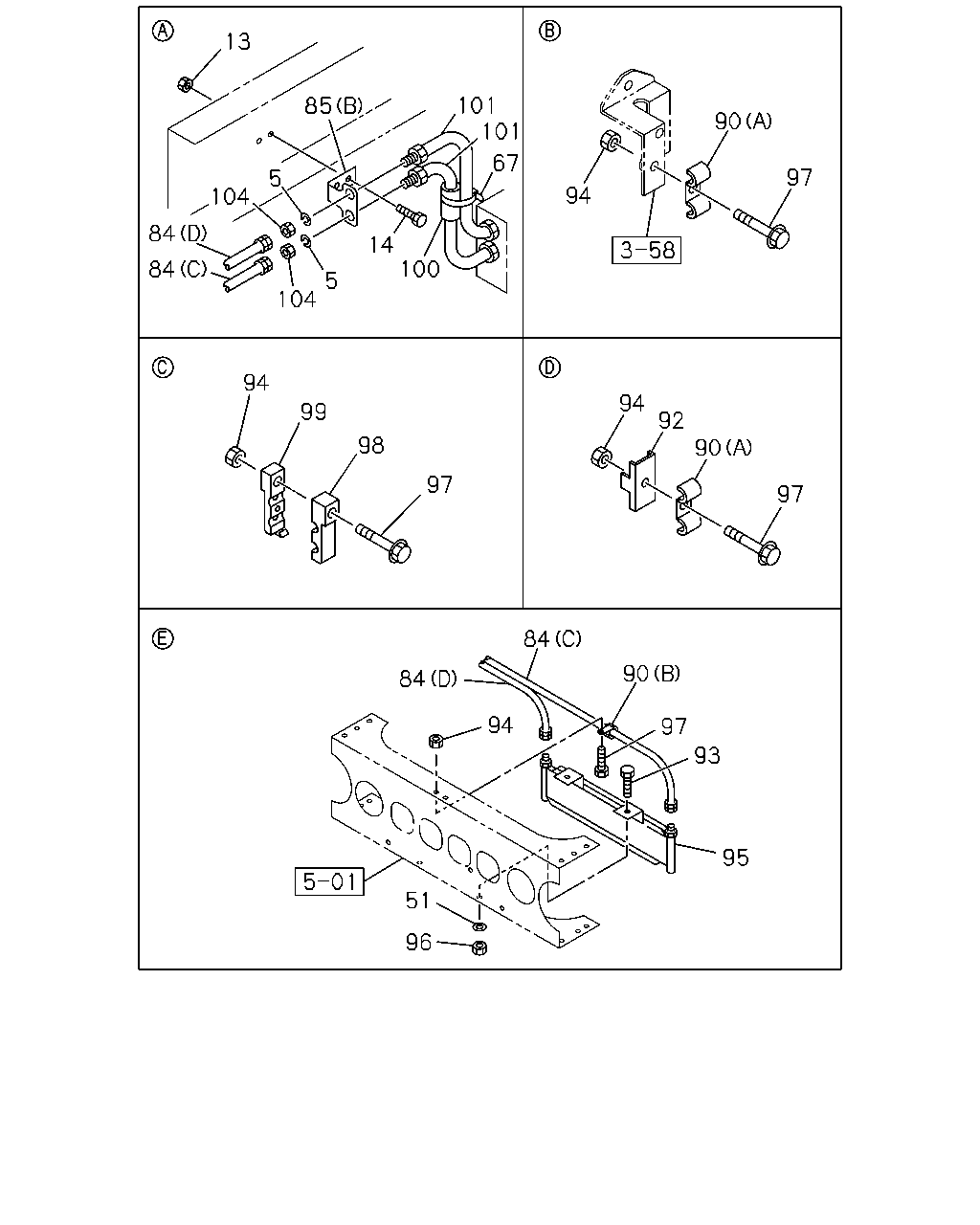

çizim 152708
13 101 101 85 90 67 97 5 94 104 84 14 100 84 5 104 94 94 99 92 98 90 97 97 84 90 84 94 97 93 95 51 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E
5 WASHER; LK
TRANSMISSION OIL COOLER<C2C> ID=16.2 		9-09150-516-0 02 1 9604-0004 ● ● ● ●
5 WASHER; LK
TRANSMISSION OIL COOLER<C2C> ID=16.2 		9-09150-516-0 02 1 0005-0603 ●
5 WASHER; LK
TRANSMISSION OIL COOLER<C2C> ID=16.2 		0-91510-516-0 02 1 0604- ●
13 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 		9-09110-408-0 02 1 9604-9604 ● ● ● ●
14 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606 ● ● ● ●
14 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ● ● ● ●
14 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ●
14 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
51 WASHER; PL
TRANSMISSION OIL COOLER<C2C> ID=10.5 OD=22 		9-09160-610-0 02 1 9604-9606 ● ● ● ●
67 CLIP; BAND
TRANSFER TF56<BFK> ID=14 		1-09704-102-0 02 1 0406- ●
67 CLIP; BAND
TRANSMISSION OIL COOLER<C2C> L=250 		5-09707-030-1 01 1 9604-0004 ● ● ● ●
67 CLIP; BAND
TRANSMISSION OIL COOLER<C2C> L=250 		5-09707-030-1 01 1 0005- ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (C) 		1-47429-628-0 01 1 9604-9710 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (C) 		1-49162-001-0 01 1 9711-0004 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (D) 		1-47429-629-0 01 1 9604-9710 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (D) 		1-49162-002-0 01 1 9711-0004 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (A) 		1-36161-031-0 01 1 9604-0003 ● ● ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (E) 		1-36161-041-0 01 1 0004-0004 ● ● ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (E) 		1-36161-041-0 01 1 0005-0405 ●
84 PIPE; T/F,COOLER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (E) 		1-36161-041-0 01 1 0406- ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (B) 		1-36161-032-1 01 1 9604-0004 ● ● ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (B) 		1-36161-032-1 01 1 0005-0405 ●
84 PIPE; T/F,COOLER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (B) 		1-36161-032-1 01 1 0406- ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (C) 		1-49116-791-0 01 1 9604-9605 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (C) 		1-47429-919-1 01 1 9606-0004 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (C) 		1-47429-919-1 01 1 0005- ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (D) 		1-49116-792-0 01 1 9604-9605 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (D) 		1-47429-920-0 01 1 9606-0004 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (D) 		1-47429-920-0 01 1 0005-0104 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (D) 		1-49166-074-0 01 1 0105- ●
85 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-181-0 01 1 9604-0003 ● ● ● ●
85 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-222-0 01 1 0004-0004 ● ● ● ●
85 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-222-0 01 1 0005-0405 ●
85 BRACKET; FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-222-0 01 1 0406- ●
85 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (B) 		1-47477-643-0 01 1 9604-9605 ● ● ● ●
85 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (B) 		1-47477-643-1 01 1 9606-0004 ● ●
85 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (B) 		1-47477-806-0 01 1 9606-0004 ● ●
85 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (B) 		1-47477-806-0 01 1 0005- ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 9604-9710 ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 03 1 9711-0004 ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9604-0003 ● ● ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (C) 		1-09700-695-2 01 1 0004-0004 ● ● ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (C) 		1-09700-695-2 01 1 0005-0405 ●
90 CLIP
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (C) 		1-09700-695-2 01 1 0406- ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20 		5-09700-351-0 01 1 9604-0004 ● ● ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20 		5-09700-351-0 01 1 0005-0707 ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20 		8-98033-780-0 01 1 0708- ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (A) ID=9 & 9 L=25 		1-09701-212-0 01 1 0004-0004 ● ● ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0005-0405 ●
90 CLIP
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0406- ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 04 1 9604-0004 ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 04 1 0005- ●
92 BRACKET
TRANSMISSION OIL COOLER<C2C> 		1-47475-427-1 02 1 9711-0004 ● ●
92 BRACKET
TRANSMISSION OIL COOLER<C2C> 		1-47475-427-1 03 1 0005-0405 ●
92 BRACKET
TRANSMISSION OIL COOLER<C2C> MLD6 M/T<X9Y> EXC. TRANSFER TF56<BFK> 		1-47475-427-1 03 1 0406- ●
92 BRACKET
TRANSMISSION OIL COOLER<C2C> 		1-47475-427-1 03 1 9604-0004 ● ●
93 BOLT
TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE 		0-28081-025-0 02 1 9604-9606 ● ● ● ●
93 BOLT
TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE 		0-28681-025-0 02 1 9607-0004 ● ● ● ●
93 BOLT
TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE 		0-28681-025-0 02 1 0005-0512 ●
93 BOLT
TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE 		0-28651-025-0 02 1 0601- ●
94 NUT
TRANSMISSION OIL COOLER<C2C> M8 		9-09110-408-0 02 1 9604-9606 ● ●
94 NUT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ●
94 NUT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 04 1 0005-0405 ●
94 NUT
TRANSMISSION OIL COOLER<C2C> MLD6 M/T<X9Y> EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91150-108-0 04 1 0406-0602 ●
94 NUT
TRANSMISSION OIL COOLER<C2C> MLD6 M/T<X9Y> EXC. TRANSFER TF56<BFK> M8 FLANGE 		0-91180-108-0 04 1 0603- ●
94 NUT
TRANSMISSION OIL COOLER<C2C> M8 		9-09110-408-0 04 1 9604-9606 ● ●
94 NUT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 04 1 9607-0004 ● ●
95 COOLER
TRANSMISSION OIL COOLER<C2C> 		1-21700-290-0 01 1 9604-0004 ● ● ● ●
95 COOLER
TRANSMISSION OIL COOLER<C2C> 		1-21700-290-0 01 1 0005-0609 ●
95 COOLER
TRANSMISSION OIL COOLER<C2C> 		1-21700-394-0 01 1 0610-1405 ●
95 COOLER
TRANSMISSION OIL COOLER<C2C> 		8-98269-766-0 01 1 1406- ●
96 NUT
TRANSMISSION OIL COOLER<C2C> M10 		9-09110-510-0 02 1 9604-9606 ● ● ● ●
96 NUT
TRANSMISSION OIL COOLER<C2C> M10 FLANGE 		0-91150-210-0 02 1 9607-0004 ● ● ● ●
96 NUT
TRANSMISSION OIL COOLER<C2C> M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ●
96 NUT
TRANSMISSION OIL COOLER<C2C> M10 FLANGE 		0-91180-210-0 02 1 0603- ●
97 BOLT
TRANSMISSION OIL COOLER<C2C> M8X16 FLANGE 		0-28080-816-0 02 1 9604-0004 ● ●
97 BOLT
TRANSMISSION OIL COOLER<C2C> M8X16 FLANGE 		0-28080-816-0 01 1 0005-0405 ●
97 BOLT
TRANSMISSION OIL COOLER<C2C> MLD6 M/T<X9Y> EXC. TRANSFER TF56<BFK> M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ●
97 BOLT
TRANSMISSION OIL COOLER<C2C> MLD6 M/T<X9Y> EXC. TRANSFER TF56<BFK> M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
97 BOLT
TRANSMISSION OIL COOLER<C2C> M8X50 FLANGE 		0-28080-850-0 01 1 9604-0004 ● ●
97 BOLT
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28080-820-0 01 1 9604-9606 ● ● ● ●
97 BOLT
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 01 1 9607-0004 ● ● ● ●
97 BOLT
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ●
97 BOLT
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
97 BOLT
TRANSMISSION OIL COOLER<C2C> M8X16 FLANGE 		0-28080-816-0 01 1 9604-0004 ● ●
97 BOLT
TRANSMISSION OIL COOLER<C2C> M8X40 FLANGE 		0-28080-840-0 03 1 9604-9606 ● ●
97 BOLT
TRANSMISSION OIL COOLER<C2C> M8X40 FLANGE 		0-28680-840-0 03 1 9607-0004 ● ●
97 BOLT
TRANSMISSION OIL COOLER<C2C> M8X40 FLANGE 		0-28680-840-0 03 1 0005-0405 ●
97 BOLT
TRANSMISSION OIL COOLER<C2C> MLD6 M/T<X9Y> EXC. TRANSFER TF56<BFK> M8X40 FLANGE 		0-28680-840-0 03 1 0406-0512 ●
97 BOLT
TRANSMISSION OIL COOLER<C2C> MLD6 M/T<X9Y> EXC. TRANSFER TF56<BFK> M8X40 FLANGE 		0-28650-840-0 03 1 0601- ●
98 CLIP; UPR
TRANSMISSION OIL COOLER<C2C> ID=10 & 10 		1-09709-241-0 01 1 9604-9710 ● ●
99 CLIP; LWR
TRANSMISSION OIL COOLER<C2C> ID=10 & 10 		1-09709-243-0 01 1 9604-9710 ● ●
100 SLEEVE
TRANSMISSION OIL COOLER<C2C> ID=32 OD=36 L=50 		1-09337-023-0 01 1 9604-0004 ● ● ● ●
100 SLEEVE
TRANSMISSION OIL COOLER<C2C> ID=32 OD=36 L=50 		1-09337-023-0 01 1 0005- ●
101 HOSE; FLEX
TRANSMISSION OIL COOLER<C2C> L=450 		1-09364-625-0 02 1 9604-0004 ● ● ● ●
101 HOSE; FLEX
TRANSMISSION OIL COOLER<C2C> L=450 		1-09364-625-0 02 1 0005- ●
104 NUT; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M16 		9-99111-416-0 02 1 9604-0004 ● ● ● ●
104 NUT; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M16 		9-99111-416-0 02 1 0005-0512 ●
104 NUT; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M16 		0-91111-516-0 02 1 0601- ●

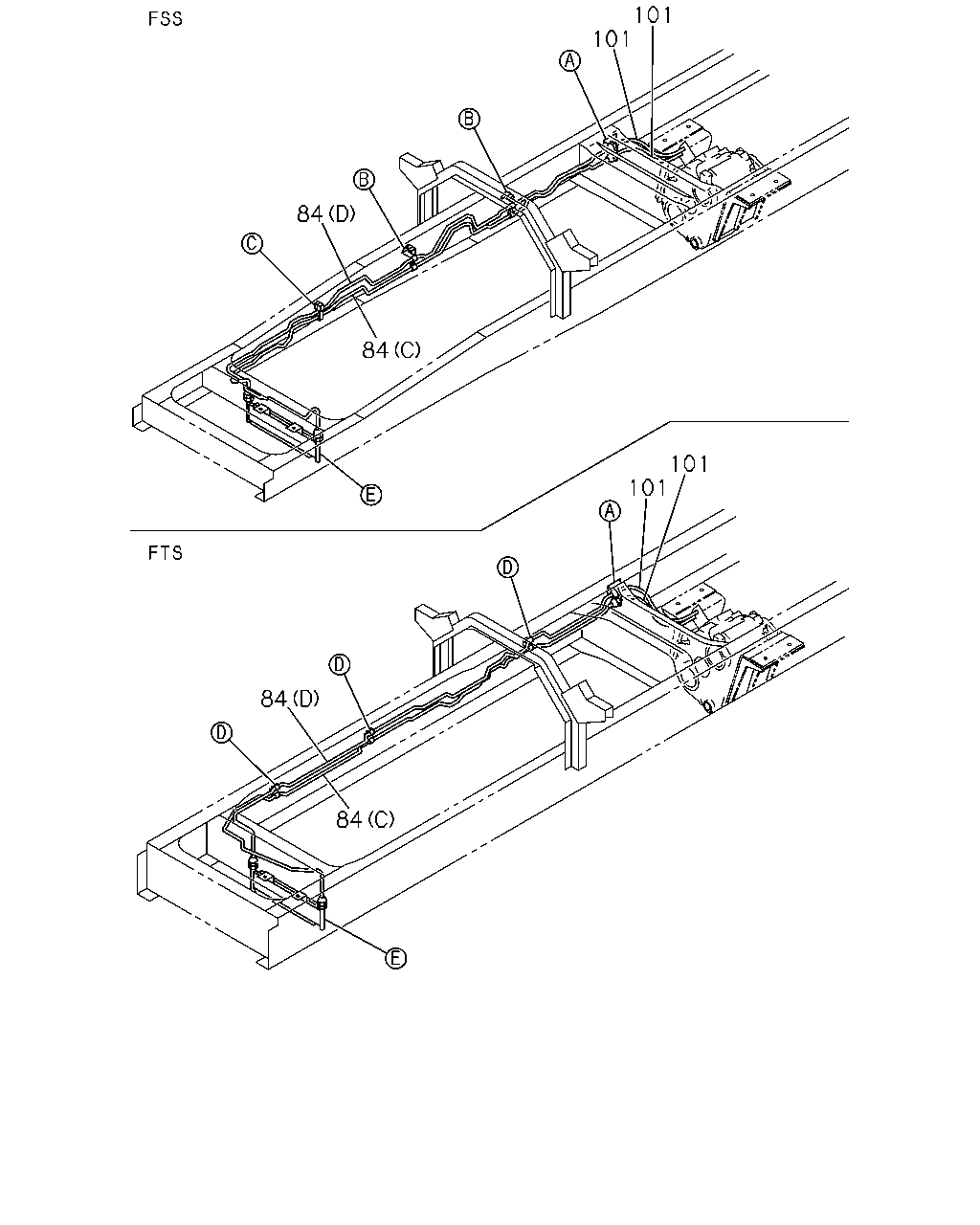

çizim 152712
101 101 84 84 101 101 84 84
BalonParca AdiParca NoAdetTipApplied Date A B C D E
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (C) 		1-47429-628-0 01 1 9604-9710 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (C) 		1-49162-001-0 01 1 9711-0004 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (D) 		1-47429-629-0 01 1 9604-9710 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (D) 		1-49162-002-0 01 1 9711-0004 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (A) 		1-36161-031-0 01 1 9604-0003 ● ● ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (E) 		1-36161-041-0 01 1 0004-0004 ● ● ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (E) 		1-36161-041-0 01 1 0005-0405 ●
84 PIPE; T/F,COOLER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (E) 		1-36161-041-0 01 1 0406- ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (B) 		1-36161-032-1 01 1 9604-0004 ● ● ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (B) 		1-36161-032-1 01 1 0005-0405 ●
84 PIPE; T/F,COOLER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (B) 		1-36161-032-1 01 1 0406- ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (C) 		1-49116-791-0 01 1 9604-9605 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (C) 		1-47429-919-1 01 1 9606-0004 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (C) 		1-47429-919-1 01 1 0005- ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (D) 		1-49116-792-0 01 1 9604-9605 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (D) 		1-47429-920-0 01 1 9606-0004 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (D) 		1-47429-920-0 01 1 0005-0104 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (D) 		1-49166-074-0 01 1 0105- ●
101 HOSE; FLEX
TRANSMISSION OIL COOLER<C2C> L=450 		1-09364-625-0 02 1 9604-0004 ● ● ● ●
101 HOSE; FLEX
TRANSMISSION OIL COOLER<C2C> L=450 		1-09364-625-0 02 1 0005- ●

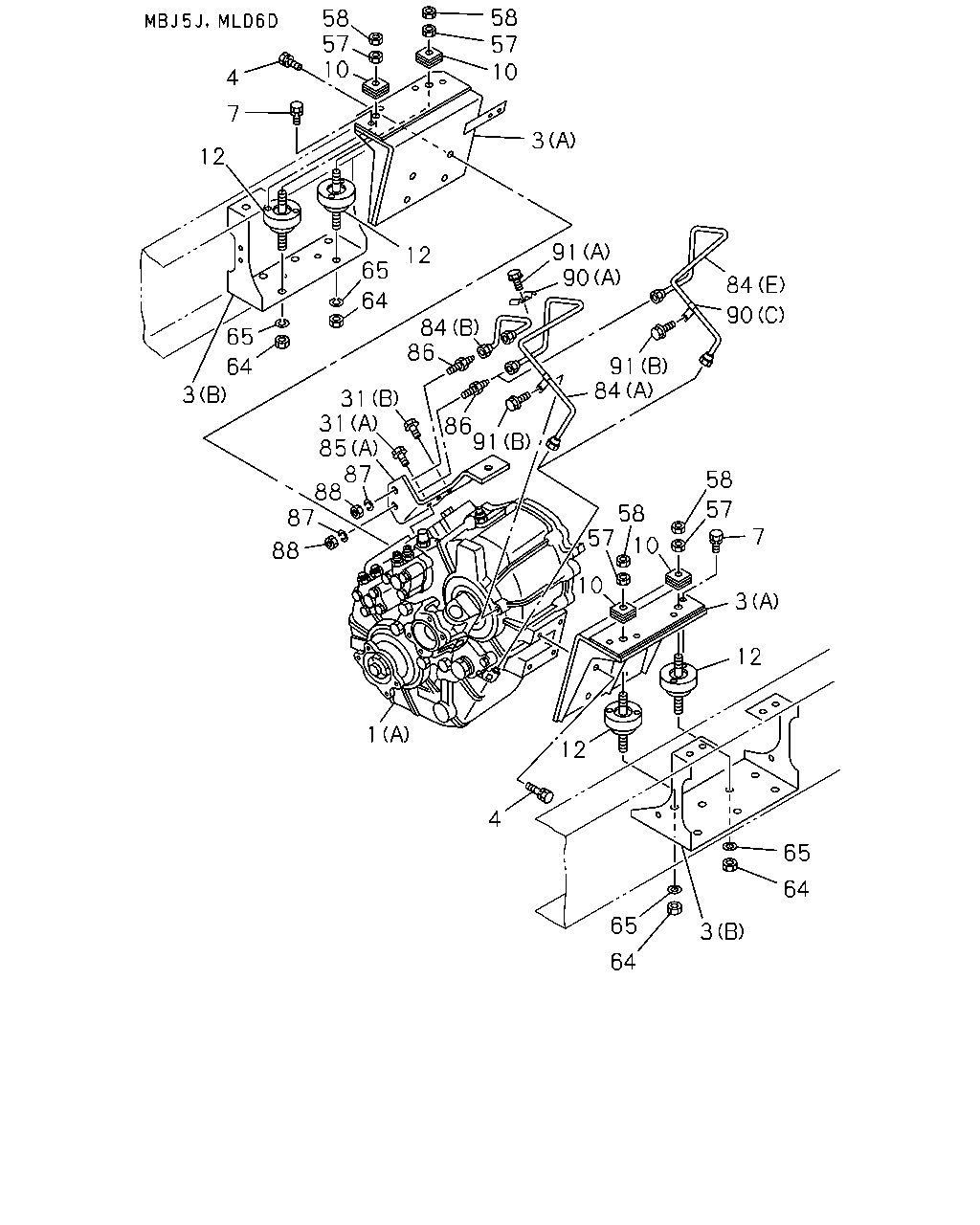

çizim 152717
58 57 10 58 57 10 4 7 3 12 91 90 12 65 84 64 90 84 86 65 91 84 64 3 31 31 85 87 88 87 86 91 58 57 58 57 10 7 88 10 3 12 1 12 4 65 64 65 3 64
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 TRANSFER ASM
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) 		1-36000-695-0 01 1 0406- ●
1 TRANSFER ASM
TRANSMISSION OIL COOLER<C2C> (A) 		1-36000-637-0 01 1 9604-0004 ● ● ● ●
1 TRANSFER ASM
TRANSMISSION OIL COOLER<C2C> (A) 		1-36000-637-0 01 1 0005-0405 ●
1 TRANSFER ASM
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) 		1-36000-637-0 01 1 0406- ●
1 TRANSFER ASM
PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-36000-614-0 01 1 9604-0004 ● ●
1 TRANSFER ASM
(B) 		1-36000-614-0 01 1 9604-0004 ●
1 TRANSFER ASM
(B) 		1-36000-614-0 01 1 0005-0405 ● ●
1 TRANSFER ASM
EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-36000-614-0 01 1 0005-0405 ●
1 TRANSFER ASM
(B) 		1-36000-614-0 01 1 0406- ● ●
1 TRANSFER ASM
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-36000-614-0 01 1 0406- ●
1 TRANSFER ASM
EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION OIL COOLER<C2C> (B) 		1-36000-638-0 01 1 9604-0004 ● ●
1 TRANSFER ASM
EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-36000-638-0 01 1 9604-0004 ● ●
3 BRACKET; TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) 		1-36183-184-1 01 1 0406- ●
3 BRACKET; TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) 		1-36183-185-2 01 1 0406- ●
3 BRACKET; TRANSFER
NEW ZEALAND EQUIPMENT(PK5) (D) 		1-53291-098-1 01 1 0406- ●
3 BRACKET; TRANSFER
NEW ZEALAND EQUIPMENT(PK5) (D) 		1-53291-099-1 01 1 0406- ●
3 BRACKET; TRANSFER
(B) 		1-53291-065-4 01 1 9604-0004 ● ●
3 BRACKET; TRANSFER
(B) 		1-53291-065-4 01 1 0005- ●
3 BRACKET; TRANSFER
(B) 		1-53291-064-6 01 1 9604-0004 ● ●
3 BRACKET; TRANSFER
(B) 		1-53291-064-6 01 1 0005- ●
3 BRACKET; TRANSFER
(A) 		1-36183-164-0 01 1 9604-0004 ● ●
3 BRACKET; TRANSFER
(A) 		1-36183-164-0 01 1 0005- ●
3 BRACKET; TRANSFER
(A) 		1-36183-163-0 01 1 9604-0004 ● ●
3 BRACKET; TRANSFER
(A) 		1-36183-163-0 01 1 0005- ●
3 BRACKET; TRANSFER
(B) 		1-53291-061-4 01 1 0005-0405 ● ●
3 BRACKET; TRANSFER
(B) 		1-53291-061-4 01 1 0406- ●
3 BRACKET; TRANSFER
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-53291-061-4 01 1 0406- ●
3 BRACKET; TRANSFER
(B) 		1-53291-060-3 01 1 0005-0405 ● ●
3 BRACKET; TRANSFER
(B) 		1-53291-060-3 01 1 0406- ●
3 BRACKET; TRANSFER
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-53291-060-3 01 1 0406- ●
3 BRACKET; TRANSFER
(A) 		1-36183-180-0 01 1 9604-0004 ● ● ●
3 BRACKET; TRANSFER
(A) 		1-36183-180-0 01 1 0005-0405 ● ●
3 BRACKET; TRANSFER
(A) 		1-36183-180-0 01 1 0406- ●
3 BRACKET; TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-180-0 01 1 0406- ●
3 BRACKET; TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-180-0 01 1 0406- ●
3 BRACKET; TRANSFER
(A) 		1-36183-114-6 01 1 9604-0004 ● ● ●
3 BRACKET; TRANSFER
(A) 		1-36183-114-6 01 1 0005-0405 ● ●
3 BRACKET; TRANSFER
(A) 		1-36183-114-6 01 1 0406- ●
3 BRACKET; TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-114-6 01 1 0406- ●
3 BRACKET; TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-114-6 01 1 0406- ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28081-230-0 08 1 9604-9606 ● ● ● ● ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28681-230-0 08 1 9607-0004 ● ● ● ● ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28681-230-0 08 1 0005-0405 ● ● ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28681-230-0 AR 1 0406-0512 ● ●
4 BOLT; BRKT TO TRANSFER
EXC. TRANSFER TF56<BFK> M12X30 FLANGE 		0-28681-230-0 AR 1 0406-0512 ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28651-230-0 AR 1 0601- ● ●
4 BOLT; BRKT TO TRANSFER
EXC. TRANSFER TF56<BFK> M12X30 FLANGE 		0-28651-230-0 AR 1 0601- ●
4 BOLT; BRKT TO TRANSFER
M12X30 W/LK WASHER 		0-50051-230-0 08 1 9804-0004 ● ● ● ● ●
4 BOLT; BRKT TO TRANSFER
M12X30 W/LK WASHER 		0-50051-230-0 08 1 0005-0706 ● ● ●
4 BOLT; BRKT TO TRANSFER
M12X25 FLANGE 		0-28151-225-0 08 1 0707- ● ● ●
7 BOLT; CUSHION RUBBER
TRANSFER TF56<BFK> 		1-09000-239-1 04 1 0406- ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28081-025-0 08 1 9604-9606 ● ● ● ● ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28681-025-0 08 1 9607-9701 ● ● ● ● ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28081-025-0 08 1 9702-0004 ● ● ● ● ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28081-025-0 08 1 0005-0405 ● ● ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28081-025-0 08 1 0406-0512 ● ●
7 BOLT; CUSHION RUBBER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE 		0-28081-025-0 08 1 0406-0512 ●
7 BOLT; CUSHION RUBBER
TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE 		0-28081-025-0 08 1 0406-0512 ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28051-025-0 08 1 0601- ● ● ●
10 RUBBER; CUSHION,UPR,TRANSFER 1-36189-027-0 04 1 9604-0004 ● ● ● ● ●
10 RUBBER; CUSHION,UPR,TRANSFER 1-36189-027-0 04 1 0005-0405 ● ● ●
10 RUBBER; CUSHION,UPR,TRANSFER 1-36189-027-0 04 1 0406- ● ●
10 RUBBER; CUSHION,UPR,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36189-027-0 04 1 0406- ●
10 RUBBER; CUSHION,UPR,TRANSFER
TRANSMISSION OIL COOLER<C2C> 		1-36189-027-0 04 1 0406- ●
12 RUBBER; CUSHION,LWR,TRANSFER
TRANSFER TF56<BFK> 		1-36189-040-1 08 1 0406- ●
12 RUBBER; CUSHION,LWR,TRANSFER 1-36189-026-2 04 1 9604-0004 ● ● ● ● ●
12 RUBBER; CUSHION,LWR,TRANSFER 1-36189-026-2 04 1 0005-0405 ● ● ●
12 RUBBER; CUSHION,LWR,TRANSFER 1-36189-026-2 04 1 0406- ● ●
12 RUBBER; CUSHION,LWR,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36189-026-2 04 1 0406- ●
12 RUBBER; CUSHION,LWR,TRANSFER
TRANSMISSION OIL COOLER<C2C> 		1-36189-026-2 04 1 0406- ●
31 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M10X16 FLANGE 		0-28181-016-0 01 1 9604-0004 ● ● ● ●
31 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M10X16 FLANGE 		0-28181-016-0 01 1 0005-0405 ●
31 BOLT; BRKT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) M10X16 FLANGE 		0-28181-016-0 01 1 0406-0512 ●
31 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M10X16 FLANGE 		0-28151-016-0 01 1 0601- ●
31 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> (B) M12X20 FLANGE 		0-28181-220-0 02 1 9604-0004 ● ● ● ●
31 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> (B) M12X20 FLANGE 		0-28181-220-0 02 1 0005-0405 ●
31 BOLT; BRKT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (B) M12X20 FLANGE 		0-28181-220-0 02 1 0406-0512 ●
31 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> (B) M12X20 FLANGE 		0-28151-220-0 02 1 0601- ●
57 NUT; CUSHION RUBBER,UPR
M12 		9-99110-512-0 04 1 9604-0004 ● ● ● ● ●
57 NUT; CUSHION RUBBER,UPR
M12 		9-99110-512-0 04 1 0005-0405 ● ● ●
57 NUT; CUSHION RUBBER,UPR
M12 		9-99110-512-0 04 1 0406-0512 ● ●
57 NUT; CUSHION RUBBER,UPR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M12 		9-99110-512-0 04 1 0406-0512 ●
57 NUT; CUSHION RUBBER,UPR
TRANSMISSION OIL COOLER<C2C> M12 		9-99110-512-0 04 1 0406-0512 ●
57 NUT; CUSHION RUBBER,UPR
M12 		0-91110-512-0 04 1 0601- ● ● ●
58 NUT; CUSHION RUBBER,LK UPR
M12 		9-99111-412-0 04 1 9604-9701 ● ● ● ● ●
64 NUT; CUSHION RUBBER,LWR
M14 		9-99110-414-0 04 1 9604-0004 ● ● ● ● ●
64 NUT; CUSHION RUBBER,LWR
M14 		9-99110-414-0 04 1 0005-0405 ● ● ●
64 NUT; CUSHION RUBBER,LWR
M14 		9-99110-414-0 04 1 0406-0512 ● ●
64 NUT; CUSHION RUBBER,LWR
EXC. TRANSFER TF56<BFK> M14 		9-99110-414-0 04 1 0406-0512 ●
64 NUT; CUSHION RUBBER,LWR
M14 		0-91110-514-0 04 1 0601- ● ●
64 NUT; CUSHION RUBBER,LWR
EXC. TRANSFER TF56<BFK> M14 		0-91110-514-0 04 1 0601- ●
64 NUT; CUSHION RUBBER,LWR
M12 		9-99111-412-0 04 1 9702-0004 ● ● ● ● ●
64 NUT; CUSHION RUBBER,LWR
M12 		9-99111-412-0 04 1 0005-0405 ● ● ●
64 NUT; CUSHION RUBBER,LWR
M12 		9-99111-412-0 04 1 0406-0512 ● ●
64 NUT; CUSHION RUBBER,LWR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M12 		9-99111-412-0 04 1 0406-0512 ●
64 NUT; CUSHION RUBBER,LWR
TRANSMISSION OIL COOLER<C2C> M12 		9-99111-412-0 04 1 0406-0512 ●
64 NUT; CUSHION RUBBER,LWR
M12 		0-91111-512-0 04 1 0601- ● ● ●
65 WASHER; LK,CUSHION RUBBER,LWR
ID=14.2 		9-09150-514-0 04 1 9604-0004 ● ● ● ● ●
65 WASHER; LK,CUSHION RUBBER,LWR
ID=14.2 		9-09150-514-0 04 1 0005-0405 ● ● ●
65 WASHER; LK,CUSHION RUBBER,LWR
ID=14.2 		9-09150-514-0 04 1 0406-0603 ● ●
65 WASHER; LK,CUSHION RUBBER,LWR
EXC. TRANSFER TF56<BFK> ID=14.2 		9-09150-514-0 04 1 0406-0603 ●
65 WASHER; LK,CUSHION RUBBER,LWR
ID=14.2 		0-91510-514-0 04 1 0604- ● ●
65 WASHER; LK,CUSHION RUBBER,LWR
EXC. TRANSFER TF56<BFK> ID=14.2 		0-91510-514-0 04 1 0604- ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (C) 		1-47429-628-0 01 1 9604-9710 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (C) 		1-49162-001-0 01 1 9711-0004 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (D) 		1-47429-629-0 01 1 9604-9710 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (D) 		1-49162-002-0 01 1 9711-0004 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (A) 		1-36161-031-0 01 1 9604-0003 ● ● ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (E) 		1-36161-041-0 01 1 0004-0004 ● ● ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (E) 		1-36161-041-0 01 1 0005-0405 ●
84 PIPE; T/F,COOLER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (E) 		1-36161-041-0 01 1 0406- ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (B) 		1-36161-032-1 01 1 9604-0004 ● ● ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (B) 		1-36161-032-1 01 1 0005-0405 ●
84 PIPE; T/F,COOLER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (B) 		1-36161-032-1 01 1 0406- ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (C) 		1-49116-791-0 01 1 9604-9605 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (C) 		1-47429-919-1 01 1 9606-0004 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (C) 		1-47429-919-1 01 1 0005- ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (D) 		1-49116-792-0 01 1 9604-9605 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (D) 		1-47429-920-0 01 1 9606-0004 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (D) 		1-47429-920-0 01 1 0005-0104 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (D) 		1-49166-074-0 01 1 0105- ●
85 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-181-0 01 1 9604-0003 ● ● ● ●
85 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-222-0 01 1 0004-0004 ● ● ● ●
85 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-222-0 01 1 0005-0405 ●
85 BRACKET; FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-222-0 01 1 0406- ●
85 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (B) 		1-47477-643-0 01 1 9604-9605 ● ● ● ●
85 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (B) 		1-47477-643-1 01 1 9606-0004 ● ●
85 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (B) 		1-47477-806-0 01 1 9606-0004 ● ●
85 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (B) 		1-47477-806-0 01 1 0005- ●
86 UNION
TRANSMISSION OIL COOLER<C2C> M16X2 STRAIGHT 		1-09654-274-1 02 1 9604-0004 ● ● ● ●
86 UNION
TRANSMISSION OIL COOLER<C2C> M16X2 STRAIGHT 		1-09654-274-1 02 1 0005-0405 ●
86 UNION
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> M16X2 STRAIGHT 		1-09654-274-1 02 1 0406- ●
87 WASHER
TRANSMISSION OIL COOLER<C2C> ID=16.2 		9-09150-516-0 02 1 9604-0004 ● ● ● ●
87 WASHER
TRANSMISSION OIL COOLER<C2C> ID=16.2 		9-09150-516-0 02 1 0005-0405 ●
87 WASHER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> ID=16.2 		9-09150-516-0 02 1 0406-0603 ●
87 WASHER
TRANSMISSION OIL COOLER<C2C> ID=16.2 		0-91510-516-0 02 1 0604- ●
88 NUT
TRANSMISSION OIL COOLER<C2C> M16 		9-99110-416-0 02 1 9604-0004 ● ● ● ●
88 NUT
TRANSMISSION OIL COOLER<C2C> M16 		9-99110-416-0 02 1 0005-0405 ●
88 NUT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> M16 		9-99110-416-0 02 1 0406-0512 ●
88 NUT
TRANSMISSION OIL COOLER<C2C> M16 		0-91110-516-0 02 1 0601- ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 9604-9710 ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 03 1 9711-0004 ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9604-0003 ● ● ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (C) 		1-09700-695-2 01 1 0004-0004 ● ● ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (C) 		1-09700-695-2 01 1 0005-0405 ●
90 CLIP
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (C) 		1-09700-695-2 01 1 0406- ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20 		5-09700-351-0 01 1 9604-0004 ● ● ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20 		5-09700-351-0 01 1 0005-0707 ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20 		8-98033-780-0 01 1 0708- ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (A) ID=9 & 9 L=25 		1-09701-212-0 01 1 0004-0004 ● ● ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0005-0405 ●
90 CLIP
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0406- ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 04 1 9604-0004 ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 04 1 0005- ●
91 BOLT
TRANSMISSION OIL COOLER<C2C> (A) M8X16 FLANGE 		0-28080-816-0 01 1 9604-0003 ● ● ● ●
91 BOLT
TRANSMISSION OIL COOLER<C2C> (A) M6X35 FLANGE 		0-28680-635-0 01 1 0004-0004 ● ● ● ●
91 BOLT
TRANSMISSION OIL COOLER<C2C> (A) M6X35 FLANGE 		0-28680-635-0 01 1 0005-0405 ●
91 BOLT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) M6X35 FLANGE 		0-28680-635-0 01 1 0406-0512 ●
91 BOLT
TRANSMISSION OIL COOLER<C2C> (A) M6X35 FLANGE 		0-28650-635-0 01 1 0601- ●
91 BOLT
TRANSMISSION OIL COOLER<C2C> (B) M10X12 FLANGE 		0-28181-012-0 01 1 9604-0003 ● ● ● ●
91 BOLT
TRANSMISSION OIL COOLER<C2C> (B) M10X16 FLANGE 		0-28181-016-0 01 1 0004-0004 ● ● ● ●
91 BOLT
TRANSMISSION OIL COOLER<C2C> (B) M10X16 FLANGE 		0-28181-016-0 01 1 0005-0405 ●
91 BOLT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (B) M10X16 FLANGE 		0-28181-016-0 01 1 0406-0512 ●
91 BOLT
TRANSMISSION OIL COOLER<C2C> (B) M10X16 FLANGE 		0-28151-016-0 01 1 0601- ●

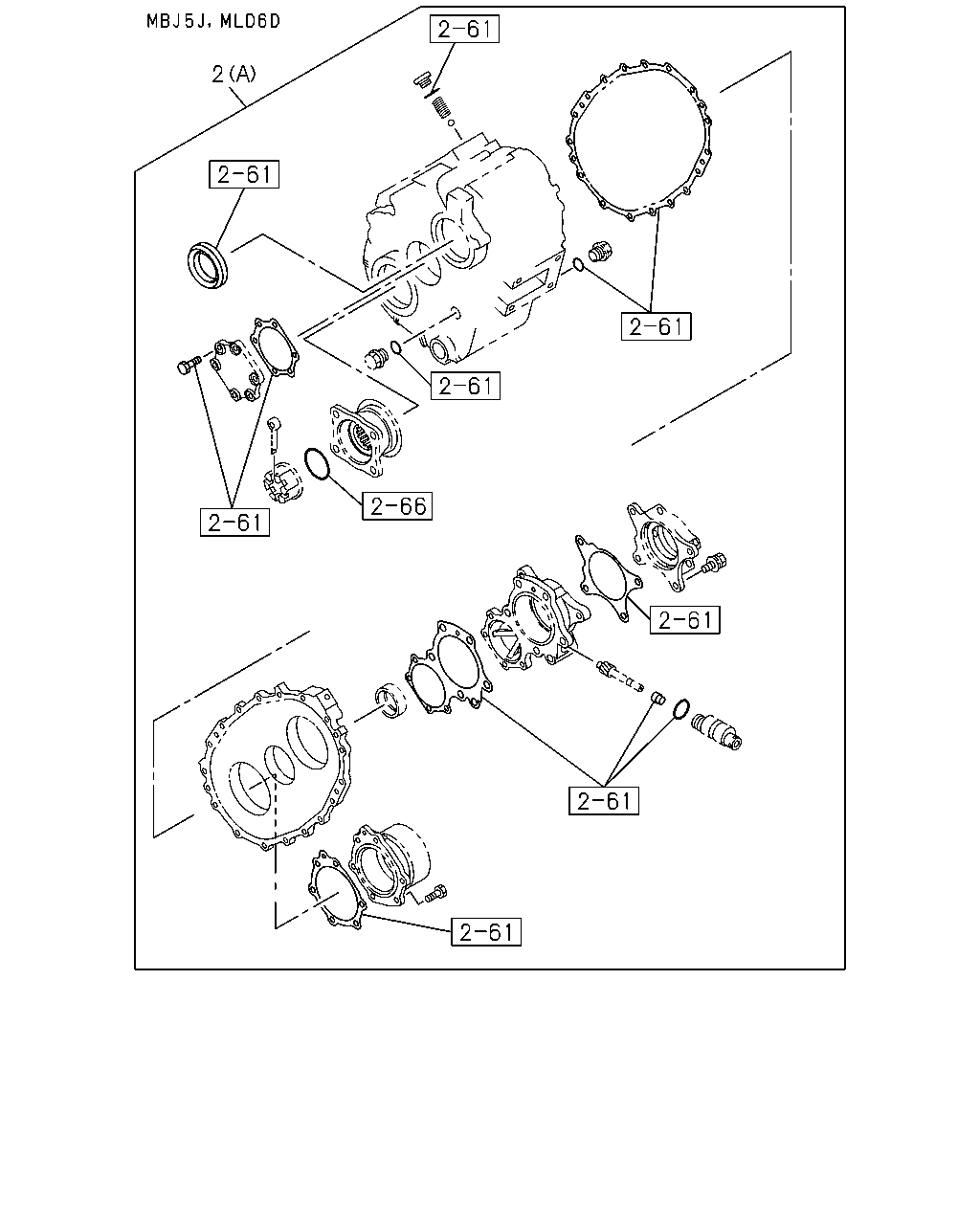

çizim 152725
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 REPAIR KIT; TRANSFER OVERHAUL
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-87830-823-1 01 1 0406-1312 ●
2 REPAIR KIT; TRANSFER OVERHAUL
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-87831-437-0 01 1 1401- ●
2 REPAIR KIT; TRANSFER OVERHAUL
(A) 		1-87830-218-5 01 1 9604-0004 ● ● ● ● ●
2 REPAIR KIT; TRANSFER OVERHAUL
(A) 		1-87830-218-6 01 1 0005-0405 ● ● ●
2 REPAIR KIT; TRANSFER OVERHAUL
(A) 		1-87830-218-6 01 1 0406- ● ●
2 REPAIR KIT; TRANSFER OVERHAUL
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-87830-218-6 01 1 0406- ●
2 REPAIR KIT; TRANSFER OVERHAUL
TRANSMISSION OIL COOLER<C2C> (A) 		1-87830-218-6 01 1 0406- ●

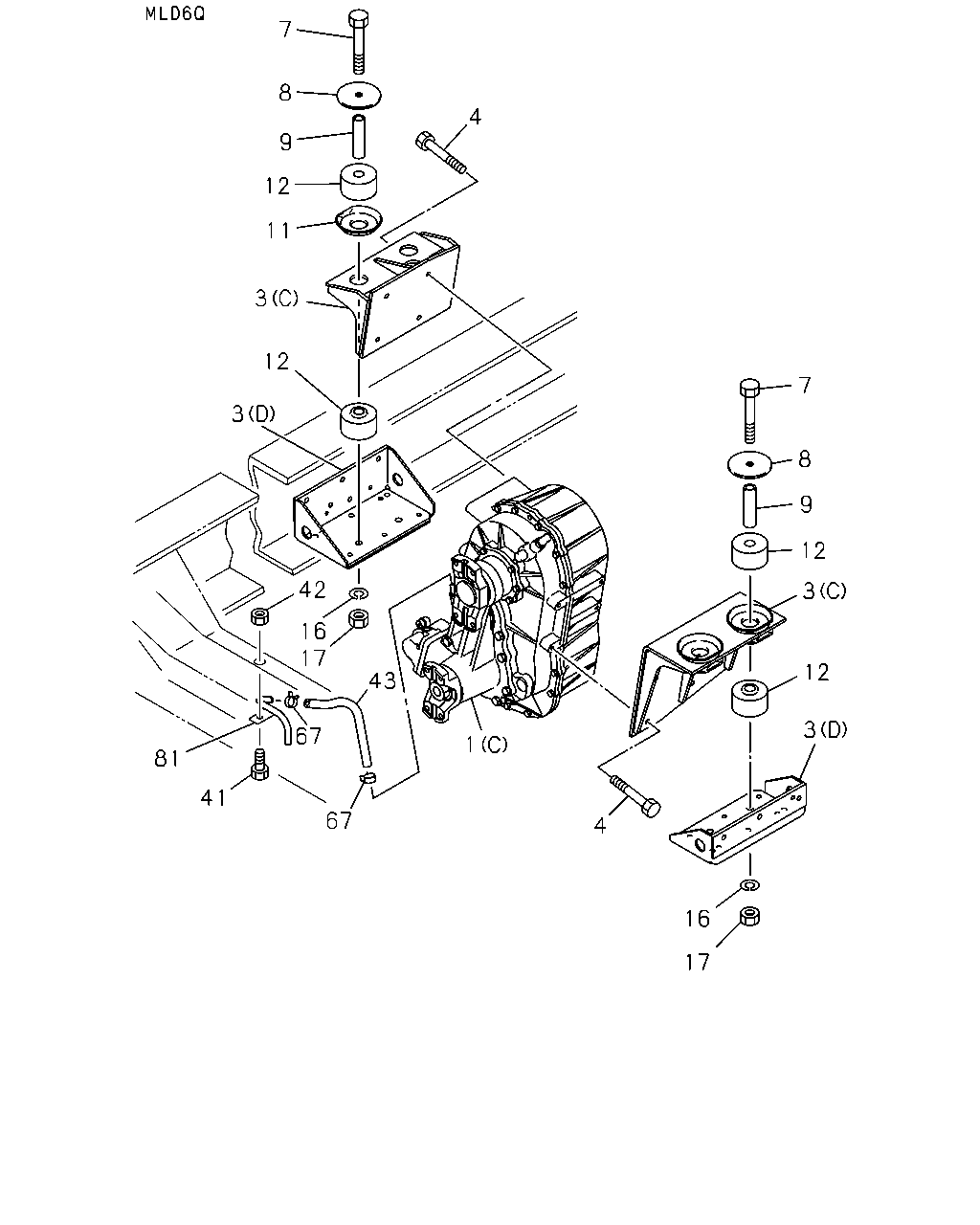

çizim 152727
7 8 4 9 12 11 3 12 7 3 8 9 12 42 3 16 17 12 43 3 67 1 81 41 67 4 16 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 TRANSFER ASM
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) 		1-36000-695-0 01 1 0406- ●
1 TRANSFER ASM
TRANSMISSION OIL COOLER<C2C> (A) 		1-36000-637-0 01 1 9604-0004 ● ● ● ●
1 TRANSFER ASM
TRANSMISSION OIL COOLER<C2C> (A) 		1-36000-637-0 01 1 0005-0405 ●
1 TRANSFER ASM
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) 		1-36000-637-0 01 1 0406- ●
1 TRANSFER ASM
PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-36000-614-0 01 1 9604-0004 ● ●
1 TRANSFER ASM
(B) 		1-36000-614-0 01 1 9604-0004 ●
1 TRANSFER ASM
(B) 		1-36000-614-0 01 1 0005-0405 ● ●
1 TRANSFER ASM
EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-36000-614-0 01 1 0005-0405 ●
1 TRANSFER ASM
(B) 		1-36000-614-0 01 1 0406- ● ●
1 TRANSFER ASM
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-36000-614-0 01 1 0406- ●
1 TRANSFER ASM
EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION OIL COOLER<C2C> (B) 		1-36000-638-0 01 1 9604-0004 ● ●
1 TRANSFER ASM
EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-36000-638-0 01 1 9604-0004 ● ●
3 BRACKET; TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) 		1-36183-184-1 01 1 0406- ●
3 BRACKET; TRANSFER
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (C) 		1-36183-185-2 01 1 0406- ●
3 BRACKET; TRANSFER
NEW ZEALAND EQUIPMENT(PK5) (D) 		1-53291-098-1 01 1 0406- ●
3 BRACKET; TRANSFER
NEW ZEALAND EQUIPMENT(PK5) (D) 		1-53291-099-1 01 1 0406- ●
3 BRACKET; TRANSFER
(B) 		1-53291-065-4 01 1 9604-0004 ● ●
3 BRACKET; TRANSFER
(B) 		1-53291-065-4 01 1 0005- ●
3 BRACKET; TRANSFER
(B) 		1-53291-064-6 01 1 9604-0004 ● ●
3 BRACKET; TRANSFER
(B) 		1-53291-064-6 01 1 0005- ●
3 BRACKET; TRANSFER
(A) 		1-36183-164-0 01 1 9604-0004 ● ●
3 BRACKET; TRANSFER
(A) 		1-36183-164-0 01 1 0005- ●
3 BRACKET; TRANSFER
(A) 		1-36183-163-0 01 1 9604-0004 ● ●
3 BRACKET; TRANSFER
(A) 		1-36183-163-0 01 1 0005- ●
3 BRACKET; TRANSFER
(B) 		1-53291-061-4 01 1 0005-0405 ● ●
3 BRACKET; TRANSFER
(B) 		1-53291-061-4 01 1 0406- ●
3 BRACKET; TRANSFER
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-53291-061-4 01 1 0406- ●
3 BRACKET; TRANSFER
(B) 		1-53291-060-3 01 1 0005-0405 ● ●
3 BRACKET; TRANSFER
(B) 		1-53291-060-3 01 1 0406- ●
3 BRACKET; TRANSFER
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-53291-060-3 01 1 0406- ●
3 BRACKET; TRANSFER
(A) 		1-36183-180-0 01 1 9604-0004 ● ● ●
3 BRACKET; TRANSFER
(A) 		1-36183-180-0 01 1 0005-0405 ● ●
3 BRACKET; TRANSFER
(A) 		1-36183-180-0 01 1 0406- ●
3 BRACKET; TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-180-0 01 1 0406- ●
3 BRACKET; TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-180-0 01 1 0406- ●
3 BRACKET; TRANSFER
(A) 		1-36183-114-6 01 1 9604-0004 ● ● ●
3 BRACKET; TRANSFER
(A) 		1-36183-114-6 01 1 0005-0405 ● ●
3 BRACKET; TRANSFER
(A) 		1-36183-114-6 01 1 0406- ●
3 BRACKET; TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-114-6 01 1 0406- ●
3 BRACKET; TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-114-6 01 1 0406- ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28081-230-0 08 1 9604-9606 ● ● ● ● ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28681-230-0 08 1 9607-0004 ● ● ● ● ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28681-230-0 08 1 0005-0405 ● ● ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28681-230-0 AR 1 0406-0512 ● ●
4 BOLT; BRKT TO TRANSFER
EXC. TRANSFER TF56<BFK> M12X30 FLANGE 		0-28681-230-0 AR 1 0406-0512 ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28651-230-0 AR 1 0601- ● ●
4 BOLT; BRKT TO TRANSFER
EXC. TRANSFER TF56<BFK> M12X30 FLANGE 		0-28651-230-0 AR 1 0601- ●
4 BOLT; BRKT TO TRANSFER
M12X30 W/LK WASHER 		0-50051-230-0 08 1 9804-0004 ● ● ● ● ●
4 BOLT; BRKT TO TRANSFER
M12X30 W/LK WASHER 		0-50051-230-0 08 1 0005-0706 ● ● ●
4 BOLT; BRKT TO TRANSFER
M12X25 FLANGE 		0-28151-225-0 08 1 0707- ● ● ●
7 BOLT; CUSHION RUBBER
TRANSFER TF56<BFK> 		1-09000-239-1 04 1 0406- ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28081-025-0 08 1 9604-9606 ● ● ● ● ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28681-025-0 08 1 9607-9701 ● ● ● ● ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28081-025-0 08 1 9702-0004 ● ● ● ● ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28081-025-0 08 1 0005-0405 ● ● ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28081-025-0 08 1 0406-0512 ● ●
7 BOLT; CUSHION RUBBER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE 		0-28081-025-0 08 1 0406-0512 ●
7 BOLT; CUSHION RUBBER
TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE 		0-28081-025-0 08 1 0406-0512 ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28051-025-0 08 1 0601- ● ● ●
8 PLATE; CUSHION RUBBER
TRANSFER TF56<BFK> 		1-09503-134-0 04 1 0406- ●
9 PIECE; DIST,CUSHION RUBBER
TRANSFER TF56<BFK> 		1-36181-002-0 04 1 0406- ●
11 SEAT; CUSHION RUBBER
TRANSFER TF56<BFK> 		1-36189-070-0 02 1 0406- ●
12 RUBBER; CUSHION,LWR,TRANSFER
TRANSFER TF56<BFK> 		1-36189-040-1 08 1 0406- ●
12 RUBBER; CUSHION,LWR,TRANSFER 1-36189-026-2 04 1 9604-0004 ● ● ● ● ●
12 RUBBER; CUSHION,LWR,TRANSFER 1-36189-026-2 04 1 0005-0405 ● ● ●
12 RUBBER; CUSHION,LWR,TRANSFER 1-36189-026-2 04 1 0406- ● ●
12 RUBBER; CUSHION,LWR,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> 		1-36189-026-2 04 1 0406- ●
12 RUBBER; CUSHION,LWR,TRANSFER
TRANSMISSION OIL COOLER<C2C> 		1-36189-026-2 04 1 0406- ●
16 WASHER; LK,CUSHION RUBBER
TRANSFER TF56<BFK> ID=16.2 		9-09150-616-0 04 1 0406-0603 ●
16 WASHER; LK,CUSHION RUBBER
TRANSFER TF56<BFK> ID=16.2 		0-91510-616-0 04 1 0604- ●
17 NUT; CUSHION RUBBER
TRANSFER TF56<BFK> M16 		9-99110-516-0 04 1 0406-0512 ●
17 NUT; CUSHION RUBBER
TRANSFER TF56<BFK> M16 		0-91110-516-0 04 1 0601- ●
41 BOLT; BRKT,BREATHER
TRANSFER TF56<BFK> M8X30 FLANGE 		0-28680-830-0 01 1 0406-0512 ●
41 BOLT; BRKT,BREATHER
TRANSFER TF56<BFK> M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
42 NUT; BRKT,BREATHER
TRANSFER TF56<BFK> M8 FLANGE 		0-91150-108-0 01 1 0406-0602 ●
42 NUT; BRKT,BREATHER
TRANSFER TF56<BFK> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
43 HOSE; RUBBER,BREATHER
TRANSFER TF56<BFK> L=445 SERVICED BY L=1800 		1-09360-320-0 01 1 0406- ●
67 CLIP; BAND
TRANSFER TF56<BFK> ID=14 		1-09704-102-0 02 1 0406- ●
67 CLIP; BAND
TRANSMISSION OIL COOLER<C2C> L=250 		5-09707-030-1 01 1 9604-0004 ● ● ● ●
67 CLIP; BAND
TRANSMISSION OIL COOLER<C2C> L=250 		5-09707-030-1 01 1 0005- ●
81 PIPE; BREATHER
TRANSFER TF56<BFK> 		1-49115-033-0 01 1 0406- ●

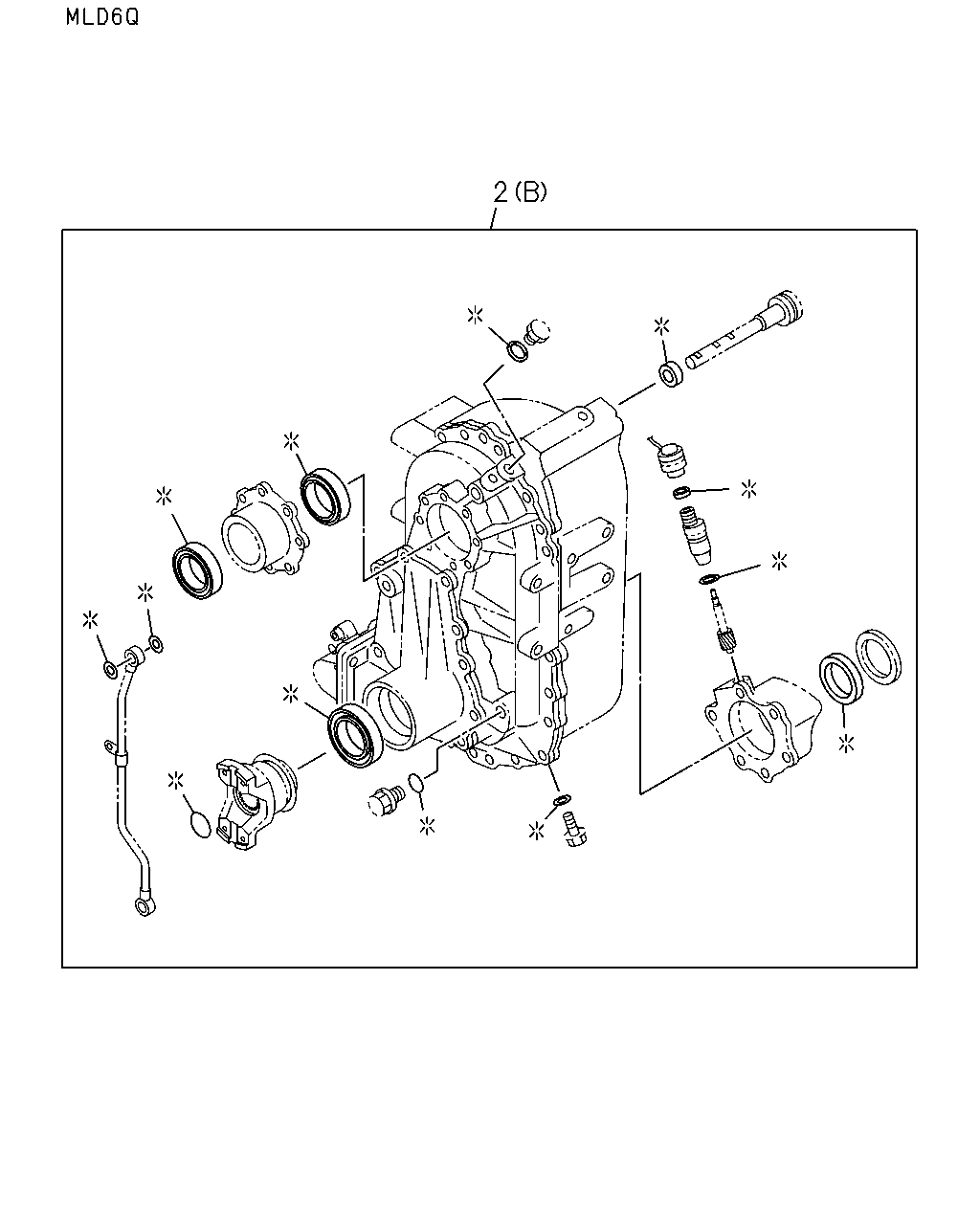

çizim 152736
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 REPAIR KIT; TRANSFER OVERHAUL
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-87830-823-1 01 1 0406-1312 ●
2 REPAIR KIT; TRANSFER OVERHAUL
MLD6Q M/T(X5J) EXC. TRANSMISSION OIL COOLER<C2C> (B) 		1-87831-437-0 01 1 1401- ●
2 REPAIR KIT; TRANSFER OVERHAUL
(A) 		1-87830-218-5 01 1 9604-0004 ● ● ● ● ●
2 REPAIR KIT; TRANSFER OVERHAUL
(A) 		1-87830-218-6 01 1 0005-0405 ● ● ●
2 REPAIR KIT; TRANSFER OVERHAUL
(A) 		1-87830-218-6 01 1 0406- ● ●
2 REPAIR KIT; TRANSFER OVERHAUL
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> (A) 		1-87830-218-6 01 1 0406- ●
2 REPAIR KIT; TRANSFER OVERHAUL
TRANSMISSION OIL COOLER<C2C> (A) 		1-87830-218-6 01 1 0406- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
