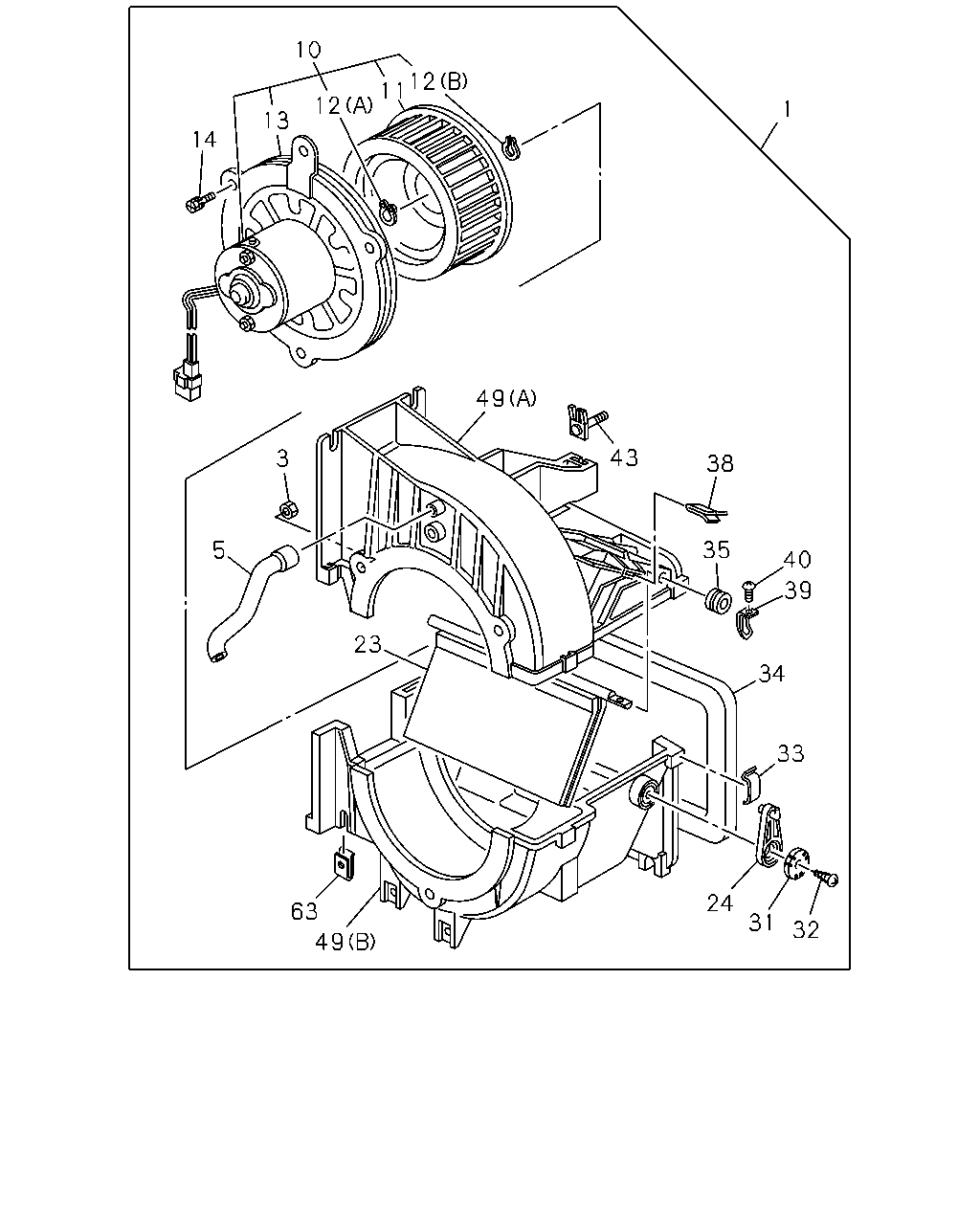

8-73 — BLOWER UNIT
(#3678) — 23 parça
10
12
11
12
1
13
14
49
43
3
38
35
5
40
39
23
34
33
24
63
31
32
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOWER ASM
1-83561-036-5
01
1
9002-
3
NUT; CASE
8-94233-154-0
04
1
9002-
5
HOSE; AIR
1-83563-096-0
01
1
9002-
10
MOTOR ASM; FAN,BLOWER UNIT
1-83561-089-0
01
1
9002-
11
IMPELLER; FAN MOTOR
8-94240-570-0
01
1
9002-
12
RING; SNAP,FAN MOTOR
(A)
5-83569-088-0
01
1
9002-
12
RING; SNAP,FAN MOTOR
(B)
8-94243-962-0
01
1
9002-
13
LINING; BLOWER UNIT
AIR CON MANUAL CONTROL(C60)
8-94243-963-0
01
1
9002-
14
SCREW; COVER TO CASE
M5X20
5-15719-013-0
04
1
9002-
23
SHUTTER; BLOWER UNIT
1-83579-134-1
01
1
9002-
24
LEVER; CASE
1-83564-285-0
01
1
9002-
31
WASHER; LEVER
1-83579-095-0
01
1
9002-
32
SCREW; LEVER
M5X14
1-83579-038-0
01
1
9002-
33
CLIP; BLOWER UNIT
1-83574-148-0
05
1
9002-
34
LINING; BLOWER UNIT
1-83579-135-0
01
1
9002-
35
BUSHING; LEVER
1-83576-028-0
01
1
9002-
38
CLIP; BLOWER UNIT
1-83574-149-0
01
1
9307-
39
LEVER; SHUTTER,BLOWER UNIT
1-83564-144-0
01
1
9002-
40
SCREW; LEVER,BLOWER UNIT
5-83571-160-0
01
1
9002-
43
BOLT; CASE
1-83579-092-0
03
1
9002-
49
CASE; BLOWER UNIT
(A)
1-83563-102-2
01
1
9307-
49
CASE; BLOWER UNIT
(B)
1-83563-103-1
01
1
9307-
63
NUT; CLIP,CASE
M6 FLANGE
1-09466-001-0
01
1
9307-
