2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#36778) — 67 parça

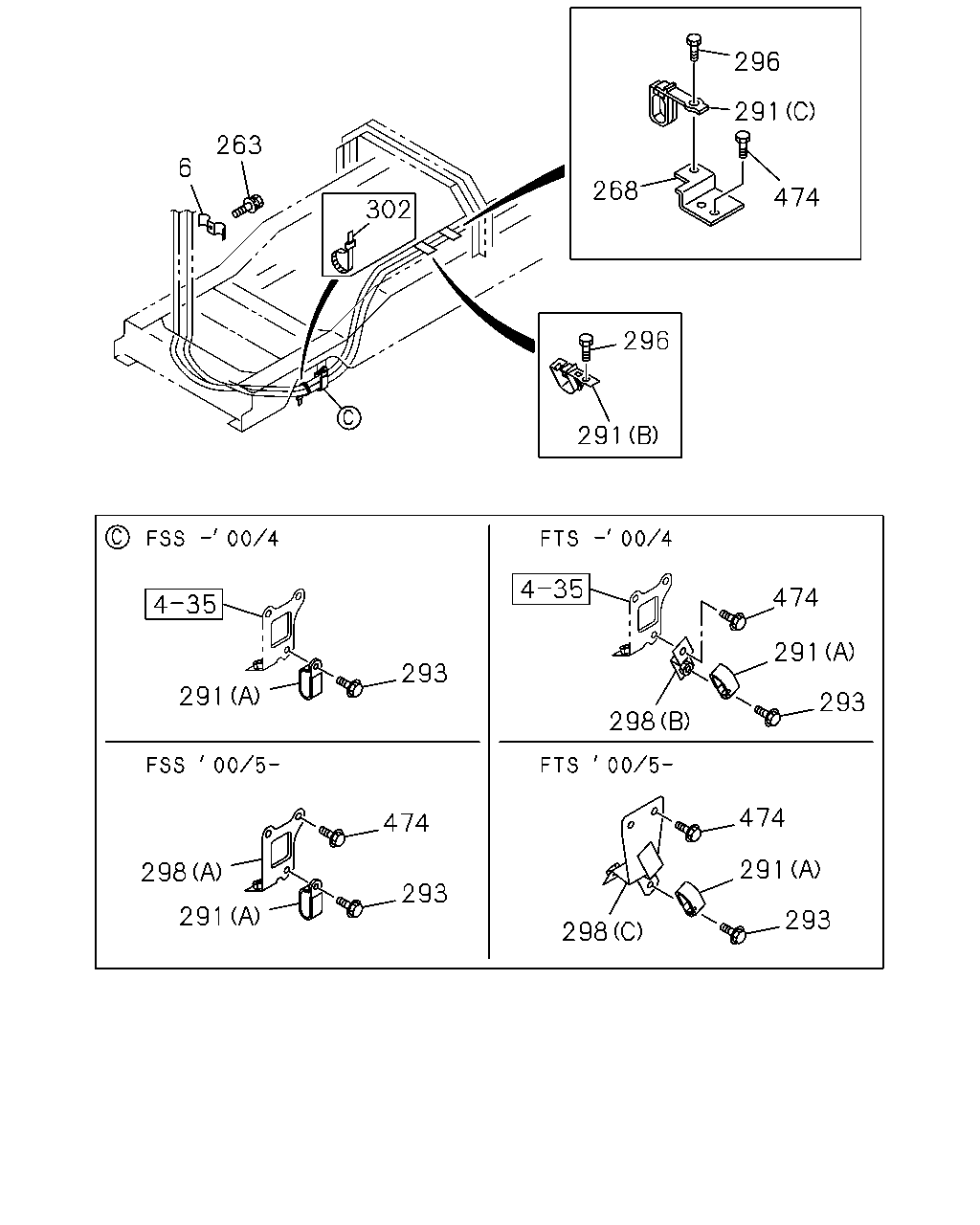

çizim 152688
296 291 263 6 268 474 302 296 291 474 291 293 291 293 298 474 474 291 298 293 291 293 298
BalonParca AdiParca NoAdetTipApplied Date A B C
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9604-0405 ● ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0406- ● ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9604-9812 ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9901-0405 ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0406- ● ● ●
268 BRACKET; LINK ROD 1-36183-224-0 01 1 0406- ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=10 & 10 M8 		1-09701-220-0 01 1 9604-0405 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=10 & 10 M8 		1-09701-220-0 01 1 0406- ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=11X2 L=16 		9-09535-026-0 01 1 9604-0405 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=11X2 L=16 		9-09535-026-0 01 1 0406-0606 ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=11X2 L=16 		0-95325-026-0 01 1 0607- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) 		1-09701-258-0 01 1 9702-9702 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 9703-0405 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 0406-0506 ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-312-0 01 1 0507- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 9604-0405 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X25 FLANGE 		0-28680-825-0 02 1 9609-9610 ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28080-820-0 02 1 9611-0405 ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28080-820-0 02 1 0406-0512 ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28050-820-0 02 1 0601- ● ●
298 BRACKET
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HH1 STD 4VALVE ENG(1A6) (C) 		1-36183-221-0 01 1 0207-0405 ● ● ●
298 BRACKET
FSS ALL(FS****) (A) 		1-82659-149-0 01 1 0005- ●
298 BRACKET
FTS ALL(FT****) (B) 		1-47477-261-0 01 1 9604-0004 ●
298 BRACKET
(B) 		1-47477-261-0 01 1 9604-0004 ●
298 BRACKET
FTS ALL(FT****) (C) 		1-36183-220-0 01 1 0005-0206 ●
298 BRACKET
(C) 		1-36183-220-0 01 1 0005-0206 ●
298 BRACKET
FTS ALL(FT****) 6HH1 STD ENG(65L),6HH1 N ENG(66L) (C) 		1-36183-220-0 01 1 0207-0405 ●
298 BRACKET
6HH1 STD ENG(65L),6HH1 N ENG(66L) (C) 		1-36183-220-0 01 1 0207-0405 ●
298 BRACKET
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) (C) 		1-36183-220-0 01 1 0406- ● ● ●
298 BRACKET
FTS SHORT CHASSIS(FT***C) (C) 		1-36183-220-0 01 1 0406- ● ●
302 CLIP; BAND
L=300 		1-09707-001-1 01 1 9604-0405 ● ●
302 CLIP; BAND
L=300 		1-09707-001-1 01 1 0406- ● ● ●
474 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 0406-0512 ●
474 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
474 BOLT; BRKT
FTS ALL(FT****) M8X16 FLANGE 		0-28080-816-0 01 1 9604-0004 ●
474 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9604-0004 ●
474 BOLT; BRKT
M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0005-0405 ● ●
474 BOLT; BRKT
M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0406- ● ● ●

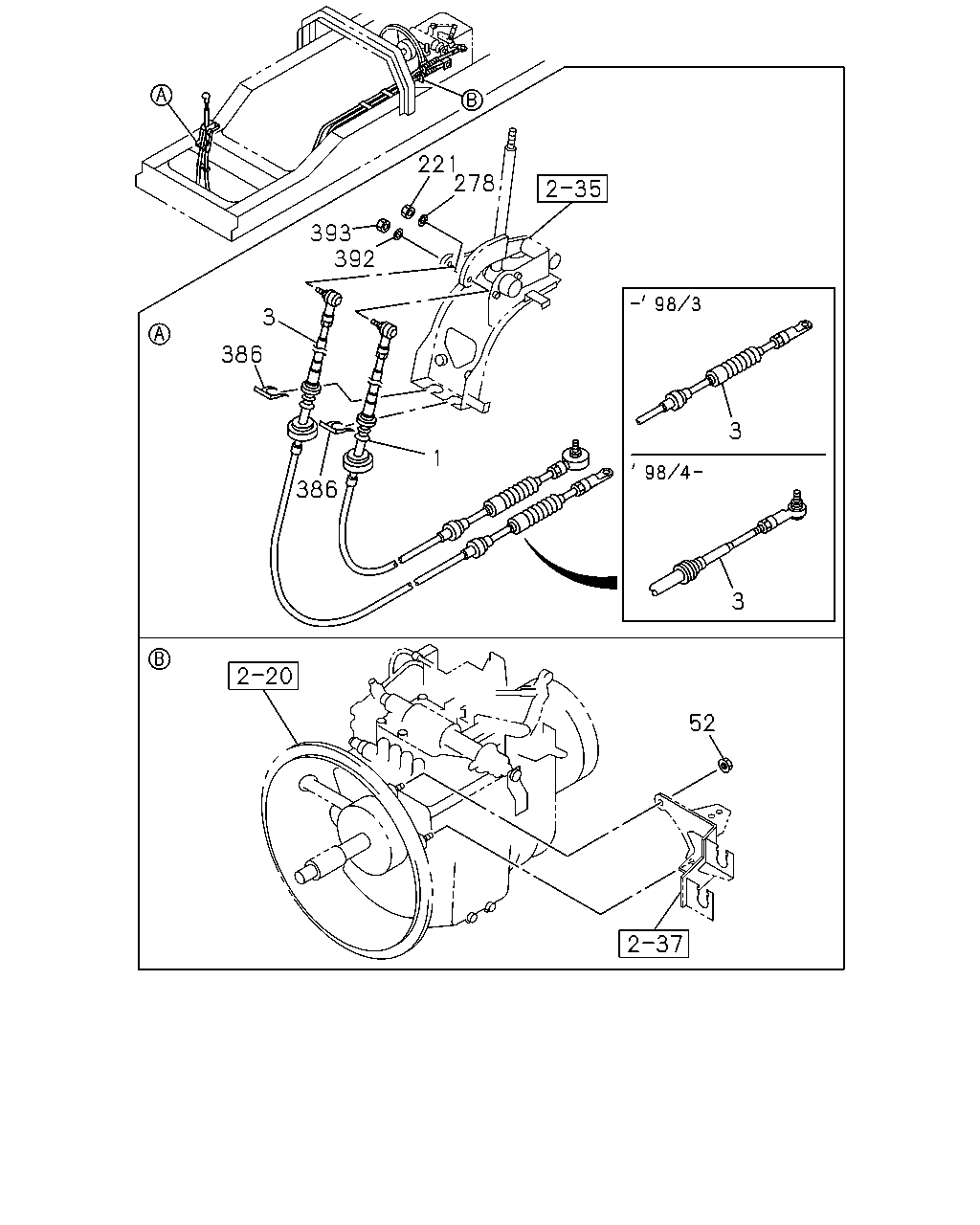

çizim 152719
221 278 393 392 3 386 3 1 386 3 52
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CABLE; SHIFT,TRANS CONT
L=3550 		1-33671-848-1 01 1 0406- ●
1 CABLE; SHIFT,TRANS CONT
L=3407 		1-33670-907-0 01 1 9604-9803 ●
1 CABLE; SHIFT,TRANS CONT
L=3408 		1-33671-160-0 01 1 9804- ●
1 CABLE; SHIFT,TRANS CONT
L=3377.5 		1-33670-811-0 01 1 9604-9803 ●
1 CABLE; SHIFT,TRANS CONT
L=3465 		1-33670-926-0 01 1 9804- ●
3 CABLE; SELECT,TRANS CONT
L=3665 		1-33671-849-1 01 1 0406- ●
3 CABLE; SELECT,TRANS CONT
L=3524 		1-33670-667-1 01 1 9604-9708 ●
3 CABLE; SELECT,TRANS CONT
L=3524 		1-33670-707-1 01 1 9709-9803 ●
3 CABLE; SELECT,TRANS CONT
L=3525 		1-33671-161-0 01 1 9804- ●
3 CABLE; SELECT,TRANS CONT
L=3601 		1-33670-812-0 01 1 9604-9803 ●
3 CABLE; SELECT,TRANS CONT
L=3580 		1-33670-933-0 01 1 9804- ●
52 NUT; BRKT
M10 FLANGE 		0-91150-110-0 02 1 9604-9605 ● ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9606-0405 ● ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0406-0602 ● ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 		9-09110-408-0 01 1 9604-9803 ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 9804-0405 ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0406-1011 ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.2 		9-09150-508-0 01 1 9604-9803 ● ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 9604-0405 ● ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0406- ● ● ●
392 WASHER; LK,SELECT CABLE,CAB
ID=8.2 		9-09150-508-0 01 1 9604-9803 ● ●
393 NUT; SELECT CABLE,CAB
M8 		9-09110-408-0 01 1 9604-9803 ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 9804-0405 ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 0406-1011 ● ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ● ●
