Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#36776) — 703 parça

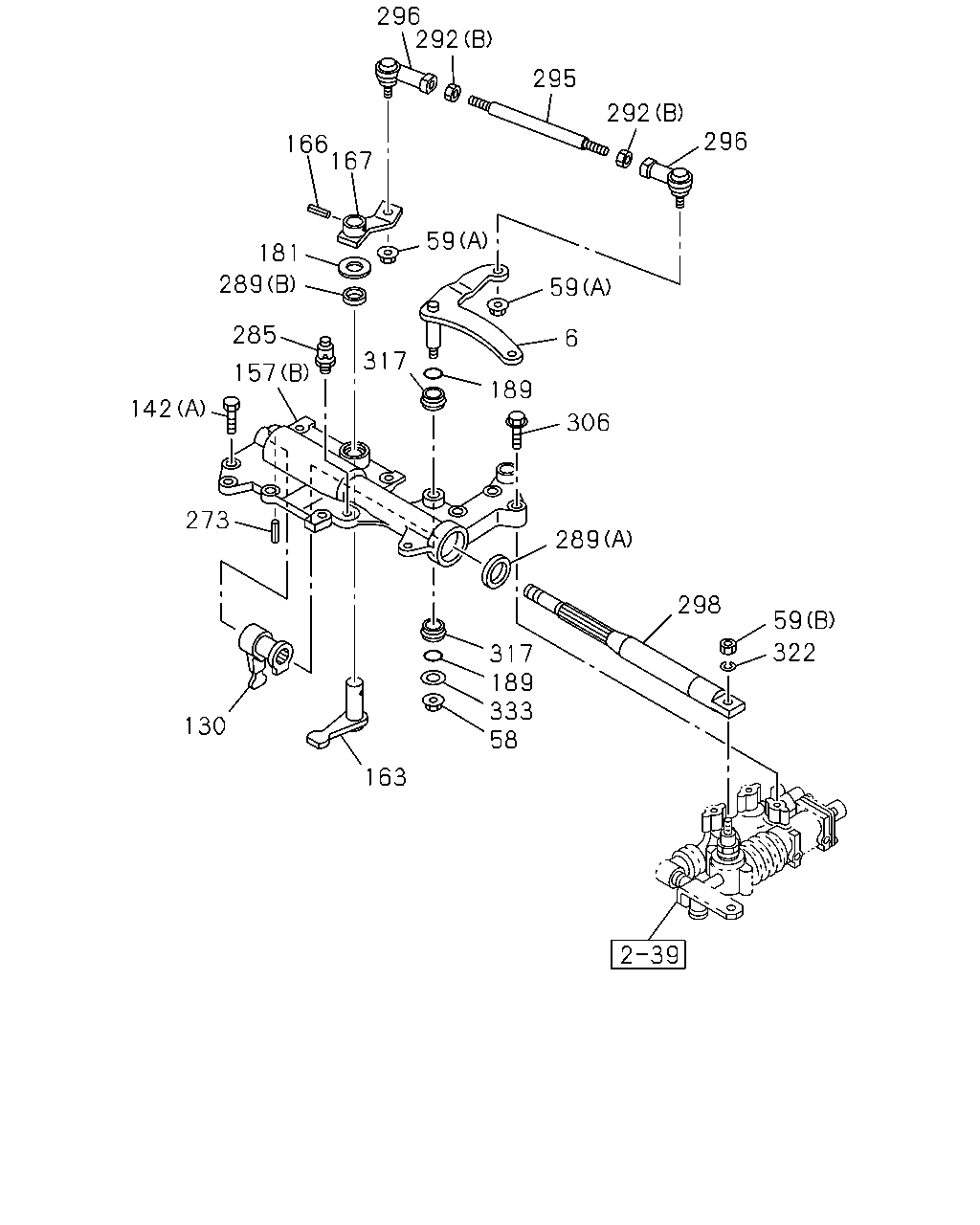

296 292 295 292 296 166 167 59 181 289 59 285 6 317 157 189 142 306 273 289 298 59 322 317 189 333 58 130 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY	1-33651-686-2	01	1	9804-0405	●
6	LEVER; RELAY	1-33651-686-2	01	1	0406-	●	●
58	NUT M10 FLANGE	0-91150-110-0	01	1	9804-0405	●
58	NUT M10 FLANGE	0-91150-110-0	01	1	0406-0602	●	●
58	NUT M10 FLANGE	0-91180-110-0	01	1	0603-	●	●
59	NUT (A) M8 FLANGE	0-91150-108-0	02	1	9804-0405	●
59	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0406-0602	●	●
59	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
59	NUT (B) M12	9-99110-412-0	01	1	9804-0405	●
59	NUT (B) M12	9-99110-412-0	01	1	0406-0512	●	●
59	NUT (B) M12	0-91110-512-0	01	1	0601-	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	9604-			●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9604-9803	●
130	LEVER; SHIFT,INTERNAL	1-33521-165-0	01	1	9804-0405	●
130	LEVER; SHIFT,INTERNAL	1-33521-165-0	01	1	0406-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	13	1	9604-0805			●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	13	1	0806-			●
142	BOLT; QUAD BOX (B) M10X32 FLANGE	0-28181-032-0	02	1	9604-			●
142	BOLT; QUAD BOX (D) M10X20,M10X26 L=56	1-09049-014-1	01	1	9604-0805			●
142	BOLT; QUAD BOX (D) M10X20,M10X26 L=56	8-98010-334-0	01	1	0806-			●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9604-0405	●		●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0406-0805	●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9604-0405	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0406-0805	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9604-9803	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	04	1	9804-0405	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	04	1	0406-0512	●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	9604-9803	●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	0406-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-458-1	01	1	9604-9709			●
157	BOX; QUAD,TRANS (A)	1-33541-505-0	01	1	9710-9903			●
157	BOX; QUAD,TRANS (A)	1-33541-514-0	01	1	9904-			●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	9604-			●
157	BOX; QUAD,TRANS (B)	1-33541-444-0	01	1	9604-9803	●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	9804-0405	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0406-		●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9604-	●
163	LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	9604-			●
163	LEVER; SELECT,INTERNAL	1-33522-133-0	01	1	9604-9803	●
163	LEVER; SELECT,INTERNAL	1-33522-153-0	01	1	9804-0405	●
163	LEVER; SELECT,INTERNAL	1-33522-153-0	01	1	0406-	●	●
166	PIN; SPR,SELECT LEVER L=25 OD=5	1-09748-032-0	01	1	9804-0405	●
166	PIN; SPR,SELECT LEVER L=25 OD=5	1-09748-032-0	01	1	0406-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-139-0	01	1	9604-			●
167	LEVER; SELECT,EXTERNAL	1-33521-145-0	01	1	9604-9803	●
167	LEVER; SELECT,EXTERNAL	1-33521-159-0	01	1	9804-0405	●
167	LEVER; SELECT,EXTERNAL	1-33521-159-0	01	1	0406-	●	●
181	WASHER; PL,SELECT LEVER OD=37	1-09532-007-0	01	1	9604-			●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9604-9803	●
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	9804-0405	●
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0406-	●	●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	9804-0405	●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	0406-	●	●
273	PIN; SPR,STOPPER L=30 OD=4	1-09748-031-0	01	1	9804-0405	●
273	PIN; SPR,STOPPER L=30 OD=4	1-09748-031-0	01	1	0406-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9604-0405	●		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0406-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-269-0	01	1	9604-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-369-0	01	1	9604-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9604-9803	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	9804-0405	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	0406-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9604-9803	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-600-0	01	1	9804-0405	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-600-0	01	1	0406-	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9604-9803	●		●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9804-9804			●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-			●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9604-0405	●		●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0406-0512	●	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-0705	●	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0706-			●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9604-9803	●		●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9804-			●
295	ROD; LINK,RELAY LEVER	9-08400-808-0	01	1	9804-0405	●
295	ROD; LINK,RELAY LEVER	9-08400-808-0	01	1	0406-0705	●	●
295	ROD; LINK,RELAY LEVER	8-98023-095-0	01	1	0706-	●	●
296	ROD END L=48	1-09760-038-1	02	1	9604-0309	●		●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-0405	●		●
296	ROD END L=45.5	1-09760-118-1	02	1	0406-0705	●	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0706-			●
298	SHAFT; SHIFT LEVER	1-33522-147-0	01	1	9604-9803			●
298	SHAFT; SHIFT LEVER	1-33522-167-0	01	1	9804-			●
298	SHAFT; SHIFT LEVER	1-33522-125-0	01	1	9604-9803	●
298	SHAFT; SHIFT LEVER	1-33522-163-0	01	1	9804-0405	●
298	SHAFT; SHIFT LEVER	1-33522-163-0	01	1	0406-	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	9604-9803	●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28081-050-0	03	1	9804-0405	●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28081-050-0	03	1	0406-0512	●	●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28051-050-0	03	1	0601-	●	●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28181-070-0	04	1	9604-9803	●
317	BUSHING; LEVER	1-09330-119-0	02	1	9604-0405	●		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0406-	●	●	●
322	WASHER; LK ID=12.2	9-09150-512-0	01	1	9804-0405	●
322	WASHER; LK ID=12.2	9-09150-512-0	01	1	0406-0603	●	●
322	WASHER; LK ID=12.2	0-91510-512-0	01	1	0604-0705	●	●
322	WASHER; LK	8-98031-750-0	01	1	0706-	●	●
333	WASHER; PL,LEVER ID=10.5 OD=26	9-09160-710-0	01	1	9804-0405	●
333	WASHER; PL,LEVER ID=10.5 OD=26	9-09160-710-0	01	1	0406-0705	●	●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	0706-	●	●

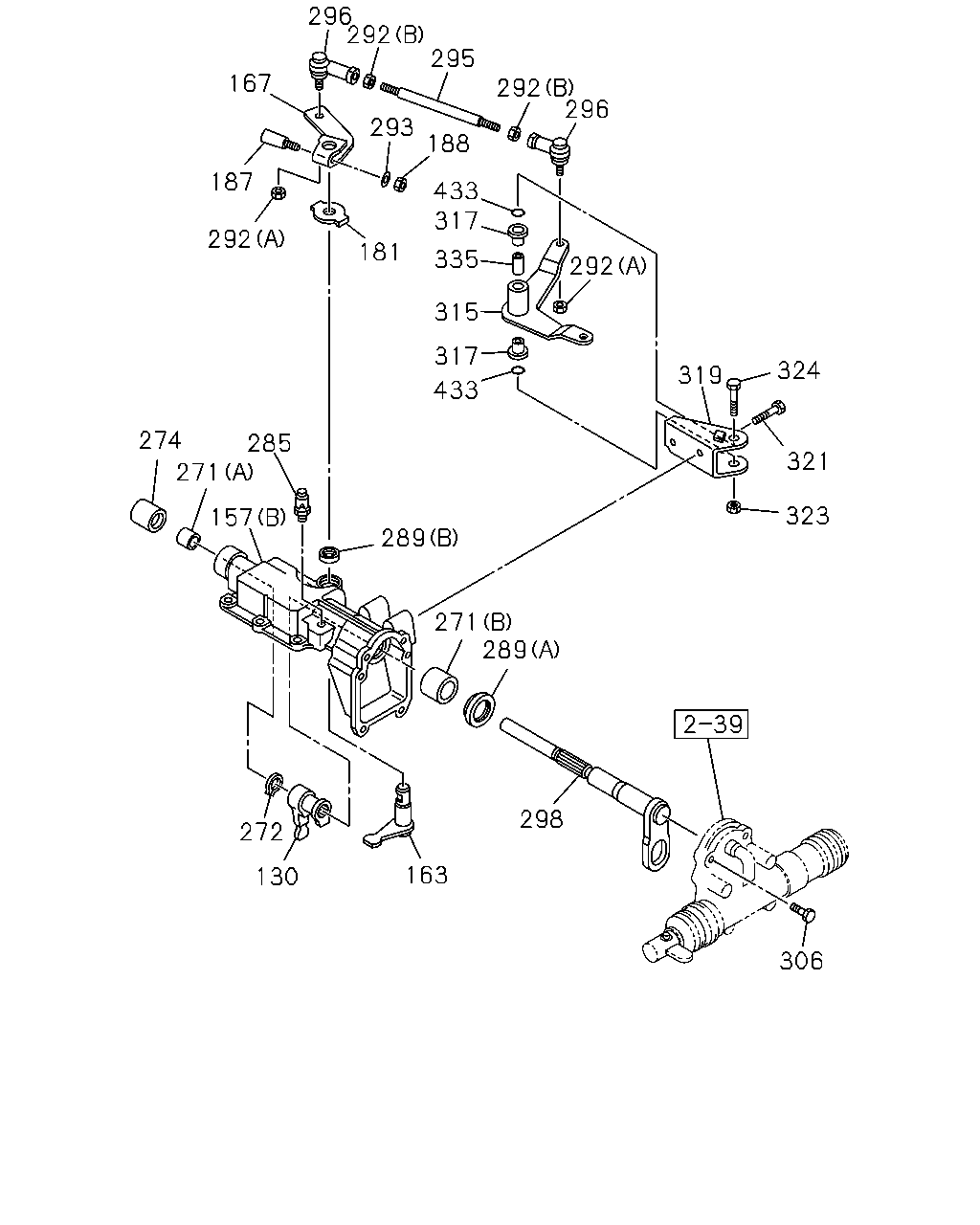

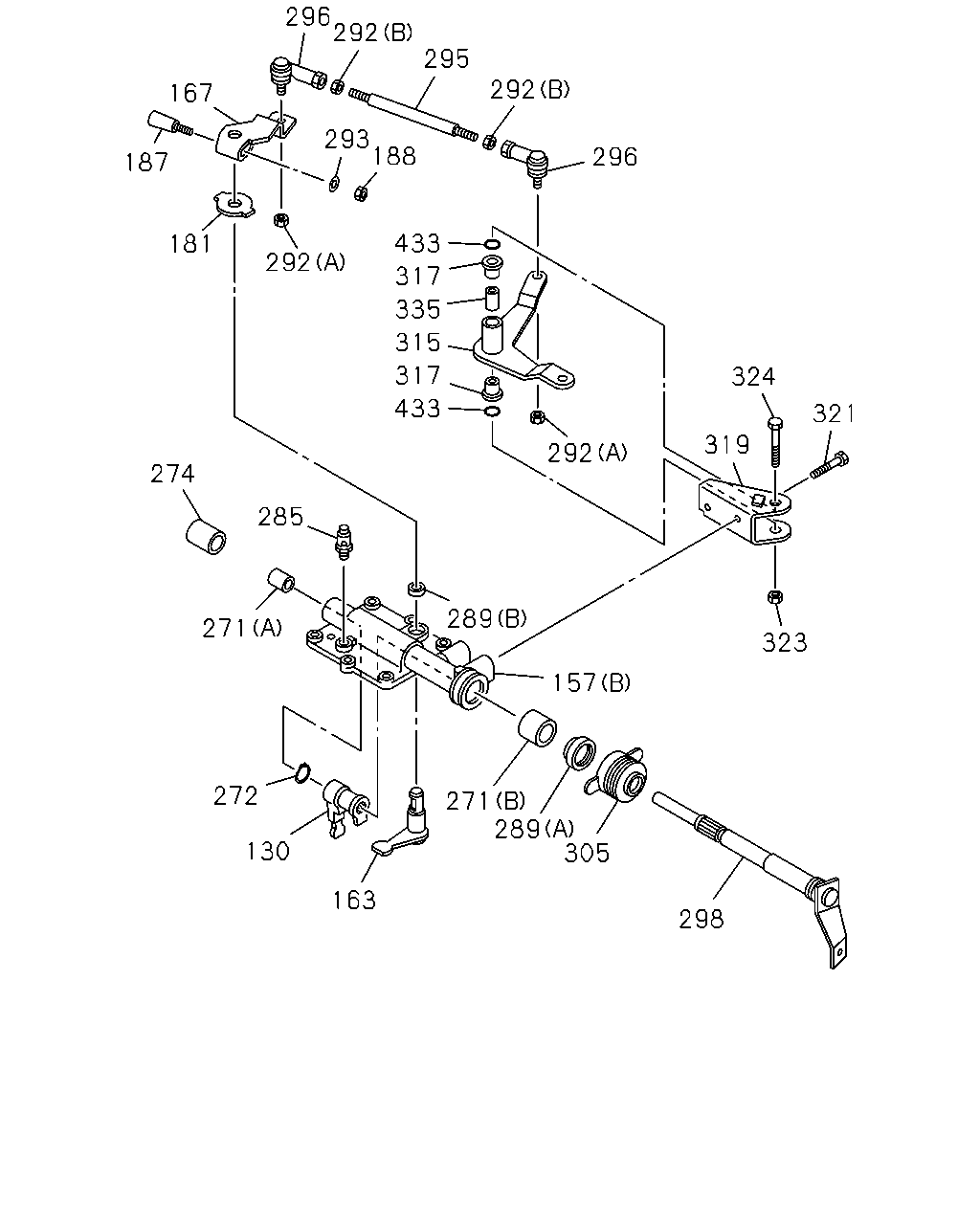

296 292 295 292 167 293 188 296 187 433 181 292 317 335 315 317 324 433 321 319 292 274 285 289 271 323 157 272 271 289 305 130 163 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
130	LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	9604-			●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9604-9803	●
130	LEVER; SHIFT,INTERNAL	1-33521-165-0	01	1	9804-0405	●
130	LEVER; SHIFT,INTERNAL	1-33521-165-0	01	1	0406-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	0406-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-458-1	01	1	9604-9709			●
157	BOX; QUAD,TRANS (A)	1-33541-505-0	01	1	9710-9903			●
157	BOX; QUAD,TRANS (A)	1-33541-514-0	01	1	9904-			●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	9604-			●
157	BOX; QUAD,TRANS (B)	1-33541-444-0	01	1	9604-9803	●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	9804-0405	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0406-		●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9604-	●
163	LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	9604-			●
163	LEVER; SELECT,INTERNAL	1-33522-133-0	01	1	9604-9803	●
163	LEVER; SELECT,INTERNAL	1-33522-153-0	01	1	9804-0405	●
163	LEVER; SELECT,INTERNAL	1-33522-153-0	01	1	0406-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-139-0	01	1	9604-			●
167	LEVER; SELECT,EXTERNAL	1-33521-145-0	01	1	9604-9803	●
167	LEVER; SELECT,EXTERNAL	1-33521-159-0	01	1	9804-0405	●
167	LEVER; SELECT,EXTERNAL	1-33521-159-0	01	1	0406-	●	●
181	WASHER; PL,SELECT LEVER OD=37	1-09532-007-0	01	1	9604-			●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9604-9803	●
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	9804-0405	●
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0406-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9604-9803	●		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9804-			●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9604-9803	●		●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9804-9804			●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9805-			●
271	BUSHING; QUAD BOX (B) ID=25 OD=28	1-33549-107-0	01	1	9604-			●
271	BUSHING; QUAD BOX (A) ID=17 OD=19	1-33549-108-0	01	1	9604-			●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	9604-9803	●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	9604-9803	●
272	RING; SNAP,QUAD BOX	1-09588-174-0	01	1	9604-			●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9604-9803	●
274	COVER; SHAFT,QUAD BOX OD=24 L=31	9-33545-011-1	01	1	9604-			●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9604-9803	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9604-0405	●		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0406-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-269-0	01	1	9604-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-369-0	01	1	9604-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9604-9803	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	9804-0405	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	0406-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9604-9803	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-600-0	01	1	9804-0405	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-600-0	01	1	0406-	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9604-9803	●		●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9804-9804			●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-			●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9604-0405	●		●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0406-0512	●	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-0705	●	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0706-			●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9604-9803	●		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9804-0605			●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-			●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9604-9803	●		●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9804-			●
295	ROD; LINK,RELAY LEVER	9-08400-808-0	01	1	9804-0405	●
295	ROD; LINK,RELAY LEVER	9-08400-808-0	01	1	0406-0705	●	●
295	ROD; LINK,RELAY LEVER	8-98023-095-0	01	1	0706-	●	●
296	ROD END L=48	1-09760-038-1	02	1	9604-0309	●		●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-0405	●		●
296	ROD END L=45.5	1-09760-118-1	02	1	0406-0705	●	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0706-			●
298	SHAFT; SHIFT LEVER	1-33522-147-0	01	1	9604-9803			●
298	SHAFT; SHIFT LEVER	1-33522-167-0	01	1	9804-			●
298	SHAFT; SHIFT LEVER	1-33522-125-0	01	1	9604-9803	●
298	SHAFT; SHIFT LEVER	1-33522-163-0	01	1	9804-0405	●
298	SHAFT; SHIFT LEVER	1-33522-163-0	01	1	0406-	●	●
305	BOOT; LEVER SHAFT	1-33529-051-0	01	1	9604-			●
315	LEVER; SELECT	1-33651-652-0	01	1	9604-9803			●
315	LEVER; SELECT	1-33651-703-0	01	1	9804-			●
315	LEVER; SELECT	1-33651-650-0	01	1	9604-9803	●
317	BUSHING; LEVER	1-09330-119-0	02	1	9604-0405	●		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0406-	●	●	●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	9604-9803	●		●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	9804-			●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9604-9803	●		●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9804-			●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9604-9803	●		●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9804-			●
324	BOLT; SHAFT M10X60	0-10811-060-0	01	1	9604-9803	●		●
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	9804-			●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-192-0	01	1	9604-9803	●		●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-192-0	01	1	9804-9809			●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	9810-			●
433	GASKET; BUSHING	1-09623-594-0	02	1	9604-9803	●		●
433	GASKET; BUSHING	1-09623-594-0	02	1	9804-			●

142 218 142 218 398 413 218 142 223 225 224 221 142 171 28 30 42 38 39 42 54 219 78 227 142 142 157 42 89 85 82 33 22 21 84 31 86 19 13 54 62 65 15 20 66 80 68 11 12 67 78 61

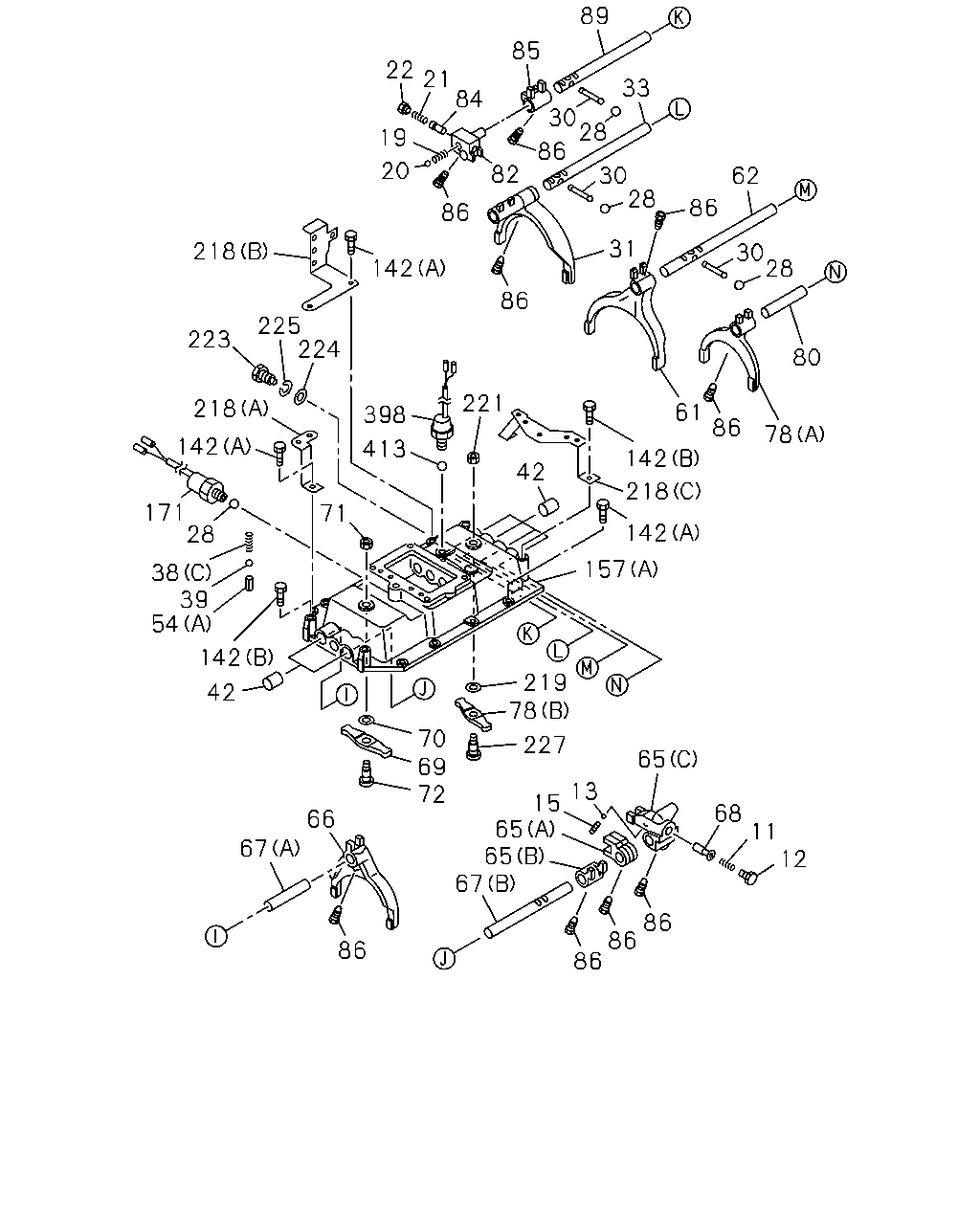

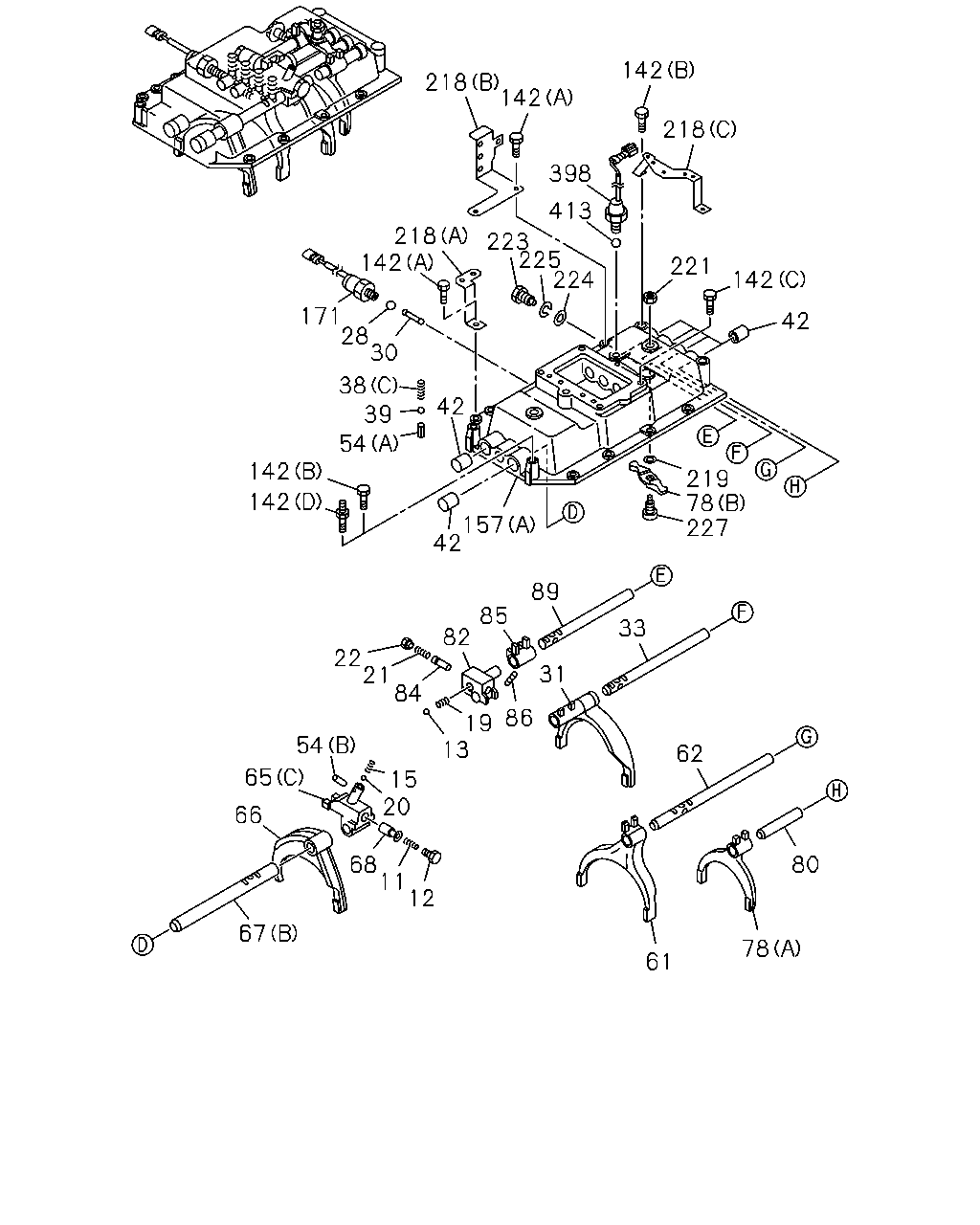

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	SPRING; RETURN,SHIFT SLEEVE	1-09580-444-0	01	1	9604-			●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9604-0405	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0406-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9604-9604	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9605-0405	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0406-	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9604-0405	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0406-	●	●
15	SPRING; LK,SHIFT SLEEVE	1-09580-445-0	01	1	9604-			●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	9604-0405	●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0406-	●	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	9604-0405	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	0406-	●	●
20	BALL; DETENT SLEEVE	9-00097-009-0	01	1	9604-			●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9604-0405	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0406-	●	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	9604-0405	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0406-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9604-0405	●		●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0406-	●	●	●
28	BALL; INTER LK	9-00097-010-0	05	1	9604-			●
28	BALL; INTER LK	9-00097-501-0	04	1	9604-0405	●
28	BALL; INTER LK	9-00097-501-0	04	1	0406-	●	●
30	PIN; INTER LK	1-33534-002-0	02	1	9604-			●
30	PIN; INTER LK	9-33534-003-0	03	1	9604-0405	●
30	PIN; INTER LK	9-33534-003-0	03	1	0406-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9604-0405	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0406-	●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9604-0405	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0406-1202	●	●
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-	●	●
38	SPRING; DETENT (D)	1-09580-374-0	03	1	9604-9606			●
38	SPRING; DETENT (D)	1-09580-548-0	03	1	9607-9706			●
38	SPRING; DETENT (A)	1-09580-548-0	02	1	9707-			●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	9707-			●
38	SPRING; DETENT (C)	1-09580-379-0	04	1	9604-9803	●
38	SPRING; DETENT (C)	1-09580-419-0	04	1	9804-9904	●
38	SPRING; DETENT (C)	1-09580-379-0	04	1	9905-0405	●
38	SPRING; DETENT (C)	1-09580-379-0	04	1	0406-	●	●
39	BALL; DETENT	9-00097-013-0	03	1	9604-			●
39	BALL; DETENT	1-09843-012-0	04	1	9604-0405	●
39	BALL; DETENT	1-09843-012-0	04	1	0406-	●	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	07	1	9604-			●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9604-0405	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0406-	●	●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9604-0201	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9604-0405	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	0406-	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9604-0405	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0406-	●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9604-0405	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0406-1202	●	●
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0406-		●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0406-		●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	9604-0405	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0406-	●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0406-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	9604-	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0406-1202	●	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-	●	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	9604-0405	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0406-1202		●
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-		●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	9604-0405	●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0406-	●	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9604-0405	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0406-	●	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9604-0405	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0406-	●	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	9604-0405	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0406-1202	●	●
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-	●	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	9604-0405	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0406-	●	●
84	SLEEVE; REV	1-33516-025-0	01	1	9604-0405	●
84	SLEEVE; REV	1-33516-025-0	01	1	0406-	●	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	9604-0405	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0406-	●	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0406-		●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	07	1	9604-	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	9604-0405	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0406-1202	●	●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	13	1	9604-0805			●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	13	1	0806-			●
142	BOLT; QUAD BOX (B) M10X32 FLANGE	0-28181-032-0	02	1	9604-			●
142	BOLT; QUAD BOX (D) M10X20,M10X26 L=56	1-09049-014-1	01	1	9604-0805			●
142	BOLT; QUAD BOX (D) M10X20,M10X26 L=56	8-98010-334-0	01	1	0806-			●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9604-0405	●		●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0406-0805	●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9604-0405	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0406-0805	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9604-9803	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	04	1	9804-0405	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	04	1	0406-0512	●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	9604-9803	●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	0406-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-458-1	01	1	9604-9709			●
157	BOX; QUAD,TRANS (A)	1-33541-505-0	01	1	9710-9903			●
157	BOX; QUAD,TRANS (A)	1-33541-514-0	01	1	9904-			●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	9604-			●
157	BOX; QUAD,TRANS (B)	1-33541-444-0	01	1	9604-9803	●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	9804-0405	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0406-		●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9604-	●
171	SWITCH; NEUTRAL	1-82340-534-0	01	1	9604-			●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	9604-0405	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0406-0702	●	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104	●	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	02	1	9604-			●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	9604-0405	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0406-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	9604-0405	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0406-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	9604-0405	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0406-	●	●
219	WASHER; PL,SPINDLE ID=14	9-09851-275-0	01	1	9604-			●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9604-0405	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0406-	●	●
221	NUT; SPINDLE M10 FLANGE	0-91150-110-0	01	1	9604-0602			●
221	NUT; SPINDLE M10 FLANGE	0-91180-110-0	01	1	0603-			●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9604-0405	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0406-0602	●	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
223	SCREW; SET,QUAD BOX M8X12.5	9-09814-533-0	01	1	9604-			●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9604-0405	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0406-	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9604-0405	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0406-0605	●	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9604-0405	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0406-0603	●	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-	●	●
227	SPINDLE; 1ST & REV	1-33519-043-0	01	1	9604-9810			●
227	SPINDLE; 1ST & REV	1-33519-130-0	01	1	9811-			●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9604-0405	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0406-	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9604-0405	●		●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0406-0602	●	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209	●	●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9604-0405	●
413	BALL; BACK SW	9-00097-013-0	01	1	0406-	●	●

296 292 295 167 292 296 293 188 187 433 317 292 292 181 335 315 317 324 319 433 274 285 321 271 323 157 289 271 289 298 272 163 130 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
130	LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	9604-			●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9604-9803	●
130	LEVER; SHIFT,INTERNAL	1-33521-165-0	01	1	9804-0405	●
130	LEVER; SHIFT,INTERNAL	1-33521-165-0	01	1	0406-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	0406-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-458-1	01	1	9604-9709			●
157	BOX; QUAD,TRANS (A)	1-33541-505-0	01	1	9710-9903			●
157	BOX; QUAD,TRANS (A)	1-33541-514-0	01	1	9904-			●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	9604-			●
157	BOX; QUAD,TRANS (B)	1-33541-444-0	01	1	9604-9803	●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	9804-0405	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0406-		●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9604-	●
163	LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	9604-			●
163	LEVER; SELECT,INTERNAL	1-33522-133-0	01	1	9604-9803	●
163	LEVER; SELECT,INTERNAL	1-33522-153-0	01	1	9804-0405	●
163	LEVER; SELECT,INTERNAL	1-33522-153-0	01	1	0406-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-139-0	01	1	9604-			●
167	LEVER; SELECT,EXTERNAL	1-33521-145-0	01	1	9604-9803	●
167	LEVER; SELECT,EXTERNAL	1-33521-159-0	01	1	9804-0405	●
167	LEVER; SELECT,EXTERNAL	1-33521-159-0	01	1	0406-	●	●
181	WASHER; PL,SELECT LEVER OD=37	1-09532-007-0	01	1	9604-			●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9604-9803	●
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	9804-0405	●
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0406-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9604-9803	●		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9804-			●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9604-9803	●		●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9804-9804			●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9805-			●
271	BUSHING; QUAD BOX (B) ID=25 OD=28	1-33549-107-0	01	1	9604-			●
271	BUSHING; QUAD BOX (A) ID=17 OD=19	1-33549-108-0	01	1	9604-			●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	9604-9803	●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	9604-9803	●
272	RING; SNAP,QUAD BOX	1-09588-174-0	01	1	9604-			●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9604-9803	●
274	COVER; SHAFT,QUAD BOX OD=24 L=31	9-33545-011-1	01	1	9604-			●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9604-9803	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9604-0405	●		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0406-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-269-0	01	1	9604-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-369-0	01	1	9604-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9604-9803	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	9804-0405	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	0406-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9604-9803	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-600-0	01	1	9804-0405	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-600-0	01	1	0406-	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9604-9803	●		●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9804-9804			●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-			●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9604-0405	●		●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0406-0512	●	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-0705	●	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0706-			●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9604-9803	●		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9804-0605			●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-			●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9604-9803	●		●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9804-			●
295	ROD; LINK,RELAY LEVER	9-08400-808-0	01	1	9804-0405	●
295	ROD; LINK,RELAY LEVER	9-08400-808-0	01	1	0406-0705	●	●
295	ROD; LINK,RELAY LEVER	8-98023-095-0	01	1	0706-	●	●
296	ROD END L=48	1-09760-038-1	02	1	9604-0309	●		●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-0405	●		●
296	ROD END L=45.5	1-09760-118-1	02	1	0406-0705	●	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0706-			●
298	SHAFT; SHIFT LEVER	1-33522-147-0	01	1	9604-9803			●
298	SHAFT; SHIFT LEVER	1-33522-167-0	01	1	9804-			●
298	SHAFT; SHIFT LEVER	1-33522-125-0	01	1	9604-9803	●
298	SHAFT; SHIFT LEVER	1-33522-163-0	01	1	9804-0405	●
298	SHAFT; SHIFT LEVER	1-33522-163-0	01	1	0406-	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	9604-9803	●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28081-050-0	03	1	9804-0405	●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28081-050-0	03	1	0406-0512	●	●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28051-050-0	03	1	0601-	●	●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28181-070-0	04	1	9604-9803	●
315	LEVER; SELECT	1-33651-652-0	01	1	9604-9803			●
315	LEVER; SELECT	1-33651-703-0	01	1	9804-			●
315	LEVER; SELECT	1-33651-650-0	01	1	9604-9803	●
317	BUSHING; LEVER	1-09330-119-0	02	1	9604-0405	●		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0406-	●	●	●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	9604-9803	●		●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	9804-			●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9604-9803	●		●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9804-			●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9604-9803	●		●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9804-			●
324	BOLT; SHAFT M10X60	0-10811-060-0	01	1	9604-9803	●		●
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	9804-			●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-192-0	01	1	9604-9803	●		●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-192-0	01	1	9804-9809			●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	9810-			●
433	GASKET; BUSHING	1-09623-594-0	02	1	9604-9803	●		●
433	GASKET; BUSHING	1-09623-594-0	02	1	9804-			●

89 85 22 21 84 33 30 28 19 86 20 82 30 28 62 86 86 31 218 30 28 142 86 225 224 223 80 221 218 61 398 86 78 142 413 142 42 218 171 28 71 142 157 38 39 54 142 219 78 42 70 69 72 227 65 13 15 65 65 67 68 66 11 12 67 86 86 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	SPRING; RETURN,SHIFT SLEEVE	1-09580-444-0	01	1	9604-			●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9604-0405	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0406-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9604-9604	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9605-0405	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0406-	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9604-0405	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0406-	●	●
15	SPRING; LK,SHIFT SLEEVE	1-09580-445-0	01	1	9604-			●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	9604-0405	●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0406-	●	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	9604-0405	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	0406-	●	●
20	BALL; DETENT SLEEVE	9-00097-009-0	01	1	9604-			●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9604-0405	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0406-	●	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	9604-0405	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0406-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9604-0405	●		●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0406-	●	●	●
28	BALL; INTER LK	9-00097-010-0	05	1	9604-			●
28	BALL; INTER LK	9-00097-501-0	04	1	9604-0405	●
28	BALL; INTER LK	9-00097-501-0	04	1	0406-	●	●
30	PIN; INTER LK	1-33534-002-0	02	1	9604-			●
30	PIN; INTER LK	9-33534-003-0	03	1	9604-0405	●
30	PIN; INTER LK	9-33534-003-0	03	1	0406-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9604-0405	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0406-	●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9604-0405	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0406-1202	●	●
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-	●	●
38	SPRING; DETENT (D)	1-09580-374-0	03	1	9604-9606			●
38	SPRING; DETENT (D)	1-09580-548-0	03	1	9607-9706			●
38	SPRING; DETENT (A)	1-09580-548-0	02	1	9707-			●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	9707-			●
38	SPRING; DETENT (C)	1-09580-379-0	04	1	9604-9803	●
38	SPRING; DETENT (C)	1-09580-419-0	04	1	9804-9904	●
38	SPRING; DETENT (C)	1-09580-379-0	04	1	9905-0405	●
38	SPRING; DETENT (C)	1-09580-379-0	04	1	0406-	●	●
39	BALL; DETENT	9-00097-013-0	03	1	9604-			●
39	BALL; DETENT	1-09843-012-0	04	1	9604-0405	●
39	BALL; DETENT	1-09843-012-0	04	1	0406-	●	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	07	1	9604-			●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9604-0405	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0406-	●	●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9604-0201	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9604-0405	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	0406-	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9604-0405	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0406-	●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9604-0405	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0406-1202	●	●
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0406-		●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0406-		●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	9604-0405	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0406-	●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0406-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	9604-	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0406-1202	●	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-	●	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	9604-0405	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0406-1202		●
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-		●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	9604-0405	●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0406-	●	●
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	0406-		●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0406-		●
71	NUT; SHIFT LEVER M12 FLANGE	0-91150-212-0	01	1	0406-0602		●
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	0603-		●
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	0406-		●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9604-0405	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0406-	●	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9604-0405	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0406-	●	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	9604-0405	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0406-1202	●	●
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-	●	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	9604-0405	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0406-	●	●
84	SLEEVE; REV	1-33516-025-0	01	1	9604-0405	●
84	SLEEVE; REV	1-33516-025-0	01	1	0406-	●	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	9604-0405	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0406-	●	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0406-		●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	07	1	9604-	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	9604-0405	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0406-1202	●	●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	13	1	9604-0805			●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	13	1	0806-			●
142	BOLT; QUAD BOX (B) M10X32 FLANGE	0-28181-032-0	02	1	9604-			●
142	BOLT; QUAD BOX (D) M10X20,M10X26 L=56	1-09049-014-1	01	1	9604-0805			●
142	BOLT; QUAD BOX (D) M10X20,M10X26 L=56	8-98010-334-0	01	1	0806-			●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9604-0405	●		●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0406-0805	●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9604-0405	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0406-0805	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9604-9803	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	04	1	9804-0405	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	04	1	0406-0512	●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	9604-9803	●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	0406-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-458-1	01	1	9604-9709			●
157	BOX; QUAD,TRANS (A)	1-33541-505-0	01	1	9710-9903			●
157	BOX; QUAD,TRANS (A)	1-33541-514-0	01	1	9904-			●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	9604-			●
157	BOX; QUAD,TRANS (B)	1-33541-444-0	01	1	9604-9803	●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	9804-0405	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0406-		●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9604-	●
171	SWITCH; NEUTRAL	1-82340-534-0	01	1	9604-			●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	9604-0405	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0406-0702	●	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104	●	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	02	1	9604-			●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	9604-0405	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0406-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	9604-0405	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0406-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	9604-0405	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0406-	●	●
219	WASHER; PL,SPINDLE ID=14	9-09851-275-0	01	1	9604-			●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9604-0405	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0406-	●	●
221	NUT; SPINDLE M10 FLANGE	0-91150-110-0	01	1	9604-0602			●
221	NUT; SPINDLE M10 FLANGE	0-91180-110-0	01	1	0603-			●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9604-0405	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0406-0602	●	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
223	SCREW; SET,QUAD BOX M8X12.5	9-09814-533-0	01	1	9604-			●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9604-0405	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0406-	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9604-0405	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0406-0605	●	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9604-0405	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0406-0603	●	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-	●	●
227	SPINDLE; 1ST & REV	1-33519-043-0	01	1	9604-9810			●
227	SPINDLE; 1ST & REV	1-33519-130-0	01	1	9811-			●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9604-0405	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0406-	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9604-0405	●		●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0406-0602	●	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209	●	●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9604-0405	●
413	BALL; BACK SW	9-00097-013-0	01	1	0406-	●	●

142 382 218 142 398 171 390 393 28 30 218 142 411 223 42 221 28 28 30 28 28 42 142 157 142 42 52 219 39 39 522 38 38 227 17 22 11 18 52 2 15 2 20 1 17 26 25 49 52 52 34 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ARM; SHIFT,1ST & REV	1-33511-502-1	01	1	9604-			●
2	ROD; SHIFT,1ST & REV (B)	1-33531-360-1	01	1	9604-			●
2	ROD; SHIFT,1ST & REV (A)	1-33531-361-1	01	1	9604-			●
11	SPRING; RETURN,SHIFT SLEEVE	1-09580-444-0	01	1	9604-			●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9604-0405	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0406-	●	●
15	SPRING; LK,SHIFT SLEEVE	1-09580-445-0	01	1	9604-			●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	9604-0405	●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0406-	●	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-387-2	01	1	9604-			●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-432-1	01	1	9604-			●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-029-0	01	1	9604-			●
20	BALL; DETENT SLEEVE	9-00097-009-0	01	1	9604-			●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9604-0405	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0406-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9604-0405	●		●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0406-	●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-430-0	01	1	9604-9807			●
25	ARM; SHIFT,2ND & 3RD	1-33511-580-1	01	1	9808-			●
26	ROD; SHIFT,2ND & 3RD	1-33531-362-1	01	1	9604-9606			●
26	ROD; SHIFT,2ND & 3RD	1-33531-384-0	01	1	9607-			●
28	BALL; INTER LK	9-00097-010-0	05	1	9604-			●
28	BALL; INTER LK	9-00097-501-0	04	1	9604-0405	●
28	BALL; INTER LK	9-00097-501-0	04	1	0406-	●	●
30	PIN; INTER LK	1-33534-002-0	02	1	9604-			●
30	PIN; INTER LK	9-33534-003-0	03	1	9604-0405	●
30	PIN; INTER LK	9-33534-003-0	03	1	0406-	●	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-363-1	01	1	9604-9606			●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-385-0	01	1	9607-			●
38	SPRING; DETENT (D)	1-09580-374-0	03	1	9604-9606			●
38	SPRING; DETENT (D)	1-09580-548-0	03	1	9607-9706			●
38	SPRING; DETENT (A)	1-09580-548-0	02	1	9707-			●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	9707-			●
38	SPRING; DETENT (C)	1-09580-379-0	04	1	9604-9803	●
38	SPRING; DETENT (C)	1-09580-419-0	04	1	9804-9904	●
38	SPRING; DETENT (C)	1-09580-379-0	04	1	9905-0405	●
38	SPRING; DETENT (C)	1-09580-379-0	04	1	0406-	●	●
39	BALL; DETENT	9-00097-013-0	03	1	9604-			●
39	BALL; DETENT	1-09843-012-0	04	1	9604-0405	●
39	BALL; DETENT	1-09843-012-0	04	1	0406-	●	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	07	1	9604-			●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9604-0405	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0406-	●	●
49	ARM; SHIFT,4TH & 5TH	1-33511-460-0	01	1	9604-9807			●
49	ARM; SHIFT,4TH & 5TH	1-33511-582-0	01	1	9808-			●
52	BOLT; SHIFT ARM	1-09052-034-2	05	1	9604-			●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	13	1	9604-0805			●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	13	1	0806-			●
142	BOLT; QUAD BOX (B) M10X32 FLANGE	0-28181-032-0	02	1	9604-			●
142	BOLT; QUAD BOX (D) M10X20,M10X26 L=56	1-09049-014-1	01	1	9604-0805			●
142	BOLT; QUAD BOX (D) M10X20,M10X26 L=56	8-98010-334-0	01	1	0806-			●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9604-0405	●		●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0406-0805	●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9604-0405	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0406-0805	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9604-9803	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	04	1	9804-0405	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	04	1	0406-0512	●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	9604-9803	●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	0406-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-458-1	01	1	9604-9709			●
157	BOX; QUAD,TRANS (A)	1-33541-505-0	01	1	9710-9903			●
157	BOX; QUAD,TRANS (A)	1-33541-514-0	01	1	9904-			●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	9604-			●
157	BOX; QUAD,TRANS (B)	1-33541-444-0	01	1	9604-9803	●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	9804-0405	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0406-		●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9604-	●
171	SWITCH; NEUTRAL	1-82340-534-0	01	1	9604-			●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	9604-0405	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0406-0702	●	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104	●	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	02	1	9604-			●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	9604-0405	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0406-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	9604-0405	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0406-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	9604-0405	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0406-	●	●
219	WASHER; PL,SPINDLE ID=14	9-09851-275-0	01	1	9604-			●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9604-0405	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0406-	●	●
221	NUT; SPINDLE M10 FLANGE	0-91150-110-0	01	1	9604-0602			●
221	NUT; SPINDLE M10 FLANGE	0-91180-110-0	01	1	0603-			●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9604-0405	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0406-0602	●	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
223	SCREW; SET,QUAD BOX M8X12.5	9-09814-533-0	01	1	9604-			●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9604-0405	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0406-	●	●
227	SPINDLE; 1ST & REV	1-33519-043-0	01	1	9604-9810			●
227	SPINDLE; 1ST & REV	1-33519-130-0	01	1	9811-			●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9604-0405	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0406-	●	●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-209-3	01	1	9604-			●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9604-			●
393	PIN; SW	1-33534-003-0	01	1	9604-			●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9604-0405	●		●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0406-0602	●	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209	●	●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9604-			●
522	LEVER; SHIFT,1-REV	1-33521-135-0	01	1	9604-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
