Sayfa 2-26 - Isuzu EPC

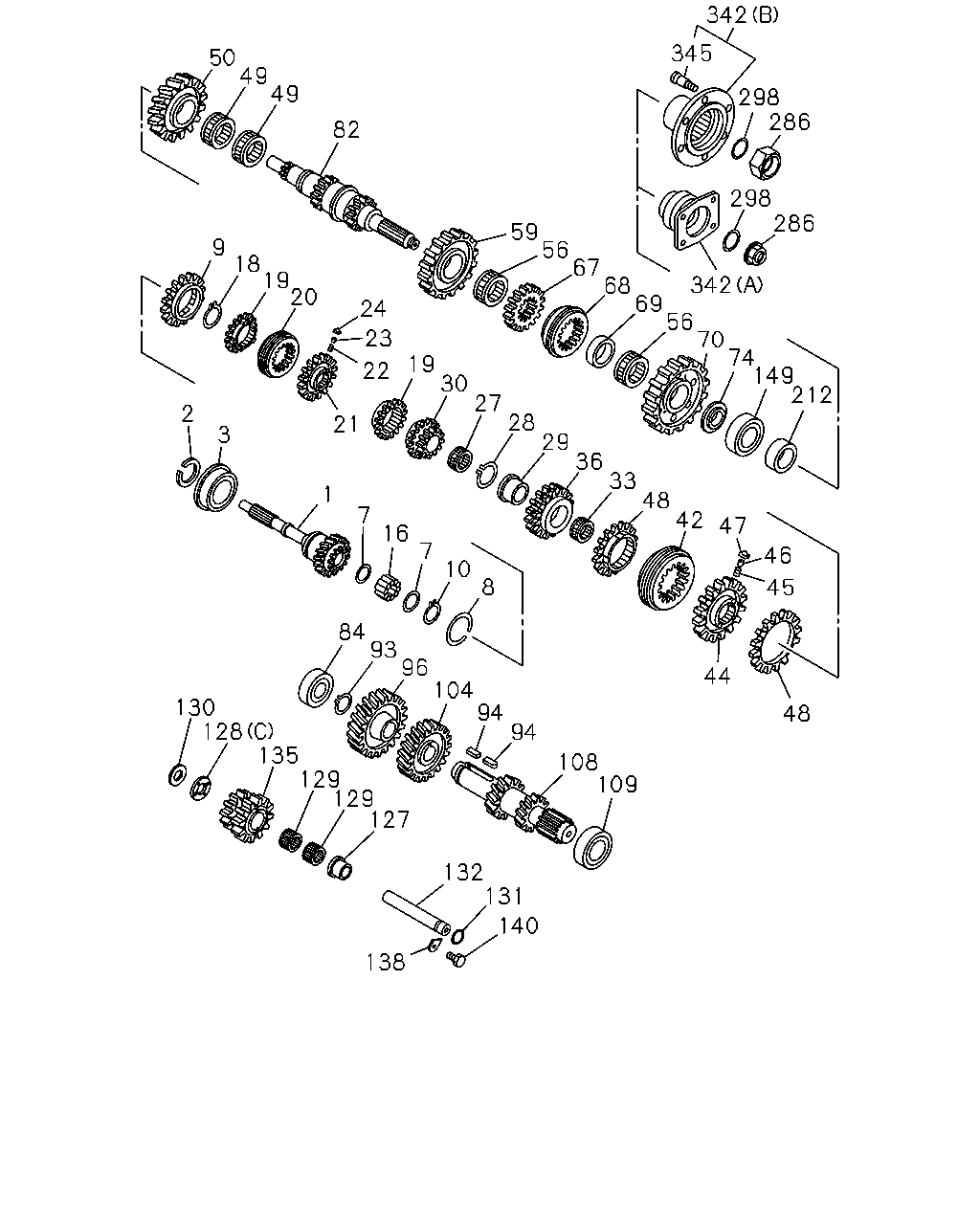

2-26 — MANUAL TRANSMISSION GEAR (#36775) — 627 parça

342 345 50 49 49 298 286 82 298 286 59 56 67 68 69 56 70 74 149 212 9 18 19 20 342 24 23 19 30 27 28 29 36 33 48 42 22 2 21 3 1 7 47 16 7 46 10 8 45 84 93 96 104 94 94 44 130 128 135 129 129 127 48 108 109 132 131 140 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-785-0	01	1	0406-	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	9604-		●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-505-1	01	1	9604-0006			●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-987-0	01	1	0007-			●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9604-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0406-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9604-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0406-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9604-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0406-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9604-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0406-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9604-9909		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0502		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-282-0	01	1	0503-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9604-0405			●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0406-	●		●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9604-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9604-0405			●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0406-	●		●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9604-0405		●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0406-	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	9604-		●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9604-0405			●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0406-	●		●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9604-		●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9604-0405			●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0406-	●		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9604-9810		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	9811-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9604-9810		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	9811-		●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-008-2	14	1	9604-9810		●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-023-0	14	1	9811-		●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9604-0405			●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	0406-	●		●
18	RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	9604-		●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9604-0405			●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0406-	●		●
19	RING; BLOCK,4TH & 5TH Z=45	1-33265-414-0	02	1	9604-		●
20	SLEEVE	1-33262-167-0	01	1	9604-		●
21	HUB; CLU,4TH & 5TH	1-33261-210-0	01	1	9604-9811		●
21	HUB; CLU,4TH & 5TH	1-33261-258-0	01	1	9812-		●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9604-		●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9604-0405			●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0406-	●		●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9604-0405		●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0406-	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9604-0405		●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0406-	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	9604-		●
27	BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	9604-		●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9604-0405			●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0406-	●		●
28	RING; SNAP,3RD GEAR	1-09588-195-0	01	1	9604-		●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9604-0405			●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0406-	●		●
29	COLLAR; 3RD GEAR	1-33234-076-0	01	1	9604-		●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0406-1107	●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	9604-		●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9604-			●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-370-0	01	1	9604-		●
33	BEARING; NEEDLE,3RD GEAR JTEKT	1-09811-387-1	01	1	9604-		●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-414-0	01	1	9712-		●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0406-	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-414-0	01	1	9604-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9604-			●
42	SLEEVE Z=45	1-33262-162-0	01	1	9604-		●
42	SLEEVE Z=54	1-33262-154-0	01	1	9604-0405			●
42	SLEEVE Z=54	1-33262-154-0	01	1	0406-	●		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-193-0	01	1	9604-		●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9604-		●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9604-0405			●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0406-	●		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9604-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9604-0405			●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0406-	●		●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9604-		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9604-0405			●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0406-	●		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	9604-		●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-371-0	02	1	9604-		●
49	BEARING; NEEDLE,2ND GEAR JTEKT	1-09811-373-0	02	1	9604-		●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	9604-		●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9604-0405			●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0406-	●		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	9604-		●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-387-1	02	1	9604-		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	9712-		●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9604-0405			●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	0406-	●		●
59	GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	9604-		●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9604-0405			●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0406-	●		●
67	HUB; CLU,1ST TO REV	1-33261-192-0	01	1	9604-		●
68	SLEEVE; 1ST TO REV	1-33262-175-1	01	1	9604-		●
69	COLLAR; 1ST GEAR MAIN	1-33234-073-0	01	1	9604-		●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	9604-		●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9604-0405			●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0406-	●		●
74	WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	9604-		●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9604-0405			●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0406-	●		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-262-0	01	1	9604-9909		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-311-0	01	1	9910-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9604-0405			●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0406-	●		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	9604-		●
84	BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-210-0	01	1	9604-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9604-0405			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0406-	●		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	9604-		●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9604-0405			●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0406-	●		●
94	KEY; FEATHER,COUNTER SHAFT L=41	1-09735-021-0	01	1	9604-		●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	01	1	9604-		●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9604-0405			●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	0406-	●		●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9604-0405			●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	0406-	●		●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	0406-	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-222-0	01	1	9604-		●
96	GEAR; COUNTER DRIVE Z=43	1-33331-215-1	01	1	9604-			●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0406-1107	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311	●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	9604-		●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9604-9805			●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9806-1302			●
104	GEAR; 4TH,COUNTER Z=33	8-98240-187-0	01	1	1303-			●
108	SHAFT; COUNTER Z=28-22-14	1-33311-288-0	01	1	9604-		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	9604-0405			●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0406-	●		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	9604-		●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-212-0	01	1	9604-		●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9604-0405			●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	0406-	●		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9604-0405			●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0406-	●		●
127	COLLAR; THRUST,REV SHAFT	1-33363-029-0	01	1	9604-		●
128	WASHER; THRUST,REV SHAFT (C) D=62 T=6.0	1-33363-028-0	01	1	9604-		●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9604-0405			●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0406-	●		●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9604-0405			●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0406-	●		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9604-		●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-017-0	02	1	9604-		●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9604-0405			●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	0406-	●		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9604-0405			●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0406-	●		●
130	COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	9604-		●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9604-0405			●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0406-	●		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-183-0	01	1	9604-0004		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0005-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9604-0405			●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0406-	●		●
132	SHAFT; REV L=158	1-33351-022-1	01	1	9604-		●
132	SHAFT; REV	1-33351-017-0	01	1	9604-0405			●
132	SHAFT; REV	1-33351-017-0	01	1	0406-	●		●
135	GEAR; REV IDLER Z=27	1-33361-073-0	01	1	9604-		●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9604-0405			●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0406-	●		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9604-		●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9604-		●
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-215-0	01	1	9604-		●
149	BEARING; NEEDLE,MAINSHAFT,RR JTEKT	1-09810-216-0	01	1	9604-		●
212	COLLAR; DIST,MAINSHAFT	1-33235-015-0	01	1	9604-		●
286	NUT; LK,MAINSHAFT M30 FLANGE	1-09449-066-1	01	1	9604-9909		●
286	NUT; LK,MAINSHAFT M33 FLANGE	1-09449-077-0	01	1	9910-		●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9604-0405			●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0406-0805	●		●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	0806-	●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	9604-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9604-0405			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0406-	●		●
342	FLANGE; OUTPUT (A)	1-37243-265-0	01	1	9604-9807		●
342	FLANGE; OUTPUT (B)	1-37243-355-0	01	1	9808-		●
342	FLANGE; OUTPUT (C)	1-37243-307-0	01	1	9604-0405			●
342	FLANGE; OUTPUT (C)	1-37243-307-1	01	1	0406-	●		●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	9604-9807			●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	9808-0405		●	●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	0406-0707	●	●	●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	8-98014-003-0	04	1	0708-	●	●	●

56 58 57 59 56 60 74 75 80 47 46 45 43 298 286 345 37 30 34 42 82 342 34 36 50 37 322 38 39 28 172 70 2 3 1 16 8 24 9 11 23 124 22 11 77 7 84 93 96 118 104 105 7 10 14 15 12 18 94 121 94 94 94 17 27 27 130 108 109 110 128 135 129 129 128 131 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-785-0	01	1	0406-	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	9604-		●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-505-1	01	1	9604-0006			●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-987-0	01	1	0007-			●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9604-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0406-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9604-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0406-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9604-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0406-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9604-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0406-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9604-9909		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0502		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-282-0	01	1	0503-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9604-0405			●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0406-	●		●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9604-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9604-0405			●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0406-	●		●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9604-0405		●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0406-	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	9604-		●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9604-0405			●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0406-	●		●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9604-		●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9604-0405			●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0406-	●		●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9604-0405			●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0406-	●		●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9604-0405			●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0406-	●		●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9604-0405			●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0406-	●		●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9604-0405			●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0406-	●		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9604-9810		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	9811-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9604-9810		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	9811-		●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-008-2	14	1	9604-9810		●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-023-0	14	1	9811-		●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9604-0405			●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	0406-	●		●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9604-0405			●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0406-	●		●
18	RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	9604-		●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9604-0405			●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0406-	●		●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9604-		●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9604-0405			●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0406-	●		●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9604-0405		●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0406-	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9604-0405		●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0406-	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	9604-		●
27	BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	9604-		●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9604-0405			●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0406-	●		●
28	RING; SNAP,3RD GEAR	1-09588-195-0	01	1	9604-		●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9604-0405			●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0406-	●		●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0406-1107	●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	9604-		●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9604-			●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9604-0312			●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0401-0405			●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0406-	●		●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0406-	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-414-0	01	1	9604-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9604-			●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	9604-0405			●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	0406-	●		●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9604-0405			●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0406-	●		●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9604-0312			●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0401-0405			●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0406-	●		●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9604-0405			●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0406-	●		●
42	SLEEVE Z=45	1-33262-162-0	01	1	9604-		●
42	SLEEVE Z=54	1-33262-154-0	01	1	9604-0405			●
42	SLEEVE Z=54	1-33262-154-0	01	1	0406-	●		●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9604-0405			●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0406-	●		●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9604-		●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9604-0405			●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0406-	●		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9604-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9604-0405			●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0406-	●		●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9604-		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9604-0405			●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0406-	●		●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	9604-		●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9604-0405			●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0406-	●		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	9604-		●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-387-1	02	1	9604-		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	9712-		●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9604-0405			●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	0406-	●		●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9604-0405			●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0406-	●		●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9604-0405			●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0406-	●		●
59	GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	9604-		●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9604-0405			●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0406-	●		●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9604-0009			●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0010-0405			●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0406-	●		●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	9604-		●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9604-0405			●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0406-	●		●
74	WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	9604-		●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9604-0405			●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0406-	●		●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9604-0405			●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0406-	●		●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9604-0405			●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0406-	●		●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	0406-	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9604-0405			●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0406-	●		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-262-0	01	1	9604-9909		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-311-0	01	1	9910-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9604-0405			●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0406-	●		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	9604-		●
84	BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-210-0	01	1	9604-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9604-0405			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0406-	●		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	9604-		●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9604-0405			●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0406-	●		●
94	KEY; FEATHER,COUNTER SHAFT L=41	1-09735-021-0	01	1	9604-		●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	01	1	9604-		●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9604-0405			●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	0406-	●		●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9604-0405			●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	0406-	●		●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	0406-	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-222-0	01	1	9604-		●
96	GEAR; COUNTER DRIVE Z=43	1-33331-215-1	01	1	9604-			●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0406-1107	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311	●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	9604-		●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9604-9805			●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9806-1302			●
104	GEAR; 4TH,COUNTER Z=33	8-98240-187-0	01	1	1303-			●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0406-1311	●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9604-9805			●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	9806-1311			●
105	GEAR; 3RD,COUNTER Z=27	8-98256-802-0	01	1	1312-			●
108	SHAFT; COUNTER Z=28-22-14	1-33311-288-0	01	1	9604-		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	9604-0405			●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0406-	●		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	9604-		●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-212-0	01	1	9604-		●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9604-0405			●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	0406-	●		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9604-0405			●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0406-	●		●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9604-0405			●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0406-	●		●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	0406-	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9604-0212			●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-0405			●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0406-	●		●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9604-0405			●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0406-	●		●
128	WASHER; THRUST,REV SHAFT (C) D=62 T=6.0	1-33363-028-0	01	1	9604-		●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9604-0405			●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0406-	●		●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9604-0405			●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0406-	●		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9604-		●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-017-0	02	1	9604-		●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9604-0405			●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	0406-	●		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9604-0405			●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0406-	●		●
130	COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	9604-		●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9604-0405			●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0406-	●		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-183-0	01	1	9604-0004		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0005-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9604-0405			●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0406-	●		●
132	SHAFT; REV L=158	1-33351-022-1	01	1	9604-		●
132	SHAFT; REV	1-33351-017-0	01	1	9604-0405			●
132	SHAFT; REV	1-33351-017-0	01	1	0406-	●		●
135	GEAR; REV IDLER Z=27	1-33361-073-0	01	1	9604-		●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9604-0405			●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0406-	●		●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9604-0405			●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0406-	●		●
286	NUT; LK,MAINSHAFT M30 FLANGE	1-09449-066-1	01	1	9604-9909		●
286	NUT; LK,MAINSHAFT M33 FLANGE	1-09449-077-0	01	1	9910-		●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9604-0405			●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0406-0805	●		●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	0806-	●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	9604-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9604-0405			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0406-	●		●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9604-0405			●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0406-	●		●
342	FLANGE; OUTPUT (A)	1-37243-265-0	01	1	9604-9807		●
342	FLANGE; OUTPUT (B)	1-37243-355-0	01	1	9808-		●
342	FLANGE; OUTPUT (C)	1-37243-307-0	01	1	9604-0405			●
342	FLANGE; OUTPUT (C)	1-37243-307-1	01	1	0406-	●		●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	9604-9807			●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	9808-0405		●	●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	0406-0707	●	●	●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	8-98014-003-0	04	1	0708-	●	●	●

298 286 322 37 38 39 28 172 70 345 342 56 57 58 59 56 60 74 75 80 47 46 45 121 11 13 14 15 18 22 24 23 124 43 17 27 27 37 30 34 42 34 36 82 50 84 93 96 1 97 104 105 94 94 94 94 108 109 110 2 16 8 3 128 135 7 7 130 128 132 9 10 11 12 129 129 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-785-0	01	1	0406-	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	9604-		●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-505-1	01	1	9604-0006			●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-987-0	01	1	0007-			●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9604-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0406-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9604-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0406-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9604-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0406-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9604-0405		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0406-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9604-9909		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0502		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-282-0	01	1	0503-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9604-0405			●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0406-	●		●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9604-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9604-0405			●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0406-	●		●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9604-0405		●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0406-	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	9604-		●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9604-0405			●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0406-	●		●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9604-		●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9604-0405			●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0406-	●		●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9604-0405			●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0406-	●		●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9604-0405			●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0406-	●		●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9604-9908			●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-711-0	01	1	9909-			●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9604-0405			●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0406-	●		●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9604-0405			●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0406-	●		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9604-9810		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	9811-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9604-9810		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	9811-		●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-008-2	14	1	9604-9810		●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-023-0	14	1	9811-		●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9604-0405			●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	0406-	●		●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9604-0405			●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0406-	●		●
18	RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	9604-		●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9604-0405			●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0406-	●		●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9604-		●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9604-0405			●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0406-	●		●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9604-0405		●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0406-	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9604-0405		●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0406-	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	9604-		●
27	BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	9604-		●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9604-0405			●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0406-	●		●
28	RING; SNAP,3RD GEAR	1-09588-195-0	01	1	9604-		●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9604-0405			●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0406-	●		●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0406-1107	●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	9604-		●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9604-			●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9604-0312			●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0401-0405			●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0406-	●		●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0406-	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-414-0	01	1	9604-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9604-			●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	9604-0405			●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	0406-	●		●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9604-0405			●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0406-	●		●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9604-0312			●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0401-0405			●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0406-	●		●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9604-0405			●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0406-	●		●
42	SLEEVE Z=45	1-33262-162-0	01	1	9604-		●
42	SLEEVE Z=54	1-33262-154-0	01	1	9604-0405			●
42	SLEEVE Z=54	1-33262-154-0	01	1	0406-	●		●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9604-0405			●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0406-	●		●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9604-		●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9604-0405			●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0406-	●		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9604-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9604-0405			●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0406-	●		●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9604-		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9604-0405			●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0406-	●		●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	9604-		●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9604-0405			●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0406-	●		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	9604-		●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-387-1	02	1	9604-		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	9712-		●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9604-0405			●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	0406-	●		●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9604-0405			●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0406-	●		●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9604-0405			●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0406-	●		●
59	GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	9604-		●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9604-0405			●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0406-	●		●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9604-0009			●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0010-0405			●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0406-	●		●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	9604-		●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9604-0405			●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0406-	●		●
74	WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	9604-		●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9604-0405			●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0406-	●		●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9604-0405			●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0406-	●		●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9604-0405			●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0406-	●		●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9604-0405			●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0406-	●		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-262-0	01	1	9604-9909		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-311-0	01	1	9910-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9604-0405			●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0406-	●		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	9604-		●
84	BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-210-0	01	1	9604-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9604-0405			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0406-	●		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	9604-		●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9604-0405			●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0406-	●		●
94	KEY; FEATHER,COUNTER SHAFT L=41	1-09735-021-0	01	1	9604-		●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	01	1	9604-		●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9604-0405			●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	0406-	●		●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9604-0405			●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	0406-	●		●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	0406-	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-222-0	01	1	9604-		●
96	GEAR; COUNTER DRIVE Z=43	1-33331-215-1	01	1	9604-			●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9604-			●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0406-1107	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311	●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	9604-		●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9604-9805			●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9806-1302			●
104	GEAR; 4TH,COUNTER Z=33	8-98240-187-0	01	1	1303-			●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0406-1311	●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9604-9805			●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	9806-1311			●
105	GEAR; 3RD,COUNTER Z=27	8-98256-802-0	01	1	1312-			●
108	SHAFT; COUNTER Z=28-22-14	1-33311-288-0	01	1	9604-		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	9604-0405			●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0406-	●		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	9604-		●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-212-0	01	1	9604-		●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9604-0405			●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	0406-	●		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9604-0405			●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0406-	●		●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9604-0405			●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0406-	●		●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9604-0212			●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-0405			●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0406-	●		●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9604-0405			●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0406-	●		●
128	WASHER; THRUST,REV SHAFT (C) D=62 T=6.0	1-33363-028-0	01	1	9604-		●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9604-0405			●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0406-	●		●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9604-0405			●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0406-	●		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9604-		●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-017-0	02	1	9604-		●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9604-0405			●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	0406-	●		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9604-0405			●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0406-	●		●
130	COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	9604-		●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9604-0405			●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0406-	●		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-183-0	01	1	9604-0004		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0005-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9604-0405			●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0406-	●		●
132	SHAFT; REV L=158	1-33351-022-1	01	1	9604-		●
132	SHAFT; REV	1-33351-017-0	01	1	9604-0405			●
132	SHAFT; REV	1-33351-017-0	01	1	0406-	●		●
135	GEAR; REV IDLER Z=27	1-33361-073-0	01	1	9604-		●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9604-0405			●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0406-	●		●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9604-0405			●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0406-	●		●
286	NUT; LK,MAINSHAFT M30 FLANGE	1-09449-066-1	01	1	9604-9909		●
286	NUT; LK,MAINSHAFT M33 FLANGE	1-09449-077-0	01	1	9910-		●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9604-0405			●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0406-0805	●		●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	0806-	●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	9604-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9604-0405			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0406-	●		●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9604-0405			●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0406-	●		●
342	FLANGE; OUTPUT (A)	1-37243-265-0	01	1	9604-9807		●
342	FLANGE; OUTPUT (B)	1-37243-355-0	01	1	9808-		●
342	FLANGE; OUTPUT (C)	1-37243-307-0	01	1	9604-0405			●
342	FLANGE; OUTPUT (C)	1-37243-307-1	01	1	0406-	●		●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	9604-9807			●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	9808-0405		●	●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	0406-0707	●	●	●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	8-98014-003-0	04	1	0708-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
