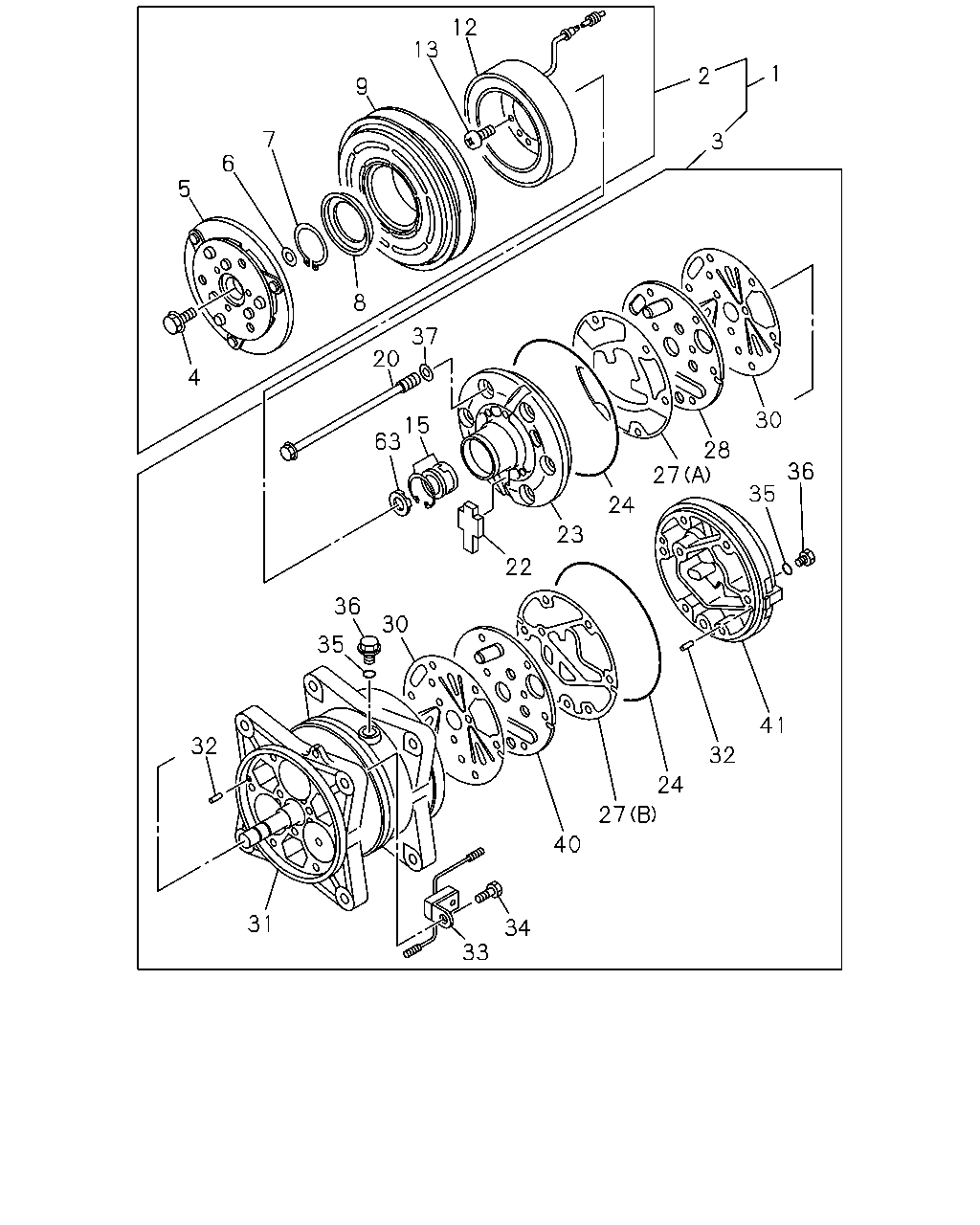

8-71 — COMPRESSOR; AIR CONDITIONING (#3677) — 146 parça

12 13 1 2 9 7 3 6 5 8 37 20 4 30 15 63 28 36 27 35 24 23 22 36 30 35 41 32 32 24 27 40 31 34 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83532-154-2	01	1	9002-9307
1	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83532-216-0	01	1	9308-9506
1	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83532-256-0	01	1	9507-9510
1	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83532-255-1	01	1	9511-
1	COMPRESSOR ASM; A/C 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83532-157-2	01	1	9002-9307
1	COMPRESSOR ASM; A/C 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83532-239-0	01	1	9308-9506
1	COMPRESSOR ASM; A/C 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83532-254-2	01	1	9507-
2	CLUTCH; MAGNET,A/C AIR CON MANUAL CONTROL(C60)	1-83533-016-1	01	1	9002-9307
2	CLUTCH; MAGNET,A/C AIR CON MANUAL CONTROL(C60)	1-83533-034-0	01	1	9308-9506
2	CLUTCH; MAGNET,A/C AIR CON MANUAL CONTROL(C60)	1-83533-038-0	01	1	9507-9510
2	CLUTCH; MAGNET,A/C AIR CON MANUAL CONTROL(C60)	1-83533-041-0	01	1	9511-
3	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83532-162-0	01	1	9002-9205
3	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83532-155-2	01	1	9206-9307
3	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83532-235-0	01	1	9308-9506
3	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83532-258-0	01	1	9507-
3	COMPRESSOR ASM; A/C 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83532-158-2	01	1	9002-9307
3	COMPRESSOR ASM; A/C 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83532-241-0	01	1	9308-9506
3	COMPRESSOR ASM; A/C 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83532-259-1	01	1	9507-
4	BOLT; MAGNET CLU AIR CON MANUAL CONTROL(C60)	8-94164-439-0	01	1	9002-
5	ARMATURE ASM; MAGNET CLU,A/C AIR CON MANUAL CONTROL(C60)	8-94466-701-0	01	1	9002-9307
5	ARMATURE ASM; MAGNET CLU,A/C AIR CON MANUAL CONTROL(C60)	8-97034-788-0	01	1	9308-
6	SHIM; MAGNET CLU AIR CON MANUAL CONTROL(C60) T=0.1	8-94120-721-0	AR	1	9002-
6	SHIM; MAGNET CLU AIR CON MANUAL CONTROL(C60) T=0.3	8-94120-722-0	AR	1	9002-
6	SHIM; MAGNET CLU AIR CON MANUAL CONTROL(C60) T=0.5	8-94120-723-0	AR	1	9002-
7	RING; SNAP,PULLEY AIR CON MANUAL CONTROL(C60)	8-94120-724-0	01	1	9002-
8	COVER; PULLEY AIR CON MANUAL CONTROL(C60)	8-94120-725-0	01	1	9002-9506
9	PULLEY; MAGNET CLU AIR CON MANUAL CONTROL(C60)	8-94154-715-1	01	1	9002-9307
9	PULLEY; MAGNET CLU AIR CON MANUAL CONTROL(C60)	1-83579-616-1	01	1	9308-
12	COIL; FIELD,MAGNET CLU AIR CON MANUAL CONTROL(C60)	1-83579-402-0	01	1	9002-9510
12	COIL; FIELD,MAGNET CLU AIR CON MANUAL CONTROL(C60)	1-83579-833-0	01	1	9511-
13	SCREW; COIL FIELD AIR CON MANUAL CONTROL(C60)	8-94120-727-0	03	1	9002-
15	SEAL; SHAFT AIR CON MANUAL CONTROL(C60)	8-94466-697-0	01	1	9002-9307
15	SEAL; SHAFT AIR CON MANUAL CONTROL(C60)	8-97081-397-0	01	1	9308-9506
15	SEAL; SHAFT AIR CON MANUAL CONTROL(C60) "R-134A"	8-97114-217-1	01	1	9507-
20	BOLT; CMPR AIR CON MANUAL CONTROL(C60)	8-94466-676-0	06	1	9002-9307
20	BOLT; CMPR AIR CON MANUAL CONTROL(C60)	8-97081-394-0	06	1	9308-
22	FELT; CYL HD,FRT AIR CON MANUAL CONTROL(C60)	8-94441-396-0	01	1	9002-9506
23	HEAD; CYL,FRT AIR CON MANUAL CONTROL(C60)	8-94466-683-0	01	1	9002-9307
23	HEAD; CYL,FRT AIR CON MANUAL CONTROL(C60)	8-97034-782-0	01	1	9308-9506
23	HEAD; CYL,FRT AIR CON MANUAL CONTROL(C60) "R-134A"	8-97114-215-0	01	1	9507-
24	GASKET; CMPR AIR CON MANUAL CONTROL(C60)	8-94466-681-0	02	1	9002-9307
24	GASKET; CMPR AIR CON MANUAL CONTROL(C60)	8-97081-396-0	02	1	9308-
27	GASKET; CYL HD AIR CON MANUAL CONTROL(C60) (A)	8-94466-685-0	01	1	9002-9307
27	GASKET; CYL HD AIR CON MANUAL CONTROL(C60) (A)	8-97085-777-0	01	1	9308-
27	GASKET; CYL HD AIR CON MANUAL CONTROL(C60) (B)	8-94466-693-0	01	1	9002-9307
27	GASKET; CYL HD AIR CON MANUAL CONTROL(C60) (B)	8-97085-779-0	01	1	9308-
28	PLATE; VLV,CMPR AIR CON MANUAL CONTROL(C60)	8-94466-687-0	01	1	9002-9506
28	PLATE; VLV,CMPR AIR CON MANUAL CONTROL(C60)	8-97135-796-0	01	1	9507-
30	VALVE; SUCTION AIR CON MANUAL CONTROL(C60)	8-94466-689-0	02	1	9002-9205
30	VALVE; SUCTION AIR CON MANUAL CONTROL(C60)	8-97081-404-0	02	1	9206-9506
30	VALVE; SUCTION AIR CON MANUAL CONTROL(C60)	8-97134-755-0	02	1	9507-
31	CYLINDER & SHAFT ASM; AIR CMPR 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83571-592-0	01	1	9002-9307
31	CYLINDER & SHAFT ASM; AIR CMPR 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	8-97081-391-0	01	1	9308-9506
31	CYLINDER & SHAFT ASM; AIR CMPR 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	8-97138-177-0	01	1	9507-
31	CYLINDER & SHAFT ASM; AIR CMPR 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83571-591-0	01	1	9002-9307
31	CYLINDER & SHAFT ASM; AIR CMPR 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83579-661-0	01	1	9308-9506
31	CYLINDER & SHAFT ASM; AIR CMPR 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83579-826-0	01	1	9507-
32	PIN; CMPR AIR CON MANUAL CONTROL(C60)	8-94154-711-0	04	1	9002-
33	PROTECTOR; CMPR 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83571-531-0	01	1	9002-9205
33	PROTECTOR; CMPR AIR CON MANUAL CONTROL(C60)	1-83571-531-0	01	1	9206-9307
33	PROTECTOR; CMPR AIR CON MANUAL CONTROL(C60)	1-83571-737-0	01	1	9308-9510
34	BOLT; PROTECTOR 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83579-277-0	01	1	9002-9205
34	BOLT; PROTECTOR AIR CON MANUAL CONTROL(C60)	1-83579-277-0	01	1	9206-9510
35	GASKET; PLUG,CYL AIR CON MANUAL CONTROL(C60)	8-94113-333-0	02	1	9002-9307
35	GASKET; PLUG,CYL AIR CON MANUAL CONTROL(C60)	8-97081-395-0	01	1	9308-
36	PLUG; CYL AIR CON MANUAL CONTROL(C60)	8-94164-473-0	02	1	9002-9307
36	PLUG; CYL AIR CON MANUAL CONTROL(C60)	8-94164-473-0	01	1	9308-
37	GASKET; CMPR AIR CON MANUAL CONTROL(C60)	8-94466-678-0	06	1	9307-
40	PLATE; VLV,RR AIR CON MANUAL CONTROL(C60)	8-94466-691-0	01	1	9002-9506
40	PLATE; VLV,RR AIR CON MANUAL CONTROL(C60)	8-97135-797-0	01	1	9507-
41	HEAD; CYL,RR AIR CON MANUAL CONTROL(C60)	8-94466-695-0	01	1	9002-9307
41	HEAD; CYL,RR AIR CON MANUAL CONTROL(C60)	8-97034-784-1	01	1	9308-
63	COVER; CMPR AIR CON MANUAL CONTROL(C60)	8-94441-395-0	01	1	9002-9506

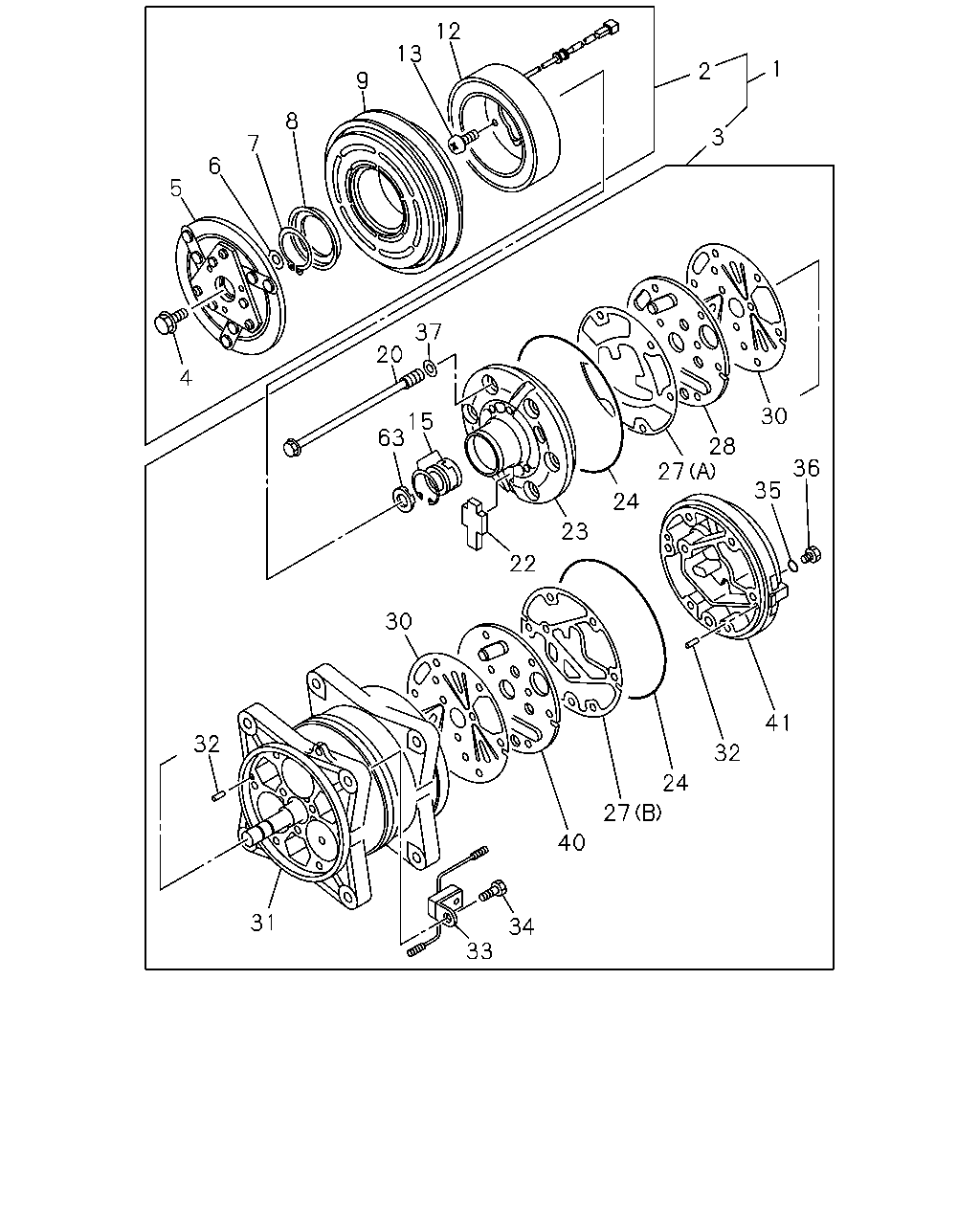

12 13 1 2 9 8 3 7 6 5 37 20 4 30 15 63 28 36 27 35 24 23 22 30 41 32 32 24 27 40 31 34 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83532-154-2	01	1	9002-9307
1	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83532-216-0	01	1	9308-9506
1	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83532-256-0	01	1	9507-9510
1	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83532-255-1	01	1	9511-
1	COMPRESSOR ASM; A/C 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83532-157-2	01	1	9002-9307
1	COMPRESSOR ASM; A/C 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83532-239-0	01	1	9308-9506
1	COMPRESSOR ASM; A/C 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83532-254-2	01	1	9507-
2	CLUTCH; MAGNET,A/C AIR CON MANUAL CONTROL(C60)	1-83533-016-1	01	1	9002-9307
2	CLUTCH; MAGNET,A/C AIR CON MANUAL CONTROL(C60)	1-83533-034-0	01	1	9308-9506
2	CLUTCH; MAGNET,A/C AIR CON MANUAL CONTROL(C60)	1-83533-038-0	01	1	9507-9510
2	CLUTCH; MAGNET,A/C AIR CON MANUAL CONTROL(C60)	1-83533-041-0	01	1	9511-
3	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83532-162-0	01	1	9002-9205
3	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83532-155-2	01	1	9206-9307
3	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83532-235-0	01	1	9308-9506
3	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83532-258-0	01	1	9507-
3	COMPRESSOR ASM; A/C 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83532-158-2	01	1	9002-9307
3	COMPRESSOR ASM; A/C 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83532-241-0	01	1	9308-9506
3	COMPRESSOR ASM; A/C 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83532-259-1	01	1	9507-
4	BOLT; MAGNET CLU AIR CON MANUAL CONTROL(C60)	8-94164-439-0	01	1	9002-
5	ARMATURE ASM; MAGNET CLU,A/C AIR CON MANUAL CONTROL(C60)	8-94466-701-0	01	1	9002-9307
5	ARMATURE ASM; MAGNET CLU,A/C AIR CON MANUAL CONTROL(C60)	8-97034-788-0	01	1	9308-
6	SHIM; MAGNET CLU AIR CON MANUAL CONTROL(C60) T=0.1	8-94120-721-0	AR	1	9002-
6	SHIM; MAGNET CLU AIR CON MANUAL CONTROL(C60) T=0.3	8-94120-722-0	AR	1	9002-
6	SHIM; MAGNET CLU AIR CON MANUAL CONTROL(C60) T=0.5	8-94120-723-0	AR	1	9002-
7	RING; SNAP,PULLEY AIR CON MANUAL CONTROL(C60)	8-94120-724-0	01	1	9002-
8	COVER; PULLEY AIR CON MANUAL CONTROL(C60)	8-94120-725-0	01	1	9002-9506
9	PULLEY; MAGNET CLU AIR CON MANUAL CONTROL(C60)	8-94154-715-1	01	1	9002-9307
9	PULLEY; MAGNET CLU AIR CON MANUAL CONTROL(C60)	1-83579-616-1	01	1	9308-
12	COIL; FIELD,MAGNET CLU AIR CON MANUAL CONTROL(C60)	1-83579-402-0	01	1	9002-9510
12	COIL; FIELD,MAGNET CLU AIR CON MANUAL CONTROL(C60)	1-83579-833-0	01	1	9511-
13	SCREW; COIL FIELD AIR CON MANUAL CONTROL(C60)	8-94120-727-0	03	1	9002-
15	SEAL; SHAFT AIR CON MANUAL CONTROL(C60)	8-94466-697-0	01	1	9002-9307
15	SEAL; SHAFT AIR CON MANUAL CONTROL(C60)	8-97081-397-0	01	1	9308-9506
15	SEAL; SHAFT AIR CON MANUAL CONTROL(C60) "R-134A"	8-97114-217-1	01	1	9507-
20	BOLT; CMPR AIR CON MANUAL CONTROL(C60)	8-94466-676-0	06	1	9002-9307
20	BOLT; CMPR AIR CON MANUAL CONTROL(C60)	8-97081-394-0	06	1	9308-
22	FELT; CYL HD,FRT AIR CON MANUAL CONTROL(C60)	8-94441-396-0	01	1	9002-9506
23	HEAD; CYL,FRT AIR CON MANUAL CONTROL(C60)	8-94466-683-0	01	1	9002-9307
23	HEAD; CYL,FRT AIR CON MANUAL CONTROL(C60)	8-97034-782-0	01	1	9308-9506
23	HEAD; CYL,FRT AIR CON MANUAL CONTROL(C60) "R-134A"	8-97114-215-0	01	1	9507-
24	GASKET; CMPR AIR CON MANUAL CONTROL(C60)	8-94466-681-0	02	1	9002-9307
24	GASKET; CMPR AIR CON MANUAL CONTROL(C60)	8-97081-396-0	02	1	9308-
27	GASKET; CYL HD AIR CON MANUAL CONTROL(C60) (A)	8-94466-685-0	01	1	9002-9307
27	GASKET; CYL HD AIR CON MANUAL CONTROL(C60) (A)	8-97085-777-0	01	1	9308-
27	GASKET; CYL HD AIR CON MANUAL CONTROL(C60) (B)	8-94466-693-0	01	1	9002-9307
27	GASKET; CYL HD AIR CON MANUAL CONTROL(C60) (B)	8-97085-779-0	01	1	9308-
28	PLATE; VLV,CMPR AIR CON MANUAL CONTROL(C60)	8-94466-687-0	01	1	9002-9506
28	PLATE; VLV,CMPR AIR CON MANUAL CONTROL(C60)	8-97135-796-0	01	1	9507-
30	VALVE; SUCTION AIR CON MANUAL CONTROL(C60)	8-94466-689-0	02	1	9002-9205
30	VALVE; SUCTION AIR CON MANUAL CONTROL(C60)	8-97081-404-0	02	1	9206-9506
30	VALVE; SUCTION AIR CON MANUAL CONTROL(C60)	8-97134-755-0	02	1	9507-
31	CYLINDER & SHAFT ASM; AIR CMPR 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83571-592-0	01	1	9002-9307
31	CYLINDER & SHAFT ASM; AIR CMPR 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	8-97081-391-0	01	1	9308-9506
31	CYLINDER & SHAFT ASM; AIR CMPR 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	8-97138-177-0	01	1	9507-
31	CYLINDER & SHAFT ASM; AIR CMPR 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83571-591-0	01	1	9002-9307
31	CYLINDER & SHAFT ASM; AIR CMPR 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83579-661-0	01	1	9308-9506
31	CYLINDER & SHAFT ASM; AIR CMPR 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83579-826-0	01	1	9507-
32	PIN; CMPR AIR CON MANUAL CONTROL(C60)	8-94154-711-0	04	1	9002-
33	PROTECTOR; CMPR 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83571-531-0	01	1	9002-9205
33	PROTECTOR; CMPR AIR CON MANUAL CONTROL(C60)	1-83571-531-0	01	1	9206-9307
33	PROTECTOR; CMPR AIR CON MANUAL CONTROL(C60)	1-83571-737-0	01	1	9308-9510
34	BOLT; PROTECTOR 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60)	1-83579-277-0	01	1	9002-9205
34	BOLT; PROTECTOR AIR CON MANUAL CONTROL(C60)	1-83579-277-0	01	1	9206-9510
35	GASKET; PLUG,CYL AIR CON MANUAL CONTROL(C60)	8-94113-333-0	02	1	9002-9307
35	GASKET; PLUG,CYL AIR CON MANUAL CONTROL(C60)	8-97081-395-0	01	1	9308-
36	PLUG; CYL AIR CON MANUAL CONTROL(C60)	8-94164-473-0	02	1	9002-9307
36	PLUG; CYL AIR CON MANUAL CONTROL(C60)	8-94164-473-0	01	1	9308-
37	GASKET; CMPR AIR CON MANUAL CONTROL(C60)	8-94466-678-0	06	1	9307-
40	PLATE; VLV,RR AIR CON MANUAL CONTROL(C60)	8-94466-691-0	01	1	9002-9506
40	PLATE; VLV,RR AIR CON MANUAL CONTROL(C60)	8-97135-797-0	01	1	9507-
41	HEAD; CYL,RR AIR CON MANUAL CONTROL(C60)	8-94466-695-0	01	1	9002-9307
41	HEAD; CYL,RR AIR CON MANUAL CONTROL(C60)	8-97034-784-1	01	1	9308-
63	COVER; CMPR AIR CON MANUAL CONTROL(C60)	8-94441-395-0	01	1	9002-9506
