2-06 — CLUTCH SLAVE CYLINDER (#36769) — 22 parça

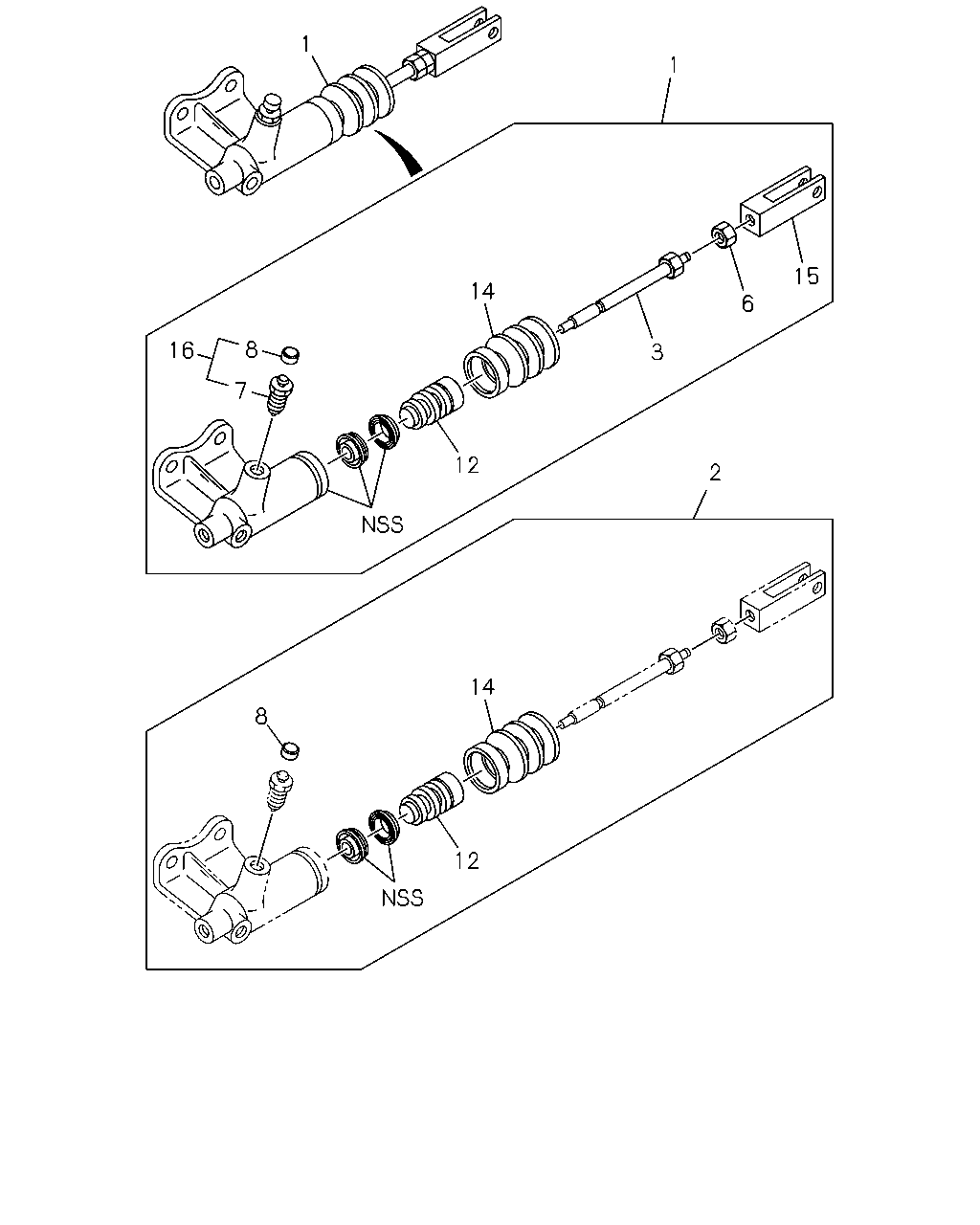

çizim 152686
1 1 15 14 6 8 16 3 7 12 2 14 8 12
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER; SLAVE,CLU 1-47570-050-2 01 1 9604-0004 ● ●
1 CYLINDER; SLAVE,CLU 1-47570-050-3 01 1 0005- ● ● ●
2 REPAIR KIT; CLU SLAVE CYL 1-87830-533-0 01 1 9604-0004 ● ●
2 REPAIR KIT; CLU SLAVE CYL 1-87830-533-1 01 1 0005- ● ● ●
3 ROD; PUSH,SLAVE CYL 1-47573-005-0 01 1 9604-0004 ● ●
3 ROD; PUSH,SLAVE CYL 1-47573-005-0 01 1 0005- ● ● ●
6 NUT; LK,ROD END
M10 		9-09111-410-0 01 1 9604-0004 ● ●
6 NUT; LK,ROD END
M10 		9-09111-410-0 01 1 0005-0512 ● ● ●
6 NUT; LK,ROD END
M10 		0-91111-510-0 01 1 0601- ● ● ●
7 SCREW; BLEEDER,SLAVE CYL 1-47615-019-0 01 1 9604-0004 ● ●
7 SCREW; BLEEDER,SLAVE CYL 1-47615-019-0 01 1 0005- ● ● ●
8 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9604-0004 ● ●
8 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 0005-1209 ● ● ●
8 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1210- ● ● ●
12 PISTON; SLAVE CYL 1-47572-006-0 01 1 9604-0004 ● ●
12 PISTON; SLAVE CYL 1-47572-006-0 01 1 0005- ● ● ●
14 BOOT; SLAVE CYL 1-47579-048-0 01 1 9604-0004 ● ●
14 BOOT; SLAVE CYL 1-47579-048-0 01 1 0005- ● ● ●
15 JOINT; JAW,SLAVE CYL 1-47579-014-1 01 1 9604-0004 ● ●
15 JOINT; JAW,SLAVE CYL 1-47579-014-1 01 1 0005- ● ● ●
16 VALVE; SLAVE CYL 9-48410-037-0 01 1 9604-0004 ● ●
16 VALVE; SLAVE CYL 9-48410-037-0 01 1 0005- ● ● ●
