Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#36768) — 454 parça

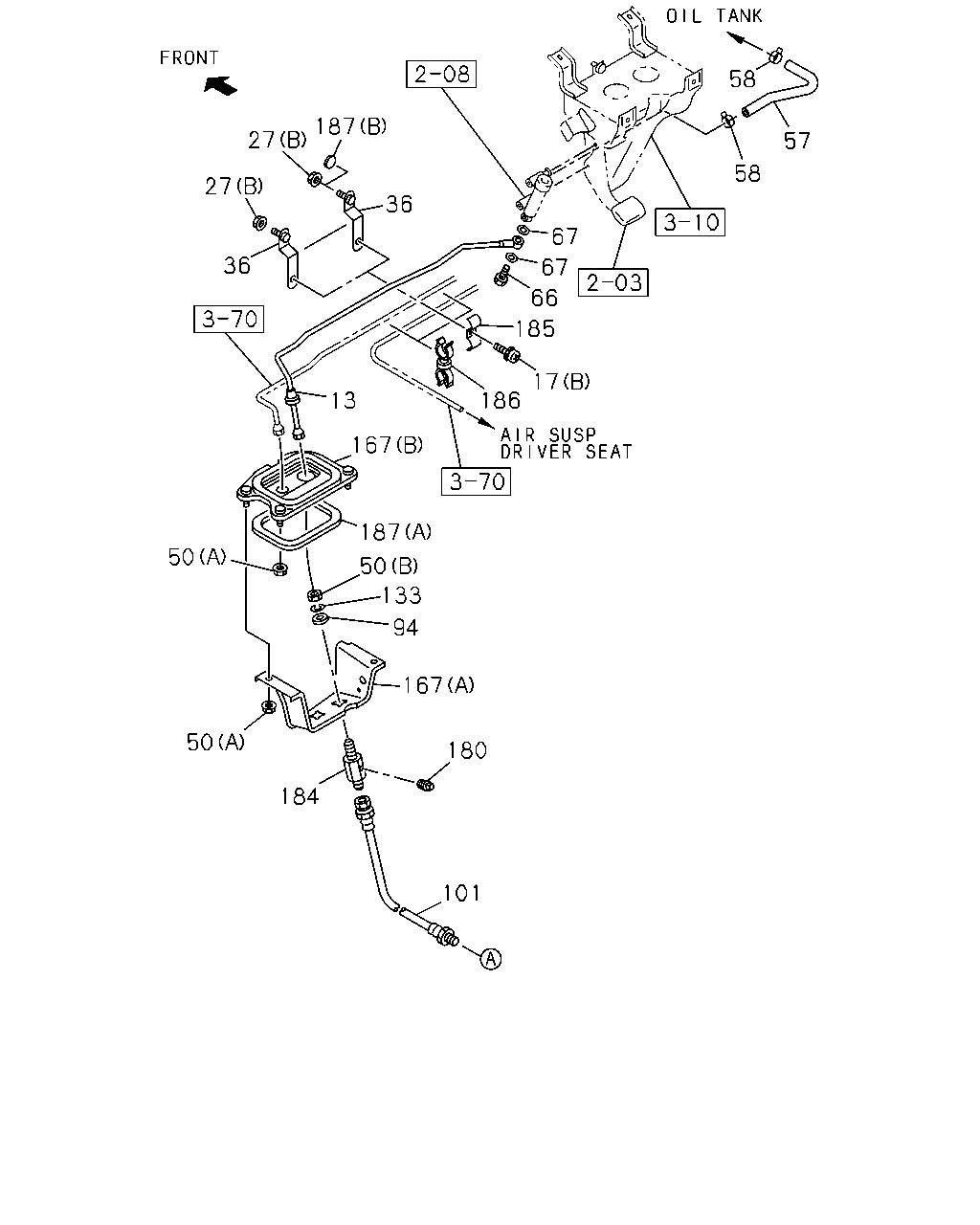

58 187 27 57 58 27 36 67 36 67 66 185 17 13 186 167 187 50 50 133 94 167 50 180 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	9604-0405	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	0406-	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-0405	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0406-0512	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9604-9810	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9604-9810	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9811-0004	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0010	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0011-0405	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0406-	●	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9604-9810	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-0405	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-0405	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0406-	●	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0406-	●	●	●
27	NUT; BRKT (A) M8	9-09110-408-0	02	1	9604-9606	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9607-0405	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0406-0602	●	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9604-9810	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9604-9810	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9811-0004	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0010	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0011-0405	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0406-	●	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9604-9810	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-0405	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-0405	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0406-	●	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0406-	●	●	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9604-9810	●	●
36	BRACKET; CLIP EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9604-9810	●	●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	9811-0004	●	●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	01	1	0005-0010	●	●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	0011-0405	●	●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	0406-	●	●	●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	01	1	9604-9810	●	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9811-0004	●	●
36	BRACKET; CLIP EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9811-0004	●	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	0005-0010	●	●
36	BRACKET; CLIP EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	0005-0010	●	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56> DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	0011-0405	●	●
36	BRACKET; CLIP EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	0011-0405	●	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	0406-	●	●	●
36	BRACKET; CLIP EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	0406-	●	●	●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	0406-			●
50	NUT; UNION (A) M8 FLANGE	8-94279-517-0	03	1	9604-9611	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0405	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0406-	●	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9604-0405	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0406-0512	●	●	●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9604-0405	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0406-	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9604-0405	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0406-	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9604-0405	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0406-0805	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9604-0405	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0406-1312	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9604-0405	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0406-0605	●	●	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB UP +50MM<W60> L=460	1-09365-070-1	01	1	0406-0703			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB UP +50MM<W60> L=460	8-98072-345-0	01	1	0704-			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9604-0405	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0406-0703	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE EXC. CAB UP +50MM<W60> L=430	1-09364-859-1	01	1	0406-0703			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE EXC. CAB UP +50MM<W60> L=430	8-98072-326-0	01	1	0704-			●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9604-0405	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0406-0603	●	●	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-	●	●
167	BRACKET; UNION (A)	1-79738-847-2	01	1	0406-			●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	9604-	●	●
167	BRACKET; UNION (B)	1-79738-204-2	01	1	9604-9911	●	●
167	BRACKET; UNION (B)	1-79738-845-1	01	1	9912-0405	●	●
167	BRACKET; UNION (B)	1-79738-845-1	01	1	0406-	●	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9604-0405	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0406-0804	●	●	●
184	UNION; FLEX HOSE STRAIGHT 3WAY	1-09656-679-0	01	1	9604-0405	●	●
184	UNION; FLEX HOSE STRAIGHT 3WAY	1-09656-679-0	01	1	0406-0804	●	●	●
184	UNION; FLEX HOSE STRAIGHT 2WAY	1-09654-435-0	01	1	0805-	●	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9604-9810	●	●
185	CLIP; BRKT EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9604-9810	●	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	9811-0004	●	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	01	1	0005-0010	●	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	0011-0405	●	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	0406-	●	●	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	01	1	9604-9810	●	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9811-0004	●	●
185	CLIP; BRKT EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9811-0004	●	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	0005-0010	●	●
185	CLIP; BRKT EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	0005-0010	●	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56> DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	0011-0405	●	●
185	CLIP; BRKT EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	0011-0405	●	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	0406-	●	●	●
185	CLIP; BRKT EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	0406-	●	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=4.75 & 6	8-94165-403-0	02	1	9604-9706	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	02	1	9707-9810	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	9811-0004	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	02	1	0005-0010	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	0011-0405	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	0406-	●	●	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	9604-0405	●	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	0406-	●	●	●
187	SEAL; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) OD=25 BLACK	1-76798-019-0	01	1	9604-9810	●	●
187	SEAL; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	9811-0004	●	●
187	SEAL; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) OD=25 BLACK	1-76798-019-0	01	1	0005-0010	●	●
187	SEAL; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	0011-0405	●	●
187	SEAL; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	0406-	●	●	●

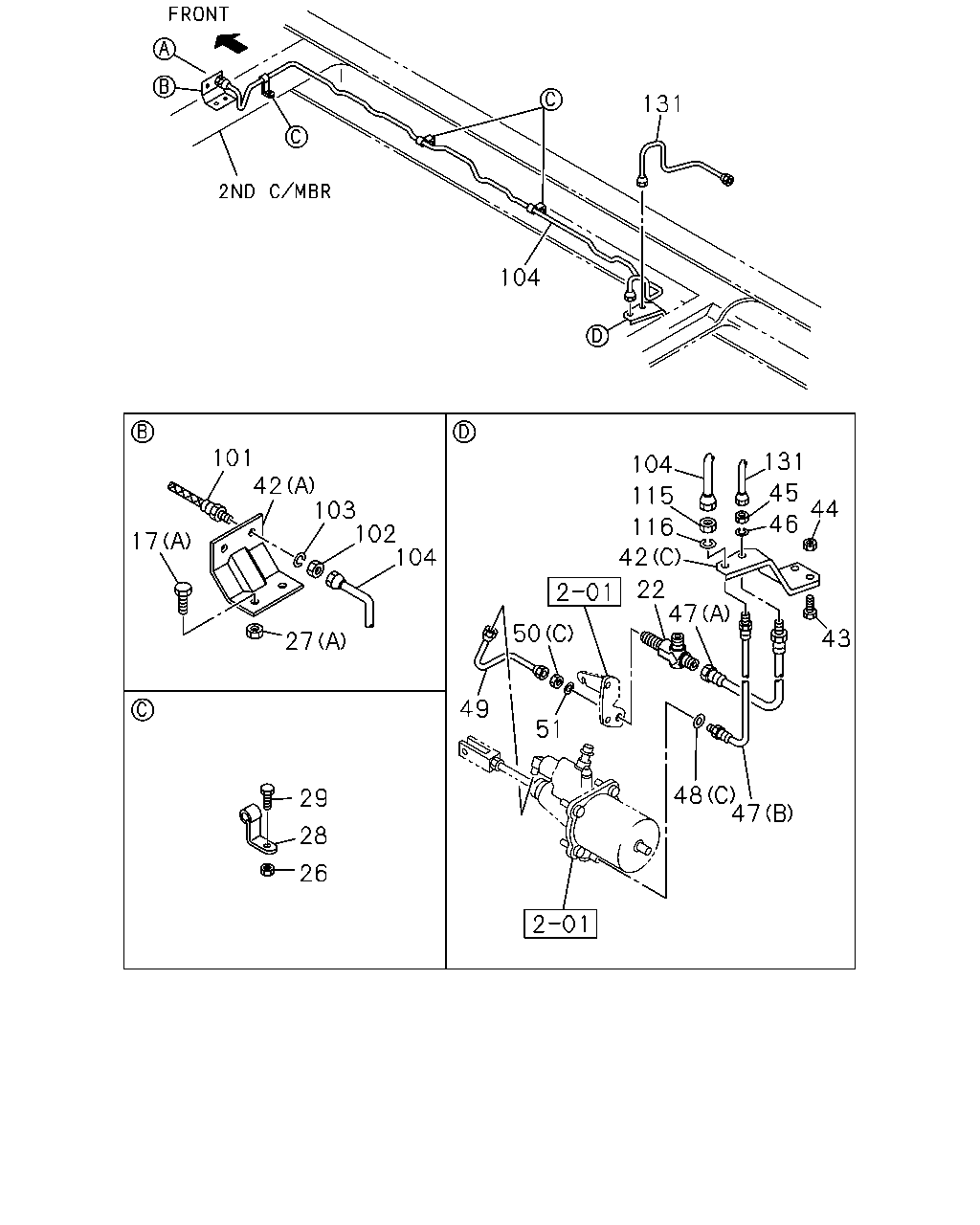

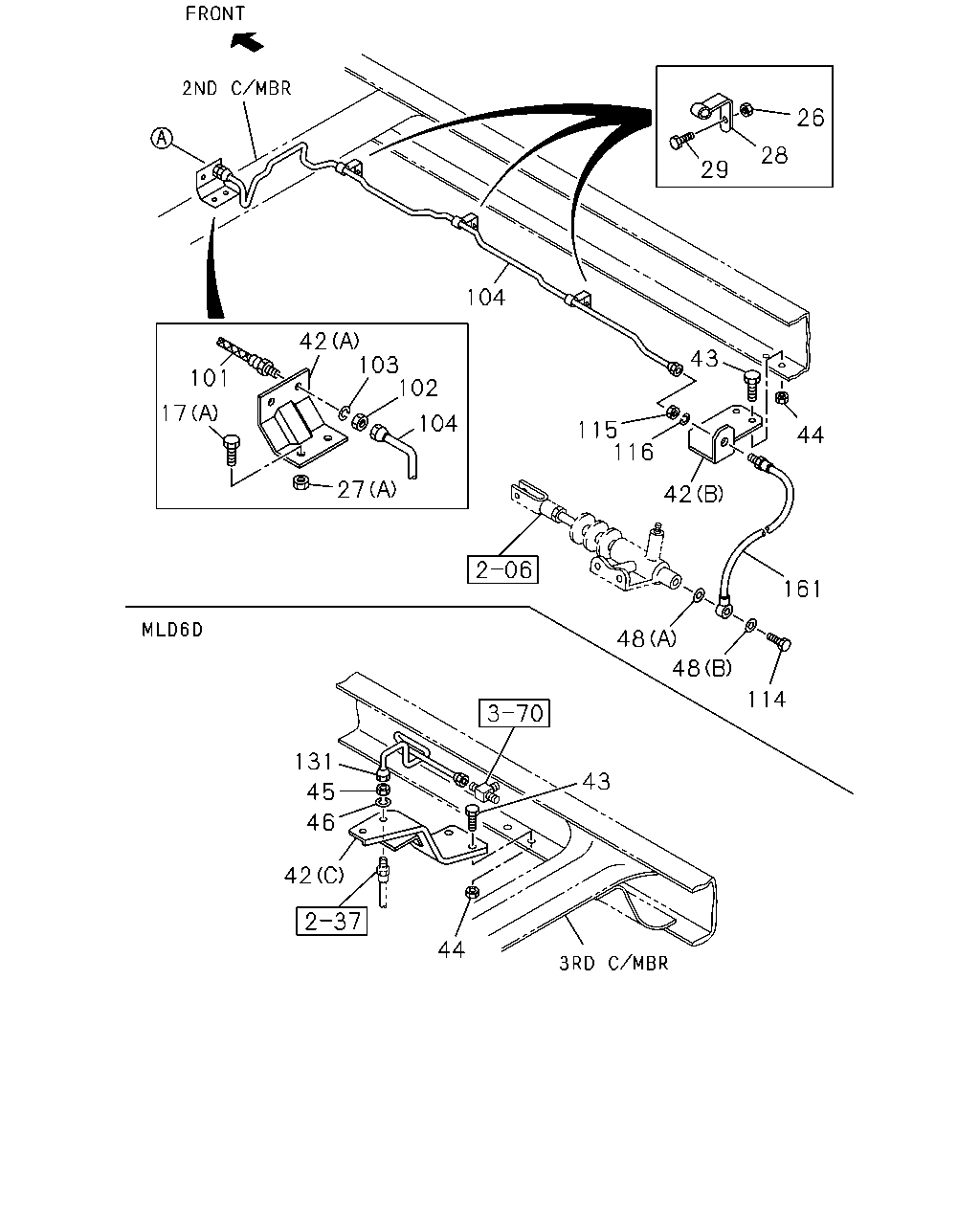

26 28 29 104 42 103 102 43 101 17 104 115 116 44 27 42 161 48 48 114 131 43 45 46 42 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-0405	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0406-0512	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9604-9810	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9604-9810	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9811-0004	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0010	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0011-0405	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0406-	●	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9604-9810	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-0405	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-0405	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0406-	●	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0406-	●	●	●
26	NUT; CLIP,OIL PIPE FSS ALL(FS****) M8	9-09110-408-0	02	1	9604-9606		●
26	NUT; CLIP,OIL PIPE FSS ALL(FS****) M8 FLANGE	0-91150-108-0	02	1	9607-0004		●
26	NUT; CLIP,OIL PIPE FSS ALL(FS****) M8 FLANGE	0-91150-108-0	01	1	0005-0602		●
26	NUT; CLIP,OIL PIPE FSS ALL(FS****) M8 FLANGE	0-91180-108-0	01	1	0603-		●
26	NUT; CLIP,OIL PIPE FSS ALL(FS****) EXC. BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	01	1	9604-9606		●
26	NUT; CLIP,OIL PIPE FSS ALL(FS****) EXC. BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	01	1	9607-0004		●
26	NUT; CLIP,OIL PIPE FSS ALL(FS****) M8 FLANGE	0-91150-108-0	02	1	0005-0602		●
26	NUT; CLIP,OIL PIPE FSS ALL(FS****) M8 FLANGE	0-91180-108-0	02	1	0603-		●
26	NUT; CLIP,OIL PIPE FTS ALL(FT****) M8	9-09110-408-0	04	1	9604-9606		●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	04	1	9604-9606	●
26	NUT; CLIP,OIL PIPE FTS ALL(FT****) M8 FLANGE	0-91150-108-0	04	1	9607-0004		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9607-0004	●
26	NUT; CLIP,OIL PIPE FTS ALL(FT****) M8 FLANGE	0-91150-108-0	03	1	0005-0405		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0005-0405	●
26	NUT; CLIP,OIL PIPE FTS ALL(FT****) M8 FLANGE	0-91150-108-0	03	1	0406-0602		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0406-0602	●		●
26	NUT; CLIP,OIL PIPE FTS ALL(FT****) M8 FLANGE	0-91180-108-0	03	1	0603-		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-	●
27	NUT; BRKT (A) M8	9-09110-408-0	02	1	9604-9606	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9607-0405	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0406-0602	●	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9604-9810	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9604-9810	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9811-0004	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0010	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0011-0405	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0406-	●	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9604-9810	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-0405	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-0405	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0406-	●	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0406-	●	●	●
28	CLIP; OIL PIPE FSS ALL(FS****) ID=8 H=20 L=20	1-09700-604-0	02	1	9604-0004		●
28	CLIP; OIL PIPE FSS ALL(FS****) ID=8 H=20 L=20	1-09700-604-0	01	1	0005-		●
28	CLIP; OIL PIPE FSS ALL(FS****) EXC. BRAKE REGULATION ADR<TDU> ID=8 H=20 L=20	1-09700-604-0	01	1	9604-0004		●
28	CLIP; OIL PIPE FSS ALL(FS****) ID=8 H=20 L=20	1-09700-604-0	02	1	0005-		●
28	CLIP; OIL PIPE FTS ALL(FT****) ID=8 H=20 L=20	1-09700-604-0	04	1	9604-0004		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	9604-0004	●
28	CLIP; OIL PIPE FTS ALL(FT****) ID=8 H=20 L=20	1-09700-604-0	03	1	0005-0405		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0005-0405	●
28	CLIP; OIL PIPE FTS ALL(FT****) ID=8 H=20 L=20	1-09700-604-0	03	1	0406-		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0406-	●		●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X25 FLANGE	0-28080-825-0	02	1	9604-9606		●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X25 FLANGE	0-28680-825-0	02	1	9607-0004		●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X25 FLANGE	0-28680-825-0	01	1	0005-0512		●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28080-825-0	01	1	9604-9606		●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	01	1	9607-0004		●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X25 FLANGE	0-28680-825-0	02	1	0005-0512		●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
29	BOLT; CLIP,OIL PIPE FTS ALL(FT****) M8X25 FLANGE	0-28080-825-0	04	1	9604-9606		●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	04	1	9604-9606	●
29	BOLT; CLIP,OIL PIPE FTS ALL(FT****) M8X25 FLANGE	0-28680-825-0	04	1	9607-0004		●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	04	1	9607-0004	●
29	BOLT; CLIP,OIL PIPE FTS ALL(FT****) M8X25 FLANGE	0-28680-825-0	03	1	0005-0405		●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	03	1	0005-0405	●
29	BOLT; CLIP,OIL PIPE FTS ALL(FT****) M8X25 FLANGE	0-28680-825-0	03	1	0406-0512		●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	03	1	0406-0512	●		●
29	BOLT; CLIP,OIL PIPE FTS ALL(FT****) M8X25 FLANGE	0-28650-825-0	03	1	0601-		●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9604-0405	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0406-	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-640-0	01	1	9604-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47476-357-0	01	1	9604-0405	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47476-357-0	01	1	0406-	●		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9604-9606		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28680-825-0	02	1	9607-9608		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9609-0405		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0406-0512		●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-		●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	04	1	9604-9606	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28680-825-0	04	1	9607-9608	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	04	1	9609-0512	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	04	1	0601-	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9604-9606		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-0405		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0406-0602		●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	04	1	9604-9606	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	04	1	9607-0602	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	04	1	0603-	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	9604-0405	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0406-	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	9604-0405	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	0406-0603	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0604-	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0406-			●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=10.5	1-09630-074-1	01	1	9604-	●	●
48	GASKET; FLEX HOSE,CLU CONT (A) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9604-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB UP +50MM<W60> L=460	1-09365-070-1	01	1	0406-0703			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB UP +50MM<W60> L=460	8-98072-345-0	01	1	0704-			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9604-0405	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0406-0703	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE EXC. CAB UP +50MM<W60> L=430	1-09364-859-1	01	1	0406-0703			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE EXC. CAB UP +50MM<W60> L=430	8-98072-326-0	01	1	0704-			●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9604-0405	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0406-0512	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9604-0405	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0406-0603	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=3214 SERVICED BY L=3300	1-47426-398-0	01	1	0406-0406			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=3215 SERVICED BY L=3300	1-47426-398-0	01	1	0407-0602			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=3232 SERVICED BY L=3300	1-47426-398-0	01	1	0603-			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FSS ALL(FS****) BRAKE REGULATION ADR<TDU> L=2649 SERVICED BY L=2700	1-47426-396-0	01	1	9604-0003		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FSS ALL(FS****) BRAKE REGULATION ADR<TDU> L=2651 SERVICED BY L=2700	1-47426-483-0	01	1	0004-0004		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FSS ALL(FS****) L=2589 SERVICED BY L=2700	1-47426-483-0	01	1	0005-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FSS ALL(FS****) EXC. BRAKE REGULATION ADR<TDU> L=2572 SERVICED BY L=2700	1-47426-396-0	01	1	9604-0003		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FSS ALL(FS****) EXC. BRAKE REGULATION ADR<TDU> L=2589 SERVICED BY L=2700	1-47426-483-0	01	1	0004-0004		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS MIDDLE CHASSIS(FT***F) BRAKE REGULATION ADR<TDU> L=2587 SERVICED BY L=2700	1-47426-396-0	01	1	9604-9611		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE REGULATION ADR<TDU> L=2587 SERVICED BY L=2700	1-47426-396-0	01	1	9604-9611	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS MIDDLE CHASSIS(FT***F) BRAKE REGULATION ADR<TDU> L=2561 SERVICED BY L=2700	1-47426-396-0	01	1	9612-0004		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE REGULATION ADR<TDU> L=2561 SERVICED BY L=2700	1-47426-396-0	01	1	9612-0004	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS MIDDLE CHASSIS(FT***F) BRAKE REGULATION ADR<TDU> L=2561 SERVICED BY L=2700	1-47426-396-0	01	1	0005-0602		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE REGULATION ADR<TDU> L=2561 SERVICED BY L=2700	1-47426-396-0	01	1	0005-0602	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS MIDDLE CHASSIS(FT***F) BRAKE REGULATION ADR<TDU> L=2577 SERVICED BY L=2700	1-47426-396-0	01	1	0603-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE REGULATION ADR<TDU> L=2577 SERVICED BY L=2700	1-47426-396-0	01	1	0603-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS SHORT CHASSIS(FT***C) L=2544 SERVICED BY L=2700	1-47426-396-0	01	1	9604-0602		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS MIDDLE CHASSIS(FT***F) EXC. BRAKE REGULATION ADR<TDU> L=2544 SERVICED BY L=2700	1-47426-396-0	01	1	9604-0602		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. BRAKE REGULATION ADR<TDU> L=2544 SERVICED BY L=2700	1-47426-396-0	01	1	9604-0602	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS SHORT CHASSIS(FT***C) L=2579 SERVICED BY L=2700	1-47426-396-0	01	1	0603-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS MIDDLE CHASSIS(FT***F) EXC. BRAKE REGULATION ADR<TDU> L=2579 SERVICED BY L=2700	1-47426-396-0	01	1	0603-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. BRAKE REGULATION ADR<TDU> L=2579 SERVICED BY L=2700	1-47426-396-0	01	1	0603-	●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	9604-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9604-0405	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0406-0512	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9604-0405	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0406-0603	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE	1-49116-481-0	01	1	9604-9607	●
131	PIPE; AIR,UNION TO FLEX HOSE	1-49117-605-0	01	1	9608-0405	●
131	PIPE; AIR,UNION TO FLEX HOSE	1-49117-605-0	01	1	0406-	●		●
161	HOSE; FLEX,SLAVE CYL L=380	0-05567-380-0	01	1	9604-0004	●	●
161	HOSE; FLEX,SLAVE CYL L=310	0-05567-310-0	01	1	0005-	●	●

131 104 101 42 131 104 103 102 104 45 115 44 46 116 17 42 22 47 50 43 27 49 51 48 47 29 28 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-0405	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0406-0512	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9604-9810	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9604-9810	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9811-0004	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0010	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0011-0405	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0406-	●	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9604-9810	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-0405	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-0405	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0406-	●	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0406-	●	●	●
22	UNION; CLU PIPE M12 3WAY	9-09228-706-1	01	1	0406-0607			●
22	UNION; CLU PIPE M12 3WAY	0-92138-706-0	01	1	0608-			●
26	NUT; CLIP,OIL PIPE FSS ALL(FS****) M8	9-09110-408-0	02	1	9604-9606		●
26	NUT; CLIP,OIL PIPE FSS ALL(FS****) M8 FLANGE	0-91150-108-0	02	1	9607-0004		●
26	NUT; CLIP,OIL PIPE FSS ALL(FS****) M8 FLANGE	0-91150-108-0	01	1	0005-0602		●
26	NUT; CLIP,OIL PIPE FSS ALL(FS****) M8 FLANGE	0-91180-108-0	01	1	0603-		●
26	NUT; CLIP,OIL PIPE FSS ALL(FS****) EXC. BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	01	1	9604-9606		●
26	NUT; CLIP,OIL PIPE FSS ALL(FS****) EXC. BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	01	1	9607-0004		●
26	NUT; CLIP,OIL PIPE FSS ALL(FS****) M8 FLANGE	0-91150-108-0	02	1	0005-0602		●
26	NUT; CLIP,OIL PIPE FSS ALL(FS****) M8 FLANGE	0-91180-108-0	02	1	0603-		●
26	NUT; CLIP,OIL PIPE FTS ALL(FT****) M8	9-09110-408-0	04	1	9604-9606		●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	04	1	9604-9606	●
26	NUT; CLIP,OIL PIPE FTS ALL(FT****) M8 FLANGE	0-91150-108-0	04	1	9607-0004		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9607-0004	●
26	NUT; CLIP,OIL PIPE FTS ALL(FT****) M8 FLANGE	0-91150-108-0	03	1	0005-0405		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0005-0405	●
26	NUT; CLIP,OIL PIPE FTS ALL(FT****) M8 FLANGE	0-91150-108-0	03	1	0406-0602		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0406-0602	●		●
26	NUT; CLIP,OIL PIPE FTS ALL(FT****) M8 FLANGE	0-91180-108-0	03	1	0603-		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-	●
27	NUT; BRKT (A) M8	9-09110-408-0	02	1	9604-9606	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9607-0405	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0406-0602	●	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9604-9810	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9604-9810	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9811-0004	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0010	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0011-0405	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0406-	●	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9604-9810	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-0405	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-0405	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0406-	●	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0406-	●	●	●
28	CLIP; OIL PIPE FSS ALL(FS****) ID=8 H=20 L=20	1-09700-604-0	02	1	9604-0004		●
28	CLIP; OIL PIPE FSS ALL(FS****) ID=8 H=20 L=20	1-09700-604-0	01	1	0005-		●
28	CLIP; OIL PIPE FSS ALL(FS****) EXC. BRAKE REGULATION ADR<TDU> ID=8 H=20 L=20	1-09700-604-0	01	1	9604-0004		●
28	CLIP; OIL PIPE FSS ALL(FS****) ID=8 H=20 L=20	1-09700-604-0	02	1	0005-		●
28	CLIP; OIL PIPE FTS ALL(FT****) ID=8 H=20 L=20	1-09700-604-0	04	1	9604-0004		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	9604-0004	●
28	CLIP; OIL PIPE FTS ALL(FT****) ID=8 H=20 L=20	1-09700-604-0	03	1	0005-0405		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0005-0405	●
28	CLIP; OIL PIPE FTS ALL(FT****) ID=8 H=20 L=20	1-09700-604-0	03	1	0406-		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0406-	●		●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X25 FLANGE	0-28080-825-0	02	1	9604-9606		●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X25 FLANGE	0-28680-825-0	02	1	9607-0004		●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X25 FLANGE	0-28680-825-0	01	1	0005-0512		●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28080-825-0	01	1	9604-9606		●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	01	1	9607-0004		●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X25 FLANGE	0-28680-825-0	02	1	0005-0512		●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
29	BOLT; CLIP,OIL PIPE FTS ALL(FT****) M8X25 FLANGE	0-28080-825-0	04	1	9604-9606		●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	04	1	9604-9606	●
29	BOLT; CLIP,OIL PIPE FTS ALL(FT****) M8X25 FLANGE	0-28680-825-0	04	1	9607-0004		●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	04	1	9607-0004	●
29	BOLT; CLIP,OIL PIPE FTS ALL(FT****) M8X25 FLANGE	0-28680-825-0	03	1	0005-0405		●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	03	1	0005-0405	●
29	BOLT; CLIP,OIL PIPE FTS ALL(FT****) M8X25 FLANGE	0-28680-825-0	03	1	0406-0512		●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	03	1	0406-0512	●		●
29	BOLT; CLIP,OIL PIPE FTS ALL(FT****) M8X25 FLANGE	0-28650-825-0	03	1	0601-		●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9604-0405	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0406-	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-640-0	01	1	9604-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47476-357-0	01	1	9604-0405	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47476-357-0	01	1	0406-	●		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9604-9606		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28680-825-0	02	1	9607-9608		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9609-0405		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0406-0512		●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-		●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	04	1	9604-9606	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28680-825-0	04	1	9607-9608	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	04	1	9609-0512	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	04	1	0601-	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9604-9606		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-0405		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0406-0602		●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	04	1	9604-9606	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	04	1	9607-0602	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	04	1	0603-	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	9604-0405	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0406-	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	9604-0405	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	0406-0603	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0604-	●
47	HOSE; FLEX,CLU CONT (B) L=450	1-09364-369-0	01	1	0406-			●
47	HOSE; FLEX,CLU CONT (A) L=420	1-09363-633-0	01	1	0406-			●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0406-			●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=10.5	1-09630-074-1	01	1	9604-	●	●
48	GASKET; FLEX HOSE,CLU CONT (A) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9604-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=204	1-49117-400-0	01	1	0406-			●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	0406-			●
50	NUT; UNION (A) M8 FLANGE	8-94279-517-0	03	1	9604-9611	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0405	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0406-	●	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9604-0405	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0406-0512	●	●	●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-	●	●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	0406-0603			●
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	0604-			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB UP +50MM<W60> L=460	1-09365-070-1	01	1	0406-0703			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB UP +50MM<W60> L=460	8-98072-345-0	01	1	0704-			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9604-0405	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0406-0703	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE EXC. CAB UP +50MM<W60> L=430	1-09364-859-1	01	1	0406-0703			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE EXC. CAB UP +50MM<W60> L=430	8-98072-326-0	01	1	0704-			●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9604-0405	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0406-0512	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9604-0405	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0406-0603	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=3214 SERVICED BY L=3300	1-47426-398-0	01	1	0406-0406			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=3215 SERVICED BY L=3300	1-47426-398-0	01	1	0407-0602			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=3232 SERVICED BY L=3300	1-47426-398-0	01	1	0603-			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FSS ALL(FS****) BRAKE REGULATION ADR<TDU> L=2649 SERVICED BY L=2700	1-47426-396-0	01	1	9604-0003		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FSS ALL(FS****) BRAKE REGULATION ADR<TDU> L=2651 SERVICED BY L=2700	1-47426-483-0	01	1	0004-0004		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FSS ALL(FS****) L=2589 SERVICED BY L=2700	1-47426-483-0	01	1	0005-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FSS ALL(FS****) EXC. BRAKE REGULATION ADR<TDU> L=2572 SERVICED BY L=2700	1-47426-396-0	01	1	9604-0003		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FSS ALL(FS****) EXC. BRAKE REGULATION ADR<TDU> L=2589 SERVICED BY L=2700	1-47426-483-0	01	1	0004-0004		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS MIDDLE CHASSIS(FT***F) BRAKE REGULATION ADR<TDU> L=2587 SERVICED BY L=2700	1-47426-396-0	01	1	9604-9611		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE REGULATION ADR<TDU> L=2587 SERVICED BY L=2700	1-47426-396-0	01	1	9604-9611	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS MIDDLE CHASSIS(FT***F) BRAKE REGULATION ADR<TDU> L=2561 SERVICED BY L=2700	1-47426-396-0	01	1	9612-0004		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE REGULATION ADR<TDU> L=2561 SERVICED BY L=2700	1-47426-396-0	01	1	9612-0004	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS MIDDLE CHASSIS(FT***F) BRAKE REGULATION ADR<TDU> L=2561 SERVICED BY L=2700	1-47426-396-0	01	1	0005-0602		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE REGULATION ADR<TDU> L=2561 SERVICED BY L=2700	1-47426-396-0	01	1	0005-0602	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS MIDDLE CHASSIS(FT***F) BRAKE REGULATION ADR<TDU> L=2577 SERVICED BY L=2700	1-47426-396-0	01	1	0603-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE REGULATION ADR<TDU> L=2577 SERVICED BY L=2700	1-47426-396-0	01	1	0603-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS SHORT CHASSIS(FT***C) L=2544 SERVICED BY L=2700	1-47426-396-0	01	1	9604-0602		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS MIDDLE CHASSIS(FT***F) EXC. BRAKE REGULATION ADR<TDU> L=2544 SERVICED BY L=2700	1-47426-396-0	01	1	9604-0602		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. BRAKE REGULATION ADR<TDU> L=2544 SERVICED BY L=2700	1-47426-396-0	01	1	9604-0602	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS SHORT CHASSIS(FT***C) L=2579 SERVICED BY L=2700	1-47426-396-0	01	1	0603-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS MIDDLE CHASSIS(FT***F) EXC. BRAKE REGULATION ADR<TDU> L=2579 SERVICED BY L=2700	1-47426-396-0	01	1	0603-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. BRAKE REGULATION ADR<TDU> L=2579 SERVICED BY L=2700	1-47426-396-0	01	1	0603-	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9604-0405	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0406-0512	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9604-0405	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0406-0603	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE	1-49116-481-0	01	1	9604-9607	●
131	PIPE; AIR,UNION TO FLEX HOSE	1-49117-605-0	01	1	9608-0405	●
131	PIPE; AIR,UNION TO FLEX HOSE	1-49117-605-0	01	1	0406-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
