2-03 — CLUTCH PEDAL AND CONTROL (#36767) — 116 parça

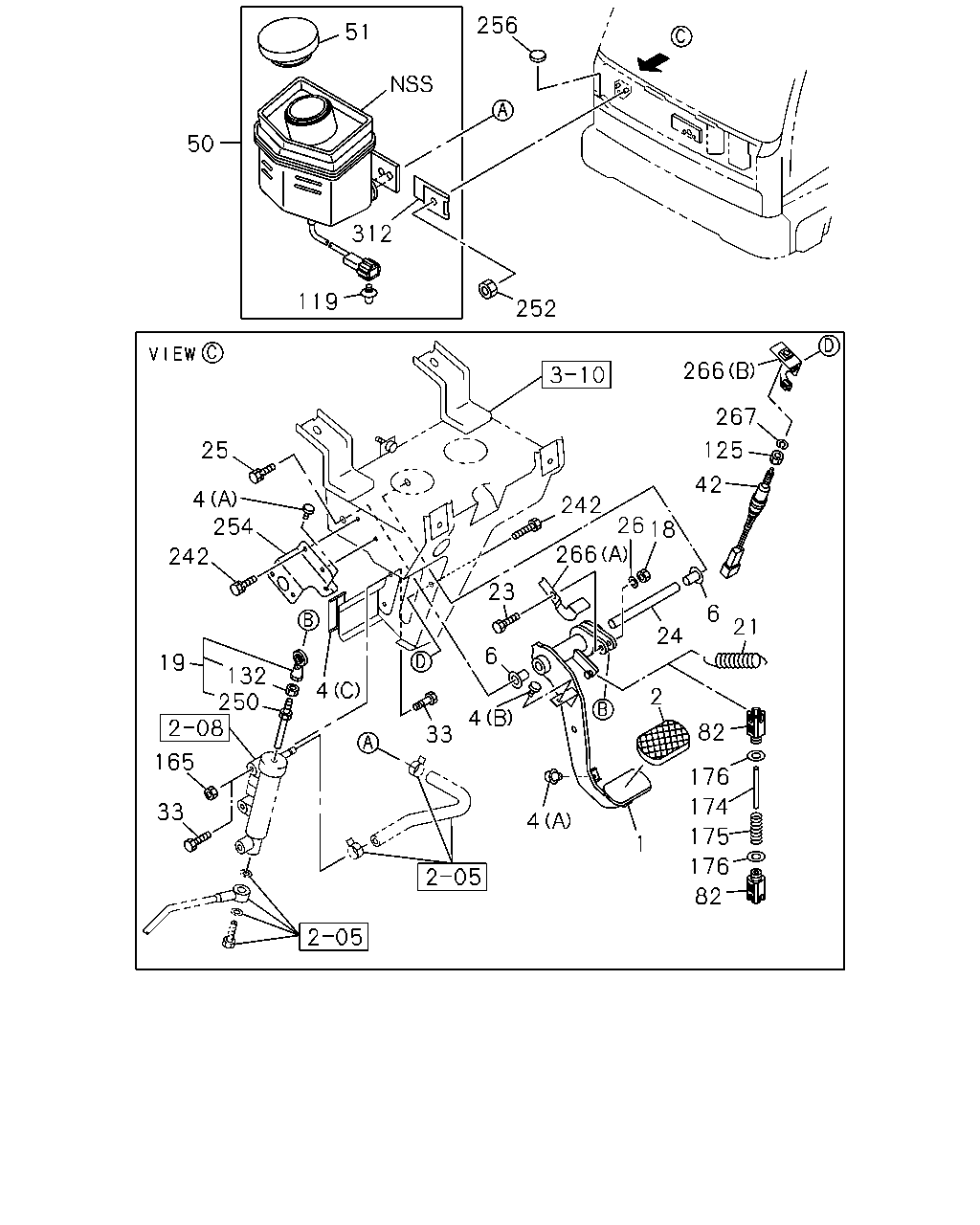

çizim 152684
256 51 50 312 119 252 266 267 125 25 42 4 254 242 26 18 266 242 23 6 21 24 6 19 132 250 2 4 4 82 33 165 176 174 33 4 175 1 176 82
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PEDAL; CLU
AIR ASSIST CLUTCH<PK1> 		1-73908-171-3 01 1 0406- ●
1 PEDAL; CLU 1-73908-051-3 01 1 9604-9803 ● ● ● ● ●
1 PEDAL; CLU 1-73908-331-2 01 1 9804-0004 ● ● ● ● ●
1 PEDAL; CLU 1-73908-331-2 01 1 0005-0405 ● ● ●
1 PEDAL; CLU 1-73908-331-2 01 1 0406- ● ●
1 PEDAL; CLU
EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-331-2 01 1 0406- ●
2 COVER; CLU PEDAL 8-94204-810-0 01 1 9604-0004 ● ● ● ● ●
2 COVER; CLU PEDAL 8-94204-810-0 01 1 0005-0103 ● ● ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0104- ● ● ●
4 STOPPER; CLU PEDAL
AIR ASSIST CLUTCH<PK1> (A) 		1-47319-014-1 04 1 0406- ●
4 STOPPER; CLU PEDAL
(A) 		1-47319-014-1 02 1 9604-0004 ● ● ● ● ●
4 STOPPER; CLU PEDAL
(A) 		1-47319-014-1 02 1 0005-0405 ● ● ●
4 STOPPER; CLU PEDAL
(A) 		1-47319-014-1 02 1 0406- ● ●
4 STOPPER; CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1> (A) 		1-47319-014-1 02 1 0406- ●
4 STOPPER; CLU PEDAL
(C) 		1-73908-088-0 01 1 9604-0103 ● ● ● ● ●
4 STOPPER; CLU PEDAL
(B) 		5-31419-003-0 01 1 9604-9904 ● ● ● ● ●
4 STOPPER; CLU PEDAL
(C) 		1-73908-088-1 01 1 0104-0405 ● ● ●
4 STOPPER; CLU PEDAL
(C) 		1-73908-088-1 01 1 0406- ● ●
4 STOPPER; CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1> (C) 		1-73908-088-1 01 1 0406- ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 9604-0004 ● ● ● ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0005- ● ● ●
18 NUT; PUSH ROD
AIR ASSIST CLUTCH<PK1> M8 		0-91110-508-0 01 1 0406- ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 9604-0004 ● ● ● ● ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 0005-0405 ● ● ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 0406- ● ●
18 NUT; PUSH ROD
EXC. AIR ASSIST CLUTCH<PK1> M8 		9-09110-508-0 01 1 0406- ●
19 ROD ASM; PUSH,CLU
AIR ASSIST CLUTCH<PK1> 		1-73996-144-1 01 1 0406- ●
19 ROD ASM; PUSH,CLU
AUSTRALIA EQUIPMENT(RR3) 		1-73907-320-1 01 1 9604-9803 ● ● ● ●
19 ROD ASM; PUSH,CLU 1-73908-332-0 01 1 9804-0004 ● ● ● ● ●
19 ROD ASM; PUSH,CLU 1-73908-332-0 01 1 0005-0405 ● ● ●
19 ROD ASM; PUSH,CLU 1-73908-332-0 01 1 0406- ● ●
19 ROD ASM; PUSH,CLU
EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-332-0 01 1 0406- ●
19 ROD ASM; PUSH,CLU
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-73996-144-0 01 1 9604-9803 ● ● ● ●
19 ROD ASM; PUSH,CLU 1-73996-144-0 01 1 9604-9803 ●
21 SPRING; RETURN,CLU PEDAL
AIR ASSIST CLUTCH<PK1> 		1-73908-265-0 01 1 0406- ●
23 BOLT; PUSH ROD
AIR ASSIST CLUTCH<PK1> M8X35 		0-10960-835-0 01 1 0406- ●
23 BOLT; PUSH ROD
M8X35 		9-01060-835-0 01 1 9604-9701 ● ● ● ● ●
23 BOLT; PUSH ROD
EXC. AUSTRALIA EQUIPMENT(RR3) M8X35 		9-01060-835-0 01 1 9702-9803 ● ● ● ●
23 BOLT; PUSH ROD
M8X35 		9-01060-835-0 01 1 9702-9803 ●
23 BOLT; PUSH ROD
AUSTRALIA EQUIPMENT(RR3) M8X39.7 		1-09009-150-0 01 1 9702-9803 ● ● ● ●
23 BOLT; PUSH ROD
M8X43.7 		1-73908-333-0 01 1 9804-0004 ● ● ● ● ●
23 BOLT; PUSH ROD
M8X43.7 		1-73908-333-0 01 1 0005-0405 ● ● ●
23 BOLT; PUSH ROD
M8X43.7 		1-73908-333-0 01 1 0406- ● ●
23 BOLT; PUSH ROD
EXC. AIR ASSIST CLUTCH<PK1> M8X43.7 		1-73908-333-0 01 1 0406- ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 9604-0004 ● ● ● ● ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 0005- ● ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 9604-0004 ● ● ● ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 0005- ● ● ●
26 WASHER; LK,PUSH ROD
AIR ASSIST CLUTCH<PK1> ID=8.2 		0-91510-608-0 01 1 0406- ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 9604-0004 ● ● ● ● ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 0005-0405 ● ● ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 0406- ● ●
26 WASHER; LK,PUSH ROD
EXC. AIR ASSIST CLUTCH<PK1> ID=8.2 		9-09150-608-0 01 1 0406- ●
33 BOLT; CLU M/CYL TO BRKT
AIR ASSIST CLUTCH<PK1> M10X60 FLANGE 		0-28081-060-0 02 1 0406-0512 ●
33 BOLT; CLU M/CYL TO BRKT
AIR ASSIST CLUTCH<PK1> M10X60 FLANGE 		0-28051-060-0 02 1 0601- ●
33 BOLT; CLU M/CYL TO BRKT
M10X65 		5-09030-024-1 02 1 9604-0004 ● ● ● ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X65 		5-09030-024-1 02 1 0005-0405 ● ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X65 		5-09030-024-1 02 1 0406- ● ●
33 BOLT; CLU M/CYL TO BRKT
EXC. AIR ASSIST CLUTCH<PK1> M10X65 		5-09030-024-1 02 1 0406- ●
42 SWITCH; CLU 1-82440-094-2 01 1 0104- ● ● ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 9604-0004 ● ● ● ● ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 0005- ● ● ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 9604-0004 ● ● ● ● ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 0005- ● ● ●
82 CLEVIS; HELPER,CLU PEDAL 1-73998-472-1 02 1 9604-0004 ● ● ● ● ●
82 CLEVIS; HELPER,CLU PEDAL 1-73998-472-1 02 1 0005-0405 ● ● ●
82 CLEVIS; HELPER,CLU PEDAL 1-73998-472-1 02 1 0406- ● ●
82 CLEVIS; HELPER,CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1> 		1-73998-472-1 02 1 0406- ●
119 CLIP; CONNECTOR
OD=7 H=1.2 		8-94364-750-0 01 1 9903-0004 ● ● ● ● ●
119 CLIP; CONNECTOR
OD=7 H=1.2 		8-94364-750-0 01 1 0005- ● ● ●
125 NUT; CLU SWITCH
AIR ASSIST CLUTCH<PK1> M10 		0-91110-510-0 01 1 0406- ●
125 NUT; CLU SWITCH
M10 		9-09110-510-0 01 1 0104-0405 ● ● ●
125 NUT; CLU SWITCH
M10 		9-09110-510-0 01 1 0406- ● ●
125 NUT; CLU SWITCH
EXC. AIR ASSIST CLUTCH<PK1> M10 		9-09110-510-0 01 1 0406- ●
132 NUT; LK,PUSH ROD
AIR ASSIST CLUTCH<PK1> M8 		0-91110-508-0 01 1 0406- ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 9604-0004 ● ● ● ● ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 0005-0405 ● ● ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 0406- ● ●
132 NUT; LK,PUSH ROD
EXC. AIR ASSIST CLUTCH<PK1> M8 		9-09110-408-0 01 1 0406- ●
165 NUT; CLU M/CYL
M10 FLANGE 		0-91150-210-0 02 1 9604-0004 ● ● ● ● ●
165 NUT; CLU M/CYL
M10 FLANGE 		0-91150-210-0 02 1 0005-0405 ● ● ●
165 NUT; CLU M/CYL
M10 FLANGE 		0-91150-210-0 02 1 0406-0602 ● ●
165 NUT; CLU M/CYL
EXC. AIR ASSIST CLUTCH<PK1> M10 FLANGE 		0-91150-210-0 02 1 0406-0602 ●
165 NUT; CLU M/CYL
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
165 NUT; CLU M/CYL
EXC. AIR ASSIST CLUTCH<PK1> M10 FLANGE 		0-91180-210-0 02 1 0603- ●
174 PIN; STRAIGHT,CLU PEDAL 1-73998-474-0 01 1 9604-0004 ● ● ● ● ●
174 PIN; STRAIGHT,CLU PEDAL 1-73998-474-0 01 1 0005-0405 ● ● ●
174 PIN; STRAIGHT,CLU PEDAL 1-73998-474-0 01 1 0406- ● ●
174 PIN; STRAIGHT,CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1> 		1-73998-474-0 01 1 0406- ●
175 SPRING; HELPER 1-73908-052-0 01 1 9604-0004 ● ● ● ● ●
175 SPRING; HELPER 1-73908-052-0 01 1 0005-0405 ● ● ●
175 SPRING; HELPER 1-73908-052-0 01 1 0406- ● ●
175 SPRING; HELPER
EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-052-0 01 1 0406- ●
176 SEAT; SPRING 1-09503-114-0 02 1 9604-0103 ● ● ● ● ●
176 SEAT; SPRING 1-09503-114-0 02 1 0104-0405 ● ● ●
176 SEAT; SPRING 1-09503-114-0 02 1 0406- ● ●
176 SEAT; SPRING
EXC. AIR ASSIST CLUTCH<PK1> 		1-09503-114-0 02 1 0406- ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 06 1 9604-9803 ● ● ● ● ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 04 1 9804-0004 ● ● ● ● ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 04 1 0005- ● ● ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 9604-0004 ● ● ● ● ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0005- ● ● ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 9604-0004 ● ● ● ● ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0005- ● ● ●
254 BRACKET; CLU SENSOR 1-73998-979-4 01 1 9604-0004 ● ● ● ● ●
254 BRACKET; CLU SENSOR 1-73998-979-5 01 1 0005- ● ● ●
256 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 9604-0004 ● ● ● ● ●
256 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0005- ● ● ●
266 BRACKET; CLU SWITCH
(A) 		1-73907-395-1 01 1 0104- ● ● ●
266 BRACKET; CLU SWITCH
(B) 		1-73908-354-0 01 1 0104- ● ● ●
267 WASHER; LK,CLU SWITCH
AIR ASSIST CLUTCH<PK1> ID=10.2 		0-91510-510-0 01 1 0406- ●
267 WASHER; LK,CLU SWITCH
ID=10.2 		9-09150-510-0 01 1 0104-0405 ● ● ●
267 WASHER; LK,CLU SWITCH
ID=10.2 		9-09150-510-0 01 1 0406- ● ●
267 WASHER; LK,CLU SWITCH
EXC. AIR ASSIST CLUTCH<PK1> ID=10.2 		9-09150-510-0 01 1 0406- ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 9804-0004 ● ● ● ● ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 0005- ● ● ●
