Sayfa 2-01 - Isuzu EPC

2-01 — CLUTCH (#36766) — 257 parça

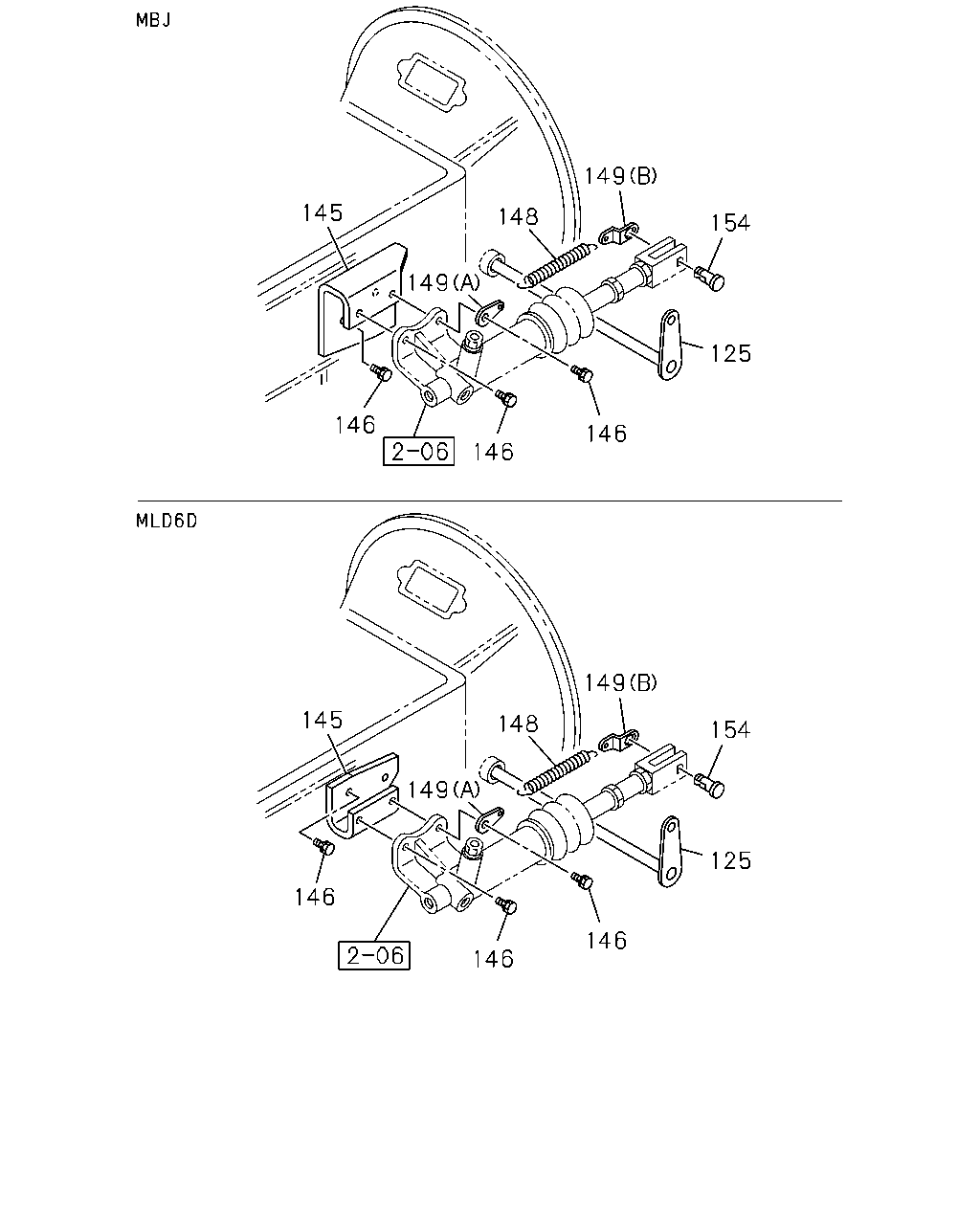

149 145 148 154 149 125 146 146 146 149 145 148 154 149 125 146 146 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
125	SHAFT; CLU	1-31342-169-1	01	1	0406-	●
125	SHAFT; CLU	1-31342-273-0	01	1	9604-9803		●
125	SHAFT; CLU	1-31342-299-0	01	1	9804-		●
125	SHAFT; CLU	1-31342-271-0	01	1	9604-9803			●
125	SHAFT; CLU	1-31342-298-1	01	1	9804-			●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-054-0	01	1	9604-9803		●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-059-0	01	1	9804-		●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-052-0	01	1	9604-9803			●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-058-0	01	1	9804-			●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	9604-0512		●	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28151-025-0	04	1	0601-		●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0406-	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9604-		●	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	9604-		●	●
149	EYE; SPRING,RETURN SPRING (A) T=2.3	1-47324-005-1	01	1	9604-		●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9604-		●	●

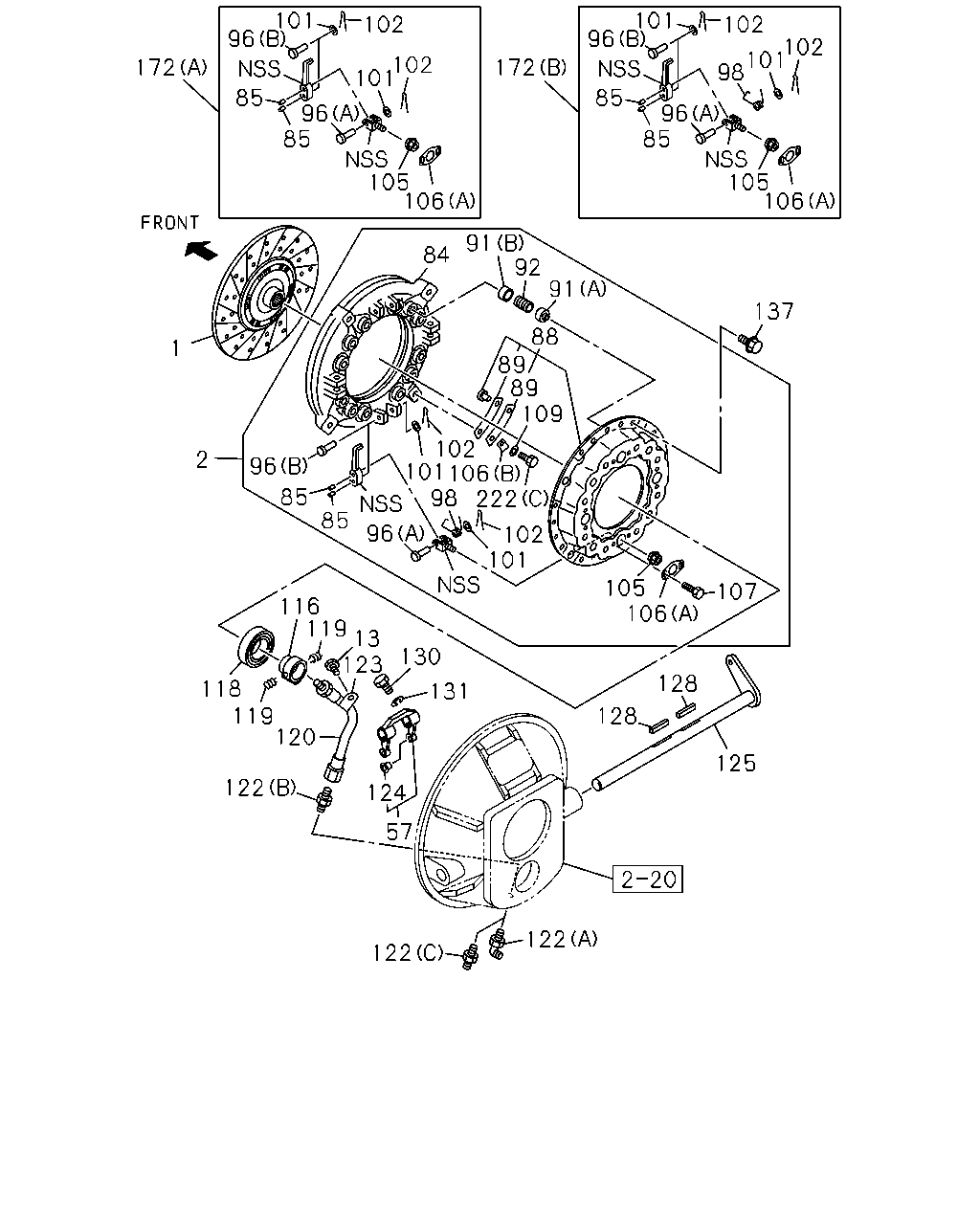

101 96 101 96 102 102 102 101 98 102 101 172 172 85 85 96 85 96 85 105 106 105 106 91 92 91 84 137 88 89 89 109 1 102 101 106 102 101 2 96 85 85 96 105 106 107 116 119 13 123 130 128 118 119 120 131 128 125 122 124 57 122 122 98 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH 15"	1-31240-889-0	01	1	0406-	●
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	9604-0105		●	●
1	DISC; CLUTCH 14"	1-31240-901-0	01	1	0106-		●	●
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-139-0	01	1	0106-		●	●
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-142-0	01	1	0406-	●
2	PLATE ASM; PRESSURE,CLU	1-31220-374-2	01	1	0406-	●
2	PLATE ASM; PRESSURE,CLU	1-31220-291-0	01	1	9604-0109		●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-364-2	01	1	0110-1005		●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-447-0	01	1	1006-		●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-120-0	01	1	0406-	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-144-0	01	1	1006-		●	●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9604-0405			●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0406-0512	●		●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●		●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0406-1306	●
57	FORK; SHIFT,CLU	1-31340-077-0	01	1	1307-	●
57	FORK; SHIFT,CLU	1-31340-056-1	01	1	9604-		●	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0406-	●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	9604-		●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9604-0405		●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0406-	●	●	●
88	COVER SUB ASM; CLU	1-31211-036-0	01	1	9604-		●	●
89	PLATE; STRAP	1-31229-050-0	16	1	0406-	●
89	PLATE; STRAP	1-31229-001-0	08	1	9604-		●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1006-	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1006-	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9604-0405		●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0406-1005	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	1006-		●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9604-0405		●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0406-1005	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	1006-		●	●
92	SPRING; CLU	1-31214-086-0	12	1	0406-	●
92	SPRING; CLU	1-09580-234-0	12	1	9604-0308		●	●
92	SPRING; CLU	1-31214-088-0	12	1	0309-1005		●	●
92	SPRING; CLU	1-31214-060-0	08	1	1006-		●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9604-0405		●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0406-	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	9604-0405		●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0406-	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9604-0405		●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0406-	●	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0406-	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9604-		●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0406-	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9604-		●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9604-0109		●	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308		●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-0405		●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0406-	●	●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	9604-0109		●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	0110-		●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9604-0405		●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0406-	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9604-0308		●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-0405		●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0406-	●	●	●
109	WASHER; LK,STRAP ID=10.2	9-09150-510-0	04	1	9604-0603		●	●
109	WASHER; LK,STRAP ID=10.2	0-91510-510-0	04	1	0604-		●	●
116	BLOCK; SHIFT,CLU	1-31321-075-1	01	1	0406-1204	●
116	BLOCK; SHIFT,CLU	1-31321-113-0	01	1	1205-1306	●
116	BLOCK; SHIFT,CLU	1-31321-114-0	01	1	1307-	●
116	BLOCK; SHIFT,CLU	1-31321-070-3	01	1	9604-		●
116	BLOCK; SHIFT,CLU	1-31321-052-3	01	1	9604-			●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0406-	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9604-0111		●	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-		●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0406-	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-148-0	01	1	0112-		●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9604-0405		●	●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	0406-	●	●	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9604-0405		●	●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	0406-	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=170	1-09364-869-0	01	1	9604-		●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9604-0003			●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-0405			●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0406-	●		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9604-0512		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	9604-0405		●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0406-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 STRAIGHT	9-09031-010-0	01	1	9604-0405			●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 STRAIGHT	9-09031-010-0	01	1	0406-0512	●		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●		●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9604-0405			●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0406-0606	●		●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-	●		●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9604-0405		●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0406-	●	●	●
125	SHAFT; CLU	1-31342-169-1	01	1	0406-	●
125	SHAFT; CLU	1-31342-273-0	01	1	9604-9803		●
125	SHAFT; CLU	1-31342-299-0	01	1	9804-		●
125	SHAFT; CLU	1-31342-271-0	01	1	9604-9803			●
125	SHAFT; CLU	1-31342-298-1	01	1	9804-			●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9604-0405		●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0406-	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9604-0405		●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0406-0512	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9604-0405		●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0406-0603	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9604-0405		●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0406-0512	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-		●	●
172	LEVER KIT; RELEASE,CLU (C)	1-87831-170-1	01	1	0406-	●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-620-0	01	1	9604-0109		●	●
172	LEVER KIT; RELEASE,CLU (B)	1-87830-902-1	01	1	0110-0306		●	●
172	LEVER KIT; RELEASE,CLU (B)	1-87831-173-1	01	1	0307-		●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0406-	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0406-	●
222	BOLT; STRAP (C) M10X26 HEX SOCKET	1-09040-101-0	04	1	9604-0109		●	●
222	BOLT; STRAP (C)	1-31239-059-0	04	1	0110-		●	●

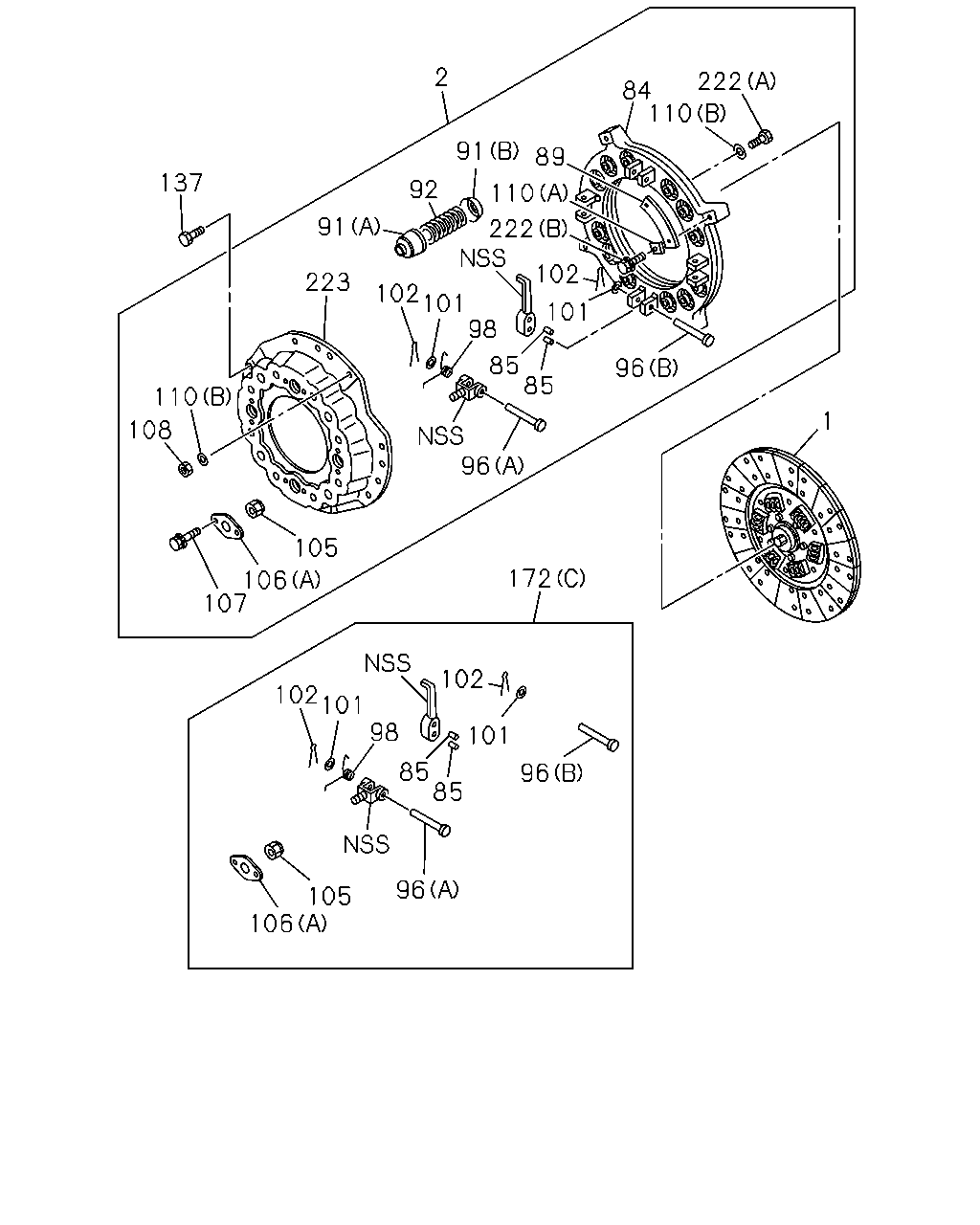

2 222 84 110 91 89 137 92 110 91 222 102 223 102 101 98 101 85 85 96 110 1 108 96 105 172 106 107 102 102 101 98 101 85 85 96 96 105 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH 15"	1-31240-889-0	01	1	0406-	●
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	9604-0105		●	●
1	DISC; CLUTCH 14"	1-31240-901-0	01	1	0106-		●	●
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-139-0	01	1	0106-		●	●
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-142-0	01	1	0406-	●
2	PLATE ASM; PRESSURE,CLU	1-31220-374-2	01	1	0406-	●
2	PLATE ASM; PRESSURE,CLU	1-31220-291-0	01	1	9604-0109		●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-364-2	01	1	0110-1005		●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-447-0	01	1	1006-		●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-120-0	01	1	0406-	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-144-0	01	1	1006-		●	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0406-	●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	9604-		●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9604-0405		●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0406-	●	●	●
89	PLATE; STRAP	1-31229-050-0	16	1	0406-	●
89	PLATE; STRAP	1-31229-001-0	08	1	9604-		●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1006-	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1006-	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9604-0405		●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0406-1005	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	1006-		●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9604-0405		●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0406-1005	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	1006-		●	●
92	SPRING; CLU	1-31214-086-0	12	1	0406-	●
92	SPRING; CLU	1-09580-234-0	12	1	9604-0308		●	●
92	SPRING; CLU	1-31214-088-0	12	1	0309-1005		●	●
92	SPRING; CLU	1-31214-060-0	08	1	1006-		●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9604-0405		●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0406-	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	9604-0405		●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0406-	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9604-0405		●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0406-	●	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0406-	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9604-		●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0406-	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9604-		●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9604-0109		●	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308		●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-0405		●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0406-	●	●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	9604-0109		●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	0110-		●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9604-0405		●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0406-	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9604-0308		●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-0405		●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0406-	●	●	●
108	NUT; STRAP	1-09449-036-0	04	1	0406-	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0406-	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0406-	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9604-0405		●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0406-0512	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-		●	●
172	LEVER KIT; RELEASE,CLU (C)	1-87831-170-1	01	1	0406-	●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-620-0	01	1	9604-0109		●	●
172	LEVER KIT; RELEASE,CLU (B)	1-87830-902-1	01	1	0110-0306		●	●
172	LEVER KIT; RELEASE,CLU (B)	1-87831-173-1	01	1	0307-		●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0406-	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0406-	●
222	BOLT; STRAP (C) M10X26 HEX SOCKET	1-09040-101-0	04	1	9604-0109		●	●
222	BOLT; STRAP (C)	1-31239-059-0	04	1	0110-		●	●
223	COVER; CLU	1-31211-019-1	01	1	0406-	●

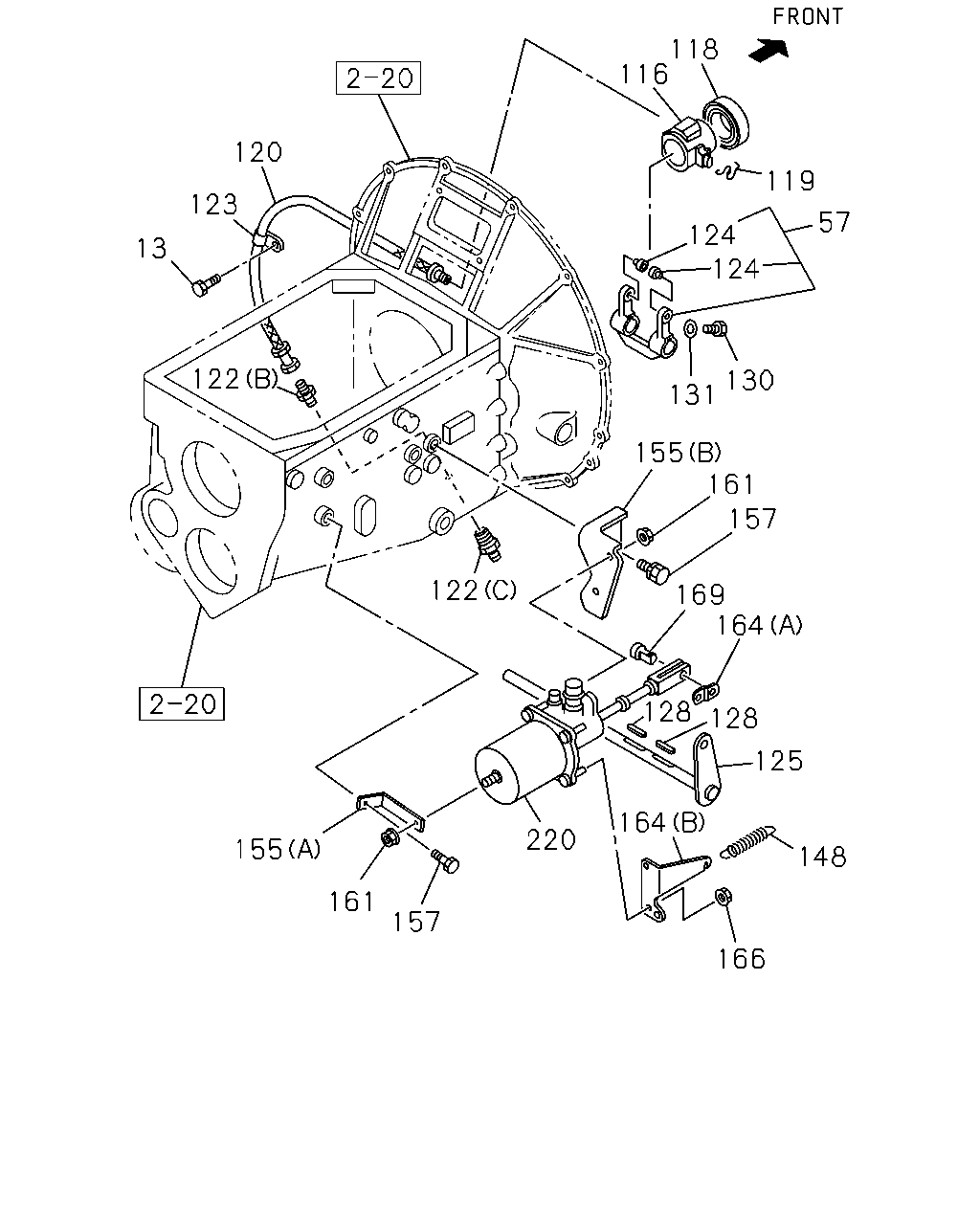

118 116 120 119 123 57 124 124 13 122 130 131 155 161 157 122 169 164 128 128 125 164 220 155 148 161 157 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9604-0405			●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0406-0512	●		●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●		●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0406-1306	●
57	FORK; SHIFT,CLU	1-31340-077-0	01	1	1307-	●
57	FORK; SHIFT,CLU	1-31340-056-1	01	1	9604-		●	●
116	BLOCK; SHIFT,CLU	1-31321-075-1	01	1	0406-1204	●
116	BLOCK; SHIFT,CLU	1-31321-113-0	01	1	1205-1306	●
116	BLOCK; SHIFT,CLU	1-31321-114-0	01	1	1307-	●
116	BLOCK; SHIFT,CLU	1-31321-070-3	01	1	9604-		●
116	BLOCK; SHIFT,CLU	1-31321-052-3	01	1	9604-			●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0406-	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9604-0111		●	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-		●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0406-	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-148-0	01	1	0112-		●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9604-0405		●	●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	0406-	●	●	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9604-0405		●	●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	0406-	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=170	1-09364-869-0	01	1	9604-		●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9604-0003			●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-0405			●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0406-	●		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9604-0512		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	9604-0405		●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0406-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 STRAIGHT	9-09031-010-0	01	1	9604-0405			●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 STRAIGHT	9-09031-010-0	01	1	0406-0512	●		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●		●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9604-0405			●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0406-0606	●		●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-	●		●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9604-0405		●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0406-	●	●	●
125	SHAFT; CLU	1-31342-169-1	01	1	0406-	●
125	SHAFT; CLU	1-31342-273-0	01	1	9604-9803		●
125	SHAFT; CLU	1-31342-299-0	01	1	9804-		●
125	SHAFT; CLU	1-31342-271-0	01	1	9604-9803			●
125	SHAFT; CLU	1-31342-298-1	01	1	9804-			●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9604-0405		●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0406-	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9604-0405		●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0406-0512	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9604-0405		●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0406-0603	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0406-	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9604-		●	●
155	BRACKET; MINIPACK (B)	1-31429-175-2	01	1	0406-	●
155	BRACKET; MINIPACK (A)	1-31429-176-0	01	1	0406-	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	0406-	●
161	NUT; BRKT M8 FLANGE	0-91150-208-0	03	1	0406-0602	●
161	NUT; BRKT M8 FLANGE	0-91180-208-0	03	1	0603-	●
164	EYE; SPRING (A)	1-31426-041-0	01	1	0406-	●
164	EYE; SPRING (B)	1-47477-789-0	01	1	0406-	●
166	NUT; SPRING EYE M8 FLANGE	0-91150-208-0	02	1	0406-0602	●
166	NUT; SPRING EYE M8 FLANGE	0-91180-208-0	02	1	0603-	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0406-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-388-3	01	1	0406-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-083-0	01	1	0406-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
