◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10716 - FSS/FTS-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#36765) — 42 parça

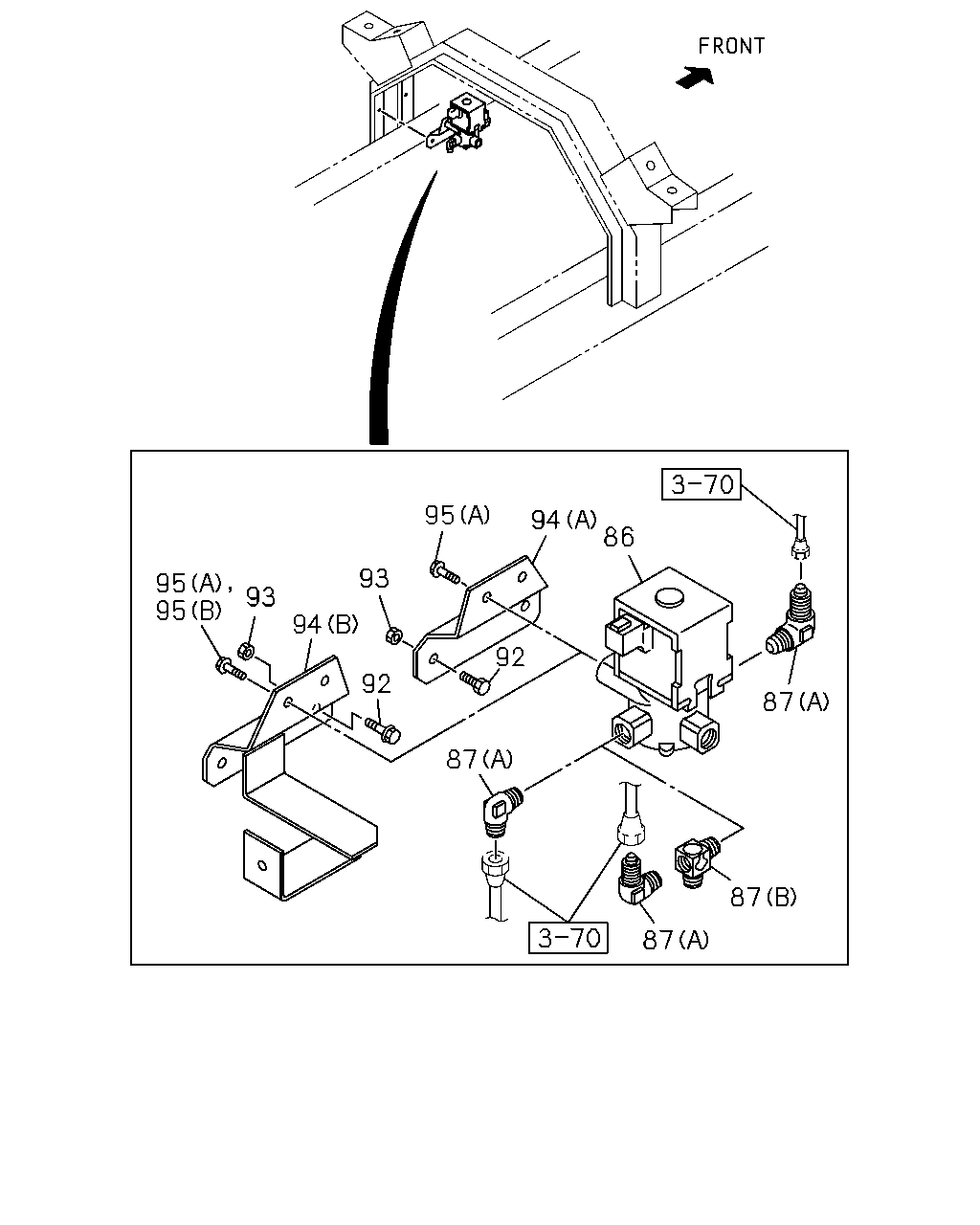

çizim 152680
95 94 86 93 95 95 93 94 92 92 87 87 87 87
BalonParca AdiParca NoAdetTipApplied Date A B C D
86 VALVE; MAG,EXH BRK 1-82563-602-4 01 1 9604-0004 ● ●
86 VALVE; MAG,EXH BRK
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) 		1-82563-602-4 01 1 0005-0011 ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-4 01 1 0005-0011 ●
86 VALVE; MAG,EXH BRK 1-82563-602-6 01 1 0012-0405 ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-6 01 1 0406- ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-750-4 01 1 0012-0405 ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9604-0004 ● ●
87 CONNECTOR
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0005-0011 ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0005-0011 ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0012-0405 ● ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0406- ● ● ●
87 CONNECTOR
(B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0012-0405 ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28080-820-0 02 1 9604-9803 ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 9804-0004 ● ●
92 BOLT; MAG VLV
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0405 ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0405 ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 0406-0512 ● ● ●
92 BOLT; MAG VLV
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
93 NUT; MAG VLV
M8 		9-09110-408-0 02 1 9604-9803 ● ●
93 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 9804-0004 ● ●
93 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 0005-0405 ● ● ●
93 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 0406-0602 ● ● ●
93 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FSS STD CAB(FS**M*) FTS STD CAB MIDDLE CHASSIS(FT**MF) AUSTRALIA EQUIPMENT(RR3) (B) 		1-47477-568-0 01 1 9604-0004 ●
94 BRACKET; MAG VLV,EXH BRAKE
FSS STD CAB(FS**M*) FTS STD CAB MIDDLE CHASSIS(FT**MF) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		1-47477-266-0 01 1 9604-0004 ●
94 BRACKET; MAG VLV,EXH BRAKE
FSS DOUBLE CAB(FS**W*) FTS STD CAB SHORT CHASSIS(FTS5MC) FTS DOUBLE CAB MIDDLE CHASSIS(FTS5WF) (A) 		1-47477-266-0 01 1 9604-0004 ●
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		1-47477-266-0 01 1 9604-0004 ●
94 BRACKET; MAG VLV,EXH BRAKE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (A) 		1-47477-266-0 01 1 0005-0011 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		1-47477-266-0 01 1 0005-0011 ●
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		1-47477-266-0 01 1 0012-0405 ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		1-47477-266-0 01 1 0406- ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
FSS STD CAB(FS**M*) FTS STD CAB MIDDLE CHASSIS(FT**MF) AUSTRALIA EQUIPMENT(RR3) (B) M8X20 FLANGE 		0-28080-820-0 02 1 9604-9810 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
FSS STD CAB(FS**M*) FTS STD CAB MIDDLE CHASSIS(FT**MF) EXC. AUSTRALIA EQUIPMENT(RR3) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9604-9810 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
FSS DOUBLE CAB(FS**W*) FTS STD CAB SHORT CHASSIS(FTS5MC) FTS DOUBLE CAB MIDDLE CHASSIS(FTS5WF) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9604-9810 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9604-9810 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9811-0004 ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0011 ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0011 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0012-0405 ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0406-0512 ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
