1-45 — WATER SEDIMENTER; FUEL (#36762) — 90 parça
çizim 152661
1 1 7 9 2 38 5 91 35 34
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SEDIMENTER; FUEL 8-97601-458-1 01 1 0406- ●
1 SEDIMENTER; FUEL
AUSTRALIA EQUIPMENT(RR3) 		1-13200-963-1 01 1 9604-0004 ●
1 SEDIMENTER; FUEL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-13200-953-2 01 1 9604-0004 ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9604-0004 ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 0005-0006 ● ● ●
1 SEDIMENTER; FUEL 1-13201-015-1 01 1 0007-0405 ● ● ●
1 SEDIMENTER; FUEL 1-13201-015-1 01 1 0406- ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9604-0004 ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 0005-0405 ● ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 0406- ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9604-0004 ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 0005-0405 ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 0406- ● ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9604-0004 ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 0005-0405 ● ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 0406- ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9604-0004 ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 0005-0405 ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 0406- ● ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9604-0004 ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 0005-0405 ● ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 0406- ● ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9604-0004 ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 0005-0405 ● ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 0406- ● ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9604-0004 ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 0005-0405 ● ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 0406- ● ● ●
91 COVER; LWR,SEDIMENTER 1-13212-176-2 01 1 0005-0405 ● ● ●
91 COVER; LWR,SEDIMENTER 1-13212-176-3 01 1 0406- ● ● ●

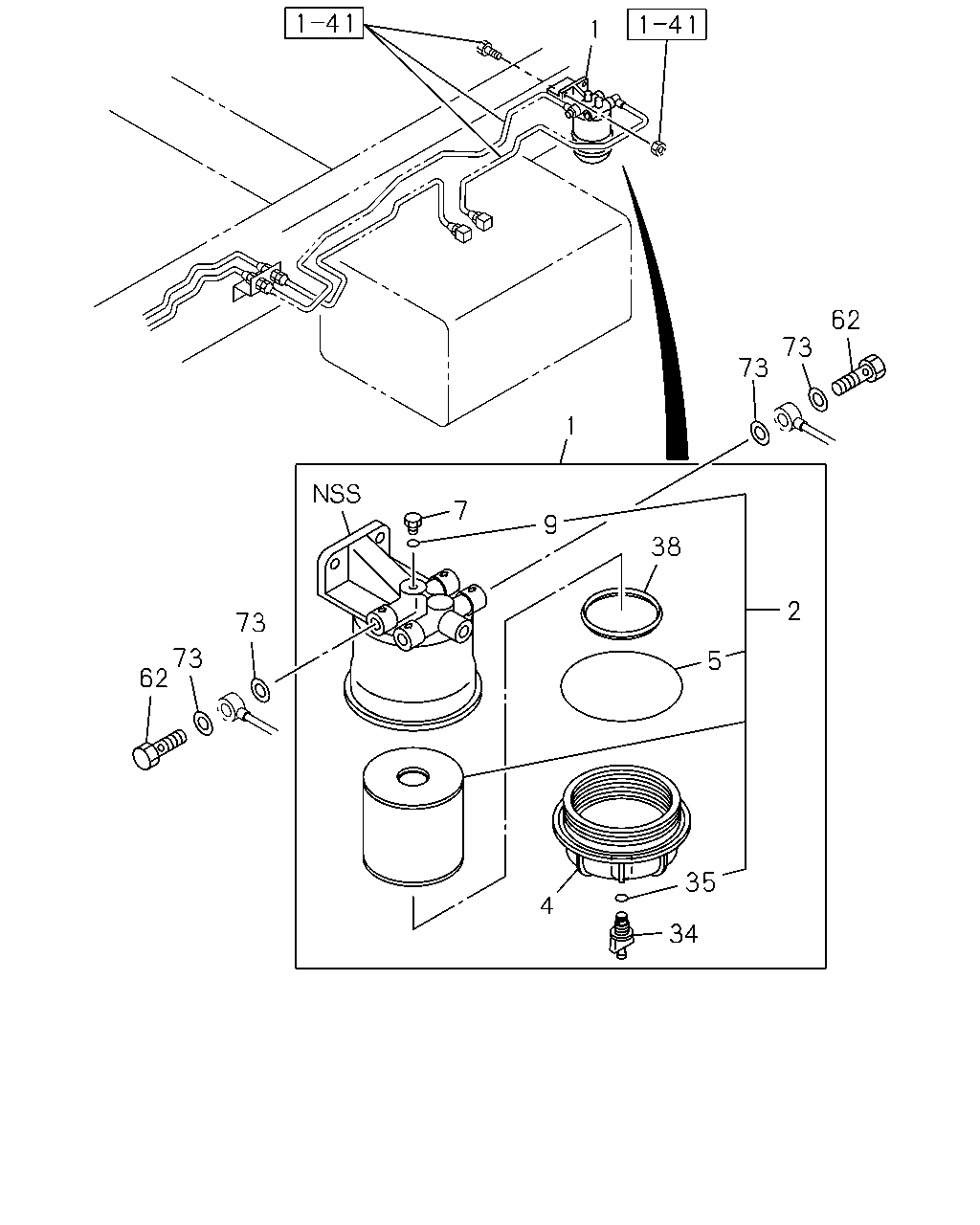

çizim 152663
1 62 73 73 1 7 9 38 2 73 73 62 5 35 4 34
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SEDIMENTER; FUEL 8-97601-458-1 01 1 0406- ●
1 SEDIMENTER; FUEL
AUSTRALIA EQUIPMENT(RR3) 		1-13200-963-1 01 1 9604-0004 ●
1 SEDIMENTER; FUEL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-13200-953-2 01 1 9604-0004 ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9604-0004 ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 0005-0006 ● ● ●
1 SEDIMENTER; FUEL 1-13201-015-1 01 1 0007-0405 ● ● ●
1 SEDIMENTER; FUEL 1-13201-015-1 01 1 0406- ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9604-0004 ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 0005-0405 ● ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 0406- ● ● ●
4 COVER; UPR,SEDIMENTER ASM 1-13212-176-2 01 1 9604-0004 ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9604-0004 ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 0005-0405 ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 0406- ● ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9604-0004 ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 0005-0405 ● ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 0406- ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9604-0004 ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 0005-0405 ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 0406- ● ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9604-0004 ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 0005-0405 ● ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 0406- ● ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9604-0004 ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 0005-0405 ● ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 0406- ● ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9604-0004 ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 0005-0405 ● ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 0406- ● ● ●
62 BOLT; EYE,FUEL FILTER
AUSTRALIA EQUIPMENT(RR3) M14X27 FLANGE 		1-09675-086-0 02 1 9604-0004 ●
73 GASKET; EYE JOINT
AUSTRALIA EQUIPMENT(RR3) ID=14.2 OD=19.2 		1-09630-085-0 04 1 9604-0004 ●

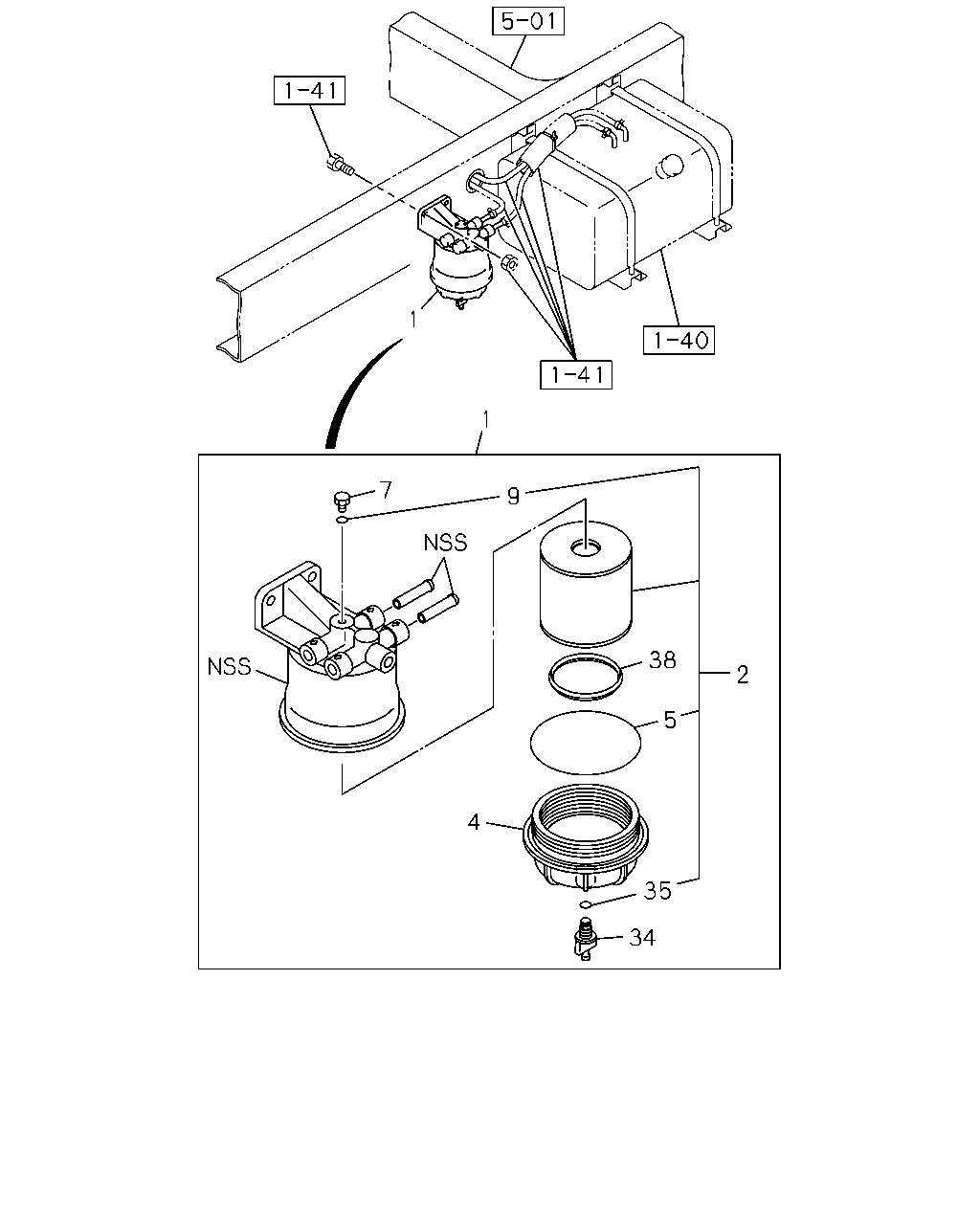

çizim 152667
1 1 7 9 38 2 5 4 35 34
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SEDIMENTER; FUEL 8-97601-458-1 01 1 0406- ●
1 SEDIMENTER; FUEL
AUSTRALIA EQUIPMENT(RR3) 		1-13200-963-1 01 1 9604-0004 ●
1 SEDIMENTER; FUEL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-13200-953-2 01 1 9604-0004 ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9604-0004 ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 0005-0006 ● ● ●
1 SEDIMENTER; FUEL 1-13201-015-1 01 1 0007-0405 ● ● ●
1 SEDIMENTER; FUEL 1-13201-015-1 01 1 0406- ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9604-0004 ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 0005-0405 ● ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 0406- ● ● ●
4 COVER; UPR,SEDIMENTER ASM 1-13212-176-2 01 1 9604-0004 ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9604-0004 ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 0005-0405 ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 0406- ● ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9604-0004 ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 0005-0405 ● ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 0406- ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9604-0004 ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 0005-0405 ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 0406- ● ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9604-0004 ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 0005-0405 ● ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 0406- ● ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9604-0004 ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 0005-0405 ● ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 0406- ● ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9604-0004 ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 0005-0405 ● ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 0406- ● ● ●
