Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#36760) — 676 parça

282 283 279 457 281 275 511 285 468 72 285 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
72	NUT; BRKT AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	04	1	9604-9606	●
72	NUT; BRKT AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	04	1	9607-0004	●
275	HOSE; FLEX,FUEL TANK AUSTRALIA EQUIPMENT(RR3)	1-09364-951-0	02	1	9604-0004	●
279	UNION; FUEL PIPE AUSTRALIA EQUIPMENT(RR3) M16 L=74	9-09233-310-1	02	1	9604-0004	●
281	BRACKET; FLEX HOSE AUSTRALIA EQUIPMENT(RR3)	1-47477-641-0	01	1	9604-0004	●
282	NUT; FLEX HOSE,FUEL TANK AUSTRALIA EQUIPMENT(RR3) M16	9-99111-416-0	02	1	9604-9803	●
282	NUT; FLEX HOSE,FUEL TANK AUSTRALIA EQUIPMENT(RR3) M16	9-99111-416-0	01	1	9804-0004	●
283	WASHER; LK,FLEX HOSE,FUEL TANK AUSTRALIA EQUIPMENT(RR3) ID=16.2	9-09150-516-0	02	1	9604-9803	●
283	WASHER; LK,FLEX HOSE,FUEL TANK AUSTRALIA EQUIPMENT(RR3) ID=16.2	9-09150-516-0	01	1	9804-0004	●
285	BOLT; BRKT AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	04	1	9604-9606	●
285	BOLT; BRKT AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28680-825-0	04	1	9607-0004	●
457	BRACKET; UNION,FUEL PIPE AUSTRALIA EQUIPMENT(RR3)	1-47475-400-2	01	1	9604-0004	●
468	NUT AUSTRALIA EQUIPMENT(RR3) M16	9-99111-416-0	02	1	9604-0004	●
511	WASHER AUSTRALIA EQUIPMENT(RR3) ID=16.2	9-09150-516-0	02	1	9604-0004	●

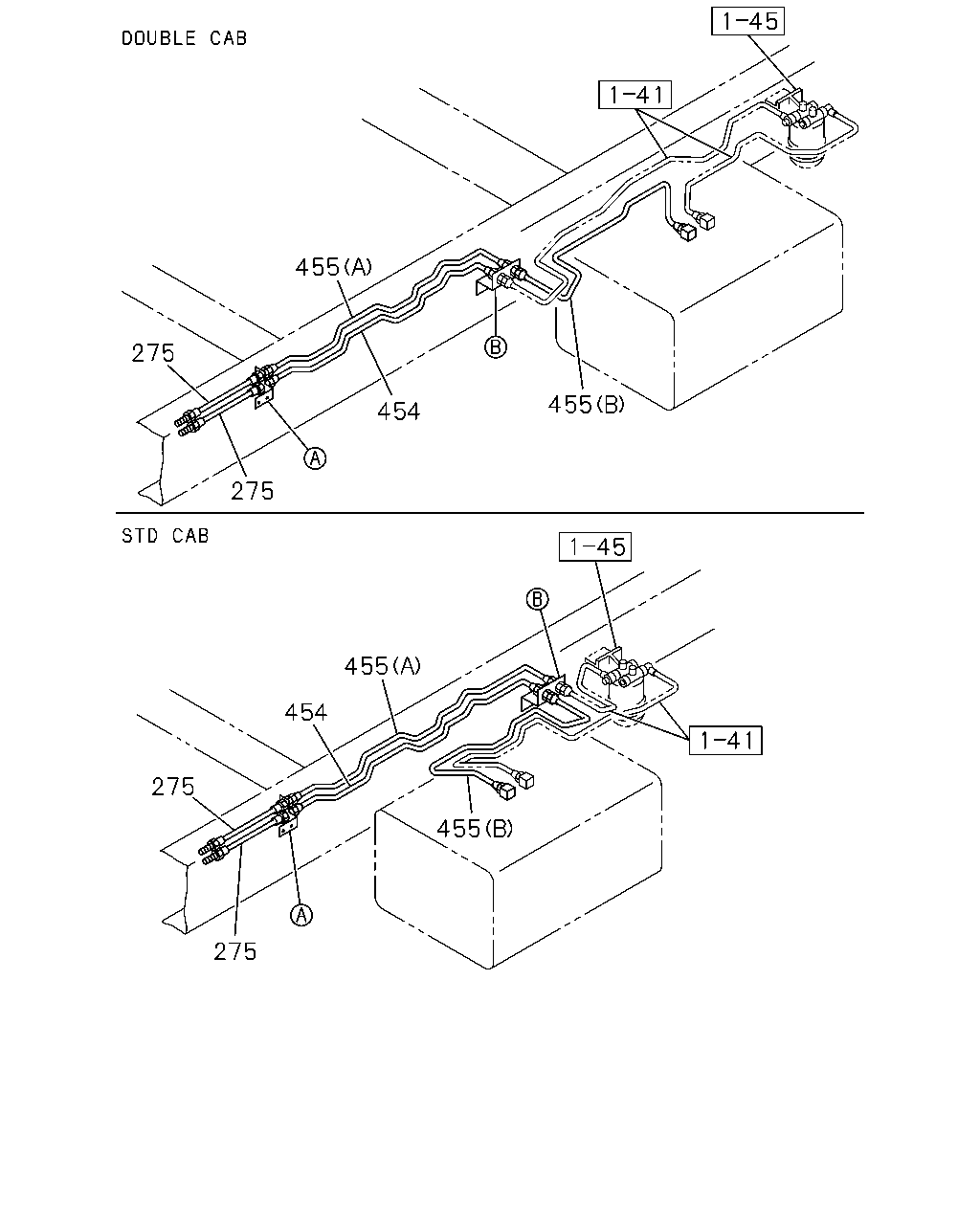

455 275 455 454 275 455 454 275 455 275

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
275	HOSE; FLEX,FUEL TANK AUSTRALIA EQUIPMENT(RR3)	1-09364-951-0	02	1	9604-0004	●
454	PIPE; FUEL,DELIVERY FSS STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3)	1-22511-796-2	01	1	9604-0004	●
454	PIPE; FUEL,DELIVERY FTS ALL(FT****) AUSTRALIA EQUIPMENT(RR3)	1-22511-810-1	01	1	9604-0004	●
454	PIPE; FUEL,DELIVERY FSS DOUBLE CAB(FS*W) AUSTRALIA EQUIPMENT(RR3)	1-22511-797-1	01	1	9604-0004	●	●	●
455	PIPE; FUEL,RETURN FSS STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3) (A)	1-22511-802-2	01	1	9604-0004	●
455	PIPE; FUEL,RETURN FSS STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3) (B)	1-22511-818-1	01	1	9604-0004	●
455	PIPE; FUEL,RETURN FTS ALL(FT****) AUSTRALIA EQUIPMENT(RR3) (A)	1-22511-813-1	01	1	9604-0004	●
455	PIPE; FUEL,RETURN FSS DOUBLE CAB(FS*W) AUSTRALIA EQUIPMENT(RR3) (A)	1-22511-803-1	01	1	9604-0004	●	●	●
455	PIPE; FUEL,RETURN FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB MIDDLE CHASSIS(FT*W) AUSTRALIA EQUIPMENT(RR3) (B)	1-22511-824-1	01	1	9604-0004	●	●	●
455	PIPE; FUEL,RETURN FTS STD CAB MIDDLE CHASSIS(FT**MF) AUSTRALIA EQUIPMENT(RR3) (B)	1-22511-821-1	01	1	9604-0004	●	●	●

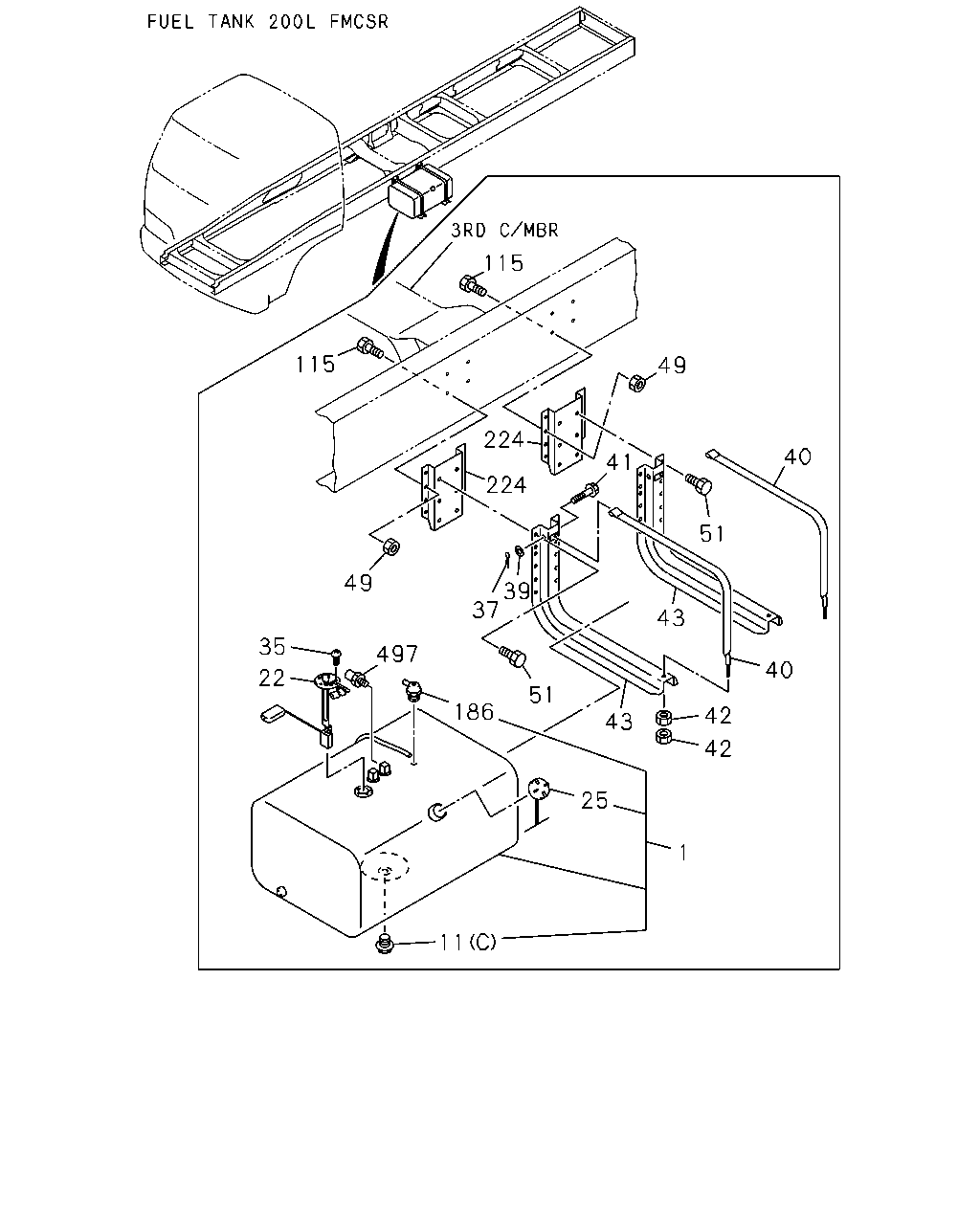

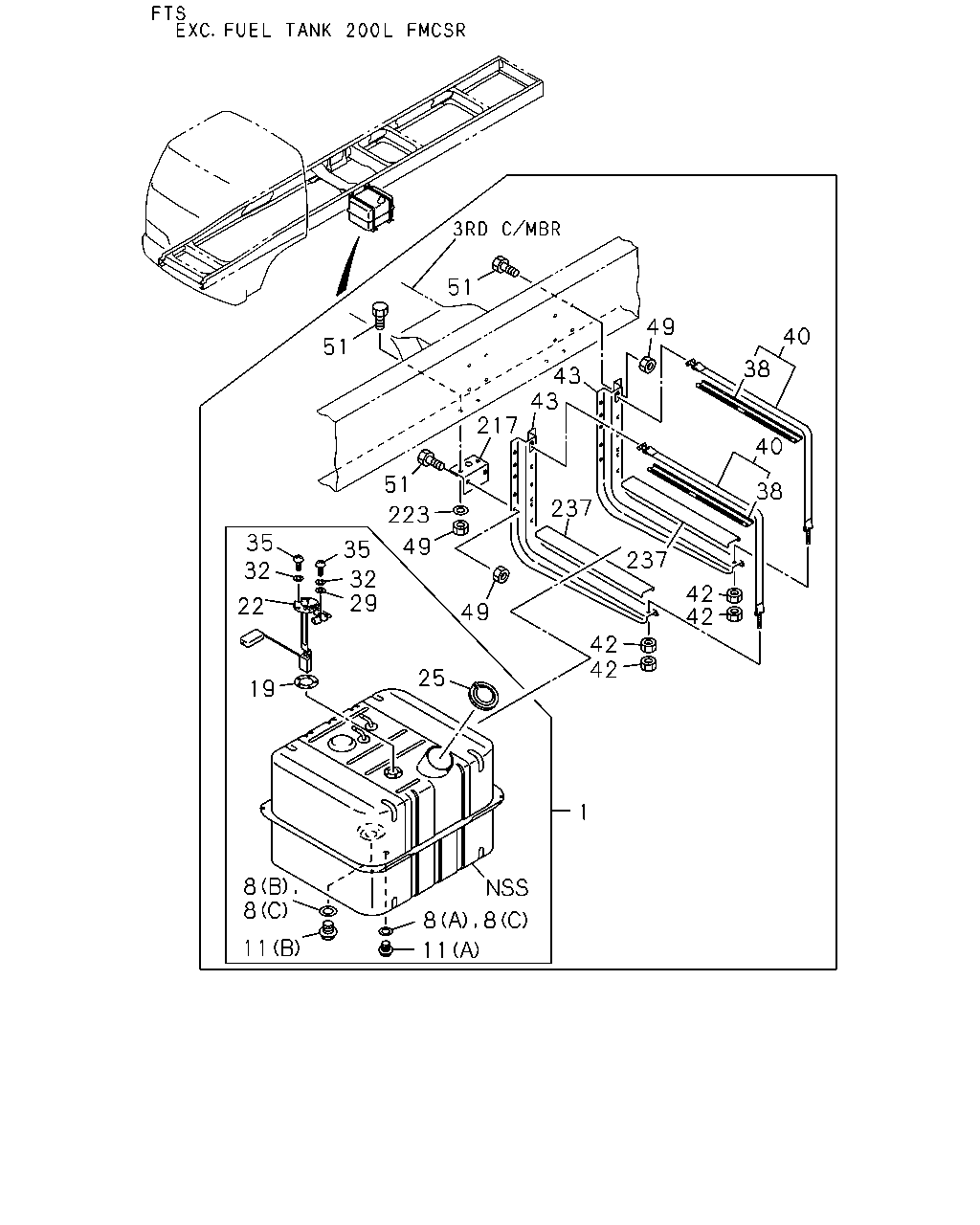

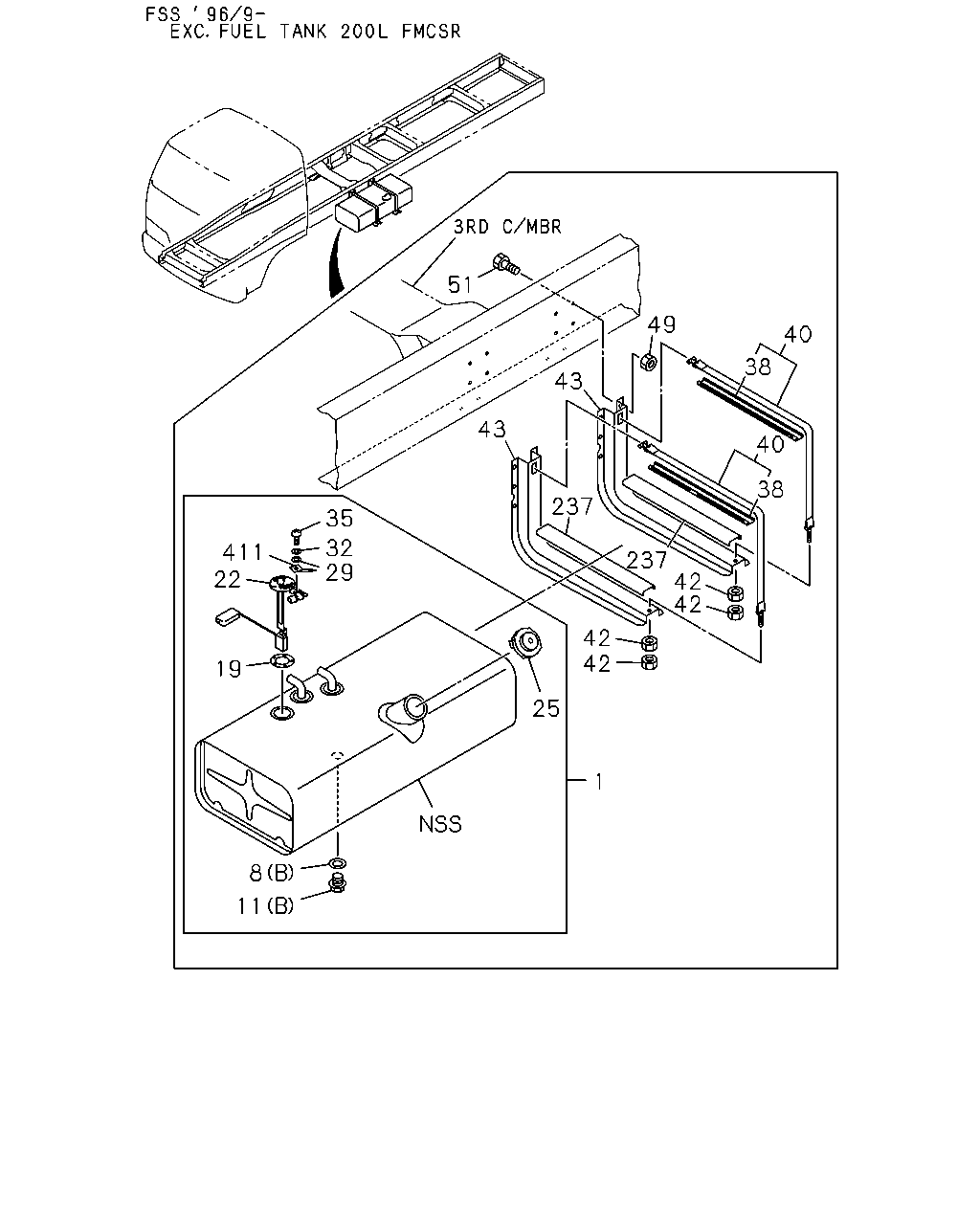

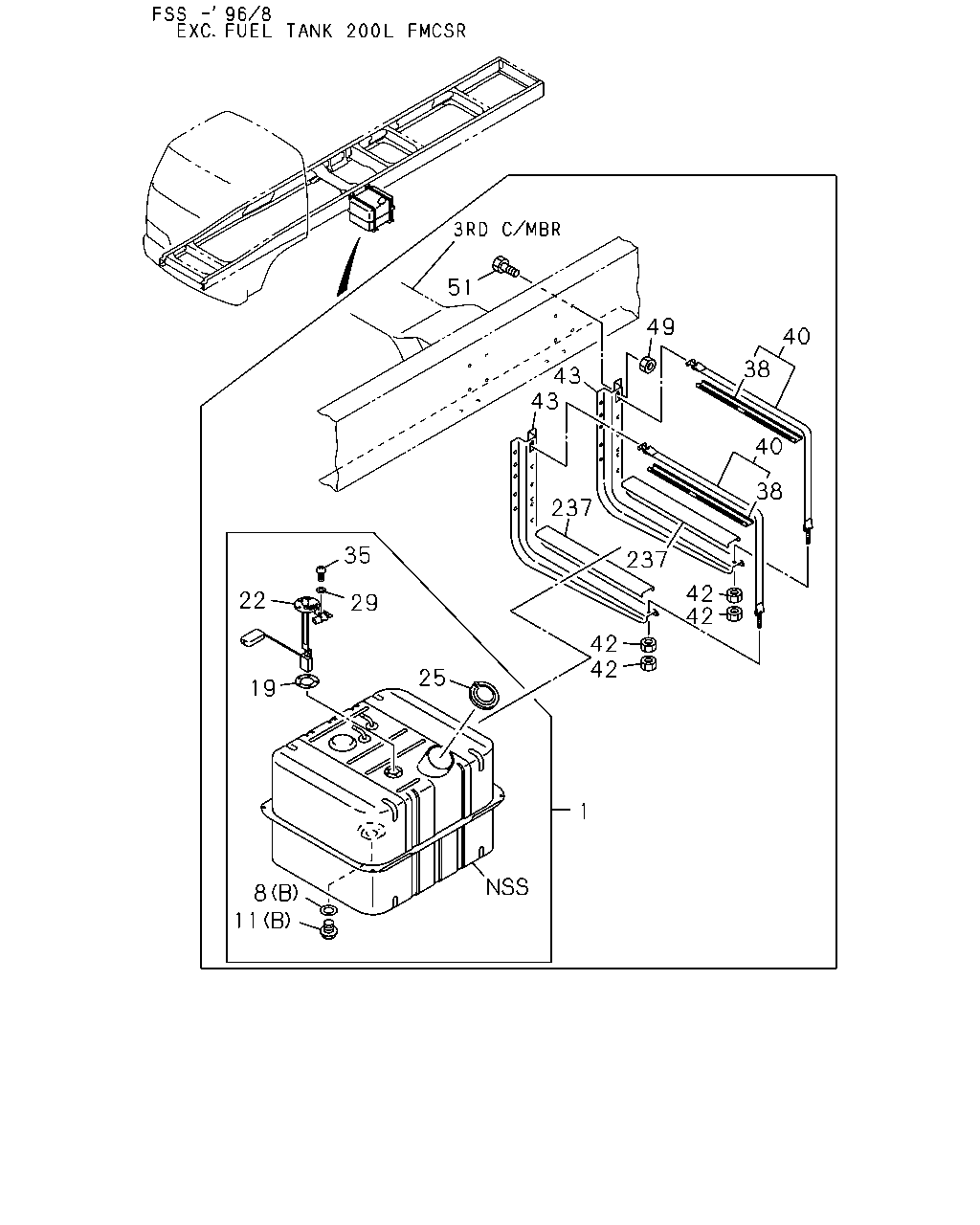

51 49 40 38 43 43 40 38 237 35 32 29 411 22 237 42 42 42 42 19 25 1 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> 864X597X413 200L	1-22400-975-0	01	1	9604-0004	●
1	TANK; FUEL FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> 720X610X353 140L	1-22401-043-0	01	1	9604-9608	●
1	TANK; FUEL 720X610X353 140L	1-22401-043-0	01	1	9604-9608				●
1	TANK; FUEL FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> 1220X533X323 200L	1-22400-995-0	01	1	9609-0004	●
1	TANK; FUEL 1220X533X323 200L	1-22400-995-0	01	1	9609-0004				●
1	TANK; FUEL FSS STD CAB(FS*M) 1220X533X323 200L	1-22400-995-2	01	1	0005-	●	●	●
1	TANK; FUEL 1220X533X323 200L	1-22400-995-2	01	1	0005-				●
1	TANK; FUEL FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> 720X610X496 200L	1-22400-996-0	01	1	9604-0003	●
1	TANK; FUEL FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> 720X610X496 200L	1-22401-120-0	01	1	0004-0004	●
1	TANK; FUEL FTS STD CAB(FT*M) 720X610X496 200L	1-22401-120-1	01	1	0005-0112	●	●	●
1	TANK; FUEL FTS STD CAB(FT*M) 720X610X496 200L	1-22401-192-2	01	1	0201-1505	●	●	●
1	TANK; FUEL FTS STD CAB(FT*M) 720X610X496 200L	8-98299-274-0	01	1	1506-	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 200L FMCSR<PK6> (B) T=2.0	9-09923-030-0	01	1	9604-0004	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9604-0004				●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	0005-0106	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FSS STD CAB(FS*M) (B) T=2.0	9-09923-030-0	01	1	0107-0509	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	0107-0509				●
8	GASKET; DRAIN PLUG,FUEL TANK FSS STD CAB(FS*M) (B) T=2.0	8-98030-375-0	01	1	0510-	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	8-98030-375-0	01	1	0510-				●
8	GASKET; DRAIN PLUG,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> (A) T=1.60	1-22416-001-0	01	1	9604-0004	●
8	GASKET; DRAIN PLUG,FUEL TANK FTS STD CAB(FT*M) (A) T=1.60	1-22416-001-0	01	1	0005-0112	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FTS STD CAB(FT*M) (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0112	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FTS STD CAB(FT*M) (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0201-	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR<PK6> (C)	1-09604-082-0	01	1	9604-0004	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L FMCSR<PK6> (B) M36	1-09604-052-0	01	1	9604-0003	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9604-0003				●
11	PLUG; DRAIN,FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> (B) M36	1-09604-052-0	01	1	0004-0004	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0004-0004				●
11	PLUG; DRAIN,FUEL TANK FSS STD CAB(FS*M) (B) M36	1-09604-052-0	01	1	0005-0005	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0005-0005				●
11	PLUG; DRAIN,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> (A) M18X12	1-09604-081-0	01	1	9604-0004	●
11	PLUG; DRAIN,FUEL TANK FTS STD CAB(FT*M) (A) M18X12	1-09604-081-0	01	1	0005-0112	●	●	●
11	PLUG; DRAIN,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> (B) M36	1-09604-052-0	01	1	0004-0004	●
11	PLUG; DRAIN,FUEL TANK FTS STD CAB(FT*M) (B) M36	1-09604-052-0	01	1	0005-0005	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0006-0106	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FSS STD CAB(FS*M) (B) M36	1-09604-052-0	01	1	0107-	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0107-				●
11	PLUG; DRAIN,FUEL TANK FTS STD CAB(FT*M) (B) M14X14	9-09862-156-0	01	1	0107-0112	●	●	●
11	PLUG; DRAIN,FUEL TANK FTS STD CAB(FT*M) (C) M14X14	9-09862-156-0	02	1	0201-	●	●	●
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0005-	●	●	●	●
19	GASKET; FUEL TANK UNIT FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> ID=42	9-83135-011-0	01	1	9604-0004	●
19	GASKET; FUEL TANK UNIT ID=42	9-83135-011-0	01	1	9604-0004				●
19	GASKET; FUEL TANK UNIT FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6>	9-83135-003-0	01	1	9604-0004	●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-83141-121-0	01	1	9604-0004	●
22	UNIT; FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6>	1-83141-123-0	01	1	9604-9608	●
22	UNIT; FUEL TANK	1-83141-123-0	01	1	9604-9608				●
22	UNIT; FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6>	1-83141-084-1	01	1	9609-0004	●
22	UNIT; FUEL TANK	1-83141-084-1	01	1	9609-0004				●
22	UNIT; FUEL TANK FSS STD CAB(FS*M)	1-83141-084-1	01	1	0005-	●	●	●
22	UNIT; FUEL TANK	1-83141-084-1	01	1	0005-				●
22	UNIT; FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6>	1-83141-124-0	01	1	9604-0004	●
22	UNIT; FUEL TANK FTS STD CAB(FT*M)	1-83141-124-0	01	1	0005-1505	●	●	●
22	UNIT; FUEL TANK FTS STD CAB(FT*M)	8-98296-671-0	01	1	1506-	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22440-050-0	01	1	9604-0004	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L FMCSR<PK6>	1-22440-033-2	01	1	9604-9608	●
25	CAP; FILLER,FUEL TANK	1-22440-033-2	01	1	9604-9608				●
25	CAP; FILLER,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6>	1-22440-033-2	01	1	9609-0003	●
25	CAP; FILLER,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6>	1-22440-067-0	01	1	0004-0004	●
25	CAP; FILLER,FUEL TANK FTS STD CAB(FT*M)	1-22440-067-0	01	1	0005-0109	●	●	●
25	CAP; FILLER,FUEL TANK FTS STD CAB(FT*M)	1-22440-069-0	01	1	0110-0112	●	●	●
25	CAP; FILLER,FUEL TANK FTS STD CAB(FT*M)	1-22440-067-0	01	1	0201-0309	●	●	●
25	CAP; FILLER,FUEL TANK FTS STD CAB(FT*M)	1-22440-070-0	01	1	0310-0404	●	●	●
25	CAP; FILLER,FUEL TANK FTS STD CAB(FT*M)	1-22440-046-1	01	1	0405-	●	●	●
25	CAP; FILLER,FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6>	1-22440-028-0	01	1	9609-0004	●
25	CAP; FILLER,FUEL TANK	1-22440-028-0	01	1	9609-0004				●
25	CAP; FILLER,FUEL TANK FSS STD CAB(FS*M)	1-22440-028-0	01	1	0005-	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-028-0	01	1	0005-				●
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 200L FMCSR<PK6> ID=5.3	9-09160-505-0	01	1	9604-0004	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9604-0004				●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	0005-0605	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	0-91610-505-0	01	1	0606-	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> ID=5.1	9-09150-505-0	01	1	9609-0004	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	01	1	9609-0004				●
32	WASHER; LK,FUEL TANK UNIT FSS STD CAB(FS*M) ID=5.1	9-09150-505-0	01	1	0005-0501	●	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	01	1	0005-0501				●
32	WASHER; LK,FUEL TANK UNIT FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> ID=5.1	9-09150-505-0	05	1	9604-0004	●
32	WASHER; LK,FUEL TANK UNIT FTS STD CAB(FT*M) ID=5.1	9-09150-505-0	05	1	0005-0603	●	●	●
32	WASHER; LK,FUEL TANK UNIT FTS STD CAB(FT*M) ID=5.1	0-91510-505-0	05	1	0604-	●	●	●
35	SCREW; FUEL TANK UNIT FSS STD CAB(FS*M) M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0604	●	●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0604				●
35	SCREW; FUEL TANK UNIT FSS STD CAB(FS*M) M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-	●	●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-				●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6>	1-09187-007-0	05	1	9604-0004	●
35	SCREW; FUEL TANK UNIT FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> M5X10 W/LK WASHER	9-03910-510-0	05	1	9604-9608	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	9604-9608				●
35	SCREW; FUEL TANK UNIT FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> M5X10	9-93497-510-0	05	1	9604-9608	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L FMCSR<PK6> M5X10	9-93497-510-0	05	1	9609-0004	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9609-0004				●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	0005-0501	●	●	●	●
35	SCREW; FUEL TANK UNIT FTS STD CAB(FT*M) M5X10	9-93497-510-0	05	1	0502-0604	●	●	●
35	SCREW; FUEL TANK UNIT FTS STD CAB(FT*M) M5X10	0-34218-510-0	05	1	0605-	●	●	●
38	INSULATION; SUPPORT BELT FSS STD CAB(FS*M) L=540	1-22553-014-2	02	1	0802-	●	●	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	0802-				●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L FMCSR<PK6> L=650	1-22553-022-1	02	1	9604-9608	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	9604-9608				●
38	INSULATION; SUPPORT BELT FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> L=650	1-22553-022-1	02	1	9609-0004	●
38	INSULATION; SUPPORT BELT FTS STD CAB(FT*M) L=650	1-22553-022-1	02	1	0005-	●	●	●
38	INSULATION; SUPPORT BELT FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> L=540	1-22553-014-2	02	1	9609-0004	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	9609-0004				●
38	INSULATION; SUPPORT BELT FSS STD CAB(FS*M) L=540	1-22553-014-2	02	1	0005-0112	●	●	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	0005-0112				●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6> L=1035	1-22550-221-0	02	1	9604-0004	●
40	BELT; SUPPORT,FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> L=905	1-22550-183-2	02	1	9604-9608	●
40	BELT; SUPPORT,FUEL TANK L=905	1-22550-183-2	02	1	9604-9608				●
40	BELT; SUPPORT,FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> L=775	1-22550-211-1	02	1	9609-0004	●
40	BELT; SUPPORT,FUEL TANK L=775	1-22550-211-1	02	1	9609-0004				●
40	BELT; SUPPORT,FUEL TANK FSS STD CAB(FS*M) L=775	1-22550-211-2	02	1	0005-0112	●	●	●
40	BELT; SUPPORT,FUEL TANK L=775	1-22550-211-2	02	1	0005-0112				●
40	BELT; SUPPORT,FUEL TANK FSS STD CAB(FS*M) L=790	1-22550-186-2	02	1	0201-	●	●	●
40	BELT; SUPPORT,FUEL TANK L=790	1-22550-186-2	02	1	0201-				●
40	BELT; SUPPORT,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> L=1030	1-22550-204-1	02	1	9604-0004	●
40	BELT; SUPPORT,FUEL TANK FTS STD CAB(FT*M) L=1030	1-22550-204-2	02	1	0005-	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>	1-09487-027-1	04	1	9604-0004	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L FMCSR<PK6> M10	9-09110-510-0	04	1	9604-0004	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9604-0004				●
42	NUT; SUPPORT BELT FSS STD CAB(FS*M) FTS STD CAB(FT*M) M10	9-09110-510-0	04	1	0005-0405	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0005-0405				●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0406-0512	●		●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-	●		●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-53461-355-2	02	1	9604-0004	●
43	BRACKET; FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6>	1-53461-401-1	02	1	9604-9608	●
43	BRACKET; FUEL TANK	1-53461-401-1	02	1	9604-9608				●
43	BRACKET; FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6>	1-53461-206-1	02	1	9609-0004	●
43	BRACKET; FUEL TANK	1-53461-206-1	02	1	9609-0004				●
43	BRACKET; FUEL TANK FSS STD CAB(FS*M)	1-53461-206-1	02	1	0005-	●	●	●
43	BRACKET; FUEL TANK	1-53461-206-1	02	1	0005-				●
43	BRACKET; FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6>	1-53461-279-4	02	1	9604-0004	●
43	BRACKET; FUEL TANK FTS STD CAB(FT*M)	1-53461-279-4	02	1	0005-	●	●	●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	12	1	9604-9608	●
49	NUT; BRKT FSS ALL(FS****) M12	9-99110-512-0	12	1	9609-9702	●	●	●
49	NUT; BRKT FTS MIDDLE CHASSIS(FT***F) FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	12	1	9609-9702	●	●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9609-9702				●
49	NUT; BRKT FSS ALL(FS****) M12 FLANGE	0-91150-212-0	12	1	9703-0004	●	●	●
49	NUT; BRKT FTS MIDDLE CHASSIS(FT***F) FUEL TANK 200L FMCSR<PK6> M12 FLANGE	0-91150-212-0	12	1	9703-0004	●	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	9703-0004				●
49	NUT; BRKT FTS STD CAB(FT*M) M12 FLANGE	0-91150-212-0	16	1	0005-0602	●	●	●
49	NUT; BRKT FTS STD CAB(FT*M) M12 FLANGE	0-91180-212-0	16	1	0603-	●	●	●
49	NUT; BRKT FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	08	1	9604-9608	●
49	NUT; BRKT M12	9-99110-512-0	08	1	9604-9608				●
49	NUT; BRKT M12	9-99110-512-0	16	1	9604-9702	●			●
49	NUT; BRKT FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	16	1	9604-9702	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	16	1	9703-0004	●			●
49	NUT; BRKT FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> M12 FLANGE	0-91150-212-0	16	1	9703-0004	●
49	NUT; BRKT FSS STD CAB(FS*M) M12 FLANGE	0-91150-212-0	12	1	0005-0602	●	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	0005-0602				●
49	NUT; BRKT FSS STD CAB(FS*M) M12 FLANGE	0-91180-212-0	12	1	0603-	●	●	●
49	NUT; BRKT M12 FLANGE	0-91180-212-0	12	1	0603-				●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28081-235-0	12	1	9604-9606	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28681-235-0	12	1	9607-9608	●
51	BOLT; BRKT TO FRAME FSS ALL(FS****) M12X35 FLANGE	0-28681-235-0	12	1	9609-0004	●	●	●
51	BOLT; BRKT TO FRAME FTS MIDDLE CHASSIS(FT***F) FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28681-235-0	12	1	9609-0004	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9609-0004				●
51	BOLT; BRKT TO FRAME FSS STD CAB(FS*M) M12X35 FLANGE	0-28681-235-0	12	1	0005-0512	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	0005-0512				●
51	BOLT; BRKT TO FRAME FSS STD CAB(FS*M) M12X35 FLANGE	0-28651-235-0	12	1	0601-	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	12	1	0601-				●
51	BOLT; BRKT TO FRAME FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28081-235-0	08	1	9604-9606	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28081-235-0	08	1	9604-9606				●
51	BOLT; BRKT TO FRAME FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28681-235-0	08	1	9607-9608	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	08	1	9607-9608				●
51	BOLT; BRKT TO FRAME FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28081-235-0	16	1	9604-9606	●
51	BOLT; BRKT TO FRAME FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28681-235-0	16	1	9607-0004	●
51	BOLT; BRKT TO FRAME FTS STD CAB(FT*M) M12X35 FLANGE	0-28681-235-0	16	1	0005-0512	●	●	●
51	BOLT; BRKT TO FRAME FTS STD CAB(FT*M) M12X35 FLANGE	0-28651-235-0	16	1	0601-	●	●	●
237	GASKET; BRKT TO FUEL TANK EXC. FUEL TANK 200L FMCSR<PK6> L=580	1-22553-003-0	02	1	9604-9608	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9604-9608				●
237	GASKET; BRKT TO FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> L=580	1-22553-003-0	02	1	9609-0004	●
237	GASKET; BRKT TO FUEL TANK FTS STD CAB(FT*M) L=580	1-22553-003-0	02	1	0005-	●	●	●
237	GASKET; BRKT TO FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> L=480	1-22553-002-0	02	1	9609-0004	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	9609-0004				●
237	GASKET; BRKT TO FUEL TANK FSS STD CAB(FS*M) L=480	1-22553-002-0	02	1	0005-	●	●	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	0005-				●
411	CLIP; FUEL TANK UNIT HARNESS FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> L=50	1-09700-416-0	01	1	9609-0004	●
411	CLIP; FUEL TANK UNIT HARNESS L=50	1-09700-416-0	01	1	9609-0004				●
411	CLIP; FUEL TANK UNIT HARNESS FSS STD CAB(FS*M) L=50	1-09700-416-0	01	1	0005-	●	●	●
411	CLIP; FUEL TANK UNIT HARNESS L=50	1-09700-416-0	01	1	0005-				●

51 43 43 49 40 51 38 217 40 51 38 237 223 35 32 49 35 237 32 29 42 42 22 49 42 42 25 19 1 8 8 8 8 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> 864X597X413 200L	1-22400-975-0	01	1	9604-0004	●
1	TANK; FUEL FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> 720X610X353 140L	1-22401-043-0	01	1	9604-9608	●
1	TANK; FUEL 720X610X353 140L	1-22401-043-0	01	1	9604-9608				●
1	TANK; FUEL FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> 1220X533X323 200L	1-22400-995-0	01	1	9609-0004	●
1	TANK; FUEL 1220X533X323 200L	1-22400-995-0	01	1	9609-0004				●
1	TANK; FUEL FSS STD CAB(FS*M) 1220X533X323 200L	1-22400-995-2	01	1	0005-	●	●	●
1	TANK; FUEL 1220X533X323 200L	1-22400-995-2	01	1	0005-				●
1	TANK; FUEL FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> 720X610X496 200L	1-22400-996-0	01	1	9604-0003	●
1	TANK; FUEL FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> 720X610X496 200L	1-22401-120-0	01	1	0004-0004	●
1	TANK; FUEL FTS STD CAB(FT*M) 720X610X496 200L	1-22401-120-1	01	1	0005-0112	●	●	●
1	TANK; FUEL FTS STD CAB(FT*M) 720X610X496 200L	1-22401-192-2	01	1	0201-1505	●	●	●
1	TANK; FUEL FTS STD CAB(FT*M) 720X610X496 200L	8-98299-274-0	01	1	1506-	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 200L FMCSR<PK6> (B) T=2.0	9-09923-030-0	01	1	9604-0004	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9604-0004				●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	0005-0106	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FSS STD CAB(FS*M) (B) T=2.0	9-09923-030-0	01	1	0107-0509	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	0107-0509				●
8	GASKET; DRAIN PLUG,FUEL TANK FSS STD CAB(FS*M) (B) T=2.0	8-98030-375-0	01	1	0510-	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	8-98030-375-0	01	1	0510-				●
8	GASKET; DRAIN PLUG,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> (A) T=1.60	1-22416-001-0	01	1	9604-0004	●
8	GASKET; DRAIN PLUG,FUEL TANK FTS STD CAB(FT*M) (A) T=1.60	1-22416-001-0	01	1	0005-0112	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FTS STD CAB(FT*M) (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0112	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FTS STD CAB(FT*M) (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0201-	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR<PK6> (C)	1-09604-082-0	01	1	9604-0004	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L FMCSR<PK6> (B) M36	1-09604-052-0	01	1	9604-0003	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9604-0003				●
11	PLUG; DRAIN,FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> (B) M36	1-09604-052-0	01	1	0004-0004	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0004-0004				●
11	PLUG; DRAIN,FUEL TANK FSS STD CAB(FS*M) (B) M36	1-09604-052-0	01	1	0005-0005	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0005-0005				●
11	PLUG; DRAIN,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> (A) M18X12	1-09604-081-0	01	1	9604-0004	●
11	PLUG; DRAIN,FUEL TANK FTS STD CAB(FT*M) (A) M18X12	1-09604-081-0	01	1	0005-0112	●	●	●
11	PLUG; DRAIN,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> (B) M36	1-09604-052-0	01	1	0004-0004	●
11	PLUG; DRAIN,FUEL TANK FTS STD CAB(FT*M) (B) M36	1-09604-052-0	01	1	0005-0005	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0006-0106	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FSS STD CAB(FS*M) (B) M36	1-09604-052-0	01	1	0107-	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0107-				●
11	PLUG; DRAIN,FUEL TANK FTS STD CAB(FT*M) (B) M14X14	9-09862-156-0	01	1	0107-0112	●	●	●
11	PLUG; DRAIN,FUEL TANK FTS STD CAB(FT*M) (C) M14X14	9-09862-156-0	02	1	0201-	●	●	●
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0005-	●	●	●	●
19	GASKET; FUEL TANK UNIT FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> ID=42	9-83135-011-0	01	1	9604-0004	●
19	GASKET; FUEL TANK UNIT ID=42	9-83135-011-0	01	1	9604-0004				●
19	GASKET; FUEL TANK UNIT FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6>	9-83135-003-0	01	1	9604-0004	●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-83141-121-0	01	1	9604-0004	●
22	UNIT; FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6>	1-83141-123-0	01	1	9604-9608	●
22	UNIT; FUEL TANK	1-83141-123-0	01	1	9604-9608				●
22	UNIT; FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6>	1-83141-084-1	01	1	9609-0004	●
22	UNIT; FUEL TANK	1-83141-084-1	01	1	9609-0004				●
22	UNIT; FUEL TANK FSS STD CAB(FS*M)	1-83141-084-1	01	1	0005-	●	●	●
22	UNIT; FUEL TANK	1-83141-084-1	01	1	0005-				●
22	UNIT; FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6>	1-83141-124-0	01	1	9604-0004	●
22	UNIT; FUEL TANK FTS STD CAB(FT*M)	1-83141-124-0	01	1	0005-1505	●	●	●
22	UNIT; FUEL TANK FTS STD CAB(FT*M)	8-98296-671-0	01	1	1506-	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22440-050-0	01	1	9604-0004	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L FMCSR<PK6>	1-22440-033-2	01	1	9604-9608	●
25	CAP; FILLER,FUEL TANK	1-22440-033-2	01	1	9604-9608				●
25	CAP; FILLER,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6>	1-22440-033-2	01	1	9609-0003	●
25	CAP; FILLER,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6>	1-22440-067-0	01	1	0004-0004	●
25	CAP; FILLER,FUEL TANK FTS STD CAB(FT*M)	1-22440-067-0	01	1	0005-0109	●	●	●
25	CAP; FILLER,FUEL TANK FTS STD CAB(FT*M)	1-22440-069-0	01	1	0110-0112	●	●	●
25	CAP; FILLER,FUEL TANK FTS STD CAB(FT*M)	1-22440-067-0	01	1	0201-0309	●	●	●
25	CAP; FILLER,FUEL TANK FTS STD CAB(FT*M)	1-22440-070-0	01	1	0310-0404	●	●	●
25	CAP; FILLER,FUEL TANK FTS STD CAB(FT*M)	1-22440-046-1	01	1	0405-	●	●	●
25	CAP; FILLER,FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6>	1-22440-028-0	01	1	9609-0004	●
25	CAP; FILLER,FUEL TANK	1-22440-028-0	01	1	9609-0004				●
25	CAP; FILLER,FUEL TANK FSS STD CAB(FS*M)	1-22440-028-0	01	1	0005-	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-028-0	01	1	0005-				●
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 200L FMCSR<PK6> ID=5.3	9-09160-505-0	01	1	9604-0004	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9604-0004				●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	0005-0605	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	0-91610-505-0	01	1	0606-	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> ID=5.1	9-09150-505-0	01	1	9609-0004	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	01	1	9609-0004				●
32	WASHER; LK,FUEL TANK UNIT FSS STD CAB(FS*M) ID=5.1	9-09150-505-0	01	1	0005-0501	●	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	01	1	0005-0501				●
32	WASHER; LK,FUEL TANK UNIT FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> ID=5.1	9-09150-505-0	05	1	9604-0004	●
32	WASHER; LK,FUEL TANK UNIT FTS STD CAB(FT*M) ID=5.1	9-09150-505-0	05	1	0005-0603	●	●	●
32	WASHER; LK,FUEL TANK UNIT FTS STD CAB(FT*M) ID=5.1	0-91510-505-0	05	1	0604-	●	●	●
35	SCREW; FUEL TANK UNIT FSS STD CAB(FS*M) M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0604	●	●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0604				●
35	SCREW; FUEL TANK UNIT FSS STD CAB(FS*M) M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-	●	●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-				●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6>	1-09187-007-0	05	1	9604-0004	●
35	SCREW; FUEL TANK UNIT FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> M5X10 W/LK WASHER	9-03910-510-0	05	1	9604-9608	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	9604-9608				●
35	SCREW; FUEL TANK UNIT FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> M5X10	9-93497-510-0	05	1	9604-9608	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L FMCSR<PK6> M5X10	9-93497-510-0	05	1	9609-0004	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9609-0004				●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	0005-0501	●	●	●	●
35	SCREW; FUEL TANK UNIT FTS STD CAB(FT*M) M5X10	9-93497-510-0	05	1	0502-0604	●	●	●
35	SCREW; FUEL TANK UNIT FTS STD CAB(FT*M) M5X10	0-34218-510-0	05	1	0605-	●	●	●
38	INSULATION; SUPPORT BELT FSS STD CAB(FS*M) L=540	1-22553-014-2	02	1	0802-	●	●	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	0802-				●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L FMCSR<PK6> L=650	1-22553-022-1	02	1	9604-9608	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	9604-9608				●
38	INSULATION; SUPPORT BELT FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> L=650	1-22553-022-1	02	1	9609-0004	●
38	INSULATION; SUPPORT BELT FTS STD CAB(FT*M) L=650	1-22553-022-1	02	1	0005-	●	●	●
38	INSULATION; SUPPORT BELT FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> L=540	1-22553-014-2	02	1	9609-0004	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	9609-0004				●
38	INSULATION; SUPPORT BELT FSS STD CAB(FS*M) L=540	1-22553-014-2	02	1	0005-0112	●	●	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	0005-0112				●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6> L=1035	1-22550-221-0	02	1	9604-0004	●
40	BELT; SUPPORT,FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> L=905	1-22550-183-2	02	1	9604-9608	●
40	BELT; SUPPORT,FUEL TANK L=905	1-22550-183-2	02	1	9604-9608				●
40	BELT; SUPPORT,FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> L=775	1-22550-211-1	02	1	9609-0004	●
40	BELT; SUPPORT,FUEL TANK L=775	1-22550-211-1	02	1	9609-0004				●
40	BELT; SUPPORT,FUEL TANK FSS STD CAB(FS*M) L=775	1-22550-211-2	02	1	0005-0112	●	●	●
40	BELT; SUPPORT,FUEL TANK L=775	1-22550-211-2	02	1	0005-0112				●
40	BELT; SUPPORT,FUEL TANK FSS STD CAB(FS*M) L=790	1-22550-186-2	02	1	0201-	●	●	●
40	BELT; SUPPORT,FUEL TANK L=790	1-22550-186-2	02	1	0201-				●
40	BELT; SUPPORT,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> L=1030	1-22550-204-1	02	1	9604-0004	●
40	BELT; SUPPORT,FUEL TANK FTS STD CAB(FT*M) L=1030	1-22550-204-2	02	1	0005-	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>	1-09487-027-1	04	1	9604-0004	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L FMCSR<PK6> M10	9-09110-510-0	04	1	9604-0004	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9604-0004				●
42	NUT; SUPPORT BELT FSS STD CAB(FS*M) FTS STD CAB(FT*M) M10	9-09110-510-0	04	1	0005-0405	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0005-0405				●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0406-0512	●		●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-	●		●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-53461-355-2	02	1	9604-0004	●
43	BRACKET; FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6>	1-53461-401-1	02	1	9604-9608	●
43	BRACKET; FUEL TANK	1-53461-401-1	02	1	9604-9608				●
43	BRACKET; FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6>	1-53461-206-1	02	1	9609-0004	●
43	BRACKET; FUEL TANK	1-53461-206-1	02	1	9609-0004				●
43	BRACKET; FUEL TANK FSS STD CAB(FS*M)	1-53461-206-1	02	1	0005-	●	●	●
43	BRACKET; FUEL TANK	1-53461-206-1	02	1	0005-				●
43	BRACKET; FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6>	1-53461-279-4	02	1	9604-0004	●
43	BRACKET; FUEL TANK FTS STD CAB(FT*M)	1-53461-279-4	02	1	0005-	●	●	●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	12	1	9604-9608	●
49	NUT; BRKT FSS ALL(FS****) M12	9-99110-512-0	12	1	9609-9702	●	●	●
49	NUT; BRKT FTS MIDDLE CHASSIS(FT***F) FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	12	1	9609-9702	●	●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9609-9702				●
49	NUT; BRKT FSS ALL(FS****) M12 FLANGE	0-91150-212-0	12	1	9703-0004	●	●	●
49	NUT; BRKT FTS MIDDLE CHASSIS(FT***F) FUEL TANK 200L FMCSR<PK6> M12 FLANGE	0-91150-212-0	12	1	9703-0004	●	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	9703-0004				●
49	NUT; BRKT FTS STD CAB(FT*M) M12 FLANGE	0-91150-212-0	16	1	0005-0602	●	●	●
49	NUT; BRKT FTS STD CAB(FT*M) M12 FLANGE	0-91180-212-0	16	1	0603-	●	●	●
49	NUT; BRKT FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	08	1	9604-9608	●
49	NUT; BRKT M12	9-99110-512-0	08	1	9604-9608				●
49	NUT; BRKT M12	9-99110-512-0	16	1	9604-9702	●			●
49	NUT; BRKT FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	16	1	9604-9702	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	16	1	9703-0004	●			●
49	NUT; BRKT FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> M12 FLANGE	0-91150-212-0	16	1	9703-0004	●
49	NUT; BRKT FSS STD CAB(FS*M) M12 FLANGE	0-91150-212-0	12	1	0005-0602	●	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	0005-0602				●
49	NUT; BRKT FSS STD CAB(FS*M) M12 FLANGE	0-91180-212-0	12	1	0603-	●	●	●
49	NUT; BRKT M12 FLANGE	0-91180-212-0	12	1	0603-				●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28081-235-0	12	1	9604-9606	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28681-235-0	12	1	9607-9608	●
51	BOLT; BRKT TO FRAME FSS ALL(FS****) M12X35 FLANGE	0-28681-235-0	12	1	9609-0004	●	●	●
51	BOLT; BRKT TO FRAME FTS MIDDLE CHASSIS(FT***F) FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28681-235-0	12	1	9609-0004	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9609-0004				●
51	BOLT; BRKT TO FRAME FSS STD CAB(FS*M) M12X35 FLANGE	0-28681-235-0	12	1	0005-0512	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	0005-0512				●
51	BOLT; BRKT TO FRAME FSS STD CAB(FS*M) M12X35 FLANGE	0-28651-235-0	12	1	0601-	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	12	1	0601-				●
51	BOLT; BRKT TO FRAME FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28081-235-0	08	1	9604-9606	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28081-235-0	08	1	9604-9606				●
51	BOLT; BRKT TO FRAME FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28681-235-0	08	1	9607-9608	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	08	1	9607-9608				●
51	BOLT; BRKT TO FRAME FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28081-235-0	16	1	9604-9606	●
51	BOLT; BRKT TO FRAME FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28681-235-0	16	1	9607-0004	●
51	BOLT; BRKT TO FRAME FTS STD CAB(FT*M) M12X35 FLANGE	0-28681-235-0	16	1	0005-0512	●	●	●
51	BOLT; BRKT TO FRAME FTS STD CAB(FT*M) M12X35 FLANGE	0-28651-235-0	16	1	0601-	●	●	●
217	BRACKET; FUEL TANK,LOW FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6>	1-53461-283-2	02	1	9604-0004	●
217	BRACKET; FUEL TANK,LOW FTS STD CAB(FT*M)	1-53461-283-2	02	1	0005-	●	●	●
223	WASHER; PL,LWR BRKT FIX FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> ID=12.5 OD=26	9-09160-612-0	04	1	9604-9702	●
237	GASKET; BRKT TO FUEL TANK EXC. FUEL TANK 200L FMCSR<PK6> L=580	1-22553-003-0	02	1	9604-9608	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9604-9608				●
237	GASKET; BRKT TO FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> L=580	1-22553-003-0	02	1	9609-0004	●
237	GASKET; BRKT TO FUEL TANK FTS STD CAB(FT*M) L=580	1-22553-003-0	02	1	0005-	●	●	●
237	GASKET; BRKT TO FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> L=480	1-22553-002-0	02	1	9609-0004	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	9609-0004				●
237	GASKET; BRKT TO FUEL TANK FSS STD CAB(FS*M) L=480	1-22553-002-0	02	1	0005-	●	●	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	0005-				●

51 43 43 49 40 38 40 38 237 35 237 42 42 22 29 42 42 25 19 1 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> 864X597X413 200L	1-22400-975-0	01	1	9604-0004	●
1	TANK; FUEL FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> 720X610X353 140L	1-22401-043-0	01	1	9604-9608	●
1	TANK; FUEL 720X610X353 140L	1-22401-043-0	01	1	9604-9608				●
1	TANK; FUEL FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> 1220X533X323 200L	1-22400-995-0	01	1	9609-0004	●
1	TANK; FUEL 1220X533X323 200L	1-22400-995-0	01	1	9609-0004				●
1	TANK; FUEL FSS STD CAB(FS*M) 1220X533X323 200L	1-22400-995-2	01	1	0005-	●	●	●
1	TANK; FUEL 1220X533X323 200L	1-22400-995-2	01	1	0005-				●
1	TANK; FUEL FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> 720X610X496 200L	1-22400-996-0	01	1	9604-0003	●
1	TANK; FUEL FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> 720X610X496 200L	1-22401-120-0	01	1	0004-0004	●
1	TANK; FUEL FTS STD CAB(FT*M) 720X610X496 200L	1-22401-120-1	01	1	0005-0112	●	●	●
1	TANK; FUEL FTS STD CAB(FT*M) 720X610X496 200L	1-22401-192-2	01	1	0201-1505	●	●	●
1	TANK; FUEL FTS STD CAB(FT*M) 720X610X496 200L	8-98299-274-0	01	1	1506-	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 200L FMCSR<PK6> (B) T=2.0	9-09923-030-0	01	1	9604-0004	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9604-0004				●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	0005-0106	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FSS STD CAB(FS*M) (B) T=2.0	9-09923-030-0	01	1	0107-0509	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	0107-0509				●
8	GASKET; DRAIN PLUG,FUEL TANK FSS STD CAB(FS*M) (B) T=2.0	8-98030-375-0	01	1	0510-	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	8-98030-375-0	01	1	0510-				●
8	GASKET; DRAIN PLUG,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> (A) T=1.60	1-22416-001-0	01	1	9604-0004	●
8	GASKET; DRAIN PLUG,FUEL TANK FTS STD CAB(FT*M) (A) T=1.60	1-22416-001-0	01	1	0005-0112	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FTS STD CAB(FT*M) (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0112	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FTS STD CAB(FT*M) (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0201-	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR<PK6> (C)	1-09604-082-0	01	1	9604-0004	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L FMCSR<PK6> (B) M36	1-09604-052-0	01	1	9604-0003	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9604-0003				●
11	PLUG; DRAIN,FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> (B) M36	1-09604-052-0	01	1	0004-0004	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0004-0004				●
11	PLUG; DRAIN,FUEL TANK FSS STD CAB(FS*M) (B) M36	1-09604-052-0	01	1	0005-0005	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0005-0005				●
11	PLUG; DRAIN,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> (A) M18X12	1-09604-081-0	01	1	9604-0004	●
11	PLUG; DRAIN,FUEL TANK FTS STD CAB(FT*M) (A) M18X12	1-09604-081-0	01	1	0005-0112	●	●	●
11	PLUG; DRAIN,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> (B) M36	1-09604-052-0	01	1	0004-0004	●
11	PLUG; DRAIN,FUEL TANK FTS STD CAB(FT*M) (B) M36	1-09604-052-0	01	1	0005-0005	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0006-0106	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FSS STD CAB(FS*M) (B) M36	1-09604-052-0	01	1	0107-	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0107-				●
11	PLUG; DRAIN,FUEL TANK FTS STD CAB(FT*M) (B) M14X14	9-09862-156-0	01	1	0107-0112	●	●	●
11	PLUG; DRAIN,FUEL TANK FTS STD CAB(FT*M) (C) M14X14	9-09862-156-0	02	1	0201-	●	●	●
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0005-	●	●	●	●
19	GASKET; FUEL TANK UNIT FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> ID=42	9-83135-011-0	01	1	9604-0004	●
19	GASKET; FUEL TANK UNIT ID=42	9-83135-011-0	01	1	9604-0004				●
19	GASKET; FUEL TANK UNIT FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6>	9-83135-003-0	01	1	9604-0004	●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-83141-121-0	01	1	9604-0004	●
22	UNIT; FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6>	1-83141-123-0	01	1	9604-9608	●
22	UNIT; FUEL TANK	1-83141-123-0	01	1	9604-9608				●
22	UNIT; FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6>	1-83141-084-1	01	1	9609-0004	●
22	UNIT; FUEL TANK	1-83141-084-1	01	1	9609-0004				●
22	UNIT; FUEL TANK FSS STD CAB(FS*M)	1-83141-084-1	01	1	0005-	●	●	●
22	UNIT; FUEL TANK	1-83141-084-1	01	1	0005-				●
22	UNIT; FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6>	1-83141-124-0	01	1	9604-0004	●
22	UNIT; FUEL TANK FTS STD CAB(FT*M)	1-83141-124-0	01	1	0005-1505	●	●	●
22	UNIT; FUEL TANK FTS STD CAB(FT*M)	8-98296-671-0	01	1	1506-	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22440-050-0	01	1	9604-0004	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L FMCSR<PK6>	1-22440-033-2	01	1	9604-9608	●
25	CAP; FILLER,FUEL TANK	1-22440-033-2	01	1	9604-9608				●
25	CAP; FILLER,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6>	1-22440-033-2	01	1	9609-0003	●
25	CAP; FILLER,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6>	1-22440-067-0	01	1	0004-0004	●
25	CAP; FILLER,FUEL TANK FTS STD CAB(FT*M)	1-22440-067-0	01	1	0005-0109	●	●	●
25	CAP; FILLER,FUEL TANK FTS STD CAB(FT*M)	1-22440-069-0	01	1	0110-0112	●	●	●
25	CAP; FILLER,FUEL TANK FTS STD CAB(FT*M)	1-22440-067-0	01	1	0201-0309	●	●	●
25	CAP; FILLER,FUEL TANK FTS STD CAB(FT*M)	1-22440-070-0	01	1	0310-0404	●	●	●
25	CAP; FILLER,FUEL TANK FTS STD CAB(FT*M)	1-22440-046-1	01	1	0405-	●	●	●
25	CAP; FILLER,FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6>	1-22440-028-0	01	1	9609-0004	●
25	CAP; FILLER,FUEL TANK	1-22440-028-0	01	1	9609-0004				●
25	CAP; FILLER,FUEL TANK FSS STD CAB(FS*M)	1-22440-028-0	01	1	0005-	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-028-0	01	1	0005-				●
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 200L FMCSR<PK6> ID=5.3	9-09160-505-0	01	1	9604-0004	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9604-0004				●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	0005-0605	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	0-91610-505-0	01	1	0606-	●	●	●	●
35	SCREW; FUEL TANK UNIT FSS STD CAB(FS*M) M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0604	●	●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0604				●
35	SCREW; FUEL TANK UNIT FSS STD CAB(FS*M) M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-	●	●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-				●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6>	1-09187-007-0	05	1	9604-0004	●
35	SCREW; FUEL TANK UNIT FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> M5X10 W/LK WASHER	9-03910-510-0	05	1	9604-9608	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	9604-9608				●
35	SCREW; FUEL TANK UNIT FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> M5X10	9-93497-510-0	05	1	9604-9608	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L FMCSR<PK6> M5X10	9-93497-510-0	05	1	9609-0004	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9609-0004				●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	0005-0501	●	●	●	●
35	SCREW; FUEL TANK UNIT FTS STD CAB(FT*M) M5X10	9-93497-510-0	05	1	0502-0604	●	●	●
35	SCREW; FUEL TANK UNIT FTS STD CAB(FT*M) M5X10	0-34218-510-0	05	1	0605-	●	●	●
38	INSULATION; SUPPORT BELT FSS STD CAB(FS*M) L=540	1-22553-014-2	02	1	0802-	●	●	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	0802-				●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L FMCSR<PK6> L=650	1-22553-022-1	02	1	9604-9608	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	9604-9608				●
38	INSULATION; SUPPORT BELT FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> L=650	1-22553-022-1	02	1	9609-0004	●
38	INSULATION; SUPPORT BELT FTS STD CAB(FT*M) L=650	1-22553-022-1	02	1	0005-	●	●	●
38	INSULATION; SUPPORT BELT FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> L=540	1-22553-014-2	02	1	9609-0004	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	9609-0004				●
38	INSULATION; SUPPORT BELT FSS STD CAB(FS*M) L=540	1-22553-014-2	02	1	0005-0112	●	●	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	0005-0112				●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6> L=1035	1-22550-221-0	02	1	9604-0004	●
40	BELT; SUPPORT,FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> L=905	1-22550-183-2	02	1	9604-9608	●
40	BELT; SUPPORT,FUEL TANK L=905	1-22550-183-2	02	1	9604-9608				●
40	BELT; SUPPORT,FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> L=775	1-22550-211-1	02	1	9609-0004	●
40	BELT; SUPPORT,FUEL TANK L=775	1-22550-211-1	02	1	9609-0004				●
40	BELT; SUPPORT,FUEL TANK FSS STD CAB(FS*M) L=775	1-22550-211-2	02	1	0005-0112	●	●	●
40	BELT; SUPPORT,FUEL TANK L=775	1-22550-211-2	02	1	0005-0112				●
40	BELT; SUPPORT,FUEL TANK FSS STD CAB(FS*M) L=790	1-22550-186-2	02	1	0201-	●	●	●
40	BELT; SUPPORT,FUEL TANK L=790	1-22550-186-2	02	1	0201-				●
40	BELT; SUPPORT,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> L=1030	1-22550-204-1	02	1	9604-0004	●
40	BELT; SUPPORT,FUEL TANK FTS STD CAB(FT*M) L=1030	1-22550-204-2	02	1	0005-	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>	1-09487-027-1	04	1	9604-0004	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L FMCSR<PK6> M10	9-09110-510-0	04	1	9604-0004	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9604-0004				●
42	NUT; SUPPORT BELT FSS STD CAB(FS*M) FTS STD CAB(FT*M) M10	9-09110-510-0	04	1	0005-0405	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0005-0405				●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0406-0512	●		●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-	●		●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-53461-355-2	02	1	9604-0004	●
43	BRACKET; FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6>	1-53461-401-1	02	1	9604-9608	●
43	BRACKET; FUEL TANK	1-53461-401-1	02	1	9604-9608				●
43	BRACKET; FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6>	1-53461-206-1	02	1	9609-0004	●
43	BRACKET; FUEL TANK	1-53461-206-1	02	1	9609-0004				●
43	BRACKET; FUEL TANK FSS STD CAB(FS*M)	1-53461-206-1	02	1	0005-	●	●	●
43	BRACKET; FUEL TANK	1-53461-206-1	02	1	0005-				●
43	BRACKET; FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6>	1-53461-279-4	02	1	9604-0004	●
43	BRACKET; FUEL TANK FTS STD CAB(FT*M)	1-53461-279-4	02	1	0005-	●	●	●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	12	1	9604-9608	●
49	NUT; BRKT FSS ALL(FS****) M12	9-99110-512-0	12	1	9609-9702	●	●	●
49	NUT; BRKT FTS MIDDLE CHASSIS(FT***F) FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	12	1	9609-9702	●	●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9609-9702				●
49	NUT; BRKT FSS ALL(FS****) M12 FLANGE	0-91150-212-0	12	1	9703-0004	●	●	●
49	NUT; BRKT FTS MIDDLE CHASSIS(FT***F) FUEL TANK 200L FMCSR<PK6> M12 FLANGE	0-91150-212-0	12	1	9703-0004	●	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	9703-0004				●
49	NUT; BRKT FTS STD CAB(FT*M) M12 FLANGE	0-91150-212-0	16	1	0005-0602	●	●	●
49	NUT; BRKT FTS STD CAB(FT*M) M12 FLANGE	0-91180-212-0	16	1	0603-	●	●	●
49	NUT; BRKT FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	08	1	9604-9608	●
49	NUT; BRKT M12	9-99110-512-0	08	1	9604-9608				●
49	NUT; BRKT M12	9-99110-512-0	16	1	9604-9702	●			●
49	NUT; BRKT FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	16	1	9604-9702	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	16	1	9703-0004	●			●
49	NUT; BRKT FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> M12 FLANGE	0-91150-212-0	16	1	9703-0004	●
49	NUT; BRKT FSS STD CAB(FS*M) M12 FLANGE	0-91150-212-0	12	1	0005-0602	●	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	0005-0602				●
49	NUT; BRKT FSS STD CAB(FS*M) M12 FLANGE	0-91180-212-0	12	1	0603-	●	●	●
49	NUT; BRKT M12 FLANGE	0-91180-212-0	12	1	0603-				●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28081-235-0	12	1	9604-9606	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28681-235-0	12	1	9607-9608	●
51	BOLT; BRKT TO FRAME FSS ALL(FS****) M12X35 FLANGE	0-28681-235-0	12	1	9609-0004	●	●	●
51	BOLT; BRKT TO FRAME FTS MIDDLE CHASSIS(FT***F) FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28681-235-0	12	1	9609-0004	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9609-0004				●
51	BOLT; BRKT TO FRAME FSS STD CAB(FS*M) M12X35 FLANGE	0-28681-235-0	12	1	0005-0512	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	0005-0512				●
51	BOLT; BRKT TO FRAME FSS STD CAB(FS*M) M12X35 FLANGE	0-28651-235-0	12	1	0601-	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	12	1	0601-				●
51	BOLT; BRKT TO FRAME FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28081-235-0	08	1	9604-9606	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28081-235-0	08	1	9604-9606				●
51	BOLT; BRKT TO FRAME FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28681-235-0	08	1	9607-9608	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	08	1	9607-9608				●
51	BOLT; BRKT TO FRAME FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28081-235-0	16	1	9604-9606	●
51	BOLT; BRKT TO FRAME FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28681-235-0	16	1	9607-0004	●
51	BOLT; BRKT TO FRAME FTS STD CAB(FT*M) M12X35 FLANGE	0-28681-235-0	16	1	0005-0512	●	●	●
51	BOLT; BRKT TO FRAME FTS STD CAB(FT*M) M12X35 FLANGE	0-28651-235-0	16	1	0601-	●	●	●
237	GASKET; BRKT TO FUEL TANK EXC. FUEL TANK 200L FMCSR<PK6> L=580	1-22553-003-0	02	1	9604-9608	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9604-9608				●
237	GASKET; BRKT TO FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> L=580	1-22553-003-0	02	1	9609-0004	●
237	GASKET; BRKT TO FUEL TANK FTS STD CAB(FT*M) L=580	1-22553-003-0	02	1	0005-	●	●	●
237	GASKET; BRKT TO FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> L=480	1-22553-002-0	02	1	9609-0004	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	9609-0004				●
237	GASKET; BRKT TO FUEL TANK FSS STD CAB(FS*M) L=480	1-22553-002-0	02	1	0005-	●	●	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	0005-				●

115 115 49 224 40 41 224 51 39 37 49 43 35 497 40 22 51 186 42 43 42 25 1 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> 864X597X413 200L	1-22400-975-0	01	1	9604-0004	●
1	TANK; FUEL FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> 720X610X353 140L	1-22401-043-0	01	1	9604-9608	●
1	TANK; FUEL 720X610X353 140L	1-22401-043-0	01	1	9604-9608				●
1	TANK; FUEL FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> 1220X533X323 200L	1-22400-995-0	01	1	9609-0004	●
1	TANK; FUEL 1220X533X323 200L	1-22400-995-0	01	1	9609-0004				●
1	TANK; FUEL FSS STD CAB(FS*M) 1220X533X323 200L	1-22400-995-2	01	1	0005-	●	●	●
1	TANK; FUEL 1220X533X323 200L	1-22400-995-2	01	1	0005-				●
1	TANK; FUEL FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> 720X610X496 200L	1-22400-996-0	01	1	9604-0003	●
1	TANK; FUEL FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> 720X610X496 200L	1-22401-120-0	01	1	0004-0004	●
1	TANK; FUEL FTS STD CAB(FT*M) 720X610X496 200L	1-22401-120-1	01	1	0005-0112	●	●	●
1	TANK; FUEL FTS STD CAB(FT*M) 720X610X496 200L	1-22401-192-2	01	1	0201-1505	●	●	●
1	TANK; FUEL FTS STD CAB(FT*M) 720X610X496 200L	8-98299-274-0	01	1	1506-	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR<PK6> (C)	1-09604-082-0	01	1	9604-0004	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L FMCSR<PK6> (B) M36	1-09604-052-0	01	1	9604-0003	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9604-0003				●
11	PLUG; DRAIN,FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> (B) M36	1-09604-052-0	01	1	0004-0004	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0004-0004				●
11	PLUG; DRAIN,FUEL TANK FSS STD CAB(FS*M) (B) M36	1-09604-052-0	01	1	0005-0005	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0005-0005				●
11	PLUG; DRAIN,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> (A) M18X12	1-09604-081-0	01	1	9604-0004	●
11	PLUG; DRAIN,FUEL TANK FTS STD CAB(FT*M) (A) M18X12	1-09604-081-0	01	1	0005-0112	●	●	●
11	PLUG; DRAIN,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> (B) M36	1-09604-052-0	01	1	0004-0004	●
11	PLUG; DRAIN,FUEL TANK FTS STD CAB(FT*M) (B) M36	1-09604-052-0	01	1	0005-0005	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0006-0106	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FSS STD CAB(FS*M) (B) M36	1-09604-052-0	01	1	0107-	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0107-				●
11	PLUG; DRAIN,FUEL TANK FTS STD CAB(FT*M) (B) M14X14	9-09862-156-0	01	1	0107-0112	●	●	●
11	PLUG; DRAIN,FUEL TANK FTS STD CAB(FT*M) (C) M14X14	9-09862-156-0	02	1	0201-	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-83141-121-0	01	1	9604-0004	●
22	UNIT; FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6>	1-83141-123-0	01	1	9604-9608	●
22	UNIT; FUEL TANK	1-83141-123-0	01	1	9604-9608				●
22	UNIT; FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6>	1-83141-084-1	01	1	9609-0004	●
22	UNIT; FUEL TANK	1-83141-084-1	01	1	9609-0004				●
22	UNIT; FUEL TANK FSS STD CAB(FS*M)	1-83141-084-1	01	1	0005-	●	●	●
22	UNIT; FUEL TANK	1-83141-084-1	01	1	0005-				●
22	UNIT; FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6>	1-83141-124-0	01	1	9604-0004	●
22	UNIT; FUEL TANK FTS STD CAB(FT*M)	1-83141-124-0	01	1	0005-1505	●	●	●
22	UNIT; FUEL TANK FTS STD CAB(FT*M)	8-98296-671-0	01	1	1506-	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22440-050-0	01	1	9604-0004	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L FMCSR<PK6>	1-22440-033-2	01	1	9604-9608	●
25	CAP; FILLER,FUEL TANK	1-22440-033-2	01	1	9604-9608				●
25	CAP; FILLER,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6>	1-22440-033-2	01	1	9609-0003	●
25	CAP; FILLER,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6>	1-22440-067-0	01	1	0004-0004	●
25	CAP; FILLER,FUEL TANK FTS STD CAB(FT*M)	1-22440-067-0	01	1	0005-0109	●	●	●
25	CAP; FILLER,FUEL TANK FTS STD CAB(FT*M)	1-22440-069-0	01	1	0110-0112	●	●	●
25	CAP; FILLER,FUEL TANK FTS STD CAB(FT*M)	1-22440-067-0	01	1	0201-0309	●	●	●
25	CAP; FILLER,FUEL TANK FTS STD CAB(FT*M)	1-22440-070-0	01	1	0310-0404	●	●	●
25	CAP; FILLER,FUEL TANK FTS STD CAB(FT*M)	1-22440-046-1	01	1	0405-	●	●	●
25	CAP; FILLER,FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6>	1-22440-028-0	01	1	9609-0004	●
25	CAP; FILLER,FUEL TANK	1-22440-028-0	01	1	9609-0004				●
25	CAP; FILLER,FUEL TANK FSS STD CAB(FS*M)	1-22440-028-0	01	1	0005-	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-028-0	01	1	0005-				●
35	SCREW; FUEL TANK UNIT FSS STD CAB(FS*M) M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0604	●	●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0604				●
35	SCREW; FUEL TANK UNIT FSS STD CAB(FS*M) M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-	●	●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-				●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6>	1-09187-007-0	05	1	9604-0004	●
35	SCREW; FUEL TANK UNIT FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> M5X10 W/LK WASHER	9-03910-510-0	05	1	9604-9608	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	9604-9608				●
35	SCREW; FUEL TANK UNIT FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> M5X10	9-93497-510-0	05	1	9604-9608	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L FMCSR<PK6> M5X10	9-93497-510-0	05	1	9609-0004	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9609-0004				●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	0005-0501	●	●	●	●
35	SCREW; FUEL TANK UNIT FTS STD CAB(FT*M) M5X10	9-93497-510-0	05	1	0502-0604	●	●	●
35	SCREW; FUEL TANK UNIT FTS STD CAB(FT*M) M5X10	0-34218-510-0	05	1	0605-	●	●	●
37	PIN; SPLIT,SUPPORT BELT FUEL TANK 200L FMCSR<PK6> OD=3.7 L=28	9-08114-028-0	02	1	9604-0004	●
39	WASHER; PL,SUPPORT BELT FUEL TANK 200L FMCSR<PK6> ID=17	9-09164-516-0	02	1	9604-0004	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6> L=1035	1-22550-221-0	02	1	9604-0004	●
40	BELT; SUPPORT,FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> L=905	1-22550-183-2	02	1	9604-9608	●
40	BELT; SUPPORT,FUEL TANK L=905	1-22550-183-2	02	1	9604-9608				●
40	BELT; SUPPORT,FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> L=775	1-22550-211-1	02	1	9609-0004	●
40	BELT; SUPPORT,FUEL TANK L=775	1-22550-211-1	02	1	9609-0004				●
40	BELT; SUPPORT,FUEL TANK FSS STD CAB(FS*M) L=775	1-22550-211-2	02	1	0005-0112	●	●	●
40	BELT; SUPPORT,FUEL TANK L=775	1-22550-211-2	02	1	0005-0112				●
40	BELT; SUPPORT,FUEL TANK FSS STD CAB(FS*M) L=790	1-22550-186-2	02	1	0201-	●	●	●
40	BELT; SUPPORT,FUEL TANK L=790	1-22550-186-2	02	1	0201-				●
40	BELT; SUPPORT,FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> L=1030	1-22550-204-1	02	1	9604-0004	●
40	BELT; SUPPORT,FUEL TANK FTS STD CAB(FT*M) L=1030	1-22550-204-2	02	1	0005-	●	●	●
41	PIN; SUPPORT BELT FUEL TANK 200L FMCSR<PK6> OD=16 L=75	9-08224-675-0	02	1	9604-0004	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>	1-09487-027-1	04	1	9604-0004	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L FMCSR<PK6> M10	9-09110-510-0	04	1	9604-0004	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9604-0004				●
42	NUT; SUPPORT BELT FSS STD CAB(FS*M) FTS STD CAB(FT*M) M10	9-09110-510-0	04	1	0005-0405	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0005-0405				●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0406-0512	●		●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-	●		●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-53461-355-2	02	1	9604-0004	●
43	BRACKET; FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6>	1-53461-401-1	02	1	9604-9608	●
43	BRACKET; FUEL TANK	1-53461-401-1	02	1	9604-9608				●
43	BRACKET; FUEL TANK FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6>	1-53461-206-1	02	1	9609-0004	●
43	BRACKET; FUEL TANK	1-53461-206-1	02	1	9609-0004				●
43	BRACKET; FUEL TANK FSS STD CAB(FS*M)	1-53461-206-1	02	1	0005-	●	●	●
43	BRACKET; FUEL TANK	1-53461-206-1	02	1	0005-				●
43	BRACKET; FUEL TANK FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6>	1-53461-279-4	02	1	9604-0004	●
43	BRACKET; FUEL TANK FTS STD CAB(FT*M)	1-53461-279-4	02	1	0005-	●	●	●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	12	1	9604-9608	●
49	NUT; BRKT FSS ALL(FS****) M12	9-99110-512-0	12	1	9609-9702	●	●	●
49	NUT; BRKT FTS MIDDLE CHASSIS(FT***F) FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	12	1	9609-9702	●	●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9609-9702				●
49	NUT; BRKT FSS ALL(FS****) M12 FLANGE	0-91150-212-0	12	1	9703-0004	●	●	●
49	NUT; BRKT FTS MIDDLE CHASSIS(FT***F) FUEL TANK 200L FMCSR<PK6> M12 FLANGE	0-91150-212-0	12	1	9703-0004	●	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	9703-0004				●
49	NUT; BRKT FTS STD CAB(FT*M) M12 FLANGE	0-91150-212-0	16	1	0005-0602	●	●	●
49	NUT; BRKT FTS STD CAB(FT*M) M12 FLANGE	0-91180-212-0	16	1	0603-	●	●	●
49	NUT; BRKT FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	08	1	9604-9608	●
49	NUT; BRKT M12	9-99110-512-0	08	1	9604-9608				●
49	NUT; BRKT M12	9-99110-512-0	16	1	9604-9702	●			●
49	NUT; BRKT FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	16	1	9604-9702	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	16	1	9703-0004	●			●
49	NUT; BRKT FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> M12 FLANGE	0-91150-212-0	16	1	9703-0004	●
49	NUT; BRKT FSS STD CAB(FS*M) M12 FLANGE	0-91150-212-0	12	1	0005-0602	●	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	0005-0602				●
49	NUT; BRKT FSS STD CAB(FS*M) M12 FLANGE	0-91180-212-0	12	1	0603-	●	●	●
49	NUT; BRKT M12 FLANGE	0-91180-212-0	12	1	0603-				●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28081-235-0	12	1	9604-9606	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28681-235-0	12	1	9607-9608	●
51	BOLT; BRKT TO FRAME FSS ALL(FS****) M12X35 FLANGE	0-28681-235-0	12	1	9609-0004	●	●	●
51	BOLT; BRKT TO FRAME FTS MIDDLE CHASSIS(FT***F) FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28681-235-0	12	1	9609-0004	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9609-0004				●
51	BOLT; BRKT TO FRAME FSS STD CAB(FS*M) M12X35 FLANGE	0-28681-235-0	12	1	0005-0512	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	0005-0512				●
51	BOLT; BRKT TO FRAME FSS STD CAB(FS*M) M12X35 FLANGE	0-28651-235-0	12	1	0601-	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	12	1	0601-				●
51	BOLT; BRKT TO FRAME FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28081-235-0	08	1	9604-9606	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28081-235-0	08	1	9604-9606				●
51	BOLT; BRKT TO FRAME FSS ALL(FS****) EXC. FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28681-235-0	08	1	9607-9608	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	08	1	9607-9608				●
51	BOLT; BRKT TO FRAME FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28081-235-0	16	1	9604-9606	●
51	BOLT; BRKT TO FRAME FTS ALL(FT****) EXC. FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28681-235-0	16	1	9607-0004	●
51	BOLT; BRKT TO FRAME FTS STD CAB(FT*M) M12X35 FLANGE	0-28681-235-0	16	1	0005-0512	●	●	●
51	BOLT; BRKT TO FRAME FTS STD CAB(FT*M) M12X35 FLANGE	0-28651-235-0	16	1	0601-	●	●	●
115	BOLT; BRKT FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28081-235-0	12	1	9604-9606	●
115	BOLT; BRKT FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28681-235-0	12	1	9607-0004	●
186	VALVE; GT,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22453-005-0	01	1	9604-0004	●
224	BRACKET; FUEL TANK BRKT TO FRAME FUEL TANK 200L FMCSR<PK6>	1-53461-359-0	02	1	9604-0004	●
497	NIPPLE; FUEL PIPE FUEL TANK 200L FMCSR<PK6> M16 & NPTF3/8 STRAIGHT	1-09650-405-1	02	1	9604-0004	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
