Isuzu WW
▶
TRUCKS
▶
EXR
▶
10672 - EXR LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-65 - CONTROL LEVER; HEATER AND AIR CON
▶

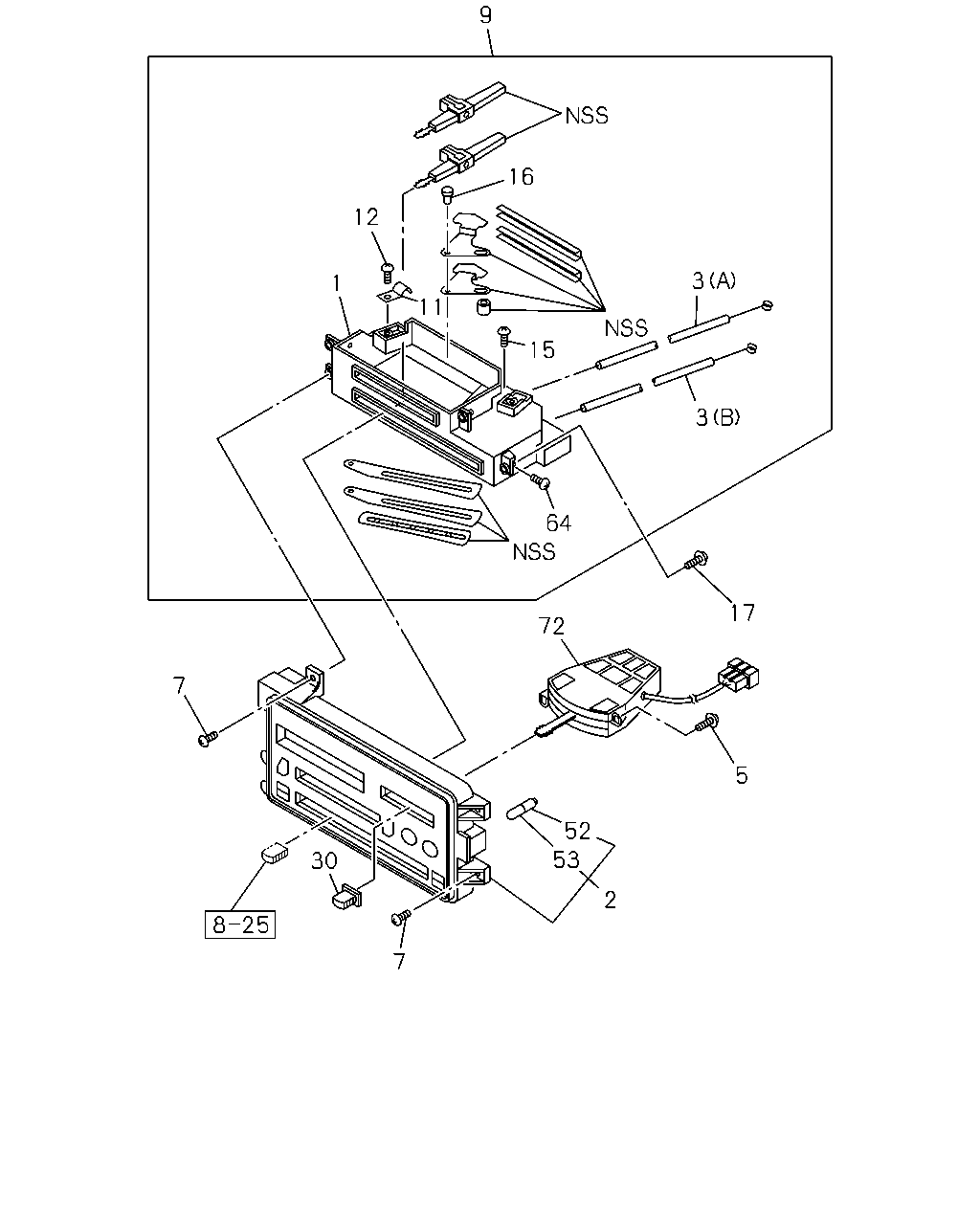

8-65 — CONTROL LEVER; HEATER AND AIR CON
(#3676) — 20 parça
9
16
12
3
1
11
15
3
64
17
72
7
5
52
53
30
2
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER SUB ASM; HTR CONT
1-83519-040-0
01
1
9002-
2
PANEL ASM; CONT,ILLUMINATION
1-72410-149-1
01
1
9002-
3
CABLE; HTR CONT LVR
(A) FRESH RECIRCULATION CONT
1-83519-045-0
01
1
9002-
3
CABLE; HTR CONT LVR
(B) HOT COOL CONT
1-83519-046-0
01
1
9002-
5
SCREW; FAN SW
M5X14 W/PL WASHER
5-09981-050-0
02
1
9002-
7
SCREW; ILLUMINATION PNL
M5X14 W/PL WASHER
5-09981-050-0
04
1
9002-
9
LEVER ASM; HTR & A/C CONT
1-83513-082-2
01
1
9002-
11
CLIP; CABLE,HTR CONT LVR
1-83519-034-0
02
1
9002-
12
SCREW; CABLE CLIP,HTR CONT LVR
1-83519-038-0
02
1
9002-
15
SCREW; HTR CONT LVR CLIP
1-83519-036-0
06
1
9002-
16
PIN; HTR CONT LVR
1-83519-039-0
02
1
9002-
17
SCREW; CONT LEVER,HTR
M5X14 W/PL WASHER
5-09981-050-0
04
1
9002-
30
KNOB; FAN SW
1-82346-067-0
03
1
9002-
52
BULB; PANEL ILLUMINATION
24V1.2W WO/FILTER
1-82194-027-0
04
1
9002-9103
52
BULB; PANEL ILLUMINATION
24V1.2W WO/FILTER
1-82194-027-0
01
1
9104-
52
BULB; PANEL ILLUMINATION
24V1.2W GREEN FILFER
1-82194-045-0
02
1
9104-
52
BULB; PANEL ILLUMINATION
24V1.2W BLUE FILTER
1-82194-046-0
01
1
9104-
53
COVER; COLLAR
GREEN
1-82199-001-0
02
1
9002-9103
64
SCREW; PANEL,HTR CONT LVR
1-83519-041-0
04
1
9307-
72
SWITCH; FAN MOTOR
1-82360-236-0
01
1
9002-
