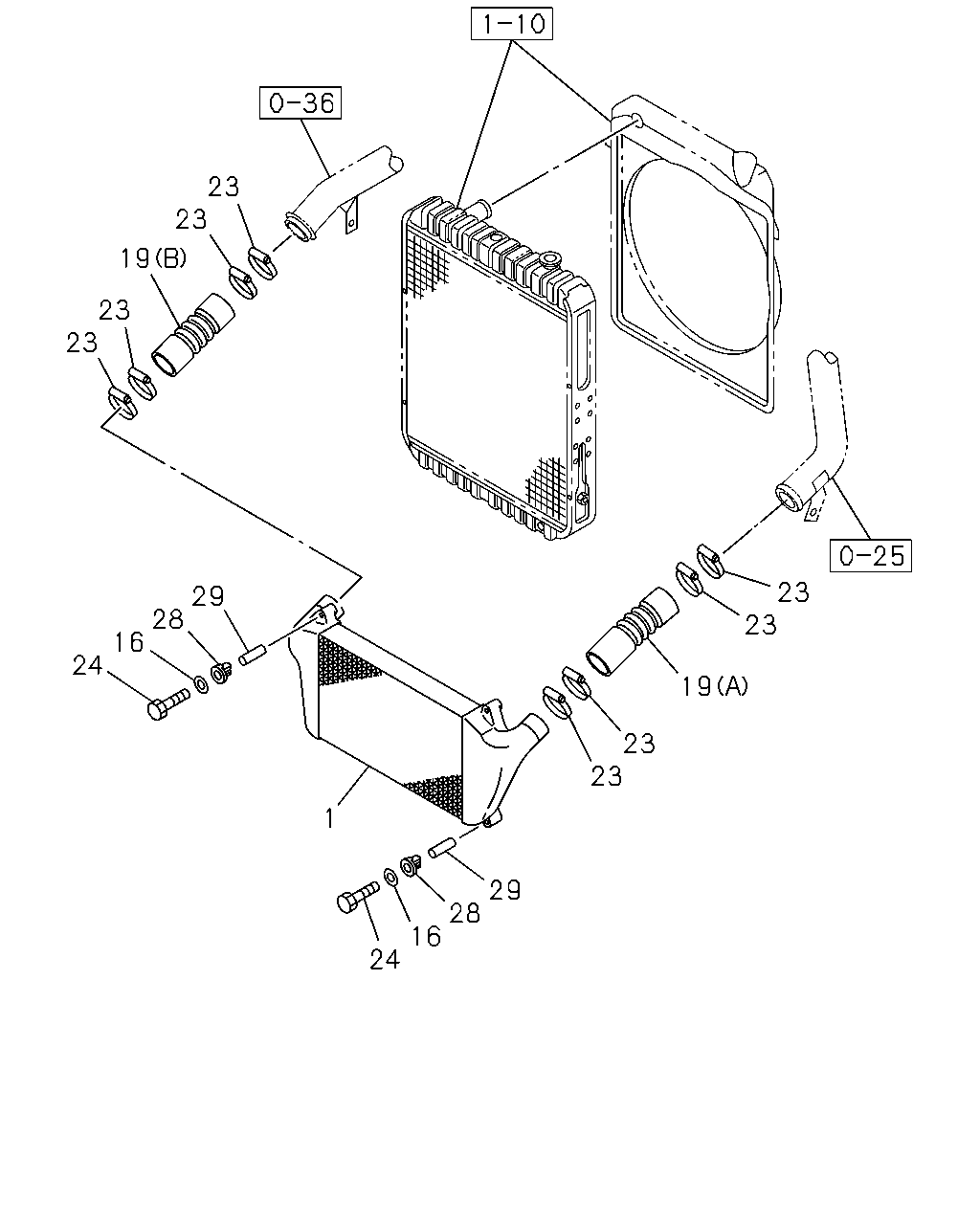

1-35 — CHARGE AIR COOLER
(#36759) — 12 parça
23
23
19
23
23
23
23
29
28
16
24
19
23
23
1
29
28
16
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COOLER; CHARGE AIR
8-94392-923-2
01
1
0406-
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
9-09164-810-0
04
1
0406-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
8-94390-035-0
01
1
0406-1408
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
8-98245-238-0
01
1
1409-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A)
8-94395-022-0
01
1
0406-
23
CLIP; HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79
1-09707-136-0
08
1
1002-
23
CLIP; HOSE
ID=58-76
1-09707-203-0
08
1
0406-0811
23
CLIP; HOSE
ID=55-75
8-98133-349-0
08
1
0812-1001
23
CLIP; HOSE
KD PREPARATORY PACK<6HF> ID=55-75
8-98133-349-0
08
1
1002-
24
BOLT; COOLER TO RAD
M8X35 FLANGE
0-28080-835-0
04
1
0406-
28
RUBBER; MTG,CHARGE AIR COOLER
1-21467-015-1
04
1
0406-
29
COLLAR; MTG RUBBER,CAC BRKT
1-21469-100-0
04
1
0406-
