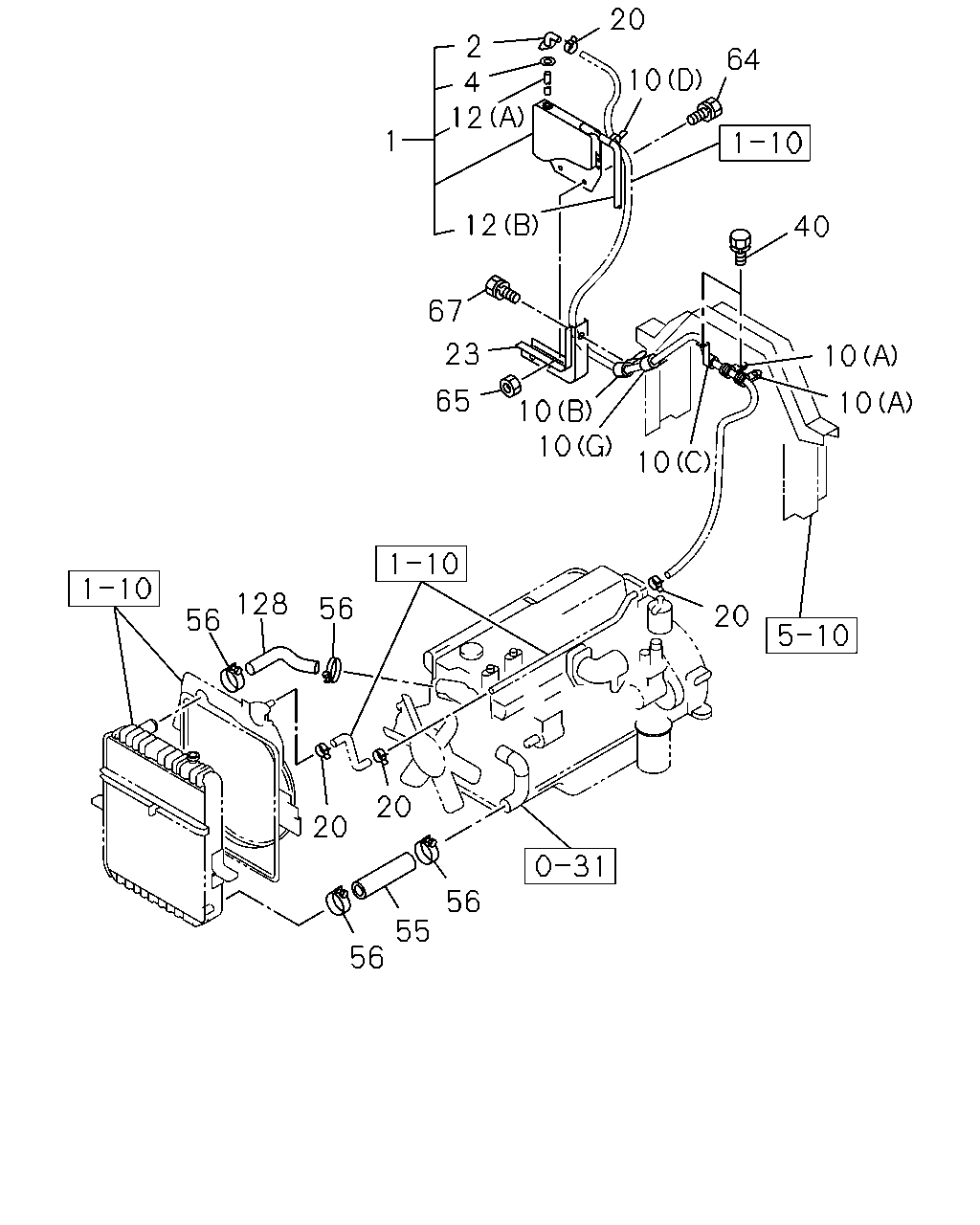

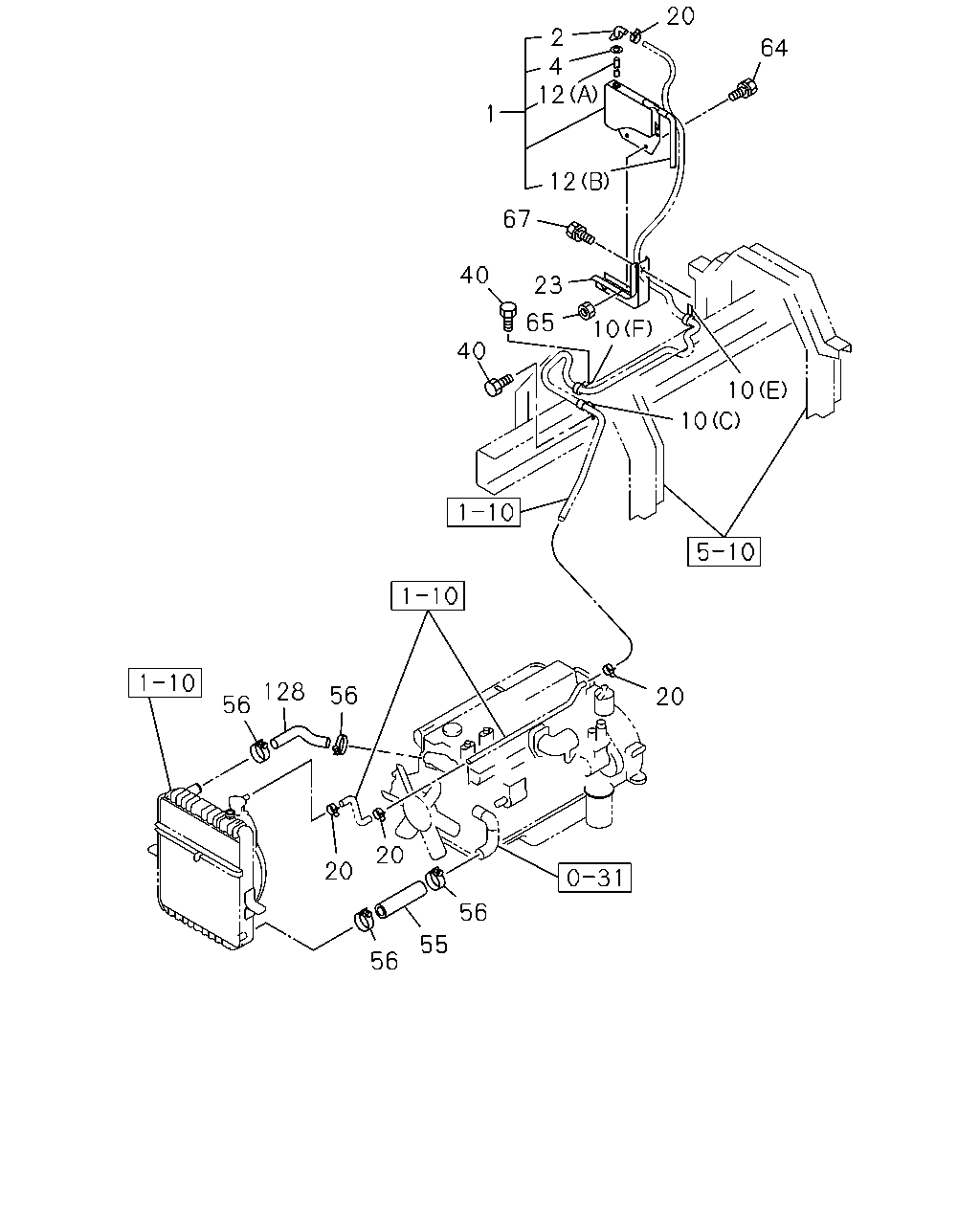

1-11 — RADIATOR HOSE AND SUB TANK (#36756) — 192 parça

20 2 4 12 64 1 12 67 40 23 10 65 40 10 10 128 56 20 56 20 20 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; SURGE,RAD	1-21480-077-2	01	1	9604-9812	●	●
1	TANK; SURGE,RAD	1-21480-104-0	01	1	9901-0004	●	●
1	TANK; SURGE,RAD	1-21480-104-1	01	1	0005-0405	●	●	●
1	TANK; SURGE,RAD	1-21480-104-1	01	1	0406-	●	●		●
2	CAP; SURGE TANK	5-21483-001-1	01	1	9604-9812	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	9901-0004	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0005-0405	●	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0406-	●	●		●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	9604-0004	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0005-0405	●	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0406-	●	●		●
10	CLIP; RUBBER HOSE FSS ALL(FS****) (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9604-0010	●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9604-0010		●
10	CLIP; RUBBER HOSE FSS STD CAB(FS*M) (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0011-0405	●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0011-0405		●	●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0406-	●	●	●
10	CLIP; RUBBER HOSE FSS ALL(FS****) (B) ID=14 L=44	9-09917-427-0	03	1	9604-	●
10	CLIP; RUBBER HOSE (B) ID=14 L=44	9-09917-427-0	03	1	9604-		●
10	CLIP; RUBBER HOSE FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A) ID=13 L=50	9-09525-286-0	01	1	9604-0004	●
10	CLIP; RUBBER HOSE (A) ID=13 L=50	9-09525-286-0	01	1	9604-0004		●
10	CLIP; RUBBER HOSE FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A) ID=13 L=50	9-09525-286-0	01	1	0005-0010	●		●
10	CLIP; RUBBER HOSE (A) ID=13 L=50	9-09525-286-0	01	1	0005-0010		●
10	CLIP; RUBBER HOSE (A) ID=13 L=50	9-09525-286-0	01	1	0011-0606	●	●
10	CLIP; RUBBER HOSE (A) ID=13 L=50	0-95235-286-0	01	1	0607-	●	●
10	CLIP; RUBBER HOSE FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB MIDDLE CHASSIS(FT*W) (E) ID=13 L=50	1-09700-027-1	01	1	9604-0004	●
10	CLIP; RUBBER HOSE FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB MIDDLE CHASSIS(FT*W) (F) ID=13 L=40	9-09525-276-0	01	1	9604-0004	●
10	CLIP; RUBBER HOSE FTS STD CAB(FT*M) (B) ID=14 L=44	9-09917-427-0	01	1	9604-0405	●
10	CLIP; RUBBER HOSE (B) ID=14 L=44	9-09917-427-0	01	1	0406-	●	●
10	CLIP; RUBBER HOSE FTS STD CAB(FT*M) (A) ID=13 L=20	9-09525-235-0	01	1	0011-0405	●
10	CLIP; RUBBER HOSE (A) ID=13 L=20	9-09525-235-0	01	1	0011-0405			●
10	CLIP; RUBBER HOSE (A) ID=13 L=20	9-09525-235-0	01	1	0011-0405			●
10	CLIP; RUBBER HOSE FTS STD CAB(FT*M) (A) ID=13 L=20	9-09525-235-0	01	1	0406-0606	●
10	CLIP; RUBBER HOSE FTS STD CAB(FT*M) (A) ID=13 L=20	0-95235-235-0	01	1	0607-	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	9604-0004	●	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	0005-0405	●	●	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	0406-	●	●		●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	9604-0004	●	●
10	CLIP; RUBBER HOSE FSS STD CAB(FS*M) FTS STD CAB(FT*M) (D) L=140	5-09707-031-1	01	1	0005-0405	●		●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	0005-0405		●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	0406-	●	●		●
10	CLIP; RUBBER HOSE (G) ID=12 L=70	1-09700-097-1	01	1	0011-0405			●
10	CLIP; RUBBER HOSE (G) ID=12 L=70	1-09700-097-1	01	1	0406-				●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	9604-0004	●	●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0005-0405	●	●	●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0406-	●	●		●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	9604-0004	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0005-0405	●	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0406-	●	●		●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	9604-0004	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0005-0405	●	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0406-	●	●		●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	9604-0004	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0005-0405	●	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0406-	●	●		●
40	BOLT; CLIP FSS ALL(FS**) FTS DOUBLE CAB MIDDLE CHASSIS(FTW*) M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●
40	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	02	1	9604-9606		●
40	BOLT; CLIP FSS ALL(FS**) FTS DOUBLE CAB MIDDLE CHASSIS(FTW*) M8X20 FLANGE	0-28680-820-0	02	1	9607-0004	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9607-0004		●
40	BOLT; CLIP FSS ALL(FS****) M8X20 FLANGE	0-28680-820-0	04	1	0005-0010	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0005-0010		●
40	BOLT; CLIP FSS STD CAB(FS*M) FTS STD CAB(FT*M) M8X20 FLANGE	0-28680-820-0	04	1	0011-0512	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0011-0512		●
40	BOLT; CLIP FSS STD CAB(FS*M) FTS STD CAB(FT*M) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	0601-		●
40	BOLT; CLIP FTS STD CAB(FT*M) M8X20 FLANGE	0-28080-820-0	03	1	9604-9606	●
40	BOLT; CLIP FTS STD CAB(FT*M) M8X20 FLANGE	0-28680-820-0	03	1	9607-0010	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0011-0405			●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0406-0512				●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-				●
55	HOSE; WATER,RAD OUTLET	1-21437-870-1	01	1	0406-				●
55	HOSE; WATER,RAD OUTLET	1-21437-560-0	01	1	9604-0004	●	●
55	HOSE; WATER,RAD OUTLET	1-21437-560-2	01	1	0005-0405	●	●	●
55	HOSE; WATER,RAD OUTLET	1-21437-560-2	01	1	0406-	●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9604-0004	●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	0005-0405	●	●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	0406-	●	●		●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9604-0004	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0405	●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0406-0707	●	●		●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0708-	●	●	●
65	NUT; BRKT,SUB TANK M8	9-09110-408-0	04	1	9604-9606	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	9607-0004	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0005-0405	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0406-0602	●	●		●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	04	1	0603-	●	●		●
67	BOLT; BRKT M10X20 FLANGE	0-28081-020-0	02	1	9604-9606	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	9607-0004	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0005-0405	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0406-0512	●	●		●
67	BOLT; BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●		●
128	HOSE; WATER,RAD INL	1-21437-756-0	01	1	0406-				●
128	HOSE; WATER,RAD INL	1-21437-450-0	01	1	9604-9708	●	●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	9709-0004	●	●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	0005-0405	●	●	●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	0406-0707	●	●
128	HOSE; WATER,RAD INL	1-21437-450-0	01	1	0708-	●	●
