1-10 — RADIATOR (#36755) — 302 parça
çizim 152622
1 526 528 529 232 267 89 529 528 527 267
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RADIATOR ASM 1-21410-733-0 01 1 0206-0405 ●
1 RADIATOR ASM 1-21410-887-0 01 1 0406- ●
1 RADIATOR ASM
AUSTRALIA EQUIPMENT(RR3) 		1-21410-675-1 01 1 9604-9904 ●
1 RADIATOR ASM
AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> 		1-21410-675-1 01 1 9905-0004 ●
1 RADIATOR ASM
EURO2 SPECIFICATION<THN> 		1-21410-675-1 01 1 9905-0004 ●
1 RADIATOR ASM
EURO2 SPECIFICATION<THN> 		1-21410-675-1 01 1 0005- ●
1 RADIATOR ASM
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-21410-674-1 01 1 9604-9904 ●
1 RADIATOR ASM 1-21410-674-1 01 1 9604-9904 ●
1 RADIATOR ASM
EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-21410-674-1 01 1 9905-0004 ●
1 RADIATOR ASM 1-21410-674-1 01 1 9905-0004 ●
1 RADIATOR ASM
EXC. EURO2 SPECIFICATION<THN> 		1-21410-674-1 01 1 0005-0010 ●
1 RADIATOR ASM 1-21410-674-1 01 1 0005-0010 ●
1 RADIATOR ASM
EXC. EURO2 SPECIFICATION<THN> 		1-21410-674-1 01 1 0011-0205 ●
1 RADIATOR ASM 1-21410-674-1 01 1 0011-0205 ● ●
1 RADIATOR ASM
EXC. EURO2 SPECIFICATION<THN> 		1-21410-674-1 01 1 0206- ●
1 RADIATOR ASM 1-21410-674-1 01 1 0206- ●
89 BOLT
M8X25 W/PL WASHER 		1-21469-153-0 02 1 0206-0405 ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 0206-0405 ●
267 RUBBER; CUSHION
(A) 		1-21467-020-0 02 1 0206-0405 ●
267 RUBBER; CUSHION
(B) 		1-21467-023-0 02 1 0206-0405 ●
526 TANK; UPR,RADIATOR CORE 1-21414-032-0 01 1 0206-0405 ●
527 TANK; LWR,RADIATOR CORE 1-21415-032-0 01 1 0206-0405 ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-077-0 01 1 0206-0405 ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-078-0 01 1 0206-0405 ●
529 GASKET; CORE,RADIATOR 1-21439-122-0 02 1 0206-0405 ●

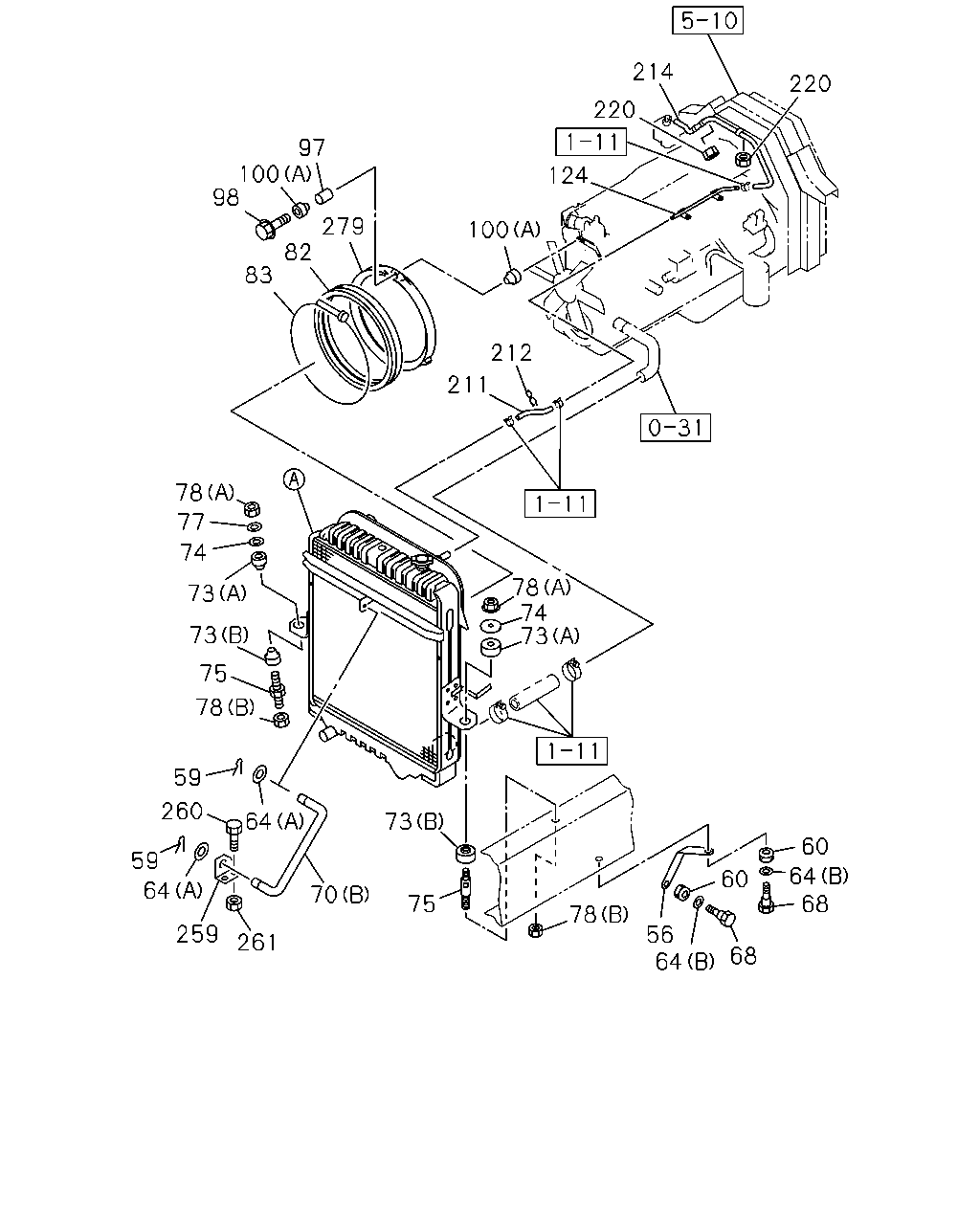

çizim 152637
214 220 220 97 100 98 124 279 100 82 83 212 211 78 77 74 78 74 73 73 73 75 78 59 260 64 73 60 59 64 68 60 64 70 78 75 259 56 64 261 68
BalonParca AdiParca NoAdetTipApplied Date A B C D
56 STAY; RAD 1-21464-633-0 01 1 0406- ●
56 STAY; RAD 1-21464-634-0 01 1 0406- ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 9604-0004 ● ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 0005-0405 ● ● ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 0406-0406 ● ● ●
59 PIN; SNAP,STAY
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) 		1-09987-158-1 02 1 0407- ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 0407- ●
60 GROMMET 1-09332-117-0 04 1 0406- ●
64 WASHER; STAY TO RAD
(B) ID=12.5 OD=26 		9-09160-612-0 04 1 0406-0605 ●
64 WASHER; STAY TO RAD
(B) ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ●
64 WASHER; STAY TO RAD
(A) ID=12.5 		9-09160-512-0 02 1 9604-0004 ● ●
64 WASHER; STAY TO RAD
(A) ID=12.5 		9-09160-512-0 02 1 0005-0405 ● ● ●
64 WASHER; STAY TO RAD
(A) ID=12.5 		9-09160-512-0 02 1 0406-0406 ● ● ●
64 WASHER; STAY TO RAD
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (A) ID=12.5 		9-09160-512-0 02 1 0407-0605 ●
64 WASHER; STAY TO RAD
(A) ID=12.5 		9-09160-512-0 02 1 0407-0605 ●
64 WASHER; STAY TO RAD
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (A) ID=12.5 OD=22 		0-91610-512-0 02 1 0606- ●
64 WASHER; STAY TO RAD
(A) ID=12.5 OD=22 		0-91610-512-0 02 1 0606- ●
68 BOLT; STAY TO BRKT
M8X30 		1-09009-020-1 02 1 0406- ●
68 BOLT; STAY TO BRKT
M8X22 		1-09009-123-0 02 1 0406- ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9604-0010 ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0011-0405 ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0406- ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 9604-0004 ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0005-0405 ● ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0406- ● ●
73 RUBBER; CUSHION,RAD MTG
(A) 		1-21467-017-2 02 1 0206-0405 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9604-0004 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0005-0205 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0206-0405 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0406- ● ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9604-0004 ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0005-0405 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0406- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9604-9604 ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9605-0004 ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0005-0405 ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0406- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-2 02 1 9604-0004 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0005-0405 ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0406- ● ● ●
77 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 9604-9702 ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9604-0004 ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0005-0405 ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0406- ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 		9-99110-512-0 02 1 9604-9702 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9703-0004 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0005-0405 ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0406-0602 ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ● ● ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 0406- ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 9604-0004 ● ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 0005-0405 ● ● ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 0406- ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9604-0004 ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0005-0405 ● ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0406- ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9604-0004 ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0005-0405 ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0406- ● ● ●
98 BOLT; RAD FAN GUIDE
M8X25 FLANGE 		0-28080-825-0 03 1 9604-9702 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9703-0004 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0002-0405 ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0406-0512 ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28080-830-0 03 1 9911-0001 ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0406-0910 ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9604-0004 ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 0005-0405 ● ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 0406- ● ● ●
124 PIPE; WATER,TANK TO RAD 8-97602-556-1 01 1 0406- ●
124 PIPE; WATER,TANK TO RAD
EURO2 SPECIFICATION<THN> 		8-94391-033-0 01 1 9905-9906 ●
124 PIPE; WATER,TANK TO RAD
EURO2 SPECIFICATION<THN> 		8-94392-986-0 01 1 9907-0010 ●
124 PIPE; WATER,TANK TO RAD
EURO2 SPECIFICATION<THN> 		8-94392-986-0 01 1 0011-0405 ●
124 PIPE; WATER,TANK TO RAD 8-94392-986-0 01 1 0011-0405 ●
124 PIPE; WATER,TANK TO RAD
EURO2 SPECIFICATION<THN> 		8-94392-986-0 01 1 0406- ●
124 PIPE; WATER,TANK TO RAD
FSS ALL(FS****) 		8-94394-461-4 01 1 9604-9612 ●
124 PIPE; WATER,TANK TO RAD
FTS ALL(FT****) AUSTRALIA EQUIPMENT(RR3) 		8-94394-461-4 01 1 9604-9612 ●
124 PIPE; WATER,TANK TO RAD
THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-94394-461-4 01 1 9701-9712 ●
124 PIPE; WATER,TANK TO RAD
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94394-461-4 01 1 9801-9904 ●
124 PIPE; WATER,TANK TO RAD
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) EXC. EURO2 SPECIFICATION<THN> 		8-94394-461-4 01 1 9905-0004 ●
124 PIPE; WATER,TANK TO RAD
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-461-4 01 1 0005- ●
124 PIPE; WATER,TANK TO RAD
FTS ALL(FT****) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94396-222-1 01 1 9604-9612 ●
124 PIPE; WATER,TANK TO RAD 8-94396-222-1 01 1 9604-9612 ●
124 PIPE; WATER,TANK TO RAD
EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-94396-222-1 01 1 9701-9712 ●
124 PIPE; WATER,TANK TO RAD 8-94396-222-1 01 1 9701-9712 ●
124 PIPE; WATER,TANK TO RAD
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIAEQUIPMENT(SEQ) 		8-94396-222-1 01 1 9801-9904 ●
124 PIPE; WATER,TANK TO RAD 8-94396-222-1 01 1 9801-9904 ●
124 PIPE; WATER,TANK TO RAD
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIAEQUIPMENT(SEQ),EURO2 SPECIFICATION<THN> 		8-94396-222-1 01 1 9905-0004 ●
124 PIPE; WATER,TANK TO RAD 8-94396-222-1 01 1 9905-0004 ●
124 PIPE; WATER,TANK TO RAD
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2SPECIFICATION<THN> 		8-94396-222-2 01 1 0005- ●
124 PIPE; WATER,TANK TO RAD 8-94396-222-2 01 1 0005- ●
211 HOSE; RAD TO PIPE
L=450 SERVICED BY L=3000 		0-03557-300-0 01 1 0406- ●
211 HOSE; RAD TO PIPE
EURO2 SPECIFICATION<THN> L=540 SERVICED BY L=3000 		0-03257-300-0 01 1 9905-0010 ●
211 HOSE; RAD TO PIPE
EURO2 SPECIFICATION<THN> L=540 SERVICED BY L=3000 		0-03257-300-0 01 1 0011-0109 ●
211 HOSE; RAD TO PIPE
L=540 SERVICED BY L=3000 		0-03257-300-0 01 1 0011-0109 ●
211 HOSE; RAD TO PIPE
EURO2 SPECIFICATION<THN> L=540 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
211 HOSE; RAD TO PIPE
L=540 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
211 HOSE; RAD TO PIPE
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9604-9702 ● ●
211 HOSE; RAD TO PIPE
NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9703-9808 ● ●
211 HOSE; RAD TO PIPE
NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2SPECIFICATION<THN> L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9809-0004 ● ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9809-0004 ● ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ● ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=430 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ●
211 HOSE; RAD TO PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 9604-9702 ● ●
211 HOSE; RAD TO PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 9703-9808 ● ●
211 HOSE; RAD TO PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 9809-9904 ● ●
211 HOSE; RAD TO PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 9905-0004 ● ●
211 HOSE; RAD TO PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2SPECIFICATION<THN> L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ● ●
211 HOSE; RAD TO PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2SPECIFICATION<THN> L=290 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ●
212 CLIP; HOSE
FTS STD CAB MIDDLE CHASSIS(FT**MF) ID=13 & 21 		8-94417-626-0 01 1 0406- ●
214 HOSE; PIPE TO RESERVE TANK
FSS ALL(FS****) L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9604-0109 ●
214 HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9604-0109 ●
214 HOSE; PIPE TO RESERVE TANK
FSS ALL(FS****) L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
214 HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
214 HOSE; PIPE TO RESERVE TANK
FSS DOUBLE CAB(FS**W*) L=1800 SERVICED BY L=3000 		0-03257-300-0 01 1 9604-0004 ●
214 HOSE; PIPE TO RESERVE TANK
FTS STD CAB(FT**M*) L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9604-0010 ●
214 HOSE; PIPE TO RESERVE TANK
FTS STD CAB(FT**M*) L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 0011-0109 ●
214 HOSE; PIPE TO RESERVE TANK
FTS STD CAB(FT**M*) L=1200 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
214 HOSE; PIPE TO RESERVE TANK
FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) L=200 SERVICED BY L=3000 		0-03257-300-0 01 1 9604-0004 ●
214 HOSE; PIPE TO RESERVE TANK
L=1500 SERVICED BY L=3000 		0-03257-300-0 01 1 0011-0109 ●
214 HOSE; PIPE TO RESERVE TANK
L=1500 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0405 ●
214 HOSE; PIPE TO RESERVE TANK
L=1500 SERVICED BY L=3000 		0-03557-300-0 01 1 0406- ●
220 NUT; CLIP
FSS ALL(FS****) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) M8 		9-09110-408-0 02 1 9604-9606 ●
220 NUT; CLIP
M8 		9-09110-408-0 02 1 9604-9606 ●
220 NUT; CLIP
FSS ALL(FS****) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ●
220 NUT; CLIP
FSS ALL(FS****) M8 FLANGE 		0-91150-108-0 04 1 0005-0010 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0005-0010 ●
220 NUT; CLIP
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M8 FLANGE 		0-91150-108-0 04 1 0011-0602 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0011-0602 ●
220 NUT; CLIP
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
220 NUT; CLIP
FTS STD CAB(FT**M*) M8 		9-09110-408-0 03 1 9604-9606 ●
220 NUT; CLIP
FTS STD CAB(FT**M*) M8 FLANGE 		0-91150-108-0 03 1 9607-0010 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0011-0405 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0406-0602 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603- ●
259 BRACKET; RAD STAY
FSS ALL(FS****) 		1-21523-024-0 01 1 9604- ●
259 BRACKET; RAD STAY 1-21523-024-0 01 1 9604- ●
259 BRACKET; RAD STAY
FTS ALL(FT****) 		1-21523-025-0 01 1 9604-0004 ●
259 BRACKET; RAD STAY
FTS ALL(FT****) 		1-21523-025-0 01 1 0005-0405 ●
259 BRACKET; RAD STAY 1-21523-025-0 01 1 0005-0405 ●
259 BRACKET; RAD STAY
FTS ALL(FT****) 		1-21523-025-0 01 1 0406-0406 ●
259 BRACKET; RAD STAY 1-21523-025-0 01 1 0406-0406 ●
259 BRACKET; RAD STAY
FTS STD CAB(FT**M*) 		1-21523-025-0 01 1 0407- ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606 ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9607-0004 ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0405 ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0406-0406 ● ● ●
260 BOLT; BRKT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0512 ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0407-0512 ●
260 BOLT; BRKT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
261 NUT; BRKT
M8 		9-09110-408-0 02 1 9604-9606 ● ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0405 ● ● ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0406-0406 ● ● ●
261 NUT; BRKT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M8 FLANGE 		0-91150-108-0 02 1 0407-0602 ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0602 ●
261 NUT; BRKT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
279 BELL MOUTH
FTS STD CAB MIDDLE CHASSIS(FT**MF) 		8-94394-174-1 01 1 0406- ●
279 BELL MOUTH 8-94394-808-2 01 1 9604-0004 ● ●
279 BELL MOUTH 8-94394-808-2 01 1 0005-0405 ● ● ●
279 BELL MOUTH 8-94394-808-2 01 1 0406- ● ●

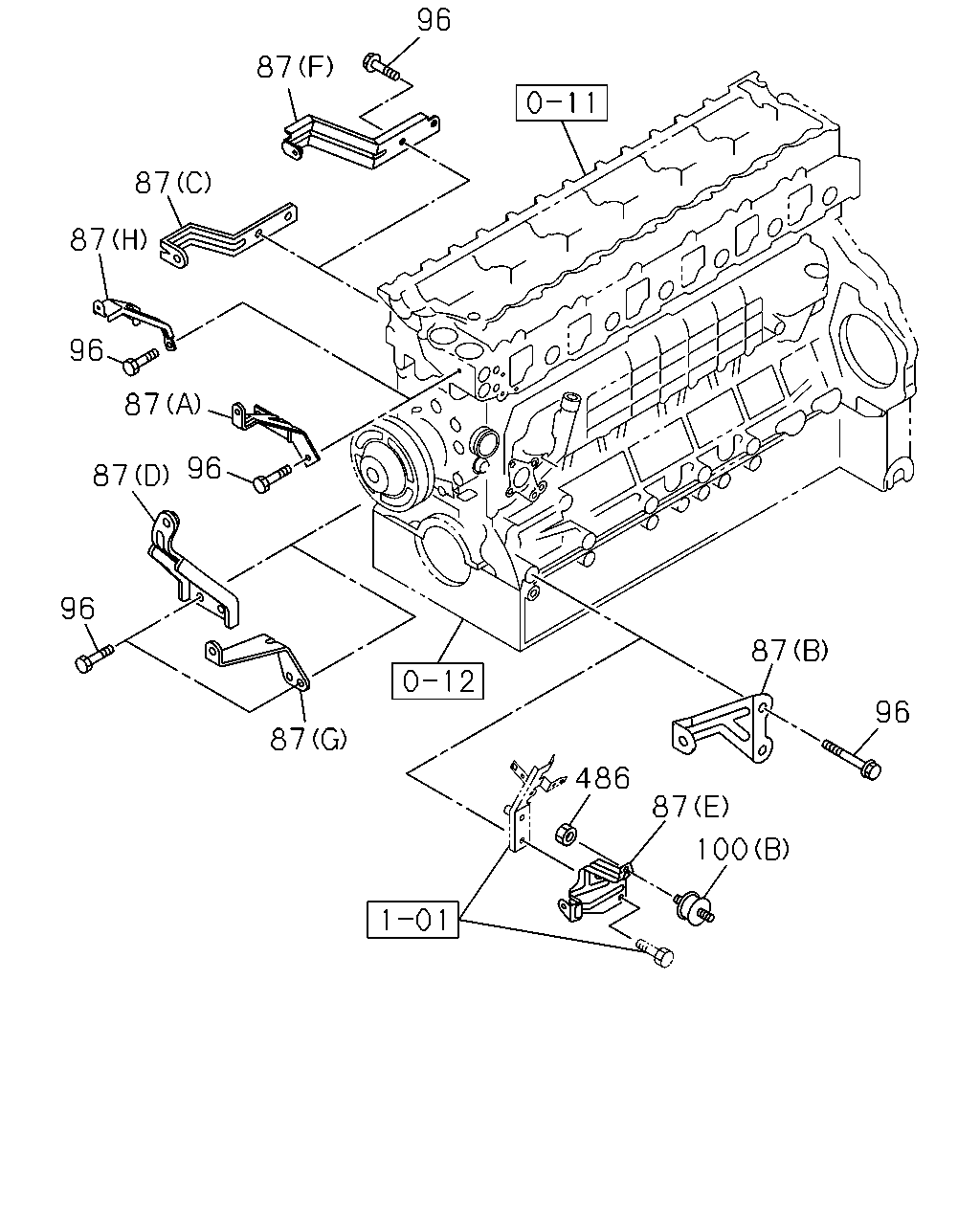

çizim 152645
96 87 87 87 96 87 96 87 96 87 96 87 486 87 100
BalonParca AdiParca NoAdetTipApplied Date A B C D
87 STAY; FAN GUIDE
(G) 		8-97603-527-0 01 1 0408- ●
87 STAY; FAN GUIDE
(F) 		8-97602-582-0 01 1 0406-0407 ●
87 STAY; FAN GUIDE
(H) 		8-94393-726-0 01 1 0408- ●
87 STAY; FAN GUIDE
(E) 		8-97602-940-0 01 1 0406- ●
87 STAY; FAN GUIDE
(C) 		8-94394-775-0 01 1 9604-0402 ● ●
87 STAY; FAN GUIDE
EURO2 SPECIFICATION<THN> (C) 		8-94394-775-0 01 1 0403-1108 ●
87 STAY; FAN GUIDE
EXC. AIR CONDITIONER MANUAL CONTROL<C60>,EURO2 SPECIFICATION<THN> (C) 		8-94394-775-0 01 1 0403-1108 ●
87 STAY; FAN GUIDE
EXC. AIR CONDITIONER MANUAL CONTROL<C60> (C) 		8-94394-775-0 01 1 0403-1108 ●
87 STAY; FAN GUIDE
(C) 		8-94394-775-0 01 1 1109- ● ● ●
87 STAY; FAN GUIDE
(A) 		8-94396-496-1 01 1 9604-0010 ● ●
87 STAY; FAN GUIDE
(A) 		8-94396-496-1 01 1 0011-0405 ● ● ●
87 STAY; FAN GUIDE
(B) 		8-94396-496-1 01 1 0406-1108 ● ●
87 STAY; FAN GUIDE
(B) 		8-94396-496-1 01 1 1109- ● ● ●
87 STAY; FAN GUIDE
(B) 		8-94397-395-1 01 1 9604-0010 ● ●
87 STAY; FAN GUIDE
(B) 		8-94397-395-1 01 1 0011-0405 ● ● ●
87 STAY; FAN GUIDE
(B) 		8-94397-395-1 01 1 0406-1108 ● ●
87 STAY; FAN GUIDE
(B) 		8-94397-395-1 01 1 1109- ● ● ●
87 STAY; FAN GUIDE
(D) 		8-97600-637-0 01 1 0011-0402 ●
87 STAY; FAN GUIDE
EXC. EURO2 SPECIFICATION<THN> (D) 		8-97600-637-0 01 1 0403-0405 ●
87 STAY; FAN GUIDE
(D) 		8-97600-637-0 01 1 0403-0405 ●
87 STAY; FAN GUIDE
AIR CONDITIONER MANUAL CONTROL<C60> EXC. EURO2 SPECIFICATION<THN> (D) 		8-97600-637-0 01 1 0406- ●
87 STAY; FAN GUIDE
AIR CONDITIONER MANUAL CONTROL<C60> (D) 		8-97600-637-0 01 1 0406- ●
96 BOLT; STAY FIX
M10X45 FLANGE 		0-28081-045-0 02 1 0011-0405 ●
96 BOLT; STAY FIX
M10X45 FLANGE 		0-28081-045-0 02 1 0406-0512 ●
96 BOLT; STAY FIX
M10X45 FLANGE 		0-28051-045-0 02 1 0601- ●
96 BOLT; STAY FIX
AIR CONDITIONER MANUAL CONTROL<C60> EXC. EURO2 SPECIFICATION<THN> M10X45 FLANGE 		0-28081-045-0 01 1 0403-0512 ●
96 BOLT; STAY FIX
AIR CONDITIONER MANUAL CONTROL<C60> M10X45 FLANGE 		0-28081-045-0 01 1 0403-0512 ●
96 BOLT; STAY FIX
AIR CONDITIONER MANUAL CONTROL<C60> EXC. EURO2 SPECIFICATION<THN> M10X45 FLANGE 		0-28051-045-0 01 1 0601- ●
96 BOLT; STAY FIX
AIR CONDITIONER MANUAL CONTROL<C60> M10X45 FLANGE 		0-28051-045-0 01 1 0601- ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 9604-0010 ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0011-0405 ● ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0406-0512 ● ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ● ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0406-0910 ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9604-0004 ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 0005-0405 ● ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 0406- ● ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0406-0602 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0603- ●

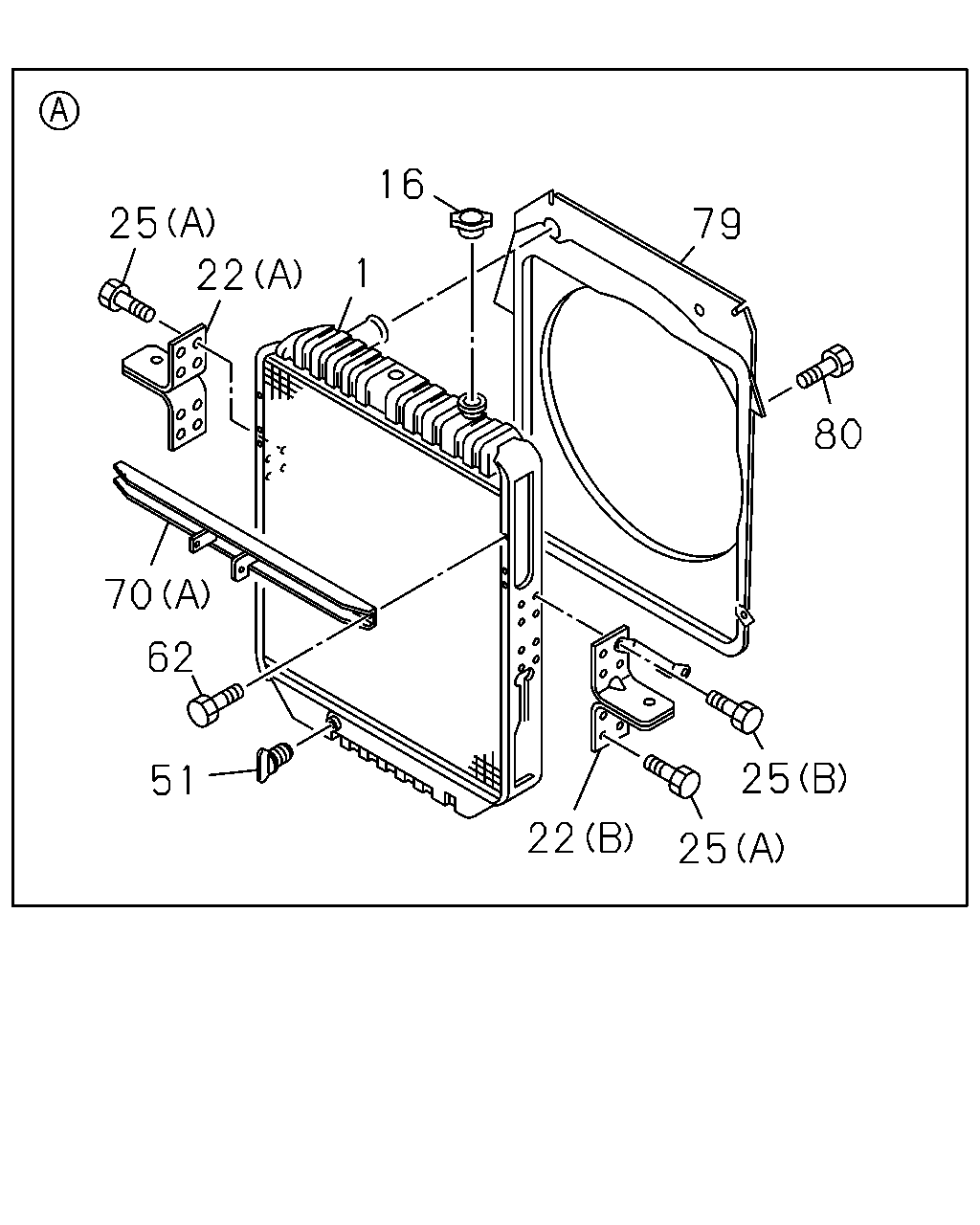

çizim 152648
16 25 22 79 1 80 70 62 25 51 22 25
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RADIATOR ASM 1-21410-733-0 01 1 0206-0405 ●
1 RADIATOR ASM 1-21410-887-0 01 1 0406- ●
1 RADIATOR ASM
AUSTRALIA EQUIPMENT(RR3) 		1-21410-675-1 01 1 9604-9904 ●
1 RADIATOR ASM
AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> 		1-21410-675-1 01 1 9905-0004 ●
1 RADIATOR ASM
EURO2 SPECIFICATION<THN> 		1-21410-675-1 01 1 9905-0004 ●
1 RADIATOR ASM
EURO2 SPECIFICATION<THN> 		1-21410-675-1 01 1 0005- ●
1 RADIATOR ASM
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-21410-674-1 01 1 9604-9904 ●
1 RADIATOR ASM 1-21410-674-1 01 1 9604-9904 ●
1 RADIATOR ASM
EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		1-21410-674-1 01 1 9905-0004 ●
1 RADIATOR ASM 1-21410-674-1 01 1 9905-0004 ●
1 RADIATOR ASM
EXC. EURO2 SPECIFICATION<THN> 		1-21410-674-1 01 1 0005-0010 ●
1 RADIATOR ASM 1-21410-674-1 01 1 0005-0010 ●
1 RADIATOR ASM
EXC. EURO2 SPECIFICATION<THN> 		1-21410-674-1 01 1 0011-0205 ●
1 RADIATOR ASM 1-21410-674-1 01 1 0011-0205 ● ●
1 RADIATOR ASM
EXC. EURO2 SPECIFICATION<THN> 		1-21410-674-1 01 1 0206- ●
1 RADIATOR ASM 1-21410-674-1 01 1 0206- ●
16 CAP; RAD 1-21450-097-2 01 1 0406- ●
16 CAP; RAD
EXC. EURO2 SPECIFICATION<THN> 		1-21450-142-0 01 1 0309-0311 ●
16 CAP; RAD 1-21450-142-0 01 1 0309-0311 ●
16 CAP; RAD 1-21450-142-0 01 1 0312-0405 ● ● ●
16 CAP; RAD 1-21450-142-0 01 1 0406- ● ●
16 CAP; RAD 1-21450-053-1 01 1 9604-0010 ● ●
16 CAP; RAD 1-21450-053-1 01 1 0011-0308 ● ● ●
16 CAP; RAD
EURO2 SPECIFICATION<THN> 		1-21450-053-2 01 1 0309-0311 ●
16 CAP; RAD 1-21450-053-2 01 1 0309-0311 ●
22 BRACKET; RAD MTG
(A) 		1-21464-591-0 01 1 0206-0405 ●
22 BRACKET; RAD MTG
(B) 		1-21464-520-0 01 1 0406- ●
22 BRACKET; RAD MTG
EURO2 SPECIFICATION<THN> (B) 		1-21464-548-0 01 1 9905-0203 ●
22 BRACKET; RAD MTG
(B) 		1-21464-548-0 01 1 0204- ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-361-0 01 1 9604-0010 ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-361-0 01 1 0011-0205 ● ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-361-0 01 1 0206- ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-362-2 01 1 9604-9704 ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-544-0 01 1 9705-9904 ● ●
22 BRACKET; RAD MTG
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21464-544-0 01 1 9905-0203 ●
22 BRACKET; RAD MTG
(B) 		1-21464-544-0 01 1 9905-0203 ●
22 BRACKET; RAD MTG
(B) 		1-21464-735-0 01 1 0011-0205 ●
22 BRACKET; RAD MTG
(B) 		1-21464-590-0 01 1 0206-0405 ●
22 BRACKET; RAD MTG
(A) 		1-21464-458-0 01 1 0406- ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 08 1 0206-0405 ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 9604-0010 ● ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 0011-0205 ● ● ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 0206-0405 ● ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 0406- ● ● ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9604-0010 ● ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0011-0205 ● ● ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0206-0405 ● ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0406- ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-023-0 01 1 0206-0405 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9604-0010 ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0011-0205 ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0206-0405 ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0406- ● ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 9604-0205 ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 0206-0405 ● ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 0406- ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9604-0010 ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0011-0405 ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0406- ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 9604-0004 ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0005-0405 ● ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0406- ● ●
79 GUIDE; FAN,RAD 1-21551-471-1 01 1 0406- ●
79 GUIDE; FAN,RAD 1-21551-374-1 01 1 9604-0010 ● ●
79 GUIDE; FAN,RAD 1-21551-374-4 01 1 0011-0405 ● ● ●
79 GUIDE; FAN,RAD 1-21551-374-4 01 1 0406- ● ●
80 BOLT; FAN GUIDE
M6X12 FLANGE 		0-28080-612-0 04 1 0206-0405 ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 06 1 0406- ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 9604-0010 ● ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0011-0205 ● ● ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0206- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
