Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#36754) — 260 parça

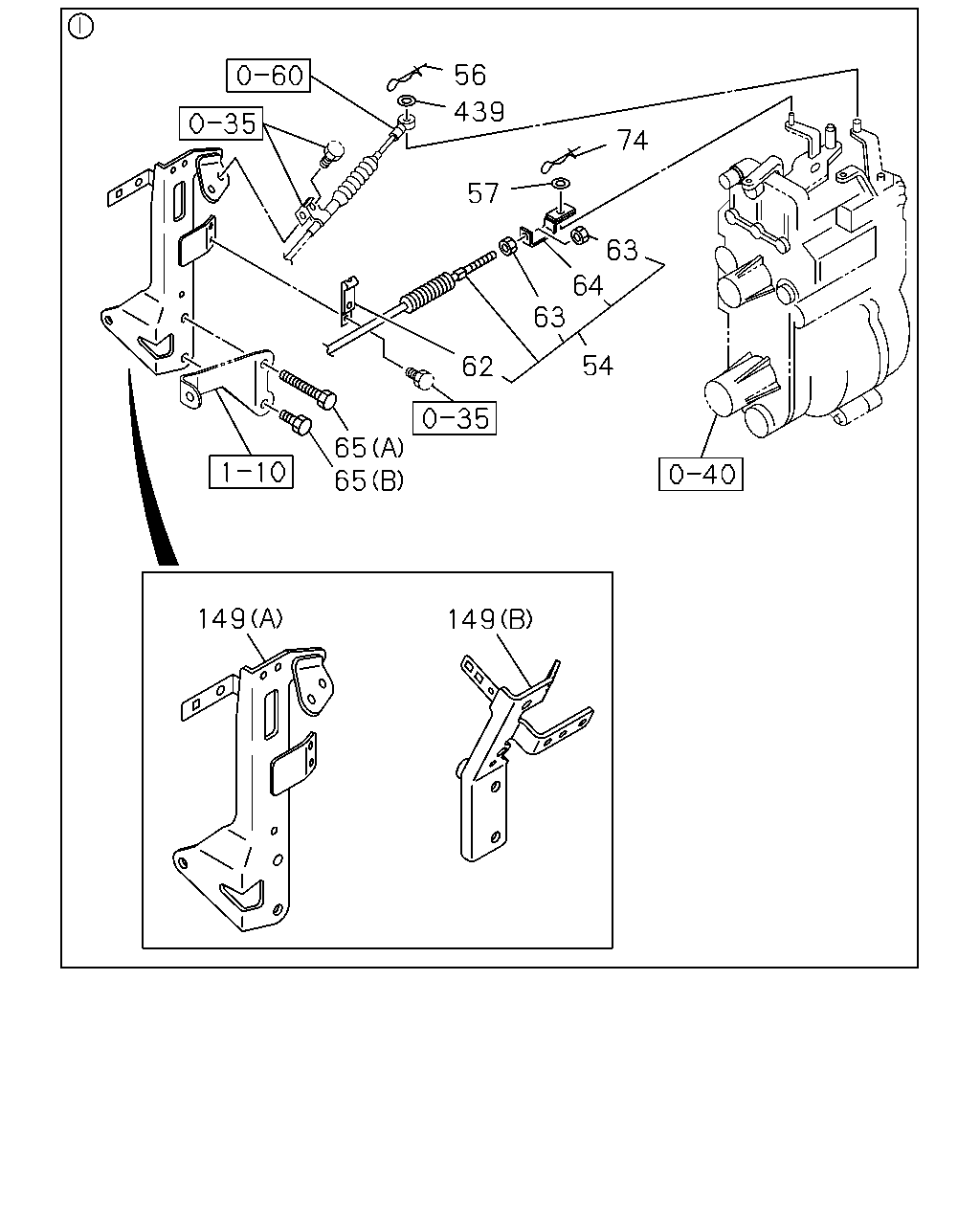

56 439 74 57 63 64 63 54 62 65 65 149 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
54	CABLE; ENG CONT FTS STD CAB MIDDLE CHASSIS(FT**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2964	1-73996-564-0	01	1	0304-0405	●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> L=2637	1-73996-366-1	01	1	9905-		●
54	CABLE; ENG CONT FSS ALL(FS****) L=2931	1-73996-446-0	01	1	0008-		●
54	CABLE; ENG CONT L=2931	1-73996-446-0	01	1	0008-			●
54	CABLE; ENG CONT L=2939	1-73998-940-4	01	1	9604-9904		●	●
54	CABLE; ENG CONT EXC. EURO2 SPECIFICATION<THN> L=2939	1-73998-940-5	01	1	9905-0007		●
54	CABLE; ENG CONT L=2939	1-73998-940-5	01	1	9905-0007			●
54	CABLE; ENG CONT FTS ALL(FT****) EXC. EURO2 SPECIFICATION<THN> L=2939	1-73998-940-6	01	1	0008-		●
54	CABLE; ENG CONT L=2904	1-73996-441-1	01	1	0011-0101	●
54	CABLE; ENG CONT L=2964	1-73996-520-0	01	1	0102-0303	●
54	CABLE; ENG CONT FTS STD CAB MIDDLE CHASSIS(FT**MF) EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2964	1-73996-520-0	01	1	0304-0405	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9604-0004		●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	0005-0405	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	0406-		●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9604-0004		●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	0005-0605	●	●	●
57	WASHER; ENG CONT CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-		●	●
62	CLIP; ENG CONT CABLE EURO2 SPECIFICATION<THN>	8-94397-228-0	01	1	9905-9911		●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9604-9904		●	●
62	CLIP; ENG CONT CABLE EXC. EURO2 SPECIFICATION<THN> L=30	1-09700-326-0	01	1	9905-9911		●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9905-9911			●
62	CLIP; ENG CONT CABLE L=30	1-09701-104-0	01	1	9912-0007		●	●
62	CLIP; ENG CONT CABLE FTS STD CAB MIDDLE CHASSIS(FT**MF) EURO2 SPECIFICATION<THN> L=30	1-09701-104-0	01	1	0008-0010	●	●
62	CLIP; ENG CONT CABLE FSS ALL(FS****) L=30	1-09701-104-0	01	1	0008-0010		●
62	CLIP; ENG CONT CABLE L=30	1-09701-104-0	01	1	0008-0010			●
62	CLIP; ENG CONT CABLE FSS STD CAB(FS*M) L=30	1-09701-104-0	01	1	0011-0405		●
62	CLIP; ENG CONT CABLE FTS STD CAB MIDDLE CHASSIS(FT**MF) EURO2 SPECIFICATION<THN> L=30	1-09701-104-0	01	1	0011-0405		●
62	CLIP; ENG CONT CABLE L=30	1-09701-104-0	01	1	0011-0405			●
62	CLIP; ENG CONT CABLE FTS STD CAB MIDDLE CHASSIS(FT**MF) L=30	1-09701-104-0	01	1	0011-0405	●
62	CLIP; ENG CONT CABLE FSS STD CAB(FS*M) L=30	1-09701-104-0	01	1	0406-		●
62	CLIP; ENG CONT CABLE FTS STD CAB MIDDLE CHASSIS(FT**MF) EURO2 SPECIFICATION<THN> L=30	1-09701-104-0	01	1	0406-		●
62	CLIP; ENG CONT CABLE L=30	1-09701-104-0	01	1	0406-			●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9604-0010		●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0011-	●	●	●
64	BRACKET; ENG CONT CABLE EURO2 SPECIFICATION<THN>	1-23219-110-0	01	1	9912-		●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9604-9911		●	●
64	BRACKET; ENG CONT CABLE EXC. EURO2 SPECIFICATION<THN>	1-23219-105-1	01	1	9912-0010		●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9912-0010			●
64	BRACKET; ENG CONT CABLE EXC. EURO2 SPECIFICATION<THN>	1-23219-105-1	01	1	0011-0405		●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0011-0405	●		●
64	BRACKET; ENG CONT CABLE EXC. EURO2 SPECIFICATION<THN>	1-23219-105-1	01	1	0406-		●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0406-			●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9604-0010		●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0011-0405	●	●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0406-0512		●	●	●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0601-		●	●	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	9604-0010		●	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0011-0405	●	●	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0406-0512		●	●	●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-		●	●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9604-0004		●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0405	●	●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0406-		●	●	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9604-0004		●	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0005-0403	●	●	●
65	BOLT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0404-0904	●	●	●
65	BOLT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●	●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	9604-0004		●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	0005-0405	●	●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	0406-1509		●	●
74	PIN; SNAP,CABLE END L=27.7	1-09987-141-0	01	1	1510-		●	●
149	BRACKET; ENG CONT EURO2 SPECIFICATION<THN> (B)	8-94392-194-3	01	1	9905-9909		●
149	BRACKET; ENG CONT EURO2 SPECIFICATION<THN> (B)	8-97600-861-1	01	1	9910-		●
149	BRACKET; ENG CONT (A)	8-94390-006-1	01	1	9604-9904		●	●
149	BRACKET; ENG CONT EXC. EURO2 SPECIFICATION<THN> (A)	8-94390-006-2	01	1	9905-		●
149	BRACKET; ENG CONT (A)	8-94390-006-2	01	1	9905-			●
149	BRACKET; ENG CONT (B)	8-97600-017-0	01	1	0011-0405	●
149	BRACKET; ENG CONT (B)	8-97600-017-0	02	1	0406-0407				●
149	BRACKET; ENG CONT (B)	8-97600-017-0	01	1	0408-				●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9604-0004		●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0005-0605	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-		●	●

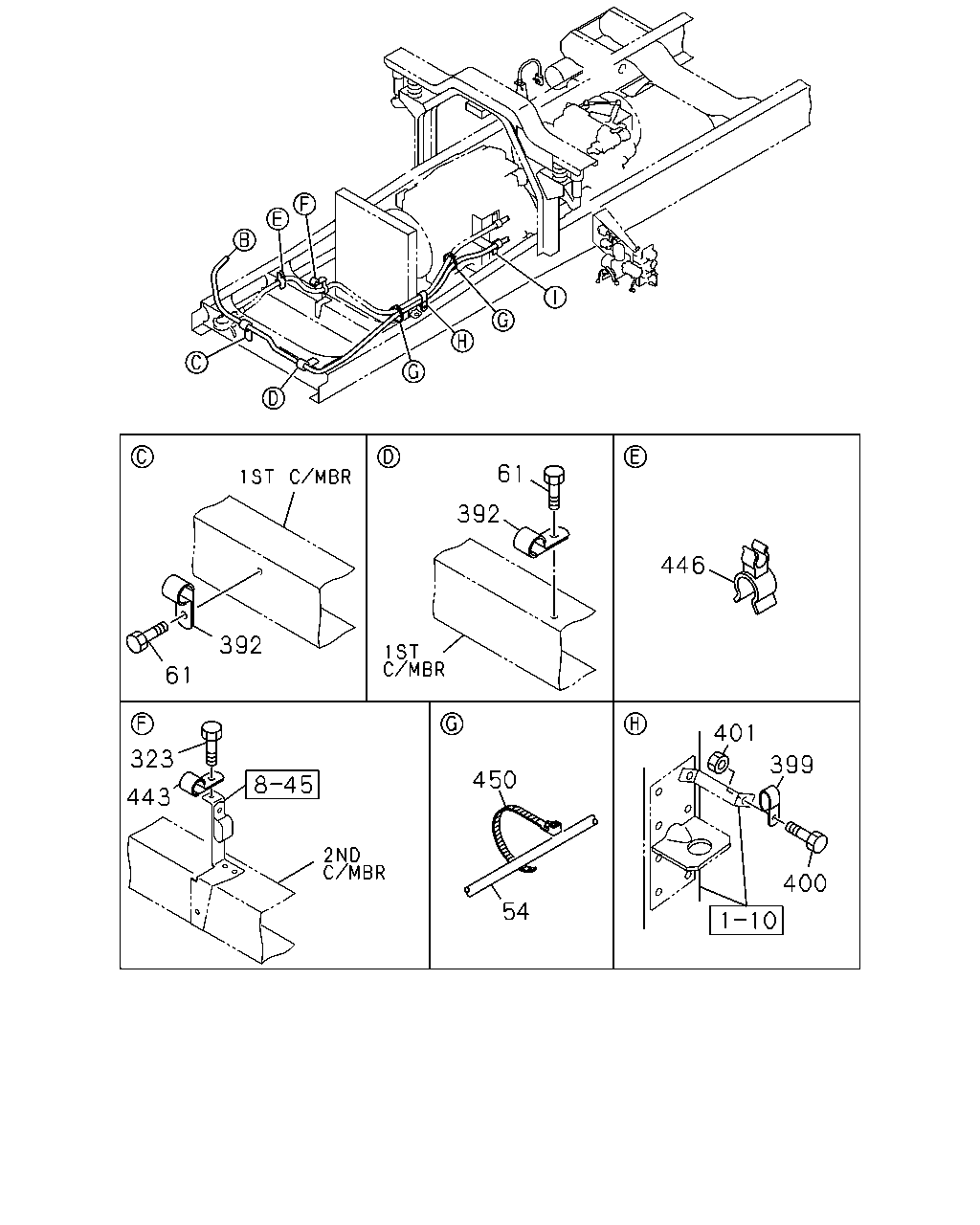

61 392 446 392 61 401 323 399 450 443 400 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT FTS STD CAB MIDDLE CHASSIS(FT**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2964	1-73996-564-0	01	1	0304-0405	●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> L=2637	1-73996-366-1	01	1	9905-		●
54	CABLE; ENG CONT FSS ALL(FS****) L=2931	1-73996-446-0	01	1	0008-		●
54	CABLE; ENG CONT L=2931	1-73996-446-0	01	1	0008-			●
54	CABLE; ENG CONT L=2939	1-73998-940-4	01	1	9604-9904		●	●
54	CABLE; ENG CONT EXC. EURO2 SPECIFICATION<THN> L=2939	1-73998-940-5	01	1	9905-0007		●
54	CABLE; ENG CONT L=2939	1-73998-940-5	01	1	9905-0007			●
54	CABLE; ENG CONT FTS ALL(FT****) EXC. EURO2 SPECIFICATION<THN> L=2939	1-73998-940-6	01	1	0008-		●
54	CABLE; ENG CONT L=2904	1-73996-441-1	01	1	0011-0101	●
54	CABLE; ENG CONT L=2964	1-73996-520-0	01	1	0102-0303	●
54	CABLE; ENG CONT FTS STD CAB MIDDLE CHASSIS(FT**MF) EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2964	1-73996-520-0	01	1	0304-0405	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	02	1	9604-0004		●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	02	1	0005-0405	●	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	02	1	0406-0512		●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28050-816-0	02	1	0601-		●	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9604-0004		●	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-		●	●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	9-09525-265-0	02	1	9604-0004		●	●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	9-09525-265-0	02	1	0005-0606	●	●	●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	0-95235-265-0	02	1	0607-		●	●
399	CLIP; CABLE,RAD SIDE ID=9X2 L=20	9-09534-835-0	01	1	9604-9704		●	●
399	CLIP; CABLE,RAD SIDE	1-09701-260-0	01	1	9705-0004		●	●
399	CLIP; CABLE,RAD SIDE	1-09701-260-0	01	1	0005-0405	●	●	●
399	CLIP; CABLE,RAD SIDE	1-09701-260-0	01	1	0406-		●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28080-816-0	01	1	9604-0004		●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●	●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28050-816-0	01	1	0601-		●	●
401	NUT; CLIP,RAD SIDE M8	9-09110-408-0	01	1	9604-9606		●	●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91150-108-0	01	1	9607-0004		●	●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91150-108-0	01	1	0005-0602	●	●	●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
443	CLIP; CABLE ID=7 L=20	9-09524-635-0	01	1	9604-0004		●	●
443	CLIP; CABLE ID=7 L=20	9-09524-635-0	01	1	0005-0606	●	●	●
443	CLIP; CABLE ID=7 L=20	0-95234-635-0	01	1	0607-		●	●
446	CLIP; ENG CONT ID=6.8X11.8	1-09709-127-0	01	1	9604-0004		●	●
446	CLIP; ENG CONT ID=6.8X11.8	1-09709-127-0	01	1	0005-0405	●	●	●
446	CLIP; ENG CONT ID=6.8X11.8	1-09709-127-0	01	1	0406-		●	●
450	CLIP; BAND L=140	5-09707-031-1	02	1	9604-0004		●	●
450	CLIP; BAND L=140	5-09707-031-1	02	1	0005-0405	●	●	●
450	CLIP; BAND L=140	5-09707-031-1	02	1	0406-		●	●

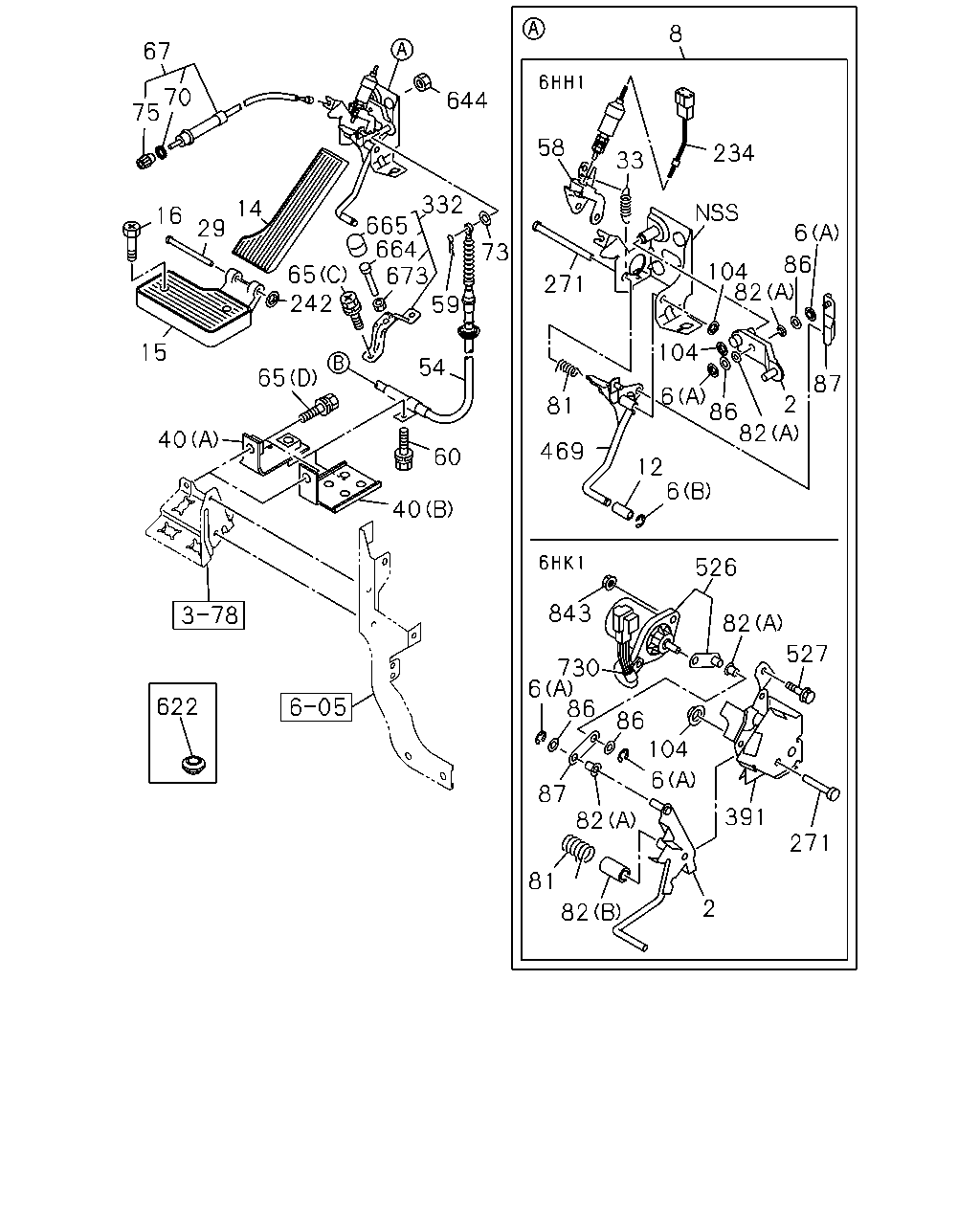

8 67 70 75 644 58 234 33 332 14 16 665 664 673 59 29 6 73 86 104 82 65 242 271 104 15 54 65 87 6 2 86 82 81 40 469 60 12 6 40 526 843 82 527 730 6 86 622 86 104 6 87 82 391 271 81 2 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LEVER; ENG CONT	1-71907-535-1	01	1	0406-				●
2	LEVER; ENG CONT	1-71907-210-2	01	1	9604-0004		●	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	0005-0405	●	●	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	0406-		●	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9604-0004		●	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	0005-0405	●	●	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	0406-0604		●	●	●
6	RING; SNAP,LINK TO LINK (A) ID=4	0-91805-504-0	02	1	0605-		●	●	●
6	RING; SNAP,LINK TO LINK (B) ID=6	9-09185-406-0	01	1	9604-9802		●	●
8	LINK ASM; ENG CONT	1-73996-532-0	01	1	0406-				●
8	LINK ASM; ENG CONT AUSTRALIA EQUIPMENT(RR3)	1-73996-276-2	01	1	9604-0004		●
8	LINK ASM; ENG CONT EXC. AUSTRALIA EQUIPMENT(RR3)	1-73996-206-6	01	1	9604-0004		●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9604-0004			●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	0005-0405	●	●	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	0406-		●	●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9604-9802		●	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9604-9708		●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9709-0004		●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0005-0405	●	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0406-		●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9604-0004		●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0005-0405	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0406-		●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9604-9902		●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9903-0004		●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0005-0405	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0406-		●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9604-0004		●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0005-0405	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0406-		●	●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9604-0004		●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	0005-0405	●	●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	0406-		●	●
40	BRACKET; ENG CONT CABLE HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	1-79738-844-2	01	1	0212-0405	●	●
40	BRACKET; ENG CONT CABLE HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	1-79738-844-2	01	1	0406-				●
40	BRACKET; ENG CONT CABLE (A)	1-47477-148-2	01	1	9604-9908		●	●
40	BRACKET; ENG CONT CABLE (A)	1-47478-612-0	01	1	9909-0004		●	●
40	BRACKET; ENG CONT CABLE (A)	1-47478-612-0	01	1	0005-0211	●	●	●
40	BRACKET; ENG CONT CABLE EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A)	1-47478-612-0	01	1	0212-	●	●	●
54	CABLE; ENG CONT FTS STD CAB MIDDLE CHASSIS(FT**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2964	1-73996-564-0	01	1	0304-0405	●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> L=2637	1-73996-366-1	01	1	9905-		●
54	CABLE; ENG CONT FSS ALL(FS****) L=2931	1-73996-446-0	01	1	0008-		●
54	CABLE; ENG CONT L=2931	1-73996-446-0	01	1	0008-			●
54	CABLE; ENG CONT L=2939	1-73998-940-4	01	1	9604-9904		●	●
54	CABLE; ENG CONT EXC. EURO2 SPECIFICATION<THN> L=2939	1-73998-940-5	01	1	9905-0007		●
54	CABLE; ENG CONT L=2939	1-73998-940-5	01	1	9905-0007			●
54	CABLE; ENG CONT FTS ALL(FT****) EXC. EURO2 SPECIFICATION<THN> L=2939	1-73998-940-6	01	1	0008-		●
54	CABLE; ENG CONT L=2904	1-73996-441-1	01	1	0011-0101	●
54	CABLE; ENG CONT L=2964	1-73996-520-0	01	1	0102-0303	●
54	CABLE; ENG CONT FTS STD CAB MIDDLE CHASSIS(FT**MF) EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2964	1-73996-520-0	01	1	0304-0405	●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9604-0004		●	●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	0005-0405	●	●	●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	0406-		●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9604-0004		●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	0005-0405	●	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	0406-		●	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9604-0004		●	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0005-0405	●	●	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0406-0904		●	●	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●	●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9604-0010		●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0011-0405	●	●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0406-0512		●	●	●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0601-		●	●	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	9604-0010		●	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0011-0405	●	●	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0406-0512		●	●	●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-		●	●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9604-0004		●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0405	●	●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0406-		●	●	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9604-0004		●	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0005-0403	●	●	●
65	BOLT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0404-0904	●	●	●
65	BOLT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●	●	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	9604-0004		●	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	0005-0204	●	●	●
67	CABLE ASM; IDLE CONT L=315	1-73908-423-1	01	1	0205-0405	●	●	●
67	CABLE ASM; IDLE CONT L=315	1-73908-423-1	01	1	0406-		●	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	9604-0004		●	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	0005-0405	●	●	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	0406-		●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9604-0004		●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	0005-0605	●	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-		●	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	9604-0004		●	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	0005-0109	●	●	●
75	KNOB ASM; IDLING CONT	8-97137-504-0	01	1	0110-0204	●	●	●
75	KNOB ASM; IDLING CONT	1-73908-409-0	01	1	0205-0405	●	●	●
75	KNOB ASM; IDLING CONT	1-73908-409-0	01	1	0406-		●	●
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9604-0004		●	●
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0005-0405	●	●	●
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0406-		●	●	●
82	BUSHING; ENG CONT LVR (B) L=31.5	1-53459-627-0	01	1	0406-				●
82	BUSHING; ENG CONT LVR (A)	1-71907-244-1	02	1	9604-0004		●	●
82	BUSHING; ENG CONT LVR (A)	1-71907-244-1	02	1	0005-0405	●	●	●
82	BUSHING; ENG CONT LVR (A)	1-71907-244-1	02	1	0406-		●	●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9604-0004		●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	0005-0405	●	●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	0406-		●	●	●
87	LINK; ENG CONT	8-97865-545-0	01	1	0406-				●
87	LINK; ENG CONT	1-71907-211-1	01	1	9604-0004		●	●
87	LINK; ENG CONT	1-71907-211-1	01	1	0005-0405	●	●	●
87	LINK; ENG CONT	1-71907-211-1	01	1	0406-		●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	0406-				●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9604-0004		●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	0005-0405	●	●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	0406-		●	●
234	SWITCH; ACCEL AUSTRALIA EQUIPMENT(RR3)	1-82440-098-0	01	1	9604-0004		●
234	SWITCH; ACCEL EXC. AUSTRALIA EQUIPMENT(RR3)	1-82380-114-2	01	1	9604-0004		●
234	SWITCH; ACCEL	1-82380-114-2	01	1	9604-0004			●
234	SWITCH; ACCEL	1-82380-114-3	01	1	0005-0405	●	●	●
234	SWITCH; ACCEL	1-82380-114-3	01	1	0406-		●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9604-0004		●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0005-0405	●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0406-		●	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9604-0004		●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	0005-0405	●	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	0406-		●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9604-0004		●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0005-0212	●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73908-428-0	01	1	0301-0405	●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73908-428-0	01	1	0406-		●	●	●
391	BRACKET; ENG CONT	1-73996-533-0	01	1	0406-				●
469	LEVER ASM	1-71907-209-5	01	1	9604-0004		●	●
469	LEVER ASM	1-71907-209-5	01	1	0005-0405	●	●	●
469	LEVER ASM	1-71907-209-5	01	1	0406-		●	●
526	SENSOR; ACCEL	8-94390-280-0	01	1	0406-				●
527	BOLT; ACCEL SENSOR M6X25 FLANGE	0-28680-625-0	02	1	0406-0512				●
527	BOLT; ACCEL SENSOR M6X25 FLANGE	0-28650-625-0	02	1	0601-				●
622	GROMMET; ACCEL CONT CABLE OD=30	8-94107-655-0	01	1	0406-				●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	9604-0004		●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0005-0405	●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0406-		●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9604-0004		●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0005-0405	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0406-		●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9604-0004		●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0005-0212	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9604-0004		●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0005-0405	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0406-0512		●	●	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-		●	●	●
730	CLIP ID=11 L=20	9-09525-032-0	01	1	0406-0606				●
730	CLIP ID=11 L=20	0-95235-032-0	01	1	0607-				●
843	NUT M6 FLANGE	0-91150-106-0	02	1	0406-0602				●
843	NUT M6 FLANGE	0-91180-106-0	02	1	0603-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
