◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10716 - FSS/FTS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87 - COUPLING; INJECTION PUMP ▶
0-87 — COUPLING; INJECTION PUMP (#36753) — 231 parça

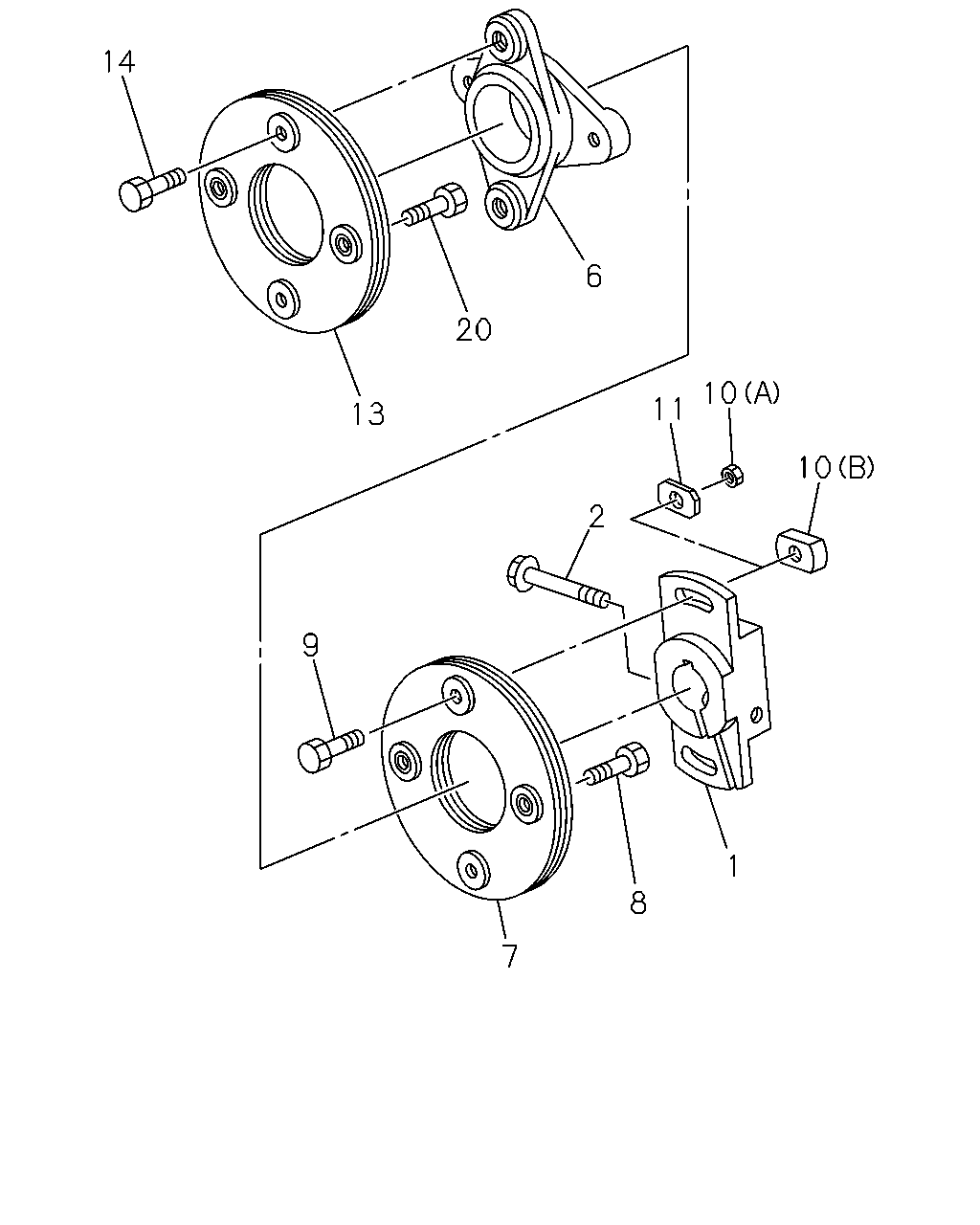

çizim 152626
14 6 20 10 11 13 10 2 9 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15780-193-0 01 1 9905-0010 ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15780-193-0 01 1 0011-0405 ●
1 COUPLING; INJ PUMP DRIVE 1-15780-193-0 01 1 0011-0405 ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15780-193-0 01 1 0406- ●
1 COUPLING; INJ PUMP DRIVE
THAILAND EQUIPMENT(PM9) 		1-15782-019-0 01 1 9701-9712 ●
1 COUPLING; INJ PUMP DRIVE
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15782-019-0 01 1 9801-9803 ●
1 COUPLING; INJ PUMP DRIVE
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) EXC. EURO2 SPECIFICATION<THN> 		1-15782-019-0 01 1 9804-0004 ●
1 COUPLING; INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15782-019-0 01 1 0005- ●
1 COUPLING; INJ PUMP DRIVE
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) 		1-15782-014-0 01 1 9604-9606 ●
1 COUPLING; INJ PUMP DRIVE
FTS ALL(FT****) 		1-15782-014-0 01 1 9604-9606 ●
1 COUPLING; INJ PUMP DRIVE 1-15782-014-0 01 1 9604-9606 ●
1 COUPLING; INJ PUMP DRIVE 1-15782-014-0 01 1 9607-9612 ● ●
1 COUPLING; INJ PUMP DRIVE
EXC. THAILAND EQUIPMENT(PM9) 		1-15782-014-0 01 1 9701-9712 ●
1 COUPLING; INJ PUMP DRIVE 1-15782-014-0 01 1 9701-9712 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15782-014-0 01 1 9801-9904 ●
1 COUPLING; INJ PUMP DRIVE 1-15782-014-0 01 1 9801-9904 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN> 		1-15782-014-0 01 1 9905-0004 ●
1 COUPLING; INJ PUMP DRIVE 1-15782-014-0 01 1 9905-0004 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2SPECIFICATION<THN> 		1-15782-014-0 01 1 0005- ●
1 COUPLING; INJ PUMP DRIVE 1-15782-014-0 01 1 0005- ●
1 COUPLING; INJ PUMP DRIVE
FSS STD CAB(FS**M*) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-15782-019-0 01 1 9604-9606 ●
2 BOLT; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-079-0 01 1 9905-0010 ●
2 BOLT; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-079-0 01 1 0011-0405 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-079-0 01 1 0011-0405 ●
2 BOLT; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-079-0 01 1 0406- ●
2 BOLT; COUPLING FIX,INJ PUMP
THAILAND EQUIPMENT(PM9) 		1-15789-170-0 01 1 9701-9712 ●
2 BOLT; COUPLING FIX,INJ PUMP
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-170-0 01 1 9801-9803 ●
2 BOLT; COUPLING FIX,INJ PUMP
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) EXC. EURO2 SPECIFICATION<THN> 		1-15789-170-0 01 1 9804-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-170-0 01 1 0005- ●
2 BOLT; COUPLING FIX,INJ PUMP
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) 		1-15789-010-0 01 1 9604-9606 ●
2 BOLT; COUPLING FIX,INJ PUMP
FTS ALL(FT****) 		1-15789-010-0 01 1 9604-9606 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9604-9606 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9607-9612 ● ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9) 		1-15789-010-0 01 1 9701-9712 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9701-9712 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-010-0 01 1 9801-9904 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9801-9904 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN> 		1-15789-010-0 01 1 9905-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9905-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2SPECIFICATION<THN> 		1-15789-010-0 01 1 0005- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 0005- ●
2 BOLT; COUPLING FIX,INJ PUMP
FSS STD CAB(FS**M*) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-15789-170-0 01 1 9604-9606 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-099-0 01 1 9905-0010 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-099-0 01 1 0011-0405 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-099-0 01 1 0011-0405 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-099-0 01 1 0406- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
THAILAND EQUIPMENT(PM9) 		1-15789-184-0 01 1 9701-9712 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-184-0 01 1 9801-9803 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) EXC. EURO2 SPECIFICATION<THN> 		1-15789-184-0 01 1 9804-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-184-0 01 1 0005- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) 		1-15789-155-0 01 1 9604-9606 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
FTS ALL(FT****) 		1-15789-155-0 01 1 9604-9606 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9604-9606 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9607-9612 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. THAILAND EQUIPMENT(PM9) 		1-15789-155-0 01 1 9701-9712 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9701-9712 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-155-0 01 1 9801-9904 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9801-9904 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN> 		1-15789-155-0 01 1 9905-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9905-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2SPECIFICATION<THN> 		1-15789-155-0 01 1 0005- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 0005- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
FSS STD CAB(FS**M*) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-15789-184-0 01 1 9604-9606 ●
7 PLATE; COUPLING,COUPLING SIDE
EURO2 SPECIFICATION<THN> 		1-15789-204-0 01 1 9905-0010 ●
7 PLATE; COUPLING,COUPLING SIDE
EURO2 SPECIFICATION<THN> 		1-15789-204-0 01 1 0011-0405 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-204-0 01 1 0011-0405 ●
7 PLATE; COUPLING,COUPLING SIDE
EURO2 SPECIFICATION<THN> 		1-15789-204-0 01 1 0406- ●
7 PLATE; COUPLING,COUPLING SIDE
THAILAND EQUIPMENT(PM9) 		1-15789-199-0 01 1 9701-9712 ●
7 PLATE; COUPLING,COUPLING SIDE
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-199-0 01 1 9801-9803 ●
7 PLATE; COUPLING,COUPLING SIDE
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9804-0004 ●
7 PLATE; COUPLING,COUPLING SIDE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 0005- ●
7 PLATE; COUPLING,COUPLING SIDE
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) 		1-15789-194-0 01 1 9604-9606 ●
7 PLATE; COUPLING,COUPLING SIDE
FTS ALL(FT****) 		1-15789-194-0 01 1 9604-9606 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9604-9606 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9607-9612 ● ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. THAILAND EQUIPMENT(PM9) 		1-15789-194-0 01 1 9701-9712 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9701-9712 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-194-0 01 1 9801-9904 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9801-9904 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN> 		1-15789-194-0 01 1 9905-0004 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9905-0004 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2SPECIFICATION<THN> 		1-15789-194-0 01 1 0005- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 0005- ●
7 PLATE; COUPLING,COUPLING SIDE
FSS STD CAB(FS**M*) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-15789-199-0 01 1 9604-9606 ●
8 BOLT; PLATE TO CROSS COUPLING
EURO2 SPECIFICATION<THN> 		1-15789-098-0 02 1 9905-0010 ●
8 BOLT; PLATE TO CROSS COUPLING
EURO2 SPECIFICATION<THN> 		1-15789-098-0 02 1 0011-0405 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-098-0 02 1 0011-0405 ●
8 BOLT; PLATE TO CROSS COUPLING
EURO2 SPECIFICATION<THN> 		1-15789-098-0 02 1 0406- ●
8 BOLT; PLATE TO CROSS COUPLING
THAILAND EQUIPMENT(PM9) 		1-15789-183-0 02 1 9701-9712 ●
8 BOLT; PLATE TO CROSS COUPLING
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-183-0 02 1 9801-9803 ●
8 BOLT; PLATE TO CROSS COUPLING
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9804-0004 ●
8 BOLT; PLATE TO CROSS COUPLING
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 0005- ●
8 BOLT; PLATE TO CROSS COUPLING
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) 		1-15749-501-0 02 1 9604-9606 ●
8 BOLT; PLATE TO CROSS COUPLING
FTS ALL(FT****) 		1-15749-501-0 02 1 9604-9606 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9604-9606 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9607-9612 ● ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. THAILAND EQUIPMENT(PM9) 		1-15749-501-0 02 1 9701-9712 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9701-9712 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15749-501-0 02 1 9801-9904 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9801-9904 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN> 		1-15749-501-0 02 1 9905-0004 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9905-0004 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2SPECIFICATION<THN> 		1-15749-501-0 02 1 0005- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 0005- ●
8 BOLT; PLATE TO CROSS COUPLING
FSS STD CAB(FS**M*) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-15789-183-0 02 1 9604-9606 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-016-0 02 1 9905-0010 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-016-0 02 1 0011-0405 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-016-0 02 1 0011-0405 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-016-0 02 1 0406- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
THAILAND EQUIPMENT(PM9) 		1-15789-182-0 02 1 9701-9712 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-182-0 02 1 9801-9803 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) EXC. EURO2 SPECIFICATION<THN> 		1-15789-182-0 02 1 9804-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-182-0 02 1 0005- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) 		1-15789-122-0 02 1 9604-9606 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
FTS ALL(FT****) 		1-15789-122-0 02 1 9604-9606 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9604-9606 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9607-9612 ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9) 		1-15789-122-0 02 1 9701-9712 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9701-9712 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-122-0 02 1 9801-9904 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9801-9904 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN> 		1-15789-122-0 02 1 9905-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9905-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2SPECIFICATION<THN> 		1-15789-122-0 02 1 0005- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 0005- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
FSS STD CAB(FS**M*) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-15789-182-0 02 1 9604-9606 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> (A) 		1-15789-073-0 02 1 9905-0010 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> (A) 		1-15789-073-0 02 1 0011-0405 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
(A) 		1-15789-073-0 02 1 0011-0405 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> (A) 		1-15789-073-0 02 1 0406- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
THAILAND EQUIPMENT(PM9) (B) 		1-15789-167-0 02 1 9701-9712 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) (B) 		1-15789-167-0 02 1 9801-9910 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) EXC. EURO2 SPECIFICATION<THN> (B) 		1-15789-167-0 02 1 9911-0004 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		1-15789-167-0 02 1 0005- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) (B) 		1-15789-066-0 02 1 9604-9606 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
FTS ALL(FT****) (B) 		1-15789-066-0 02 1 9604-9606 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
(B) 		1-15789-066-0 02 1 9604-9606 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
(B) 		1-15789-066-0 02 1 9607-9612 ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9) (B) 		1-15789-066-0 02 1 9701-9712 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
(B) 		1-15789-066-0 02 1 9701-9712 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) (B) 		1-15789-066-0 02 1 9801-9905 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
(B) 		1-15789-066-0 02 1 9801-9905 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN> (B) 		1-15789-066-0 02 1 9906-0004 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
(B) 		1-15789-066-0 02 1 9906-0004 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2SPECIFICATION<THN> (B) 		1-15789-066-0 02 1 0005- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
(B) 		1-15789-066-0 02 1 0005- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
FSS STD CAB(FS**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-15789-167-0 02 1 9604-9606 ●
11 WASHER; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-076-0 02 1 9905-0010 ●
11 WASHER; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-076-0 02 1 0011-0405 ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-076-0 02 1 0011-0405 ●
11 WASHER; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-076-0 02 1 0406- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-204-0 01 1 9905-0010 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-204-0 01 1 0011-0405 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-204-0 01 1 0011-0405 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-204-0 01 1 0406- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
THAILAND EQUIPMENT(PM9) 		1-15789-199-0 01 1 9701-9712 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-199-0 01 1 9801-9803 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9804-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 0005- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) 		1-15789-194-0 01 1 9604-9606 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
FTS ALL(FT****) 		1-15789-194-0 01 1 9604-9606 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9604-9606 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9607-9612 ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9) 		1-15789-194-0 01 1 9701-9712 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9701-9712 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-194-0 01 1 9801-9904 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9801-9904 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN> 		1-15789-194-0 01 1 9905-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9905-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2SPECIFICATION<THN> 		1-15789-194-0 01 1 0005- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 0005- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
FSS STD CAB(FS**M*) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-15789-199-0 01 1 9604-9606 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EURO2 SPECIFICATION<THN> 		1-15789-098-0 02 1 9905-0010 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EURO2 SPECIFICATION<THN> 		1-15789-098-0 02 1 0011-0405 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-098-0 02 1 0011-0405 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EURO2 SPECIFICATION<THN> 		1-15789-098-0 02 1 0406- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
THAILAND EQUIPMENT(PM9) 		1-15789-183-0 02 1 9701-9712 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-183-0 02 1 9801-9803 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9804-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 0005- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) 		1-15789-120-0 02 1 9604-9606 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
FTS ALL(FT****) 		1-15789-120-0 02 1 9604-9606 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9604-9606 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9607-9612 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. THAILAND EQUIPMENT(PM9) 		1-15789-120-0 02 1 9701-9712 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9701-9712 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-120-0 02 1 9801-9904 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9801-9904 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN> 		1-15789-120-0 02 1 9905-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9905-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2SPECIFICATION<THN> 		1-15789-120-0 02 1 0005- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 0005- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
FSS STD CAB(FS**M*) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-15789-183-0 02 1 9604-9606 ●
20 BOLT; COUPLING TO INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-205-0 02 1 9905-0010 ●
20 BOLT; COUPLING TO INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-205-0 02 1 0011-0405 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-205-0 02 1 0011-0405 ●
20 BOLT; COUPLING TO INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-205-0 02 1 0406- ●
20 BOLT; COUPLING TO INJ PUMP
THAILAND EQUIPMENT(PM9) 		1-15789-183-0 02 1 9701-9712 ●
20 BOLT; COUPLING TO INJ PUMP
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-183-0 02 1 9801-9910 ●
20 BOLT; COUPLING TO INJ PUMP
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9911-0004 ●
20 BOLT; COUPLING TO INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 0005- ●
20 BOLT; COUPLING TO INJ PUMP
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) 		1-15789-119-0 02 1 9604-9606 ●
20 BOLT; COUPLING TO INJ PUMP
FTS ALL(FT****) 		1-15789-119-0 02 1 9604-9606 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9604-9606 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9607-9612 ● ●
20 BOLT; COUPLING TO INJ PUMP
EXC. THAILAND EQUIPMENT(PM9) 		1-15789-119-0 02 1 9701-9712 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9701-9712 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-119-0 02 1 9801-9905 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9801-9905 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN> 		1-15789-119-0 02 1 9906-0004 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9906-0004 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2SPECIFICATION<THN> 		1-15789-119-0 02 1 0005- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 0005- ●
20 BOLT; COUPLING TO INJ PUMP
FSS STD CAB(FS**M*) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-15789-183-0 02 1 9604-9606 ●

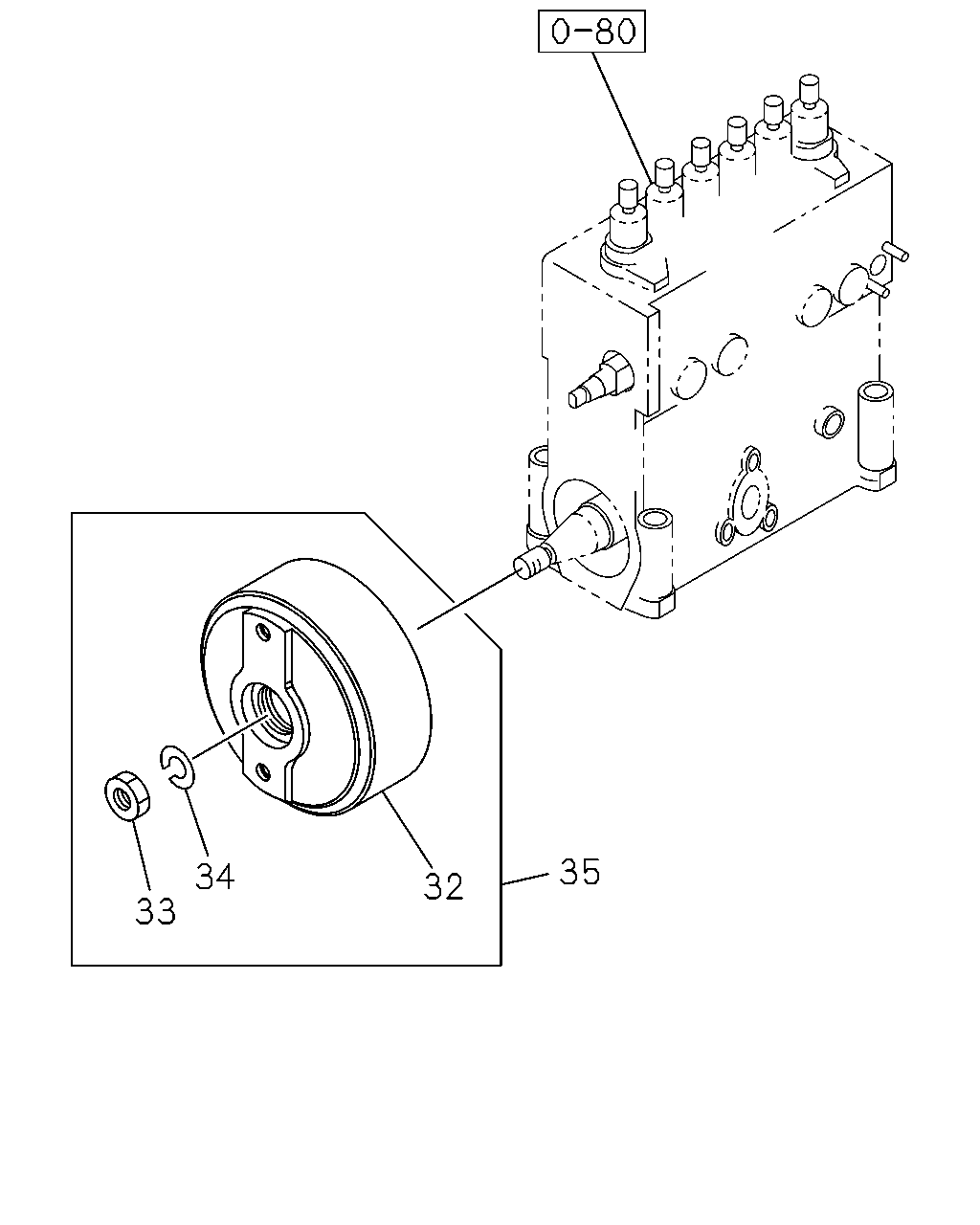

çizim 152647
35 34 32 33
BalonParca AdiParca NoAdetTipApplied Date A B C
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION<THN> 		8-94390-807-0 01 1 0005-0010 ●
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION<THN> 		8-94390-807-0 01 1 0011-0405 ●
32 DAMPER; INJ PUMP 8-94390-807-0 01 1 0011-0405 ●
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION<THN> 		8-94390-807-0 01 1 0406- ●
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION<THN> 		8-94390-807-0 01 1 9905-0004 ●
33 NUT; DAMPER
EURO2 SPECIFICATION<THN> 		1-15619-132-0 01 1 9905-0010 ●
33 NUT; DAMPER
EURO2 SPECIFICATION<THN> 		1-15619-132-0 01 1 0011-0405 ●
33 NUT; DAMPER 1-15619-132-0 01 1 0011-0405 ●
33 NUT; DAMPER
EURO2 SPECIFICATION<THN> 		1-15619-132-0 01 1 0406- ●
34 WASHER; DAMPER
EURO2 SPECIFICATION<THN> 		1-15619-131-0 01 1 9905-0010 ●
34 WASHER; DAMPER
EURO2 SPECIFICATION<THN> 		1-15619-131-0 01 1 0011-0405 ●
34 WASHER; DAMPER 1-15619-131-0 01 1 0011-0405 ●
34 WASHER; DAMPER
EURO2 SPECIFICATION<THN> 		1-15619-131-0 01 1 0406- ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15744-016-0 01 1 9905-0010 ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15744-016-0 01 1 0011-0405 ●
35 DAMPER ASM; INJ PUMP 1-15744-016-0 01 1 0011-0405 ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15744-016-0 01 1 0406- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
