Isuzu WW
▶
TRUCKS
▶
EXR
▶
10672 - EXR LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-60 - HEATER UNIT; FRONT
▶

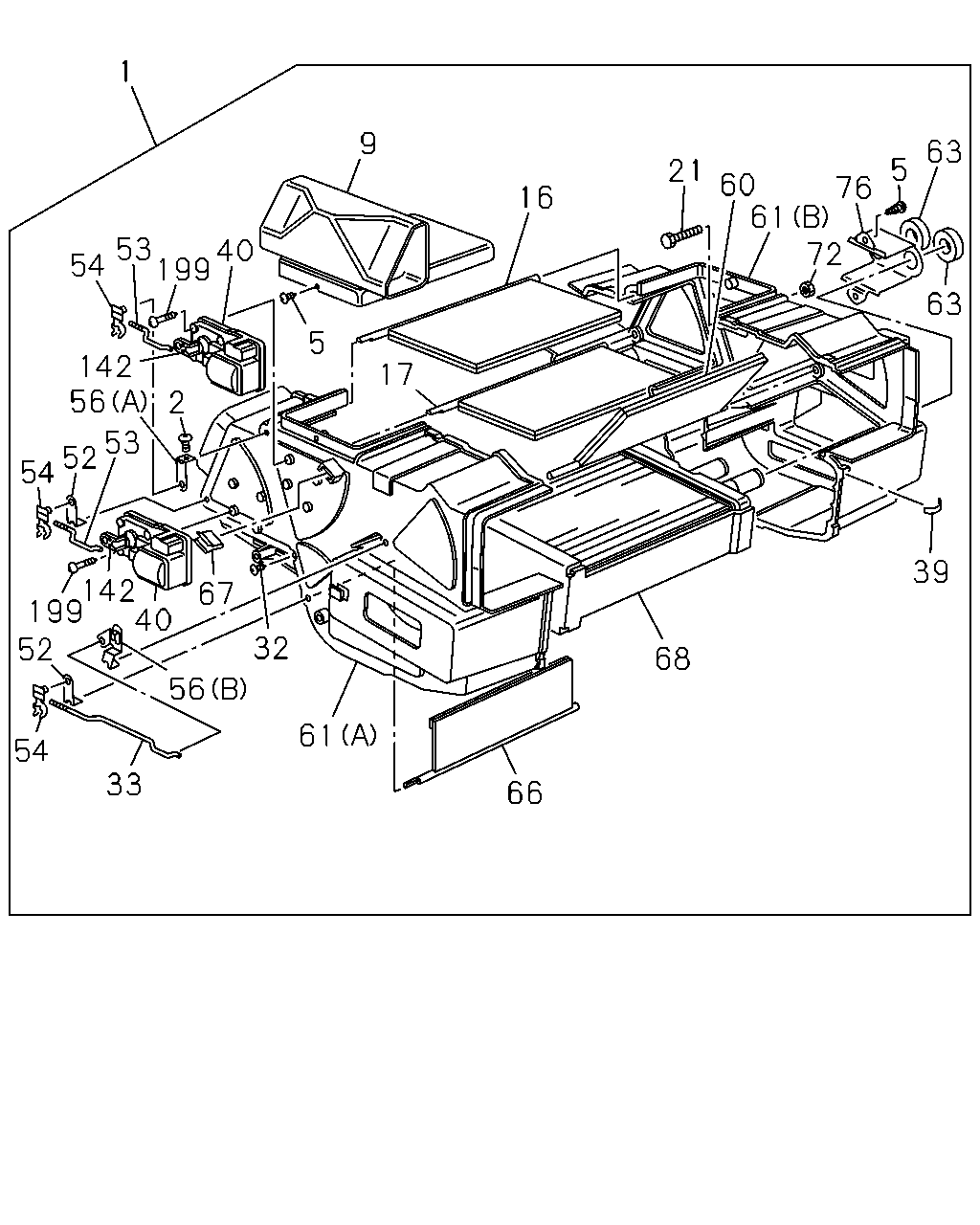

8-60 — HEATER UNIT; FRONT
(#3675) — 27 parça
1
9
63
5
21
60
76
61
72
16
53
40
54
199
63
5
142
53
52
54
17
39
142
199
40
52
67
32
68
56
61
54
33
66
2
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEATER UNIT
1-83511-086-4
01
1
9002-
2
SCREW; LEVER
5-83571-160-0
04
1
9002-
5
SCREW; BRKT
M5X12 TAPPING
9-07076-512-0
04
1
9002-
9
DUCT; HTR UNIT
1-83563-118-1
01
1
9002-
16
SHUTTER; HTR UNIT,CENTER UPR
1-83579-272-1
01
1
9002-
17
SHUTTER; HTR UNIT,CENTER
1-83579-131-1
01
1
9002-
21
BOLT; CASE,HTR UNIT
1-15619-207-0
03
1
9002-
32
SCREW; HTR UNIT
1-83579-133-0
02
1
9002-
33
ROD; SHUTTER LEVER
1-83579-128-1
01
1
9002-
39
CLIP; HTR UNIT
1-83574-148-0
09
1
9002-
40
ACTUATOR; HTR UNIT
1-83579-419-0
02
1
9002-
52
LEVER; SHUTTER,HTR UNIT
1-83564-216-0
02
1
9002-
53
ROD; SHUTTER LEVER
1-83579-273-0
02
1
9002-
54
CLIP; SHUTTER LEVER
1-83574-143-0
03
1
9002-
56
LEVER; SHUTTER,HTR UNIT
(A)
1-83564-163-0
01
1
9002-
56
LEVER; SHUTTER,HTR UNIT
(B)
1-83564-215-0
01
1
9002-
60
DOOR; MIX,HTR UNIT
1-83579-193-1
01
1
9002-
61
CASE; HTR UNIT
(A)
1-83564-213-0
01
1
9002-
61
CASE; HTR UNIT
(B)
1-83564-214-0
01
1
9002-
63
LINING; HTR UNIT
1-83579-104-0
02
1
9002-
66
SHUTTER; HTR UNIT,CENTER LWR
1-83579-271-1
01
1
9002-
67
CLIP; HTR UNIT
1-83574-149-0
01
1
9002-
68
CORE; HTR UNIT
1-83562-034-1
01
1
9002-
72
NUT; CASE,HTR UNIT
9-88410-525-0
03
1
9002-
76
BRACKET; HTR UNIT
1-83571-368-0
01
1
9002-
142
LEVER; ACTUATOR
1-83564-114-0
02
1
9002-
199
SCREW; ACTUATOR
1-83579-422-0
06
1
9002-
