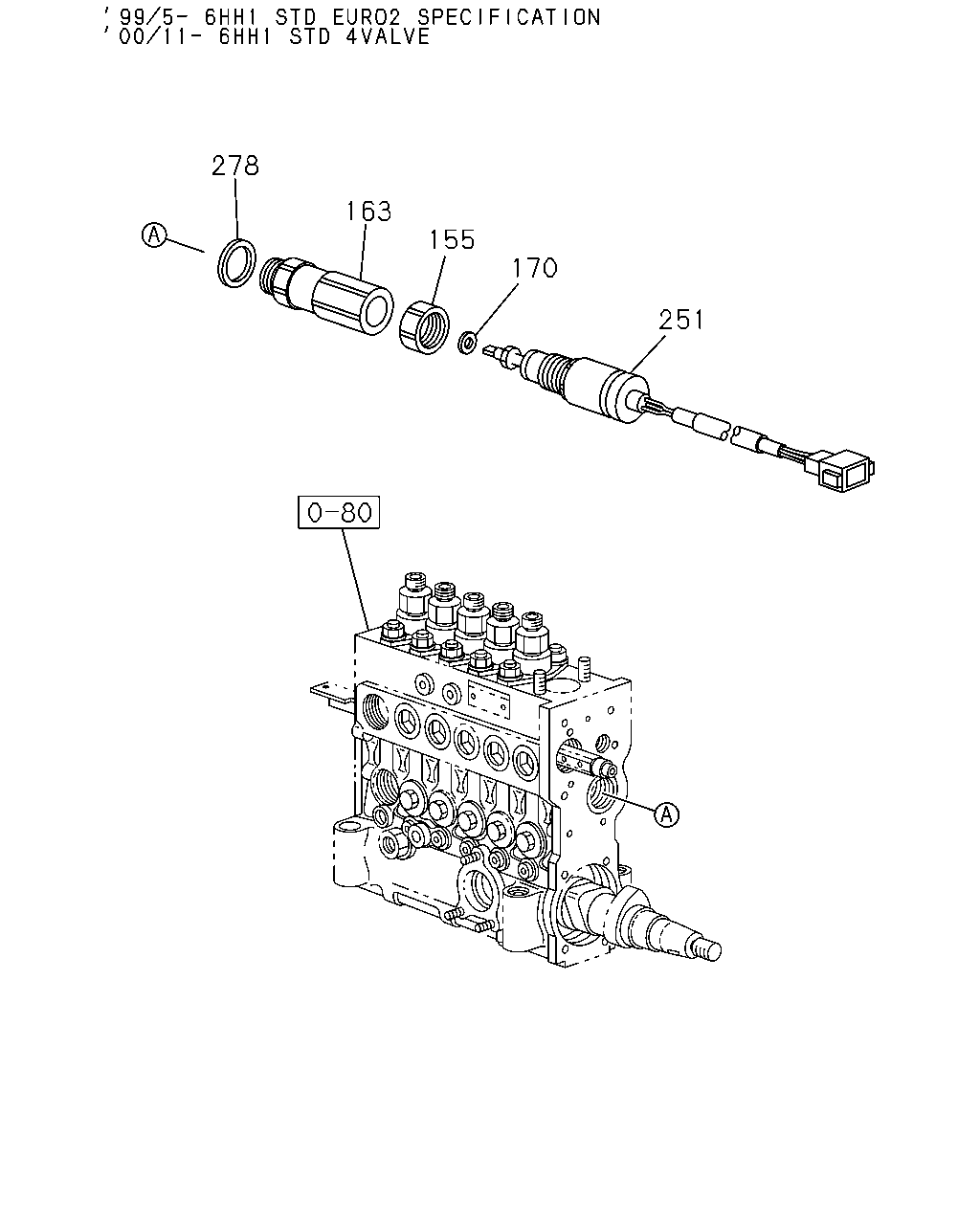

0-82 — BOOST COMPENSATOR; INJECTION GOVERNOR (#36749) — 8 parça

278 163 155 170 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	NUT; SENSOR ASM PART: A = 8-94392-231-8, B = 8-97600-576-1, C = 8-97602-131-0	1-15779-179-0	01	1	-
163	JOINT; LOAD SENSOR,SENSOR SIDE ASM PART: A = 8-94392-231-8	1-15779-551-0	01	1	0002-
163	JOINT; LOAD SENSOR,SENSOR SIDE ASM PART: B = 8-97600-576-1, C = 8-97602-131-0	1-15779-551-0	01	1	-
163	JOINT; LOAD SENSOR,SENSOR SIDE ASM PART: A = 8-94392-231-8	1-15779-618-0	01	1	-0001
170	SHIM; CONN PIN,LOAD SENSOR,GOV ASM PART: A = 8-94392-231-8, B = 8-97600-576-1, C = 8-97602-131-0	1-15729-673-0	01	1	-
251	SENSOR; RACK,GOV ASM PART: B = 8-97600-576-1, C = 8-97602-131-0	1-15637-045-2	01	1	-
251	SENSOR; RACK,GOV ASM PART: A = 8-94392-231-8	1-15637-046-5	01	1	-
278	GASKET; SENSOR ASM PART: A = 8-94392-231-8, B = 8-97600-576-1, C = 8-97602-131-0	9-81325-528-0	01	1	-
