0-60 — ENGINE ELECTRICAL CONTROL PARTS (#36743) — 323 parça

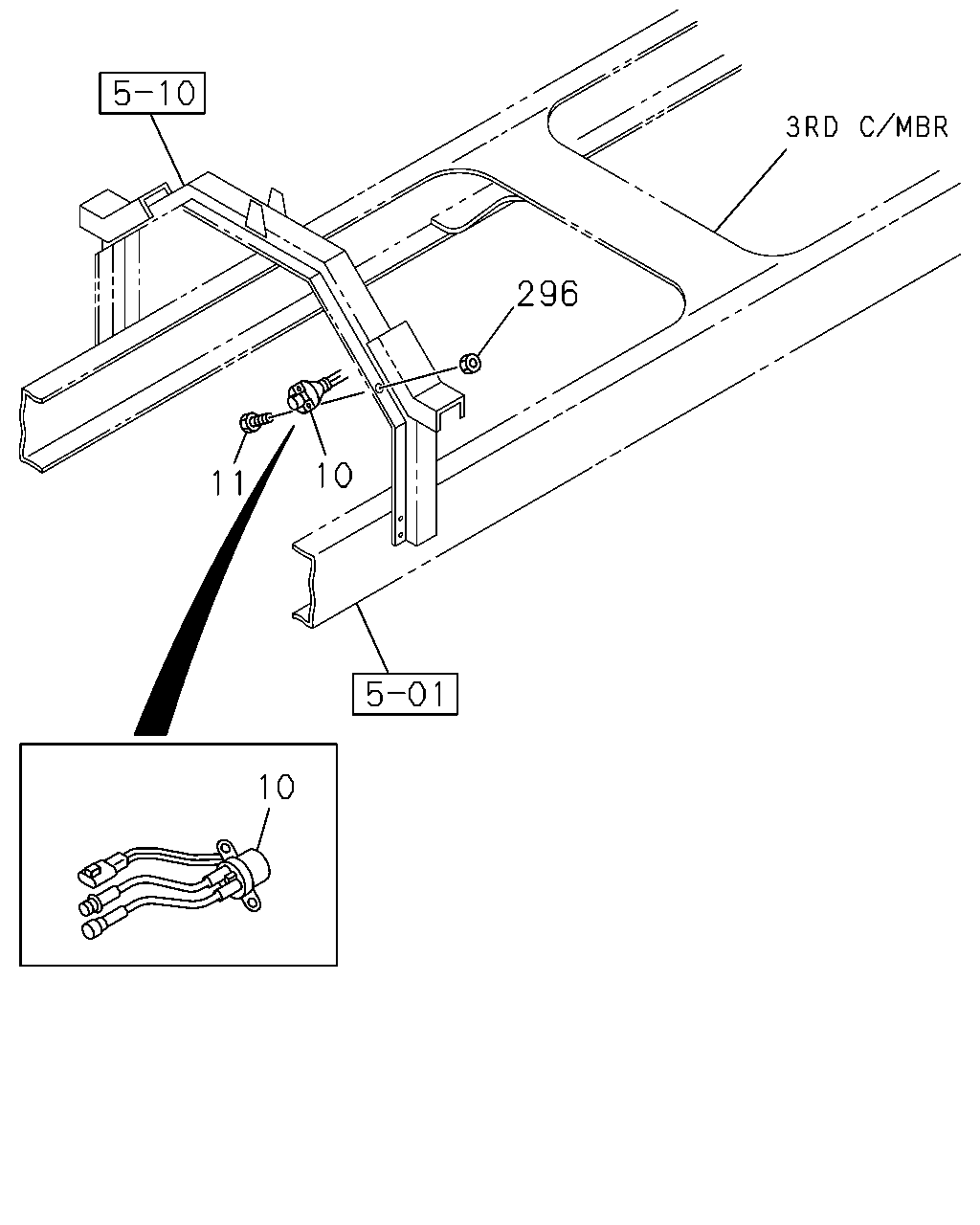

296 10 11 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
10	RELAY; STARTER EXC. STARTER DENSO<RC6> HITACHI	1-81171-087-0	01	1	9904-9907	●
10	RELAY; STARTER HITACHI	1-81171-087-0	01	1	9904-9907		●
10	RELAY; STARTER EXC. NIKKO<Y70> HITACHI	1-81171-087-0	01	1	9908-0006	●	●
10	RELAY; STARTER NIKKO	1-81171-067-0	01	1	9604-9608	●	●
10	RELAY; STARTER NIKKO	1-81171-075-0	01	1	9609-9904	●	●
10	RELAY; STARTER EXC. STARTER DENSO<RC6> NIKKO	1-81171-075-0	01	1	9905-0006	●
10	RELAY; STARTER NIKKO	1-81171-075-0	01	1	9905-0006		●
10	RELAY; STARTER EXC. STARTER DENSO<RC6> HITACHI	1-81171-087-0	01	1	0007-0303	●
10	RELAY; STARTER HITACHI	1-81171-087-0	01	1	0007-0303		●
10	RELAY; STARTER EXC. STARTER DENSO<RC6> NIKKO	1-81171-075-1	01	1	0304-	●
10	RELAY; STARTER NIKKO	1-81171-075-1	01	1	0304-		●
10	RELAY; STARTER FTS STD CAB MIDDLE CHASSIS(FT**MF) STARTER DENSO<RC6> DENSO	1-81171-070-0	01	1	9905-	●		●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	9607-9801	●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28680-820-0	02	1	9802-9803	●	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	9804-0004	●	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	0005-0405	●	●	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	0406-0512	●	●		●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●		●
296	NUT; RELAY,STARTER M8	9-09110-408-0	02	1	9604-9606	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	0005-0405	●	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	0406-0602	●	●		●
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●		●

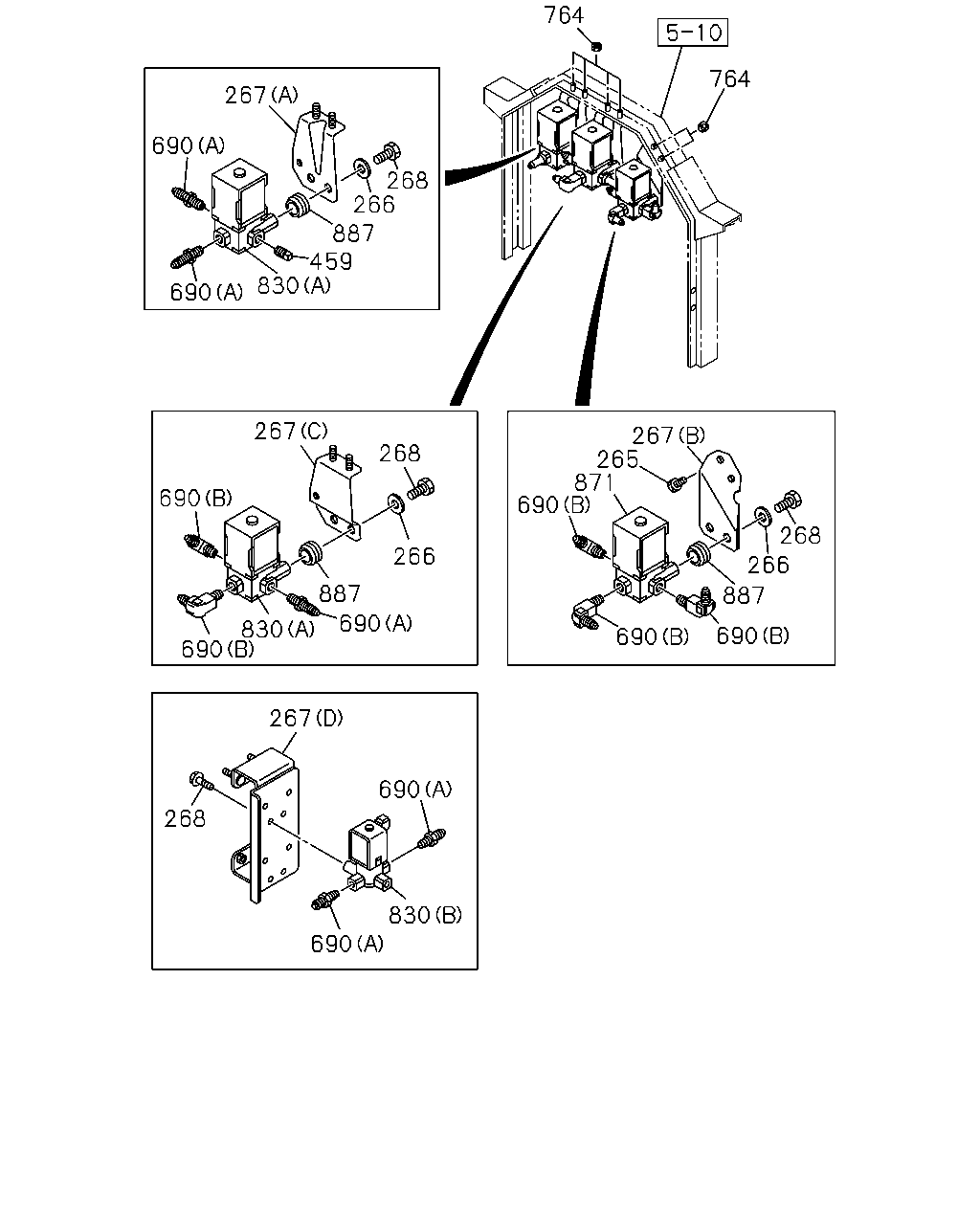

764 764 267 690 268 266 887 459 830 690 267 267 265 871 690 268 690 268 266 266 887 887 690 830 690 690 690 267 690 268 830 690

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
265	BOLT; MAG VLV FIX M8X20 FLANGE	0-28680-820-0	02	1	0011-0405			●
266	WASHER; PL,MAG VLV FIX ID=12.5 OD=26	9-09160-612-0	06	1	0011-0405			●
267	BRACKET; MAG VLV (D)	1-47477-327-2	01	1	0005-	●	●	●
267	BRACKET; MAG VLV (A)	1-47478-245-0	01	1	0011-0405			●
267	BRACKET; MAG VLV (B)	1-47478-401-0	01	1	0011-0405			●
267	BRACKET; MAG VLV (C)	1-47478-644-0	01	1	0011-0405			●
268	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●	●
268	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
268	BOLT; BRKT,MAG VLV M8X30	1-09009-020-1	06	1	0011-0405			●
459	PLUG PT1/4	9-99204-513-0	01	1	0011-0405			●
690	CONNECTOR (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0005-	●	●	●
690	CONNECTOR (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0011-0405			●
690	CONNECTOR (C)	8-94390-858-1	02	1	0406-				●
690	CONNECTOR (B) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	0011-0405			●
764	NUT; MAG VLV M8 FLANGE	0-91150-108-0	06	1	0011-0405			●
830	VALVE; MAG,EGR (B)	1-82563-598-5	01	1	0005-	●	●	●
830	VALVE; MAG,EGR (A)	1-82563-798-4	02	1	0011-0405			●
871	VALVE; MAG,INTAKE SHUTTER	1-82563-798-4	01	1	0011-0405			●
887	GROMMET; MAG VLV	1-09332-117-0	06	1	0011-0405			●

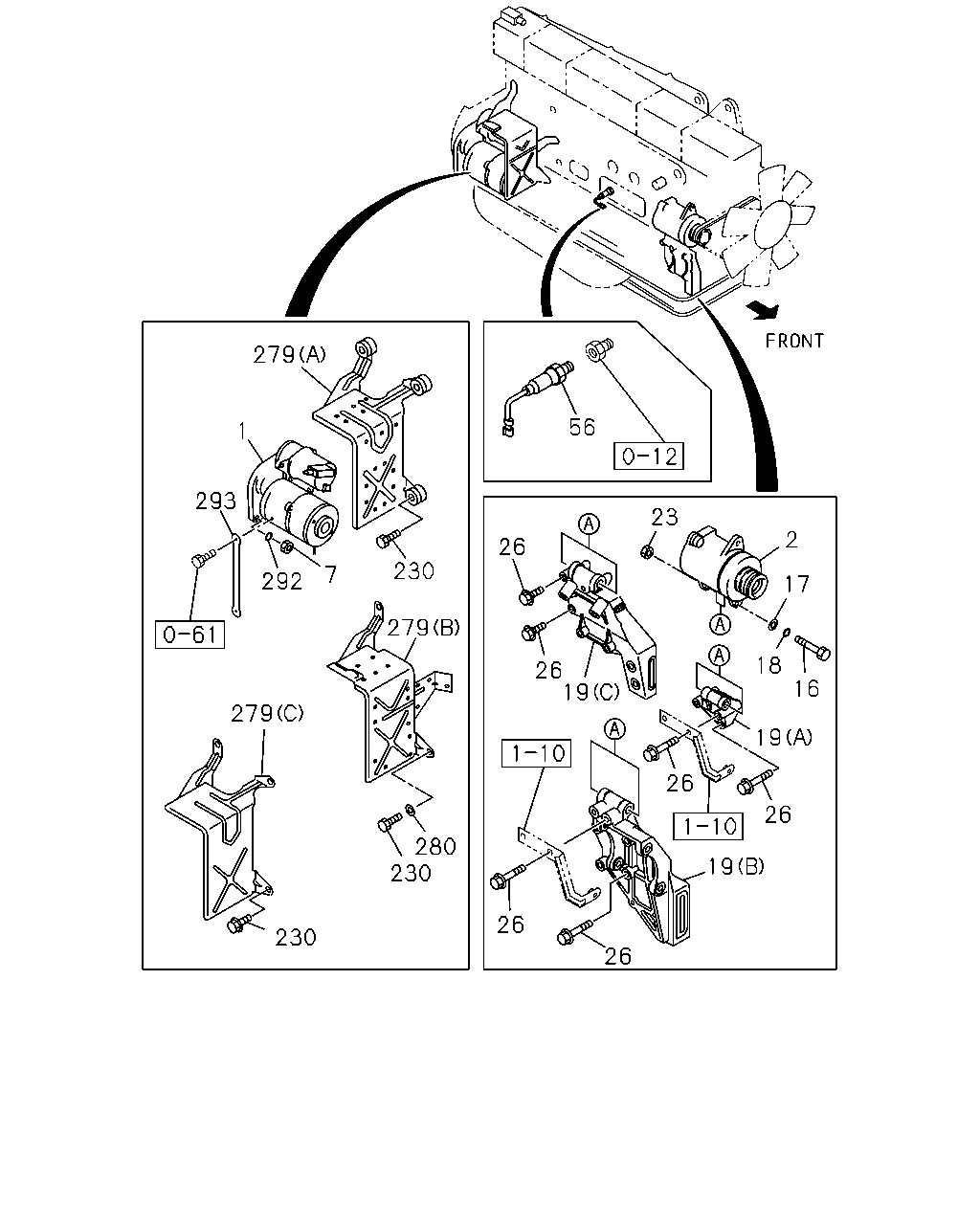

279 56 1 293 23 2 26 230 7 292 17 279 18 26 19 16 279 19 26 26 280 230 19 26 230 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO<RC6> 24V 4.5KW DENSO	8-94399-159-4	01	1	9609-0010	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO<RC6> 24V 4.5KW DENSO	8-94399-159-4	01	1	0011-0108	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-94399-159-4	01	1	0011-0108			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO<RC6> 24V 4.5KW DENSO	8-97602-167-1	01	1	0109-0405	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-97602-167-1	01	1	0109-0405			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO<RC6> 24V 4.5KW DENSO	8-97602-167-1	01	1	0406-	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-97602-167-1	01	1	0406-				●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-307-0	01	1	9604-9608	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER DENSO<RC6> 24V 4.5KW NIKKO	1-81100-307-0	01	1	9609-9708	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-307-0	01	1	9609-9708		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER DENSO<RC6> 24V 4.5KW NIKKO	1-81100-323-0	01	1	9709-0005	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-323-0	01	1	9709-0005		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. THAILAND EQUIPMENT(PM9),EURO2 SPECIFICATION<THN> 24V 4.5KW NIKKO	1-81100-323-0	01	1	0006-0006	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-323-0	01	1	0006-0006		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER DENSO<RC6> 24V 4.5KW NIKKO	1-81100-323-1	01	1	0006-	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-323-1	01	1	0006-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI	1-81200-599-5	01	1	0406-				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. THAILAND EQUIPMENT(PM9) 24V 40A DENSO	8-94399-157-1	01	1	9609-9910	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. THAILAND EQUIPMENT(PM9) EXC. EURO2 SPECIFICATION<THN> 24V 40A DENSO	8-94399-157-1	01	1	9911-0004	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. FTS ALL(FT****) MBJ5J M/T(Y1Y) EURO2 SPECIFICATION<THN> 24V 40A DENSO	8-94399-157-1	01	1	9911-0004	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. FTS STD CAB MIDDLE CHASSIS(FT**MF) GENERATOR DENSO 24V-40A 1KW(SC4) 24V 40A DENSO	8-94399-157-1	01	1	0005-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. THAILAND EQUIPMENT(PM9) 24V 40A MITSUBISHI	1-81200-521-0	01	1	9904-9904	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-521-0	01	1	9904-9904		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. THAILAND EQUIPMENT(PM9),EURO2 SPECIFICATION<THN> 24V 40A MITSUBISHI	1-81200-521-0	01	1	9905-9905	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-521-0	01	1	9905-9905		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. THAILAND EQUIPMENT(PM9),EURO2 SPECIFICATION<THN> 24V 40A MITSUBISHI	1-81200-577-0	01	1	9906-9907	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-577-0	01	1	9906-9907		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. FTS ALL(FT****) MLD6D M/T(X5Q) EURO2 SPECIFICATION<THN> 24V 60A NIKKO	1-81200-417-3	01	1	9911-0004	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. FTS STD CAB MIDDLE CHASSIS(FT**MF) GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A NIKKO	1-81200-417-3	01	1	0005-0010	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. FTS ALL(FT****) MLD6D M/T(X5Q) EURO2 SPECIFICATION<THN> 24V 60A NIKKO	1-81200-417-3	01	1	0011-0402	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A NIKKO	1-81200-417-3	01	1	0011-0402			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 60A NIKKO	1-81200-417-3	01	1	0403-0405	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A NIKKO	1-81200-417-3	01	1	0403-0405			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EURO2 SPECIFICATION<THN> MLD6D M/T(X5Q) 24V 60A NIKKO	1-81200-417-3	01	1	0406-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. FTS ALL(FT****) MLD6D M/T(X5Q) EURO2 SPECIFICATION<THN> 24V 60A MITSUBISHI	1-81200-576-1	01	1	9911-0004	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. FTS STD CAB MIDDLE CHASSIS(FT**MF) EXC. GENERATOR DENSO 24V-40A 1KW(SC4),GENERATOR NIKKO 24V-40A 1KW(SC5),GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI	1-81200-576-2	01	1	0005-0009	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-3	01	1	9604-9608	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. THAILAND EQUIPMENT(PM9) 24V 40A NIKKO	1-81200-416-4	01	1	9609-9904	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-4	01	1	9609-9904		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. THAILAND EQUIPMENT(PM9),EURO2 SPECIFICATION<THN> 24V 40A NIKKO	1-81200-416-4	01	1	9905-0004	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-4	01	1	9905-0004		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. FSS ALL(FS**) FTS SHORT CHASSIS(FT*C) 24V 40A NIKKO	1-81200-416-4	01	1	0005-0005	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. FTS STD CAB MIDDLE CHASSIS(FT**MF) EXC. GENERATOR DENSO 24V-40A 1KW(SC4),GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 40A NIKKO	1-81200-416-4	01	1	0005-0005	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-4	01	1	0005-0005		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. THAILAND EQUIPMENT(PM9),EURO2 SPECIFICATION<THN> 24V 40A NIKKO	1-81200-416-4	01	1	0006-0006	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-4	01	1	0006-0006		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. FSS ALL(FS**) FTS SHORT CHASSIS(FT*C) 24V 40A NIKKO	1-81200-416-4	01	1	0006-0009	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. FTS STD CAB MIDDLE CHASSIS(FT**MF) EXC. GENERATOR DENSO 24V-40A 1KW(SC4),GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 40A NIKKO	1-81200-416-4	01	1	0006-0009	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-4	01	1	0006-0009		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. STARTER DENSO<RC6> 24V 40A NIKKO	1-81200-416-4	01	1	0010-0402	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-4	01	1	0010-0402		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR DENSO 24V-40A 1KW(SC4) 24V 40A NIKKO	1-81200-416-5	01	1	0403-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-5	01	1	0403-		●
7	NUT; STARTER M14	9-99110-414-0	02	1	9604-0010	●	●
7	NUT; STARTER M14	9-99110-414-0	02	1	0011-0405	●	●	●
7	NUT; STARTER M14	9-99110-414-0	02	1	0406-0512	●	●		●
7	NUT; STARTER M14	0-91110-514-0	02	1	0601-	●	●		●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	9604-0010	●	●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	0011-0405	●	●	●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	0406-	●	●		●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9604-0010	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	0011-0405	●	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	0406-0605	●	●		●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0606-	●	●		●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	9604-0010	●	●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	0011-0405	●	●	●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	0406-0603	●	●		●
18	WASHER; LK,GEN ID=14.2	0-91510-514-0	01	1	0604-	●	●		●
19	BRACKET; GEN (C)	8-94390-588-0	01	1	0406-0511				●
19	BRACKET; GEN (C)	8-94390-589-1	01	1	0512-0704				●
19	BRACKET; GEN (C)	8-97609-149-0	01	1	0705-0803				●
19	BRACKET; GEN (C)	8-98082-615-1	01	1	0804-				●
19	BRACKET; GEN (A)	8-94396-297-0	01	1	9604-0112	●	●
19	BRACKET; GEN (A)	8-97602-318-0	01	1	0201-0402	●	●
19	BRACKET; GEN EXC. AIR CONDITIONER MANUAL CONTROL<C60> (A)	8-97602-318-0	01	1	0403-1108	●	●
19	BRACKET; GEN (A)	8-97602-318-0	01	1	1109-	●	●		●
19	BRACKET; GEN (B)	8-97600-044-1	01	1	0011-0402			●
19	BRACKET; GEN EXC. EURO2 SPECIFICATION<THN> (B)	8-97600-044-1	01	1	0403-0405	●
19	BRACKET; GEN (B)	8-97600-044-1	01	1	0403-0405			●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL<C60> EXC. EURO2 SPECIFICATION<THN> (B)	8-97600-044-1	01	1	0406-	●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL<C60> (B)	8-97600-044-1	01	1	0406-		●
23	NUT; GEN M14	9-99110-414-0	01	1	9604-0010	●	●
23	NUT; GEN M14	9-99110-414-0	01	1	0011-0405	●	●	●
23	NUT; GEN M14	9-99110-414-0	01	1	0406-0512	●	●		●
23	NUT; GEN M14	0-91110-514-0	01	1	0601-	●	●		●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	02	1	0406-0512				●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28151-040-0	02	1	0601-				●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	9604-0402	●	●
26	BOLT; GEN BRKT EXC. AIR CONDITIONER MANUAL CONTROL<C60> M10X40 FLANGE	0-28181-040-0	01	1	0403-0512	●	●
26	BOLT; GEN BRKT EXC. AIR CONDITIONER MANUAL CONTROL<C60> M10X40 FLANGE	0-28151-040-0	01	1	0601-1108	●	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28151-040-0	01	1	1109-	●	●		●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	9604-0405	●	●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	0406-0512	●	●		●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28151-080-0	02	1	0601-	●	●		●
26	BOLT; GEN BRKT M10X25 FLANGE	0-28181-025-0	01	1	0011-0402			●
26	BOLT; GEN BRKT EXC. EURO2 SPECIFICATION<THN> M10X25 FLANGE	0-28181-025-0	01	1	0403-0405	●
26	BOLT; GEN BRKT M10X25 FLANGE	0-28181-025-0	01	1	0403-0405			●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL<C60> EXC. EURO2 SPECIFICATION<THN> M10X25 FLANGE	0-28181-025-0	01	1	0406-0512	●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL<C60> M10X25 FLANGE	0-28181-025-0	01	1	0406-0512		●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL<C60> EXC. EURO2 SPECIFICATION<THN> M10X25 FLANGE	0-28151-025-0	01	1	0601-	●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL<C60> M10X25 FLANGE	0-28151-025-0	01	1	0601-		●
26	BOLT; GEN BRKT M10X45 FLANGE	0-28181-045-0	02	1	0011-0402			●
26	BOLT; GEN BRKT EXC. EURO2 SPECIFICATION<THN> M10X45 FLANGE	0-28181-045-0	02	1	0403-0405	●
26	BOLT; GEN BRKT M10X45 FLANGE	0-28181-045-0	02	1	0403-0405			●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL<C60> EXC. EURO2 SPECIFICATION<THN> M10X45 FLANGE	0-28181-045-0	02	1	0406-0512	●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL<C60> M10X45 FLANGE	0-28181-045-0	02	1	0406-0512		●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL<C60> EXC. EURO2 SPECIFICATION<THN> M10X45 FLANGE	0-28151-045-0	02	1	0601-	●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL<C60> M10X45 FLANGE	0-28151-045-0	02	1	0601-		●
26	BOLT; GEN BRKT M10X55 FLANGE	8-94399-863-1	01	1	0011-0402			●
26	BOLT; GEN BRKT EXC. EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-94399-863-1	01	1	0403-0405	●
26	BOLT; GEN BRKT M10X55 FLANGE	8-94399-863-1	01	1	0403-0405			●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL<C60> EXC. EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-94399-863-1	01	1	0406-0805	●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL<C60> M10X55 FLANGE	8-94399-863-1	01	1	0406-0805		●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL<C60> EXC. EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-97365-449-0	01	1	0806-	●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL<C60> M10X55 FLANGE	8-97365-449-0	01	1	0806-		●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	9604-0010	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	0011-0405	●	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	0406-	●	●		●
230	BOLT; HEAT PROTECTOR AUSTRALIA EQUIPMENT(RR3) M8X14	0-20800-814-0	03	1	9604-0004	●
230	BOLT; HEAT PROTECTOR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X14	0-20800-814-0	03	1	0005-	●
230	BOLT; HEAT PROTECTOR EXC. AUSTRALIA EQUIPMENT(RR3) M8X28 FLANGE	0-28080-828-0	01	1	9604-0004	●
230	BOLT; HEAT PROTECTOR M8X28 FLANGE	0-28080-828-0	01	1	9604-0004		●
230	BOLT; HEAT PROTECTOR EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X28 FLANGE	0-28080-828-0	01	1	0005-1108	●
230	BOLT; HEAT PROTECTOR M8X28 FLANGE	0-28080-828-0	01	1	0005-1108		●
230	BOLT; HEAT PROTECTOR M8X28 FLANGE	0-28080-828-0	01	1	1109-	●	●		●
230	BOLT; HEAT PROTECTOR EXC. AUSTRALIA EQUIPMENT(RR3) M10X30 FLANGE	0-28181-030-0	01	1	9604-0004	●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28181-030-0	01	1	9604-0004		●
230	BOLT; HEAT PROTECTOR EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M10X30 FLANGE	0-28181-030-0	01	1	0005-0010	●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28181-030-0	01	1	0005-0010		●
230	BOLT; HEAT PROTECTOR EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M10X30 FLANGE	0-28181-030-0	01	1	0011-0405	●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28181-030-0	01	1	0011-0405		●	●
230	BOLT; HEAT PROTECTOR EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M10X30 FLANGE	0-28181-030-0	01	1	0406-0512	●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28181-030-0	01	1	0406-0512		●		●
230	BOLT; HEAT PROTECTOR EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M10X30 FLANGE	0-28151-030-0	01	1	0601-1108	●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28151-030-0	01	1	0601-1108		●		●
230	BOLT; HEAT PROTECTOR EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN> M10X30 FLANGE	0-28151-030-0	01	1	1109-	●
230	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<THN> M10X30 FLANGE	0-28151-030-0	01	1	1109-	●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28151-030-0	01	1	1109-		●		●
230	BOLT; HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	0011-0405			●
279	PROTECTOR; STARTER (C)	8-94394-501-0	01	1	0406-				●
279	PROTECTOR; STARTER AUSTRALIA EQUIPMENT(RR3) (B)	8-94394-435-2	01	1	9604-0004	●
279	PROTECTOR; STARTER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (B)	8-94394-435-2	01	1	0005-	●
279	PROTECTOR; STARTER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94394-952-1	01	1	9604-0004	●
279	PROTECTOR; STARTER (A)	8-94394-952-1	01	1	9604-0004		●
279	PROTECTOR; STARTER EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A)	8-94394-952-1	01	1	0005-0010	●
279	PROTECTOR; STARTER (A)	8-94394-952-1	01	1	0005-0010		●
279	PROTECTOR; STARTER EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A)	8-94394-952-1	01	1	0011-0405	●
279	PROTECTOR; STARTER (A)	8-94394-952-1	01	1	0011-0405		●	●
279	PROTECTOR; STARTER EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A)	8-94394-952-1	01	1	0406-1108	●
279	PROTECTOR; STARTER (A)	8-94394-952-1	01	1	0406-1108		●
279	PROTECTOR; STARTER (A)	8-94394-952-1	01	1	1109-	●	●		●
280	WASHER; PL,HEAT PROTECTOR AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=18	9-09160-608-0	03	1	9604-0004	●
280	WASHER; PL,HEAT PROTECTOR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ID=8.4 OD=18	9-09160-608-0	03	1	0005-0605	●
280	WASHER; PL,HEAT PROTECTOR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ID=8.4 OD=18	0-91610-608-0	03	1	0606-	●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	9604-0010	●	●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	0011-0405	●	●	●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	0406-0603	●	●		●
292	WASHER; LK,STARTER ID=14.2	0-91510-514-0	02	1	0604-	●	●		●
293	CABLE; STARTER EARTH STARTER DENSO<RC6> L=300	1-82650-223-0	01	1	0007-0010	●
293	CABLE; STARTER EARTH STARTER DENSO<RC6> L=300	1-82650-223-0	01	1	0011-0405	●
293	CABLE; STARTER EARTH L=300	1-82650-223-0	01	1	0011-0405			●
293	CABLE; STARTER EARTH STARTER DENSO<RC6> L=300	1-82650-223-0	01	1	0406-	●
293	CABLE; STARTER EARTH L=300	1-82650-223-0	01	1	0406-				●
293	CABLE; STARTER EARTH L=360	1-82650-230-1	01	1	9604-0006	●	●
293	CABLE; STARTER EARTH EXC. STARTER DENSO<RC6> L=360	1-82650-230-1	01	1	0007-	●
293	CABLE; STARTER EARTH L=360	1-82650-230-1	01	1	0007-		●

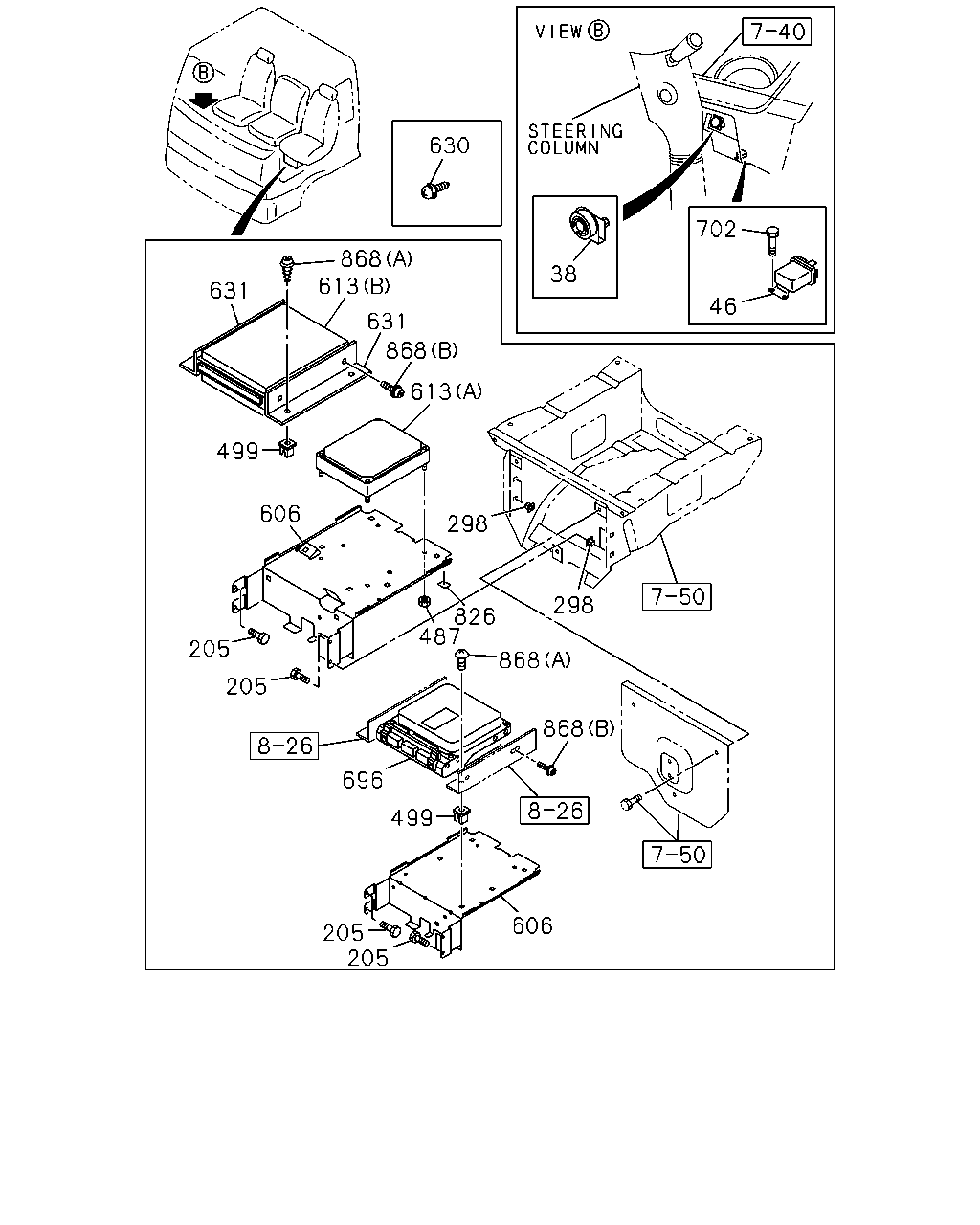

630 702 868 613 38 631 46 631 868 613 499 606 298 298 826 487 205 868 205 868 696 499 205 205 606

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	9604-9609	●	●
38	RESISTOR; CONT,GLOW PLUG EXC. THAILAND EQUIPMENT(PM9)	1-81402-008-0	01	1	9610-0012	●	●
38	RESISTOR; CONT,GLOW PLUG EXC. THAILAND EQUIPMENT(PM9)	1-81402-008-0	01	1	0101-0405	●	●
38	RESISTOR; CONT,GLOW PLUG EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9)	1-81402-008-0	01	1	0101-0405			●
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	0406-		●		●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	9604-9609	●	●
46	RELAY; GLOW PLUG EXC. THAILAND EQUIPMENT(PM9)	8-94258-014-0	01	1	9610-	●	●
205	SCREW; BRKT EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0005-0012	●
205	SCREW; BRKT EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0101-0405	●		●
205	SCREW; BRKT NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0101-0405			●
205	SCREW; BRKT EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0406-	●		●
205	SCREW; BRKT M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0406-				●
298	GROMMET; SCREW EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8	8-94222-314-0	04	1	0005-0012	●
298	GROMMET; SCREW EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8	8-94222-314-0	04	1	0101-0405	●		●
298	GROMMET; SCREW NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8	8-94222-314-0	04	1	0101-0405			●
298	GROMMET; SCREW EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8	8-94222-314-0	04	1	0406-	●		●
298	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	04	1	0406-				●
487	NUT EURO2 SPECIFICATION<THN> M6 FLANGE	0-91150-106-0	04	1	9905-0602	●
487	NUT EURO2 SPECIFICATION<THN> M6 FLANGE	0-91180-106-0	04	1	0603-	●
499	GROMMET EXC. EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8	8-94222-314-0	04	1	0101-0405			●
499	GROMMET D=9.7X9.7 L=8	8-94222-314-0	04	1	0406-				●
606	BRACKET; CONT UNIT EURO2 SPECIFICATION<THN>	1-75558-534-9	01	1	0005-	●
606	BRACKET; CONT UNIT EXC. EURO2 SPECIFICATION<THN>	1-75558-552-9	01	1	0101-0405			●
606	BRACKET; CONT UNIT	1-75558-552-9	01	1	0406-				●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN> (A)	8-94392-232-2	01	1	9905-	●
613	CONTROL UNIT; ENG (B)	8-97600-397-1	01	1	0011-0405			●
630	SCREW; UNIT M6X12 W/LK&PL WASHER	9-03920-612-0	02	1	9604-0004	●	●
630	SCREW; UNIT M6X12 W/LK&PL WASHER	9-03920-612-0	02	1	0005-0307	●	●	●
631	BRACKET; CONT UNIT "TICS" EXC. EURO2 SPECIFICATION<THN>	1-75558-579-1	02	1	0101-0405			●
696	CONTROL UNIT FTS STD CAB MIDDLE CHASSIS(FT**MF)	8-94392-865-1	01	1	0406-				●
702	BOLT; RELAY M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9604-9609	●	●
702	BOLT; RELAY EXC. THAILAND EQUIPMENT(PM9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9610-	●	●
826	SEAL; NOISE INSULATION EURO2 SPECIFICATION<THN> 30X30	8-97866-626-0	03	1	0005-0012	●
826	SEAL; NOISE INSULATION EURO2 SPECIFICATION<THN> 30X30	8-97866-626-0	03	1	0101-0309	●		●
826	SEAL; NOISE INSULATION NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> 30X30	8-97866-626-0	03	1	0101-0309			●
826	SEAL; NOISE INSULATION EURO2 SPECIFICATION<THN> 30X30	1-74998-128-1	03	1	0310-0405	●		●
826	SEAL; NOISE INSULATION NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> 30X30	1-74998-128-1	03	1	0310-0405			●
826	SEAL; NOISE INSULATION EURO2 SPECIFICATION<THN> 30X30	1-74998-128-1	03	1	0406-0908	●		●
826	SEAL; NOISE INSULATION 30X30	1-74998-128-1	03	1	0406-0908				●
826	SEAL; NOISE INSULATION EURO2 SPECIFICATION<THN> 30X30	8-98142-344-0	03	1	0909-	●		●
826	SEAL; NOISE INSULATION 30X30	8-98142-344-0	03	1	0909-				●
868	SCREW EXC. EURO2 SPECIFICATION<THN> (A) M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0101-0405			●
868	SCREW EXC. EURO2 SPECIFICATION<THN> (A) M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0406-			●
868	SCREW (A) M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0406-				●
868	SCREW EXC. EURO2 SPECIFICATION<THN> (B) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0101-0405			●
868	SCREW EXC. EURO2 SPECIFICATION<THN> (B) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0406-			●
868	SCREW (B) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0406-				●

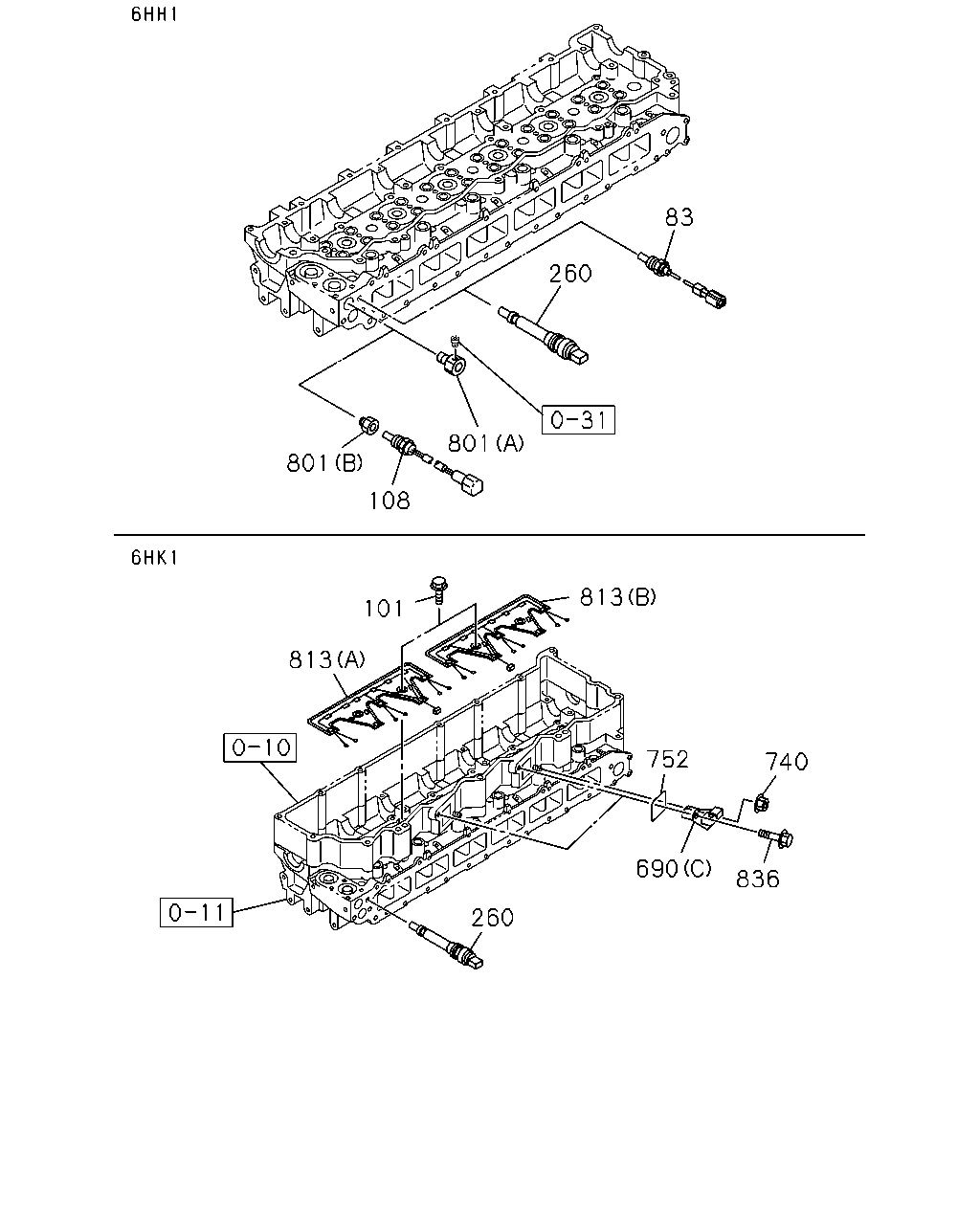

83 260 801 801 108 813 101 813 752 740 690 836 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
83	THERMOMETER UNIT	1-83161-031-1	01	1	9604-9904	●	●
83	THERMOMETER UNIT EXC. EURO2 SPECIFICATION<THN>	1-83161-031-1	01	1	9905-	●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9905-		●
101	BOLT; HARNESS M8X40 FLANGE	0-28680-840-0	04	1	0406-0512				●
101	BOLT; HARNESS M8X40 FLANGE	0-28650-840-0	04	1	0601-				●
108	SWITCH; THERMO AUSTRALIA EQUIPMENT(RR3)	1-83161-030-0	01	1	9604-0004	●
260	SENSOR; WATER TEMP EURO2 SPECIFICATION<THN>	1-80210-005-0	01	1	9905-0010	●
260	SENSOR; WATER TEMP EURO2 SPECIFICATION<THN>	1-80210-005-1	01	1	0011-0405	●
260	SENSOR; WATER TEMP	1-80210-005-1	01	1	0011-0405			●
260	SENSOR; WATER TEMP EURO2 SPECIFICATION<THN>	1-80210-005-1	01	1	0406-	●
260	SENSOR; WATER TEMP	1-80210-005-1	01	1	0406-				●
690	CONNECTOR (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0005-	●	●	●
690	CONNECTOR (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0011-0405			●
690	CONNECTOR (C)	8-94390-858-1	02	1	0406-				●
690	CONNECTOR (B) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	0011-0405			●
740	NUT M8 FLANGE	0-91150-108-0	04	1	0406-0602				●
740	NUT M8 FLANGE	0-91180-108-0	04	1	0603-1011				●
740	NUT M8 FLANGE	0-91180-108-0	02	1	1012-				●
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	02	1	0406-				●
801	ADAPTER; THERMO SWITCH AUSTRALIA EQUIPMENT(RR3) (B)	8-94395-352-0	01	1	9604-0004	●
801	ADAPTER; THERMO SWITCH (A)	8-94395-851-1	01	1	0011-0405			●
813	HARNESS; INJECTOR (A) FRONT	8-94391-302-3	01	1	0406-				●
813	HARNESS; INJECTOR (B) REAR	8-94391-303-3	01	1	0406-				●
836	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	02	1	1012-				●

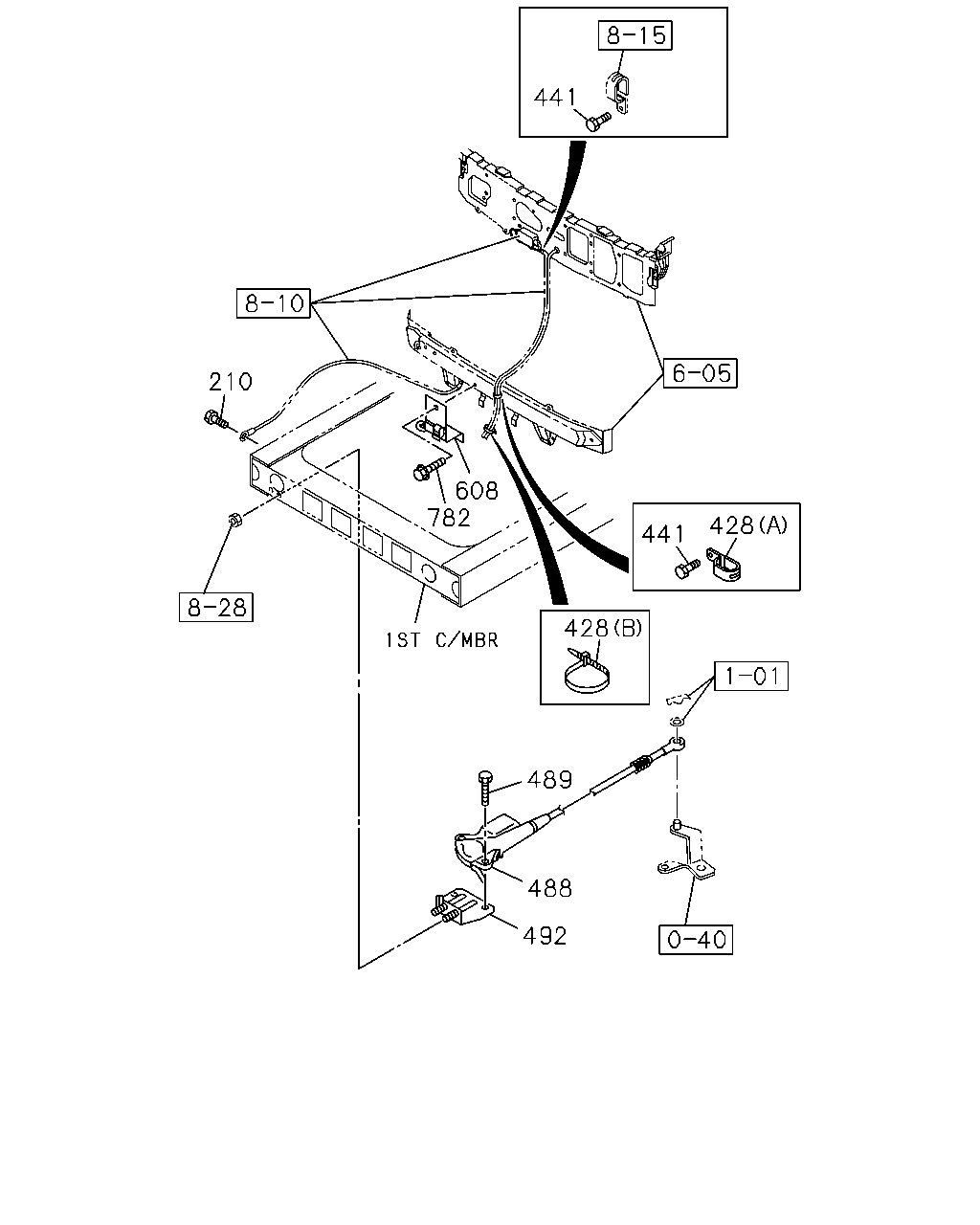

441 210 608 782 428 441 428 489 488 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
210	BOLT; CABLE FIX M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9604-9907	●	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9908-0004	●	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0005-0405	●	●	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0406-1201	●	●		●
210	BOLT; CABLE FIX M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-	●	●	●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (A) ID=35 L=50	1-09701-214-0	01	1	0406-	●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (B) L=300	1-09707-001-1	03	1	9905-0010	●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (B) L=300	1-09707-001-1	03	1	0011-0405	●
428	CLIP; HARNESS (B) L=300	1-09707-001-1	03	1	0011-0405			●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (B) L=300	1-09707-001-1	03	1	0406-	●
428	CLIP; HARNESS (B) L=300	1-09707-001-1	02	1	0406-				●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	9604-0004	●	●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	0005-0104	●	●	●
428	CLIP; HARNESS FSS STD CAB(FS*M) FTS SHORT CHASSIS(FT***C) (A) ID=35 L=50	1-09701-214-0	02	1	0105-0405	●
428	CLIP; HARNESS FTS STD CAB MIDDLE CHASSIS(FT**MF) EXC. EURO2 SPECIFICATION<THN> (A) ID=35 L=50	1-09701-214-0	02	1	0105-0405	●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	0105-0405		●
428	CLIP; HARNESS FTS SHORT CHASSIS(FT***C) (A) ID=35 L=50	1-09701-214-0	02	1	0105-0405			●	●
428	CLIP; HARNESS FSS STD CAB(FS*M) FTS SHORT CHASSIS(FT***C) (A) ID=35 L=50	1-09701-214-0	02	1	0406-	●
428	CLIP; HARNESS FTS STD CAB MIDDLE CHASSIS(FT**MF) EXC. EURO2 SPECIFICATION<THN> (A) ID=35 L=50	1-09701-214-0	02	1	0406-	●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	0406-		●
428	CLIP; HARNESS FTS SHORT CHASSIS(FT***C) (A) ID=35 L=50	1-09701-214-0	02	1	0406-			●
428	CLIP; HARNESS FTS STD CAB(FT*M) (A) ID=35 L=50	1-09701-214-0	02	1	0406-				●
428	CLIP; HARNESS FTS STD CAB MIDDLE CHASSIS(FT**MF) EURO2 SPECIFICATION<THN> (A) ID=30X2 L=28	1-09701-266-0	01	1	0105-0405	●		●	●
428	CLIP; HARNESS FTS STD CAB MIDDLE CHASSIS(FT**MF) (A) ID=30X2 L=28	1-09701-266-0	01	1	0105-0405			●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (A) ID=30X2 L=28	1-09701-266-0	01	1	0406-	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9604-9606	●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-0004	●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0005-0405	●	●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0406-0512	●	●		●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●		●
488	STOPPER; ENG	1-82840-128-2	01	1	9604-0004	●	●
488	STOPPER; ENG	1-82840-128-3	01	1	0005-0405	●	●	●
488	STOPPER; ENG	1-82840-128-3	01	1	0406-	●	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9604-0004	●	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	0005-0512	●	●	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50640-825-0	02	1	0601-	●	●
492	BRACKET; ENG STOPPER	1-82849-067-0	01	1	9604-0004	●	●
492	BRACKET; ENG STOPPER	1-82849-067-0	01	1	0005-0405	●	●	●
492	BRACKET; ENG STOPPER	1-82849-067-0	01	1	0406-	●	●
608	SENSOR; AIR TEMP FTS STD CAB MIDDLE CHASSIS(FT**MF)	1-83544-031-0	01	1	0406-				●
608	SENSOR; AIR TEMP	1-83544-031-0	01	1	0011-0304			●
782	BOLT; SENSOR M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0201-0405			●
782	BOLT; SENSOR FTS STD CAB MIDDLE CHASSIS(FT**MF) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0406-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
