0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶

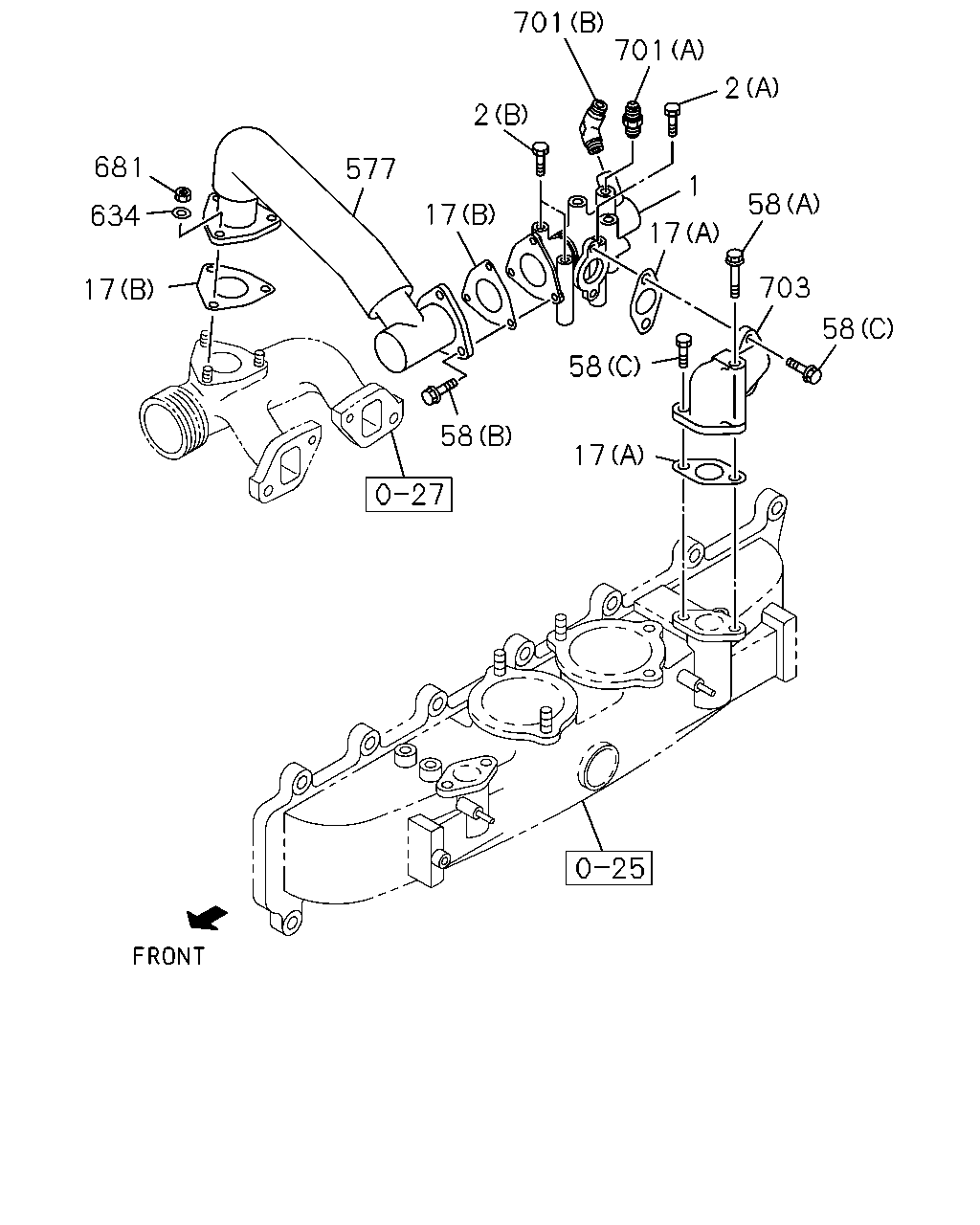

0-57 — EMISSION PIPING
(#36742) — 14 parça
701
701
2
2
681
577
1
58
17
634
17
703
58
17
58
58
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; EGR
8-94390-786-4
01
1
0011-0405
2
BOLT; EGR VLV
(A) M8X100 FLANGE
0-28080-800-0
01
1
0011-0405
2
BOLT; EGR VLV
(B) M8X95 FLANGE
1-09044-075-1
02
1
0011-0405
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-94390-697-0
02
1
0011-0405
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=55
8-97600-167-0
02
1
0011-0405
58
BOLT; PIPE
(A) M8X90 FLANGE
0-28080-890-0
01
1
0011-0405
58
BOLT; PIPE
(B) M8X20 FLANGE
0-28680-820-0
03
1
0011-0405
58
BOLT; PIPE
(C) M8X25 FLANGE
0-28680-825-0
03
1
0011-0405
577
PIPE; AIR,EGR
8-94391-318-1
01
1
0011-0405
634
WASHER; PL,EGR PIPE
ID=8.4
9-09160-508-0
03
1
0011-0405
681
NUT; EGR PIPE
M8
1-09400-118-1
03
1
0011-0405
701
CONNECTOR; AIR,EGR VLV
(A) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
0011-0405
701
CONNECTOR; AIR,EGR VLV
(B) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0011-0405
703
DUCT; EGR
8-94392-320-1
01
1
0011-0405
