0-52 — OIL AND VACUUM PIPING; ENGINE (#36741) — 209 parça

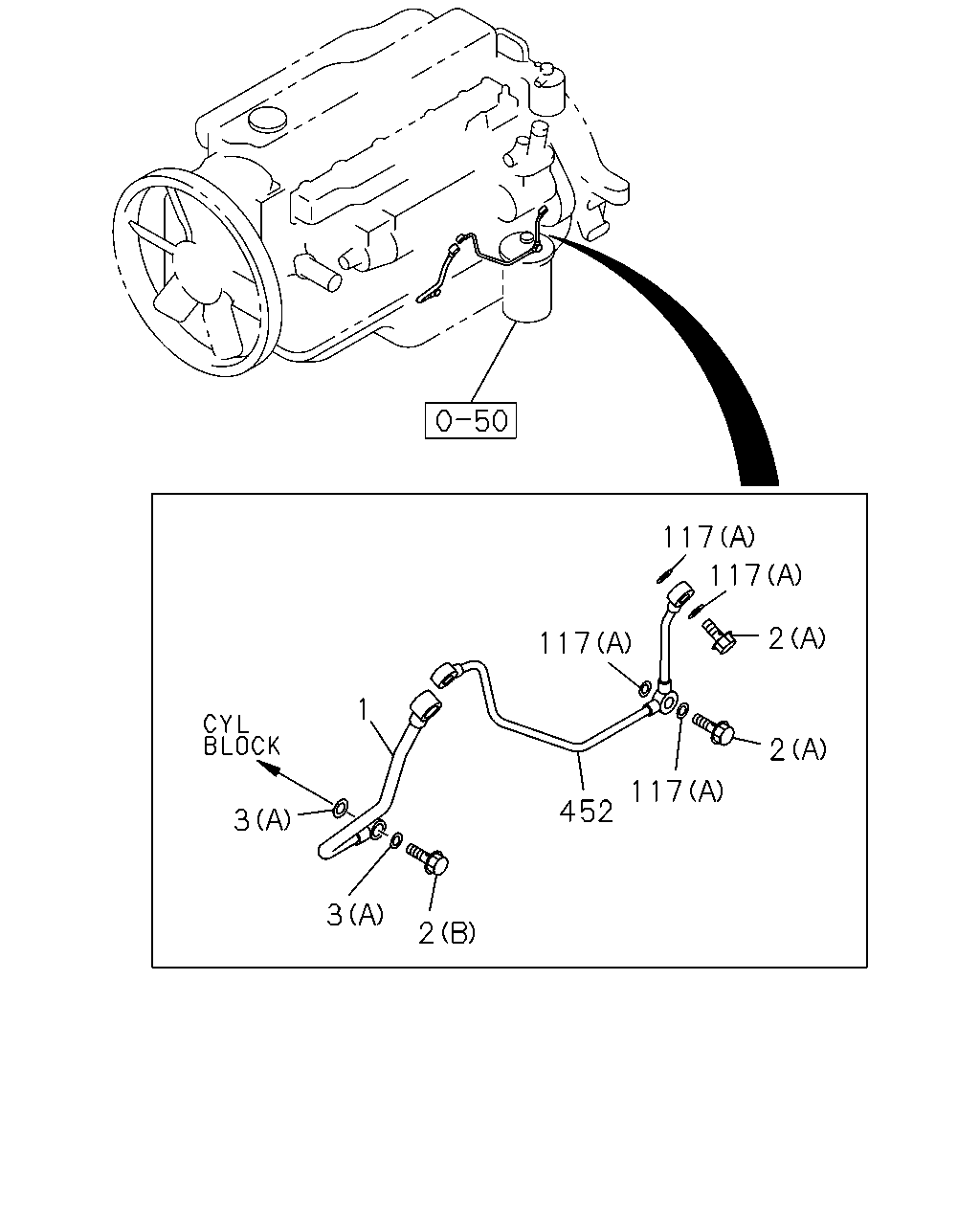

çizim 152596
117 117 2 117 1 2 117 452 3 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; OIL,INJ PUMP TO C/BL 8-94390-823-0 01 1 0406- ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 9905-0010 ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 0011-0405 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94392-964-0 01 1 0011-0405 ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 0406- ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9604-9904 ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. EURO2 SPECIFICATION<THN> 		8-94394-276-0 01 1 9905- ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9905- ●
2 BOLT; EYE,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M12X27 FLANGE 		1-09675-085-0 01 1 0406- ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0406- ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9604-0010 ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0011-0405 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0406-0805 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9604-9904 ● ●
2 BOLT; EYE,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M12X27 FLANGE 		1-09675-085-0 01 1 9905-0405 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9905-0405 ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 0406- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.8 		1-09623-274-0 01 1 0406- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0406-1312 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9604-9904 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN>. (A) ID=12.2 		1-09630-084-0 02 1 9905-0405 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9905-0405 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN>. (A) ID=12.2 		1-09630-084-0 02 1 0406-1312 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 0406-1312 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN>. (A) ID=12.2 		8-98251-344-0 02 1 1401- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 02 1 1401- ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 9905-0010 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2 		1-09630-084-0 01 1 0011-0405 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2 		1-09630-084-0 01 1 0011-0405 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 0406-1312 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		8-98251-344-0 01 1 1401- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9604-0010 ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0011-0405 ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0406- ● ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-570-0 01 1 0406- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-94392-072-0 01 1 9905-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 9907-0010 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 0011-0405 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-571-0 01 1 0011-0405 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 0406- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94395-595-1 01 1 9610-9904 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. EURO2 SPECIFICATION<THN> 		8-94395-595-1 01 1 9905-9906 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. EURO2 SPECIFICATION<THN> 		8-97600-573-0 01 1 9907-9910 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-97600-573-0 01 1 9911- ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94390-073-0 01 1 9604-9609 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94390-073-0 01 1 9610-9904 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94390-073-0 01 1 9610-9904 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>,EURO2 SPECIFICATION<THN> 		8-94390-073-0 01 1 9905-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94390-073-0 01 1 9905-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>,EURO2 SPECIFICATION<THN> 		8-97600-569-0 01 1 9907- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-97600-569-0 01 1 9907- ●

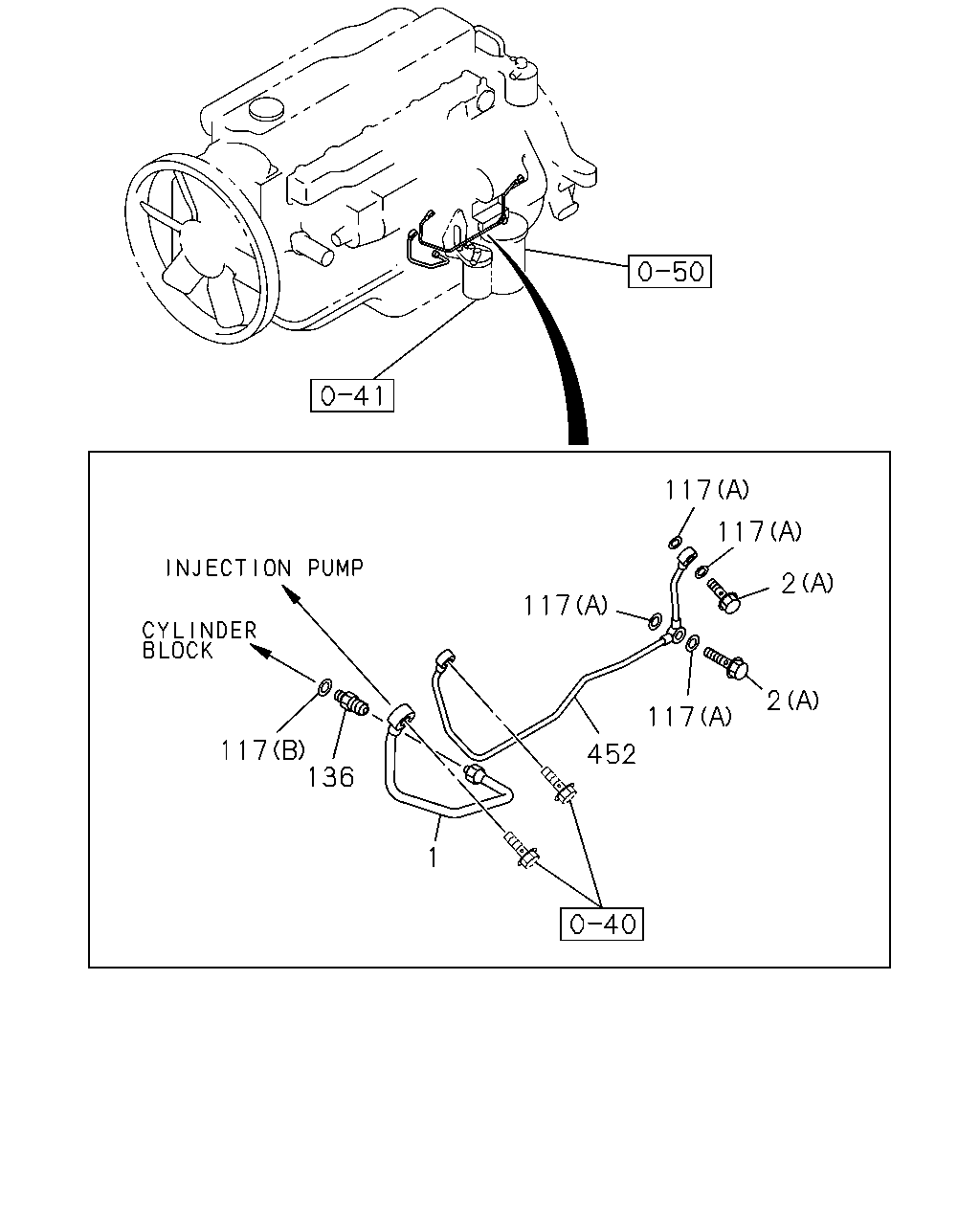

çizim 152597
117 117 2 117 2 117 117 136 452 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; OIL,INJ PUMP TO C/BL 8-94390-823-0 01 1 0406- ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 9905-0010 ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 0011-0405 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94392-964-0 01 1 0011-0405 ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 0406- ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9604-9904 ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. EURO2 SPECIFICATION<THN> 		8-94394-276-0 01 1 9905- ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9905- ●
2 BOLT; EYE,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M12X27 FLANGE 		1-09675-085-0 01 1 0406- ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0406- ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9604-0010 ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0011-0405 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0406-0805 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9604-9904 ● ●
2 BOLT; EYE,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M12X27 FLANGE 		1-09675-085-0 01 1 9905-0405 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9905-0405 ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 0406- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 9905-0010 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2 		1-09630-084-0 01 1 0011-0405 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2 		1-09630-084-0 01 1 0011-0405 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 0406-1312 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		8-98251-344-0 01 1 1401- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9604-0010 ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0011-0405 ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0406- ● ● ●
136 UNION
EURO2 SPECIFICATION<THN> 		8-94392-422-0 01 1 9905-0010 ●
136 UNION
EURO2 SPECIFICATION<THN> 		8-94392-422-0 01 1 0011-0405 ●
136 UNION 8-94392-422-0 01 1 0011-0405 ●
136 UNION
EURO2 SPECIFICATION<THN> 		8-94392-422-0 01 1 0406- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-570-0 01 1 0406- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-94392-072-0 01 1 9905-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 9907-0010 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 0011-0405 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-571-0 01 1 0011-0405 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 0406- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94395-595-1 01 1 9610-9904 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. EURO2 SPECIFICATION<THN> 		8-94395-595-1 01 1 9905-9906 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. EURO2 SPECIFICATION<THN> 		8-97600-573-0 01 1 9907-9910 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-97600-573-0 01 1 9911- ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94390-073-0 01 1 9604-9609 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94390-073-0 01 1 9610-9904 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94390-073-0 01 1 9610-9904 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>,EURO2 SPECIFICATION<THN> 		8-94390-073-0 01 1 9905-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94390-073-0 01 1 9905-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>,EURO2 SPECIFICATION<THN> 		8-97600-569-0 01 1 9907- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-97600-569-0 01 1 9907- ●

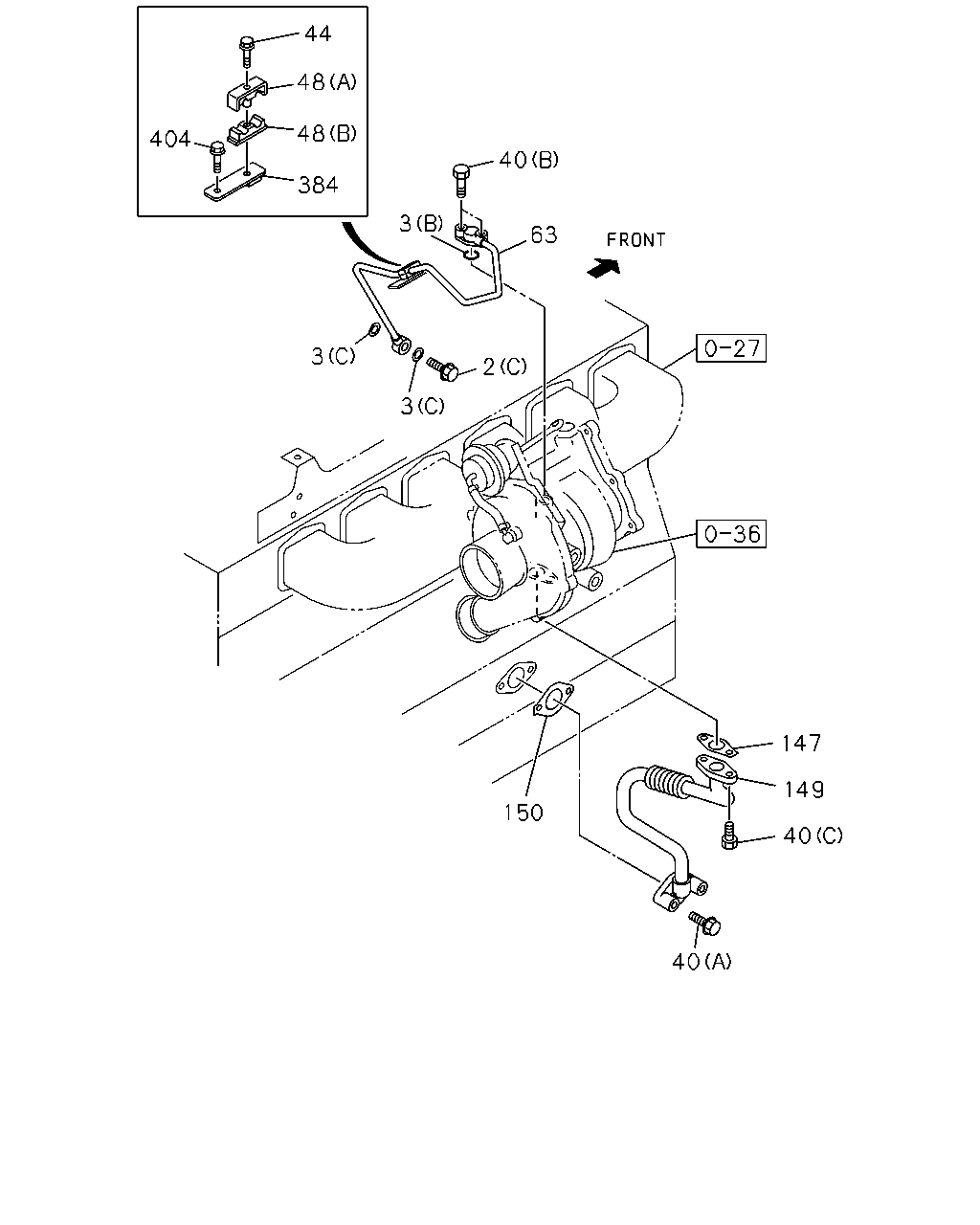

çizim 152598
44 48 48 404 40 384 3 63 3 2 3 147 149 150 40 40
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 BOLT; EYE,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M12X27 FLANGE 		1-09675-085-0 01 1 0406- ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0406- ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9604-0010 ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0011-0405 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0406-0805 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9604-9904 ● ●
2 BOLT; EYE,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M12X27 FLANGE 		1-09675-085-0 01 1 9905-0405 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9905-0405 ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 0406- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.8 		1-09623-274-0 01 1 0406- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0406-1312 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9604-9904 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN>. (A) ID=12.2 		1-09630-084-0 02 1 9905-0405 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9905-0405 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN>. (A) ID=12.2 		1-09630-084-0 02 1 0406-1312 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 0406-1312 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN>. (A) ID=12.2 		8-98251-344-0 02 1 1401- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 02 1 1401- ● ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 0406-0512 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0406-0512 ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ●
40 BOLT; OIL PIPE
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ●
40 BOLT; OIL PIPE
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
44 BOLT; CLIP,OIL PIPE
M6X35 FLANGE 		0-28680-635-0 01 1 0406-0512 ●
44 BOLT; CLIP,OIL PIPE
M6X35 FLANGE 		0-28650-635-0 01 1 0601- ●
44 BOLT; CLIP,OIL PIPE
M6X22 FLANGE 		0-28080-622-0 01 1 9604-9904 ● ●
44 BOLT; CLIP,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> M6X22 FLANGE 		0-28080-622-0 01 1 9905- ●
44 BOLT; CLIP,OIL PIPE
M6X22 FLANGE 		0-28080-622-0 01 1 9905- ●
48 CLIP; OIL PIPE
(A) ID=7 & 9 L=25 		1-09701-228-3 01 1 0406- ●
48 CLIP; OIL PIPE
(B) ID=7 & 9 L=25 		1-09701-229-2 01 1 0406- ●
63 PIPE; OIL,TURBOCHARGER FEED 8-97602-629-0 01 1 0406- ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94390-641-1 01 1 0406- ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94390-643-1 01 1 0406- ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 0406- ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER 1-13319-041-0 01 1 0406- ●
404 BOLT; BRKT
M8X15 		1-09000-114-0 01 1 0406- ●

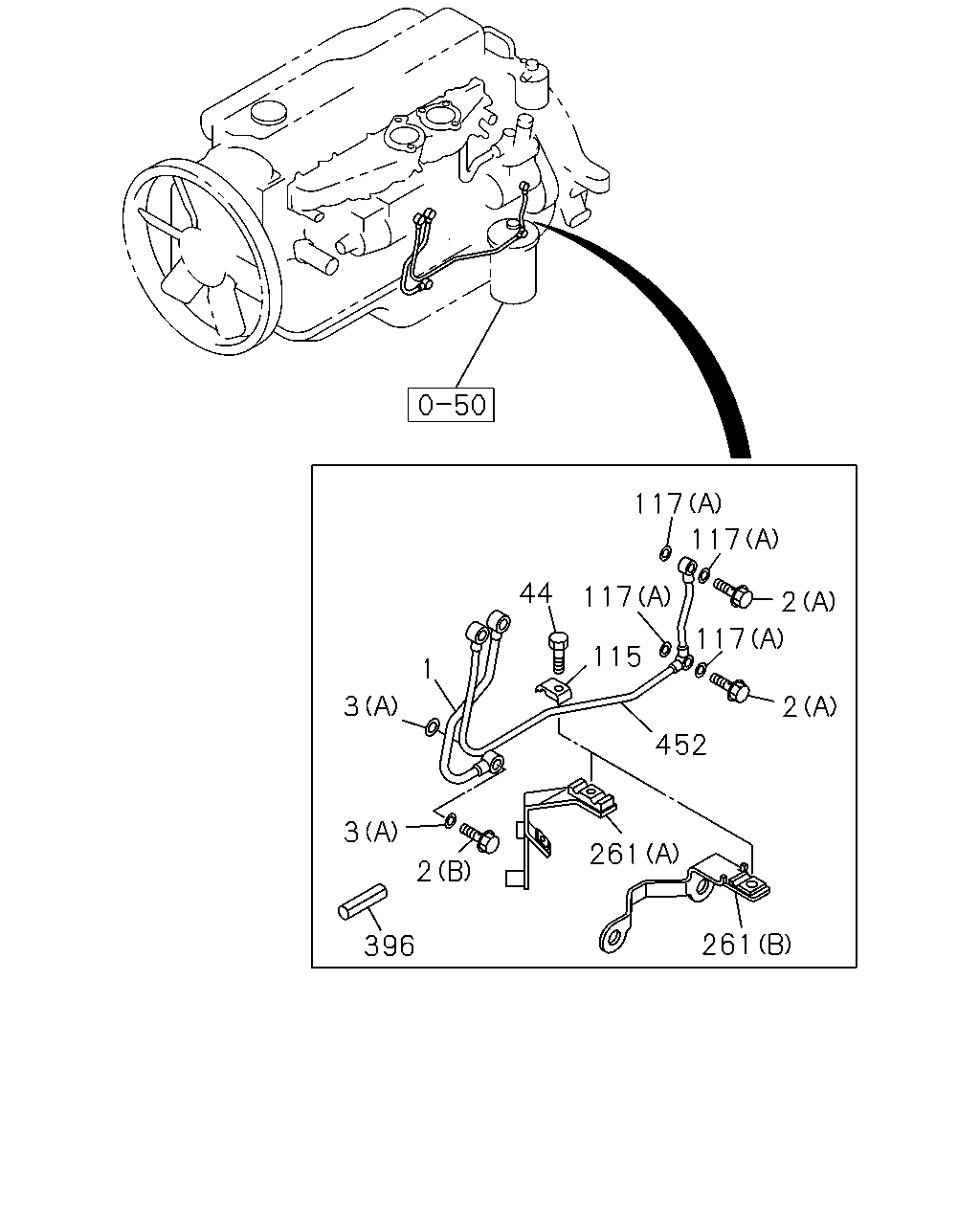

çizim 152600
117 117 44 117 2 117 115 1 3 2 452 3 261 2 261 396
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; OIL,INJ PUMP TO C/BL 8-94390-823-0 01 1 0406- ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 9905-0010 ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 0011-0405 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94392-964-0 01 1 0011-0405 ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 0406- ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9604-9904 ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. EURO2 SPECIFICATION<THN> 		8-94394-276-0 01 1 9905- ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9905- ●
2 BOLT; EYE,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M12X27 FLANGE 		1-09675-085-0 01 1 0406- ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0406- ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9604-0010 ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0011-0405 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0406-0805 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9604-9904 ● ●
2 BOLT; EYE,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M12X27 FLANGE 		1-09675-085-0 01 1 9905-0405 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9905-0405 ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 0406- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.8 		1-09623-274-0 01 1 0406- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0406-1312 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9604-9904 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN>. (A) ID=12.2 		1-09630-084-0 02 1 9905-0405 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9905-0405 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN>. (A) ID=12.2 		1-09630-084-0 02 1 0406-1312 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 0406-1312 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN>. (A) ID=12.2 		8-98251-344-0 02 1 1401- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 02 1 1401- ● ●
44 BOLT; CLIP,OIL PIPE
M6X35 FLANGE 		0-28680-635-0 01 1 0406-0512 ●
44 BOLT; CLIP,OIL PIPE
M6X35 FLANGE 		0-28650-635-0 01 1 0601- ●
44 BOLT; CLIP,OIL PIPE
M6X22 FLANGE 		0-28080-622-0 01 1 9604-9904 ● ●
44 BOLT; CLIP,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> M6X22 FLANGE 		0-28080-622-0 01 1 9905- ●
44 BOLT; CLIP,OIL PIPE
M6X22 FLANGE 		0-28080-622-0 01 1 9905- ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 9604-9904 ● ●
115 CLIP; PIPE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-09701-091-0 01 1 9905- ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 9905- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 9905-0010 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2 		1-09630-084-0 01 1 0011-0405 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2 		1-09630-084-0 01 1 0011-0405 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 0406-1312 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		8-98251-344-0 01 1 1401- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9604-0010 ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0011-0405 ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0406- ● ● ●
261 BRACKET; CLIP,OIL PIPE
AUSTRALIA EQUIPMENT(RR3) (B) 		8-94396-695-0 01 1 9604-0004 ●
261 BRACKET; CLIP,OIL PIPE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-94394-410-3 01 1 9604-9904 ●
261 BRACKET; CLIP,OIL PIPE
(A) 		8-94394-410-3 01 1 9604-9904 ●
261 BRACKET; CLIP,OIL PIPE
EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (A) 		8-94394-410-3 01 1 9905-0004 ●
261 BRACKET; CLIP,OIL PIPE
(A) 		8-94394-410-3 01 1 9905-0004 ●
261 BRACKET; CLIP,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94394-410-3 01 1 0005- ●
261 BRACKET; CLIP,OIL PIPE
(A) 		8-94394-410-3 01 1 0005- ●
396 SLEEVE; RUBBER,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30 		9-09956-682-0 01 1 0002- ●
396 SLEEVE; RUBBER,OIL PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0002- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-570-0 01 1 0406- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-94392-072-0 01 1 9905-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 9907-0010 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 0011-0405 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-571-0 01 1 0011-0405 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 0406- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94395-595-1 01 1 9610-9904 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. EURO2 SPECIFICATION<THN> 		8-94395-595-1 01 1 9905-9906 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. EURO2 SPECIFICATION<THN> 		8-97600-573-0 01 1 9907-9910 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-97600-573-0 01 1 9911- ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94390-073-0 01 1 9604-9609 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94390-073-0 01 1 9610-9904 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94390-073-0 01 1 9610-9904 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>,EURO2 SPECIFICATION<THN> 		8-94390-073-0 01 1 9905-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94390-073-0 01 1 9905-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>,EURO2 SPECIFICATION<THN> 		8-97600-569-0 01 1 9907- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-97600-569-0 01 1 9907- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
