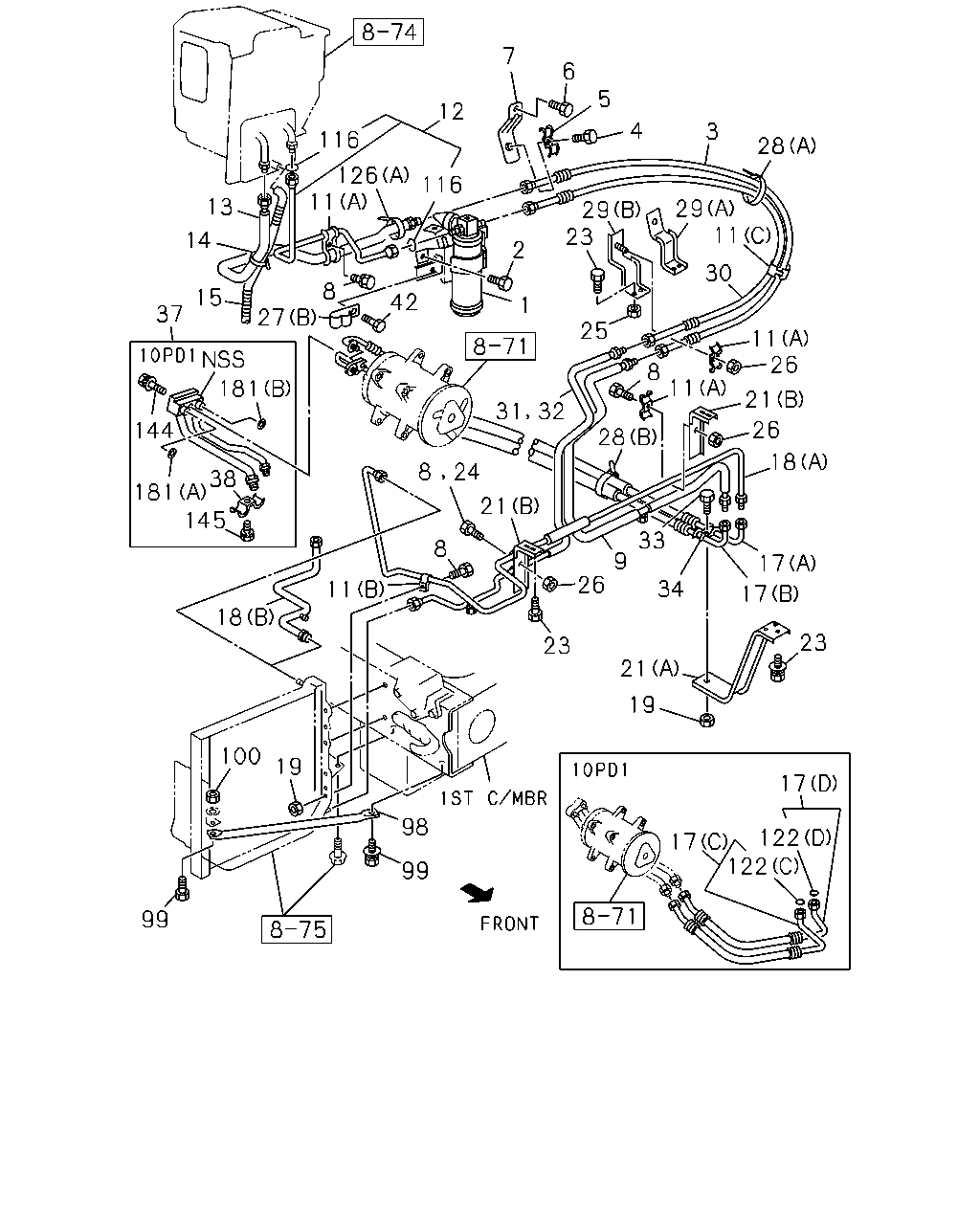

8-52 — PIPING; AIR CONDITIONING (#3674) — 157 parça

7 6 5 12 4 3 116 28 126 11 116 13 29 11 29 23 14 2 30 8 27 42 15 1 37 25 11 26 8 11 181 21 26 144 28 18 8 24 38 181 145 21 33 8 9 26 17 34 11 17 18 23 23 21 19 100 19 17 98 17 122 122 99 99 31 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; RECEIVER AIR CON MANUAL CONTROL(C60)	1-83535-037-2	01	1	9002-9306
1	TANK; RECEIVER AIR CON MANUAL CONTROL(C60)	1-83535-064-0	01	1	9307-9308
1	TANK; RECEIVER AIR CON MANUAL CONTROL(C60)	1-83535-065-0	01	1	9309-
2	BOLT; RECEIVER TANK AIR CON MANUAL CONTROL(C60) M6X20	1-09980-279-0	03	1	9002-
3	HOSE; FLEX,EVAP TO COOLER CMPR AIR CON MANUAL CONTROL(C60)	1-83566-608-0	01	1	9002-9307
3	HOSE; FLEX,EVAP TO COOLER CMPR AIR CON MANUAL CONTROL(C60)	1-83572-037-0	01	1	9308-
4	SCREW; CLIP,FLEX HOSE,A/C AIR CON MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-03910-616-0	01	1	9002-9203
4	SCREW; CLIP,FLEX HOSE,A/C AIR CON MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9204-
5	CLIP; FLEX HOSE,A/C AIR CON MANUAL CONTROL(C60)	1-09700-636-1	01	1	9002-9307
5	CLIP; FLEX HOSE,A/C AIR CON MANUAL CONTROL(C60)	1-83574-188-0	01	1	9308-
6	SCREW; BRKT AIR CON MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-03910-616-0	01	1	9002-9203
6	SCREW; BRKT AIR CON MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9204-
7	BRACKET; FLEX HOSE,A/C AIR CON MANUAL CONTROL(C60)	1-83571-266-1	01	1	9002-9306
8	BOLT; CLIP AIR CON MANUAL CONTROL(C60) M6X20 W/LK WASHER	9-01900-620-0	02	1	9002-9204
8	BOLT; CLIP AIR CON MANUAL CONTROL(C60) M6X20 W/LK WASHER	0-50040-620-0	02	1	9205-9302
8	BOLT; CLIP AIR CON MANUAL CONTROL(C60) M6X20 FLANGE	0-28080-620-0	02	1	9303-9306
8	BOLT; CLIP AIR CON MANUAL CONTROL(C60) M6X20 FLANGE	0-28080-620-0	01	1	9307-
8	BOLT; CLIP 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) M8X30 W/LK WASHER	9-01900-830-0	01	1	9002-9204
8	BOLT; CLIP 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302
8	BOLT; CLIP AIR CON MANUAL CONTROL(C60) M8X30 FLANGE	0-28080-830-0	01	1	9303-
9	PIPE; COOLER,HOSE TO HOSE AIR CON MANUAL CONTROL(C60)	1-83567-175-1	01	1	9002-9307
9	PIPE; COOLER,HOSE TO HOSE AIR CON MANUAL CONTROL(C60)	1-83567-508-0	01	1	9308-
11	CLIP; COOLER PIPE AIR CON MANUAL CONTROL(C60) (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9002-
11	CLIP; COOLER PIPE AIR CON MANUAL CONTROL(C60) (A) ID=10.5 & 16.6	1-09700-636-1	01	1	9002-9307
11	CLIP; COOLER PIPE AIR CON MANUAL CONTROL(C60) (A) ID=9.2 & 16.2	1-83574-188-0	01	1	9308-
11	CLIP; COOLER PIPE AIR CON MANUAL CONTROL(C60) (A) D=20 & 9.6	1-09700-639-0	01	1	9002-9307
11	CLIP; COOLER PIPE AIR CON MANUAL CONTROL(C60) (A) ID=12.2 & 20	1-83574-185-0	01	1	9308-
11	CLIP; COOLER PIPE AIR CON MANUAL CONTROL(C60) (A) D=12.7 & 9.6	1-83574-103-0	01	1	9002-
11	CLIP; COOLER PIPE 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (C)	1-09707-123-0	01	1	9002-9306
11	CLIP; COOLER PIPE AIR CON MANUAL CONTROL(C60) (C)	1-09707-123-0	01	1	9307-
12	PIPE; COOLER,EVAP TO TANK AIR CON MANUAL CONTROL(C60)	1-83567-156-1	01	1	9002-9307
12	PIPE; COOLER,EVAP TO TANK AIR CON MANUAL CONTROL(C60)	1-83567-466-0	01	1	9308-
13	PIPE; COOLER,EVAP TO FLEX HOSE AIR CON MANUAL CONTROL(C60)	1-83567-155-1	01	1	9002-9307
13	PIPE; COOLER,EVAP TO FLEX HOSE AIR CON MANUAL CONTROL(C60)	1-83567-465-0	01	1	9308-
14	CLIP; BAND,EVAP DRAIN HOSE AIR CON MANUAL CONTROL(C60) L=250	5-09707-030-1	03	1	9002-
15	HOSE; DRAIN AIR CON MANUAL CONTROL(C60)	1-83566-254-1	01	1	9002-
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) (D)	1-83566-562-0	01	1	9002-9307
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) (D)	1-83572-032-0	01	1	9308-
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) (C)	1-83566-563-0	01	1	9002-9307
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) (C)	1-83572-033-0	01	1	9308-
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (A)	1-83566-588-0	01	1	9002-9307
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (A)	1-83572-034-0	01	1	9308-
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (B)	1-83566-589-0	01	1	9002-9307
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (B)	1-83572-035-0	01	1	9308-
18	PIPE; CONDENSER TO CMPR AIR CON MANUAL CONTROL(C60) (A)	1-83567-166-0	01	1	9002-9307
18	PIPE; CONDENSER TO CMPR AIR CON MANUAL CONTROL(C60) (A)	1-83567-504-0	01	1	9308-
18	PIPE; CONDENSER TO CMPR 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) (B)	1-83567-217-0	01	1	9002-9307
19	NUT; CLIP FIX AIR CON MANUAL CONTROL(C60) M6	9-09110-406-0	01	1	9002-9103
19	NUT; CLIP FIX AIR CON MANUAL CONTROL(C60) M6 FLANGE	5-09440-004-0	01	1	9104-
19	NUT; CLIP FIX AIR CON MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9002-
21	BRACKET; COOLER HOSE AIR CON MANUAL CONTROL(C60) (B)	1-83571-311-1	02	1	9002-9306
21	BRACKET; COOLER HOSE AIR CON MANUAL CONTROL(C60) (B)	1-83571-311-1	01	1	9307-9307
21	BRACKET; COOLER HOSE AIR CON MANUAL CONTROL(C60) (B)	1-83571-710-0	01	1	9308-
21	BRACKET; COOLER HOSE 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) (A)	1-83571-313-1	01	1	9002-
21	BRACKET; COOLER HOSE 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (A)	1-83571-312-1	01	1	9002-
23	BOLT; BRKT AIR CON MANUAL CONTROL(C60) M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204
23	BOLT; BRKT AIR CON MANUAL CONTROL(C60) M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302
23	BOLT; BRKT AIR CON MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	04	1	9303-9306
23	BOLT; BRKT AIR CON MANUAL CONTROL(C60) M8X20 W/LK WASHER	9-01900-820-0	05	1	9002-9204
23	BOLT; BRKT AIR CON MANUAL CONTROL(C60) M8X20 W/LK WASHER	0-50040-820-0	05	1	9205-9302
23	BOLT; BRKT AIR CON MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	05	1	9303-
23	BOLT; BRKT AIR CON MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	02	1	9307-
24	SCREW; CLIP FIX AIR CON MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-01910-616-0	01	1	9002-9005
24	SCREW; CLIP FIX AIR CON MANUAL CONTROL(C60) M6X16 W/LK WASHER	0-50040-616-0	01	1	9006-9302
24	SCREW; CLIP FIX AIR CON MANUAL CONTROL(C60) M6X16 FLANGE	0-28080-616-0	01	1	9303-
25	NUT; BRKT AIR CON MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9002-
26	NUT; PIPE CLIP AIR CON MANUAL CONTROL(C60) M6 FLANGE	5-09440-004-0	01	1	9307-
26	NUT; PIPE CLIP AIR CON MANUAL CONTROL(C60) M6	9-09110-406-0	01	1	9307-
26	NUT; PIPE CLIP 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) M6	9-09110-406-0	02	1	9002-9306
27	CLIP; COOLER PIPE AIR CON MANUAL CONTROL(C60) (A)	1-09700-639-0	02	1	9002-
27	CLIP; COOLER PIPE AIR CON MANUAL CONTROL(C60) (B)	1-83574-178-0	01	1	9403-
28	CLIP; PIPE,HOSE A/C AIR CON MANUAL CONTROL(C60) (A) L=170	1-83574-139-0	01	1	9002-
28	CLIP; PIPE,HOSE A/C AIR CON MANUAL CONTROL(C60) (B) L=250	5-09707-030-1	01	1	9002-
29	BRACKET; COOLER PIPE AIR CON MANUAL CONTROL(C60) (A)	1-83571-355-0	01	1	9002-9007
29	BRACKET; COOLER PIPE AIR CON MANUAL CONTROL(C60) (A)	1-83571-422-0	01	1	9008-9306
29	BRACKET; COOLER PIPE AIR CON MANUAL CONTROL(C60) (B)	1-83571-524-0	01	1	9307-
30	HOSE; FLEX,TANK TO CONDENSER AIR CON MANUAL CONTROL(C60)	1-83566-339-2	01	1	9002-9307
30	HOSE; FLEX,TANK TO CONDENSER AIR CON MANUAL CONTROL(C60)	1-83572-036-0	01	1	9308-
31	PIPE; RECEIVER TANK TO CONDENSER 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83567-215-0	01	1	9002-9212
31	PIPE; RECEIVER TANK TO CONDENSER 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83567-215-0	01	1	9307-9307
32	PIPE; COOLER,HOSE TO CONDENSER AIR CON MANUAL CONTROL(C60)	1-83567-194-1	01	1	9002-9307
32	PIPE; COOLER,HOSE TO CONDENSER AIR CON MANUAL CONTROL(C60)	1-83567-505-0	01	1	9308-
33	BOLT; CLIP AIR CON MANUAL CONTROL(C60) M6X20 W/LK WASHER	9-01900-620-0	01	1	9002-9204
33	BOLT; CLIP AIR CON MANUAL CONTROL(C60) M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9302
33	BOLT; CLIP AIR CON MANUAL CONTROL(C60) M6X20 FLANGE	0-28080-620-0	01	1	9303-
34	CLIP; COOLER PIPE AIR CON MANUAL CONTROL(C60)	1-83574-157-0	01	1	9002-9307
34	CLIP; COOLER PIPE AIR CON MANUAL CONTROL(C60)	1-83574-190-0	01	1	9308-
37	CONNECTOR; CMPR TO FLEX HOSE 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83575-071-0	01	1	9002-9306
37	CONNECTOR; CMPR TO FLEX HOSE 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83575-077-0	01	1	9307-
38	CLIP; CONNECTOR 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83574-093-0	01	1	9002-9204
38	CLIP; CONNECTOR 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83574-039-0	01	1	9205-9307
38	CLIP; CONNECTOR 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60)	1-83574-177-0	01	1	9308-
42	SCREW; CLIP AIR CON MANUAL CONTROL(C60) M6X12 W/LK WASHER	9-03910-612-0	02	1	9002-
42	SCREW; CLIP AIR CON MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9403-
98	STAY; CONDENSER AIR CON MANUAL CONTROL(C60)	1-83571-295-1	01	1	9002-
99	BOLT; STAY FIX AIR CON MANUAL CONTROL(C60) M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204
99	BOLT; STAY FIX AIR CON MANUAL CONTROL(C60) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
99	BOLT; STAY FIX AIR CON MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	01	1	9303-
99	BOLT; STAY FIX AIR CON MANUAL CONTROL(C60) M8X35	9-01970-835-0	01	1	9002-9005
99	BOLT; STAY FIX AIR CON MANUAL CONTROL(C60) M8X35 W/LK&PL WASHER	0-50140-835-0	01	1	9006-
100	NUT; STAY FIX AIR CON MANUAL CONTROL(C60) M8	9-09110-508-0	02	1	9002-
116	GASKET; PIPE AIR CON MANUAL CONTROL(C60) ID=7.65	8-94113-332-0	02	1	9307-9307
116	GASKET; PIPE AIR CON MANUAL CONTROL(C60) ID=6.07	8-94461-902-0	02	1	9308-
122	GASKET 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) (C)	1-09623-488-0	02	1	9002-9307
122	GASKET 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) (C)	8-94113-330-0	02	1	9308-
122	GASKET 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) (D)	1-09623-489-0	02	1	9002-9307
122	GASKET 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) (D)	8-94113-331-0	02	1	9308-
122	GASKET 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (A)	1-09623-488-0	01	1	9002-9307
122	GASKET 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (A)	8-94113-330-0	01	1	9308-
122	GASKET 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (B)	1-09623-489-0	01	1	9002-9307
122	GASKET 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (B)	8-94113-331-0	01	1	9308-
122	GASKET 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (E)	8-94461-900-0	01	1	9307-
122	GASKET 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (F)	8-94461-901-0	01	1	9307-
126	CLIP; RECEIVER TANK AIR CON MANUAL CONTROL(C60) (A)	5-09707-031-1	01	1	9002-
126	CLIP; RECEIVER TANK AIR CON MANUAL CONTROL(C60) (B)	8-97084-632-0	01	1	9002-
144	BOLT; CONN TO CMPR 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) M10X45	9-01961-045-0	01	1	9206-
145	BOLT; CLIP,CONNECTOR 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) M8X16 W/LK WASHER	9-01900-816-0	01	1	9206-
181	GASKET; CONNECTOR 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) (A)	1-09623-514-0	01	1	9307-
181	GASKET; CONNECTOR 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) (B)	1-09623-515-0	01	1	9307-

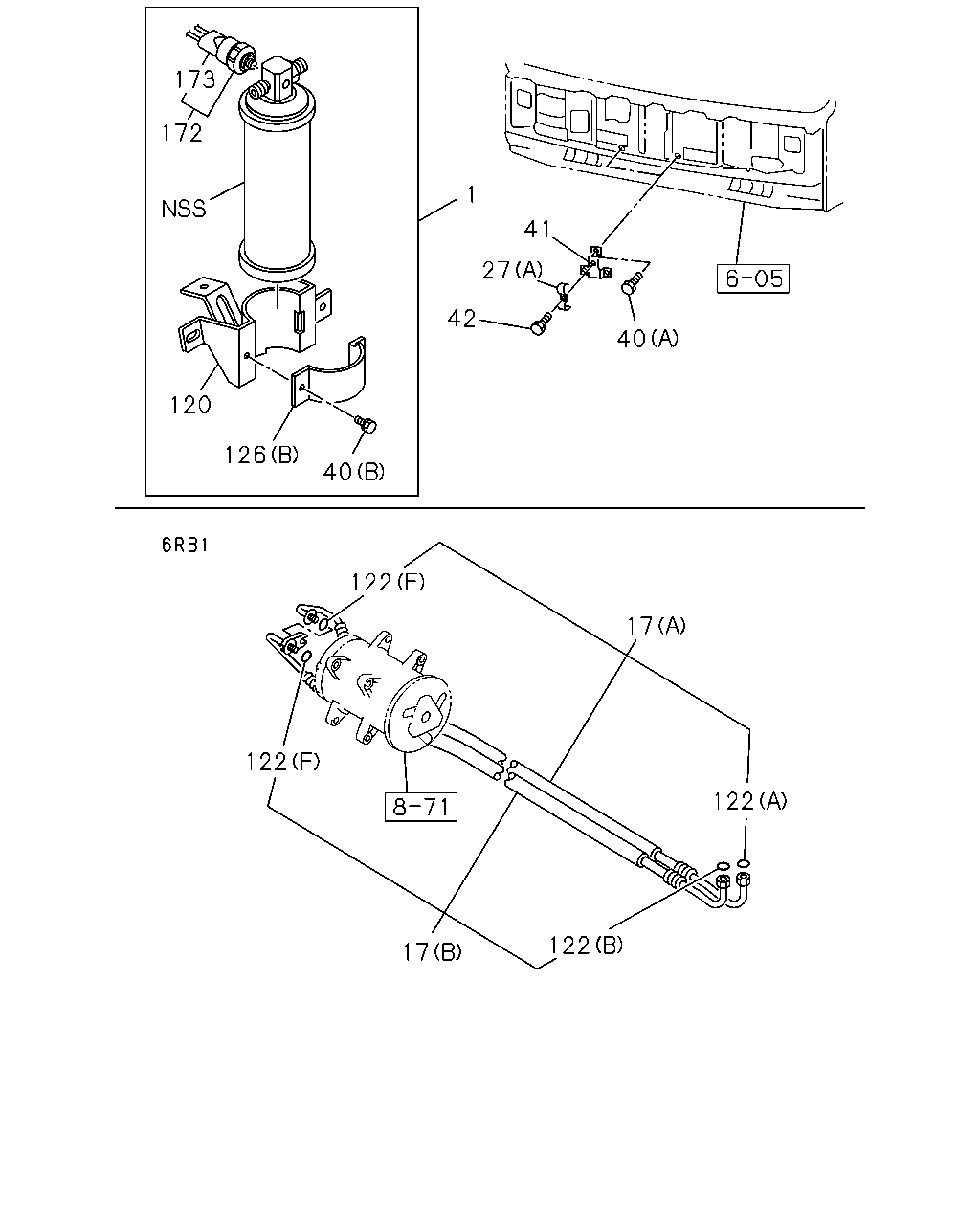

173 172 1 41 27 42 40 120 126 40 6 122 17 122 122 122 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; RECEIVER AIR CON MANUAL CONTROL(C60)	1-83535-037-2	01	1	9002-9306
1	TANK; RECEIVER AIR CON MANUAL CONTROL(C60)	1-83535-064-0	01	1	9307-9308
1	TANK; RECEIVER AIR CON MANUAL CONTROL(C60)	1-83535-065-0	01	1	9309-
6	SCREW; BRKT AIR CON MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-03910-616-0	01	1	9002-9203
6	SCREW; BRKT AIR CON MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9204-
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) (D)	1-83566-562-0	01	1	9002-9307
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) (D)	1-83572-032-0	01	1	9308-
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) (C)	1-83566-563-0	01	1	9002-9307
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) (C)	1-83572-033-0	01	1	9308-
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (A)	1-83566-588-0	01	1	9002-9307
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (A)	1-83572-034-0	01	1	9308-
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (B)	1-83566-589-0	01	1	9002-9307
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (B)	1-83572-035-0	01	1	9308-
27	CLIP; COOLER PIPE AIR CON MANUAL CONTROL(C60) (A)	1-09700-639-0	02	1	9002-
27	CLIP; COOLER PIPE AIR CON MANUAL CONTROL(C60) (B)	1-83574-178-0	01	1	9403-
40	BOLT; CLIP BRKT AIR CON MANUAL CONTROL(C60) (A)	1-09980-279-0	04	1	9002-
40	BOLT; CLIP BRKT AIR CON MANUAL CONTROL(C60) (B)	1-83539-048-0	01	1	9002-
41	BRACKET; PIPE CLIP AIR CON MANUAL CONTROL(C60)	1-83571-256-0	02	1	9002-
42	SCREW; CLIP AIR CON MANUAL CONTROL(C60) M6X12 W/LK WASHER	9-03910-612-0	02	1	9002-
42	SCREW; CLIP AIR CON MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9403-
120	BRACKET; RECEIVER TANK AIR CON MANUAL CONTROL(C60)	1-83571-645-1	01	1	9002-9307
120	BRACKET; RECEIVER TANK AIR CON MANUAL CONTROL(C60)	1-83571-642-1	01	1	9308-9308
120	BRACKET; RECEIVER TANK AIR CON MANUAL CONTROL(C60)	1-83571-645-1	01	1	9309-
122	GASKET 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) (C)	1-09623-488-0	02	1	9002-9307
122	GASKET 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) (C)	8-94113-330-0	02	1	9308-
122	GASKET 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) (D)	1-09623-489-0	02	1	9002-9307
122	GASKET 10PD1 STD ENG(40L) AIR CON MANUAL CONTROL(C60) (D)	8-94113-331-0	02	1	9308-
122	GASKET 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (A)	1-09623-488-0	01	1	9002-9307
122	GASKET 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (A)	8-94113-330-0	01	1	9308-
122	GASKET 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (B)	1-09623-489-0	01	1	9002-9307
122	GASKET 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (B)	8-94113-331-0	01	1	9308-
122	GASKET 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (E)	8-94461-900-0	01	1	9307-
122	GASKET 6RB1 STD ENG(07L) AIR CON MANUAL CONTROL(C60) (F)	8-94461-901-0	01	1	9307-
126	CLIP; RECEIVER TANK AIR CON MANUAL CONTROL(C60) (A)	5-09707-031-1	01	1	9002-
126	CLIP; RECEIVER TANK AIR CON MANUAL CONTROL(C60) (B)	8-97084-632-0	01	1	9002-
172	SWITCH; PRESS,RECEIVER TANK AIR CON MANUAL CONTROL(C60)	1-83564-283-0	01	1	9002-9307
172	SWITCH; PRESS,RECEIVER TANK AIR CON MANUAL CONTROL(C60)	1-83539-224-0	01	1	9308-
173	COVER; PRESS SW AIR CON MANUAL CONTROL(C60)	1-83579-429-0	01	1	9002-9306

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
