Sayfa 0-42 - Isuzu EPC

0-42 — FUEL PUMP AND PIPE (#36738) — 292 parça

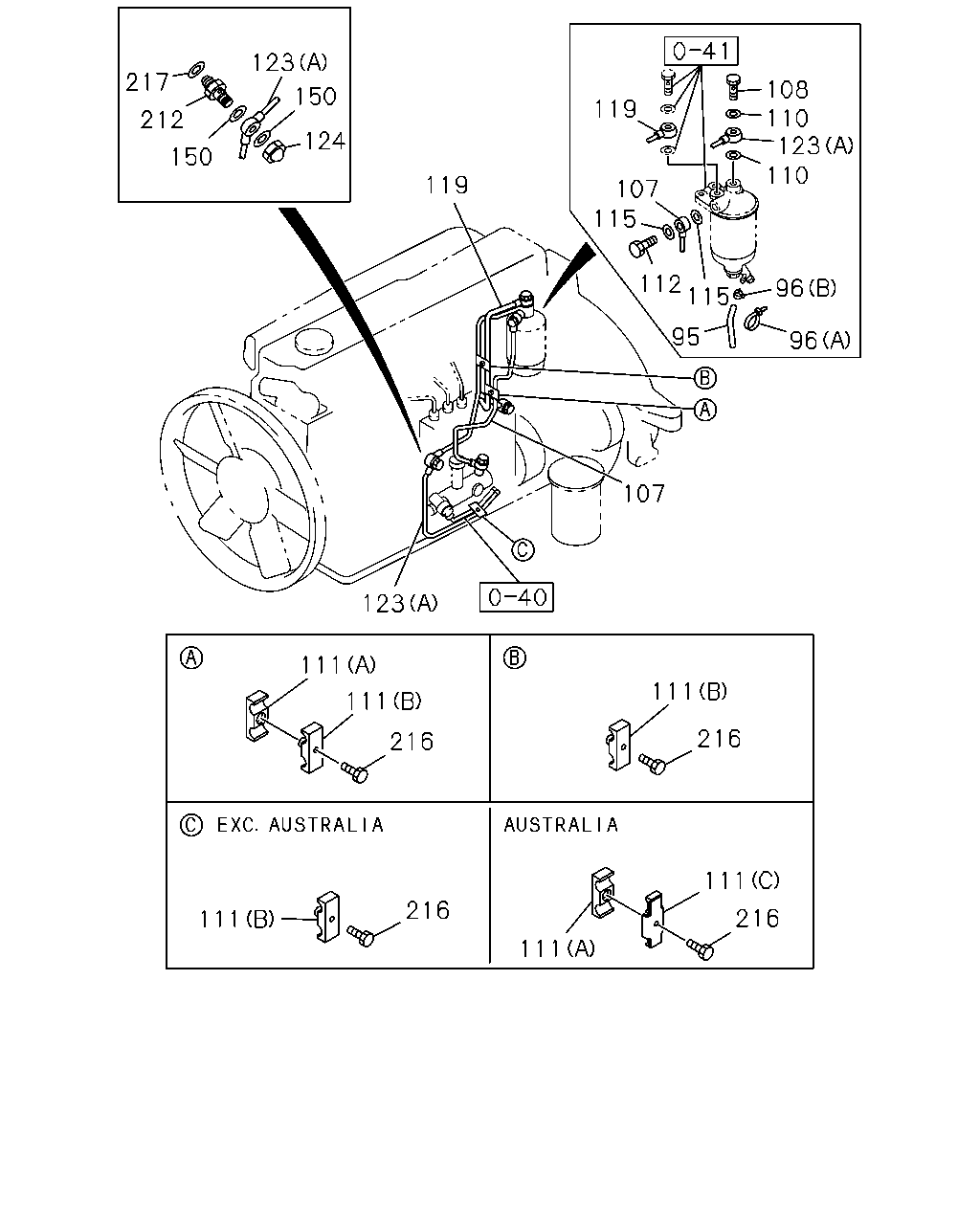

123 217 108 110 123 110 150 119 212 124 150 119 107 115 112 115 96 95 96 107 123 111 111 111 216 216 111 216 216 111 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
95	PIPE; VINYL PARTIAL OIL FILTER ELEMENT TYPE<KC1> L=650 SERVICED BY L=10000	9-09914-909-0	01	1	9610-9904	●
95	PIPE; VINYL PARTIAL OIL FILTER ELEMENT TYPE<KC1> L=650 SERVICED BY L=10000	9-09914-909-0	01	1	9905-	●	●
96	CLIP; VINYL PIPE PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) L=100	5-09707-036-1	01	1	9610-9904	●
96	CLIP; VINYL PIPE PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) L=100	5-09707-036-1	01	1	9905-1205	●	●
96	CLIP; VINYL PIPE PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) L=100	8-98216-432-0	01	1	1206-	●	●
96	CLIP; VINYL PIPE PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=8	8-94107-762-0	01	1	9610-9904	●
96	CLIP; VINYL PIPE PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=8	8-94107-762-0	01	1	9905-	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94390-827-0	01	1	0406-			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	8-94392-069-0	01	1	9905-0010	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	8-94392-069-0	01	1	0011-0405	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94392-069-0	01	1	0011-0405				●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	8-94392-069-0	01	1	0406-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9604-9904	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. EURO2 SPECIFICATION<THN>	8-94396-681-0	01	1	9905-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9905-		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9604-0004	●	●
108	BOLT; JOINT,FUEL FILTER EXC. EURO2 SPECIFICATION<THN> M14X27 FLANGE	1-09675-086-0	01	1	0005-0112	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0112		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-0405	●	●		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0406-	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9604-0004	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-0405	●	●		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0406-1312	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
111	CLIP; FUEL PIPE AUSTRALIA EQUIPMENT(RR3) (B) L=48	5-09709-103-0	02	1	9604-0004	●
111	CLIP; FUEL PIPE AUSTRALIA EQUIPMENT(RR3) (C)	8-94396-210-0	01	1	9604-0004	●
111	CLIP; FUEL PIPE EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=48	5-09709-103-0	03	1	9604-9904	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9604-9904		●
111	CLIP; FUEL PIPE EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) L=48	5-09709-103-0	03	1	9905-0004	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9905-0004		●
111	CLIP; FUEL PIPE EXC. EURO2 SPECIFICATION<THN> (B) L=48	5-09709-103-0	03	1	0005-	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0005-		●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (A)	1-15419-215-1	01	1	9905-0010	●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (A)	1-15419-215-1	01	1	0011-0405	●
111	CLIP; FUEL PIPE (A)	1-15419-215-1	01	1	0011-0405				●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (A)	1-15419-215-1	01	1	0406-	●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (B) ID=6.0 & 9.5	8-94100-359-0	01	1	9905-0010	●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (B) ID=6.0 & 9.5	8-94100-359-0	01	1	0011-0405	●
111	CLIP; FUEL PIPE (B) ID=6.0 & 9.5	8-94100-359-0	01	1	0011-0405				●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (B) ID=6.0 & 9.5	8-94100-359-0	01	1	0406-	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	01	1	9604-9904	●	●
111	CLIP; FUEL PIPE EXC. EURO2 SPECIFICATION<THN> (A) L=45	5-09709-104-0	01	1	9905-	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	01	1	9905-		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9604-0010	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0011-0405	●	●		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0406-	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9604-0010	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0405	●	●		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0406-1312	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-820-0	01	1	0406-			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	8-94392-959-0	01	1	9905-0010	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	8-94392-959-0	01	1	0011-0405	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94392-959-0	01	1	0011-0405				●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	8-94392-959-0	01	1	0406-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9604-9904	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO2 SPECIFICATION<THN>	8-94390-343-0	01	1	9905-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9905-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (C)	8-97600-387-0	01	1	0406-			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF AUSTRALIA EQUIPMENT(RR3) (A)	8-94390-774-0	01	1	9604-0004	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94394-556-1	01	1	9604-9904	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-556-1	01	1	9604-9904		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (A)	8-94394-556-1	01	1	9905-0004	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-556-1	01	1	9905-0004		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO2 SPECIFICATION<THN> (A)	8-94394-556-1	01	1	0005-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-556-1	01	1	0005-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION<THN> (A)	8-94392-617-1	01	1	9905-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94392-333-4	01	1	0011-0405				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-94391-513-0	01	1	0406-			●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9604-0010	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0011-0405	●	●		●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0406-1108	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	1109-	●	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9604-0010	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0405	●	●		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0406-1108	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	1109-1312	●	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9604-9904	●	●
212	VALVE; OVERFLOW EXC. EURO2 SPECIFICATION<THN>	8-94399-087-0	01	1	9905-	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9905-		●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	02	1	9905-0010	●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	02	1	0011-0405	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0011-0405				●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	02	1	0406-0512	●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9604-9904	●	●
216	BOLT; CLIP,FUEL PIPE EXC. EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	03	1	9905-0512	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9905-0512		●
216	BOLT; CLIP,FUEL PIPE EXC. EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-		●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9604-9904	●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9905-1312	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9905-1312		●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-		●

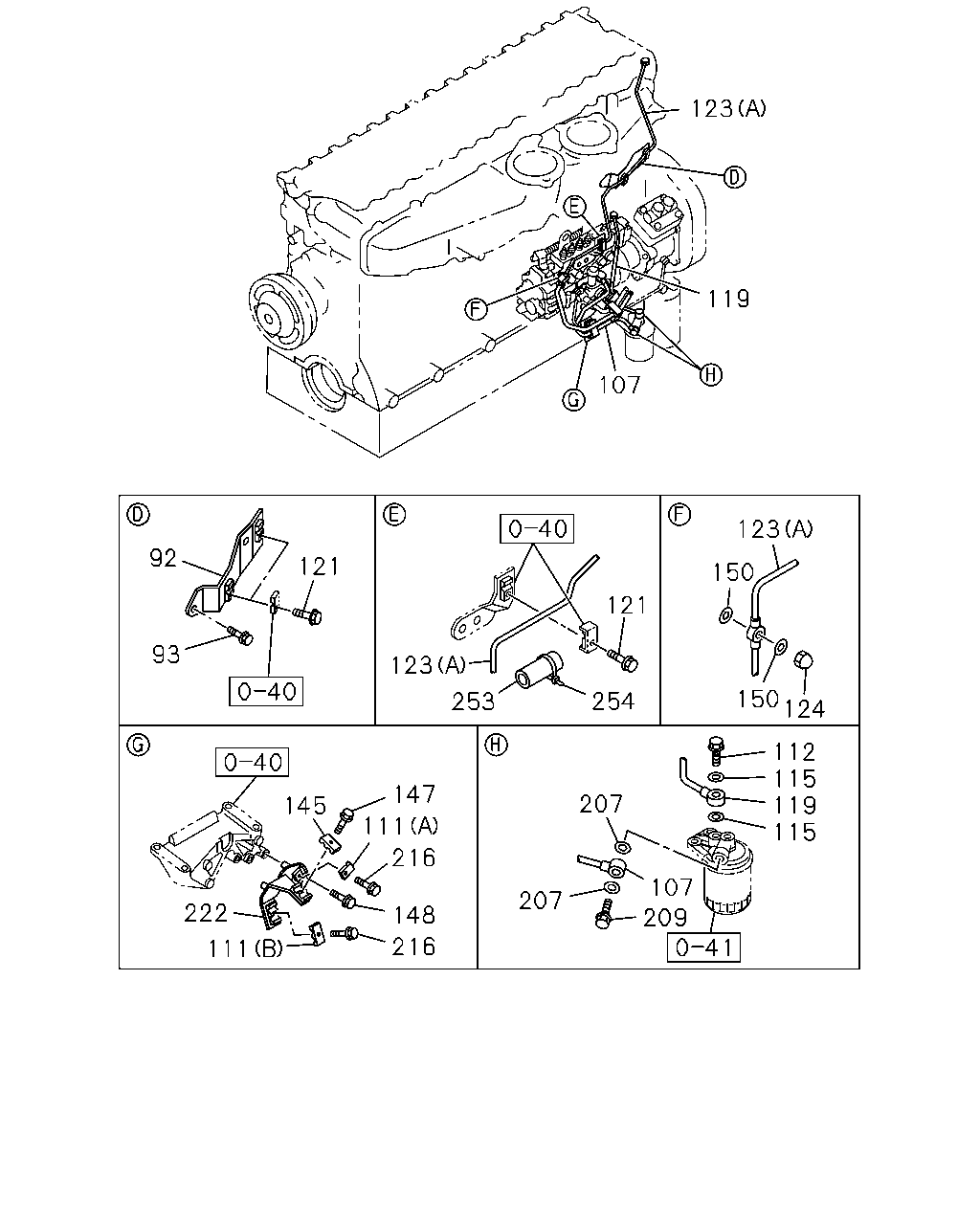

123 119 107 123 92 121 150 121 93 123 150 124 254 253 112 115 119 115 147 207 145 111 216 107 209 222 148 216 111 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
92	BRACKET; FUEL PIPE EURO2 SPECIFICATION<THN>	8-94391-980-0	01	1	9905-	●
92	BRACKET; FUEL PIPE	8-94392-321-1	01	1	0011-0405				●
93	BOLT; PIPE BRKT EURO2 SPECIFICATION<THN> M8X14 FLANGE	0-28080-814-0	02	1	9905-0010	●
93	BOLT; PIPE BRKT EURO2 SPECIFICATION<THN> M8X14 FLANGE	0-28080-814-0	02	1	0011-0405	●
93	BOLT; PIPE BRKT M8X14 FLANGE	0-28080-814-0	02	1	0011-0405				●
93	BOLT; PIPE BRKT EURO2 SPECIFICATION<THN> M8X14 FLANGE	0-28080-814-0	02	1	0406-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94390-827-0	01	1	0406-			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	8-94392-069-0	01	1	9905-0010	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	8-94392-069-0	01	1	0011-0405	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94392-069-0	01	1	0011-0405				●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	8-94392-069-0	01	1	0406-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9604-9904	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. EURO2 SPECIFICATION<THN>	8-94396-681-0	01	1	9905-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9905-		●
111	CLIP; FUEL PIPE AUSTRALIA EQUIPMENT(RR3) (B) L=48	5-09709-103-0	02	1	9604-0004	●
111	CLIP; FUEL PIPE AUSTRALIA EQUIPMENT(RR3) (C)	8-94396-210-0	01	1	9604-0004	●
111	CLIP; FUEL PIPE EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=48	5-09709-103-0	03	1	9604-9904	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9604-9904		●
111	CLIP; FUEL PIPE EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) L=48	5-09709-103-0	03	1	9905-0004	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9905-0004		●
111	CLIP; FUEL PIPE EXC. EURO2 SPECIFICATION<THN> (B) L=48	5-09709-103-0	03	1	0005-	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0005-		●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (A)	1-15419-215-1	01	1	9905-0010	●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (A)	1-15419-215-1	01	1	0011-0405	●
111	CLIP; FUEL PIPE (A)	1-15419-215-1	01	1	0011-0405				●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (A)	1-15419-215-1	01	1	0406-	●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (B) ID=6.0 & 9.5	8-94100-359-0	01	1	9905-0010	●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (B) ID=6.0 & 9.5	8-94100-359-0	01	1	0011-0405	●
111	CLIP; FUEL PIPE (B) ID=6.0 & 9.5	8-94100-359-0	01	1	0011-0405				●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (B) ID=6.0 & 9.5	8-94100-359-0	01	1	0406-	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	01	1	9604-9904	●	●
111	CLIP; FUEL PIPE EXC. EURO2 SPECIFICATION<THN> (A) L=45	5-09709-104-0	01	1	9905-	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	01	1	9905-		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9604-0010	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0011-0405	●	●		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0406-	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9604-0010	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0405	●	●		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0406-1312	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-820-0	01	1	0406-			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	8-94392-959-0	01	1	9905-0010	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	8-94392-959-0	01	1	0011-0405	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94392-959-0	01	1	0011-0405				●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	8-94392-959-0	01	1	0406-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9604-9904	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO2 SPECIFICATION<THN>	8-94390-343-0	01	1	9905-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9905-		●
121	BOLT; CLIP EURO2 SPECIFICATION<THN> M6X22 FLANGE	0-28080-622-0	03	1	9905-0010	●
121	BOLT; CLIP EURO2 SPECIFICATION<THN> M6X22 FLANGE	0-28080-622-0	03	1	0011-0405	●
121	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	03	1	0011-0405				●
121	BOLT; CLIP EURO2 SPECIFICATION<THN> M6X22 FLANGE	0-28080-622-0	03	1	0406-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (C)	8-97600-387-0	01	1	0406-			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF AUSTRALIA EQUIPMENT(RR3) (A)	8-94390-774-0	01	1	9604-0004	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94394-556-1	01	1	9604-9904	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-556-1	01	1	9604-9904		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (A)	8-94394-556-1	01	1	9905-0004	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-556-1	01	1	9905-0004		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO2 SPECIFICATION<THN> (A)	8-94394-556-1	01	1	0005-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-556-1	01	1	0005-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION<THN> (A)	8-94392-617-1	01	1	9905-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94392-333-4	01	1	0011-0405				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-94391-513-0	01	1	0406-			●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9604-0010	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0011-0405	●	●		●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0406-1108	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	1109-	●	●	●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	02	1	0406-			●
145	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> L=48	5-09709-103-0	01	1	9905-0010	●
145	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> L=48	5-09709-103-0	01	1	0011-0405	●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	0011-0405				●
145	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> L=48	5-09709-103-0	01	1	0406-	●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0406-0512			●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-			●
147	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	01	1	9905-0010	●
147	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	01	1	0011-0405	●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	0011-0405				●
147	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	01	1	0406-0512	●
147	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	01	1	0601-	●
148	BOLT; BRKT EURO2 SPECIFICATION<THN> M8X50 FLANGE	0-28080-850-0	02	1	9905-0010	●
148	BOLT; BRKT EURO2 SPECIFICATION<THN> M8X50 FLANGE	0-28080-850-0	02	1	0011-0405	●
148	BOLT; BRKT M8X50 FLANGE	0-28080-850-0	02	1	0011-0405				●
148	BOLT; BRKT EURO2 SPECIFICATION<THN> M8X50 FLANGE	0-28080-850-0	02	1	0406-0512	●
148	BOLT; BRKT EURO2 SPECIFICATION<THN> M8X50 FLANGE	0-28050-850-0	02	1	0601-	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9604-0010	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0405	●	●		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0406-1108	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	1109-1312	●	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
207	GASKET; EYE BOLT ID=10.2 OD=15.2	1-09630-083-0	02	1	0406-			●
207	GASKET; EYE BOLT EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-0010	●
207	GASKET; EYE BOLT EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0112	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0112				●
209	BOLT; EYE,FUEL FILTER EURO2 SPECIFICATION<THN>	1-15619-310-0	01	1	9905-0010	●
209	BOLT; EYE,FUEL FILTER EURO2 SPECIFICATION<THN>	1-15619-310-0	01	1	0011-0112	●
209	BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	0011-0112				●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	02	1	9905-0010	●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	02	1	0011-0405	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0011-0405				●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	02	1	0406-0512	●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9604-9904	●	●
216	BOLT; CLIP,FUEL PIPE EXC. EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	03	1	9905-0512	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9905-0512		●
216	BOLT; CLIP,FUEL PIPE EXC. EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-		●
222	BRACKET; CLIP EURO2 SPECIFICATION<THN>	8-94392-071-0	01	1	9905-0010	●
222	BRACKET; CLIP EURO2 SPECIFICATION<THN>	8-94392-071-0	01	1	0011-0405	●
222	BRACKET; CLIP	8-94392-071-0	01	1	0011-0405				●
222	BRACKET; CLIP EURO2 SPECIFICATION<THN>	8-94392-071-1	01	1	0406-	●
253	COVER; RUBBER EURO2 SPECIFICATION<THN> ID=6 OD=10 L=70	1-09376-512-0	01	1	9905-0010	●
253	COVER; RUBBER EURO2 SPECIFICATION<THN> ID=6 OD=10 L=70	1-09376-512-0	01	1	0011-0405	●
253	COVER; RUBBER ID=6 OD=10 L=70	1-09376-512-0	01	1	0011-0405				●
253	COVER; RUBBER EURO2 SPECIFICATION<THN> ID=6 OD=10 L=70	1-09376-512-0	01	1	0406-	●
253	COVER; RUBBER EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	01	1	0001-0010	●
253	COVER; RUBBER EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	01	1	0011-0405	●
253	COVER; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	0011-0405				●
253	COVER; RUBBER EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	01	1	0406-	●
254	CLIP EURO2 SPECIFICATION<THN> L=250	5-09707-030-1	01	1	9905-9912	●
254	CLIP EURO2 SPECIFICATION<THN> L=250	5-09707-030-1	02	1	0001-1205	●
254	CLIP EURO2 SPECIFICATION<THN> L=250	8-98216-430-0	02	1	1206-	●
254	CLIP L=250	5-09707-030-1	01	1	0011-0405				●

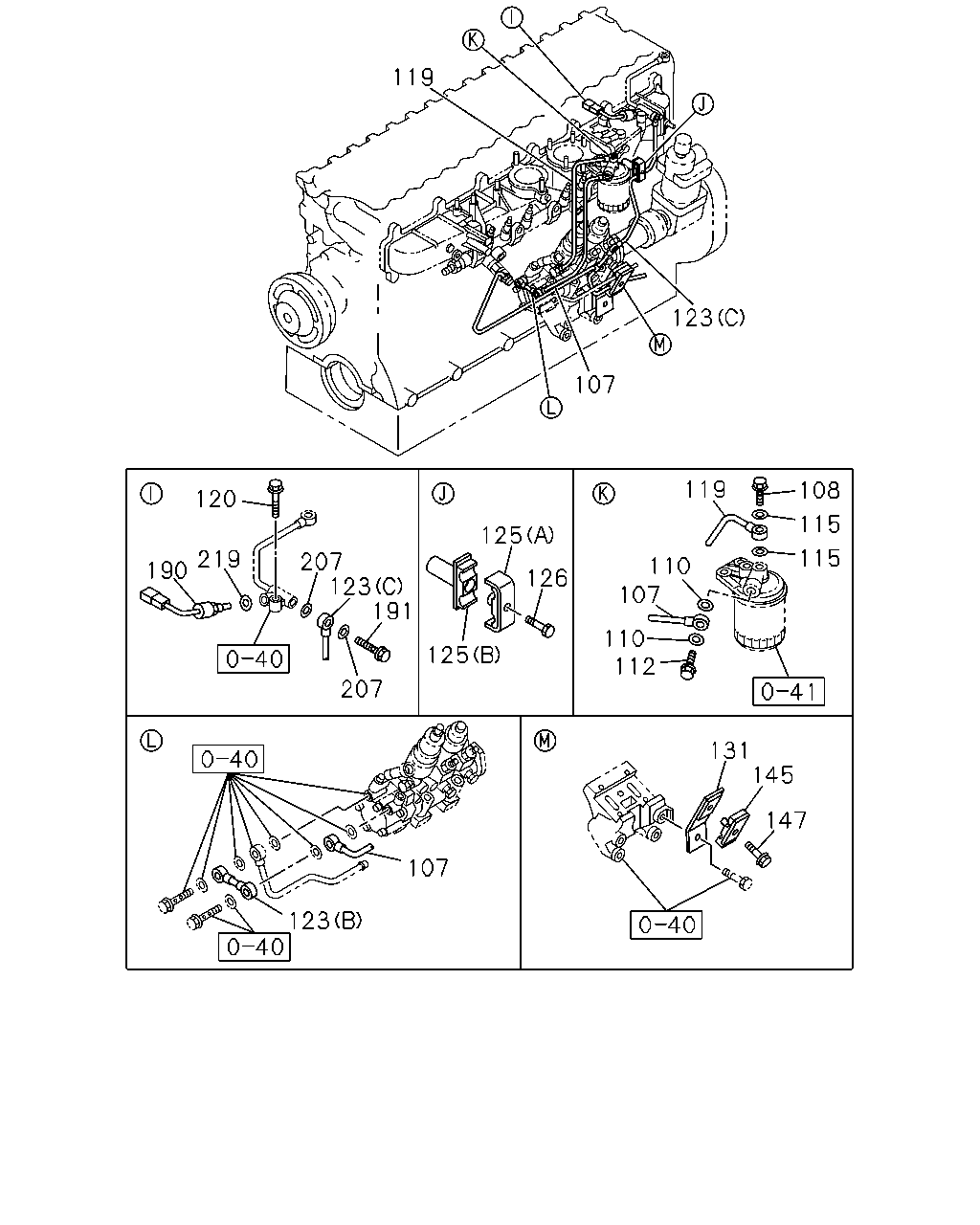

119 123 107 119 108 120 115 125 115 219 190 207 123 191 110 107 126 110 112 125 207 131 145 147 107 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94390-827-0	01	1	0406-			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	8-94392-069-0	01	1	9905-0010	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	8-94392-069-0	01	1	0011-0405	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94392-069-0	01	1	0011-0405				●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	8-94392-069-0	01	1	0406-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9604-9904	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. EURO2 SPECIFICATION<THN>	8-94396-681-0	01	1	9905-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9905-		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9604-0004	●	●
108	BOLT; JOINT,FUEL FILTER EXC. EURO2 SPECIFICATION<THN> M14X27 FLANGE	1-09675-086-0	01	1	0005-0112	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0112		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-0405	●	●		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0406-	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9604-0004	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-0405	●	●		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0406-1312	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9604-0010	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0011-0405	●	●		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0406-	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9604-0010	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0405	●	●		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0406-1312	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-820-0	01	1	0406-			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	8-94392-959-0	01	1	9905-0010	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	8-94392-959-0	01	1	0011-0405	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94392-959-0	01	1	0011-0405				●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	8-94392-959-0	01	1	0406-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9604-9904	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO2 SPECIFICATION<THN>	8-94390-343-0	01	1	9905-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9905-		●
120	BOLT; STAY M8X40 FLANGE	0-28080-840-0	01	1	0406-0512			●
120	BOLT; STAY M8X40 FLANGE	0-28050-840-0	01	1	0601-			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (C)	8-97600-387-0	01	1	0406-			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF AUSTRALIA EQUIPMENT(RR3) (A)	8-94390-774-0	01	1	9604-0004	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94394-556-1	01	1	9604-9904	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-556-1	01	1	9604-9904		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (A)	8-94394-556-1	01	1	9905-0004	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-556-1	01	1	9905-0004		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO2 SPECIFICATION<THN> (A)	8-94394-556-1	01	1	0005-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-556-1	01	1	0005-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION<THN> (A)	8-94392-617-1	01	1	9905-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94392-333-4	01	1	0011-0405				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-94391-513-0	01	1	0406-			●
125	CLIP; FUEL PIPE (A)	1-09701-172-3	01	1	0406-			●
125	CLIP; FUEL PIPE (B)	8-94391-370-1	01	1	0406-			●
126	BOLT; CLIP,FUEL PIPE M6X60 FLANGE	0-28080-660-0	01	1	0406-0512			●
126	BOLT; CLIP,FUEL PIPE M6X60 FLANGE	0-28050-660-0	01	1	0601-			●
131	BRACKET; FUEL PIPE CLIP	8-94390-958-0	01	1	0406-			●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	02	1	0406-			●
145	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> L=48	5-09709-103-0	01	1	9905-0010	●
145	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> L=48	5-09709-103-0	01	1	0011-0405	●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	0011-0405				●
145	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> L=48	5-09709-103-0	01	1	0406-	●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0406-0512			●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-			●
147	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	01	1	9905-0010	●
147	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	01	1	0011-0405	●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	0011-0405				●
147	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	01	1	0406-0512	●
147	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	01	1	0601-	●
190	SENSOR; FUEL TEMP	1-81535-035-3	01	1	0406-			●
191	BOLT; EYE,FUEL PIPE M10X21 FLANGE	8-94396-711-0	01	1	0406-			●
207	GASKET; EYE BOLT ID=10.2 OD=15.2	1-09630-083-0	02	1	0406-			●
207	GASKET; EYE BOLT EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-0010	●
207	GASKET; EYE BOLT EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0112	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0112				●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0406-1312			●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	8-98251-344-0	01	1	1401-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
