◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10716 - FSS/FTS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-38 - AIR COMPRESSOR PIPING; ENGINE SIDE ▶

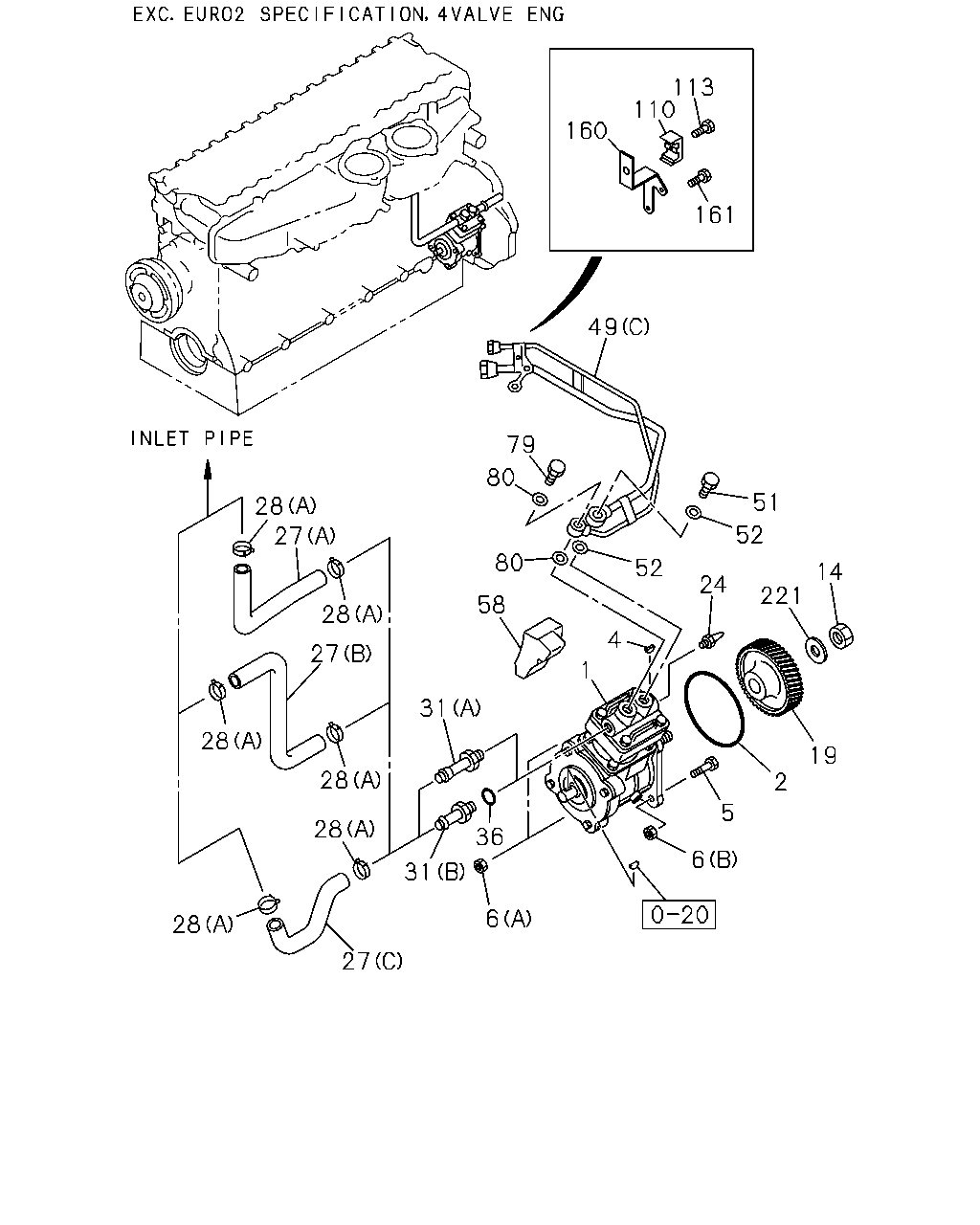

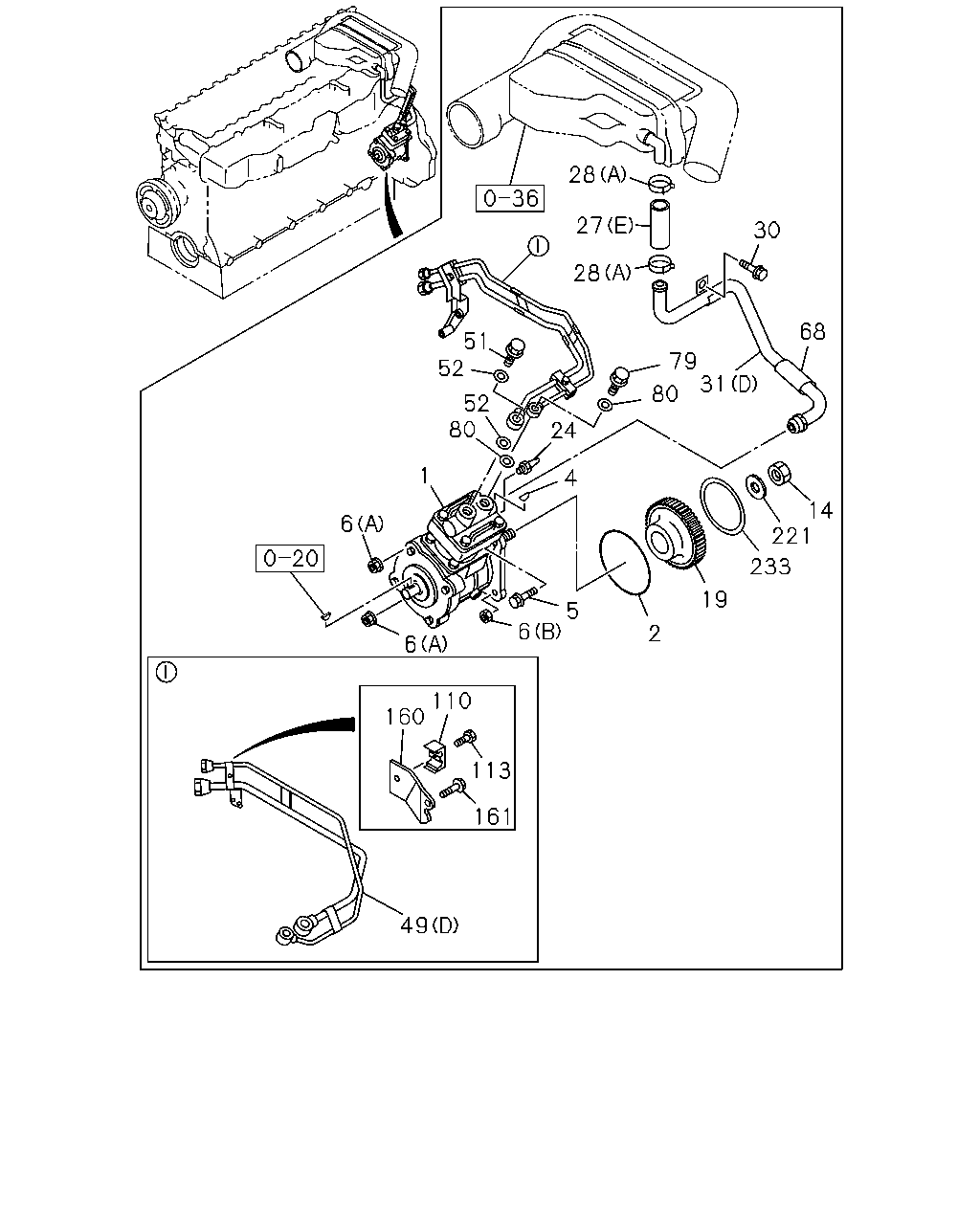

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#36734) — 1025 parça

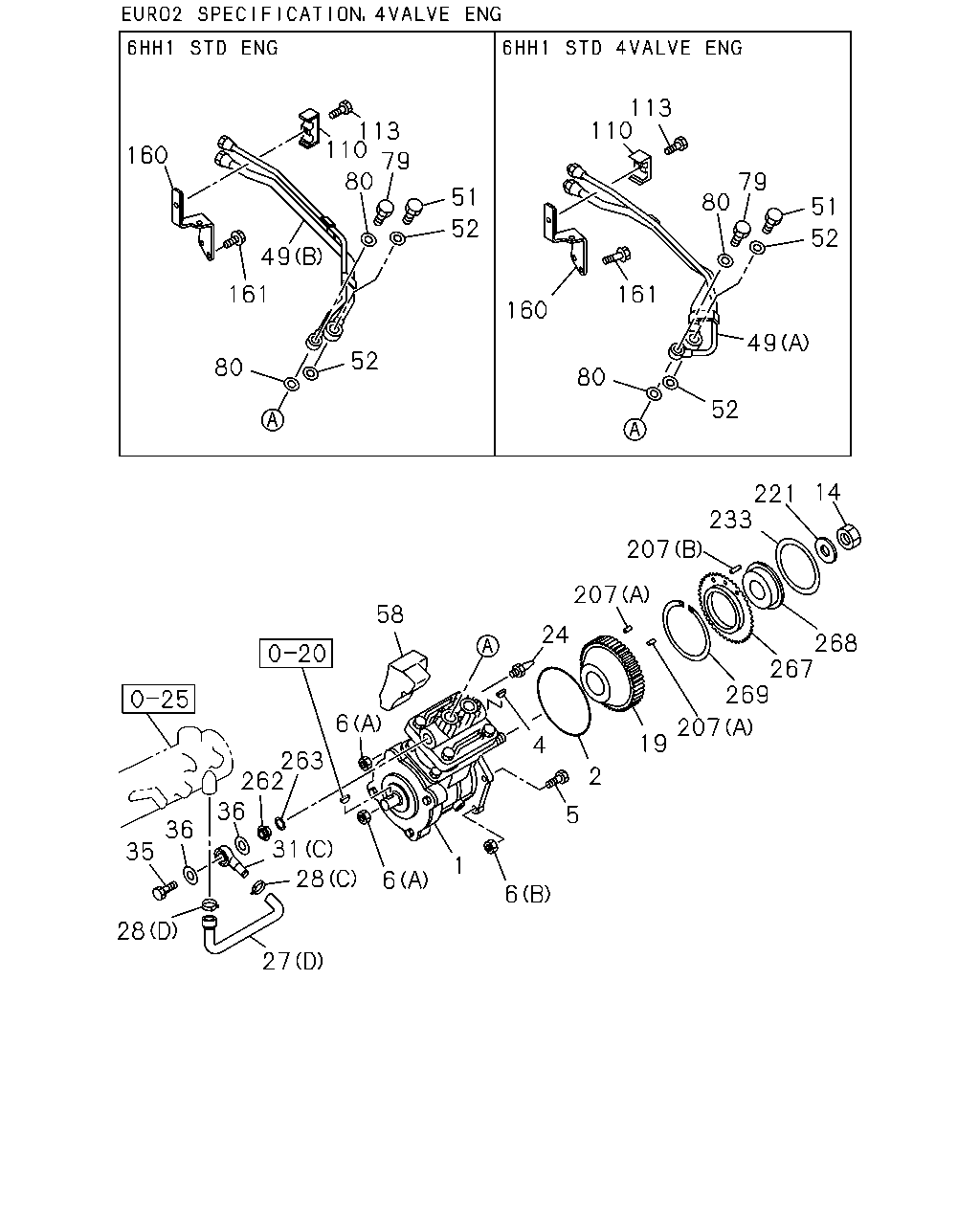

çizim 152570
113 110 113 110 160 79 80 79 80 51 51 52 52 49 161 161 160 49 52 80 80 52 14 221 233 207 207 58 24 268 267 269 6 207 19 4 263 262 2 36 5 36 31 28 35 1 6 6 28 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> 		8-94391-442-2 01 1 9905-9906 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> 		8-97600-699-1 01 1 9907-1107 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> 		8-98187-305-0 01 1 1108- ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94396-892-8 01 1 9604-0004 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> 		8-94396-892-9 01 1 0005-1107 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> 		8-98187-310-1 01 1 1108- ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94396-891-4 01 1 9604-9904 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-94396-891-4 01 1 9604-9904 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		8-94396-891-4 01 1 9905-0004 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-94396-891-4 01 1 9905-0004 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		8-94396-891-4 01 1 0005-0402 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-94396-891-4 01 1 0005-0402 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> 		8-94396-891-4 01 1 0403-1107 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94396-891-4 01 1 0403-1107 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> 		8-98187-309-1 01 1 1108- ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-98187-309-1 01 1 1108- ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-97600-705-1 01 1 0011-0405 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-97600-704-2 01 1 0406- ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 9604-0010 ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 0011-0405 ● ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 0406- ● ● ●
4 KEY; INJ PUMP GEAR
EURO2 SPECIFICATION<THN> 		9-08055-519-0 01 1 9905-0010 ●
4 KEY; INJ PUMP GEAR
EURO2 SPECIFICATION<THN> 		9-08055-519-0 01 1 0011-0405 ●
4 KEY; INJ PUMP GEAR 9-08055-519-0 01 1 0011-0405 ●
4 KEY; INJ PUMP GEAR
EURO2 SPECIFICATION<THN> 		9-08055-519-0 01 1 0406- ●
4 KEY; INJ PUMP GEAR 9-08055-519-0 01 1 0406- ●
4 KEY; INJ PUMP GEAR 9-08055-516-0 01 1 9604-9904 ● ●
4 KEY; INJ PUMP GEAR
EXC. EURO2 SPECIFICATION<THN> 		9-08055-516-0 01 1 9905- ●
4 KEY; INJ PUMP GEAR 9-08055-516-0 01 1 9905- ●
5 BOLT; AIR CMPR FIX
EURO2 SPECIFICATION<THN> M12X110 		0-28186-211-0 01 1 9905-0010 ●
5 BOLT; AIR CMPR FIX
EURO2 SPECIFICATION<THN> M12X110 		0-28186-211-0 01 1 0011-0405 ●
5 BOLT; AIR CMPR FIX
M12X110 		0-28186-211-0 01 1 0011-0405 ●
5 BOLT; AIR CMPR FIX
EURO2 SPECIFICATION<THN> M12X110 		0-28186-211-0 01 1 0406-0512 ●
5 BOLT; AIR CMPR FIX
M12X110 		0-28186-211-0 01 1 0406-0512 ●
5 BOLT; AIR CMPR FIX
EURO2 SPECIFICATION<THN> M12X110 FLANGE 		0-28156-211-0 01 1 0601- ●
5 BOLT; AIR CMPR FIX
M12X110 FLANGE 		0-28156-211-0 01 1 0601- ●
5 BOLT; AIR CMPR FIX
M12X95 FLANGE 		8-94396-485-1 01 1 9604-9904 ● ●
5 BOLT; AIR CMPR FIX
EXC. EURO2 SPECIFICATION<THN> M12X95 FLANGE 		8-94396-485-1 01 1 9905- ●
5 BOLT; AIR CMPR FIX
M12X95 FLANGE 		8-94396-485-1 01 1 9905- ●
6 NUT; AIR CMPR
(A) M10 FLANGE 		0-91150-110-0 02 1 9604-0010 ● ●
6 NUT; AIR CMPR
(A) M10 FLANGE 		0-91150-110-0 02 1 0011-0405 ● ● ●
6 NUT; AIR CMPR
(A) M10 FLANGE 		0-91150-110-0 02 1 0406-0602 ● ● ●
6 NUT; AIR CMPR
(A) M10 FLANGE 		0-91180-110-0 02 1 0603- ● ● ●
6 NUT; AIR CMPR
(B) M12 FLANGE 		0-91150-112-0 01 1 9604-0010 ● ●
6 NUT; AIR CMPR
(B) M12 FLANGE 		0-91150-112-0 01 1 0011-0405 ● ● ●
6 NUT; AIR CMPR
(B) M12 FLANGE 		0-91150-112-0 01 1 0406-0602 ● ● ●
6 NUT; AIR CMPR
(B) M12 FLANGE 		0-91180-112-0 01 1 0603- ● ● ●
14 NUT; GEAR
EURO2 SPECIFICATION<THN> M24 		9-99110-524-0 01 1 9905-0010 ●
14 NUT; GEAR
EURO2 SPECIFICATION<THN> M24 		9-99110-524-0 01 1 0011-0405 ●
14 NUT; GEAR
M24 		9-99110-524-0 01 1 0011-0405 ●
14 NUT; GEAR
EURO2 SPECIFICATION<THN> M24 		9-99110-524-0 01 1 0406-0512 ●
14 NUT; GEAR
M24 		9-99110-524-0 01 1 0406-0512 ●
14 NUT; GEAR
EURO2 SPECIFICATION<THN> M24 		0-91110-524-0 01 1 0601- ●
14 NUT; GEAR
M24 		0-91110-524-0 01 1 0601- ●
14 NUT; GEAR
M20 		9-99110-520-0 01 1 9604-9904 ● ●
14 NUT; GEAR
EXC. EURO2 SPECIFICATION<THN> M20 		9-99110-520-0 01 1 9905-0512 ●
14 NUT; GEAR
M20 		9-99110-520-0 01 1 9905-0512 ●
14 NUT; GEAR
EXC. EURO2 SPECIFICATION<THN> M20 		0-91110-520-0 01 1 0601- ●
14 NUT; GEAR
M20 		0-91110-520-0 01 1 0601- ●
19 GEAR; INJ PUMP
EURO2 SPECIFICATION<THN> Z=35 		8-94390-998-2 01 1 9905-0405 ●
19 GEAR; INJ PUMP
EURO2 SPECIFICATION<THN> Z=35 		8-94390-998-2 01 1 0406- ●
19 GEAR; INJ PUMP
Z=35 		8-94390-998-2 01 1 0406- ●
19 GEAR; INJ PUMP
Z=35 		8-94336-157-4 01 1 9604-9904 ● ●
19 GEAR; INJ PUMP
EXC. EURO2 SPECIFICATION<THN> Z=35 		8-94336-157-4 01 1 9905- ●
19 GEAR; INJ PUMP
Z=35 		8-94336-157-4 01 1 9905- ●
19 GEAR; INJ PUMP
Z=35 		8-94392-642-1 01 1 0011-0405 ●
24 POINTER; AIR CMPR
L=21 		9-11327-602-0 01 1 9604-0010 ● ●
24 POINTER; AIR CMPR
L=21 		9-11327-602-0 01 1 0011-0405 ● ● ●
24 POINTER; AIR CMPR
L=21 		9-11327-602-0 01 1 0406- ● ● ●
27 HOSE; AIR CMPR,SUCTION
EURO2 SPECIFICATION<THN> (D) 		8-94390-542-2 01 1 9905- ●
27 HOSE; AIR CMPR,SUCTION
NEW ZEALAND EQUIPMENT(PK5) (A) 		8-94395-083-0 01 1 9604-0004 ●
27 HOSE; AIR CMPR,SUCTION
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> (A) 		8-94395-083-0 01 1 0005- ●
27 HOSE; AIR CMPR,SUCTION
THAILAND EQUIPMENT(PM9) (C) 		8-94394-809-1 01 1 9701-9712 ●
27 HOSE; AIR CMPR,SUCTION
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		8-94394-809-1 01 1 9801-9803 ●
27 HOSE; AIR CMPR,SUCTION
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) EXC. EURO2 SPECIFICATION<THN> (C) 		8-94394-809-1 01 1 9804-0004 ●
27 HOSE; AIR CMPR,SUCTION
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) 		8-94394-809-1 01 1 0005- ●
27 HOSE; AIR CMPR,SUCTION
FSS STD CAB(FS**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		8-94394-809-1 01 1 9604-9606 ●
27 HOSE; AIR CMPR,SUCTION
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) AUSTRALIA EQUIPMENT(RR3) (C) 		8-94394-967-0 01 1 9604-0004 ●
27 HOSE; AIR CMPR,SUCTION
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) (B) 		8-94395-085-0 01 1 9604-0004 ●
27 HOSE; AIR CMPR,SUCTION
FTS SHORT CHASSIS(FT***C) (A) 		8-94395-082-0 01 1 9604-9608 ●
27 HOSE; AIR CMPR,SUCTION
FTS STD CAB MIDDLE CHASSIS(FT**MF) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94395-082-0 01 1 9604-9608 ●
27 HOSE; AIR CMPR,SUCTION
(A) 		8-94395-082-0 01 1 9604-9608 ●
27 HOSE; AIR CMPR,SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94395-082-0 01 1 9609-9612 ●
27 HOSE; AIR CMPR,SUCTION
(A) 		8-94395-082-0 01 1 9609-9612 ●
27 HOSE; AIR CMPR,SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94395-082-0 01 1 9701-9712 ●
27 HOSE; AIR CMPR,SUCTION
(A) 		8-94395-082-0 01 1 9701-9712 ●
27 HOSE; AIR CMPR,SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) 		8-94395-082-0 01 1 9801-9904 ●
27 HOSE; AIR CMPR,SUCTION
(A) 		8-94395-082-0 01 1 9801-9904 ●
27 HOSE; AIR CMPR,SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN> (A) 		8-94395-082-0 01 1 9905-0004 ●
27 HOSE; AIR CMPR,SUCTION
(A) 		8-94395-082-0 01 1 9905-0004 ●
27 HOSE; AIR CMPR,SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN> (A) 		8-94395-082-0 01 1 0005- ●
27 HOSE; AIR CMPR,SUCTION
(A) 		8-94395-082-0 01 1 0005- ●
27 HOSE; AIR CMPR,SUCTION
(D) 		8-94391-030-2 01 1 0011-0405 ●
27 HOSE; AIR CMPR,SUCTION
(E) L=80 SERVICED BY L=1500 		1-09360-476-0 01 1 0406- ●
28 CLIP; HOSE,AIR CMPR
AUSTRALIA EQUIPMENT(RR3) (B) ID=13 L=20 		9-09525-235-0 01 1 9604-0004 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (C) ID=26 		1-09707-091-0 01 1 9905-0010 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (C) ID=26 		1-09707-091-0 01 1 0011-0405 ●
28 CLIP; HOSE,AIR CMPR
(C) ID=26 		1-09707-091-0 01 1 0011-0405 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (C) ID=26 		1-09707-091-0 01 1 0406- ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (D) ID=22.7 		8-94466-382-0 01 1 9905-0010 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (D) ID=22.7 		8-94466-382-0 01 1 0011-0405 ●
28 CLIP; HOSE,AIR CMPR
(D) ID=22.7 		8-94466-382-0 01 1 0011-0405 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (D) ID=22.7 		8-94466-382-0 01 1 0406- ●
28 CLIP; HOSE,AIR CMPR
(A) ID=26 		1-09707-091-0 02 1 9604-9904 ● ●
28 CLIP; HOSE,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> (A) ID=26 		1-09707-091-0 02 1 9905-0405 ●
28 CLIP; HOSE,AIR CMPR
(A) ID=26 		1-09707-091-0 02 1 9905-0405 ●
28 CLIP; HOSE,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> (A) ID=26 		1-09707-091-0 02 1 0406- ●
28 CLIP; HOSE,AIR CMPR
(A) ID=26 		1-09707-091-0 02 1 0406- ● ●
31 PIPE; AIR,AIR CMPR SUCTION
(D) 		8-94390-859-1 01 1 0406- ●
31 PIPE; AIR,AIR CMPR SUCTION
EURO2 SPECIFICATION<THN> (C) 		8-94390-949-0 01 1 9905-0010 ●
31 PIPE; AIR,AIR CMPR SUCTION
EURO2 SPECIFICATION<THN> (C) 		8-94390-949-0 01 1 0011-0405 ●
31 PIPE; AIR,AIR CMPR SUCTION
(C) 		8-94390-949-0 01 1 0011-0405 ●
31 PIPE; AIR,AIR CMPR SUCTION
EURO2 SPECIFICATION<THN> (C) 		8-94390-949-0 01 1 0406- ●
31 PIPE; AIR,AIR CMPR SUCTION
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94399-954-0 01 1 9604-0004 ●
31 PIPE; AIR,AIR CMPR SUCTION
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> (A) 		8-94399-954-0 01 1 0005- ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) 		8-94399-942-1 01 1 9604-9904 ●
31 PIPE; AIR,AIR CMPR SUCTION
(B) 		8-94399-942-1 01 1 9604-9904 ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		8-94399-942-1 01 1 9905-0004 ●
31 PIPE; AIR,AIR CMPR SUCTION
(B) 		8-94399-942-1 01 1 9905-0004 ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> (B) 		8-94399-942-1 01 1 0005-0402 ●
31 PIPE; AIR,AIR CMPR SUCTION
(B) 		8-94399-942-1 01 1 0005-0402 ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (B) 		8-94399-942-1 01 1 0403- ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94399-942-1 01 1 0403- ●
35 BOLT; EYE,AIR PIPE
EURO2 SPECIFICATION<THN> M24X39 		1-09675-132-0 01 1 9905-0010 ●
35 BOLT; EYE,AIR PIPE
EURO2 SPECIFICATION<THN> M24X39 		1-09675-132-0 01 1 0011-0405 ●
35 BOLT; EYE,AIR PIPE
M24X39 		1-09675-132-0 01 1 0011-0405 ●
35 BOLT; EYE,AIR PIPE
EURO2 SPECIFICATION<THN> M24X39 		1-09675-132-1 01 1 0406-1404 ●
35 BOLT; EYE,AIR PIPE
EURO2 SPECIFICATION<THN> M24X39 		1-09675-175-2 01 1 1405- ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> ID=24.5 OD=32 		9-09571-424-0 02 1 9905-0010 ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. ID=24.5 OD=32 		9-09571-424-0 02 1 0011-0405 ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 0011-0405 ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> ID=24.5 OD=32 		9-09571-424-0 02 1 0406- ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3). ID=24.5 OD=32 		9-09571-424-0 01 1 9604-9904 ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 01 1 9604-9904 ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN>. ID=24.5 OD=32 		9-09571-424-0 01 1 9905-0004 ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 01 1 9905-0004 ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN>. ID=24.5 OD=32 		9-09571-424-0 01 1 0005-0402 ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 01 1 0005-0402 ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> ID=24.5 OD=32 		9-09571-424-0 01 1 0403- ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32 		9-09571-424-0 01 1 0403- ●
49 PIPE; AIR,CHARGE
EURO2 SPECIFICATION<THN> (B) 		8-94392-087-0 01 1 9905- ●
49 PIPE; AIR,CHARGE
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) 		8-94395-087-2 01 1 9604-0004 ●
49 PIPE; AIR,CHARGE
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> (B) 		8-94395-087-2 01 1 0005- ●
49 PIPE; AIR,CHARGE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C) 		8-94390-063-0 01 1 9604-9904 ●
49 PIPE; AIR,CHARGE
(C) 		8-94390-063-0 01 1 9604-9904 ●
49 PIPE; AIR,CHARGE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (C) 		8-94390-063-0 01 1 9905-0004 ●
49 PIPE; AIR,CHARGE
(C) 		8-94390-063-0 01 1 9905-0004 ●
49 PIPE; AIR,CHARGE
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> (C) 		8-94390-063-1 01 1 0005-0112 ●
49 PIPE; AIR,CHARGE
(C) 		8-94390-063-1 01 1 0005-0112 ●
49 PIPE; AIR,CHARGE
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> (C) 		8-94394-275-1 01 1 0201-0402 ●
49 PIPE; AIR,CHARGE
(C) 		8-94394-275-1 01 1 0201-0402 ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (C) 		8-94394-275-1 01 1 0403- ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) 		8-94394-275-1 01 1 0403- ●
49 PIPE; AIR,CHARGE
(A) 		8-94392-073-0 01 1 0011-0405 ●
49 PIPE; AIR,CHARGE
(D) 		8-97600-184-1 01 1 0406- ●
51 BOLT; EYE,AIR PIPE TO CMPR
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M24X39 		1-09675-132-0 01 1 9604-0004 ●
51 BOLT; EYE,AIR PIPE TO CMPR
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> M24X39 		1-09675-132-0 01 1 0005-0010 ●
51 BOLT; EYE,AIR PIPE TO CMPR
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> M24X39 		1-09675-132-0 01 1 0011-0405 ●
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-132-0 01 1 0011-0405 ●
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> M24X39 		1-09675-132-1 01 1 0406-1404 ●
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-132-1 01 1 0406-1404 ●
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> M24X39 		1-09675-175-2 01 1 1405- ●
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-175-2 01 1 1405- ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M20X38 		1-09675-133-0 01 1 9604-0004 ●
51 BOLT; EYE,AIR PIPE TO CMPR
M20X38 		1-09675-133-0 01 1 9604-0004 ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> M20X38 		1-09675-133-0 01 1 0005-0405 ●
51 BOLT; EYE,AIR PIPE TO CMPR
EURO2 SPECIFICATION<THN> M20X38 		1-09675-133-0 01 1 0005-0405 ●
51 BOLT; EYE,AIR PIPE TO CMPR
M20X38 		1-09675-133-0 01 1 0005-0405 ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> M20X38 		1-09675-133-1 01 1 0406- ●
51 BOLT; EYE,AIR PIPE TO CMPR
EURO2 SPECIFICATION<THN> M20X38 		1-09675-133-1 01 1 0406- ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38 		1-09675-133-1 01 1 0406- ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=24.5 OD=32 		9-09571-424-0 02 1 9604-0004 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> ID=24.5 OD=32 		9-09571-424-0 02 1 0005-0010 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN>. ID=24.5 OD=32 		9-09571-424-0 02 1 0011-0405 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 0011-0405 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN>. ID=24.5 OD=32 		9-09571-424-0 02 1 0406- ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 0406- ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3). ID=20.5 OD=28.0 		9-09571-420-0 02 1 9604-0004 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0 		9-09571-420-0 02 1 9604-0004 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN>. ID=20.5 OD=28.0 		9-09571-420-0 02 1 0005-0405 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. ID=20.5 OD=28.0 		9-09571-420-0 02 1 0005-0405 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0 		9-09571-420-0 02 1 0005-0405 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> ID=20.5 OD=28.0 		9-09571-420-0 02 1 0406- ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> ID=20.5 OD=28.0 		9-09571-420-0 02 1 0406- ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0 		9-09571-420-0 02 1 0406- ●
58 SPACER; AIR CMPR
AUSTRALIA EQUIPMENT(RR3) 		8-94395-675-1 01 1 9604-9712 ●
58 SPACER; AIR CMPR
AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94395-675-1 01 1 9801-0004 ●
58 SPACER; AIR CMPR
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94395-675-1 01 1 0005- ●
58 SPACER; AIR CMPR
EURO2 SPECIFICATION<THN> 		8-94391-440-1 01 1 9905-9905 ●
79 BOLT; EYE,AIR PIPE TO CMPR
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M14X27 FLANGE 		1-09675-086-0 01 1 9604-0004 ●
79 BOLT; EYE,AIR PIPE TO CMPR
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> M14X27 FLANGE 		1-09675-086-0 01 1 0005-0010 ●
79 BOLT; EYE,AIR PIPE TO CMPR
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> M14X27 FLANGE 		1-09675-086-0 01 1 0011-0405 ●
79 BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE 		1-09675-086-0 01 1 0011-0405 ●
79 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> M14X27 FLANGE 		1-09675-086-0 01 1 0406- ●
79 BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE 		1-09675-086-0 01 1 0406- ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M18X33 		1-09675-058-0 01 1 9604-0004 ●
79 BOLT; EYE,AIR PIPE TO CMPR
M18X33 		1-09675-058-0 01 1 9604-0004 ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> M18X33 		1-09675-058-0 01 1 0005-0405 ●
79 BOLT; EYE,AIR PIPE TO CMPR
EURO2 SPECIFICATION<THN> M18X33 		1-09675-058-0 01 1 0005-0405 ●
79 BOLT; EYE,AIR PIPE TO CMPR
M18X33 		1-09675-058-0 01 1 0005-0405 ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> M18X33 		1-09675-058-0 01 1 0406- ●
79 BOLT; EYE,AIR PIPE TO CMPR
EURO2 SPECIFICATION<THN> M18X33 		1-09675-058-0 01 1 0406- ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33 		1-09675-058-0 01 1 0406- ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9604-0004 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2 		1-09630-085-0 02 1 0005-0010 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0011-0405 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0011-0405 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0406-1312 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0406-1312 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4 		1-09630-087-0 02 1 9604-0004 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4 		1-09630-087-0 02 1 9604-0004 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0005-0405 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0005-0405 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0005-0405 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> ID=18.2 OD=24.4 		1-09630-087-0 02 1 0406- ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ID=18.2 OD=24.4 		1-09630-087-0 02 1 0406- ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0406- ●
110 CLIP; AIR PIPE 8-94393-037-0 01 1 9604-0010 ● ●
110 CLIP; AIR PIPE 8-94393-037-0 01 1 0011-0405 ● ● ●
110 CLIP; AIR PIPE 8-94393-037-0 01 1 0406- ● ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 W/LK&PL WASHER 		0-50140-640-0 01 1 9604-9709 ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9710-0010 ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 0011-0405 ● ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 0406-0512 ● ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28050-640-0 01 1 0601- ● ● ●
160 BRACKET; AIR PIPE 8-97602-561-0 01 1 0406- ●
160 BRACKET; AIR PIPE
FSS ALL(FS****) 		8-94394-569-0 01 1 9604-9904 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94394-569-0 01 1 9604-9904 ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 9604-9904 ●
160 BRACKET; AIR PIPE
FSS ALL(FS****) 		8-94394-569-0 01 1 9905-9906 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		8-94394-569-0 01 1 9905-9906 ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 9905-9906 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94393-091-0 01 1 9907-9910 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94393-091-0 01 1 9911-0004 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) MLD6D M/T(X5Q) EURO2 SPECIFICATION<THN> 		8-94393-091-0 01 1 9911-0004 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5) 		8-94393-091-0 01 1 0005-0010 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) MLD6D M/T(X5Q) EURO2 SPECIFICATION<THN> 		8-94393-091-0 01 1 0005-0010 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5) 		8-94393-091-0 01 1 0011-0405 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) MLD6D M/T(X5Q) EURO2 SPECIFICATION<THN> 		8-94393-091-0 01 1 0011-0405 ●
160 BRACKET; AIR PIPE 8-94393-091-0 01 1 0011-0405 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5) 		8-94393-091-0 01 1 0406- ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) MLD6D M/T(X5Q) EURO2 SPECIFICATION<THN> 		8-94393-091-0 01 1 0406- ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94393-091-0 01 1 9604-9904 ●
160 BRACKET; AIR PIPE
EURO2 SPECIFICATION<THN> 		8-94393-091-0 01 1 9905-9906 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94393-091-0 01 1 9905-9906 ●
160 BRACKET; AIR PIPE
FSS ALL(FS****) 		8-94394-569-0 01 1 9907-9910 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94394-569-0 01 1 9907-9910 ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 9907-9910 ●
160 BRACKET; AIR PIPE
FSS ALL(FS****) 		8-94394-569-0 01 1 9911-0002 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		8-94394-569-0 01 1 9911-0002 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) MLD6D M/T(X5Q) EURO2 SPECIFICATION<THN> 		8-94394-569-0 01 1 9911-0002 ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 9911-0002 ●
160 BRACKET; AIR PIPE
FSS ALL(FS****) 		8-94394-569-0 01 1 0003-0004 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		8-94394-569-0 01 1 0003-0004 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) MBJ5J M/T(Y1Y) EURO2 SPECIFICATION<THN> 		8-94394-569-0 01 1 0003-0004 ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 0003-0004 ●
160 BRACKET; AIR PIPE
FSS ALL(FS****) 		8-94394-569-0 01 1 0005-0402 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		8-94394-569-0 01 1 0005-0402 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) MBJ5J M/T(Y1Y) EURO2 SPECIFICATION<THN> 		8-94394-569-0 01 1 0005-0402 ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 0005-0402 ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 0403-1108 ● ●
160 BRACKET; AIR PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		8-94394-569-0 01 1 1109- ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 1109- ●
161 BOLT; BRKT,AIR PIPE
FSS ALL(FS****) M8X16 FLANGE 		0-28080-816-0 02 1 9604-9904 ●
161 BOLT; BRKT,AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE 		0-28080-816-0 02 1 9604-9904 ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 9604-9904 ●
161 BOLT; BRKT,AIR PIPE
FSS ALL(FS****) M8X16 FLANGE 		0-28080-816-0 02 1 9905-9906 ●
161 BOLT; BRKT,AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28080-816-0 02 1 9905-9906 ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 9905-9906 ●
161 BOLT; BRKT,AIR PIPE
FSS ALL(FS****) M8X16 FLANGE 		0-28080-816-0 02 1 9907-0004 ●
161 BOLT; BRKT,AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE 		0-28080-816-0 02 1 9907-0004 ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 9907-0004 ●
161 BOLT; BRKT,AIR PIPE
FSS ALL(FS****) M8X16 FLANGE 		0-28080-816-0 02 1 0005-0010 ●
161 BOLT; BRKT,AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28080-816-0 02 1 0005-0010 ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0010 ●
161 BOLT; BRKT,AIR PIPE
FSS ALL(FS****) M8X16 FLANGE 		0-28080-816-0 02 1 0011-0405 ●
161 BOLT; BRKT,AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28080-816-0 02 1 0011-0405 ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 0011-0405 ● ●
161 BOLT; BRKT,AIR PIPE
EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28080-816-0 02 1 0406-0512 ●
161 BOLT; BRKT,AIR PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28080-816-0 02 1 0406-0512 ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 0406-0512 ● ●
161 BOLT; BRKT,AIR PIPE
EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
161 BOLT; BRKT,AIR PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
207 PIN; INJ PUMP GEAR SET
(B) 		8-94392-647-0 01 1 0011-0405 ●
207 PIN; INJ PUMP GEAR SET
(A) 		8-97600-188-0 02 1 0011-0405 ●
221 WASHER; PL,GEAR
EURO2 SPECIFICATION<THN> ID=25 		9-09160-524-0 01 1 9905-0405 ●
221 WASHER; PL,GEAR
EURO2 SPECIFICATION<THN> ID=25 		9-09160-524-0 01 1 0406- ●
221 WASHER; PL,GEAR
ID=25 		9-09160-524-0 01 1 0406- ●
221 WASHER; PL,GEAR
ID=21 		9-09160-520-0 01 1 9604-9904 ● ●
221 WASHER; PL,GEAR
EXC. EURO2 SPECIFICATION<THN> ID=21 		9-09160-520-0 01 1 9905-0605 ●
221 WASHER; PL,GEAR
ID=21 		9-09160-520-0 01 1 9905-0605 ●
221 WASHER; PL,GEAR
EXC. EURO2 SPECIFICATION<THN> ID=21 		0-91610-520-0 01 1 0606- ●
221 WASHER; PL,GEAR
ID=21 		0-91610-520-0 01 1 0606- ●
233 RING; FRICTION
EURO2 SPECIFICATION<THN> 		8-94390-562-0 01 1 9905-0311 ●
233 RING; FRICTION
EURO2 SPECIFICATION<THN> 		8-97603-297-0 01 1 0312-0405 ●
233 RING; FRICTION
EURO2 SPECIFICATION<THN> 		8-97603-297-0 01 1 0406- ●
233 RING; FRICTION 8-97603-297-0 01 1 0406- ●
262 ADAPTER; AIR SUCTION PIPE 8-94391-995-0 01 1 0011-0405 ●
263 GASKET; ADAPTER
ID=30.5 OD=38.0 		9-09571-430-0 01 1 0011-0405 ●
267 GEAR; SUB,INJ PUMP 8-94392-643-1 01 1 0011-0405 ●
268 PLATE; THRUST,GEAR 8-94392-168-0 01 1 0011-0405 ●
269 SPRING; GEAR 8-94392-644-0 01 1 0011-0405 ●

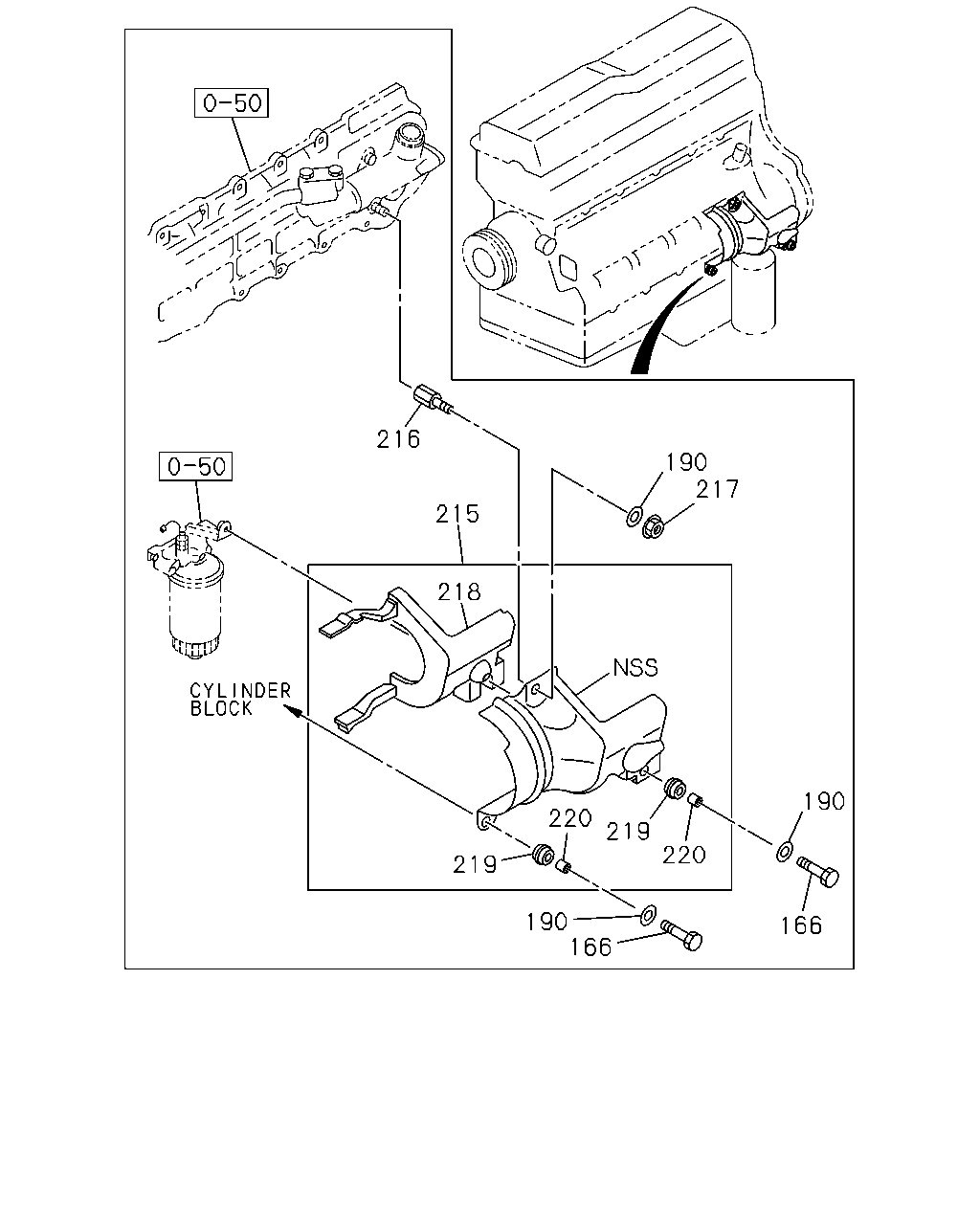

çizim 152571
216 190 217 215 218 190 220 219 220 219 190 166 166
BalonParca AdiParca NoAdetTipApplied Date A B C D
166 BOLT; COVER FIX
AUSTRALIA EQUIPMENT(RR3) M10X25 FLANGE 		0-28181-025-0 02 1 9604-9805 ●
166 BOLT; COVER FIX
AUSTRALIA EQUIPMENT(RR3) M10X25 FLANGE 		0-28781-025-0 02 1 9806-0004 ●
166 BOLT; COVER FIX
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M10X25 FLANGE 		0-28781-025-0 02 1 0005-0512 ●
166 BOLT; COVER FIX
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M10X25 FLANGE 		0-28751-025-0 02 1 0601- ●
190 WASHER; PL,COVER
AUSTRALIA EQUIPMENT(RR3) ID=10.5 OD=26 		9-09160-710-0 03 1 9604-0004 ●
190 WASHER; PL,COVER
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ID=10.5 OD=26 		9-09160-710-0 03 1 0005- ●
215 COVER; AIR CMPR
AUSTRALIA EQUIPMENT(RR3) 		8-94394-993-2 01 1 9604-9608 ●
215 COVER; AIR CMPR
AUSTRALIA EQUIPMENT(RR3) 		8-94390-408-0 01 1 9609-0004 ●
215 COVER; AIR CMPR
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94390-408-0 01 1 0005- ●
216 SPACER; COVER
AUSTRALIA EQUIPMENT(RR3) 		8-94394-990-1 01 1 9604-0004 ●
216 SPACER; COVER
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94394-990-1 01 1 0005- ●
217 NUT; COVER
AUSTRALIA EQUIPMENT(RR3) M10 		9-09110-410-0 01 1 9604-0004 ●
217 NUT; COVER
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M10 		9-09110-410-0 01 1 0005-0512 ●
217 NUT; COVER
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M10 		0-91110-510-0 01 1 0601- ●
218 INSULATOR; COVER
AUSTRALIA EQUIPMENT(RR3) 		8-94394-995-2 01 1 9604-0004 ●
218 INSULATOR; COVER
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94394-995-2 01 1 0005- ●
219 RUBBER; MTG
FSS ALL(FS****) OD=22 		8-94140-428-1 03 1 9604-9608 ●
219 RUBBER; MTG
FTS ALL(FT****) AUSTRALIA EQUIPMENT(RR3) OD=22 		8-94140-428-1 03 1 9604-9608 ●
220 TUBE; DIST
AUSTRALIA EQUIPMENT(RR3) OD=13 T=9.5 		8-94140-427-1 03 1 9604-0004 ●
220 TUBE; DIST
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) OD=13 T=9.5 		8-94140-427-1 03 1 0005- ●
çizim 152572
113 110 160 161 49 79 80 51 28 52 27 80 52 14 24 221 58 28 4 27 1 31 28 19 28 2 5 28 36 6 31 6 28 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> 		8-94391-442-2 01 1 9905-9906 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> 		8-97600-699-1 01 1 9907-1107 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> 		8-98187-305-0 01 1 1108- ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94396-892-8 01 1 9604-0004 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> 		8-94396-892-9 01 1 0005-1107 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> 		8-98187-310-1 01 1 1108- ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94396-891-4 01 1 9604-9904 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-94396-891-4 01 1 9604-9904 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		8-94396-891-4 01 1 9905-0004 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-94396-891-4 01 1 9905-0004 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		8-94396-891-4 01 1 0005-0402 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-94396-891-4 01 1 0005-0402 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> 		8-94396-891-4 01 1 0403-1107 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94396-891-4 01 1 0403-1107 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> 		8-98187-309-1 01 1 1108- ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-98187-309-1 01 1 1108- ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-97600-705-1 01 1 0011-0405 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-97600-704-2 01 1 0406- ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 9604-0010 ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 0011-0405 ● ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 0406- ● ● ●
4 KEY; INJ PUMP GEAR
EURO2 SPECIFICATION<THN> 		9-08055-519-0 01 1 9905-0010 ●
4 KEY; INJ PUMP GEAR
EURO2 SPECIFICATION<THN> 		9-08055-519-0 01 1 0011-0405 ●
4 KEY; INJ PUMP GEAR 9-08055-519-0 01 1 0011-0405 ●
4 KEY; INJ PUMP GEAR
EURO2 SPECIFICATION<THN> 		9-08055-519-0 01 1 0406- ●
4 KEY; INJ PUMP GEAR 9-08055-519-0 01 1 0406- ●
4 KEY; INJ PUMP GEAR 9-08055-516-0 01 1 9604-9904 ● ●
4 KEY; INJ PUMP GEAR
EXC. EURO2 SPECIFICATION<THN> 		9-08055-516-0 01 1 9905- ●
4 KEY; INJ PUMP GEAR 9-08055-516-0 01 1 9905- ●
5 BOLT; AIR CMPR FIX
EURO2 SPECIFICATION<THN> M12X110 		0-28186-211-0 01 1 9905-0010 ●
5 BOLT; AIR CMPR FIX
EURO2 SPECIFICATION<THN> M12X110 		0-28186-211-0 01 1 0011-0405 ●
5 BOLT; AIR CMPR FIX
M12X110 		0-28186-211-0 01 1 0011-0405 ●
5 BOLT; AIR CMPR FIX
EURO2 SPECIFICATION<THN> M12X110 		0-28186-211-0 01 1 0406-0512 ●
5 BOLT; AIR CMPR FIX
M12X110 		0-28186-211-0 01 1 0406-0512 ●
5 BOLT; AIR CMPR FIX
EURO2 SPECIFICATION<THN> M12X110 FLANGE 		0-28156-211-0 01 1 0601- ●
5 BOLT; AIR CMPR FIX
M12X110 FLANGE 		0-28156-211-0 01 1 0601- ●
5 BOLT; AIR CMPR FIX
M12X95 FLANGE 		8-94396-485-1 01 1 9604-9904 ● ●
5 BOLT; AIR CMPR FIX
EXC. EURO2 SPECIFICATION<THN> M12X95 FLANGE 		8-94396-485-1 01 1 9905- ●
5 BOLT; AIR CMPR FIX
M12X95 FLANGE 		8-94396-485-1 01 1 9905- ●
6 NUT; AIR CMPR
(A) M10 FLANGE 		0-91150-110-0 02 1 9604-0010 ● ●
6 NUT; AIR CMPR
(A) M10 FLANGE 		0-91150-110-0 02 1 0011-0405 ● ● ●
6 NUT; AIR CMPR
(A) M10 FLANGE 		0-91150-110-0 02 1 0406-0602 ● ● ●
6 NUT; AIR CMPR
(A) M10 FLANGE 		0-91180-110-0 02 1 0603- ● ● ●
6 NUT; AIR CMPR
(B) M12 FLANGE 		0-91150-112-0 01 1 9604-0010 ● ●
6 NUT; AIR CMPR
(B) M12 FLANGE 		0-91150-112-0 01 1 0011-0405 ● ● ●
6 NUT; AIR CMPR
(B) M12 FLANGE 		0-91150-112-0 01 1 0406-0602 ● ● ●
6 NUT; AIR CMPR
(B) M12 FLANGE 		0-91180-112-0 01 1 0603- ● ● ●
14 NUT; GEAR
EURO2 SPECIFICATION<THN> M24 		9-99110-524-0 01 1 9905-0010 ●
14 NUT; GEAR
EURO2 SPECIFICATION<THN> M24 		9-99110-524-0 01 1 0011-0405 ●
14 NUT; GEAR
M24 		9-99110-524-0 01 1 0011-0405 ●
14 NUT; GEAR
EURO2 SPECIFICATION<THN> M24 		9-99110-524-0 01 1 0406-0512 ●
14 NUT; GEAR
M24 		9-99110-524-0 01 1 0406-0512 ●
14 NUT; GEAR
EURO2 SPECIFICATION<THN> M24 		0-91110-524-0 01 1 0601- ●
14 NUT; GEAR
M24 		0-91110-524-0 01 1 0601- ●
14 NUT; GEAR
M20 		9-99110-520-0 01 1 9604-9904 ● ●
14 NUT; GEAR
EXC. EURO2 SPECIFICATION<THN> M20 		9-99110-520-0 01 1 9905-0512 ●
14 NUT; GEAR
M20 		9-99110-520-0 01 1 9905-0512 ●
14 NUT; GEAR
EXC. EURO2 SPECIFICATION<THN> M20 		0-91110-520-0 01 1 0601- ●
14 NUT; GEAR
M20 		0-91110-520-0 01 1 0601- ●
19 GEAR; INJ PUMP
EURO2 SPECIFICATION<THN> Z=35 		8-94390-998-2 01 1 9905-0405 ●
19 GEAR; INJ PUMP
EURO2 SPECIFICATION<THN> Z=35 		8-94390-998-2 01 1 0406- ●
19 GEAR; INJ PUMP
Z=35 		8-94390-998-2 01 1 0406- ●
19 GEAR; INJ PUMP
Z=35 		8-94336-157-4 01 1 9604-9904 ● ●
19 GEAR; INJ PUMP
EXC. EURO2 SPECIFICATION<THN> Z=35 		8-94336-157-4 01 1 9905- ●
19 GEAR; INJ PUMP
Z=35 		8-94336-157-4 01 1 9905- ●
19 GEAR; INJ PUMP
Z=35 		8-94392-642-1 01 1 0011-0405 ●
24 POINTER; AIR CMPR
L=21 		9-11327-602-0 01 1 9604-0010 ● ●
24 POINTER; AIR CMPR
L=21 		9-11327-602-0 01 1 0011-0405 ● ● ●
24 POINTER; AIR CMPR
L=21 		9-11327-602-0 01 1 0406- ● ● ●
27 HOSE; AIR CMPR,SUCTION
EURO2 SPECIFICATION<THN> (D) 		8-94390-542-2 01 1 9905- ●
27 HOSE; AIR CMPR,SUCTION
NEW ZEALAND EQUIPMENT(PK5) (A) 		8-94395-083-0 01 1 9604-0004 ●
27 HOSE; AIR CMPR,SUCTION
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> (A) 		8-94395-083-0 01 1 0005- ●
27 HOSE; AIR CMPR,SUCTION
THAILAND EQUIPMENT(PM9) (C) 		8-94394-809-1 01 1 9701-9712 ●
27 HOSE; AIR CMPR,SUCTION
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		8-94394-809-1 01 1 9801-9803 ●
27 HOSE; AIR CMPR,SUCTION
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) EXC. EURO2 SPECIFICATION<THN> (C) 		8-94394-809-1 01 1 9804-0004 ●
27 HOSE; AIR CMPR,SUCTION
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) 		8-94394-809-1 01 1 0005- ●
27 HOSE; AIR CMPR,SUCTION
FSS STD CAB(FS**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		8-94394-809-1 01 1 9604-9606 ●
27 HOSE; AIR CMPR,SUCTION
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) AUSTRALIA EQUIPMENT(RR3) (C) 		8-94394-967-0 01 1 9604-0004 ●
27 HOSE; AIR CMPR,SUCTION
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) (B) 		8-94395-085-0 01 1 9604-0004 ●
27 HOSE; AIR CMPR,SUCTION
FTS SHORT CHASSIS(FT***C) (A) 		8-94395-082-0 01 1 9604-9608 ●
27 HOSE; AIR CMPR,SUCTION
FTS STD CAB MIDDLE CHASSIS(FT**MF) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94395-082-0 01 1 9604-9608 ●
27 HOSE; AIR CMPR,SUCTION
(A) 		8-94395-082-0 01 1 9604-9608 ●
27 HOSE; AIR CMPR,SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94395-082-0 01 1 9609-9612 ●
27 HOSE; AIR CMPR,SUCTION
(A) 		8-94395-082-0 01 1 9609-9612 ●
27 HOSE; AIR CMPR,SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94395-082-0 01 1 9701-9712 ●
27 HOSE; AIR CMPR,SUCTION
(A) 		8-94395-082-0 01 1 9701-9712 ●
27 HOSE; AIR CMPR,SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) 		8-94395-082-0 01 1 9801-9904 ●
27 HOSE; AIR CMPR,SUCTION
(A) 		8-94395-082-0 01 1 9801-9904 ●
27 HOSE; AIR CMPR,SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN> (A) 		8-94395-082-0 01 1 9905-0004 ●
27 HOSE; AIR CMPR,SUCTION
(A) 		8-94395-082-0 01 1 9905-0004 ●
27 HOSE; AIR CMPR,SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN> (A) 		8-94395-082-0 01 1 0005- ●
27 HOSE; AIR CMPR,SUCTION
(A) 		8-94395-082-0 01 1 0005- ●
27 HOSE; AIR CMPR,SUCTION
(D) 		8-94391-030-2 01 1 0011-0405 ●
27 HOSE; AIR CMPR,SUCTION
(E) L=80 SERVICED BY L=1500 		1-09360-476-0 01 1 0406- ●
28 CLIP; HOSE,AIR CMPR
AUSTRALIA EQUIPMENT(RR3) (B) ID=13 L=20 		9-09525-235-0 01 1 9604-0004 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (C) ID=26 		1-09707-091-0 01 1 9905-0010 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (C) ID=26 		1-09707-091-0 01 1 0011-0405 ●
28 CLIP; HOSE,AIR CMPR
(C) ID=26 		1-09707-091-0 01 1 0011-0405 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (C) ID=26 		1-09707-091-0 01 1 0406- ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (D) ID=22.7 		8-94466-382-0 01 1 9905-0010 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (D) ID=22.7 		8-94466-382-0 01 1 0011-0405 ●
28 CLIP; HOSE,AIR CMPR
(D) ID=22.7 		8-94466-382-0 01 1 0011-0405 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (D) ID=22.7 		8-94466-382-0 01 1 0406- ●
28 CLIP; HOSE,AIR CMPR
(A) ID=26 		1-09707-091-0 02 1 9604-9904 ● ●
28 CLIP; HOSE,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> (A) ID=26 		1-09707-091-0 02 1 9905-0405 ●
28 CLIP; HOSE,AIR CMPR
(A) ID=26 		1-09707-091-0 02 1 9905-0405 ●
28 CLIP; HOSE,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> (A) ID=26 		1-09707-091-0 02 1 0406- ●
28 CLIP; HOSE,AIR CMPR
(A) ID=26 		1-09707-091-0 02 1 0406- ● ●
31 PIPE; AIR,AIR CMPR SUCTION
(D) 		8-94390-859-1 01 1 0406- ●
31 PIPE; AIR,AIR CMPR SUCTION
EURO2 SPECIFICATION<THN> (C) 		8-94390-949-0 01 1 9905-0010 ●
31 PIPE; AIR,AIR CMPR SUCTION
EURO2 SPECIFICATION<THN> (C) 		8-94390-949-0 01 1 0011-0405 ●
31 PIPE; AIR,AIR CMPR SUCTION
(C) 		8-94390-949-0 01 1 0011-0405 ●
31 PIPE; AIR,AIR CMPR SUCTION
EURO2 SPECIFICATION<THN> (C) 		8-94390-949-0 01 1 0406- ●
31 PIPE; AIR,AIR CMPR SUCTION
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94399-954-0 01 1 9604-0004 ●
31 PIPE; AIR,AIR CMPR SUCTION
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> (A) 		8-94399-954-0 01 1 0005- ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) 		8-94399-942-1 01 1 9604-9904 ●
31 PIPE; AIR,AIR CMPR SUCTION
(B) 		8-94399-942-1 01 1 9604-9904 ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		8-94399-942-1 01 1 9905-0004 ●
31 PIPE; AIR,AIR CMPR SUCTION
(B) 		8-94399-942-1 01 1 9905-0004 ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> (B) 		8-94399-942-1 01 1 0005-0402 ●
31 PIPE; AIR,AIR CMPR SUCTION
(B) 		8-94399-942-1 01 1 0005-0402 ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (B) 		8-94399-942-1 01 1 0403- ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94399-942-1 01 1 0403- ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> ID=24.5 OD=32 		9-09571-424-0 02 1 9905-0010 ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. ID=24.5 OD=32 		9-09571-424-0 02 1 0011-0405 ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 0011-0405 ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> ID=24.5 OD=32 		9-09571-424-0 02 1 0406- ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3). ID=24.5 OD=32 		9-09571-424-0 01 1 9604-9904 ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 01 1 9604-9904 ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN>. ID=24.5 OD=32 		9-09571-424-0 01 1 9905-0004 ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 01 1 9905-0004 ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN>. ID=24.5 OD=32 		9-09571-424-0 01 1 0005-0402 ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 01 1 0005-0402 ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> ID=24.5 OD=32 		9-09571-424-0 01 1 0403- ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32 		9-09571-424-0 01 1 0403- ●
49 PIPE; AIR,CHARGE
EURO2 SPECIFICATION<THN> (B) 		8-94392-087-0 01 1 9905- ●
49 PIPE; AIR,CHARGE
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) 		8-94395-087-2 01 1 9604-0004 ●
49 PIPE; AIR,CHARGE
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> (B) 		8-94395-087-2 01 1 0005- ●
49 PIPE; AIR,CHARGE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C) 		8-94390-063-0 01 1 9604-9904 ●
49 PIPE; AIR,CHARGE
(C) 		8-94390-063-0 01 1 9604-9904 ●
49 PIPE; AIR,CHARGE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (C) 		8-94390-063-0 01 1 9905-0004 ●
49 PIPE; AIR,CHARGE
(C) 		8-94390-063-0 01 1 9905-0004 ●
49 PIPE; AIR,CHARGE
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> (C) 		8-94390-063-1 01 1 0005-0112 ●
49 PIPE; AIR,CHARGE
(C) 		8-94390-063-1 01 1 0005-0112 ●
49 PIPE; AIR,CHARGE
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> (C) 		8-94394-275-1 01 1 0201-0402 ●
49 PIPE; AIR,CHARGE
(C) 		8-94394-275-1 01 1 0201-0402 ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (C) 		8-94394-275-1 01 1 0403- ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) 		8-94394-275-1 01 1 0403- ●
49 PIPE; AIR,CHARGE
(A) 		8-94392-073-0 01 1 0011-0405 ●
49 PIPE; AIR,CHARGE
(D) 		8-97600-184-1 01 1 0406- ●
51 BOLT; EYE,AIR PIPE TO CMPR
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M24X39 		1-09675-132-0 01 1 9604-0004 ●
51 BOLT; EYE,AIR PIPE TO CMPR
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> M24X39 		1-09675-132-0 01 1 0005-0010 ●
51 BOLT; EYE,AIR PIPE TO CMPR
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> M24X39 		1-09675-132-0 01 1 0011-0405 ●
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-132-0 01 1 0011-0405 ●
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> M24X39 		1-09675-132-1 01 1 0406-1404 ●
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-132-1 01 1 0406-1404 ●
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> M24X39 		1-09675-175-2 01 1 1405- ●
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-175-2 01 1 1405- ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M20X38 		1-09675-133-0 01 1 9604-0004 ●
51 BOLT; EYE,AIR PIPE TO CMPR
M20X38 		1-09675-133-0 01 1 9604-0004 ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> M20X38 		1-09675-133-0 01 1 0005-0405 ●
51 BOLT; EYE,AIR PIPE TO CMPR
EURO2 SPECIFICATION<THN> M20X38 		1-09675-133-0 01 1 0005-0405 ●
51 BOLT; EYE,AIR PIPE TO CMPR
M20X38 		1-09675-133-0 01 1 0005-0405 ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> M20X38 		1-09675-133-1 01 1 0406- ●
51 BOLT; EYE,AIR PIPE TO CMPR
EURO2 SPECIFICATION<THN> M20X38 		1-09675-133-1 01 1 0406- ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38 		1-09675-133-1 01 1 0406- ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=24.5 OD=32 		9-09571-424-0 02 1 9604-0004 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> ID=24.5 OD=32 		9-09571-424-0 02 1 0005-0010 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN>. ID=24.5 OD=32 		9-09571-424-0 02 1 0011-0405 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 0011-0405 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN>. ID=24.5 OD=32 		9-09571-424-0 02 1 0406- ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 0406- ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3). ID=20.5 OD=28.0 		9-09571-420-0 02 1 9604-0004 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0 		9-09571-420-0 02 1 9604-0004 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN>. ID=20.5 OD=28.0 		9-09571-420-0 02 1 0005-0405 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. ID=20.5 OD=28.0 		9-09571-420-0 02 1 0005-0405 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0 		9-09571-420-0 02 1 0005-0405 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> ID=20.5 OD=28.0 		9-09571-420-0 02 1 0406- ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> ID=20.5 OD=28.0 		9-09571-420-0 02 1 0406- ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0 		9-09571-420-0 02 1 0406- ●
58 SPACER; AIR CMPR
AUSTRALIA EQUIPMENT(RR3) 		8-94395-675-1 01 1 9604-9712 ●
58 SPACER; AIR CMPR
AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94395-675-1 01 1 9801-0004 ●
58 SPACER; AIR CMPR
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94395-675-1 01 1 0005- ●
58 SPACER; AIR CMPR
EURO2 SPECIFICATION<THN> 		8-94391-440-1 01 1 9905-9905 ●
79 BOLT; EYE,AIR PIPE TO CMPR
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M14X27 FLANGE 		1-09675-086-0 01 1 9604-0004 ●
79 BOLT; EYE,AIR PIPE TO CMPR
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> M14X27 FLANGE 		1-09675-086-0 01 1 0005-0010 ●
79 BOLT; EYE,AIR PIPE TO CMPR
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> M14X27 FLANGE 		1-09675-086-0 01 1 0011-0405 ●
79 BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE 		1-09675-086-0 01 1 0011-0405 ●
79 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> M14X27 FLANGE 		1-09675-086-0 01 1 0406- ●
79 BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE 		1-09675-086-0 01 1 0406- ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M18X33 		1-09675-058-0 01 1 9604-0004 ●
79 BOLT; EYE,AIR PIPE TO CMPR
M18X33 		1-09675-058-0 01 1 9604-0004 ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> M18X33 		1-09675-058-0 01 1 0005-0405 ●
79 BOLT; EYE,AIR PIPE TO CMPR
EURO2 SPECIFICATION<THN> M18X33 		1-09675-058-0 01 1 0005-0405 ●
79 BOLT; EYE,AIR PIPE TO CMPR
M18X33 		1-09675-058-0 01 1 0005-0405 ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> M18X33 		1-09675-058-0 01 1 0406- ●
79 BOLT; EYE,AIR PIPE TO CMPR
EURO2 SPECIFICATION<THN> M18X33 		1-09675-058-0 01 1 0406- ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33 		1-09675-058-0 01 1 0406- ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9604-0004 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2 		1-09630-085-0 02 1 0005-0010 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0011-0405 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0011-0405 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0406-1312 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0406-1312 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4 		1-09630-087-0 02 1 9604-0004 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4 		1-09630-087-0 02 1 9604-0004 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0005-0405 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0005-0405 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0005-0405 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> ID=18.2 OD=24.4 		1-09630-087-0 02 1 0406- ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ID=18.2 OD=24.4 		1-09630-087-0 02 1 0406- ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0406- ●
110 CLIP; AIR PIPE 8-94393-037-0 01 1 9604-0010 ● ●
110 CLIP; AIR PIPE 8-94393-037-0 01 1 0011-0405 ● ● ●
110 CLIP; AIR PIPE 8-94393-037-0 01 1 0406- ● ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 W/LK&PL WASHER 		0-50140-640-0 01 1 9604-9709 ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9710-0010 ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 0011-0405 ● ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 0406-0512 ● ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28050-640-0 01 1 0601- ● ● ●
160 BRACKET; AIR PIPE 8-97602-561-0 01 1 0406- ●
160 BRACKET; AIR PIPE
FSS ALL(FS****) 		8-94394-569-0 01 1 9604-9904 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94394-569-0 01 1 9604-9904 ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 9604-9904 ●
160 BRACKET; AIR PIPE
FSS ALL(FS****) 		8-94394-569-0 01 1 9905-9906 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		8-94394-569-0 01 1 9905-9906 ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 9905-9906 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94393-091-0 01 1 9907-9910 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94393-091-0 01 1 9911-0004 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) MLD6D M/T(X5Q) EURO2 SPECIFICATION<THN> 		8-94393-091-0 01 1 9911-0004 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5) 		8-94393-091-0 01 1 0005-0010 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) MLD6D M/T(X5Q) EURO2 SPECIFICATION<THN> 		8-94393-091-0 01 1 0005-0010 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5) 		8-94393-091-0 01 1 0011-0405 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) MLD6D M/T(X5Q) EURO2 SPECIFICATION<THN> 		8-94393-091-0 01 1 0011-0405 ●
160 BRACKET; AIR PIPE 8-94393-091-0 01 1 0011-0405 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5) 		8-94393-091-0 01 1 0406- ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) MLD6D M/T(X5Q) EURO2 SPECIFICATION<THN> 		8-94393-091-0 01 1 0406- ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94393-091-0 01 1 9604-9904 ●
160 BRACKET; AIR PIPE
EURO2 SPECIFICATION<THN> 		8-94393-091-0 01 1 9905-9906 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94393-091-0 01 1 9905-9906 ●
160 BRACKET; AIR PIPE
FSS ALL(FS****) 		8-94394-569-0 01 1 9907-9910 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94394-569-0 01 1 9907-9910 ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 9907-9910 ●
160 BRACKET; AIR PIPE
FSS ALL(FS****) 		8-94394-569-0 01 1 9911-0002 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		8-94394-569-0 01 1 9911-0002 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) MLD6D M/T(X5Q) EURO2 SPECIFICATION<THN> 		8-94394-569-0 01 1 9911-0002 ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 9911-0002 ●
160 BRACKET; AIR PIPE
FSS ALL(FS****) 		8-94394-569-0 01 1 0003-0004 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		8-94394-569-0 01 1 0003-0004 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) MBJ5J M/T(Y1Y) EURO2 SPECIFICATION<THN> 		8-94394-569-0 01 1 0003-0004 ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 0003-0004 ●
160 BRACKET; AIR PIPE
FSS ALL(FS****) 		8-94394-569-0 01 1 0005-0402 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		8-94394-569-0 01 1 0005-0402 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) MBJ5J M/T(Y1Y) EURO2 SPECIFICATION<THN> 		8-94394-569-0 01 1 0005-0402 ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 0005-0402 ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 0403-1108 ● ●
160 BRACKET; AIR PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		8-94394-569-0 01 1 1109- ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 1109- ●
161 BOLT; BRKT,AIR PIPE
FSS ALL(FS****) M8X16 FLANGE 		0-28080-816-0 02 1 9604-9904 ●
161 BOLT; BRKT,AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE 		0-28080-816-0 02 1 9604-9904 ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 9604-9904 ●
161 BOLT; BRKT,AIR PIPE
FSS ALL(FS****) M8X16 FLANGE 		0-28080-816-0 02 1 9905-9906 ●
161 BOLT; BRKT,AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28080-816-0 02 1 9905-9906 ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 9905-9906 ●
161 BOLT; BRKT,AIR PIPE
FSS ALL(FS****) M8X16 FLANGE 		0-28080-816-0 02 1 9907-0004 ●
161 BOLT; BRKT,AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE 		0-28080-816-0 02 1 9907-0004 ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 9907-0004 ●
161 BOLT; BRKT,AIR PIPE
FSS ALL(FS****) M8X16 FLANGE 		0-28080-816-0 02 1 0005-0010 ●
161 BOLT; BRKT,AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28080-816-0 02 1 0005-0010 ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0010 ●
161 BOLT; BRKT,AIR PIPE
FSS ALL(FS****) M8X16 FLANGE 		0-28080-816-0 02 1 0011-0405 ●
161 BOLT; BRKT,AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28080-816-0 02 1 0011-0405 ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 0011-0405 ● ●
161 BOLT; BRKT,AIR PIPE
EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28080-816-0 02 1 0406-0512 ●
161 BOLT; BRKT,AIR PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28080-816-0 02 1 0406-0512 ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 0406-0512 ● ●
161 BOLT; BRKT,AIR PIPE
EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
161 BOLT; BRKT,AIR PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
221 WASHER; PL,GEAR
EURO2 SPECIFICATION<THN> ID=25 		9-09160-524-0 01 1 9905-0405 ●
221 WASHER; PL,GEAR
EURO2 SPECIFICATION<THN> ID=25 		9-09160-524-0 01 1 0406- ●
221 WASHER; PL,GEAR
ID=25 		9-09160-524-0 01 1 0406- ●
221 WASHER; PL,GEAR
ID=21 		9-09160-520-0 01 1 9604-9904 ● ●
221 WASHER; PL,GEAR
EXC. EURO2 SPECIFICATION<THN> ID=21 		9-09160-520-0 01 1 9905-0605 ●
221 WASHER; PL,GEAR
ID=21 		9-09160-520-0 01 1 9905-0605 ●
221 WASHER; PL,GEAR
EXC. EURO2 SPECIFICATION<THN> ID=21 		0-91610-520-0 01 1 0606- ●
221 WASHER; PL,GEAR
ID=21 		0-91610-520-0 01 1 0606- ●
çizim 152573
223 214 224 186 223 186 223 214 224 223
BalonParca AdiParca NoAdetTipApplied Date A B C D
186 PIPE; AIR,MAG VLV TO FLEX HOSE
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) 		1-49117-098-0 01 1 9604-0004 ●
186 PIPE; AIR,MAG VLV TO FLEX HOSE
FTS ALL(FT****) AUSTRALIA EQUIPMENT(RR3) 		1-49116-477-0 01 1 9604-0004 ●
214 PIPE; AIR,UNION TO MAG VLV
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) 		1-49116-369-0 01 1 9604-0004 ●
214 PIPE; AIR,UNION TO MAG VLV
FTS ALL(FT****) AUSTRALIA EQUIPMENT(RR3) 		1-49116-476-0 01 1 9604-0004 ●
223 PIPE; AIR,UNION TO UNION
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) (A) 		1-49117-097-0 01 1 9604-0004 ●
223 PIPE; AIR,UNION TO UNION
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) (B) 		1-49117-099-0 01 1 9604-0004 ●
223 PIPE; AIR,UNION TO UNION
FTS ALL(FT****) AUSTRALIA EQUIPMENT(RR3) (A) 		1-49116-478-0 01 1 9604-0004 ●
223 PIPE; AIR,UNION TO UNION
FTS ALL(FT****) AUSTRALIA EQUIPMENT(RR3) (B) 		1-49117-183-0 01 1 9604-0004 ●
224 PIPE; AIR,UNION TO FLEX HOSE
FSS STD CAB(FS**M*) AUSTRALIA EQUIPMENT(RR3) 		1-49116-372-0 01 1 9604-0004 ●
224 PIPE; AIR,UNION TO FLEX HOSE
FSS DOUBLE CAB(FS**W*) AUSTRALIA EQUIPMENT(RR3) 		1-49116-395-0 01 1 9604-0004 ● ● ●
224 PIPE; AIR,UNION TO FLEX HOSE
FTS STD CAB MIDDLE CHASSIS(FT**MF) AUSTRALIA EQUIPMENT(RR3) 		1-49116-479-0 01 1 9604-0004 ● ● ●
224 PIPE; AIR,UNION TO FLEX HOSE
FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) AUSTRALIA EQUIPMENT(RR3) 		1-49117-184-0 01 1 9604-0004 ● ● ●
çizim 152575
28 27 30 28 68 51 52 79 31 80 52 80 24 1 4 14 221 6 233 19 5 6 2 6 110 160 113 161 49
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> 		8-94391-442-2 01 1 9905-9906 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> 		8-97600-699-1 01 1 9907-1107 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> 		8-98187-305-0 01 1 1108- ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94396-892-8 01 1 9604-0004 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> 		8-94396-892-9 01 1 0005-1107 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> 		8-98187-310-1 01 1 1108- ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94396-891-4 01 1 9604-9904 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-94396-891-4 01 1 9604-9904 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		8-94396-891-4 01 1 9905-0004 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-94396-891-4 01 1 9905-0004 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		8-94396-891-4 01 1 0005-0402 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-94396-891-4 01 1 0005-0402 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> 		8-94396-891-4 01 1 0403-1107 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94396-891-4 01 1 0403-1107 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> 		8-98187-309-1 01 1 1108- ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-98187-309-1 01 1 1108- ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-97600-705-1 01 1 0011-0405 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-97600-704-2 01 1 0406- ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 9604-0010 ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 0011-0405 ● ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 0406- ● ● ●
4 KEY; INJ PUMP GEAR
EURO2 SPECIFICATION<THN> 		9-08055-519-0 01 1 9905-0010 ●
4 KEY; INJ PUMP GEAR
EURO2 SPECIFICATION<THN> 		9-08055-519-0 01 1 0011-0405 ●
4 KEY; INJ PUMP GEAR 9-08055-519-0 01 1 0011-0405 ●
4 KEY; INJ PUMP GEAR
EURO2 SPECIFICATION<THN> 		9-08055-519-0 01 1 0406- ●
4 KEY; INJ PUMP GEAR 9-08055-519-0 01 1 0406- ●
4 KEY; INJ PUMP GEAR 9-08055-516-0 01 1 9604-9904 ● ●
4 KEY; INJ PUMP GEAR
EXC. EURO2 SPECIFICATION<THN> 		9-08055-516-0 01 1 9905- ●
4 KEY; INJ PUMP GEAR 9-08055-516-0 01 1 9905- ●
5 BOLT; AIR CMPR FIX
EURO2 SPECIFICATION<THN> M12X110 		0-28186-211-0 01 1 9905-0010 ●
5 BOLT; AIR CMPR FIX
EURO2 SPECIFICATION<THN> M12X110 		0-28186-211-0 01 1 0011-0405 ●
5 BOLT; AIR CMPR FIX
M12X110 		0-28186-211-0 01 1 0011-0405 ●
5 BOLT; AIR CMPR FIX
EURO2 SPECIFICATION<THN> M12X110 		0-28186-211-0 01 1 0406-0512 ●
5 BOLT; AIR CMPR FIX
M12X110 		0-28186-211-0 01 1 0406-0512 ●
5 BOLT; AIR CMPR FIX
EURO2 SPECIFICATION<THN> M12X110 FLANGE 		0-28156-211-0 01 1 0601- ●
5 BOLT; AIR CMPR FIX
M12X110 FLANGE 		0-28156-211-0 01 1 0601- ●
5 BOLT; AIR CMPR FIX
M12X95 FLANGE 		8-94396-485-1 01 1 9604-9904 ● ●
5 BOLT; AIR CMPR FIX
EXC. EURO2 SPECIFICATION<THN> M12X95 FLANGE 		8-94396-485-1 01 1 9905- ●
5 BOLT; AIR CMPR FIX
M12X95 FLANGE 		8-94396-485-1 01 1 9905- ●
6 NUT; AIR CMPR
(A) M10 FLANGE 		0-91150-110-0 02 1 9604-0010 ● ●
6 NUT; AIR CMPR
(A) M10 FLANGE 		0-91150-110-0 02 1 0011-0405 ● ● ●
6 NUT; AIR CMPR
(A) M10 FLANGE 		0-91150-110-0 02 1 0406-0602 ● ● ●
6 NUT; AIR CMPR
(A) M10 FLANGE 		0-91180-110-0 02 1 0603- ● ● ●
6 NUT; AIR CMPR
(B) M12 FLANGE 		0-91150-112-0 01 1 9604-0010 ● ●
6 NUT; AIR CMPR
(B) M12 FLANGE 		0-91150-112-0 01 1 0011-0405 ● ● ●
6 NUT; AIR CMPR
(B) M12 FLANGE 		0-91150-112-0 01 1 0406-0602 ● ● ●
6 NUT; AIR CMPR
(B) M12 FLANGE 		0-91180-112-0 01 1 0603- ● ● ●
14 NUT; GEAR
EURO2 SPECIFICATION<THN> M24 		9-99110-524-0 01 1 9905-0010 ●
14 NUT; GEAR
EURO2 SPECIFICATION<THN> M24 		9-99110-524-0 01 1 0011-0405 ●
14 NUT; GEAR
M24 		9-99110-524-0 01 1 0011-0405 ●
14 NUT; GEAR
EURO2 SPECIFICATION<THN> M24 		9-99110-524-0 01 1 0406-0512 ●
14 NUT; GEAR
M24 		9-99110-524-0 01 1 0406-0512 ●
14 NUT; GEAR
EURO2 SPECIFICATION<THN> M24 		0-91110-524-0 01 1 0601- ●
14 NUT; GEAR
M24 		0-91110-524-0 01 1 0601- ●
14 NUT; GEAR
M20 		9-99110-520-0 01 1 9604-9904 ● ●
14 NUT; GEAR
EXC. EURO2 SPECIFICATION<THN> M20 		9-99110-520-0 01 1 9905-0512 ●
14 NUT; GEAR
M20 		9-99110-520-0 01 1 9905-0512 ●
14 NUT; GEAR
EXC. EURO2 SPECIFICATION<THN> M20 		0-91110-520-0 01 1 0601- ●
14 NUT; GEAR
M20 		0-91110-520-0 01 1 0601- ●
19 GEAR; INJ PUMP
EURO2 SPECIFICATION<THN> Z=35 		8-94390-998-2 01 1 9905-0405 ●
19 GEAR; INJ PUMP
EURO2 SPECIFICATION<THN> Z=35 		8-94390-998-2 01 1 0406- ●
19 GEAR; INJ PUMP
Z=35 		8-94390-998-2 01 1 0406- ●
19 GEAR; INJ PUMP
Z=35 		8-94336-157-4 01 1 9604-9904 ● ●
19 GEAR; INJ PUMP
EXC. EURO2 SPECIFICATION<THN> Z=35 		8-94336-157-4 01 1 9905- ●
19 GEAR; INJ PUMP
Z=35 		8-94336-157-4 01 1 9905- ●
19 GEAR; INJ PUMP
Z=35 		8-94392-642-1 01 1 0011-0405 ●
24 POINTER; AIR CMPR
L=21 		9-11327-602-0 01 1 9604-0010 ● ●
24 POINTER; AIR CMPR
L=21 		9-11327-602-0 01 1 0011-0405 ● ● ●
24 POINTER; AIR CMPR
L=21 		9-11327-602-0 01 1 0406- ● ● ●
27 HOSE; AIR CMPR,SUCTION
EURO2 SPECIFICATION<THN> (D) 		8-94390-542-2 01 1 9905- ●
27 HOSE; AIR CMPR,SUCTION
NEW ZEALAND EQUIPMENT(PK5) (A) 		8-94395-083-0 01 1 9604-0004 ●
27 HOSE; AIR CMPR,SUCTION
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> (A) 		8-94395-083-0 01 1 0005- ●
27 HOSE; AIR CMPR,SUCTION
THAILAND EQUIPMENT(PM9) (C) 		8-94394-809-1 01 1 9701-9712 ●
27 HOSE; AIR CMPR,SUCTION
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		8-94394-809-1 01 1 9801-9803 ●
27 HOSE; AIR CMPR,SUCTION
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) EXC. EURO2 SPECIFICATION<THN> (C) 		8-94394-809-1 01 1 9804-0004 ●
27 HOSE; AIR CMPR,SUCTION
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) 		8-94394-809-1 01 1 0005- ●
27 HOSE; AIR CMPR,SUCTION
FSS STD CAB(FS**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		8-94394-809-1 01 1 9604-9606 ●
27 HOSE; AIR CMPR,SUCTION
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) AUSTRALIA EQUIPMENT(RR3) (C) 		8-94394-967-0 01 1 9604-0004 ●
27 HOSE; AIR CMPR,SUCTION
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) (B) 		8-94395-085-0 01 1 9604-0004 ●
27 HOSE; AIR CMPR,SUCTION
FTS SHORT CHASSIS(FT***C) (A) 		8-94395-082-0 01 1 9604-9608 ●
27 HOSE; AIR CMPR,SUCTION
FTS STD CAB MIDDLE CHASSIS(FT**MF) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94395-082-0 01 1 9604-9608 ●
27 HOSE; AIR CMPR,SUCTION
(A) 		8-94395-082-0 01 1 9604-9608 ●
27 HOSE; AIR CMPR,SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94395-082-0 01 1 9609-9612 ●
27 HOSE; AIR CMPR,SUCTION
(A) 		8-94395-082-0 01 1 9609-9612 ●
27 HOSE; AIR CMPR,SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94395-082-0 01 1 9701-9712 ●
27 HOSE; AIR CMPR,SUCTION
(A) 		8-94395-082-0 01 1 9701-9712 ●
27 HOSE; AIR CMPR,SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) 		8-94395-082-0 01 1 9801-9904 ●
27 HOSE; AIR CMPR,SUCTION
(A) 		8-94395-082-0 01 1 9801-9904 ●
27 HOSE; AIR CMPR,SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN> (A) 		8-94395-082-0 01 1 9905-0004 ●
27 HOSE; AIR CMPR,SUCTION
(A) 		8-94395-082-0 01 1 9905-0004 ●
27 HOSE; AIR CMPR,SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN> (A) 		8-94395-082-0 01 1 0005- ●
27 HOSE; AIR CMPR,SUCTION
(A) 		8-94395-082-0 01 1 0005- ●
27 HOSE; AIR CMPR,SUCTION
(D) 		8-94391-030-2 01 1 0011-0405 ●
27 HOSE; AIR CMPR,SUCTION
(E) L=80 SERVICED BY L=1500 		1-09360-476-0 01 1 0406- ●
28 CLIP; HOSE,AIR CMPR
AUSTRALIA EQUIPMENT(RR3) (B) ID=13 L=20 		9-09525-235-0 01 1 9604-0004 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (C) ID=26 		1-09707-091-0 01 1 9905-0010 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (C) ID=26 		1-09707-091-0 01 1 0011-0405 ●
28 CLIP; HOSE,AIR CMPR
(C) ID=26 		1-09707-091-0 01 1 0011-0405 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (C) ID=26 		1-09707-091-0 01 1 0406- ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (D) ID=22.7 		8-94466-382-0 01 1 9905-0010 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (D) ID=22.7 		8-94466-382-0 01 1 0011-0405 ●
28 CLIP; HOSE,AIR CMPR
(D) ID=22.7 		8-94466-382-0 01 1 0011-0405 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (D) ID=22.7 		8-94466-382-0 01 1 0406- ●
28 CLIP; HOSE,AIR CMPR
(A) ID=26 		1-09707-091-0 02 1 9604-9904 ● ●
28 CLIP; HOSE,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> (A) ID=26 		1-09707-091-0 02 1 9905-0405 ●
28 CLIP; HOSE,AIR CMPR
(A) ID=26 		1-09707-091-0 02 1 9905-0405 ●
28 CLIP; HOSE,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> (A) ID=26 		1-09707-091-0 02 1 0406- ●
28 CLIP; HOSE,AIR CMPR
(A) ID=26 		1-09707-091-0 02 1 0406- ● ●
30 BOLT; PIPE CLIP
M8X12 FLANGE 		0-28080-812-0 01 1 0406-0512 ●
30 BOLT; PIPE CLIP
M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
31 PIPE; AIR,AIR CMPR SUCTION
(D) 		8-94390-859-1 01 1 0406- ●
31 PIPE; AIR,AIR CMPR SUCTION
EURO2 SPECIFICATION<THN> (C) 		8-94390-949-0 01 1 9905-0010 ●
31 PIPE; AIR,AIR CMPR SUCTION
EURO2 SPECIFICATION<THN> (C) 		8-94390-949-0 01 1 0011-0405 ●
31 PIPE; AIR,AIR CMPR SUCTION
(C) 		8-94390-949-0 01 1 0011-0405 ●
31 PIPE; AIR,AIR CMPR SUCTION
EURO2 SPECIFICATION<THN> (C) 		8-94390-949-0 01 1 0406- ●
31 PIPE; AIR,AIR CMPR SUCTION
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94399-954-0 01 1 9604-0004 ●
31 PIPE; AIR,AIR CMPR SUCTION
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> (A) 		8-94399-954-0 01 1 0005- ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) 		8-94399-942-1 01 1 9604-9904 ●
31 PIPE; AIR,AIR CMPR SUCTION
(B) 		8-94399-942-1 01 1 9604-9904 ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) 		8-94399-942-1 01 1 9905-0004 ●
31 PIPE; AIR,AIR CMPR SUCTION
(B) 		8-94399-942-1 01 1 9905-0004 ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> (B) 		8-94399-942-1 01 1 0005-0402 ●
31 PIPE; AIR,AIR CMPR SUCTION
(B) 		8-94399-942-1 01 1 0005-0402 ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (B) 		8-94399-942-1 01 1 0403- ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94399-942-1 01 1 0403- ●
49 PIPE; AIR,CHARGE
EURO2 SPECIFICATION<THN> (B) 		8-94392-087-0 01 1 9905- ●
49 PIPE; AIR,CHARGE
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) 		8-94395-087-2 01 1 9604-0004 ●
49 PIPE; AIR,CHARGE
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> (B) 		8-94395-087-2 01 1 0005- ●
49 PIPE; AIR,CHARGE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C) 		8-94390-063-0 01 1 9604-9904 ●
49 PIPE; AIR,CHARGE
(C) 		8-94390-063-0 01 1 9604-9904 ●
49 PIPE; AIR,CHARGE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (C) 		8-94390-063-0 01 1 9905-0004 ●
49 PIPE; AIR,CHARGE
(C) 		8-94390-063-0 01 1 9905-0004 ●
49 PIPE; AIR,CHARGE
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> (C) 		8-94390-063-1 01 1 0005-0112 ●
49 PIPE; AIR,CHARGE
(C) 		8-94390-063-1 01 1 0005-0112 ●
49 PIPE; AIR,CHARGE
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> (C) 		8-94394-275-1 01 1 0201-0402 ●
49 PIPE; AIR,CHARGE
(C) 		8-94394-275-1 01 1 0201-0402 ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (C) 		8-94394-275-1 01 1 0403- ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) 		8-94394-275-1 01 1 0403- ●
49 PIPE; AIR,CHARGE
(A) 		8-94392-073-0 01 1 0011-0405 ●
49 PIPE; AIR,CHARGE
(D) 		8-97600-184-1 01 1 0406- ●
51 BOLT; EYE,AIR PIPE TO CMPR
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M24X39 		1-09675-132-0 01 1 9604-0004 ●
51 BOLT; EYE,AIR PIPE TO CMPR
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> M24X39 		1-09675-132-0 01 1 0005-0010 ●
51 BOLT; EYE,AIR PIPE TO CMPR
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> M24X39 		1-09675-132-0 01 1 0011-0405 ●
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-132-0 01 1 0011-0405 ●
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> M24X39 		1-09675-132-1 01 1 0406-1404 ●
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-132-1 01 1 0406-1404 ●
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> M24X39 		1-09675-175-2 01 1 1405- ●
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-175-2 01 1 1405- ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M20X38 		1-09675-133-0 01 1 9604-0004 ●
51 BOLT; EYE,AIR PIPE TO CMPR
M20X38 		1-09675-133-0 01 1 9604-0004 ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> M20X38 		1-09675-133-0 01 1 0005-0405 ●
51 BOLT; EYE,AIR PIPE TO CMPR
EURO2 SPECIFICATION<THN> M20X38 		1-09675-133-0 01 1 0005-0405 ●
51 BOLT; EYE,AIR PIPE TO CMPR
M20X38 		1-09675-133-0 01 1 0005-0405 ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> M20X38 		1-09675-133-1 01 1 0406- ●
51 BOLT; EYE,AIR PIPE TO CMPR
EURO2 SPECIFICATION<THN> M20X38 		1-09675-133-1 01 1 0406- ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38 		1-09675-133-1 01 1 0406- ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=24.5 OD=32 		9-09571-424-0 02 1 9604-0004 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> ID=24.5 OD=32 		9-09571-424-0 02 1 0005-0010 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN>. ID=24.5 OD=32 		9-09571-424-0 02 1 0011-0405 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 0011-0405 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN>. ID=24.5 OD=32 		9-09571-424-0 02 1 0406- ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 0406- ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3). ID=20.5 OD=28.0 		9-09571-420-0 02 1 9604-0004 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0 		9-09571-420-0 02 1 9604-0004 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN>. ID=20.5 OD=28.0 		9-09571-420-0 02 1 0005-0405 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. ID=20.5 OD=28.0 		9-09571-420-0 02 1 0005-0405 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0 		9-09571-420-0 02 1 0005-0405 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> ID=20.5 OD=28.0 		9-09571-420-0 02 1 0406- ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> ID=20.5 OD=28.0 		9-09571-420-0 02 1 0406- ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0 		9-09571-420-0 02 1 0406- ●
68 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 01 1 0406- ●
79 BOLT; EYE,AIR PIPE TO CMPR
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M14X27 FLANGE 		1-09675-086-0 01 1 9604-0004 ●
79 BOLT; EYE,AIR PIPE TO CMPR
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> M14X27 FLANGE 		1-09675-086-0 01 1 0005-0010 ●
79 BOLT; EYE,AIR PIPE TO CMPR
NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> M14X27 FLANGE 		1-09675-086-0 01 1 0011-0405 ●
79 BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE 		1-09675-086-0 01 1 0011-0405 ●
79 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> M14X27 FLANGE 		1-09675-086-0 01 1 0406- ●
79 BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE 		1-09675-086-0 01 1 0406- ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M18X33 		1-09675-058-0 01 1 9604-0004 ●
79 BOLT; EYE,AIR PIPE TO CMPR
M18X33 		1-09675-058-0 01 1 9604-0004 ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> M18X33 		1-09675-058-0 01 1 0005-0405 ●
79 BOLT; EYE,AIR PIPE TO CMPR
EURO2 SPECIFICATION<THN> M18X33 		1-09675-058-0 01 1 0005-0405 ●
79 BOLT; EYE,AIR PIPE TO CMPR
M18X33 		1-09675-058-0 01 1 0005-0405 ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> M18X33 		1-09675-058-0 01 1 0406- ●
79 BOLT; EYE,AIR PIPE TO CMPR
EURO2 SPECIFICATION<THN> M18X33 		1-09675-058-0 01 1 0406- ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33 		1-09675-058-0 01 1 0406- ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9604-0004 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2 		1-09630-085-0 02 1 0005-0010 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0011-0405 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0011-0405 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0406-1312 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0406-1312 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4 		1-09630-087-0 02 1 9604-0004 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4 		1-09630-087-0 02 1 9604-0004 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0005-0405 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0005-0405 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0005-0405 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> ID=18.2 OD=24.4 		1-09630-087-0 02 1 0406- ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ID=18.2 OD=24.4 		1-09630-087-0 02 1 0406- ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0406- ●
110 CLIP; AIR PIPE 8-94393-037-0 01 1 9604-0010 ● ●
110 CLIP; AIR PIPE 8-94393-037-0 01 1 0011-0405 ● ● ●
110 CLIP; AIR PIPE 8-94393-037-0 01 1 0406- ● ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 W/LK&PL WASHER 		0-50140-640-0 01 1 9604-9709 ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9710-0010 ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 0011-0405 ● ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 0406-0512 ● ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28050-640-0 01 1 0601- ● ● ●
160 BRACKET; AIR PIPE 8-97602-561-0 01 1 0406- ●
160 BRACKET; AIR PIPE
FSS ALL(FS****) 		8-94394-569-0 01 1 9604-9904 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94394-569-0 01 1 9604-9904 ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 9604-9904 ●
160 BRACKET; AIR PIPE
FSS ALL(FS****) 		8-94394-569-0 01 1 9905-9906 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		8-94394-569-0 01 1 9905-9906 ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 9905-9906 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94393-091-0 01 1 9907-9910 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94393-091-0 01 1 9911-0004 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) MLD6D M/T(X5Q) EURO2 SPECIFICATION<THN> 		8-94393-091-0 01 1 9911-0004 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5) 		8-94393-091-0 01 1 0005-0010 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) MLD6D M/T(X5Q) EURO2 SPECIFICATION<THN> 		8-94393-091-0 01 1 0005-0010 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5) 		8-94393-091-0 01 1 0011-0405 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) MLD6D M/T(X5Q) EURO2 SPECIFICATION<THN> 		8-94393-091-0 01 1 0011-0405 ●
160 BRACKET; AIR PIPE 8-94393-091-0 01 1 0011-0405 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5) 		8-94393-091-0 01 1 0406- ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) MLD6D M/T(X5Q) EURO2 SPECIFICATION<THN> 		8-94393-091-0 01 1 0406- ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94393-091-0 01 1 9604-9904 ●
160 BRACKET; AIR PIPE
EURO2 SPECIFICATION<THN> 		8-94393-091-0 01 1 9905-9906 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94393-091-0 01 1 9905-9906 ●
160 BRACKET; AIR PIPE
FSS ALL(FS****) 		8-94394-569-0 01 1 9907-9910 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-94394-569-0 01 1 9907-9910 ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 9907-9910 ●
160 BRACKET; AIR PIPE
FSS ALL(FS****) 		8-94394-569-0 01 1 9911-0002 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		8-94394-569-0 01 1 9911-0002 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) MLD6D M/T(X5Q) EURO2 SPECIFICATION<THN> 		8-94394-569-0 01 1 9911-0002 ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 9911-0002 ●
160 BRACKET; AIR PIPE
FSS ALL(FS****) 		8-94394-569-0 01 1 0003-0004 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		8-94394-569-0 01 1 0003-0004 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) MBJ5J M/T(Y1Y) EURO2 SPECIFICATION<THN> 		8-94394-569-0 01 1 0003-0004 ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 0003-0004 ●
160 BRACKET; AIR PIPE
FSS ALL(FS****) 		8-94394-569-0 01 1 0005-0402 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> 		8-94394-569-0 01 1 0005-0402 ●
160 BRACKET; AIR PIPE
FTS ALL(FT****) MBJ5J M/T(Y1Y) EURO2 SPECIFICATION<THN> 		8-94394-569-0 01 1 0005-0402 ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 0005-0402 ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 0403-1108 ● ●
160 BRACKET; AIR PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		8-94394-569-0 01 1 1109- ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 1109- ●
161 BOLT; BRKT,AIR PIPE
FSS ALL(FS****) M8X16 FLANGE 		0-28080-816-0 02 1 9604-9904 ●
161 BOLT; BRKT,AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE 		0-28080-816-0 02 1 9604-9904 ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 9604-9904 ●
161 BOLT; BRKT,AIR PIPE
FSS ALL(FS****) M8X16 FLANGE 		0-28080-816-0 02 1 9905-9906 ●
161 BOLT; BRKT,AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28080-816-0 02 1 9905-9906 ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 9905-9906 ●
161 BOLT; BRKT,AIR PIPE
FSS ALL(FS****) M8X16 FLANGE 		0-28080-816-0 02 1 9907-0004 ●
161 BOLT; BRKT,AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE 		0-28080-816-0 02 1 9907-0004 ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 9907-0004 ●
161 BOLT; BRKT,AIR PIPE
FSS ALL(FS****) M8X16 FLANGE 		0-28080-816-0 02 1 0005-0010 ●
161 BOLT; BRKT,AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28080-816-0 02 1 0005-0010 ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0010 ●
161 BOLT; BRKT,AIR PIPE
FSS ALL(FS****) M8X16 FLANGE 		0-28080-816-0 02 1 0011-0405 ●
161 BOLT; BRKT,AIR PIPE
FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28080-816-0 02 1 0011-0405 ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 0011-0405 ● ●
161 BOLT; BRKT,AIR PIPE
EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28080-816-0 02 1 0406-0512 ●
161 BOLT; BRKT,AIR PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28080-816-0 02 1 0406-0512 ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 0406-0512 ● ●
161 BOLT; BRKT,AIR PIPE
EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
161 BOLT; BRKT,AIR PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5),EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
221 WASHER; PL,GEAR
EURO2 SPECIFICATION<THN> ID=25 		9-09160-524-0 01 1 9905-0405 ●
221 WASHER; PL,GEAR
EURO2 SPECIFICATION<THN> ID=25 		9-09160-524-0 01 1 0406- ●
221 WASHER; PL,GEAR
ID=25 		9-09160-524-0 01 1 0406- ●
221 WASHER; PL,GEAR
ID=21 		9-09160-520-0 01 1 9604-9904 ● ●
221 WASHER; PL,GEAR
EXC. EURO2 SPECIFICATION<THN> ID=21 		9-09160-520-0 01 1 9905-0605 ●
221 WASHER; PL,GEAR
ID=21 		9-09160-520-0 01 1 9905-0605 ●
221 WASHER; PL,GEAR
EXC. EURO2 SPECIFICATION<THN> ID=21 		0-91610-520-0 01 1 0606- ●
221 WASHER; PL,GEAR
ID=21 		0-91610-520-0 01 1 0606- ●
233 RING; FRICTION
EURO2 SPECIFICATION<THN> 		8-94390-562-0 01 1 9905-0311 ●
233 RING; FRICTION
EURO2 SPECIFICATION<THN> 		8-97603-297-0 01 1 0312-0405 ●
233 RING; FRICTION
EURO2 SPECIFICATION<THN> 		8-97603-297-0 01 1 0406- ●
233 RING; FRICTION 8-97603-297-0 01 1 0406- ●
çizim 152579
44 41 86 106 45 40 45 41 134 44 44 40 176 202 40 134 202 127 127 193 132 152 187 28 44 202 184 176 128 153 155 171 154 92
BalonParca AdiParca NoAdetTipApplied Date A B C D
28 CLIP; HOSE,AIR CMPR
AUSTRALIA EQUIPMENT(RR3) (B) ID=13 L=20 		9-09525-235-0 01 1 9604-0004 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (C) ID=26 		1-09707-091-0 01 1 9905-0010 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (C) ID=26 		1-09707-091-0 01 1 0011-0405 ●
28 CLIP; HOSE,AIR CMPR
(C) ID=26 		1-09707-091-0 01 1 0011-0405 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (C) ID=26 		1-09707-091-0 01 1 0406- ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (D) ID=22.7 		8-94466-382-0 01 1 9905-0010 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (D) ID=22.7 		8-94466-382-0 01 1 0011-0405 ●
28 CLIP; HOSE,AIR CMPR
(D) ID=22.7 		8-94466-382-0 01 1 0011-0405 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (D) ID=22.7 		8-94466-382-0 01 1 0406- ●
28 CLIP; HOSE,AIR CMPR
(A) ID=26 		1-09707-091-0 02 1 9604-9904 ● ●
28 CLIP; HOSE,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> (A) ID=26 		1-09707-091-0 02 1 9905-0405 ●
28 CLIP; HOSE,AIR CMPR
(A) ID=26 		1-09707-091-0 02 1 9905-0405 ●
28 CLIP; HOSE,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> (A) ID=26 		1-09707-091-0 02 1 0406- ●
28 CLIP; HOSE,AIR CMPR
(A) ID=26 		1-09707-091-0 02 1 0406- ● ●
40 CLIP; AIR PIPE
AUSTRALIA EQUIPMENT(RR3) (A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 9604-0004 ●
40 CLIP; AIR PIPE
AUSTRALIA EQUIPMENT(RR3) (B) ID=6.35 & 6.35 		1-09709-273-1 01 1 9604-0004 ●
40 CLIP; AIR PIPE
FTS ALL(FT****) AUSTRALIA EQUIPMENT(RR3) (B) ID=6.35 & 6.35 		1-09709-273-1 01 1 9604-0004 ●
40 CLIP; AIR PIPE
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) (A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9604-0004 ●
40 CLIP; AIR PIPE
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) (A) ID=7 & 9 L=17.5 & 17.5 		1-09700-746-0 01 1 9604-0004 ●
41 BOLT; CLIP
AUSTRALIA EQUIPMENT(RR3) (A) M8X16 FLANGE 		0-28080-816-0 02 1 9604-0004 ●
41 BOLT; CLIP
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) (B) M8X40 FLANGE 		0-28080-840-0 02 1 9604-9606 ●
41 BOLT; CLIP
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) (B) M8X40 FLANGE 		0-28680-840-0 02 1 9607-0004 ●
44 NUT
AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 03 1 9604-9606 ●
44 NUT
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 03 1 9604-9606 ●
44 NUT
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 03 1 9607-0004 ●
44 NUT
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 03 1 9607-0004 ●
44 NUT
FTS ALL(FT****) AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 02 1 9604-9606 ●
44 NUT
FTS ALL(FT****) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ●
45 BRACKET; CLIP
AUSTRALIA EQUIPMENT(RR3) (A) M8 W/NUT 		1-47475-439-2 02 1 9604-0004 ●
45 BRACKET; CLIP
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) (B) 		1-47475-427-1 02 1 9604-0004 ●
86 BOLT; CLIP
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 01 1 9604-9606 ●
86 BOLT; CLIP
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 01 1 9607-0004 ●
92 NUT; UNION
AUSTRALIA EQUIPMENT(RR3) M12 		9-09840-280-0 01 1 9604-0004 ●
106 BOLT; CLIP
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 01 1 9604-9606 ●
106 BOLT; CLIP
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 01 1 9607-0004 ●
127 NUT; UNION
AUSTRALIA EQUIPMENT(RR3) (B) M12 		9-99110-412-0 01 1 9604-9606 ●
127 NUT; UNION
AUSTRALIA EQUIPMENT(RR3) (B) M12 FLANGE 		0-91150-112-0 01 1 9607-9608 ●
127 NUT; UNION
AUSTRALIA EQUIPMENT(RR3) (B) M12 FLANGE 		0-91150-212-0 01 1 9609-0004 ●
127 NUT; UNION
FTS ALL(FT****) AUSTRALIA EQUIPMENT(RR3) (A) M12 		9-09840-280-0 02 1 9604-0004 ●
128 WASHER; LK,UNION
AUSTRALIA EQUIPMENT(RR3) ID=12.2 		9-09150-512-0 01 1 9604-0004 ●
132 NUT; CLIP
AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 01 1 9604-9606 ●
132 NUT; CLIP
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ●
134 CLIP; AIR PIPE
AUSTRALIA EQUIPMENT(RR3) (A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9604-0004 ●
134 CLIP; AIR PIPE
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) (A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9604-0004 ●
134 CLIP; AIR PIPE
AUSTRALIA EQUIPMENT(RR3) (B) ID=6.35 & 6.35 		1-09709-273-1 02 1 9604-0004 ●
152 HOSE; FLEX
FSS STD CAB(FS**M*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) AUSTRALIA EQUIPMENT(RR3) L=420 		0-07120-420-0 01 1 9604-9803 ●
152 HOSE; FLEX
FSS STD CAB(FS**M*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) AUSTRALIA EQUIPMENT(RR3) L=420 		1-09363-633-0 01 1 9804-0004 ●
152 HOSE; FLEX
FSS DOUBLE CAB(FS**W*) AUSTRALIA EQUIPMENT(RR3) L=350 		0-07120-350-0 01 1 9604-9803 ● ● ●
152 HOSE; FLEX
FSS DOUBLE CAB(FS**W*) AUSTRALIA EQUIPMENT(RR3) L=350 		1-09363-624-0 01 1 9804-0004 ● ● ●
152 HOSE; FLEX
FTS STD CAB MIDDLE CHASSIS(FT**MF) AUSTRALIA EQUIPMENT(RR3) L=500 		0-07120-500-0 01 1 9604-9803 ● ● ●
152 HOSE; FLEX
FTS STD CAB MIDDLE CHASSIS(FT**MF) AUSTRALIA EQUIPMENT(RR3) L=520 		1-09363-634-1 01 1 9804-0004 ● ● ●
153 GASKET; FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) ID=11 OD=18 		9-09572-510-0 01 1 9604-9803 ●
154 NUT; FLEX HOSE FIX
M12 		9-09840-280-0 01 1 9604-9605 ● ●
154 NUT; FLEX HOSE FIX
AUSTRALIA EQUIPMENT(RR3) M12 		9-09840-280-0 01 1 9606-0004 ●
155 WASHER; LK,FLEX HOSE FIX
ID=12.2 		9-09150-512-0 01 1 9604-9605 ● ●
155 WASHER; LK,FLEX HOSE FIX
AUSTRALIA EQUIPMENT(RR3) ID=12.2 		9-09150-512-0 01 1 9606-0004 ●
171 UNION
AUSTRALIA EQUIPMENT(RR3) 		1-09654-185-1 01 1 9604-9803 ●
171 UNION
AUSTRALIA EQUIPMENT(RR3) M12 L=56.5 		9-09223-106-1 01 1 9804-0004 ●
176 BOLT; BRKT FIX
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606 ●
176 BOLT; BRKT FIX
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9803 ●
176 BOLT; BRKT FIX
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 03 1 9804-0004 ●
176 BOLT; BRKT FIX
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 01 1 9604-9606 ●
176 BOLT; BRKT FIX
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9803 ●
176 BOLT; BRKT FIX
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606 ●
176 BOLT; BRKT FIX
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9608 ●
176 BOLT; BRKT FIX
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 02 1 9609-0004 ●
184 BRACKET; FLEX HOSE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) AUSTRALIA EQUIPMENT(RR3) 		1-47477-567-0 01 1 9604-9803 ●
184 BRACKET; FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) 		1-47477-567-0 01 1 9804-0004 ●
184 BRACKET; FLEX HOSE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) AUSTRALIA EQUIPMENT(RR3) 		1-47475-922-0 01 1 9604-0004 ● ● ●
187 BRACKET; AIR PIPE
FTS ALL(FT****) AUSTRALIA EQUIPMENT(RR3) 		1-47477-657-0 01 1 9604-0004 ●
193 BOLT; BRKT
FTS ALL(FT****) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606 ●
193 BOLT; BRKT
FTS ALL(FT****) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ●
202 UNION; AIR PIPE
AUSTRALIA EQUIPMENT(RR3) (C) M12 2WAY 		1-09654-059-2 01 1 9604-0004 ●
202 UNION; AIR PIPE
FSS ALL(FS****) AUSTRALIA EQUIPMENT(RR3) (A) M12 2WAY 		1-09654-234-2 02 1 9604-0004 ●
202 UNION; AIR PIPE
FTS ALL(FT****) AUSTRALIA EQUIPMENT(RR3) (B) M12 L=66.5 		9-09223-306-1 02 1 9604-0004 ●
çizim 152581
132 152 28 171 128 153 92 177 184 155 154 176
BalonParca AdiParca NoAdetTipApplied Date A B C D
28 CLIP; HOSE,AIR CMPR
AUSTRALIA EQUIPMENT(RR3) (B) ID=13 L=20 		9-09525-235-0 01 1 9604-0004 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (C) ID=26 		1-09707-091-0 01 1 9905-0010 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (C) ID=26 		1-09707-091-0 01 1 0011-0405 ●
28 CLIP; HOSE,AIR CMPR
(C) ID=26 		1-09707-091-0 01 1 0011-0405 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (C) ID=26 		1-09707-091-0 01 1 0406- ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (D) ID=22.7 		8-94466-382-0 01 1 9905-0010 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (D) ID=22.7 		8-94466-382-0 01 1 0011-0405 ●
28 CLIP; HOSE,AIR CMPR
(D) ID=22.7 		8-94466-382-0 01 1 0011-0405 ●
28 CLIP; HOSE,AIR CMPR
EURO2 SPECIFICATION<THN> (D) ID=22.7 		8-94466-382-0 01 1 0406- ●
28 CLIP; HOSE,AIR CMPR
(A) ID=26 		1-09707-091-0 02 1 9604-9904 ● ●
28 CLIP; HOSE,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> (A) ID=26 		1-09707-091-0 02 1 9905-0405 ●
28 CLIP; HOSE,AIR CMPR
(A) ID=26 		1-09707-091-0 02 1 9905-0405 ●
28 CLIP; HOSE,AIR CMPR
EXC. EURO2 SPECIFICATION<THN> (A) ID=26 		1-09707-091-0 02 1 0406- ●
28 CLIP; HOSE,AIR CMPR
(A) ID=26 		1-09707-091-0 02 1 0406- ● ●
92 NUT; UNION
AUSTRALIA EQUIPMENT(RR3) M12 		9-09840-280-0 01 1 9604-0004 ●
128 WASHER; LK,UNION
AUSTRALIA EQUIPMENT(RR3) ID=12.2 		9-09150-512-0 01 1 9604-0004 ●
132 NUT; CLIP
AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 01 1 9604-9606 ●
132 NUT; CLIP
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ●
152 HOSE; FLEX
FSS STD CAB(FS**M*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) AUSTRALIA EQUIPMENT(RR3) L=420 		0-07120-420-0 01 1 9604-9803 ●
152 HOSE; FLEX
FSS STD CAB(FS**M*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) AUSTRALIA EQUIPMENT(RR3) L=420 		1-09363-633-0 01 1 9804-0004 ●
152 HOSE; FLEX
FSS DOUBLE CAB(FS**W*) AUSTRALIA EQUIPMENT(RR3) L=350 		0-07120-350-0 01 1 9604-9803 ● ● ●
152 HOSE; FLEX
FSS DOUBLE CAB(FS**W*) AUSTRALIA EQUIPMENT(RR3) L=350 		1-09363-624-0 01 1 9804-0004 ● ● ●
152 HOSE; FLEX
FTS STD CAB MIDDLE CHASSIS(FT**MF) AUSTRALIA EQUIPMENT(RR3) L=500 		0-07120-500-0 01 1 9604-9803 ● ● ●
152 HOSE; FLEX
FTS STD CAB MIDDLE CHASSIS(FT**MF) AUSTRALIA EQUIPMENT(RR3) L=520 		1-09363-634-1 01 1 9804-0004 ● ● ●
153 GASKET; FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) ID=11 OD=18 		9-09572-510-0 01 1 9604-9803 ●
154 NUT; FLEX HOSE FIX
M12 		9-09840-280-0 01 1 9604-9605 ● ●
154 NUT; FLEX HOSE FIX
AUSTRALIA EQUIPMENT(RR3) M12 		9-09840-280-0 01 1 9606-0004 ●
155 WASHER; LK,FLEX HOSE FIX
ID=12.2 		9-09150-512-0 01 1 9604-9605 ● ●
155 WASHER; LK,FLEX HOSE FIX
AUSTRALIA EQUIPMENT(RR3) ID=12.2 		9-09150-512-0 01 1 9606-0004 ●
171 UNION
AUSTRALIA EQUIPMENT(RR3) 		1-09654-185-1 01 1 9604-9803 ●
171 UNION
AUSTRALIA EQUIPMENT(RR3) M12 L=56.5 		9-09223-106-1 01 1 9804-0004 ●
176 BOLT; BRKT FIX
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606 ●
176 BOLT; BRKT FIX
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9803 ●
176 BOLT; BRKT FIX
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 03 1 9804-0004 ●
176 BOLT; BRKT FIX
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 01 1 9604-9606 ●
176 BOLT; BRKT FIX
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9803 ●
176 BOLT; BRKT FIX
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606 ●
176 BOLT; BRKT FIX
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9608 ●
176 BOLT; BRKT FIX
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 02 1 9609-0004 ●
177 NUT; BRKT FIX
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 02 1 9604-9606 ●
177 NUT; BRKT FIX
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ●
184 BRACKET; FLEX HOSE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) AUSTRALIA EQUIPMENT(RR3) 		1-47477-567-0 01 1 9604-9803 ●
184 BRACKET; FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) 		1-47477-567-0 01 1 9804-0004 ●
184 BRACKET; FLEX HOSE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) AUSTRALIA EQUIPMENT(RR3) 		1-47475-922-0 01 1 9604-0004 ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
