0-37 — TURBOCHARGER (#36733) — 11 parça

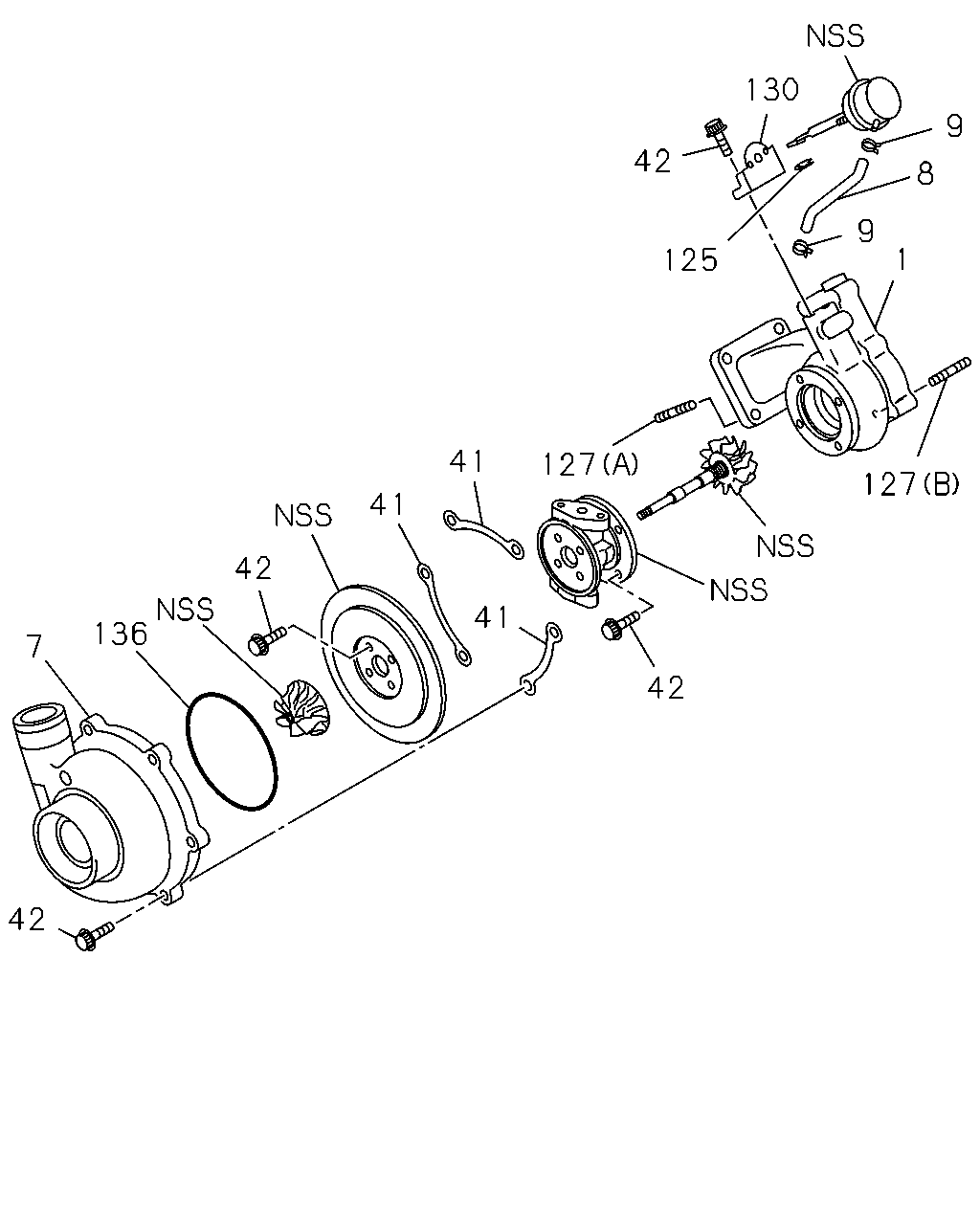

çizim 152567
130 9 42 8 9 125 1 41 127 127 41 42 136 41 7 42 42
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; TURBINE,TURBOCHARGER
ASM PART: A = 8-97602-809-0 		1-14415-110-0 01 1 -
7 HOUSING; BLOWER,TURBOCHARGER
ASM PART: A = 8-97602-809-0 		1-14414-109-0 01 1 -
8 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: A = 8-97602-809-0 		1-14419-133-0 01 1 -
9 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: A = 8-97602-809-0 		1-14419-134-0 02 1 -
41 PLATE; LK,BLOWER HSG,TURBOCHARGER
ASM PART: A = 8-97602-809-0 		1-14419-151-0 03 1 -
42 BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
ASM PART: A = 8-97602-809-0 		1-14419-150-0 16 1 -
125 RING; SNAP,CONT LINK
ASM PART: A = 8-97602-809-0 		1-14419-108-0 01 1 -
127 STUD; TURBOCHARGER
(A) ASM PART: A = 8-97602-809-0 		1-14419-137-0 02 1 -
127 STUD; TURBOCHARGER
(B) ASM PART: A = 8-97602-809-0 		1-14419-141-0 01 1 -
130 BRACKET; ACTUATOR,TURBO
ASM PART: A = 8-97602-809-0 		1-14419-152-0 01 1 -
136 GASKET; TURBINE HSG,TURBOCHARGER
ASM PART: A = 8-97602-809-0 		1-14459-064-0 01 1 -
