Isuzu WW
▶
TRUCKS
▶
FSS
▶
10716 - FSS/FTS-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶

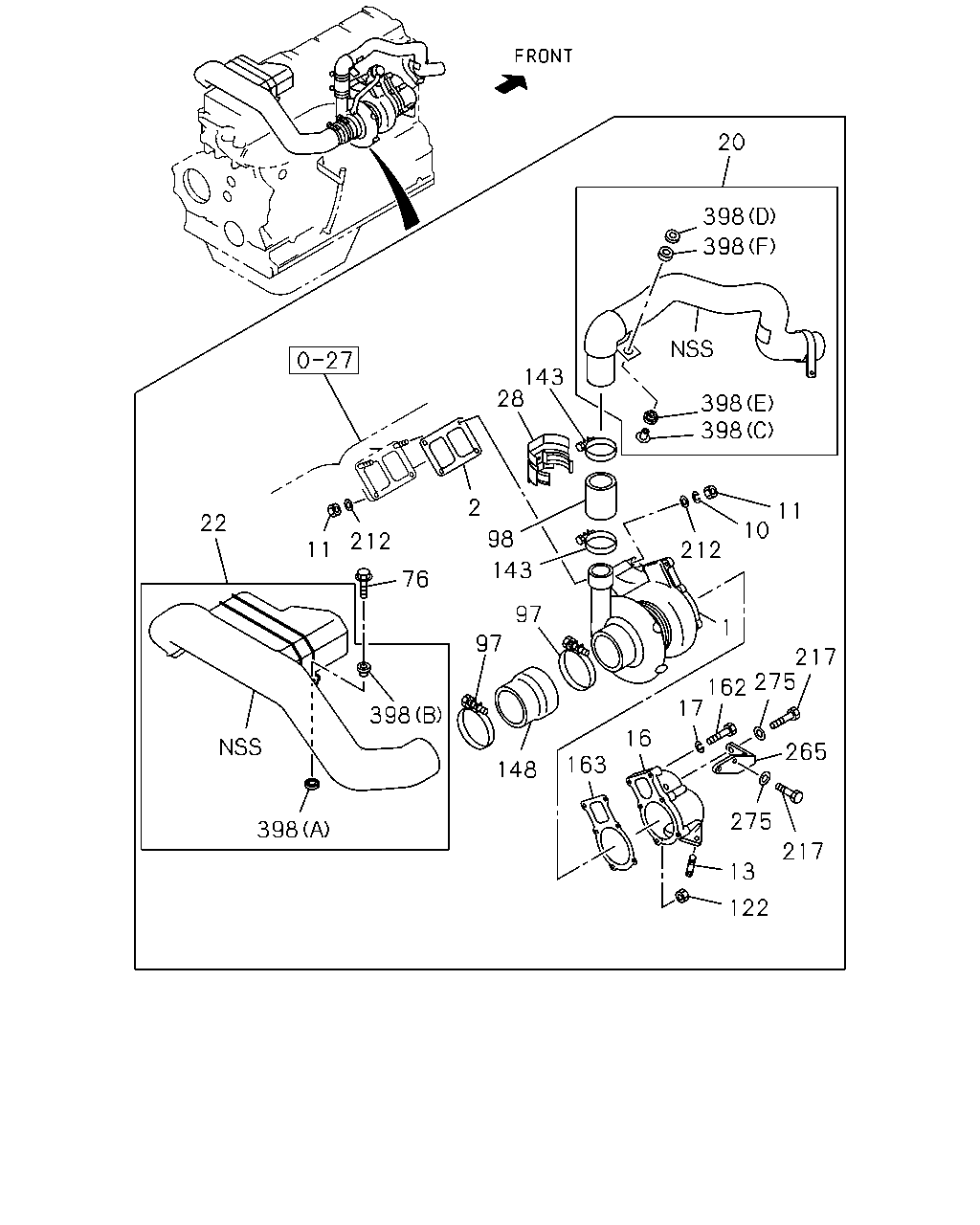

0-36 — TURBOCHARGER SYSTEM
(#36732) — 34 parça
20
398
398
143
28
398
398
2
11
22
10
98
212
212
11
143
76
97
1
97
217
275
162
17
398
16
265
163
148
275
398
217
13
122
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-97602-809-0
01
1
0406-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94390-044-0
01
1
0406-
10
WASHER; LK,TURBOCHARGER
T=2.2
1-09556-015-0
02
1
0406-
11
NUT; TURBOCHARGER
M10
1-09420-005-0
04
1
0406-
13
STUD; EXH PIPE
M12X123 L=141
1-09302-012-0
02
1
0406-
16
ADAPTER; EXH PIPE
8-97600-283-0
01
1
0406-
17
WASHER; PL,ADAPTER
T=1.9
5-09500-012-0
06
1
0406-
20
PIPE; INL,TURBOCHARGER OUT
8-97602-682-0
01
1
0406-0407
20
PIPE; INL,TURBOCHARGER OUT
8-97600-383-1
01
1
0408-
22
DUCT; INL,ACL TO TURBOCHARGER
8-97600-071-1
01
1
0406-
28
PROTECTOR; HEAT,HOSE,AIR DUCT
8-94393-182-0
01
1
0406-
76
BOLT; AIR DUCT
M8X35 FLANGE
0-28680-835-0
02
1
0406-0512
76
BOLT; AIR DUCT
M8X35 FLANGE
0-28650-835-0
02
1
0601-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-113
1-09707-199-0
04
1
0406-0810
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-113
1-09707-199-0
02
1
0811-0811
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
1-09707-144-0
02
1
0811-0811
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
1-09707-144-0
04
1
0812-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
ID=58.5 OD=65.5 L=80
8-94392-854-0
01
1
0406-
122
NUT; ADAPTER
M8
1-09400-118-1
01
1
0406-
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-76
1-09707-203-0
02
1
0406-0811
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79
8-94126-771-0
02
1
0812-
148
HOSE; TURBOCHARGER,INL
8-94392-853-0
01
1
0406-
162
BOLT; ADAPTER
M8X57
5-09000-275-0
05
1
0406-
163
GASKET; ADAPTER TO EXH PIPE
1-14145-162-2
01
1
0406-
212
WASHER; PL,TURBOCHARGER
ID=10
1-09503-033-1
04
1
0406-
217
BOLT; BRKT
M12X30
8-94394-324-0
03
1
0406-
265
BRACKET; EXH PIPE
8-94395-764-2
01
1
0406-
275
WASHER; PL
ID=12.2
1-09503-008-0
03
1
0406-
398
MOUNTING
(F) ID=19 OD=26
8-94160-177-0
01
1
0406-
398
MOUNTING
(A) ID=19.5
8-94202-456-3
02
1
0406-
398
MOUNTING
(C) OD=28
8-94390-551-1
01
1
0406-
398
MOUNTING
(D) ID=13 OD=28
8-94394-504-0
01
1
0406-
398
MOUNTING
(E) OD=26
8-94394-529-0
01
1
0406-
398
MOUNTING
(B)
8-97600-053-0
02
1
0406-
