0-33 — FAN AND FAN BELT (#36730) — 92 parça

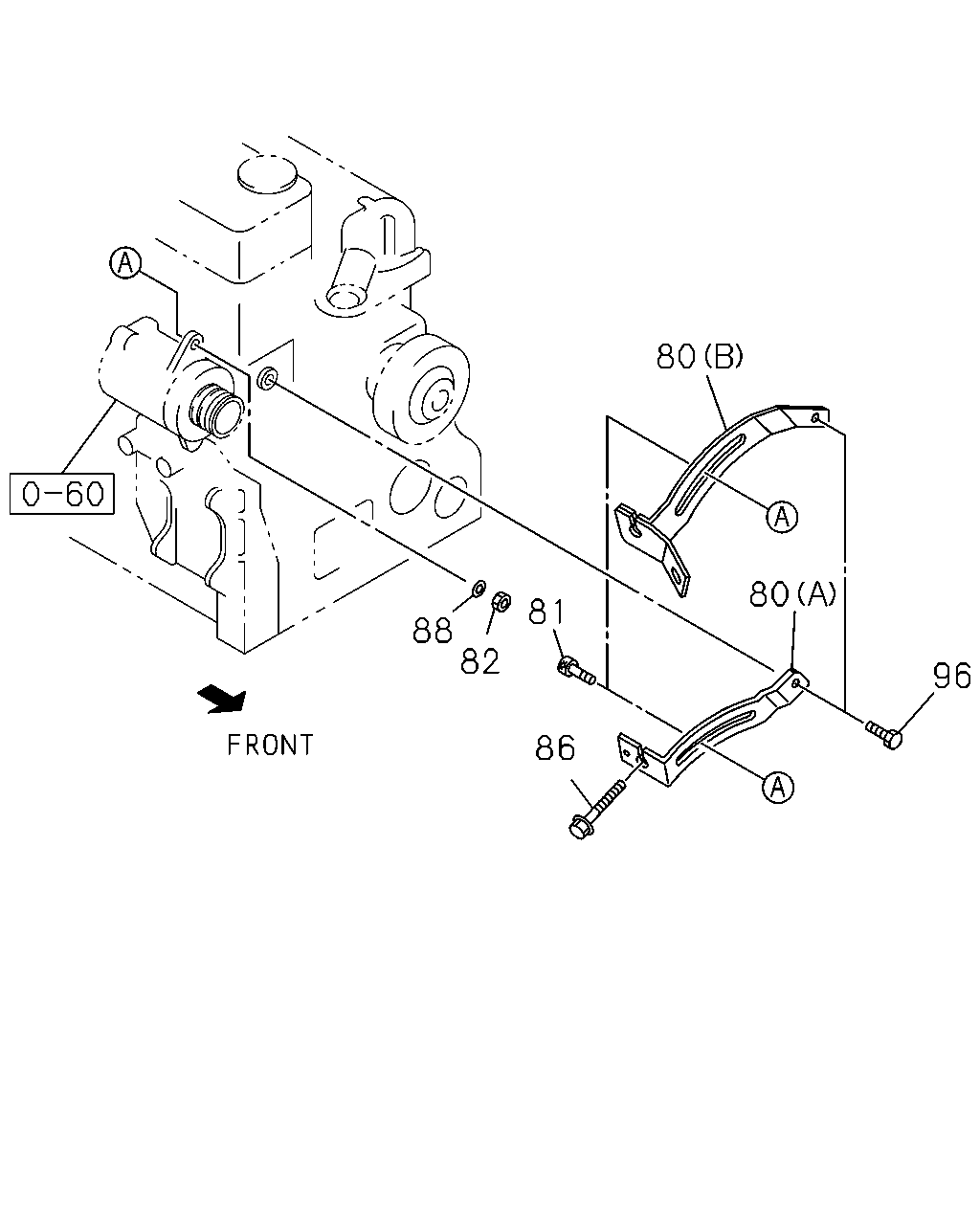

çizim 152564
80 80 81 88 82 96 86
BalonParca AdiParca NoAdetTipApplied Date A B C D
80 PLATE; ADJ
(B) 		8-97602-684-0 01 1 0406-0407 ●
80 PLATE; ADJ
(B) 		8-97602-677-0 01 1 0408- ●
80 PLATE; ADJ
(A) 		8-94390-021-1 01 1 9604-0001 ● ●
80 PLATE; ADJ
(A) 		8-97601-021-0 01 1 0002-0402 ● ●
80 PLATE; ADJ
EXC. AIR CONDITIONER MANUAL CONTROL<C60> (A) 		8-97601-021-0 01 1 0403-1108 ● ●
80 PLATE; ADJ
(A) 		8-97601-021-0 01 1 1109- ● ● ●
80 PLATE; ADJ
(A) 		8-94394-328-1 01 1 0011-0402 ●
80 PLATE; ADJ
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94394-328-1 01 1 0403-0405 ●
80 PLATE; ADJ
(A) 		8-94394-328-1 01 1 0403-0405 ●
80 PLATE; ADJ
AIR CONDITIONER MANUAL CONTROL<C60> EXC. EURO2 SPECIFICATION<THN> (A) 		8-94394-328-1 01 1 0406- ●
80 PLATE; ADJ
AIR CONDITIONER MANUAL CONTROL<C60> (A) 		8-94394-328-1 01 1 0406- ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 9604-0010 ● ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 0011-0405 ● ● ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 0406- ● ● ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91150-112-0 01 1 9604-0010 ● ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91150-112-0 01 1 0011-0405 ● ● ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91150-112-0 01 1 0406-0602 ● ● ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91180-112-0 01 1 0603- ● ● ●
86 BOLT; ADJ
M10X155 FLANGE 		1-09009-114-1 01 1 9604-0010 ● ●
86 BOLT; ADJ
M10X155 FLANGE 		1-09009-114-1 01 1 0011-0405 ● ● ●
86 BOLT; ADJ
M10X155 FLANGE 		1-09009-114-1 01 1 0406- ● ● ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		9-09164-712-0 01 1 9604-0010 ● ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		9-09164-712-0 01 1 0011-0405 ● ● ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		9-09164-712-0 01 1 0406-0605 ● ● ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		0-91614-712-0 01 1 0606- ● ● ●
96 BOLT; ADJ PLATE
M10X45 FLANGE 		0-28181-045-0 01 1 9604-0010 ● ●
96 BOLT; ADJ PLATE
M10X45 FLANGE 		0-28181-045-0 01 1 0011-0405 ● ● ●
96 BOLT; ADJ PLATE
M10X45 FLANGE 		0-28181-045-0 01 1 0406-0512 ● ● ●
96 BOLT; ADJ PLATE
M10X45 FLANGE 		0-28151-045-0 01 1 0601- ● ● ●

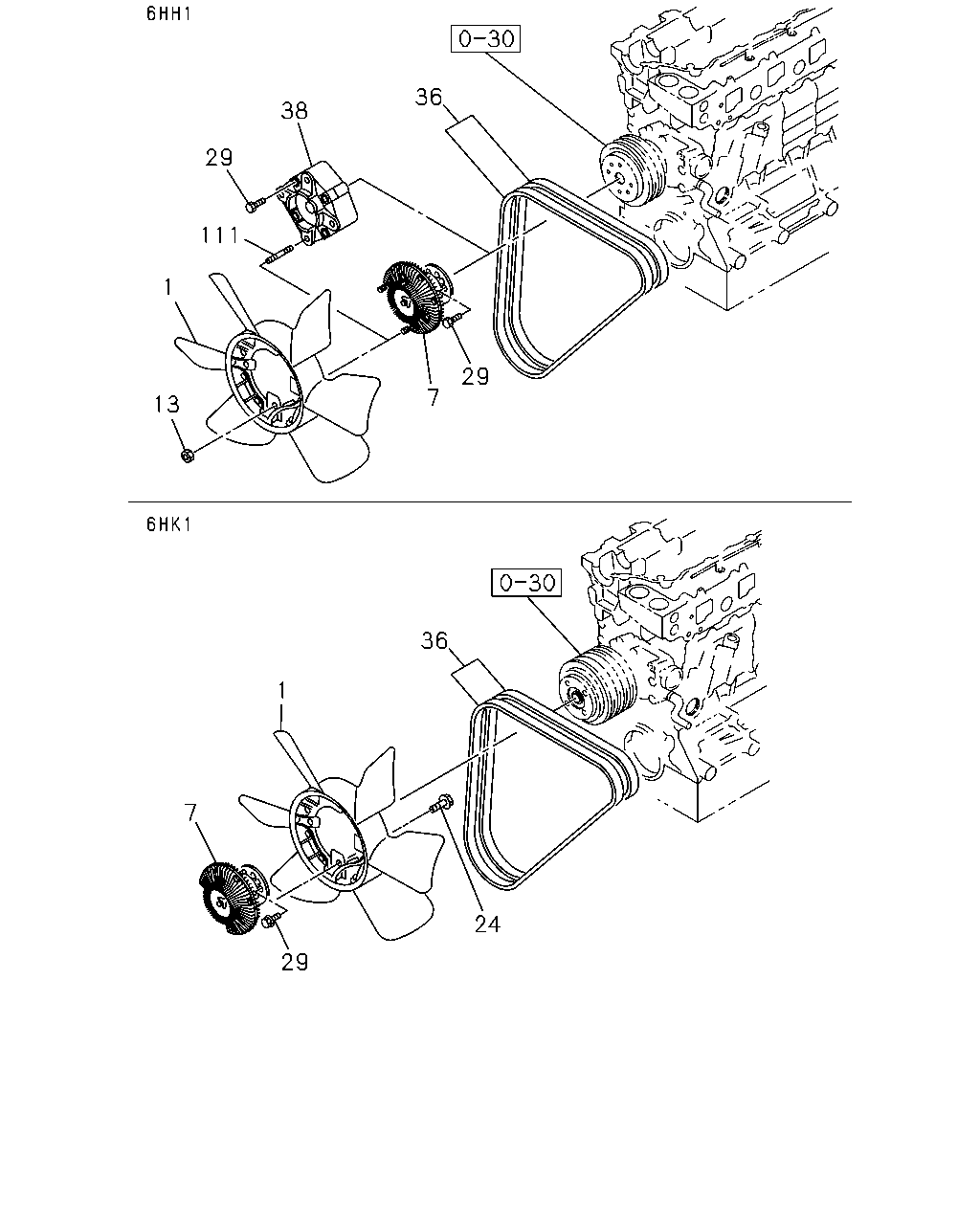

çizim 152568
36 38 29 111 1 29 7 13 36 1 7 24 29
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 FAN; COOLING
OD=520 		8-94393-117-0 01 1 0406- ●
1 FAN; COOLING
OD=500 		8-94399-286-1 01 1 9604-0010 ● ●
1 FAN; COOLING
OD=500 		8-94399-286-1 01 1 0011-0405 ● ● ●
1 FAN; COOLING
OD=500 		8-94399-286-1 01 1 0406-1108 ● ●
1 FAN; COOLING
OD=500 		8-94399-286-1 01 1 1109- ● ● ●
7 COUPLING; FAN 8-94394-009-2 01 1 0406- ●
7 COUPLING; FAN
FLUID DRIVE FAN<KA3> 		8-94395-254-1 01 1 9604-0402 ●
7 COUPLING; FAN
FLUID DRIVE FAN<KA3> 		8-94395-254-1 01 1 0403- ● ●
7 COUPLING; FAN
FLUID DRIVE FAN<KA3> 		8-94391-701-0 01 1 0006-0010 ●
7 COUPLING; FAN
FLUID DRIVE FAN<KA3> 		8-94391-701-0 01 1 0011-0405 ●
7 COUPLING; FAN 8-94391-701-0 01 1 0011-0405 ●
7 COUPLING; FAN
FLUID DRIVE FAN<KA3> EXC. EURO2 SPECIFICATION<THN> 		8-94391-701-0 01 1 0406- ●
7 COUPLING; FAN
FLUID DRIVE FAN<KA3> 		8-94391-701-0 01 1 0406- ●
13 NUT; COOLING FAN
M6 FLANGE 		0-91150-106-0 04 1 9604-0010 ● ●
13 NUT; COOLING FAN
M6 FLANGE 		0-91150-106-0 04 1 0011-0405 ● ● ●
13 NUT; COOLING FAN
M6 FLANGE 		0-91150-106-0 04 1 0406-0602 ● ●
13 NUT; COOLING FAN
M6 FLANGE 		0-91180-106-0 04 1 0603-1108 ● ●
13 NUT; COOLING FAN
M6 FLANGE 		0-91180-106-0 04 1 1109- ● ● ●
24 BOLT; FAN
M8X14 FLANGE 		0-28080-814-0 10 1 0406-0407 ●
24 BOLT; FAN
M8X14 FLANGE 		0-28080-814-0 04 1 0408- ●
29 BOLT; COUPLING TO WATER PUMP
M10X22 FLANGE 		0-28181-022-0 04 1 0406- ●
29 BOLT; COUPLING TO WATER PUMP
EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28080-816-0 04 1 9905-0512 ●
29 BOLT; COUPLING TO WATER PUMP
EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
29 BOLT; COUPLING TO WATER PUMP
FLUID DRIVE FAN<KA3> M8X14 FLANGE 		8-94399-451-1 04 1 9604-9904 ●
29 BOLT; COUPLING TO WATER PUMP
FLUID DRIVE FAN<KA3> EXC. EURO2 SPECIFICATION<THN> M8X14 FLANGE 		8-94399-451-1 04 1 9905-0010 ●
29 BOLT; COUPLING TO WATER PUMP
FLUID DRIVE FAN<KA3> EXC. EURO2 SPECIFICATION<THN> M8X14 FLANGE 		8-94399-451-1 04 1 0011- ●
29 BOLT; COUPLING TO WATER PUMP
FLUID DRIVE FAN<KA3> M8X14 FLANGE 		8-94399-451-1 04 1 0011- ●
29 BOLT; COUPLING TO WATER PUMP
EXC. FLUID DRIVE FAN<KA3> M8X70 FLANGE 		0-28080-870-0 04 1 9604-9904 ●
29 BOLT; COUPLING TO WATER PUMP
M8X70 FLANGE 		0-28080-870-0 04 1 9604-9904 ●
29 BOLT; COUPLING TO WATER PUMP
EXC. FLUID DRIVE FAN<KA3>,EURO2 SPECIFICATION<THN> M8X70 FLANGE 		0-28080-870-0 04 1 9905-0010 ●
29 BOLT; COUPLING TO WATER PUMP
M8X70 FLANGE 		0-28080-870-0 04 1 9905-0010 ●
29 BOLT; COUPLING TO WATER PUMP
EXC. FLUID DRIVE FAN<KA3>,EURO2 SPECIFICATION<THN> M8X70 FLANGE 		0-28080-870-0 04 1 0011-0512 ●
29 BOLT; COUPLING TO WATER PUMP
EXC. FLUID DRIVE FAN<KA3> M8X70 FLANGE 		0-28080-870-0 04 1 0011-0512 ●
29 BOLT; COUPLING TO WATER PUMP
EXC. FLUID DRIVE FAN<KA3>,EURO2 SPECIFICATION<THN> M8X70 FLANGE 		0-28050-870-0 04 1 0601- ●
29 BOLT; COUPLING TO WATER PUMP
EXC. FLUID DRIVE FAN<KA3> M8X70 FLANGE 		0-28050-870-0 04 1 0601- ●
36 BELT; COOLING FAN
AIR CONDITIONER MANUAL CONTROL<C60> EXC. EURO2 SPECIFICATION<THN> 1 SET=2 PIECE(1136713270) MITSUBOSHI 		1-13671-328-0 01 1 0403-1402 ●
36 BELT; COOLING FAN
AIR CONDITIONER MANUAL CONTROL<C60> 1 SET=2 PIECE(1136713270) MITSUBOSHI 		1-13671-328-0 01 1 0403-1402 ●
36 BELT; COOLING FAN
AIR CONDITIONER MANUAL CONTROL<C60> EXC. EURO2 SPECIFICATION<THN> 		8-98253-277-0 01 1 1403- ●
36 BELT; COOLING FAN
AIR CONDITIONER MANUAL CONTROL<C60> 		8-98253-277-0 01 1 1403- ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136711970) MITSUBOSHI 		1-13671-194-0 01 1 9604-0402 ● ●
36 BELT; COOLING FAN
EURO2 SPECIFICATION<THN> 1 SET=2 PIECE(1136711970) MITSUBOSHI 		1-13671-194-0 01 1 0403-1108 ●
36 BELT; COOLING FAN
EXC. AIR CONDITIONER MANUAL CONTROL<C60>,EURO2 SPECIFICATION<THN> 1 SET=2 PIECE(1136711970) MITSUBOSHI 		1-13671-194-0 01 1 0403-1108 ●
36 BELT; COOLING FAN
EXC. AIR CONDITIONER MANUAL CONTROL<C60> 1 SET=2 PIECE(1136711970) MITSUBOSHI 		1-13671-194-0 01 1 0403-1108 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136711970) MITSUBOSHI 		1-13671-194-0 01 1 1109-1402 ● ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(8982534550) MITSUBOSHI 		8-98253-275-0 01 1 1403- ● ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136711420) MITSUBOSHI 		1-13671-143-0 01 1 0011-0405 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714050) MITSUBOSHI 		8-94395-171-1 01 1 0406- ●
38 SPACER; FAN
EXC. FLUID DRIVE FAN<KA3> 		8-94393-896-0 01 1 9604-9904 ●
38 SPACER; FAN 8-94393-896-0 01 1 9604-9904 ●
38 SPACER; FAN
EXC. FLUID DRIVE FAN<KA3>,EURO2 SPECIFICATION<THN> 		8-94393-896-0 01 1 9905-0010 ●
38 SPACER; FAN 8-94393-896-0 01 1 9905-0010 ●
38 SPACER; FAN
EXC. FLUID DRIVE FAN<KA3>,EURO2 SPECIFICATION<THN> 		8-94393-896-0 01 1 0011-1104 ●
38 SPACER; FAN
EXC. FLUID DRIVE FAN<KA3> 		8-94393-896-0 01 1 0011-1104 ●
38 SPACER; FAN
EXC. FLUID DRIVE FAN<KA3>,EURO2 SPECIFICATION<THN> 		8-98167-649-0 01 1 1105- ●
38 SPACER; FAN
EXC. FLUID DRIVE FAN<KA3> 		8-98167-649-0 01 1 1105- ●
111 STUD; FAN DRIVE
EXC. FLUID DRIVE FAN<KA3> M6X12 L=21 		9-04110-612-0 04 1 9604-9904 ●
111 STUD; FAN DRIVE
M6X12 L=21 		9-04110-612-0 04 1 9604-9904 ●
111 STUD; FAN DRIVE
EXC. FLUID DRIVE FAN<KA3>,EURO2 SPECIFICATION<THN> M6X12 L=21 		9-04110-612-0 04 1 9905-0010 ●
111 STUD; FAN DRIVE
M6X12 L=21 		9-04110-612-0 04 1 9905-0010 ●
111 STUD; FAN DRIVE
EXC. FLUID DRIVE FAN<KA3>,EURO2 SPECIFICATION<THN> M6X12 L=21 		9-04110-612-0 04 1 0011-0604 ●
111 STUD; FAN DRIVE
EXC. FLUID DRIVE FAN<KA3> M6X12 L=21 		9-04110-612-0 04 1 0011-0604 ●
111 STUD; FAN DRIVE
EXC. FLUID DRIVE FAN<KA3>,EURO2 SPECIFICATION<THN> M6X12 L=21 		0-41010-612-0 04 1 0605- ●
111 STUD; FAN DRIVE
EXC. FLUID DRIVE FAN<KA3> M6X12 L=21 		0-41010-612-0 04 1 0605- ●
