0-32 — WATER PIPING; ENGINE (#36729) — 111 parça

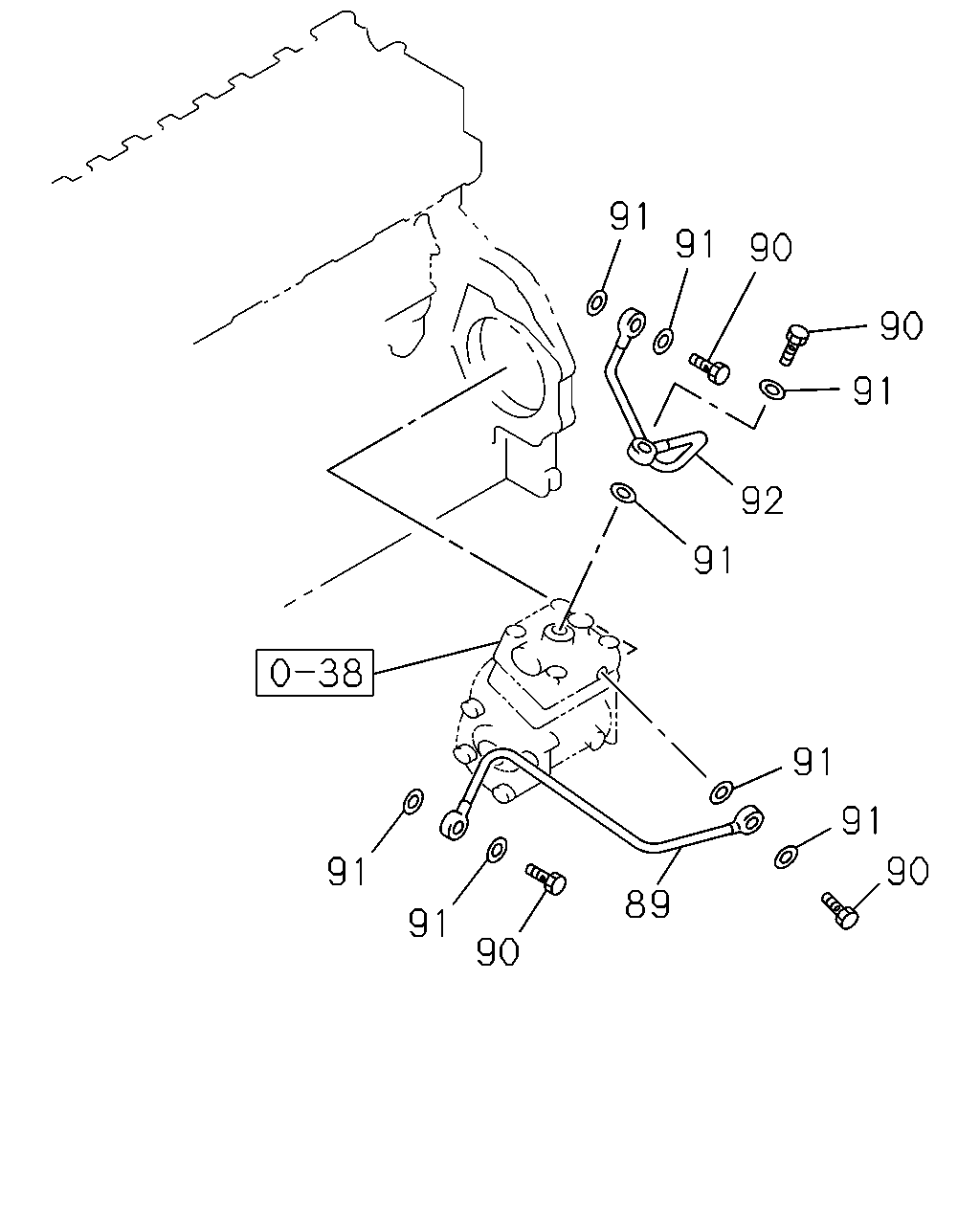

91 91 90 90 91 92 91 91 91 90 91 89 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
89	PIPE; WATER,AIR CMPR,IN NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	8-94395-178-1	01	1	9604-0004	●
89	PIPE; WATER,AIR CMPR,IN NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN>	8-94395-178-1	01	1	0005-	●
89	PIPE; WATER,AIR CMPR,IN	8-94391-037-0	01	1	0011-0405		●
89	PIPE; WATER,AIR CMPR,IN	8-94391-114-0	01	1	0406-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M14X27 EYE-BOLT	1-09675-193-0	04	1	9604-0004	●
90	BOLT; EYE,WATER PIPE,AIR CMPR NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-0405	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	03	1	0011-0405		●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> M14X27 EYE-BOLT	1-09675-193-0	04	1	0406-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0406-			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=14.2 OD=19.2	1-09630-085-0	08	1	9604-0004	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-0405	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	06	1	0011-0405		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	0406-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	0406-1312			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-			●
92	PIPE; WATER,AIR CMPR,OUT NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	8-94395-742-1	01	1	9604-0004	●
92	PIPE; WATER,AIR CMPR,OUT NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN>	8-94395-742-1	01	1	0005-	●
92	PIPE; WATER,AIR CMPR,OUT	8-97600-475-0	01	1	0011-0405		●
92	PIPE; WATER,AIR CMPR,OUT	8-97603-477-0	01	1	0406-			●

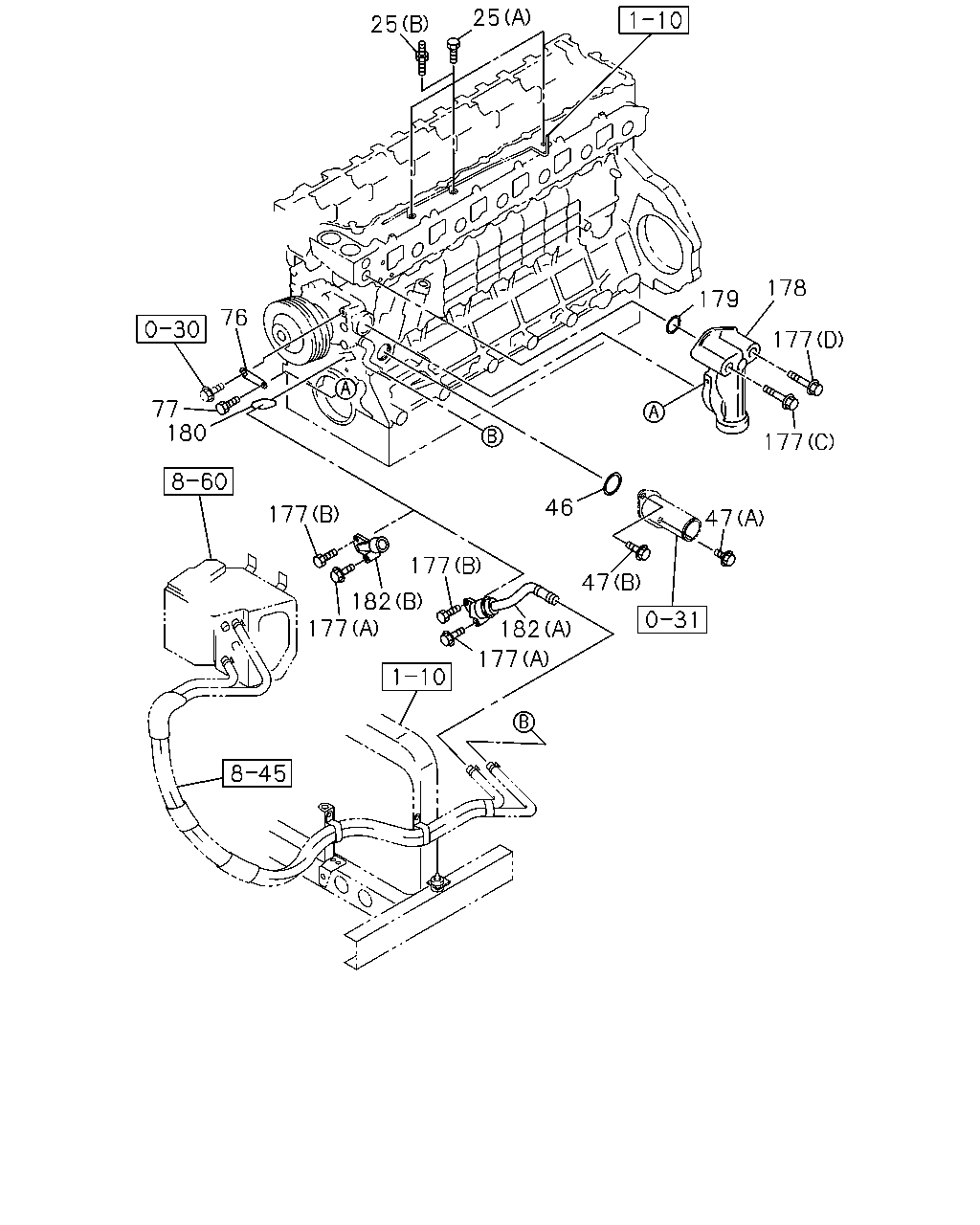

25 25 178 179 76 177 77 180 177 46 177 47 177 47 182 177 182 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28080-812-0	02	1	0406-0512			●
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-			●
25	BOLT; WATER PIPE EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE	0-28080-812-0	02	1	9905-9907	●
25	BOLT; WATER PIPE EURO2 SPECIFICATION<THN> (B) M8X14,M8X14 L=33	1-09300-058-1	02	1	9908-0010	●
25	BOLT; WATER PIPE EURO2 SPECIFICATION<THN> (B) M8X14,M8X14 L=33	1-09300-058-1	02	1	0011-0405	●
25	BOLT; WATER PIPE (B) M8X14,M8X14 L=33	1-09300-058-1	02	1	0011-0405		●
25	BOLT; WATER PIPE EURO2 SPECIFICATION<THN> (B) M8X14,M8X14 L=33	1-09300-058-1	02	1	0406-	●
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28080-812-0	03	1	9604-9904	●			●
25	BOLT; WATER PIPE EXC. EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE	0-28080-812-0	03	1	9905-0512	●
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28080-812-0	03	1	9905-0512				●
25	BOLT; WATER PIPE EXC. EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE	0-28050-812-0	03	1	0601-	●
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28050-812-0	03	1	0601-				●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	9604-0010	●			●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0011-0405	●	●		●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0406-	●		●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X16 FLANGE	0-28080-816-0	01	1	9604-9611	●			●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28080-845-0	01	1	9612-0010	●			●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28080-845-0	01	1	0011-0405	●	●		●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28080-845-0	01	1	0406-0512	●		●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●		●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X40 FLANGE	0-28080-840-0	01	1	9604-9611	●			●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28680-825-0	01	1	9612-0010	●			●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28680-825-0	01	1	0011-0405	●	●		●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28680-825-0	01	1	0406-0512	●		●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●		●	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	9604-0010	●			●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0011-0405	●	●		●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0406-	●		●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9604-0010	●			●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	0011-0405	●	●		●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	0406-0512	●		●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0601-	●		●	●
177	BOLT; WATER DUCT (B) M8X22 FLANGE	0-28080-822-0	01	1	9604-9709	●			●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	9710-0010	●			●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	0011-0405	●	●		●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	0406-0512	●		●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●		●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	9604-0010	●			●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0011-0405	●	●		●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0406-	●		●	●
177	BOLT; WATER DUCT (C) M8X79 FLANGE	8-94311-617-1	01	1	9604-9612	●			●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	9701-0010	●			●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	0011-0405	●	●		●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	0406-0512	●		●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0601-	●		●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	9604-0010	●			●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0011-0405	●	●		●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0406-	●		●	●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	9604-0010	●			●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	0011-0405	●	●		●
178	DUCT; WATER,BYPASS	8-94396-627-3	01	1	0406-	●		●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	9604-0010	●			●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0011-0405	●	●		●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0406-1408	●		●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-	●		●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	9604-0010	●			●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0011-0405	●	●		●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0406-	●		●	●
182	DUCT; WATER,HTR (A)	8-94394-348-5	01	1	0406-			●
182	DUCT; WATER,HTR HEATER & DEFROSTER<C41> (A)	8-94396-724-4	01	1	9604-0010	●			●
182	DUCT; WATER,HTR HEATER & DEFROSTER<C41> (A)	8-94396-724-4	01	1	0011-0405	●			●
182	DUCT; WATER,HTR (A)	8-94396-724-4	01	1	0011-0405		●
182	DUCT; WATER,HTR HEATER & DEFROSTER<C41> EXC. EURO2 SPECIFICATION<THN> (A)	8-94396-724-4	01	1	0406-	●
182	DUCT; WATER,HTR HEATER & DEFROSTER<C41> (A)	8-94396-724-4	01	1	0406-				●
182	DUCT; WATER,HTR EXC. HEATER & DEFROSTER<C41> (B)	8-94390-283-0	01	1	9604-	●			●

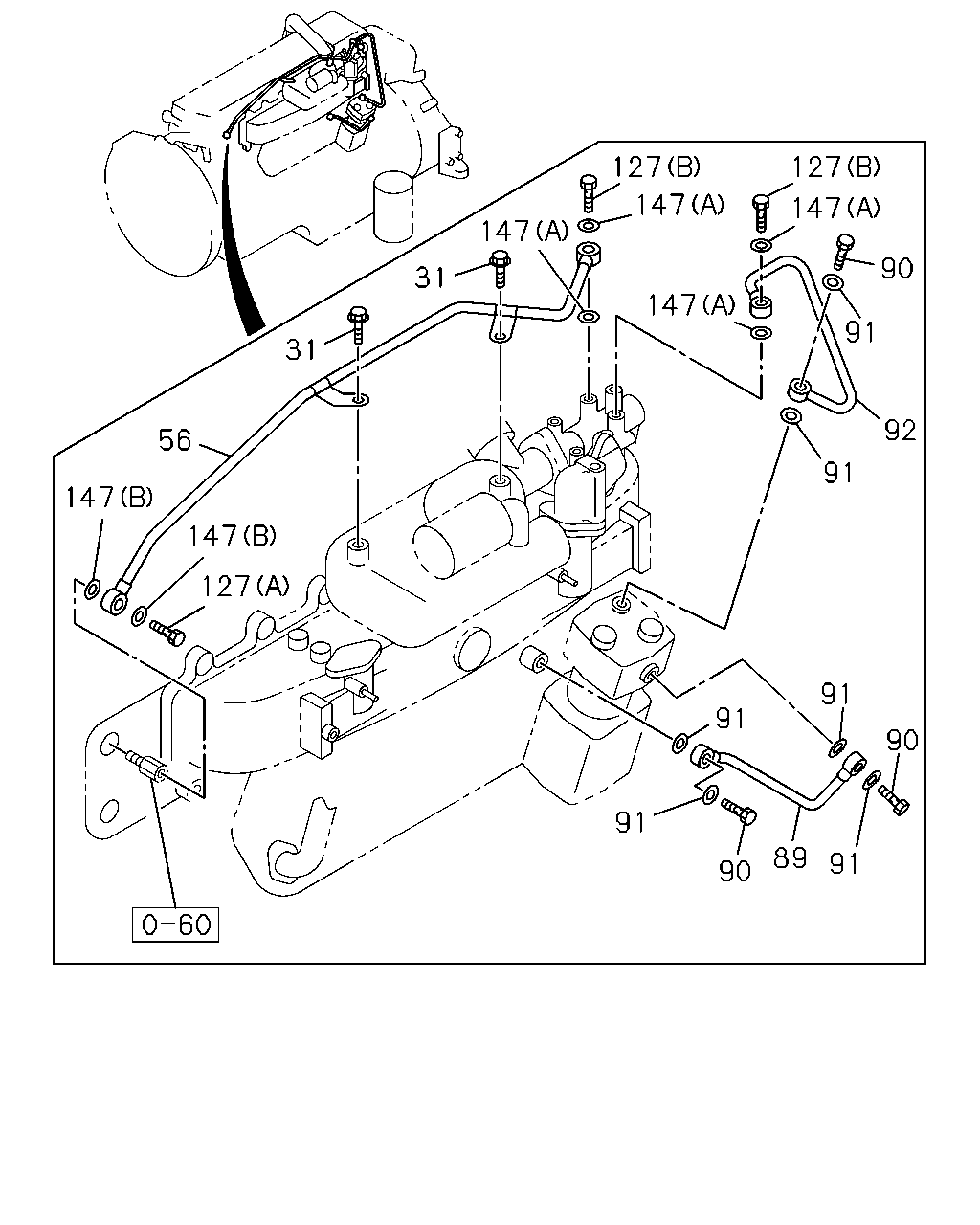

127 147 127 147 147 90 31 147 91 31 92 56 91 147 147 127 91 91 90 91 89 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	05	1	0011-0405		●
56	PIPE; WATER OUTLET	8-94392-324-2	01	1	0011-0405		●
89	PIPE; WATER,AIR CMPR,IN NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	8-94395-178-1	01	1	9604-0004	●
89	PIPE; WATER,AIR CMPR,IN NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN>	8-94395-178-1	01	1	0005-	●
89	PIPE; WATER,AIR CMPR,IN	8-94391-037-0	01	1	0011-0405		●
89	PIPE; WATER,AIR CMPR,IN	8-94391-114-0	01	1	0406-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M14X27 EYE-BOLT	1-09675-193-0	04	1	9604-0004	●
90	BOLT; EYE,WATER PIPE,AIR CMPR NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-0405	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	03	1	0011-0405		●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> M14X27 EYE-BOLT	1-09675-193-0	04	1	0406-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0406-			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=14.2 OD=19.2	1-09630-085-0	08	1	9604-0004	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-0405	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	06	1	0011-0405		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	0406-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	0406-1312			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-			●
92	PIPE; WATER,AIR CMPR,OUT NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	8-94395-742-1	01	1	9604-0004	●
92	PIPE; WATER,AIR CMPR,OUT NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN>	8-94395-742-1	01	1	0005-	●
92	PIPE; WATER,AIR CMPR,OUT	8-97600-475-0	01	1	0011-0405		●
92	PIPE; WATER,AIR CMPR,OUT	8-97603-477-0	01	1	0406-			●
127	BOLT; EYE (B) M12X33 FLANGE	1-09675-083-0	02	1	0011-0405		●
127	BOLT; EYE (A) M16X25	5-09675-028-2	01	1	0011-0405		●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	04	1	0011-0405		●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0011-0405		●
