0-31 — THERMOSTAT AND HOUSING (#36728) — 98 parça

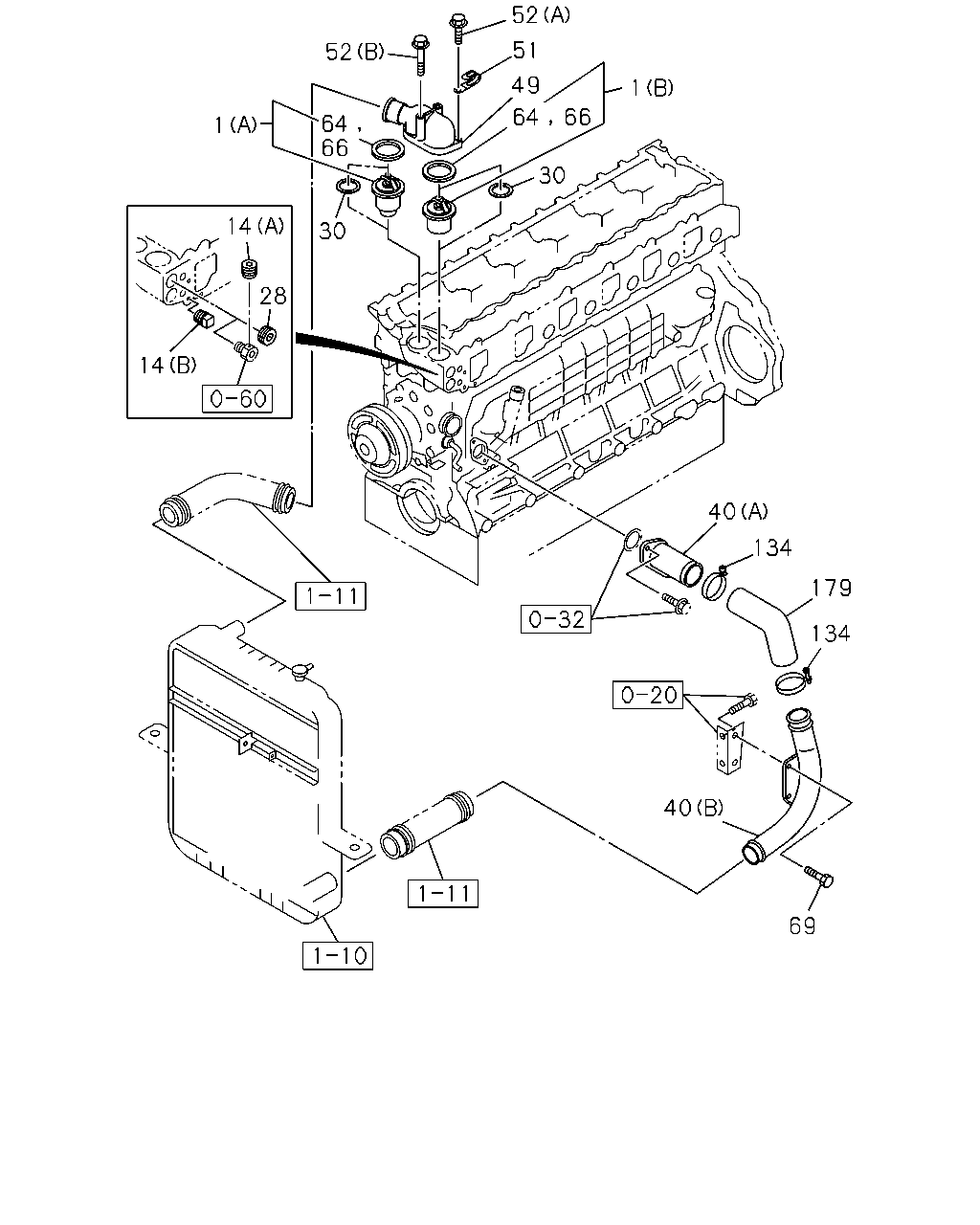

çizim 152561
52 51 52 49 1 64 66 64 66 1 30 30 14 28 14 40 134 179 134 40 69
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (A) 76.5 CELSIUS 		8-94393-349-1 01 1 9604-9904 ● ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> EXC. EURO2 SPECIFICATION<THN> (A) 76.5 CELSIUS 		8-94393-349-1 01 1 9905-0105 ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (A) 76.5 CELSIUS 		8-94393-349-1 01 1 9905-0105 ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> EXC. EURO2 SPECIFICATION<THN> (A) 76.5 CELSIUS 		8-97602-036-0 01 1 0106-0112 ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (A) 76.5 CELSIUS 		8-97602-036-0 01 1 0106-0112 ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> EXC. EURO2 SPECIFICATION<THN> (A) 76.5 CELSIUS 		8-97602-392-2 01 1 0201- ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (A) 76.5 CELSIUS 		8-97602-392-2 01 1 0201- ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (B) 76.5 CELSIUS 		8-94393-350-1 01 1 9604-9807 ● ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (B) 76.5 CELSIUS 		8-94392-816-0 01 1 9808-9904 ● ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> EXC. EURO2 SPECIFICATION<THN> (B) 76.5 CELSIUS 		8-94392-816-0 01 1 9905-0105 ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (B) 76.5 CELSIUS 		8-94392-816-0 01 1 9905-0105 ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> EXC. EURO2 SPECIFICATION<THN> (B) 76.5 CELSIUS 		8-97602-035-3 01 1 0106- ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (B) 76.5 CELSIUS 		8-97602-035-3 01 1 0106- ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (A) 82 CELSIUS 		8-94397-310-0 01 1 9604-9904 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U>,EURO2 SPECIFICATION<THN> (A) 82 CELSIUS 		8-94397-310-0 01 1 9905-0010 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (A) 82 CELSIUS 		8-94397-310-0 01 1 9905-0010 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U>,EURO2 SPECIFICATION<THN> (A) 82 CELSIUS 		8-94397-310-0 01 1 0011-0105 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (A) 82 CELSIUS 		8-94397-310-0 01 1 0011-0105 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 0011-0105 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U>,EURO2 SPECIFICATION<THN> (A) 82 CELSIUS 		8-97602-048-1 01 1 0106-0405 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (A) 82 CELSIUS 		8-97602-048-1 01 1 0106-0405 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-1 01 1 0106-0405 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U>,EURO2 SPECIFICATION<THN> (A) 82 CELSIUS 		8-97602-048-3 01 1 0406- ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (A) 82 CELSIUS 		8-97602-048-3 01 1 0406- ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-3 01 1 0406- ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-94397-311-0 01 1 9604-9807 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-94392-817-0 01 1 9808-9904 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U>,EURO2 SPECIFICATION<THN> (B) 82 CELSIUS 		8-94392-817-0 01 1 9905-0010 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-94392-817-0 01 1 9905-0010 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U>,EURO2 SPECIFICATION<THN> (B) 82 CELSIUS 		8-94392-817-0 01 1 0011-0105 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-94392-817-0 01 1 0011-0105 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 0011-0105 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U>,EURO2 SPECIFICATION<THN> (B) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U>,EURO2 SPECIFICATION<THN> (B) 82 CELSIUS 		8-97602-393-0 01 1 0201-0405 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-97602-393-0 01 1 0201-0405 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-0 01 1 0201-0405 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U>,EURO2 SPECIFICATION<THN> (B) 82 CELSIUS 		8-97602-393-1 01 1 0406-1501 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-97602-393-1 01 1 0406-1501 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 0406-1501 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U>,EURO2 SPECIFICATION<THN> (B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9604-0010 ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0011-0405 ● ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0406- ● ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 0011-0405 ●
28 PLUG; HTR
EXC. AUSTRALIA EQUIPMENT(RR3) PT3/4 		1-09605-020-0 01 1 9604-0004 ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 9604-0004 ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 0005-0405 ● ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 0406- ● ● ●
30 SPACER
THAILAND EQUIPMENT(PM9) 		8-94393-517-0 02 1 9609-0402 ●
30 SPACER 8-94393-517-0 02 1 0403- ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-403-1 01 1 9604-9611 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9612-0010 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 0011-0405 ● ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 0406- ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9604-0004 ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0005-0405 ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0406- ● ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9604-0010 ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 0011-0105 ● ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0106-0405 ● ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0406- ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9604-0010 ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0011-0405 ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0406-0801 ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X22 FLANGE 		0-28080-822-0 02 1 9604-9709 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9710-0010 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0011-0405 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X79 FLANGE 		8-94311-617-1 02 1 9604-9612 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9701-0010 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 0011-0405 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 0406-0512 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28050-880-0 02 1 0601- ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9604-0010 ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 0011-0105 ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0106-0402 ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0403-1501 ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0106-0405 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0406-1501 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28080-820-0 02 1 9604-9803 ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 9804-0004 ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0405 ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 0406-0512 ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9604-0004 ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0005-0405 ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0406- ● ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-1 01 1 9604-0004 ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 0005-0405 ● ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 0406- ● ● ●
