◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10716 - FSS/FTS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶
0-28 — VENTILATION SYSTEM (#36726) — 104 parça

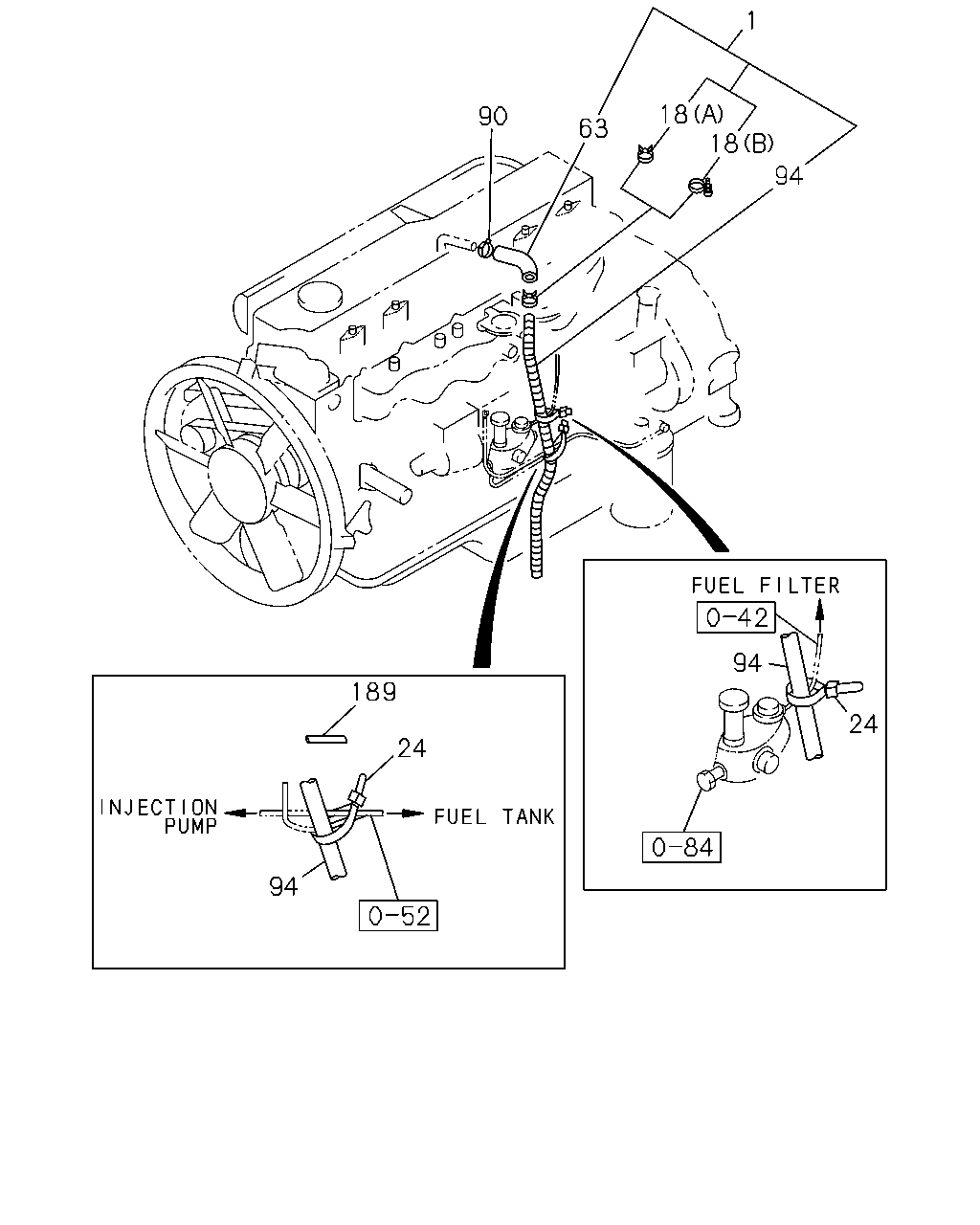

çizim 152556
1 18 18 90 63 94 94 189 24 24 94
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BREATHER; AIR 8-94394-777-2 01 1 0406- ●
1 BREATHER; AIR
EURO2 SPECIFICATION<THN> 		8-94392-083-0 01 1 9905-0010 ●
1 BREATHER; AIR
EURO2 SPECIFICATION<THN> 		8-94392-083-0 01 1 0011-0405 ●
1 BREATHER; AIR 8-94392-083-0 01 1 0011-0405 ●
1 BREATHER; AIR
EURO2 SPECIFICATION<THN> 		8-94392-083-3 01 1 0406- ●
1 BREATHER; AIR
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) 		8-94394-859-1 01 1 9604-9709 ●
1 BREATHER; AIR 8-94394-859-1 01 1 9604-9709 ●
1 BREATHER; AIR 8-94394-859-1 01 1 9710-9904 ● ●
1 BREATHER; AIR
EXC. EURO2 SPECIFICATION<THN> 		8-94394-859-4 01 1 9905- ●
1 BREATHER; AIR 8-94394-859-4 01 1 9905- ●
1 BREATHER; AIR
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) 		8-94394-777-1 01 1 9604-9709 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 0406- ●
18 CLIP; RUBBER HOSE,AIR BREATHER
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) (B) ID=38 		9-09915-041-1 01 1 9604-9709 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 9604-0010 ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 0011-0405 ● ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 0406- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
EXC. EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 02 1 0406-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 0406-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
EXC. EURO2 SPECIFICATION<THN> L=250 		8-98216-430-0 02 1 1206- ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 02 1 1206- ●
24 CLIP; RUBBER HOSE,VENTILATOR
EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 01 1 9905-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
EURO2 SPECIFICATION<THN> L=250 		8-98216-430-0 01 1 1206- ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 9604-9904 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
EXC. EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 02 1 9905-0010 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 9905-0010 ●
24 CLIP; RUBBER HOSE,VENTILATOR
EXC. EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 02 1 0011-0405 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 0011-0405 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 03 1 0406-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 03 1 1206- ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02828-070-0 01 1 0704-1005 ● ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 1006-1108 ● ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 1109- ● ● ●
63 HOSE; RUBBER,AIR BREATHER 8-94394-471-0 01 1 0406- ●
63 HOSE; RUBBER,AIR BREATHER
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) L=70 		0-02728-070-0 01 1 9604-9709 ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 9604-9709 ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 9710-9809 ● ●
63 HOSE; RUBBER,AIR BREATHER
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) 		8-94394-471-0 01 1 9604-9709 ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 9604-0010 ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 0011-0405 ● ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 0406- ● ● ●
94 HOSE; BREATHER TO PIPE
EURO2 SPECIFICATION<THN> L=1260 		8-94392-082-0 01 1 9905-0010 ●
94 HOSE; BREATHER TO PIPE
EURO2 SPECIFICATION<THN> L=1260 		8-94392-082-0 01 1 0011-0405 ●
94 HOSE; BREATHER TO PIPE
L=1260 		8-94392-082-0 01 1 0011-0405 ●
94 HOSE; BREATHER TO PIPE
EXC. EURO2 SPECIFICATION<THN> L=1100 		8-94394-785-0 01 1 0406- ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 0406- ● ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9604-9904 ● ●
94 HOSE; BREATHER TO PIPE
EXC. EURO2 SPECIFICATION<THN> L=1100 		8-94394-785-0 01 1 9905-0405 ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9905-0405 ●
94 HOSE; BREATHER TO PIPE
EURO2 SPECIFICATION<THN> L=1260 		8-94392-082-0 01 1 0406- ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 03 1 0406- ●
189 SLEEVE; RUBBER
EXC. EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30 		9-09956-682-0 02 1 0002- ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0002- ●

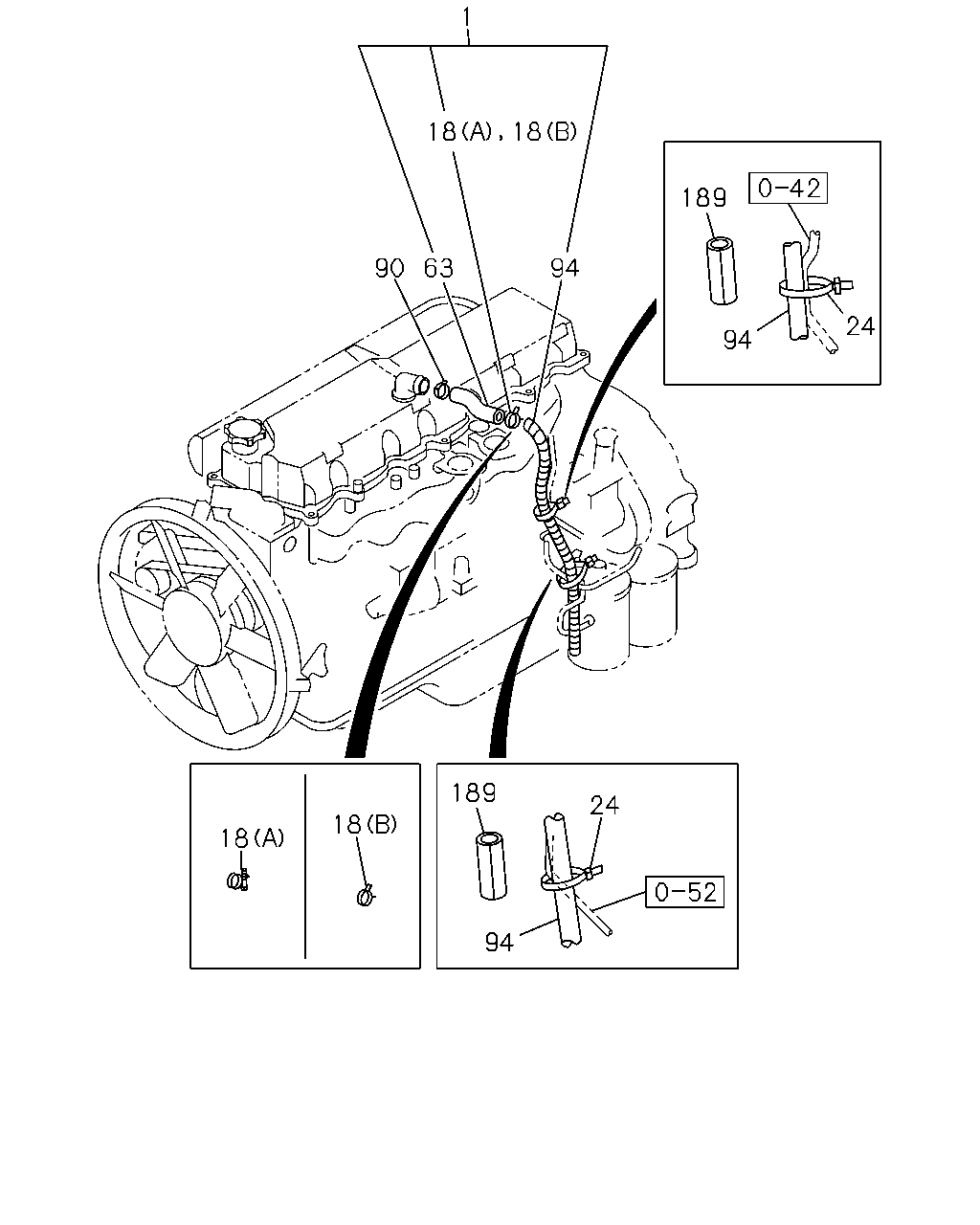

çizim 152558
1 18 18 189 90 63 94 24 94 189 24 18 18 94
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BREATHER; AIR 8-94394-777-2 01 1 0406- ●
1 BREATHER; AIR
EURO2 SPECIFICATION<THN> 		8-94392-083-0 01 1 9905-0010 ●
1 BREATHER; AIR
EURO2 SPECIFICATION<THN> 		8-94392-083-0 01 1 0011-0405 ●
1 BREATHER; AIR 8-94392-083-0 01 1 0011-0405 ●
1 BREATHER; AIR
EURO2 SPECIFICATION<THN> 		8-94392-083-3 01 1 0406- ●
1 BREATHER; AIR
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) 		8-94394-859-1 01 1 9604-9709 ●
1 BREATHER; AIR 8-94394-859-1 01 1 9604-9709 ●
1 BREATHER; AIR 8-94394-859-1 01 1 9710-9904 ● ●
1 BREATHER; AIR
EXC. EURO2 SPECIFICATION<THN> 		8-94394-859-4 01 1 9905- ●
1 BREATHER; AIR 8-94394-859-4 01 1 9905- ●
1 BREATHER; AIR
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) 		8-94394-777-1 01 1 9604-9709 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 0406- ●
18 CLIP; RUBBER HOSE,AIR BREATHER
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) (B) ID=38 		9-09915-041-1 01 1 9604-9709 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 9604-0010 ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 0011-0405 ● ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 0406- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
EXC. EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 02 1 0406-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 0406-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
EXC. EURO2 SPECIFICATION<THN> L=250 		8-98216-430-0 02 1 1206- ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 02 1 1206- ●
24 CLIP; RUBBER HOSE,VENTILATOR
EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 01 1 9905-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
EURO2 SPECIFICATION<THN> L=250 		8-98216-430-0 01 1 1206- ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 9604-9904 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
EXC. EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 02 1 9905-0010 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 9905-0010 ●
24 CLIP; RUBBER HOSE,VENTILATOR
EXC. EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 02 1 0011-0405 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 0011-0405 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 03 1 0406-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 03 1 1206- ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02828-070-0 01 1 0704-1005 ● ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 1006-1108 ● ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 1109- ● ● ●
63 HOSE; RUBBER,AIR BREATHER 8-94394-471-0 01 1 0406- ●
63 HOSE; RUBBER,AIR BREATHER
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) L=70 		0-02728-070-0 01 1 9604-9709 ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 9604-9709 ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 9710-9809 ● ●
63 HOSE; RUBBER,AIR BREATHER
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB MIDDLE CHASSIS(FT**W*) 		8-94394-471-0 01 1 9604-9709 ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 9604-0010 ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 0011-0405 ● ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 0406- ● ● ●
94 HOSE; BREATHER TO PIPE
EURO2 SPECIFICATION<THN> L=1260 		8-94392-082-0 01 1 9905-0010 ●
94 HOSE; BREATHER TO PIPE
EURO2 SPECIFICATION<THN> L=1260 		8-94392-082-0 01 1 0011-0405 ●
94 HOSE; BREATHER TO PIPE
L=1260 		8-94392-082-0 01 1 0011-0405 ●
94 HOSE; BREATHER TO PIPE
EXC. EURO2 SPECIFICATION<THN> L=1100 		8-94394-785-0 01 1 0406- ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 0406- ● ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9604-9904 ● ●
94 HOSE; BREATHER TO PIPE
EXC. EURO2 SPECIFICATION<THN> L=1100 		8-94394-785-0 01 1 9905-0405 ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9905-0405 ●
94 HOSE; BREATHER TO PIPE
EURO2 SPECIFICATION<THN> L=1260 		8-94392-082-0 01 1 0406- ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 03 1 0406- ●
189 SLEEVE; RUBBER
EXC. EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30 		9-09956-682-0 02 1 0002- ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0002- ●
