Sayfa 0-15 - Isuzu EPC

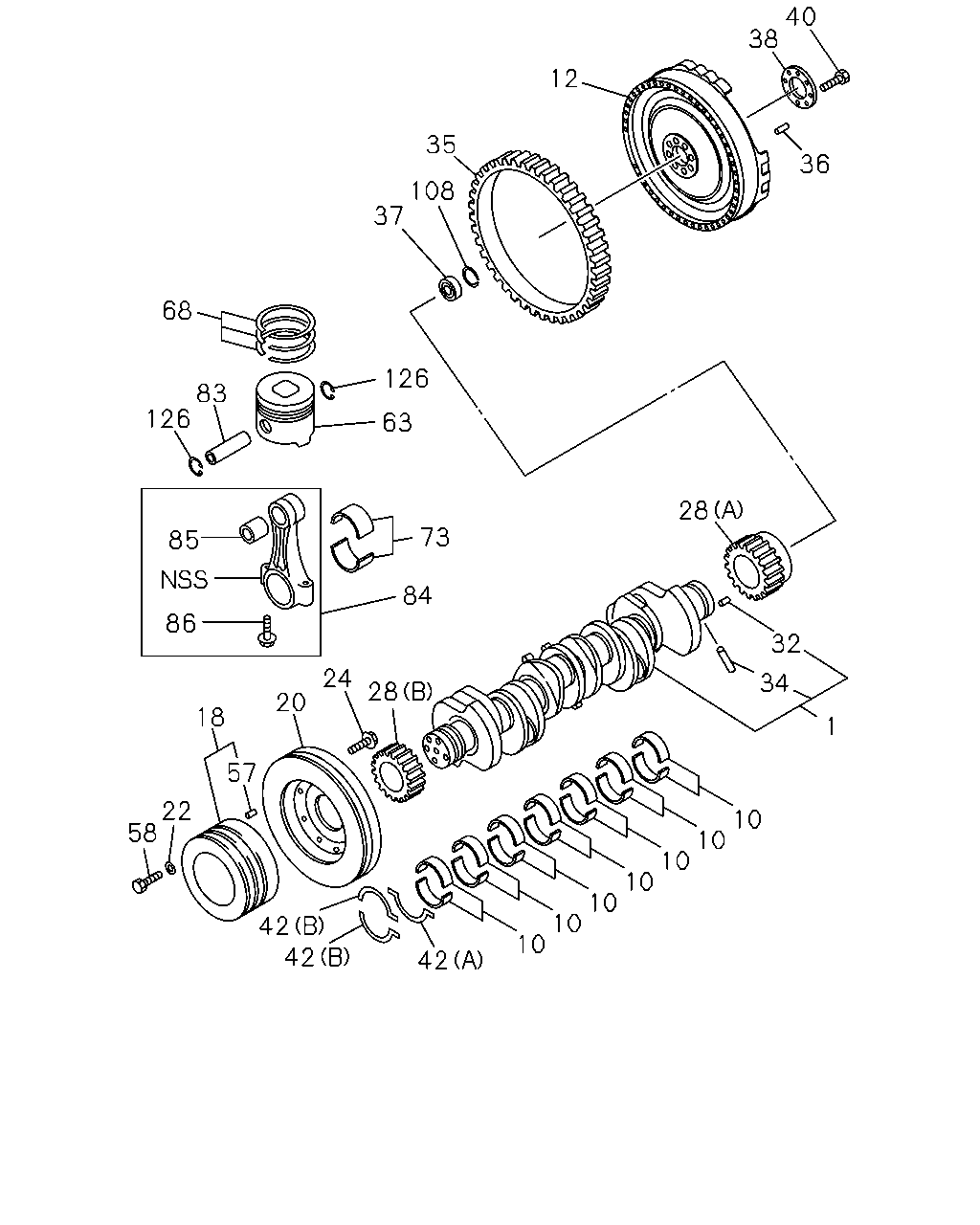

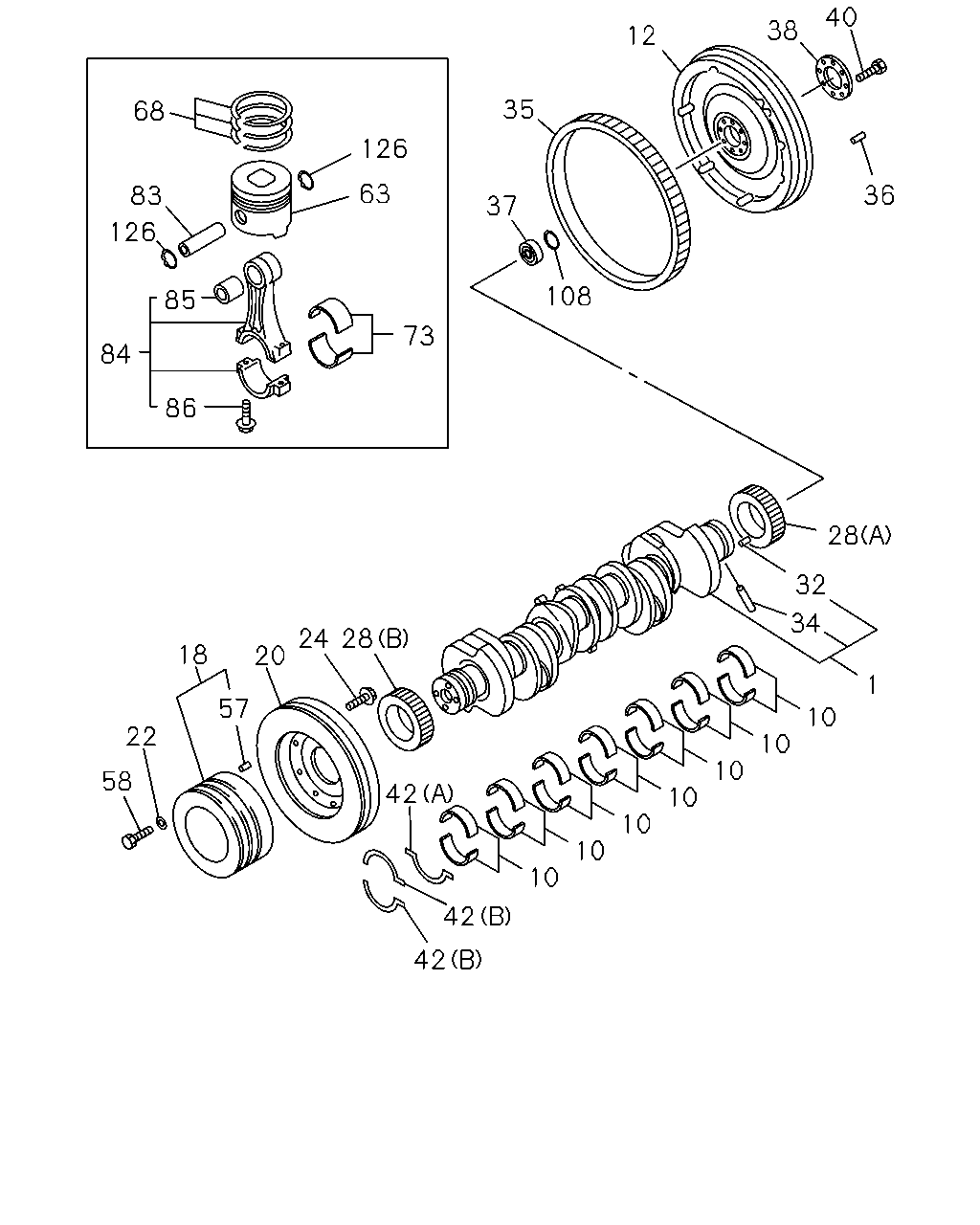

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#36721) — 368 parça

40 38 36 12 35 108 37 126 63 73 84 28 32 34 1 10 10 10 10 10 10 10 42 42 42 58 22 57 18 20 24 28 86 85 126 83 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CRANKSHAFT	8-97603-004-0	01	1	0406-	●
1	CRANKSHAFT	8-94393-291-3	01	1	9604-0010		●	●
1	CRANKSHAFT	8-94393-291-4	01	1	0011-0305		●	●	●
1	CRANKSHAFT	8-97603-003-0	01	1	0306-0405		●	●	●
1	CRANKSHAFT	8-97603-003-1	01	1	0406-1108		●	●
1	CRANKSHAFT	8-97603-003-1	01	1	1109-	●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-0	07	1	0309-0405		●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0406-	●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-0	07	1	0309-0405		●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0406-	●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-0	07	1	0309-0405		●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0406-	●	●	●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	9604-0305		●	●	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	9604-0305		●	●	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	9604-0305		●	●	●
12	FLYWHEEL	8-94390-943-1	01	1	0406-	●
12	FLYWHEEL FSS ALL(FS****)	8-94395-604-1	01	1	9604-9609		●
12	FLYWHEEL FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	8-94395-604-1	01	1	9604-9609		●
12	FLYWHEEL	8-94395-604-1	01	1	9604-9609			●
12	FLYWHEEL FSS ALL(FS****)	8-94390-131-0	01	1	9610-0004		●
12	FLYWHEEL FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	8-94390-131-0	01	1	9610-0004		●
12	FLYWHEEL	8-94390-131-0	01	1	9610-0004			●
12	FLYWHEEL EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94390-131-1	01	1	0005-		●
12	FLYWHEEL	8-94390-131-1	01	1	0005-			●
12	FLYWHEEL FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	8-94393-849-1	01	1	9604-0004		●
12	FLYWHEEL FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5)	8-94393-849-1	01	1	0005-0010		●
12	FLYWHEEL FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5)	8-94393-849-1	01	1	0011-0402		●
12	FLYWHEEL	8-94393-849-1	01	1	0011-0402				●
12	FLYWHEEL NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN>	8-94393-849-1	01	1	0403-0405		●
12	FLYWHEEL EURO2 SPECIFICATION<THN>	8-94393-849-1	01	1	0403-0405		●
12	FLYWHEEL	8-94393-849-1	01	1	0403-0405	●		●
12	FLYWHEEL NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN>	8-94393-849-2	01	1	0406-		●
12	FLYWHEEL EURO2 SPECIFICATION<THN>	8-94393-849-2	01	1	0406-		●
18	PULLEY; CR/SHF AUSTRALIA EQUIPMENT(RR3) 3-GROOVE	8-94394-296-3	01	1	9604-0004		●
18	PULLEY; CR/SHF EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 3-GROOVE	8-94394-296-3	01	1	0005-		●
18	PULLEY; CR/SHF EXC. AUSTRALIA EQUIPMENT(RR3) 3-GROOVE	8-94395-286-3	01	1	9604-0004		●
18	PULLEY; CR/SHF 3-GROOVE	8-94395-286-3	01	1	9604-0004			●
18	PULLEY; CR/SHF EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 3-GROOVE	8-94395-286-3	01	1	0005-1108		●
18	PULLEY; CR/SHF 3-GROOVE	8-94395-286-3	01	1	0005-1108			●
18	PULLEY; CR/SHF 3-GROOVE	8-94395-286-3	01	1	1109-	●	●	●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0011-0405				●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0406-	●
20	DAMPER; CR/SHF AUSTRALIA EQUIPMENT(RR3)	8-94394-354-4	01	1	9604-0004		●
20	DAMPER; CR/SHF EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ)	8-94394-354-5	01	1	0005-0010		●
20	DAMPER; CR/SHF EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ)	8-94394-354-5	01	1	0011-0405		●
20	DAMPER; CR/SHF	8-94394-354-5	01	1	0011-0405				●
20	DAMPER; CR/SHF EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ)	8-94394-354-7	01	1	0406-1110		●
20	DAMPER; CR/SHF	8-94394-354-7	01	1	0406-1110	●
20	DAMPER; CR/SHF EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ)	8-94392-276-3	01	1	1111-		●
20	DAMPER; CR/SHF	8-94392-276-3	01	1	1111-	●
20	DAMPER; CR/SHF EXC. AUSTRALIA EQUIPMENT(RR3)	8-94395-314-2	01	1	9604-0004		●
20	DAMPER; CR/SHF	8-94395-314-2	01	1	9604-0004			●
20	DAMPER; CR/SHF EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ)	8-94395-314-2	01	1	0005-1108		●
20	DAMPER; CR/SHF	8-94395-314-2	01	1	0005-1108			●
20	DAMPER; CR/SHF	8-94395-314-3	01	1	1109-	●	●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9604-0010		●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0011-0405		●	●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0406-	●	●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9604-0010		●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0011-0405		●	●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0406-0512	●	●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-	●	●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9604-0010		●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0011-0405		●	●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0406-	●	●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9604-0010		●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0011-0405		●	●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0406-	●	●	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9604-0010		●	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0011-0405		●	●	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0406-	●	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9604-0010		●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0011-0405		●	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0406-	●	●	●
35	GEAR; RING FSS ALL(FS****) ID=361 Z=129	8-94393-132-0	01	1	9604-0004		●
35	GEAR; RING FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=361 Z=129	8-94393-132-0	01	1	9604-0004		●
35	GEAR; RING ID=361 Z=129	8-94393-132-0	01	1	9604-0004			●
35	GEAR; RING EXC. NEW ZEALAND EQUIPMENT(PK5) ID=361 Z=129	8-94393-132-0	01	1	0005-		●
35	GEAR; RING ID=361 Z=129	8-94393-132-0	01	1	0005-			●
35	GEAR; RING FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) Z=140	8-94396-784-0	01	1	9604-0004		●
35	GEAR; RING FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5) Z=140	8-94396-784-0	01	1	0005-0010		●
35	GEAR; RING FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5) Z=140	8-94396-784-0	01	1	0011-0402		●
35	GEAR; RING Z=140	8-94396-784-0	01	1	0011-0402				●
35	GEAR; RING NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> Z=140	8-94396-784-0	01	1	0403-0405		●
35	GEAR; RING EURO2 SPECIFICATION<THN> Z=140	8-94396-784-0	01	1	0403-0405		●
35	GEAR; RING Z=140	8-94396-784-0	01	1	0403-0405	●		●
35	GEAR; RING NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> Z=140	8-94396-784-1	01	1	0406-		●
35	GEAR; RING EURO2 SPECIFICATION<THN> Z=140	8-94396-784-1	01	1	0406-		●
35	GEAR; RING Z=140	8-94396-784-1	01	1	0406-	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9604-0010		●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0011-0405		●	●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0406-	●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9604-9901		●	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	9902-0010		●	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0011-0405		●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0406-	●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	1-87610-157-0	01	1	9902-0010		●	●
37	BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	1-87610-157-0	01	1	0011-0405		●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	1-87610-157-0	01	1	0406-	●	●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9604-0010		●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0011-0405		●	●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0406-	●	●	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	9604-0010		●	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0011-0405		●	●	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0406-	●	●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9604-0010		●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0011-0405		●	●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0406-0703	●	●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-	●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9604-0010		●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0011-0405		●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0406-0703	●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-	●	●	●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9604-9612		●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	9701-0010		●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0011-0405		●	●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0406-	●	●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9604-0010		●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0011-0405		●	●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0406-0512	●	●	●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-	●	●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-895-1	06	1	0406-	●
63	PISTON ALSO INCLUDED IN LINER SET. AUSTRALIA EQUIPMENT(RR3) NON GRADE	8-94391-598-0	06	1	9604-9608		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-0	06	1	9609-9904		●	●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-1	06	1	9905-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-1	06	1	9905-			●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. AUSTRALIA EQUIPMENT(RR3) ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-599-0	06	1	9604-9608		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-599-0	06	1	9604-9608			●
63	PISTON ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<THN> NON GRADE	8-97600-242-0	06	1	9905-0010		●
63	PISTON ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN LINER SET. NON GRADE	8-97600-242-0	06	1	0011-0405		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97600-242-0	06	1	0011-0405				●
63	PISTON ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<THN> NON GRADE	8-97600-242-1	06	1	0406-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	0406-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<THN>	8-94392-128-0	06	1	9905-0010		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN LINER SET.	8-94392-128-3	06	1	0011-0405		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94392-128-3	06	1	0011-0405				●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<THN>	8-94392-128-3	06	1	0406-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-468-2	06	1	9604-9607		●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-0	06	1	9608-9904		●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN LINER SET.	8-94390-799-2	06	1	9905-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-2	06	1	9905-			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	0406-0701	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	0406-0701	●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	9604-0010		●	●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	0011-0405		●	●	●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	0406-1108		●	●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	12	1	1109-	●	●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98064-281-0	06	1	0702-0706	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98064-282-0	06	1	0702-0706	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0707-	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0707-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0406-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	9604-0010		●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	0011-0405		●	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	0406-1108		●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	1109-	●	●	●
84	ROD ASM; CONN	8-94399-661-2	06	1	0406-0706	●
84	ROD ASM; CONN	8-98018-425-3	06	1	0707-	●
84	ROD ASM; CONN	8-94396-394-2	06	1	9604-0010		●	●
84	ROD ASM; CONN	8-94396-394-3	06	1	0011-0405		●	●	●
84	ROD ASM; CONN	8-94396-394-7	06	1	0406-1108		●	●
84	ROD ASM; CONN	8-94396-394-8	06	1	1109-	●	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	06	1	0906-1108		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	06	1	1109-	●	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0406-0706	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0707-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	9604-0010		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	0011-0405		●	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	0406-0805		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98075-233-0	06	1	0806-0905		●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9604-0010		●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0011-0405		●	●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0406-0905	●	●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0906-0906	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0906-1004	●	●	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-	●	●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9604-0010		●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0011-0405		●	●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0406-	●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0406-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	12	1	9604-0010		●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	12	1	0011-0405		●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	12	1	0406-1108		●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	12	1	1109-	●	●	●

40 36 38 12 35 37 108 126 63 73 68 83 126 85 84 86 18 22 58 57 20 24 28 42 42 42 10 10 10 10 10 10 10 1 34 32 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CRANKSHAFT	8-97603-004-0	01	1	0406-	●
1	CRANKSHAFT	8-94393-291-3	01	1	9604-0010		●	●
1	CRANKSHAFT	8-94393-291-4	01	1	0011-0305		●	●	●
1	CRANKSHAFT	8-97603-003-0	01	1	0306-0405		●	●	●
1	CRANKSHAFT	8-97603-003-1	01	1	0406-1108		●	●
1	CRANKSHAFT	8-97603-003-1	01	1	1109-	●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-0	07	1	0309-0405		●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0406-	●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-0	07	1	0309-0405		●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0406-	●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-0	07	1	0309-0405		●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0406-	●	●	●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	9604-0305		●	●	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	9604-0305		●	●	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	9604-0305		●	●	●
12	FLYWHEEL	8-94390-943-1	01	1	0406-	●
12	FLYWHEEL FSS ALL(FS****)	8-94395-604-1	01	1	9604-9609		●
12	FLYWHEEL FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	8-94395-604-1	01	1	9604-9609		●
12	FLYWHEEL	8-94395-604-1	01	1	9604-9609			●
12	FLYWHEEL FSS ALL(FS****)	8-94390-131-0	01	1	9610-0004		●
12	FLYWHEEL FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	8-94390-131-0	01	1	9610-0004		●
12	FLYWHEEL	8-94390-131-0	01	1	9610-0004			●
12	FLYWHEEL EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94390-131-1	01	1	0005-		●
12	FLYWHEEL	8-94390-131-1	01	1	0005-			●
12	FLYWHEEL FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	8-94393-849-1	01	1	9604-0004		●
12	FLYWHEEL FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5)	8-94393-849-1	01	1	0005-0010		●
12	FLYWHEEL FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5)	8-94393-849-1	01	1	0011-0402		●
12	FLYWHEEL	8-94393-849-1	01	1	0011-0402				●
12	FLYWHEEL NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN>	8-94393-849-1	01	1	0403-0405		●
12	FLYWHEEL EURO2 SPECIFICATION<THN>	8-94393-849-1	01	1	0403-0405		●
12	FLYWHEEL	8-94393-849-1	01	1	0403-0405	●		●
12	FLYWHEEL NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN>	8-94393-849-2	01	1	0406-		●
12	FLYWHEEL EURO2 SPECIFICATION<THN>	8-94393-849-2	01	1	0406-		●
18	PULLEY; CR/SHF AUSTRALIA EQUIPMENT(RR3) 3-GROOVE	8-94394-296-3	01	1	9604-0004		●
18	PULLEY; CR/SHF EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 3-GROOVE	8-94394-296-3	01	1	0005-		●
18	PULLEY; CR/SHF EXC. AUSTRALIA EQUIPMENT(RR3) 3-GROOVE	8-94395-286-3	01	1	9604-0004		●
18	PULLEY; CR/SHF 3-GROOVE	8-94395-286-3	01	1	9604-0004			●
18	PULLEY; CR/SHF EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 3-GROOVE	8-94395-286-3	01	1	0005-1108		●
18	PULLEY; CR/SHF 3-GROOVE	8-94395-286-3	01	1	0005-1108			●
18	PULLEY; CR/SHF 3-GROOVE	8-94395-286-3	01	1	1109-	●	●	●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0011-0405				●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0406-	●
20	DAMPER; CR/SHF AUSTRALIA EQUIPMENT(RR3)	8-94394-354-4	01	1	9604-0004		●
20	DAMPER; CR/SHF EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ)	8-94394-354-5	01	1	0005-0010		●
20	DAMPER; CR/SHF EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ)	8-94394-354-5	01	1	0011-0405		●
20	DAMPER; CR/SHF	8-94394-354-5	01	1	0011-0405				●
20	DAMPER; CR/SHF EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ)	8-94394-354-7	01	1	0406-1110		●
20	DAMPER; CR/SHF	8-94394-354-7	01	1	0406-1110	●
20	DAMPER; CR/SHF EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ)	8-94392-276-3	01	1	1111-		●
20	DAMPER; CR/SHF	8-94392-276-3	01	1	1111-	●
20	DAMPER; CR/SHF EXC. AUSTRALIA EQUIPMENT(RR3)	8-94395-314-2	01	1	9604-0004		●
20	DAMPER; CR/SHF	8-94395-314-2	01	1	9604-0004			●
20	DAMPER; CR/SHF EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ)	8-94395-314-2	01	1	0005-1108		●
20	DAMPER; CR/SHF	8-94395-314-2	01	1	0005-1108			●
20	DAMPER; CR/SHF	8-94395-314-3	01	1	1109-	●	●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9604-0010		●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0011-0405		●	●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0406-	●	●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9604-0010		●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0011-0405		●	●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0406-0512	●	●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-	●	●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9604-0010		●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0011-0405		●	●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0406-	●	●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9604-0010		●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0011-0405		●	●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0406-	●	●	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9604-0010		●	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0011-0405		●	●	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0406-	●	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9604-0010		●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0011-0405		●	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0406-	●	●	●
35	GEAR; RING FSS ALL(FS****) ID=361 Z=129	8-94393-132-0	01	1	9604-0004		●
35	GEAR; RING FTS ALL(FT****) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=361 Z=129	8-94393-132-0	01	1	9604-0004		●
35	GEAR; RING ID=361 Z=129	8-94393-132-0	01	1	9604-0004			●
35	GEAR; RING EXC. NEW ZEALAND EQUIPMENT(PK5) ID=361 Z=129	8-94393-132-0	01	1	0005-		●
35	GEAR; RING ID=361 Z=129	8-94393-132-0	01	1	0005-			●
35	GEAR; RING FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) Z=140	8-94396-784-0	01	1	9604-0004		●
35	GEAR; RING FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5) Z=140	8-94396-784-0	01	1	0005-0010		●
35	GEAR; RING FTS ALL(FT****) NEW ZEALAND EQUIPMENT(PK5) Z=140	8-94396-784-0	01	1	0011-0402		●
35	GEAR; RING Z=140	8-94396-784-0	01	1	0011-0402				●
35	GEAR; RING NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> Z=140	8-94396-784-0	01	1	0403-0405		●
35	GEAR; RING EURO2 SPECIFICATION<THN> Z=140	8-94396-784-0	01	1	0403-0405		●
35	GEAR; RING Z=140	8-94396-784-0	01	1	0403-0405	●		●
35	GEAR; RING NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> Z=140	8-94396-784-1	01	1	0406-		●
35	GEAR; RING EURO2 SPECIFICATION<THN> Z=140	8-94396-784-1	01	1	0406-		●
35	GEAR; RING Z=140	8-94396-784-1	01	1	0406-	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9604-0010		●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0011-0405		●	●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0406-	●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9604-9901		●	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	9902-0010		●	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0011-0405		●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0406-	●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	1-87610-157-0	01	1	9902-0010		●	●
37	BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	1-87610-157-0	01	1	0011-0405		●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	1-87610-157-0	01	1	0406-	●	●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9604-0010		●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0011-0405		●	●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0406-	●	●	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	9604-0010		●	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0011-0405		●	●	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0406-	●	●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9604-0010		●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0011-0405		●	●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0406-0703	●	●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-	●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9604-0010		●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0011-0405		●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0406-0703	●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-	●	●	●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9604-9612		●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	9701-0010		●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0011-0405		●	●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0406-	●	●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9604-0010		●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0011-0405		●	●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0406-0512	●	●	●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-	●	●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-895-1	06	1	0406-	●
63	PISTON ALSO INCLUDED IN LINER SET. AUSTRALIA EQUIPMENT(RR3) NON GRADE	8-94391-598-0	06	1	9604-9608		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-0	06	1	9609-9904		●	●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-1	06	1	9905-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-1	06	1	9905-			●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. AUSTRALIA EQUIPMENT(RR3) ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-599-0	06	1	9604-9608		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-599-0	06	1	9604-9608			●
63	PISTON ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<THN> NON GRADE	8-97600-242-0	06	1	9905-0010		●
63	PISTON ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN LINER SET. NON GRADE	8-97600-242-0	06	1	0011-0405		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97600-242-0	06	1	0011-0405				●
63	PISTON ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<THN> NON GRADE	8-97600-242-1	06	1	0406-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	0406-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<THN>	8-94392-128-0	06	1	9905-0010		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN LINER SET.	8-94392-128-3	06	1	0011-0405		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94392-128-3	06	1	0011-0405				●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<THN>	8-94392-128-3	06	1	0406-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-468-2	06	1	9604-9607		●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-0	06	1	9608-9904		●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN LINER SET.	8-94390-799-2	06	1	9905-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-2	06	1	9905-			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	0406-0701	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	0406-0701	●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	9604-0010		●	●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	0011-0405		●	●	●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	0406-1108		●	●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	12	1	1109-	●	●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98064-281-0	06	1	0702-0706	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98064-282-0	06	1	0702-0706	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0707-	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0707-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0406-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	9604-0010		●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	0011-0405		●	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	0406-1108		●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	1109-	●	●	●
84	ROD ASM; CONN	8-94399-661-2	06	1	0406-0706	●
84	ROD ASM; CONN	8-98018-425-3	06	1	0707-	●
84	ROD ASM; CONN	8-94396-394-2	06	1	9604-0010		●	●
84	ROD ASM; CONN	8-94396-394-3	06	1	0011-0405		●	●	●
84	ROD ASM; CONN	8-94396-394-7	06	1	0406-1108		●	●
84	ROD ASM; CONN	8-94396-394-8	06	1	1109-	●	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	06	1	0906-1108		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	06	1	1109-	●	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0406-0706	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0707-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	9604-0010		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	0011-0405		●	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	0406-0805		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98075-233-0	06	1	0806-0905		●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9604-0010		●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0011-0405		●	●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0406-0905	●	●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0906-0906	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0906-1004	●	●	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-	●	●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9604-0010		●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0011-0405		●	●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0406-	●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0406-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	12	1	9604-0010		●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	12	1	0011-0405		●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	12	1	0406-1108		●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	12	1	1109-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
